Product Technical Specification & Customer Design Guidelines

Q52 Omni Wireless CPU

Reference: WI_DEV_ASSM_PTS_001

Revision: 004

Date: December 01, 2008

Technical Specification

Q52 Omni Wireless CPU

Product Technical Specification & Customer Design Guidelines

Q52 Omni Product

Reference: WI_DEV_ASSM_PTS_001

Revision:

Date:

004 December 01, 2008

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.

Page 1 / 78

Q52 Omni Product

Technical Specification

Document History

Level Date List of revisions

001 March 5, 2008 Creation Wavecom

002 August 26, 2008 Update Wavecom

003 November 14, 2008 Addition of the “Declaration of Conformity” Wavecom

004 December 1, 2008 Update Wavecom

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 2 / 78

Q52 Omni Product

Technical Specification

Overview

This document defines and specifies the Q52 Omni GSM/Orbcomm dual mode transceiver.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 3 / 78

Q52 Omni Product

Technical Specification

Table of Contents

1 References............................................................................................ 11

1.1 Reference Documents ........................................................................... 11

1.1.1 Wavecom Reference Documentation.............................................. 11

1.1.2 General Reference Documents....................................................... 11

1.2 List of Abbreviations ............................................................................. 12

2 General Description............................................................................... 15

2.1 General Information .............................................................................. 15

2.1.1 Overall Dimensions........................................................................ 15

2.1.2 Environment and Mechanics .......................................................... 15

2.1.3 Transceiver Features..................................................................... 15

2.1.4 Primary Interfaces......................................................................... 16

2.1.5 Operating System .......................................................................... 16

2.2 Functional Description .......................................................................... 17

2.2.1 GSM Functionalities ...................................................................... 18

2.2.2 Orbcomm Functionality.................................................................. 18

2.3 Operating System.................................................................................. 18

3 Interfaces ............................................................................................. 19

3.1 System Connector................................................................................. 19

3.2 Power Supply ........................................................................................ 20

3.2.1 Power Supply Description .............................................................. 20

3.2.2 Power Consumption....................................................................... 22

3.2.3 Recommendations for Less Consumption ..................................... 29

3.3 Electrical Information for Digital I/O....................................................... 30

3.4 Serial Interface ..................................................................................... 31

3.4.1 SPI Bus ......................................................................................... 31

3.4.2 I2C Bus ......................................................................................... 33

3.5 Main Serial Link (UART1)....................................................................... 34

3.5.1 Features........................................................................................ 34

3.5.2 Pin Description of UART1 Interface................................................ 35

3.6 Auxiliary Serial Link (UART2)................................................................. 38

3.6.1 Features........................................................................................ 38

3.7 General Purpose Input/Output................................................................ 39

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 4 / 78

Q52 Omni Product

Technical Specification

Analog to Digital Converters.................................................................. 40

3.8

3.8.1 Features........................................................................................ 40

3.8.2 Pins Description ............................................................................ 40

3.9 Digital to Analog Converter.................................................................... 41

3.9.1 Features........................................................................................ 41

3.9.2 Pin Description .............................................................................. 41

3.10 Analog Audio Interface .......................................................................... 42

3.10.1 Microphone Input .......................................................................... 42

3.10.2 Speaker Output Characteristics ..................................................... 44

3.10.3 Design Recommendation ............................................................... 45

3.10.4 Buzzer Output................................................................................ 48

3.11 ~ON / OFF Signal ................................................................................... 50

3.11.1 Features........................................................................................ 50

3.11.2 Pin Description .............................................................................. 50

3.11.3 Application.................................................................................... 50

3.12 External Interrupt.................................................................................. 55

3.13 BOOT Signal.......................................................................................... 55

3.13.1 Features........................................................................................ 56

3.13.2 Pin Description .............................................................................. 56

3.13.3 Application.................................................................................... 56

3.14 VREF_2V8 Output .................................................................................. 57

3.15 BAT-RTC (Backup Battery) .................................................................... 57

3.15.1 Interface Description..................................................................... 57

3.16 FLASH-LED Signal ................................................................................. 58

3.17 GPS Functionality.................................................................................. 59

3.17.1 Features (eRide Documentation Extract: For Information Only)....... 59

3.17.2 Performances (eRide Documentation Extract: For Information Only)59

3.18 RF Interface .......................................................................................... 65

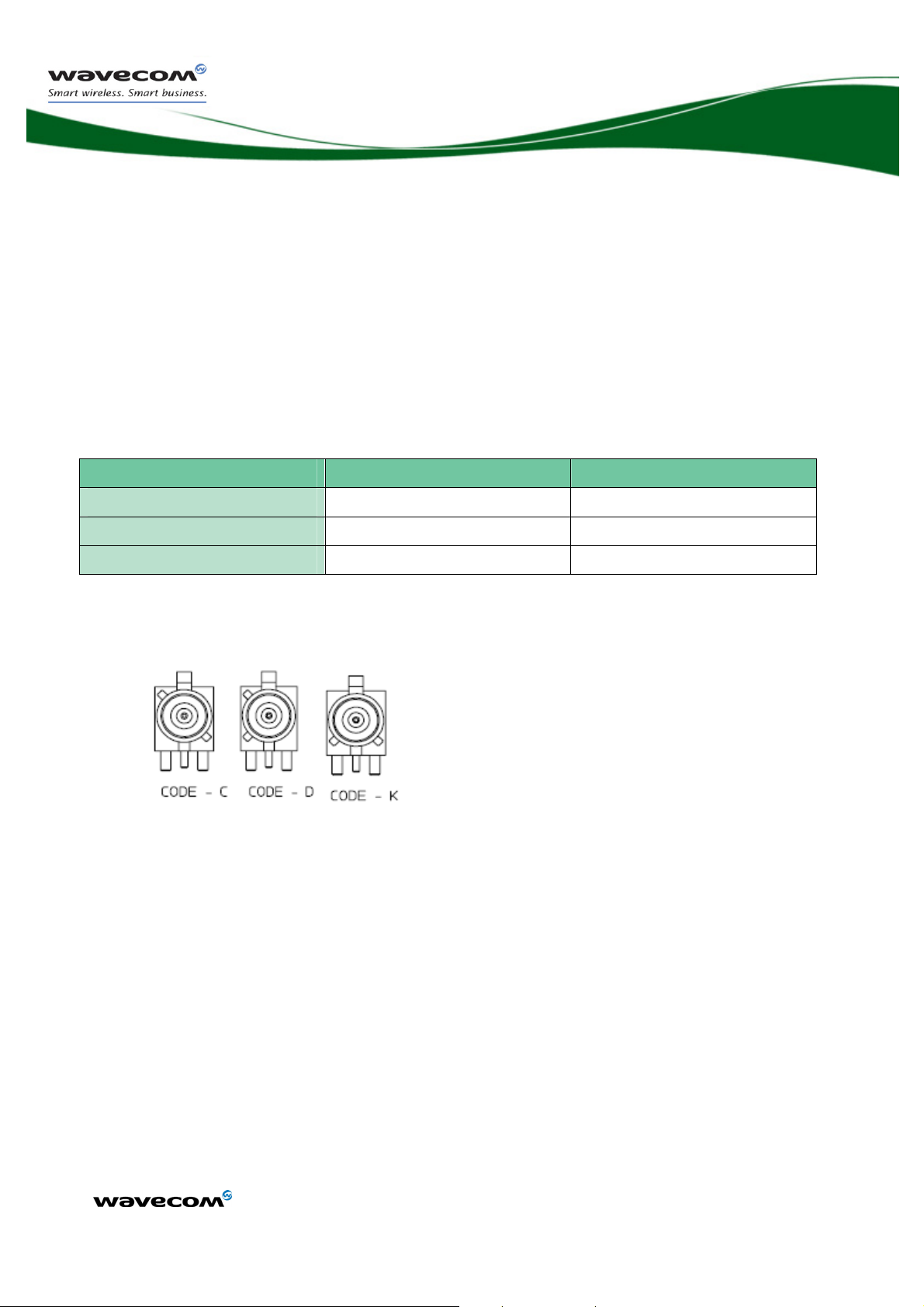

3.18.1 RF Connections ............................................................................. 65

3.18.2 RF Performance............................................................................. 65

3.18.3 Transmitter Parameters................................................................. 66

3.18.4 Antenna Specifications ................................................................. 66

4 Technical Specifications ....................................................................... 67

4.1 Environmental Specifications ................................................................ 67

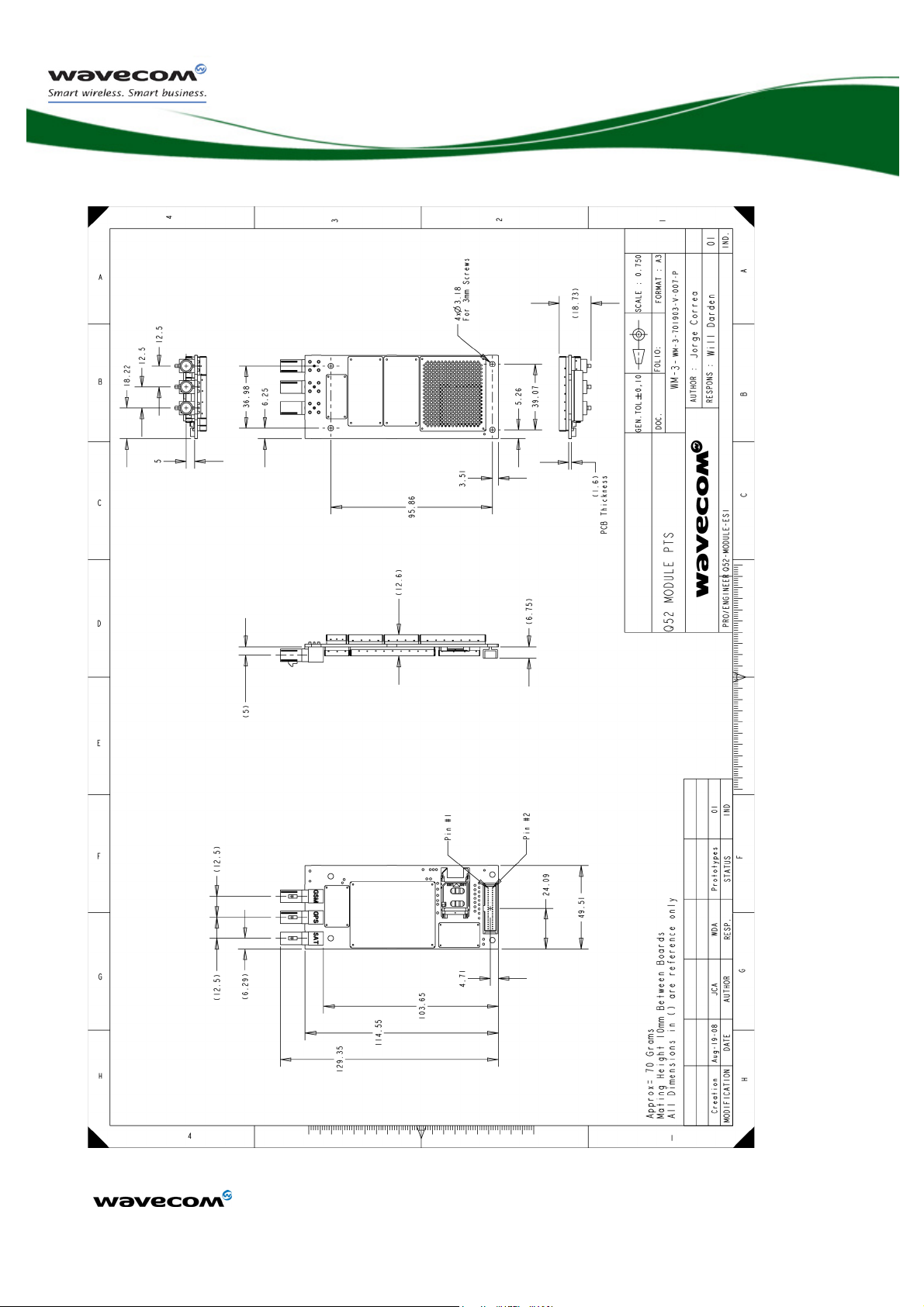

4.2 Mechanical Specifications..................................................................... 69

4.3 Antenna Cable....................................................................................... 70

4.4 GSM Antenna ........................................................................................ 70

5 Appendix............................................................................................... 71

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 5 / 78

Q52 Omni Product

Technical Specification

Standards and Recommendations.......................................................... 71

5.1

5.2 Declaration of Conformity...................................................................... 75

5.3 Safety Recommendations (for Information Only) .................................... 76

5.3.1 RF Safety ...................................................................................... 76

5.3.2 General Safety............................................................................... 77

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 6 / 78

Q52 Omni Product

Technical Specification

List of Figures

Figure 1: Top Level Architecture ........................................................................... 17

Figure 2: Power supply during burst emission...................................................... 21

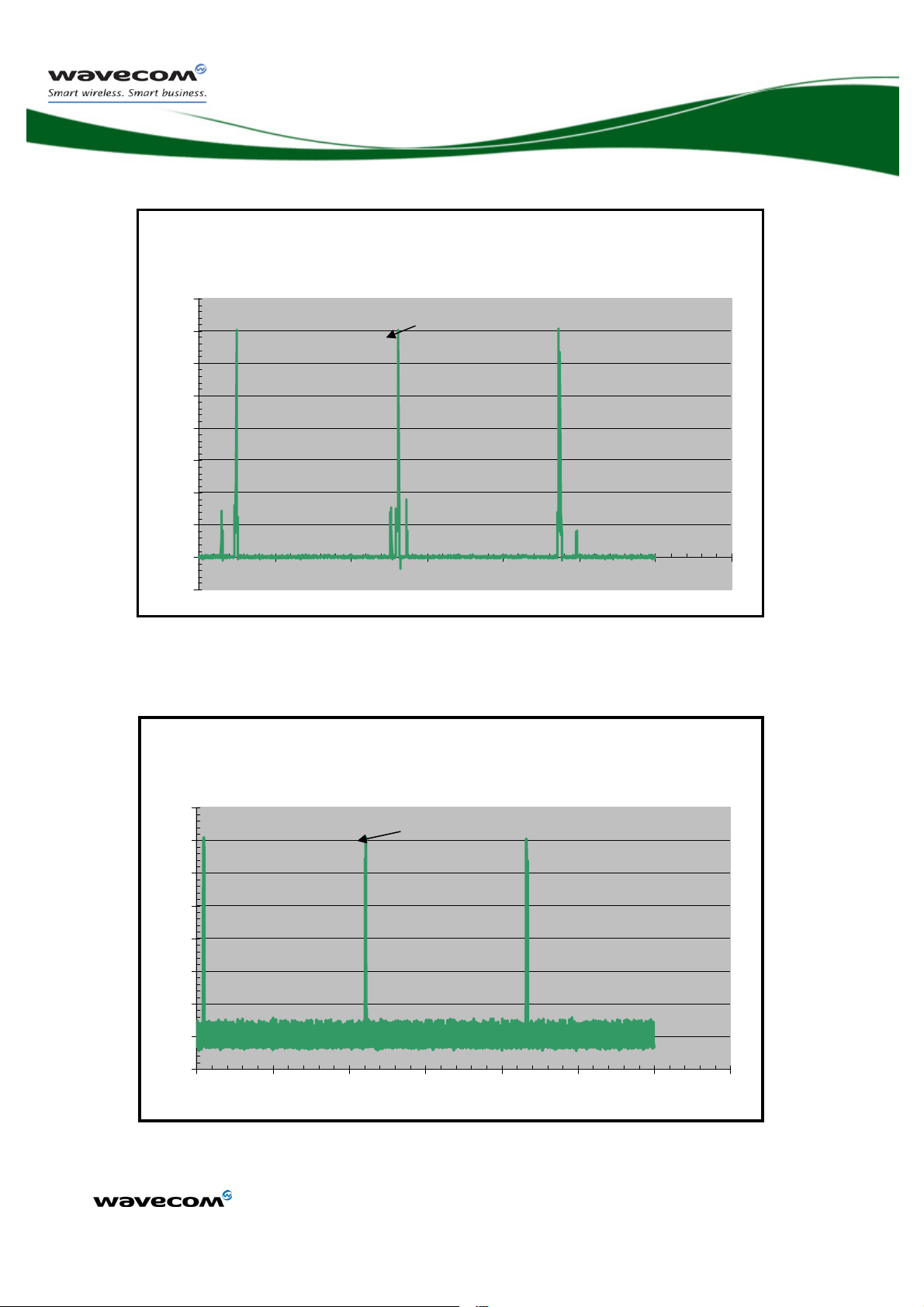

Figure 3: Connected Mode Current Waveform ...................................................... 25

Figure 4: Slow Idle Mode Current Waveform ........................................................ 26

Figure 5: Fast Idle Mode Current Waveform ......................................................... 26

Figure 6: Transfer Mode Class 10 Current Waveform ........................................... 27

Figure 7: SPI Timing diagrams, Mode 0, Master, 4 wires ..................................... 31

Figure 8: I²C Timing diagrams, Master ................................................................. 33

Figure 9: Example of V24/CMOS serial link implementation for UART1................. 36

Figure 10: Example of full modem V24/CMOS serial link implementation for UART1

....................................................................................................................... 37

Figure 11: Example of MIC input connection with LC filter ................................... 43

Figure 12: Example of MIC input connection without LC filter .............................. 43

Figure 13: Example of Speaker connection ........................................................... 45

Figure 14: Capacitor near Microphone.................................................................. 46

Figure 15: Audio track design ............................................................................... 47

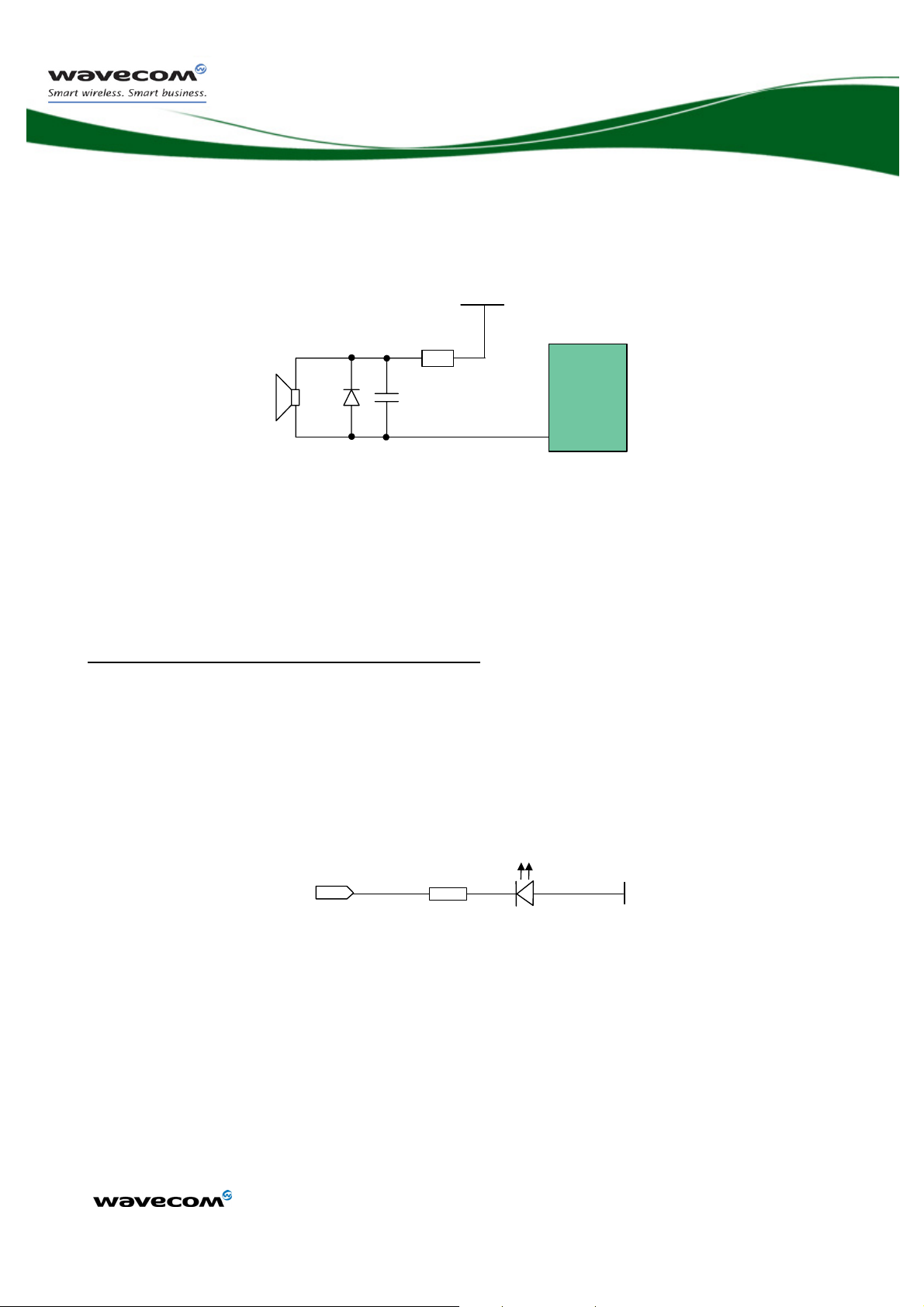

Figure 16: Example of buzzer implementation ...................................................... 49

Figure 17: Example of LED driven by the BUZZ-OUT output ................................. 49

Figure 18 : Example of ON/~OFF pin connection .................................................. 50

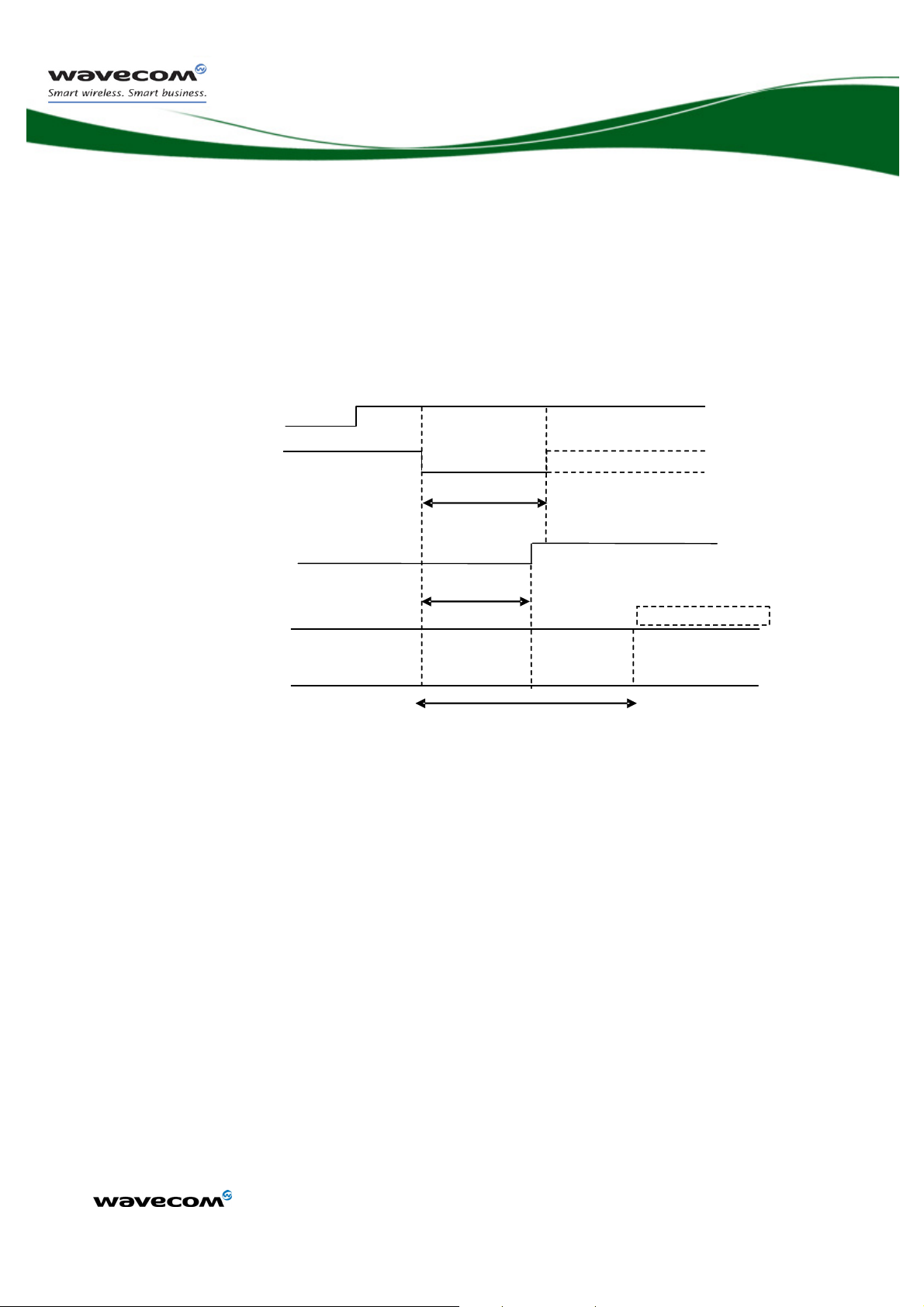

Figure 19 : Power-ON sequence (no PIN code activated) ...................................... 51

Figure 20 : Power-OFF sequence.......................................................................... 54

Figure 21: Boot Selection Application Example ..................................................... 56

Figure 22: Real Time Clock power supply ............................................................. 57

Figure 23: GPS TTFF, Hot Start Configuration ...................................................... 60

Figure 24: GPS TTFF, Warm Start Configuration .................................................. 61

Figure 25: GPS TTFF, Simulator Cold Start Configuration ..................................... 61

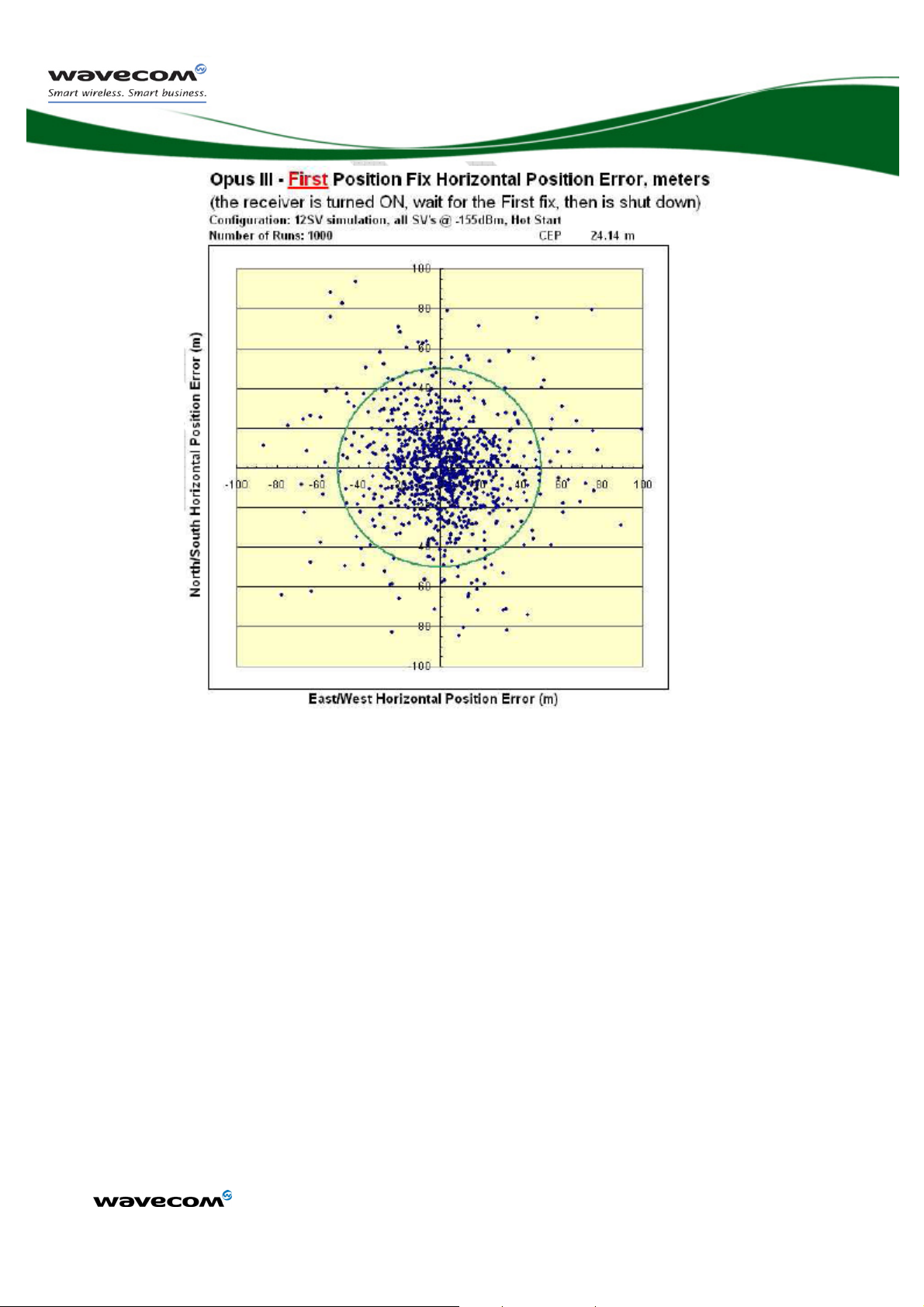

Figure 26: First Position Fix Accuracy Chart 01 .................................................... 62

Figure 27: First Position Fix Accuracy Chart 02 .................................................... 63

Figure 28: First Position Fix Accuracy Chart 03 .................................................... 64

Figure 29: Environmental classes ......................................................................... 68

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 7 / 78

Q52 Omni Product

Technical Specification

List of Tables

Table 1: GSM /GPRS Frequency............................................................................ 18

Table 2: System connector pinout ........................................................................ 20

Table 3: Power Supply Voltage ............................................................................. 21

Table 4: GSM power consumption without Open AT® processing ....................... 23

Table 5: Power consumption with Dhrystone Open AT® application .................... 24

Table 6: Power Supply Pin-out ............................................................................. 28

Table 7: CMOS Output / Input Electrical Characteristics for 2.8 volt signals.......... 30

Table 8: CMOS Output / Input Electrical Characteristics for 1.8 volt signals.......... 30

Table 9: Open Drain Electrical Characteristics....................................................... 30

Table 10: SPI Bus AC characteristics .................................................................... 32

Table 11: SPI Bus Configuration ........................................................................... 32

Table 12: SPI Bus Pin description ......................................................................... 32

Table 13: I²C Bus AC characteristics..................................................................... 34

Table 14: IC Bus Pin Description........................................................................... 34

Table 15: UART1 Pin Description.......................................................................... 35

Table 16: UART2 Pin Description.......................................................................... 38

Table 17: GPIOs Pin Description ........................................................................... 39

Table 18: ADCs Electrical Characteristics.............................................................. 40

Table 19: ADCs Pin Description ............................................................................ 40

Table 20: DAC Electrical Characteristics ............................................................... 41

Table 21: DAC Pin Description.............................................................................. 41

Table 22: MIC2 Pin Description ............................................................................ 42

Table 23: MIC2 Electrical Characteristics .............................................................. 42

Table 24: SPK Pin Description .............................................................................. 44

Table 25: SPK Electrical Characteristics ................................................................ 44

Table 26: Audio filtering Examples with Murata Components .............................. 47

Table 27: PWM/Buzzer Output Electrical Characteristics ...................................... 48

Table 28: PWM/Buzzer Output Pin Description..................................................... 48

Table 29: External Interrupt Pin description .......................................................... 55

Table 30: External Interrupt Electrical Characteristics ........................................... 55

Table 31: Boot Signal Mode ................................................................................. 56

Table 32: Boot Pin description .............................................................................. 56

Table 33: VREF_2V8 Pin Description ..................................................................... 57

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 8 / 78

Q52 Omni Product

Technical Specification

Table 34: VREF_2V8 Electrical Characteristics....................................................... 57

Table 35: Bat-RTC Pin Description........................................................................ 58

Table 36: Bat-RTC Electrical Characteristics ......................................................... 58

Table 37: Flash-LED Status................................................................................... 58

Table 38: Flash-LED Pin Description ..................................................................... 59

Table 39: Flash-LED Electrical Characteristics....................................................... 59

Table 40: GPS Functionality Performances ........................................................... 60

Table 41: GSM Antenna Specifications................................................................. 66

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 9 / 78

Q52 Omni Product

Technical Specification

Cautions

This platform contains a modular transmitter. This device is used for wireless applications. Note that all electronics parts and elements are ESD sensitive.

Information provided herein by WAVECOM is accurate and reliable. However no responsibility is assumed for its use and any of such WAVECOM information is herein provided “as is” without any warranty of any kind, whether express or implied.

General information about WAVECOM and its range of products is available at the following internet address:

http://www.wavecom.com

Trademarks

WIRELESS” and certain other trademarks and logos appearing on this document, are filed or registered trademarks of Wavecom S.A. in France and/or in other countries. All other company and/or product names mentioned may be filed or registered trademarks of their respective owners.

, WAVECOM®, Wireless Microprocessor®, Wireless CPU®, Open AT®

, ,

, inSIM®, “YOU MAKE IT, WE MAKE IT

This manual is copyrighted by WAVECOM with all rights reserved. No part of this manual may be reproduced, modified or disclosed to third parties in any form without the prior written permission of WAVECOM.

No Warranty/No Liability

This document is provided “as is”. Wavecom makes no warranties of any kind, either expressed or implied, including any implied warranties of merchantability, fitness for a particular purpose, or noninfringement. The recipient of the documentation shall endorse all risks arising from its use. In no event shall Wavecom be liable for any incidental, direct, indirect, consequential, or punitive damages arising from the use or inadequacy of the documentation, even if Wavecom has been advised of the possibility of such damages and to the extent permitted by law.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 10 / 78

Q52 Omni Product

Technical Specification

1 References

1.1 Reference Documents

For more details, several reference documents may be consulted. The Wavecom reference documents are provided in the Wavecom document package, contrary to the general reference documents which are not authored by Wavecom.

1.1.1 Wavecom Reference Documentation

[1] Wireless Microprocessor

Reference: WM_DEV_WUP_PTS_004

[2] WMP100 Development Kit User Guide

WMP100 Technical Specification

Reference: WM_DEV_WUP_UGD_001

[3] AT Command Interface Guide for Open AT

Firmware v7.0

Reference: WM_DEV_OAT_UGD_059

1.1.2 General Reference Documents

[4] “I²C Bus Specification”, Version 2.0, Philips Semiconductor 1998

[5] ISO 7816-3 Standard

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 11 / 78

1.2 List of Abbreviations

Abbreviation Definition

AC Alternating Current

ADC Analog to Digital Converter

A/D Analog to Digital conversion

AF Audio-Frequency

AT ATtention (prefix for modem commands)

AUX AUXiliary

CAN Controller Area Network

CB Cell Broadcast

CEP Circular Error Probable

CLK CLocK

CMOS Complementary Metal Oxide Semiconductor

Q52 Omni Product

Technical Specification

CS Coding Scheme

CTS Clear To Send

DAC Digital to Analog Converter

dB Decibel

DC Direct Current

DCD Data Carrier Detect

DCE Data Communication Equipment

DCS Digital Cellular System

DR Dynamic Range

DSR Data Set Ready

DTE Data Terminal Equipment

DTR Data Terminal Ready

EFR Enhanced Full Rate

E-GSM Extended GSM

EMC ElectroMagnetic Compatibility

EMI ElectroMagnetic Interference

EMS Enhanced Message Service

EN ENable

ESD ElectroStatic Discharges

FIFO First In First Out

FR Full Rate

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 12 / 78

Abbreviation Definition

FTA Full Type Approval

GND GrouND

GPI General Purpose Input

GPC General Purpose Connector

GPIO General Purpose Input Output

GPO General Purpose Output

GPRS General Packet Radio Service

GPS Global Positioning System

GSM Global System for Mobile communications

HR Half Rate

I/O Input / Output

LED Light Emitting Diode

LNA Low Noise Amplifier

Q52 Omni Product

Technical Specification

MAX MAXimum

MIC MICrophone

MIN MINimum

MMS Multimedia Message Service

MO Mobile Originated

MT Mobile Terminated

na Not Applicable

NF Noise Factor

NMEA National Marine Electronics Association

NOM NOMinal

NTC Negative Temperature Coefficient

PA Power Amplifier

Pa Pascal (for speaker sound pressure measurements)

PBCCH Packet Broadcast Control CHannel

PC Personal Computer

PCB Printed Circuit Board

PDA Personal Digital Assistant

PFM Power Frequency Modulation

PSM Phase Shift Modulation

PWM Pulse Width Modulation

RAM Random Access Memory

RF Radio Frequency

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 13 / 78

Abbreviation Definition

RFI Radio Frequency Interference

RHCP Right Hand Circular Polarization

RI Ring Indicator

RST ReSeT

RTC Real Time Clock

RTCM Radio Technical Commission for Maritime services

RTS Request To Send

RX Receive

SCL Serial CLock

SDA Serial DAta

SIM Subscriber Identification Wireless CPU

SMS Short Message Service

SPI Serial Peripheral Interface

Q52 Omni Product

Technical Specification

SPL Sound Pressure Level

SPK SPeaKer

SRAM Static RAM

TBC To Be Confirmed

TDMA Time Division Multiple Access

TP Test Point

TVS Transient Voltage Suppressor

TX Transmit

TYP TYPical

UART Universal Asynchronous Receiver-Transmitter

USB Universal Serial Bus

USSD Unstructured Supplementary Services Data

VSWR Voltage Standing Wave Ratio

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 14 / 78

Q52 Omni Product

Technical Specification

2 General Description

2.1 General Information

The Q52 Omni is a dual mode GSM/Orbcomm transceiver consisting of an EGSM/GPRS 900/1800 and 850/1900 quad-band GSM transceiver combined with a full function Orbcomm transceiver. The operating mode of the dual mode transceiver is managed by an internal communication controller that employs an always best connected strategy with priority given to the GSM mode of operation

2.1.1 Overall Dimensions

Length: 114.55 mm

Width: 47.5 mm

Thickness: 16.2 mm

2.1.2 Environment and Mechanics

• Green policy: RoHS compliant

• Complete shielding

The Q52 Omni is compliant with RoHS (Restriction of Hazardous Substances in Electrical and Electronic Equipment) Directive 2002/95/EC which sets limits for the use of certain restricted hazardous substances. This directive states that “from 1st July 2006, new electrical and electronic equipment put on the market does not contain lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE)”.

Transceivers which are compliant with this directive are identified by the RoHs logo on their label.

2.1.3 Transceiver Features

• 2-Watt EGSM 900/GSM 850 radio

• 1-Watt GSM1800/1900 radio

• Hardware GPRS class 10 capable

• Internal GSM SIM card

• 5-Watt Orbcomm radio

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 15 / 78

2.1.4 Primary Interfaces

• Power supply

UARTs Serial links

• 2

• GSM Analog audio

• Serial Protocol Interface (SPI)

• I

C Interface

• 2 A/D inputs and 1 D/A output

• Digital I/Os

• GSM , GPS

†

and Orbcomm antenna ports

2.1.5 Operating System

• Real Time Clock with calendar

• Echo Cancellation + noise reduction (quadri codec)

Q52 Omni Product

Technical Specification

• Full GSM or GSM/GPRS Operating System stack

• Full Orbcomm Operating System stack

• Full GPS Operating System Stack

‡

One on Version with GPS functionnality

†

According to version

‡

According to version

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 16 / 78

2.2 Functional Description

The top level architecture of the Q52 Omni is described below:

Q52 Omni Product

Technical Specification

Figure 1: Top Level Architecture

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 17 / 78

Q52 Omni Product

Technical Specification

2.2.1 GSM Functionalities

The Radio Frequency (RF) range of the GSM transceiver complies with the Phase II EGSM 900/DCS 1800 and GSM 850/PCS 1900 recommendations. The frequencies are:

Transmit band (Tx) Receive band (Rx)

GSM 850 824 to 849 MHz 869 to 894 MHz

E-GSM 900 880 to 915 MHz 925 to 960 MHz

DCS 1800 1710 to 1785 MHz 1805 to 1880 MHz

PCS 1900 1850 to 1910 MHz 1930 to 1990 MHz

Table 1: GSM /GPRS Frequency

2.2.2 Orbcomm Functionality

TBD

2.3 Operating System

The Operating System offers an extensive set of AT commands to control both the GSM and Orbcomm functionality of the module.

The Operating System in the module is Open AT application developer to optionally integrate various types of specific process applications such as vertical applications (telemetry, multimedia, automotive…) into the internal ARM9 microprocessor.

compliant. This enables the

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 18 / 78

Q52 Omni Product

Technical Specification

3 Interfaces

3.1 System Connector

Pin Signal Description Dir Pin Type Alternate Function

BUZZ-OUT Buzzer Output O Open Drain

VREF_2V8 Logic Voltage Reference O V-Ref

FLASH-LED Flash LED Driver O Open Drain

BAT-RTC Battery for RTC I/O Power

GND Chassis Ground Ground

SPK2 Speaker Audio from module O Audio

GND Chassis Ground Ground

AGND Analog Reference Ground

MIC2 Microphone Audio to module I Audio

DAC0 8 bit D/A Converter Output O 0 - 2 volts

PWR_EN Switches the module on/off I

ADC0 10 bit A/D Converter Input I 0 - 2 volts

ADC1 10 bit A/D Converter Input I 0 - 2 volts

HW_SD Hardware Shutdown I/O CMOS_2V8

EXT-INT0 External Interrupt Signal I CMOS_1V8 GPIO3

SPI-I SPI Input (four wire

interface)

I CMOS_2V8 GPIO30

SPI1-IO SPI1 Out (four wire

SPI-CLK SPI1 Clock I/O CMOS_2V8 GPIO28

SPI-CS SPI1 Chip Select O CMOS_2V8 GPIO31

GND Chassis Ground Ground

DCD1 Data Carrier Detect_UART1 O CMOS_2V8 GPIO43

RI1 Ring Indicator_UART1 O CMOS_2V8 GPIO42

CTS1 Clear to Send_UART1 O CMOS_2V8 GPIO39

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.

interface)

SPI1 IO (three wire interface)

CMOS_2V8 GPIO29

I/O

Page 19 / 78

Q52 Omni Product

Technical Specification

Pin Signal Description Dir Pin Type Alternate Function

DTR1 Data Terminal

I CMOS_2V8 GPIO41

Ready_UART1

TXD1 Transmit Data_UART1 I CMOS_2V8 GPIO36

RTS1 Request to Send_UART1 I CMOS_2V8 GPIO38

VCC_12V 12 VDC supply input I Power

RXD1 Receive Data_UART1 O CMOS_2V8 GPIO37

VCC_12V 12 VDC supply input I Power

VCC_3V6 3.6 VDC regulated supply I Power

SDA_I2C I2C Data I/O Open Drain GPIO27

SCL_I2C I2C Clock O Open Drain GPIO26

TXD2 Transmit Data_UART2 I CMOS_1V8 GPIO14

CTS2 Clear to Send_UART2 O CMOS_1V8 GPIO16

RXD2 Receive Data_UART2 O CMOS_1V8 GPIO15

RTS2 Request to Send_UART2 I CMOS_1V8 GPIO17

Table 2: System connector pinout

3.2 Power Supply

3.2.1 Power Supply Description

The power supply required for the Q52Omni is a dual rail supply; VCC_3V6 and VCC_12V. VCC_12V is only required to support Satellite mode operation. VCC_3V6 is used for GSM/GPRS, Satellite and GPS operation.

The power supply is one of the key issues in the design of a dual mode terminal. Operation in GSM mode requires particularly careful attention to the ability of the power supply to provide clean DC power.

Due to the burst emission mode used in GSM/GPRS, the VCC_3V6 power supply must be able to deliver high current peaks in a short time. During the peaks, the ripple (U Power Supply Voltage

• In communication mode, a GSM/GPRS class 2 terminal emits 577μs radio

) on the supply voltage must not exceed a certain limit (see Table 3:

ripp

bursts every 4.615ms (see

Figure 2).

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 20 / 78

VCC 3V6

Q52 Omni Product

Technical Specification

Uripp

t = 577 µs

T = 4,615 ms

Uripp

Figure 2: Power supply during burst emission

• In communication mode, a GPRS class 10 terminal emits 1154μs radio bursts every 4.615ms.

Only the VCC_3V6 (+3.6 VDC) power supply input is necessary during GSM mode of operation

VCC_3V6:

• Supplies the GSM RF components. It is essential to keep a minimum voltage ripple at this connection in order to avoid any phase error.

The RF Power Amplifier current (2.0 A peak in GSM /GPRS mode) flows with a ratio of:

• 1/8 of the time (around 577μs every 4.615ms for GSM /GPRS cl. 2) and

• 2/8 of the time (around 1154μs every 4.615ms for GSM /GPRS

cl. 10).

The rise time is around 10μs.

• Supplies the GSM baseband components

min

nom

Ripple max (U

max

ripp

)

VCC_12V 11.0 13.6 16.0 TBD mVpp

VCC_3V6

3.6 3.8 4.0 200mVrms

Table 3: Power Supply Voltage

(1): This value has to be guarantied during the burst (with 2.0A Peak in GSM or

GPRS mode)

(2): Max operating Voltage Stationary Wave Ratio (VSWR) 2:1

When the Wireless CPU

is in Alarm mode, no voltage must be applied on any pin

of the 40-pin connector except on VRTC (pin 4) for RTC operation or PWR_EN (pin

12) to power ON the dual mode Transceiver.

When supplying the Q52 OMNI with a battery, the total impedance (battery+protections+PCB) on 3V6 should be <150 mOhms.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 21 / 78

Q52 Omni Product

Technical Specification

3.2.2 Power Consumption

GSM power consumption is dependent on the configuration used. It is for this reason that the following consumption values are given for each mode, RF band and type of software used (AT or Open AT™).

All the following information is given assuming a 50 Ω RF output.

The following consumption values were obtained by performing measurements on Wireless Microprocessor samples at a temperature of 25° C.

Three VCC_3V6 values are used to measure the consumption, VCC_3V6 VCC_3V6

(4.8V) and VCC_3V6

MAX

(3.6V).

TYP

(3.2V),

MIN

The average current is given for the three VBATT values and the peak current given is the maximum current peak measured with the three VCC_3V6 voltages.

For a more detailed description of the operating modes, see the appendix of the Command Interface Guide for Open AT® Firmware v7.0

All following consumption measurement values have to be confirmed.

3.2.2.1 Power Consumption without Open AT

Processing

The following measurement results are relevant when:

• There is no Open AT

• The Open AT

application is disabled

• No processing is required by the Open AT

application

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 22 / 78

Q52 Omni Product

Technical Specification

MIN

Operating mode Parameters

average VCC_3V6 =4.8V

Alarm Mode 21 16 15 µA

NOM

average VCC_3V6 =3.6V

MAX

average VCC_3V6 =3.2V

MAX

peak

unit

Fast Idle Mode

Paging 9 (Rx burst occurrence ~2s) 15 17 18 160

Paging 2 (Rx burst occurrence ~0,5s)

Paging 9 (Rx burst occurrence ~2s)

17 18 19 160

1.5

(1.5 to 1.75)

1.6

(1.6 to 1.9)

1.7

(1.7 to 2.05)

160

Slow Idle Mode 1

Paging 2 (Rx burst occurrence ~0,5s)

(4 to 4.3)

4.4

(4.4 to 4.75)

4.6

(4.6 to 4.95)

160

Fast Standby Mode 30 36 39 mA

Slow Standby Mode 1.4 1.4 1.5 mA

1450

850/900 MHz

PCL5 (TX power 33dBm)

PCL19 (TX power 6dBm)

210 218 222

81 89 92 270

Connected Mode

Transfer Mode

class 8 (4Rx/1Tx)

1800/1900 MHz

850/900 MHz

1800/1900 MHz

PCL0 (TX power 33dBm)

PCL19 (TX power 6dBm)

PCL3 (TX power 33dBm)

PCL17 (TX power 5dBm)

PCL3 (TX power 30dBm)

PCL18 (TX power 0dBm)

145 153 157 850

77 85 88 250

201 209 213

78 85 88 270

138 146 149 850

74 81 84 250

1450

Transfer Mode

class 10 (3Rx/2Tx)

850/900 MHz

1800/1900 MHz

PCL3 (TX power 33dBm)

PCL17 (TX power 5dBm)

PCL3 (TX power 30dBm)

PCL18 (TX power 0dBm)

364 372 378

112 120 123 270

237 245 248 850

104 111 115 250

Table 4: GSM power consumption without Open AT® processing

means that the current peak is the RF transmission burst (Tx burst)

means that the current peak is the RF reception burst (Rx burst)

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 23 / 78

Q52 Omni Product

Technical Specification

Slow Idle Mode consumption is depends on the SIM card used. Some SIM cards respond faster than others, the longer the response time, the higher the consumption. The measurements were performed with a large number of 3V SIM cards, the results in brackets are the minimum and maximum currents measured from among all the SIMs used.

3.2.2.2 Power consumption with Open AT

software

The Open AT™ software used is the Dhrystone application, the following consumption results are measured during the run of the Dhrystone application.

MAX

peak

uni

Operating mode Parameters

MIN

average

VBATT=4,8

NOM

average

VBATT=3,6

average

VBATT=3,2

Alarm Mode N/A N/A N/A µA

Fast Idle Mode

Paging 9 (Rx burst occurrence ~2s) 31 38 41 160 RX mA

Paging 2 (Rx burst occurrence ~0,5s) 32 39 42 160 RX mA

Paging 9 (Rx burst occurrence ~2s) N/A N/A N/A 160 RX mA

Slow Idle Mode

Paging 2 (Rx burst occurrence ~0,5s) N/A N/A N/A 160 RX mA

Fast Standby Mode 31 38 41 mA

Slow Standby Mode N/A N/A N/A mA

PCL5 (TX power 33dBm)

211 219 223 1450

850/900 MHz

PCL19 (TX power 6dBm)

82 90 93 270

Connected Mode

1800/1900 MHz

PCL0 (TX power 33dBm)

PCL19 (TX power 6dBm)

PCL3 (TX power 33dBm)

146 154 159 850

78 85 89 250

202 210 214 1450

850/900 MHz

Transfer Mode

class 8 (4Rx/1Tx)

1800/1900 MHz

PCL17 (TX power 5dBm)

PCL3 (TX power 30dBm)

PCL18 (TX power 0dBm)

78 86 89 270

140 148 151 850

75 82 85 250

PCL3 (TX power 33dBm)

365 373 379 1450

850/900 MHz

Transfer Mode

class 10 (3Rx/2Tx)

1800/1900 MHz

PCL17 (TX power 5dBm)

PCL3 (TX power 30dBm)

PCL18 (TX power 0dBm)

113 121 125 270

239 247 250 850

105 113 117 250

Table 5: Power consumption with Dhrystone Open AT® application

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 24 / 78

Q52 Omni Product

Technical Specification

means that the current peak is the RF transmission burst (Tx burst)

means that the current peak is the RF reception burst (Rx burst)

3.2.2.3 Consumption Waveform Samples

The consumption waveforms are given for EGSM900 network configuration with AT software running on the internal ARM9 CPU.

The VCC_3V6 voltage is at the typical value of 3.6V.

Four significant operating mode consumption waveforms are described:

• Connected Mode (PCL5: Tx power 33dBm)

• Slow Idle mode (Paging 9)

• Fast idle mode (Paging 9)

• Transfer mode (GPRS class 10, PCL3: Tx power 33dBm )

The following waveform shows only the form of the current, for correct current values, see sections 3.2.2.1 and 3.2.2.2.

3.2.2.3.1 Connected Mode Current Waveform

Connected mode 33dBm

Current(A) / Time (s)

1.6

1.4

1.2

0.8

0.6

0.4

0.2

TX PEAK

Figure 3: Connected Mode Current Waveform

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 25 / 78

3.2.2.3.2 Slow Idle Mode Current Waveform

Slow Idle mode Paging ~2s

Current(A) / Time (s)

0.16

0.14

0.12

0.1

0.08

0.06

0.04

0.02

Q52 Omni Product

Technical Specification

RX PEAK

-0.02

Figure 4: Slow Idle Mode Current Waveform

3.2.2.3.3 Fast Idle Mode Current Waveform

Fast Id e Paging ~2s

le mod

Current(A) / Time (s)

0.16

0.14

RX PEAK

0.12

0.1

0.08

0.06

0.04

0.02

Figure 5: Fast Idle Mode Current Waveform

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 26 / 78

3.2.2.3.4 Transfer Mode Class 10 Current Waveform

Transfer mode Class 10 33dBm

Current(A) / Time (s)

1.6

TX PEAK

1.4

1.2

0.8

0.6

0.4

Q52 Omni Product

Technical Specification

0.2

Figure 6: Transfer Mode Class 10 Current Waveform

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 27 / 78

Q52 Omni Product

Technical Specification

3.2.2.4 Satellite Mode Power Consumption

The satellite portion of Q52Omni draws current from both the VCC_3V6 and VCC_12V power supply rails. In order to eliminate the GSM/GPRS radio from the values below it was placed in the Fast Standby Mode.

Operating mode Power Supply Rail I

VCC_3V6 (nominal voltage) 250 mA

Satellite TX Mode

VCC_12V (nominal voltage) 1500 mA

Satellite non TX Mode VCC_12V (nominal voltage) 20 mA

unit

MAX

These values in the above table are only applicable to the Satellite in TX Mode operation. The VCC_3V6 power supply rail is also used by the GSM/GPRS radio and the GPS, so there power consumption needs must also be taken into account for the power supply design.

3.2.2.5 Power Supply Pin-Out

Signal Pin number

VCC_3V6

VCC_12V

33,34

29, 31,32

GND

5,6,8,21,22,

Table 6: Power Supply Pin-out

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 28 / 78

Q52 Omni Product

Technical Specification

3.2.3 Recommendations for Less Consumption

For a better consumption, in particular for the quiescent current, it is recommended to drive the GPIOs like show in the table below.

SW driver

Signal

Muxed

with

I/O I/O type Reset state

recommended

(output state)

GPIO14* TXD2 I/O 1V8 Z 0 logic level

GPIO15* RXD2 I/O 1V8 Z 0 logic level

GPIO16* CTS2 I/O 1V8 Z 0 logic level

GPIO17* RTS2 I/O 1V8 Z 0 logic level

GPIO24 HW-SD I/O 2V8 Z 0 logic level

GPIO26 SCL I/O Open drain

GPIO27 SDA I/O Open drain

Z 0 logic level

GPIO28 SPI1-CLK I/O 2V8 Z 0 logic level

GPIO29 SPI1-IO I/O 2V8 Z 0 logic level

GPIO30 SPI1-I I/O 2V8 Z 0 logic level

GPIO31 SPI1-CS I/O 2V8 Z 0 logic level

GPIO46 EXT-INT I/O 2V8 Z 0 logic level

* If available

If the FLASH-LED are not necessary it is possible to disable them.

For further details refer to document [3] AT Command Interface Guide for Open

Firmware v7.0).

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 29 / 78

Q52 Omni Product

Technical Specification

3.3 Electrical Information for Digital I/O

The CMOS signals of the Q52 OMNI shall only be considered valid when the level of the VREF_2V8 signal is above 2.4V.

Test

(Nominal voltage level is 2.8V)

High level output voltage (IOH = 4mA)

Low level output voltage (IOL = -4mA)

Conditions

VOH 2.4 Volts

VOL 0.4 Volts

High level input voltage (IIH = 60 µA) VIH 1.96 3.2

Limits Parameters for CMOS_2V8 Signals

Min Max

Units

Volts

Low level input voltage (IIL = 60 µA) VIL -0.5* 0.84 Volts

Table 7: CMOS Output / Input Electrical Characteristics for 2.8 volt signals

Parameters for CMOS_1V8 Signals

(Nominal voltage level is 1.8V)

Test

Conditions

Limits

Units

Min Max

High level output voltage

1.4 Volts

(IOH= 4mA)

Low level output voltage

0.4 Volts

(IOL = -4mA)

High level input voltage (IIH = 60 µA)

Low level input voltage (IIL = 60 µA)

1.33 2.2* Volts

-0.5* 0.54 Volts

Table 8: CMOS Output / Input Electrical Characteristics for 1.8 volt signals

Parameters for Open Drain Signals

Parameter

Limits

Min Max

FLASH-LED

BUZZ_OUT

SDA/GPIO27 and SCL/GPIO26

VOH 0.4V

8mA

VOL 0.4V

100mA

TOLERATED

3.3V

VIH 2.0V

VIL 0.8V

VOL 0.4V

3mA

Table 9: Open Drain Electrical Characteristics

Absolute Maximum Ratings

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 30 / 78

Q52 Omni Product

Technical Specification

3.4 Serial Interface

3.4.1 SPI Bus

The SPI bus interface includes:

• A Clock signal

• A SPI Data output or SPI Data Input/Output signal depending on whether 4

or 3 wires SPI interface is selected

• A SPI Data Input signal for applications using 4 wires interface

• A SPI Chip Select signal

SPI bus characteristics:

• Master mode operation

• SPI speed is from 101.5 Kbit/s to 13 Mbit/s in master mode operation

• 3 or 4-wire interface

• SPI-mode configuration: 0 to 3

• 1 to 16 bits data length

3.4.1.1 SPI Waveforms

Waveform for SPI transfer with 4-wire configuration in master mode 0 (slave select signal is not represented).

CLK-cycle

SPI-CLK

Data-OUTdelay

SPI-IO

Data valid

Data-IN-setup

Data-IN-hold

SPI-I

Data valid

Figure 7: SPI Timing diagrams, Mode 0, Master, 4 wires

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 31 / 78

Q52 Omni Product

Technical Specification

Signal Description Minimum Typ Maximum Unit

CLK-cycle SPI clock frequency

Data-OUT delay Data out ready delay time

Data-IN-setup Data in setup time

Data-OUT-hold Data out hold time

0.1015 13 MHz

10 ns

2 ns

Table 10: SPI Bus AC characteristics

3.4.1.2 SPI Configuration

For a 4-wire SPI interface; SPI-IO is used as output only of data from the master and SPI-I is used as input only.

For a three wire SPI interface; SPI-IO is used for both input and output of data to/from the master.

Operation Maximum

Speed

Master 13 Mb/s 0,1,2,3 Half SPI-CLK

SPI-

Mode

Duplex

3-wire type 4-wire type

SPI-CLK

SPI-IO

SPI-CS

SPI-I

SPI-IO

SPI-CS

Table 11: SPI Bus Configuration

3.4.1.3 SPI Bus Pin Description

Signal Pin

number

I/O I/O

type

Reset

state

Description Multiplexed

with

SPI1-CLK 15 O 2V8 Z SPI Serial Clock GPIO28

SPI1-IO 14 I/O 2V8 Z SPI Serial input/output GPIO29

SPI1-I 13 I 2V8 Z SPI Serial input GPIO30

SPI1-CS 16 O 2V8 Z SPI Slave Enable GPIO31

Table 12: SPI Bus Pin description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 32 / 78

Q52 Omni Product

Technical Specification

3.4.2 I2C Bus

3.4.2.1 Features

The I2C interface includes a clock signal (SCL) and data signal (SDA) complying with a 100Kbit/s-standard interface (standard mode: s-mode).

3.4.2.2 Characteristics

The I²C bus is always master.

The maximum speed transfer range is 400Kbit/s (fast mode: f-mode).

For more information on the bus, see the

[4]“I²C Bus Specification”, Version 2.0,

Philips Semiconductor 1998

3.4.2.3 I²C Waveforms

I²C bus waveform in master mode configuration:

SCL-freq

T-high

SCL

T-data-

SDA

T-free

T-start

Data valid

T-data-

hold

setup

T-stop

Data valid

Figure 8: I²C Timing diagrams, Master

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 33 / 78

Q52 Omni Product

Technical Specification

Signal Description Minimum Typ Maximum Unit

SCL-freq I²C clock frequency 100 400 KHz

T-start Hold time START condition 0.6 µs

T-stop Setup time STOP condition 0.6 µs

T-free Bus free time, STOP to START 1.3 µs

T-high High period for clock 0.6 µs

T-data-hold Data hold time 0 0.9 µs

T-data-setup Data setup time 100 ns

Table 13: I²C Bus AC characteristics

3.4.2.4 I²C Bus Pin-Out

Signal Pin

number

I/O I/O type Reset

state

Description Multiplexed

with

SCL 36 O Open drain Z Serial Clock GPIO26

SDA 35 I/O Open drain Z Serial Data GPIO27

Table 14: IC Bus Pin Description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

3.5 Main Serial Link (UART1)

The UART interface functions as a DCE serial device. A flexible 7-wire serial interface is available, complying with V24 protocol signaling but not with V28 (electrical interface) due to a 2.8-Volt interface.

The signals are as follows:

3.5.1 Features

The maximum baud rate of the UART1 is 921 Kbit/s.

The signals are the follows:

• TX data (CT103/TX)

• RX data (CT104/RX)

• Request To Send (~CT105/RTS)

• Clear To Send (~CT106/CTS)

• Data Terminal Ready (~CT108-2/DTR)

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 34 / 78

• Data Carrier Detect (~CT109/DCD)

• Ring Indicator (~CT125/RI).

3.5.2 Pin Description of UART1 Interface

Q52 Omni Product

Technical Specification

Signal Pin

number I/O

I/O

type

Reset

state

Description Multiplexed

CT103/TXD1* 27 I 2V8 Z Transmit serial

data

CT104/RXD1* 30 O

2V8

1 Receive serial

data

~CT105/RTS1* 28 I

~CT106/CTS1* 25 O

~CT108-2/DTR1* 26 I

2V8

Z Request To Send GPIO38

Z Clear To Send GPIO39

Z Data Terminal

Ready

~CT109/DCD1* 23 O

2V8

Undefined Data Carrier

Detect

~CT125/RI1* 24 O

CT102/GND* Chassis

2V8

Undefined Ring Indicator GPIO42

GND Ground

GND

Table 15: UART1 Pin Description

* According to PC view

with

GPIO36

GPIO37

GPIO41

GPIO43

See

Wireless Microprocessor® WMP100 Technical Specification for Open drain, 2V8 and 1V8 voltage

characteristics and for Reset state definition.

The rise and fall time of the reception signals (mainly TXD_UART1) must be less than 300 ns.

The Q52 Omni is designed to operate using all the serial interface signals. In particular, it is mandatory to use RTS and CTS for hardware flow control in order to avoid data corruption during transmission.

For the use case with 5-wire serial interface

• Signal: CT103/TXD1*, CT104/RXD1*, ~CT105/RTS1*, ~CT106/CTS1*

• The signal ~CT108-2/DTR1* must be managed following the V24 protocol

signalling if we want to use the slow idle mode

• The other signals and their multiplexed are not available

• Please refer to the document

Firmware v7.0

for more information.

[3] AT Command Interface Guide for Open AT®

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 35 / 78

For the use case with 4-wire serial interface

• CT103/TXD1*, CT104/RXD1*, ~CT105/RTS1*, ~CT106/CTS1*

• The signal ~CT108-2/DTR1* must be configured at the low level

• The other signals and their multiplexed are not available

Q52 Omni Product

Technical Specification

• Please refer to the document Firmware v7.0

for more information.

For the use case with 2-wire serial interface

[3] AT Command Interface Guide for Open AT®

• This case is possible for connected external chip but not recommended (and forbidden for AT command or modem use)

• The external chip must be a flow control

• CT103/TXD1*, CT104/RXD1*

• The signal ~CT108-2/DTR1* must be configured at the low level

• The signals ~CT105/RTS1*, ~CT106/CTS1* are not used, please configure

the AT command (AT+IFC=0,0 see document Guide for Open AT® Firmware v7.0

[3] AT Command Interface

• The signal ~CT105/RTS1* must be configured at the low level

• The other signals and their multiplexed are not available

• Please refer to the document

Firmware v7.0

V24/CMOS possible design:

for more information.

~PWR_EN

[3] AT Command Interface Guide for Open AT®

CT103-TXD1 / GPIO36

5, 6, 21, 22

GND

CT104-RXD1 / GPIO37

~CT105-RTS1 / GPIO38

~CT106-CTS1 / GOPI39

RTS

CTS

GND

Customer

Application

( DTE )

Q52 Omni

( DCE )

Figure 9: Example of V24/CMOS serial link implementation for UART1

The design shown in the above figure is a basic design.

However, a more flexible design to access this serial link with all modem signals is shown below

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 36 / 78

Q52 Omni Product

Technical Specification

PWR_EN

2.8Volt

2x 15K

~CT109-DCD1 / GPIO43

~CT125-RI1 / GPIO42

CT103-TXD1 / GPIO36

CT104-RXD1 / GPIO37

~CT105-RTS1 / GPIO38

~CT106-CTS1 / GOPI39

~CT108-2-DTR1 / GPIO41

GND

DCD

RTS

CTS

DTR

GND

Customer

Application

( DTE )

Q52 Omni

( DCE )

GND

Figure 10: Example of full modem V24/CMOS serial link implementation for

UART1

It is recommended to add a 15K-ohm pull-up resistor on ~CT125-RI1 and ~CT109DCD1 to set high level during reset state.

The UART1 interface is 2.8 Volt type, but is 3 Volt tolerant.

The Q52 Omni UART1 is designed to operate using all the serial interface signals. In particular, it is mandatory to use RTS and CTS for hardware flow control in order to avoid data corruption during transmission.

Warning: If you want to activate Power Down mode (Wavecom 32K mode) in your

Open AT® application, you need to wire the DTR pin to a GPIO. Please refer to the document

[3] AT Command Interface Guide for Open AT® Firmware v7.0 (see the

“Appendixes”) for more information on Wavecom 32K mode activation using the

Open AT® Software Suite.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 37 / 78

Q52 Omni Product

Technical Specification

3.6 Auxiliary Serial Link (UART2)

3.6.1 Features

The maximum baud rate of UART2 is 921 kbit/s.

For peripheral connectivity an auxiliary serial interface (UART2) is available on the system connector only on series without GPS functionality. On Q52 Omni series with GPS functionality GPIO16 and GPIO17 are available.

The signals are the follows:

• TX data (CT103/TX)

• RX data (CT104/RX)

• Request To Send (~CT105/RTS)

• Clear To Send (~CT106/CTS)

For the use case with 2-wire serial interface

• This case is possible for connected external chip but not recommended (and forbidden for AT command or modem use)

• The external chip must be a flow control

• CT103/TXD2*, CT104/RXD2*

• The signals ~CT105/RTS2*, ~CT106/CTS2* are not used, please configure

the AT command (AT+IFC=0,0. Please refer to the document Command Interface Guide for Open AT® Firmware v7.0

[3] AT

• The signal ~CT105/RTS2* must be configured at the low level

• The other signal and their multiplexed are not available

• Please refer to the document

Firmware v7.0

Signal Pin

(see the “Appendixes”).

I/O I/O type Reset

number

[3] AT Command Interface Guide for Open AT®

Description Multiplexed

state

with

TXD2 37 I 1V8 Z Transmit serial data GPIO14

RXD2 39 O

CTS2 38 O

RTS2 40 I

1V8

Z Receive serial data GPIO15

Z Clear To Send GPIO16

Z Request To Send GPIO17

Table 16: UART2 Pin Description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 38 / 78

Q52 Omni Product

Technical Specification

3.7 General Purpose Input/Output

The Q52 Omni provides up to 18 General Purpose I/Os. These pins are multiplexed with other IO functions, so the number of pins programmed as GPIOs will depend on the functionality required for a specific application

Signal

numb

I/O I/O type*

Reset state

Multiplexed with

GPIO14/INT6 37 I/O 1V8** Z TXD2

GPIO15 39 I/O 1V8** Z RXD2

GPIO16 38 I/O 1V8 Z CTS2

GPIO17/INT17 40 I/O 1V8 Z RTS2

GPIO3/A26 49 I/O 2V8 Z INT0

GPIO26 44 I/O Open drain

GPIO27 46 I/O Open drain

Z SCL

Z SDA

GPIO28 23 I/O 2V8 Z SPI1-CLK

GPIO29 25 I/O 2V8 Z SPI1-IO

GPIO30 30 I/O 2V8 Z SPI1-I

GPIO31 31 I/O 2V8 Z SPI1-CS

GPIO36 71 I/O 2V8 Z TXD1

GPIO37 73 I/O 2V8 1 RXD1

GPIO38 72 I/O 2V8 Z RTS1

GPIO39 75 I/O 2V8 Z CTS1

GPIO41 76 I/O 2V8 Z DTR1

GPIO42 69 I/O 2V8 Undefined RI1

GPIO43 70 O 2V8 Undefined DCD1

Table 17: GPIOs Pin Description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

** If GPS functionality is available on Q52 Omni, these GPIOs are not available.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 39 / 78

Q52 Omni Product

Technical Specification

3.8 Analog to Digital Converters

3.8.1 Features

Two Analog to Digital Converter inputs are provided by the Q52 Omni. The converters are 10-bit resolution, ranging from 0 to 2V.

Parameter Min Typ Max Unit

Resolution 10 bits

Sampling rate 216 S/s

Integral Accuracy 15 mV

Differential Accuracy 2.5 mV

Input signal range 0 2 V

Input

ADC0

impedance

ADC1

Table 18: ADCs Electrical Characteristics

3.8.2 Pins Description

Signal Pin number I/O I/O type Description

ADC0 18 I Analog A/D converter

ADC1 19 I Analog A/D converter

Table 19: ADCs Pin Description

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 40 / 78

Q52 Omni Product

Technical Specification

3.9 Digital to Analog Converter

One Digital to Analog Converter (DAC) input is provided by the Q52 Omni.

3.9.1 Features

The converter is 8-bit resolution, guaranteed monotonic with a range from 0V to

2.3V.

This output assumes a typical external load of 2kΩ and 50pF in parallel to GND.

Parameter Min Typ Max Unit

Resolution - 8 - bits

Maximum Output voltage 2.1 2.2 2.3 V

Minimum Output voltage 0 - 40 mV

Output voltage after reset - 1.147 - V

Integral Accuracy -5 - +5 LSB

Differential Accuracy -1 - +1 LSB

Full scale settling time

- 40 - µs

(load: 50pF // 2kΩ to GND)

One LSB settling time

- 8 - µs

(load: 50pF // 2kΩ to GND )

Table 20: DAC Electrical Characteristics

3.9.2 Pin Description

Signal Pin number I/O I/O type Description

AUX-DAC0 11 O Analog D/A converter

Table 21: DAC Pin Description

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 41 / 78

Q52 Omni Product

Technical Specification

3.10 Analog Audio Interface

The Q52 OMNI provides a single ended microphone input and single ended speaker output for GSM audio I/O. An echo cancellation feature allows hands free functionality in GSM voice mode.

3.10.1 Microphone Input

3.10.1.1 Features

The MIC input includes the biasing for an electret microphone, thus allowing easy connection. The gain of the MIC input is internally adjusted and may be tuned using an AT command. AC coupling is already embedded in the Q52 Omni.

When you design the audio analog interface be sure to have a very good ground plane, a very good filtering as well as shielding in order to avoid any disturbance on the audio path.

Signal Pin

I/O I/O type Description

number

MIC2 10 I Analog Microphone input

Table 22: MIC2 Pin Description

3.10.1.2 Electrical Characteristics

Parameter Min. Typ Max. Unit

Internal

Biasing

Impedance

single-ended

Input

voltage*

Internal AC coupling 100 nF

Voltage 2 2.1 2.2 V

Output Current 0.5 1.5 mA

MIC to AGND 0.9 1.1 1.4 kΩ

Positive* 7.35 V

Negative -0.9 V

Table 23: MIC2 Electrical Characteristics

• * The input voltage depends on the input microphone gain set by AT command.

• ** Because MIC2 is internally biased, a coupling capacitor must be used to connect an

audio signal provided by an active generator. Only a passive microphone may be directly connected to the MIC2 input.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 42 / 78

3.10.1.3 Application Example

Figure 11: Example of MIC input connection with LC filter

*:Z2 is from 200Hz to 4kHz. For more characteristics refer to the chapter 3.14.1.1.2.

Q52 Omni Product

Technical Specification

Internal input impedance value becomes 1100 ohms.

It is recommended to add L1 and C2 footprint to add a LC filter to try to eliminate the TDMA noise.

When not used, the filter can be removed by replacing L1 by a 0 Ohm resistor and by disconnecting C2, as the following schematic.

Figure 12: Example of MIC input connection without LC filter

*:Z2 is from 200Hz to 4kHz. For more characteristics refer to the chapter 3.14.1.1.2.

The capacitor C1 is highly recommended to eliminate the TDMA noise. C1 must be close to the microphone.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 43 / 78

Q52 Omni Product

Technical Specification

Recommended components:

 C1: 12pF to 33pF (depending of the design ,needs to be tuned )

 C2: Must be tuned depending of the design.

 L1: Must be tuned depending of the design.

3.10.2 Speaker Output Characteristics

3.10.2.1 Features

The connection is single-ended on SPK. Be sure to have a good ground plane, good filtering and adequate shielding in order to avoid any disturbance on the audio path.

Signal Pin

I/O I/O type Description

number

SPK2 7 O Analog Speaker Output

Table 24: SPK Pin Description

3.10.2.2 Electrical Characteristics

Parameters Min Typ Max Unit

Biasing

SPK2 1.30 V

voltage

Output swing voltage

RL=8Ω: AT+VGR=6*

RL=32Ω: AT+VGR=6*

RL Load resistance 6 8 -

IOUT - - 90 mA

POUT - - 125 mW

Output current; peak value; RL=8Ω

RL=8Ω; AT+VGR=6*;

RPD Output pull-down resistance at power-

- - 2 Vpp

- -

2.5 Vpp

28 40 52

KΩ

down

VPD Output DC voltage at power-down - - 100 mV

Table 25: SPK Electrical Characteristics

*The output voltage depends of the output speaker gain set by AT command. Please refer to the document [3] AT Command Interface Guide for Open AT® Firmware v7.0.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 44 / 78

Q52 Omni Product

Technical Specification

3.10.2.3 Application Example

Figure 13: Example of Speaker connection

4.7 μF < C1 < 47 μF (depending on speaker characteristics and output power).

The connection between the Q52 Omni pin and the speaker must be designed to keep the serial impedance lower than 1.5 Ω in single ended mode.

3.10.3 Design Recommendation

3.10.3.1 General

When speakers and microphones are exposed to the external environment, it is recommended to add ESD protection as closed as possible to the speaker or microphone, connected between the audio lines and a good ground.

You ensure to have a good ground plane, a good filtering as well as shielding, in order to avoid any disturbance on the audio path.

It is important to select an appropriate microphone, speaker and filtering components to avoid TDMA noise

3.10.3.2 Recommended Microphone Characteristics

• The impedance of the microphone has to be around 2 kΩ.

• Sensitivity from -40dB to –50 dB.

• SNR > 50 dB.

• Frequency response compatible with the GSM specifications.

To suppress TDMA noise, it is highly recommended to use microphones with two internal decoupling capacitors:

-CM1=56pF (0402 package) for the TDMA noise coming from the demodulation of the GSM 850 and GSM900 frequency signal.

-CM2=15pF (0402 package) for the TDMA noise coming from the demodulation of the DCS/PCS frequency signal.

The capacitors have to be soldered in parallel of the microphone

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 45 / 78

Q52 Omni Product

Technical Specification

Figure 14: Capacitor near Microphone

3.10.3.3 Recommended Speaker Characteristics

• Type of speakers: Electro-magnetic /10mW

• Impedance: 8Ω for hands-free (SPK2)

• Sensitivity: 110dB SPL min

• Receiver frequency response compatible with the GSM specifications.

3.10.3.4 Recommended Filtering Components

When designing a GSM application, it is important to select the right audio filtering components.

The strongest noise, called TDMA, is mainly due to the demodulation of the GSM850/GSM900/DCS1800 and PCS1900 signal: A burst being produced every

4.615ms; the frequency of the TDMA signal is equal to 216.7Hz plus harmonics.

The TDMA noise can be suppress by filtering the RF signal using the right decoupling components.

The types of filtering components are:

-RF decoupling inductors

-RF decoupling capacitors

A good “Chip S-Parameter” simulator is proposed by Murata, the following link help to find it:

http://www.murata.com/designlib/mcsil.html

Using different Murata components, we could see that the value, the package and the current rating can have different decoupling effects.

The table below shows some examples with different Murata components:

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 46 / 78

Q52 Omni Product

Technical Specification

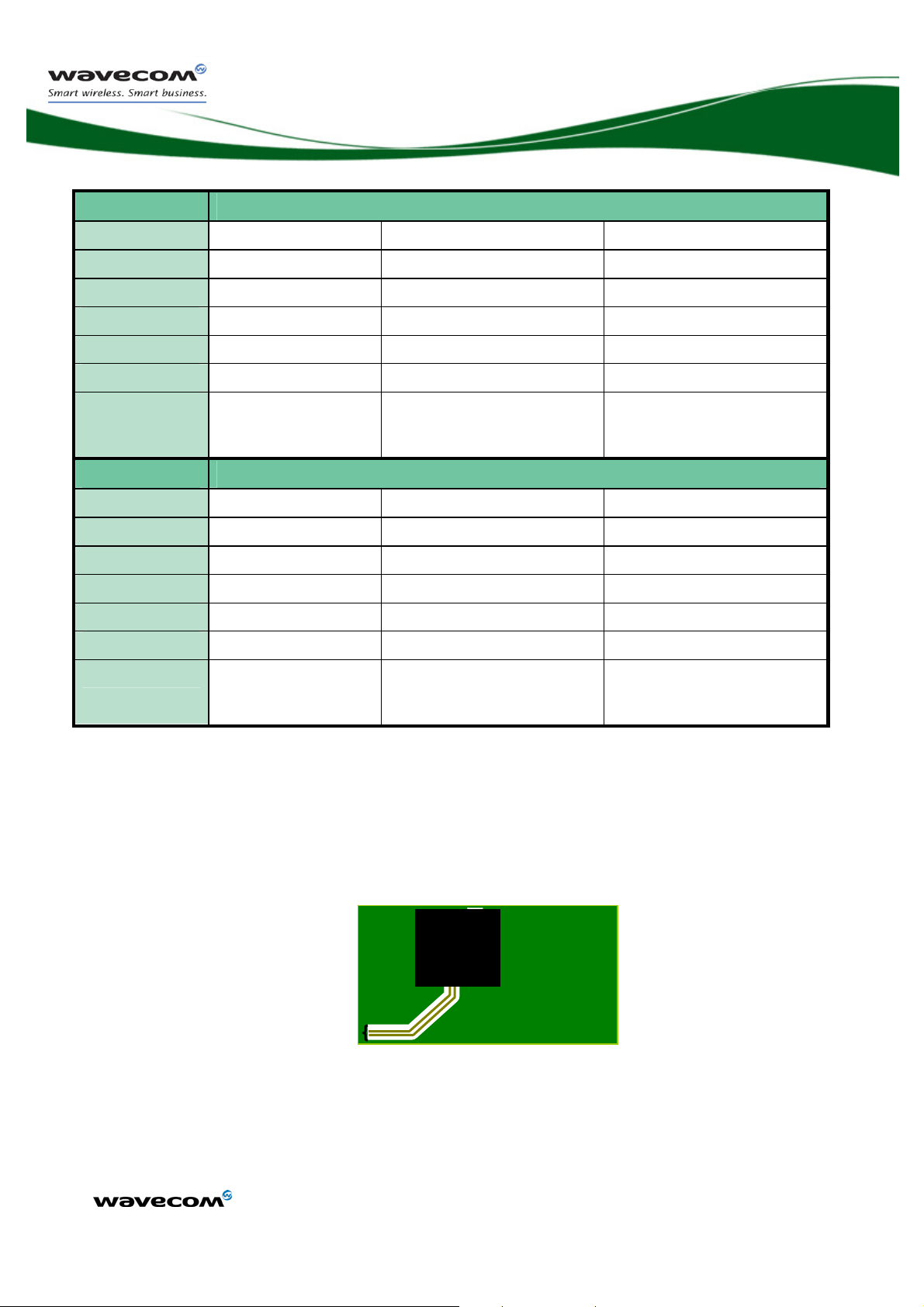

Package 0402

Filtered band GSM900 GSM 850/900 DCS/PCS

Value 100nH 56pF 15pF

Types Inductor Capacitor Capacitor

Position Serial Shunt Shunt

Manufacturer Murata Murata Murata

Rated 150mA 50V 50V

Reference LQG15HSR10J02

or LQG15HNR10J02

GRM1555C1H560JZ01 GRM1555C1H150JZ01

or GRM1555C1H150JB01

Package 0603

Filtered band GSM900 GSM 850/900 DCS/PCS

Value 100nH 47pF 10pF

Types Inductor Capacitor Capacitor

Position Serial Shunt Shunt

Manufacturer Murata Murata Murata

Rated 300mA 50V 50V

Reference LQG18HNR10J00 GRM1885C1H470JA01

or GRM1885C1H470JB01

GRM1885C1H150JA01 or GQM1885C1H150JB01

Table 26: Audio filtering Examples with Murata Components

3.10.3.5 Audio Track and PCB Layout Recommendation

To avoid TDMA noise, it is recommended to surround the audio tracks by ground:

Audio line

Q52

Omni

Connector

Ground

Plane

Application

board

Figure 15: Audio track design

Note: Avoid digital tracks crossing under and over the audio tracks.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 47 / 78

Q52 Omni Product

Technical Specification

3.10.4 Buzzer Output

3.10.4.1 Features

This output is controlled by a PWM controller and can be used as buzzer or as PWM.

BUZZ-OUT is an open drain output. A buzzer can be directly connected between this output and VCC_MAIN. The maximum current is 100 mA (PEAK).

Parameter Condition Minimum Maximum Unit

Iol = 100mA 0.4

OL on

VCC_MAIN (max) 100

PEAK

Frequency TBD TBD

Duty Cycle TBD TBD

Table 27: PWM/Buzzer Output Electrical Characteristics

3.10.4.2 Pinout

Signal Pin

I/O I/O type Reset state

Description

number

BUZZ-OUT 1 O Open drain

Z PWM/Buzzer output

Table 28: PWM/Buzzer Output Pin Description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 48 / 78

Q52 Omni Product

Technical Specification

3.10.4.3 Application Example

The maximum peak current is 100 mA and the maximum average current is 40 mA. A diode against transient peak voltage must be added as described below.

VBATT

BUZZ-OUT

Figure 16: Example of buzzer implementation

Where:

• R1 must be chosen in order to limit the current at I

• C1 = 0 to 100 nF (depending on the buzzer type)

• D1 = BAS16 (for example)

Recommended characteristics for the buzzer:

• electro-magnetic type

• Impedance: 7 to 30 Ω

• Sensitivity: 90 dB SPL min @ 10 cm

• Current: 60 to 90 mA

Q52 Omni

PEAK

max

The BUZZ-OUT output can also be used to drive a LED as shown in the Figure below:

« BUZZER »

BUZZ-OUT

470 Ω

VBATT

Figure 17: Example of LED driven by the BUZZ-OUT output

R1 value can be accorded depending of the LED (D1) characteristics.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 49 / 78

Q52 Omni Product

Technical Specification

3.11 ~ON / OFF Signal

This input is used to switch ON or OFF the Wireless Microprocessor.

A low level signal has to be provided on the pin ON/~OFF to switch ON the Wireless Microprocessor.. The voltage of this signal has to be maintained at 0.2 x VBATT during a minimum of 1500ms. This signal can be left at low level until switch off.

To switch OFF the Q52 OMNI the pin ~ON/OFF has to be released. The Wireless

Microprocessor can be switched off through the Operating System.

) Warning:

All external signals must be inactive when the Wireless Microprocessor is OFF to avoid any damage when starting and allow Wireless Microprocessor to start and stop correctly.

3.11.1 Features

Parameter I/O type Minimum Maximum Unit

VIL CMOS VBATT x 0.2 V

VIH CMOS VBATT x 0.8 VBATT V

3.11.2 Pin Description

Signal Pin number I/O type Description I/O

~ON/OFF U5 I CMOS Q52 Omni Power ON

3.11.3 Application

Electrical Characteristics of the signal

Figure 18 : Example of ON/~OFF pin connection

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.

Page 50 / 78

Q52 Omni Product

Technical Specification

3.11.3.1 Power ON

Once Q52 Omni/Open AT set the ON/OFF signal to low to start the Q52 Omni/Open AT

Software Suite v2.0 is powered, the application must

Software Suite v2.0 power ON sequence. The ~ON/OFF signal must be held low during a minimum delay of T

on/off-hold

this delay, an internal mechanism maintains the Q52 OMNI /Open AT

(Minimum hold delay on the ~ON/OFF signal) to power-ON. After

Software

Suite v2.0 in power ON condition.

During the power ON sequence, an internal reset is automatically performed by the Q52 OMNI /Open AT

Software Suite v2.0 for 40ms (typically). During this phase,

any external reset should be avoided during this phase.

POWER SUPPLY

ON/OFF

INTERNAL RST

STATE OF THE MODULE

Module OFF

< 22µA

BB+RF

on/off- hold

(2000ms min)

rst

(40ms typ)

RESET mode

=20 to 40mA

BB+RF

SIM and Network dependent

(2000ms min)

initialization

Module ON

<120mA

BB+RF

(no loc. update)

AT answers «OK »

Module READY

Figure 19 : Power-ON sequence (no PIN code activated)

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 51 / 78

Q52 Omni Product

Technical Specification

The duration of the firmware power-up sequence depends on:

• The need to perform a recovery sequence if the power has been lost during a flash memory modification.

Other factors have a minor influence

• the number of parameters stored in EEPROM by the AT commands received so far

• the ageing of the hardware components, especially the flash memory

• the temperature conditions

The

recommended

way to de-assert the ~ON/OFF signal is to use either an AT command or WIND indicators: the application has to detect the end of the powerup initialization and de-assert ~ON/OFF afterwards.

• Send an “AT” command and wait for the “OK” answer: once the initialization is

complete the AT interface answers « OK » to “AT” message

• Wait for the “+WIND: 3” message: after initialization, the Q52 OMNI /Open AT

Software Suite v2.0, if configured to do so, will return an unsolicited “+WIND: 3” message. The generation of this message is enabled or disabled via an AT command.

Note:

• Please refer to the document Firmware v7.0

0 for more information on these commands.

[3] AT Command Interface Guide for Open AT®

Proceeding thus – by software detection - will always prevent the application from de-asserting the ~ON/OFF signal too early.

If WIND indicators are disabled or AT commands unavailable or not used, it is still possible to de-assert ~ON/OFF after a delay long enough (T

on/off-hold

) to ensure that

the firmware has already completed its power-up initialization.

The table below gives the minimum values of T

Open AT® Firmware

initialization

minimum values

Safe evaluations of the firmware

on/off-hold

initialization

power-up time

6.65 & above 8 s

The above figure take the worst cases into account: power-loss recovery operations, slow flash memory operations in high temperature conditions, and so on. But they are safe because they are large enough to ensure that ~ON/OFF is not de-asserted too early.

Additional notes:

If the application manages hardware flow control, the AT command can be sent during the

initialisation phase.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 52 / 78

Q52 Omni Product

Technical Specification

1. Typical power-up initialization time figures for best cases conditions (no

power-loss recovery, fast and new flash memory…) approximate 3.5 seconds in every firmware version. But releasing ~ON/OFF after this delay does not guarantee that the application will actually start-up if for example the power plug has been pulled off during a flash memory operation, like a phone book entry update or an AT&W command…

2. The ~ON/OFF signal can be left at a low level until switch OFF. But this is

not recommended as it will prevent the AT+CPOF command from performing a clean power-off. (See also the note in the

Power OFF chapter

for an alternate usage.)

3. When using a battery as power source, it is not recommended to let this

signal high:

If the battery voltage is too low and the ~ON/OFF signal at high level, an internal mechanism switches OFF the Q52 OMNI /Open AT

Software Suite v1.0. This automatic process prevents the battery to be over discharged and optimize its life span.

4. During the power-ON sequence, an internal reset is automatically performed by the Q52 OMNI /Open AT

Software Suite v2.0 for 40 ms

(typically). Any external reset should be avoided during this phase.

5. After a reset (hardware or software), if the ~ON/OFF signal is OFF (High level) the Q52 OMNI switches OFF.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 53 / 78

Q52 Omni Product

Technical Specification

3.11.3.2 Power OFF

To properly power OFF the Q52 OMNI/Open AT application must set the ~ON/OFF signal and then send the AT+CPOF command to deregister from the network and switch off the Q52 OMNI /Open AT

Software Suite v2.0 the

Software

Suite v2.0.

Once the « OK » response is issued by the Q52 OMNI /Open AT

Software Suite

v2.0, the power supply can be switched off.

POWER SUPPLY

ON/OFF

AT COMMAND

STATE OF THE MODULE

= overall current consumption (Base Band + RF part)

BB +R F

Module READY

AT+CPOF

Ne tw or k depe nd e nt

OK response

Module OFF

<2 2µA

BB +RF

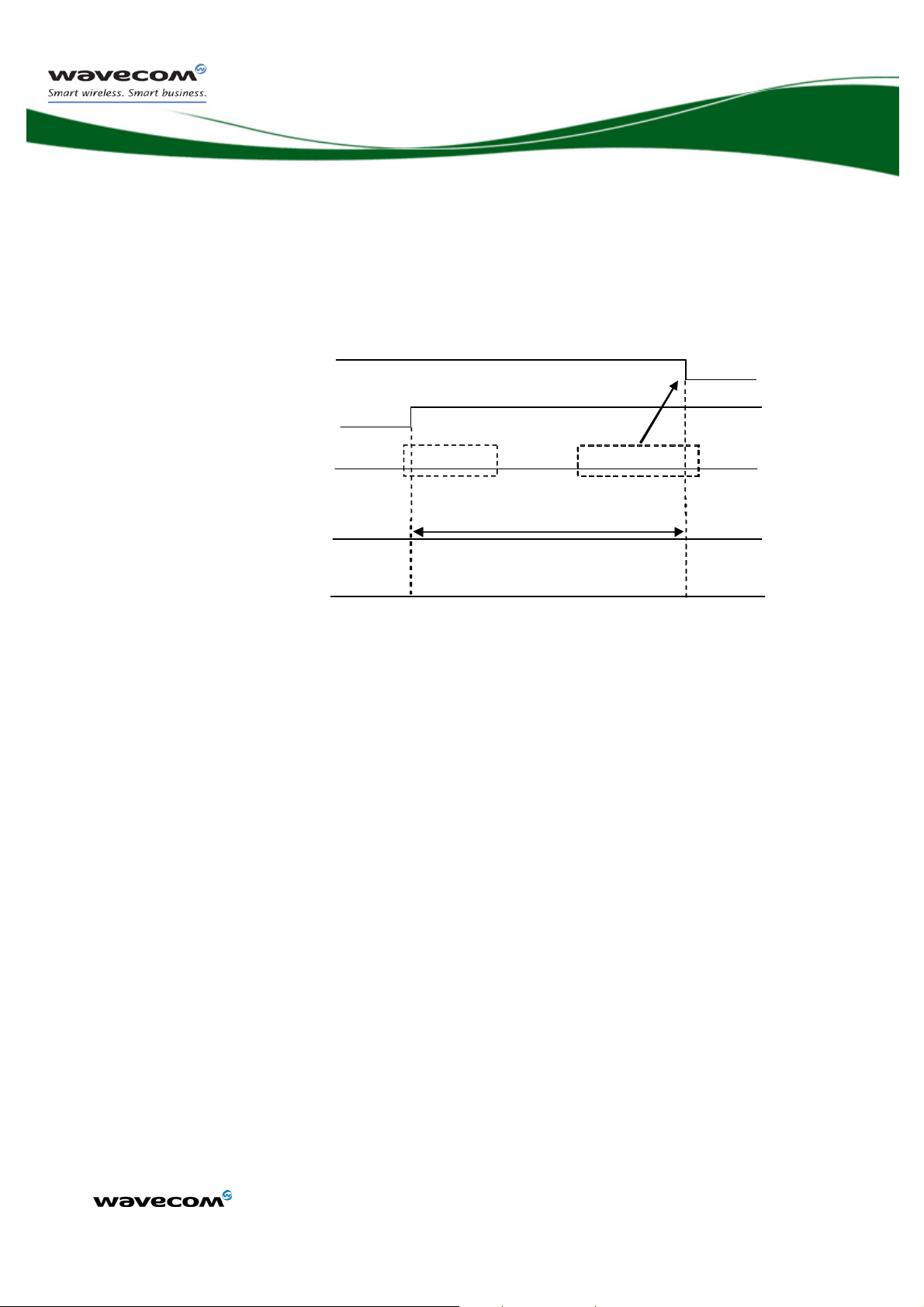

Figure 20 : Power-OFF sequence

Note:

• If the ~ON/OFF pin is maintained to ON (Low Level) then the module can’t be

switched OFF.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 54 / 78

Q52 Omni Product

Technical Specification

3.12 External Interrupt

The Q52 OMNI provides one external interrupt input. The interrupt input can be activated on:

• High to low edge

• Low to high edge

• Low to high and high to low edge

• Low level

• High level

When used, the interrupt input must not be left open.

If not used, it must be configured as a GPIO.

Signal Pin

number

I/O I/O type Reset

state

Description Multiplexed

with

INT1 17 I 2V8 Z External Interrupt GPIO3

Table 29: External Interrupt Pin description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

Parameter Minimum Maximum Unit

VIL 0.84

INT1

V 1.96

Table 30: External Interrupt Electrical Characteristics

3.13 BOOT Signal

A specific control signal BOOT is available to download the Q52 Omni only if the standard XMODEM download, controlled with AT command, is not possible.

Specific PC software, provided by WAVECOM, is needed to perform this download, specifically for the first download of the Flash memory.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 55 / 78

Q52 Omni Product

Technical Specification

3.13.1 Features

The BOOT signal is muxed with DCD1 pin.

The BOOT signal must be connected to the VCC_1V8 for this specific download.

BOOT Operating mode Comment

Leave open Normal use

No download

DCD function

Leave open Download XMODEM

DCD function

AT command for Download AT+WDWL

1 Download specific Need WAVECOM PC software

Table 31: Boot Signal Mode

For more information, see chapter 3.8.3.

This BOOT signal must be left open for normal use or XMODEM download.

3.13.2 Pin Description

Signal Pin number I/O I/O type Description

BOOT

23 I 1V8 Download mode selection

(DCD pin)

Table 32: Boot Pin description

3.13.3 Application

Figure 21: Boot Selection Application Example

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 56 / 78

Q52 Omni Product

Technical Specification

3.14 VREF_2V8 Output

This output can only be used to connect pull-up resistor. VCC_2V8 must be used as a reference supply. The voltage supply is available when the Q52 OMNI is on.

Signal Pin number I/O I/O type

Description

VREF_2V8 2 O Supply Digital supply

Table 33: VREF_2V8 Pin Description

Parameter Minimum Typ Maximum Unit

Output voltage 2.74 2.8 2.86 V

VCC_2V8

Output Current

15 mA

Table 34: VREF_2V8 Electrical Characteristics

3.15 BAT-RTC (Backup Battery)

The Q52 Omni provides an input/output to connect a Real Time Clock power supply.

3.15.1 Interface Description

This pin is used as a back-up power supply for the internal Real Time Clock. The RTC is supported by the Q52 Omni when VCC_3V6 is available, but a back-up power supply is needed to save date and time when the VCC_3V6 is switched off (VCC_3V6 = 0V).

Q52 Omni

from VCC_3V6

to RTC

2.5V regulator

1.8V regulator

BATT-RTC (pin 4)

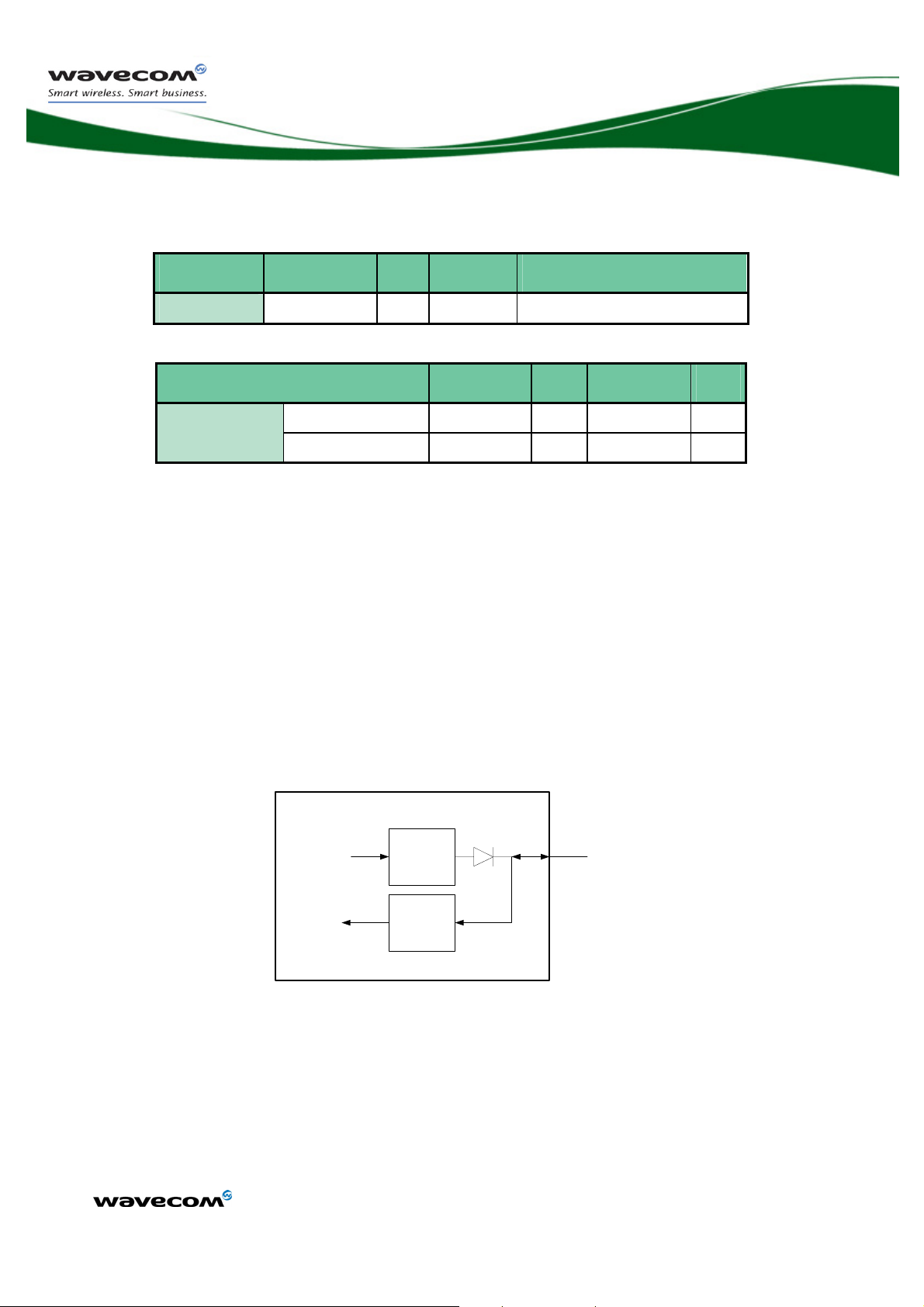

Figure 22: Real Time Clock power supply

If the RTC is not used, this pin can be left open.

If VCC_MAIN is available, the back-up battery can be charged by the internal 2.5V power supply regulator.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 57 / 78

Q52 Omni Product

Technical Specification

Signal Pin number I/O I/O type

Description

BATT-RTC 4 I/O Supply RTC Back-up supply

Table 35: Bat-RTC Pin Description

Parameter Minimum Typ Maximum Unit

Input voltage 1.85 2.5 V

Input current

3.3 µA

consumption*

Output voltage 2.45 V

Output current 2 mA

Table 36: Bat-RTC Electrical Characteristics

*Provided by an RTC back-up battery when Q52 OMNI VCC_MAIN power supply is off (VCC_MAIN = 0V).

3.16 FLASH-LED Signal

FLASH LED is an open drain output. A LED and a resistor can be directly connected between this output and VCC_MAIN.

When the Q52 Omni CPU is ON, this output is used to indicate network status.

GSM

VCC_3V6 status FLASH-LED status Q52 OMNI GSM status

status

Permanent Q52 Omni switched ON, not

registered on the network

Slow flash

LED ON for 200 ms, OFF

Q52 Omni switched ON, registered on the network

for 2 s

ON VCC_3V6 = 3.6V

Quick flash

LED ON for 200 ms, OFF for 600 ms

Q52 Omni switched ON, registered on the network, communication in progress

Very quick flash Q52 Omni switched on,

LED ON for 100ms, OFF for 200ms

software downloaded is either corrupted or non-compatible ("BAD SOFTWARE")

Table 37: Flash-LED Status

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 58 / 78

Q52 Omni Product

Technical Specification

Signal Pin

I/O I/O type Reset state Description

number

FLASH-

LED

3 O Open Drain

Output

1 and

Undefined

LED driving

Table 38: Flash-LED Pin Description

See Chapter 3.2.3, “Electrical information for digital I/O” for Open drain, 2V8 and 1V8 voltage characteristics and Reset state definitions.

FLASH-LED state is undefined during the software initialization time. During software initialization time, for 2 seconds max after POWER_EN is pulled active low, the FLASH-LED signal is toggling and does not provide Q52 Omni GSM status. After the 2s period, the FLASH-LED provides the true status of the Q52 Omni GSM connection.

Parameter Condition Minimum Typ Maximum Unit

VOL 0.4 V

IOUT 8 mA

Table 39: Flash-LED Electrical Characteristics

3.17 GPS Functionality

The Q52 Omni provides in option GPS functionality. The GPS is assumed by e-Ride solution based on Opus

III ®

Chipsets. This part is controlled by a Q52 Omni’s

CPU.

For list of command available refer to AT command list…

3.17.1 Features (eRide Documentation Extract: For Information Only)

• Supports GPS L-band C/A code channels and 2 additional dedicated WAAS channels for enhanced accuracy

• High indoor sensitivity of -161dBm achieved utilizing 44,000 effective correlators (both in acquisition & tracking mode)

• Fast TTFF of typically < 1s when in hot and 34s in cold start conditions

• Accuracy of 2.5m outdoors (CEP 50%) and 10m indoors

• User interface via a serial port, 1Hz update rate

3.17.2 Performances (eRide Documentation Extract: For Information Only)

Parameter Conditions Min Typ Max Unit

Hot Start @-135 dBm

Hot Start @-155 dBm

All SV’s same level 13 s

1 s

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 59 / 78

Q52 Omni Product

Technical Specification

Parameter Conditions Min Typ Max Unit

Warm Start @-135

33 s

dBm

Warm Start @-145

All SV’s same level 67 s

dBm

Cold Start @-135 dBm

Cold Start @-145 dBm

Acquisition sensitivity,

34 s

All SV’s same level 83 s

hot start

Acquisition sensitivity, warm start

Tracking sensitivity

Position accuracy,

-161 dBm

Open sky, CEP 50%

outdoors

Position accuracy,

CEP 50%

indoors

Table 40: GPS Functionality Performances

3.17.2.1 Time-to-First-Fix Charts

-161 dBm

-146.5 dBm

2.5 m

10 m

Figure 23: GPS TTFF, Hot Start Configuration

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 60 / 78

Q52 Omni Product

Technical Specification

Figure 24: GPS TTFF, Warm Start Configuration

Figure 25: GPS TTFF, Simulator Cold Start Configuration

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 61 / 78

3.17.2.2 First Position Fix Accuracy Charts

Q52 Omni Product

Technical Specification

Figure 26: First Position Fix Accuracy Chart 01

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 62 / 78

Q52 Omni Product

Technical Specification

Figure 27: First Position Fix Accuracy Chart 02

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 63 / 78

Q52 Omni Product

Technical Specification

Figure 28: First Position Fix Accuracy Chart 03

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 64 / 78

Q52 Omni Product

Technical Specification

3.18 RF Interface

The RF impedance GSM, Orbcomm and GPS* antenna outputs is 50 Ohms nominal and the DC impedance is 0 Ohm.

The GPS* antenna provides 3V biasing for active antenna.

3.18.1 RF Connections

The Q52 OMNI RF connections are assumed by FAKRA Type connectors:

Fakra Type Color RF Type

GSM/GPRS Type D Bordeaux Violet

Satellite Type K Curry Yellow

GPS* Type C Blue

• *if available

•

3.18.2 RF Performance

GSM mode RF performance is compliant with the ETSI GSM 05.05 recommendation.

The GSM Receiver parameters are:

• GSM850 Reference Sensitivity = -108 dBm Static & TUHigh

• E-GSM900 Reference Sensitivity = -108 dBm Static & TUHigh

• DCS1800 Reference Sensitivity = -107 dBm Static & TUHigh

• PCS1900 Reference Sensitivity = -107 dBm Static & TUHigh

• Selectivity @ 200 kHz: > +9 dBc

• Selectivity @ 400 kHz: > +41 dBc

• Linear dynamic range: 63 dB

• Co-channel rejection: >= 9 dBc

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 65 / 78

Q52 Omni Product

Technical Specification

3.18.3 Transmitter Parameters

• Maximum output power (EGSM & GSM850): 33 dBm +/- 2 dB at ambient temperature

• Maximum output power (GSM1800 & PCS1900): 30 dBm +/- 2 dB at bient temperature

• Minimum output power (EGSM & GSM850): 5 dBm +/- 5 dB at ambient temperature

• Minimum output power (GSM1800 & PCS1900): 0 dBm +/- 5 dB at ambient temperature

3.18.4 Antenna Specifications

The antenna must meet the following requirements:

• The optimum operating frequency depends on the application. A dual band or quad band antenna shall operate in these frequency bands and have the following characteristics:

Q52 Omni GSM Mode of Operation

Characteristic

E-GSM 900 DCS 1800 GSM 850 PCS 1900

TX Frequency 880 to

915 MHz

RX Frequency 925 to

960 MHz

1710 to 1785

MHz

1805

to 1880 MHz

849 MHz

894 MHz

Impedance 50 Ohms

Rx max 1.5:1

VSWR

Tx max 1.5:1

Typical radiated gain

0dBi in one direction at least

Table 41: GSM Antenna Specifications

824 to

869 to

1850 to

1910 MHz

1930 to

1990 MHz

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 66 / 78

Q52 Omni Product

Technical Specification

4 Technical Specifications

4.1 Environmental Specifications

Wavecom specifies the following temperature range for the Q52 OMNI dual mode product.

The dual mode transceiver is compliant with the following operating class.

Conditions Temperature range

Operating / Class A -20 °C to +55°C

Operating / Storage / Class B -40 °C to +85°C

Function Status Classification:

Class A:

The Wireless CPU accordance with ETSI requirements, across the specified temperature range.

remains fully functional, meeting GSM performance criteria in

Class B:

The Wireless CPU Some GSM parameters may occasionally deviate from the ETSI specified requirements and this deviation does not affect the ability of the Wireless CPU

remains fully functional, across the specified temperature range.

connect to the cellular network and function fully.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 67 / 78

Technical Specification

Q52 Om ni T rans ceiv er ENVIRO NNE M ENTAL CLASSES

TYPE OF TEST STANDARDS STORAGE TRANSPORTATION OPERATING (PORT USE)

Class 1.2 Class 2.3 Class 7.3

Q52 Omni Product

Cold IEC 68-2.1 -25° C 72 h -40° C 72 h -20° C (GSM900) 16 h

Ab test -10° C (G SM1800 /1900) 1 6h

Dry heat IEC 68-2.2 +70° C 72 h +70 ° C 72 h +5 5° C 1 6 h

Bb test

Change of temper atu re I EC 68- 2.1 4 -40 ° / + 30° C 5 cy cles -20° / +30° C (GSM900) 3 cycles

Na/Nb test t 1 = 3 h -10° / +30° C (GS M1800/19 00):

3 cycles t1 = 3 h

Damp he at I EC 68-2.3 0 +30° C 2 cycles +40° C 2 cycles +40° C 2 cycles

cyclic Db test 90% - 100% RH 90% - 100% RH 90% - 100% RH

variant 1 varia nt 1 varian t 1

Damp he at I EC 68-2.56 +30° C 4 days +40° C 4 d ays +40° C 4 days

Cb test

Sin usoidal vibration IEC 68- 2.6 5 - 62 Hz : 5 mm / s

Fc tes t 62 - 200Hz : 2 m / s 2

3 x 5 sweep cycles

5 - 20 Hz : 0 .96 m2 / s 3 10 -12 Hz : 0.96 m2 / s 3

Random v ibrat ion IEC 68-3.3 6 20 - 500Hz : - 3 d B / oct 12 - 150Hz : - 3 dB / oct

wide ban d F db test 3 x 10 min 3 x 30 m in

Figure 29: Environmental classes

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 68 / 78

4.2 Mechanical Specifications

Q52 Omni Product

Technical Specification

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 69 / 78

Q52 Omni Product

Technical Specification

4.3 Antenna Cable

TBD

4.4 GSM Antenna

GSM antennas and support for antenna adaptation can be obtained from manufacturers such as:

• ALLGON (http://www.allgon.com )

• IRSCHMANN (

http://www.hirschmann.com/ )

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 70 / 78

Q52 Omni Product

Technical Specification

5 Appendix

5.1 Standards and Recommendations

GSM ETSI, 3GPP, GCF and NAPRD03 recommendations for Phase II & FCC.

Specification Reference Title

3GPP TS 45.005 v5.5.0 (2002-08) Release 5

GSM 02.07 V8.0.0 (1999-07)

GSM 02.60 V8.1.0 (1999-07)

GSM 03.60 V7.9.0 (2002-09)

3GPP TS 43.064 V5.0.0 (2002-04)

3GPP TS 03.22 V8.7.0 (2002-08)

Technical Specification Group GSM/EDGE. Radio Access Network; Radio transmission and reception

Digital cellular telecommunications system (Phase 2+);

Mobile Stations (MS) features (GSM 02.07 version 8.0.0 Release 1999)

Digital cellular telecommunications system (Phase 2+);

General Packet Radio Service (GPRS); Service description, Stage 1 (GSM 02.60 version 8.1.0 Release 1999)

Technical Specification Group Services and System Aspects;

Digital cellular telecommunications system (Phase 2+); General Packet Radio Service (GPRS); Service description; Stage 2 (Release 1998)

Technical Specification Group GERAN; Digital cellular telecommunications system (Phase 2+); General Packet Radio Service (GPRS); Overall description of the GPRS radio interface; Stage 2 (Release 5)

Technical Specification Group GSM/EDGE. Radio Access Network; Functions related to Mobile Station (MS) in idle mode and group receive mode; (Release

1999)

3GPP TS 03.40 V7.5.0 (2001-12)

3GPP TS 03.41 V7.4.0 (2000-09)

ETSI EN 300 903 V8.1.1 (2000-11)

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written agreement.

Technical Specification Group Terminals;

Technical realization of the Short Message Service (SMS)

(Release 1998)

Technical Specification Group Terminals; Technical realization of Cell Broadcast Service (CBS) (Release 1998)

Digital cellular telecommunications system (Phase 2+);

Transmission planning aspects of the speech service in the GSM

Public Land Mobile Network (PLMN) system (GSM 03.50 version 8.1.1 Release 1999)

Page 71 / 78

Specification Reference Title

3GPP TS 04.06 V8.2.1 (2002-05)

Technical Specification Group GSM/EDGE Radio Access Network; Mobile Station - Base Station System (MS - BSS) interface; Data Link (DL) layer specification (Release 1999)

Q52 Omni Product

Technical Specification

3GPP TS 04.08 V7.18.0 (2002-09)

3GPP TS 04.10 V7.1.0 (2001-12)

3GPP TS 04.11 V7.1.0 (2000-09)

3GPP TS 45.005 v5.5.0 (2002-08)

3GPP TS 45.008 V5.8.0 (2002-08)

3GPP TS 45.010 V5.1.0 (2002-08)

Technical Specification Group Core Network;

Digital cellular telecommunications system (Phase 2+);

Mobile radio interface layer 3 specification (Release

1998)

Technical Specification Group Core Networks;

Mobile radio interface layer 3 Supplementary services specification; General aspects (Release 1998)

Technical Specification Group Core Network; Digital cellular telecommunications system (Phase 2+); Point-to-Point (PP) Short Message Service (SMS) support on mobile radio interface

(Release 1998)

Technical Specification Group GSM/EDGE. Radio Access Network; Radio transmission and reception (Release 5)

Technical Specification Group GSM/EDGE

Radio Access Network; Radio subsystem link control (Release 5)

Technical Specification Group GSM/EDGE

Radio Access Network; Radio subsystem synchronization (Release 5)

3GPP TS 46.010 V5.0.0 (2002-06)

Technical Specification Group Services and System Aspects;

Full rate speech; Transcoding (Release 5)

3GPP TS 46.011 V5.0.0 (2002-06)

Technical Specification Group Services and System Aspects;

Full rate speech; Substitution and muting of lost frames for

full rate speech channels (Release 5)

3GPP TS 46.012 V5.0.0 (2002-06)

Technical Specification Group Services and System Aspects;

Full rate speech; Comfort noise aspect for full rate speech traffic channels (Release 5)

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 72 / 78

Specification Reference Title

3GPP TS 46.031 V5.0.0 (2002-06)

Technical Specification Group Services and System Aspects;

Full rate speech; Discontinuous Transmission (DTX) for full rate speech traffic channels (Release 5)

Q52 Omni Product

Technical Specification

3GPP TS 46.032 V5.0.0 (2002-06)

TS 100 913V8.0.0 (1999-08)

GSM 09.07 V8.0.0 (1999-08)

3GPP TS 51.010-1 v5.0.0 (2002-09)

3GPP TS 51.011 V5.0.0 (2001-12)

Technical Specification Group Services and System Aspects;

Full rate speech; Voice Activity Detector (VAD) for full rate speech traffic channels (Release 5)

Digital cellular telecommunications system (Phase 2+);

General on Terminal Adaptation Functions (TAF) for Mobile Stations (MS) (GSM 07.01 version 8.0.0 Release 1999)

Digital cellular telecommunications system (Phase 2+);

General requirements on interworking between the Public Land Mobile Network (PLMN) and the Integrated Services Digital Network (ISDN) or Public Switched Telephone Network (PSTN) (GSM 09.07 version 8.0.0 Release 1999)

Technical Specification Group GSM/EDGE ; Radio Access Network ;Digital cellular telecommunications system (Phase 2+);Mobile Station (MS) conformance specification; Part 1: Conformance specification (Release 5)

Technical Specification Group Terminals; Specification of the Subscriber Identity Module - Mobile Equipment (SIM - ME) interface (Release 5)

ETS 300 641 (1998-03)

Digital cellular telecommunications system (Phase 2);

Specification of the 3 Volt Subscriber Identity Module Mobile Equipment (SIM-ME) interface (GSM 11.12 version 4.3.1)

GCF-CC V3.7.1 (2002-08) Global Certification Forum – Certification criteria

NAPRD03 V2.6.0 (2002-06) North America Permanent Reference Document for

PTCRB tests

The Q52 Omni connected on a development kit board application is certified to be in accordance with the following Rules and Regulations of the Federal Communications Commission (FCC).

Power listed on the Gant is conducted for Part 22 and conducted for Part 24

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 73 / 78

Q52 Omni Product

Technical Specification

This device contains GSM, GPRS Class 10 functions in the 900 and 1800MHz Band which are not operational in U.S. Territories.

This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Antennas used for this OEM module must not exceed 3.1dBi gain for PCS 1900 MHz and 0.9dBi for GSM 850 MHz for mobile and fixed operating configurations. This device is approved as a module to be installed in other devices.

Installed in other portable devices, the exposure conditions require a separate equipment authorization.

The license module had a FCC ID label on the module itself. The FCC ID label must be visible through a window or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the device that contains the following text:

Contains FCC ID: O9EQ52OMNI

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, (2) this device must accept any interference received, including

interference that may cause undesired operation.

IIMPORTANT: Manufacturers of mobile or fixed devices incorporating the Q52 Omni device are advised to:

• clarify any regulatory questions,

• have their completed product tested,

• have product approved for FCC compliance, and

• include instructions according to above mentioned RF exposure statements in end product user manual.

Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 74 / 78

5.2 Declaration of Conformity

To Whom it May Concern:

We, Wavecom

430 Davis Drive Suite 300

PO Box 13920

Research Triangle Park

NC 27709 USA

declare under our sole responsibility that the Product

Q52 OMNI

to which this declaration relates is in conformity with the following standards or other normative documents

Q52 Omni Product

Technical Specification

EN 301 721

EN 301-489-20

as they apply to the above referenced Product.

Research Triangle Park

November 12, 2008

Peter Cotterill

Certification Manager

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 75 / 78

Q52 Omni Product

Technical Specification

5.3 Safety Recommendations (for Information Only)

IMPORTANT

FOR THE EFFICIENT AND SAFE OPERATION OF YOUR GSM APPLICATION

PLEASE READ THIS INFORMATION CAREFULLY

5.3.1 RF Safety

5.3.1.1 General

Your GSM terminal GSM standard is spread all over the world. It covers Europe, Asia and some parts of America and Africa. This is the most used telecommunication standard.

Your GSM terminal is actually a low power radio transmitter and receiver. It sends out and receives radio frequency energy. When you use your GSM application, the cellular system which handles your calls controls both the radio frequency and the power level of your cellular modem.

is based on the GSM standard for cellular technology. The

5.3.1.2 Exposure to RF Energy

There has been some public concern about possible health effects of using GSM terminals. Although research on health effects from RF energy has focused on the current RF technology for many years, scientists have begun research regarding newer radio technologies, such as GSM. After existing research had been reviewed, and after compliance to all applicable safety standards had been tested, it has been concluded that the product was fitted for use.

If you are concerned about exposure to RF energy there are things you can do to minimize exposure. Obviously, limiting the duration of your calls will reduce your exposure to RF energy. In addition, you can reduce RF exposure by operating your cellular terminal efficiently by following the guidelines below.

5.3.1.3 Efficient Terminal Operation

For your GSM terminal to operate at the lowest power level, consistent with satisfactory call quality:

If your terminal has an extendable antenna, extend it fully. Some models allow you to place a call with the antenna retracted. However your GSM terminal operates more efficiently with the antenna fully extended.

Do not hold the antenna when the terminal is "IN USE". Holding the antenna affects call quality and may cause the modem to operate at a higher power level than needed.

based on WISMO2D

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 76 / 78

Q52 Omni Product

Technical Specification

5.3.1.4 Antenna Care and Replacement

Do not use the GSM terminal with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Replace a damaged antenna immediately. Consult your manual to see if you may change the antenna yourself. If so, use only a manufacturer-approved antenna. Otherwise, have your antenna repaired by a qualified technician.

Use only the supplied or approved antenna. Unauthorized antennas, modifications or attachments could damage the terminal and may contravene local RF emission regulations or invalidate type approval.

5.3.2 General Safety

5.3.2.1 Driving

Check the laws and the regulations regarding the use of cellular devices in the area where you have to drive as you always have to comply with them. When using your GSM terminal while driving, please:

• give full attention to driving,

• pull off the road and park before making or answering a call if driving

conditions so require.

5.3.2.2 Electronic Devices

Most electronic equipment, for example in hospitals and motor vehicles is shielded from RF energy. However RF energy may affect some improperly shielded electronic equipment.

5.3.2.3 Vehicle Electronic Equipment

Check your vehicle manufacturer representative to determine if any on-board electronic equipment is adequately shielded from RF energy.

5.3.2.4 Medical Electronic Equipment

Consult the manufacturer of any personal medical devices (such as pacemakers, hearing aids, etc...) to determine if they are adequately shielded from external RF energy.

Turn your terminal OFF in health care facilities when any regulations posted in the area instruct you to do so. Hospitals or health care facilities may be using RF monitoring equipment.

5.3.2.5 Aircraft

Turn your terminal OFF before boarding any aircraft.

• Use it on the ground only with crew permission.

• Do not use it in the air.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 77 / 78

Q52 Omni Product

Technical Specification

To prevent possible interference with aircraft systems, Federal Aviation Administration (FAA) regulations require you to have permission from a crew member to use your terminal while the aircraft is on the ground. To prevent interference with cellular systems, local RF regulations prohibit using your modem while airborne.

5.3.2.6 Children

Do not allow children to play with your GSM terminal. It is not a toy. Children could hurt themselves or others (by poking themselves or others in the eye with the antenna, for example). Children could damage the modem, or make calls that increase your modem bills.

5.3.2.7 Blasting Areas

To avoid interfering with blasting operations, turn your unit OFF when in a "blasting area" or in areas posted: "turn off two-way radio". Construction crew often uses remote control RF devices to set off explosives.

5.3.2.8 Potentially Explosive Atmospheres

Turn your terminal OFF when in any area with a potentially explosive atmosphere. It is rare, but your modem or its accessories could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injuries or even death.

Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas such as petrol stations; below decks on boats; fuel or chemical transfer or storage facilities; and areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

Do not transport or store flammable gas, liquid, or explosives, in the compartment of your vehicle which contains your terminal or accessories.

Before using your terminal in a vehicle powered by liquefied petroleum gas (such as propane or butane) ensure that the vehicle complies with the relevant fire and safety regulations of the country in which the vehicle is to be used.

This document is the sole and exclusive property of WAVECOM. Not to be distributed or divulged without prior written

agreement.

Page 78 / 78
