O2 Business USB Modem
Quick Start Guide
2130974 Rev. 1.0 (May 2008)
Product specification is subject to copyright of Sierra Wireless
©
2008. All rights reserved.
Watcher® is a trademark of Sierra Wireless, registered in the Europe an Community. Sierra Wireless, the Sierra Wireless logo, the red wave
design, TRU-Install™ , and Compass™ are trademarks of Sierra Wireless. Windows® is a registered trademark of Microsoft Corporation.
Mac OS® is a trademark of Apple Inc., registered in the US and other countries. Other trademarks are the property of the respective owners.
We’re better, connected
Welcome to O2 Business USB Modem
With this Quick Start Guide, you’ll find your O2 Business USB
Modem with TRU-Install™ together with these accessories.
• USB extension cable
• Laptop clip
• Carrying pouch
• Lanyard
To use your O2 Business USB Modem,
you’ll need any of these operating systems:
• Windows
®
Vista
™
• Windows XP
• Windows 2000
• Mac OS
®
X 10.4.11 or later
Cap
USB connector
SIM card &
microSD slots
LEDs
Data
Power
External antenna
connector
Installing your O2 Business USB Modem
This modem is TRU-Install™ enabled, so you don’t need a CD for installation*.
To use it, remove the cap from the end of the modem and insert the SIM card
into the top slot, as shown in the illustration. Then, simply insert the O2 Business
USB Modem into the USB slot and follow the onscreen instructions.
WINDOWS® OS
Insert the USB modem into the computer’s USB port. The required drivers
will be installed automatically. Once the drivers have been successfully
installed, a message will pop up on your screen providing you with details
about the software installation as well as the connection settings. Click
connect.
You should now follow the onscreen instructions to complete installation.
You may need to restart your PC once installation is complete.
The O2 Business USB Modem is ready to use.
To access the Help system in 3G Watcher, select Help > Help topics.
MAC 0S®X
After you insert the modem, the TRU-Install™ folder appears. Launch
the Installer package and follow the onscreen instructions to install the
software.
The O2 Business USB Modem is ready to use.
O2 Business USB Modem
SIM card
*Dependent on your company’s IT permissions and policies. Please check with your IT department.

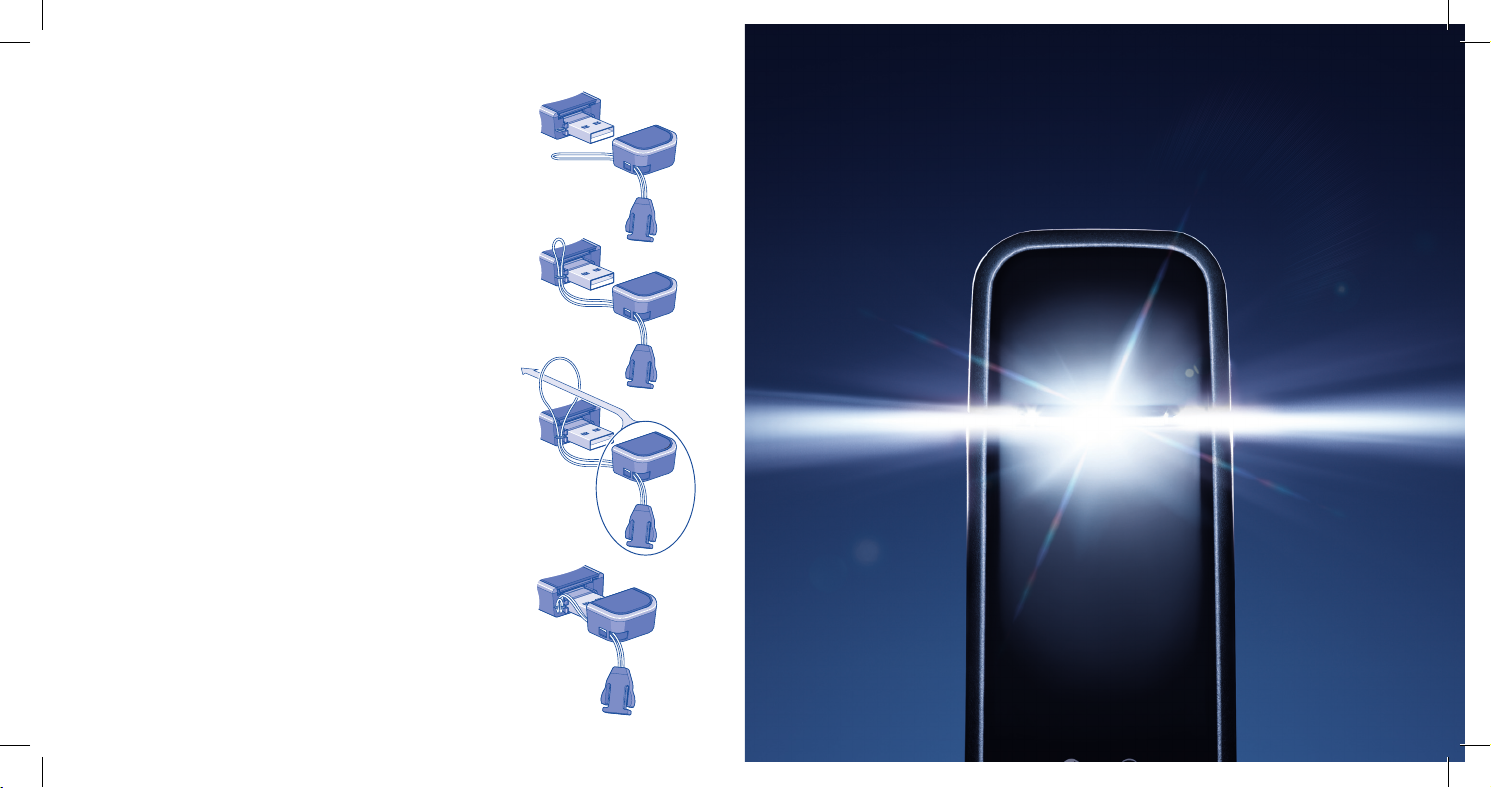

Attach the lanyard
To keep everything together, it’s a good idea
to thread the lanyard through the cap and the
modem, as shown in the illustrations.
Using the laptop clip and USB cable
In areas of marginal network coverage, you
might want to clip the USB modem to the top
of your laptop and connect it to your USB port
via the USB cable provided. This may help you
receive a better network signal.
Using the laptop clip and USB cable will
also reduce any interference that you might
experience in rare circumstances.
Need help?
If you have any questions, we’ll be able to
help. Simply contact our Customer Services,
using the details on your latest O2 bill.
