Comm Activity
®
DigiCell
Network Access Module
AnyNET
Network Status
Service
Network Interface Network Service
AMPS
Cellemetry
GSM
SMS
GPRS
CDMA
1xRTT
Ethernet
TCP/IP
RS-232
®
Input 1 Standard S3 off, S4 off
Input 1 Pulse Ctr S3 off, S4 on
Input 1 Timed Bell S3 on, S4 off
IN 1 IN 2 IN 3 IN 4
+ - + - + - + -
Input 1 Sampled Siren S3 on, S4 on
S/N 9200920999
19-25133-070
OUTPUT 1 OUTPUT 2
12 VDC
+ -
307V100B
NETWORK
DIGICELL® ANYNET
NETWORK ACCESS MODULE
Product ID # 19-25133-070/-071
INSTALLATION AND
USER’S GUIDE
Revision 1 Dtd 12/30/05
© 2005 by Numerex
No part of this publication may be reproduced or used in any form without
permission in writing from Numerex. This includes electronic or mechanical
means, such as photocopying, recording, or information storage and retrieval
systems. The material in this manual is subject to change without notice.
Numerex reserves the right to make changes to any software or product to
improve reliability, function or design.
Uplink is a servicemark, DigiCell AnyNet, Cellemetry, and CellemetryXG are
registered trademarks of Numerex Corp. Other product names mentioned in
this manual may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged.
T
ABLE OF CONTENTS
Table of Contents ........................................................1
Warranty Information & Liability Waiver ........ .............1
Technical Support ........................................................2
Description .................................................................. 3
Installation Steps ........................................................4
Unit Wiring ..................................................................6
Antenna Specification ..................................................9
FCC & Industry Canada Regulatory Compliance .........10
W
ARRANTY INFORMATION
The Company's Products Are Subject To The Following Limited Warranty:
The company's products are warranted against defects in materials and workmanship
for a period of one (1) year following the date of purchase, un der normal u se and service. The company's obligation under this limited warranty is limited to repairing or replacing with reconditioned parts, at its option, any product proven to be defective in
materials or workmanship under normal use and service. The company shall have no
obligation if its products are altered or improperly repaired or serviced by any party
other than the company. Except as set forth herein, the company's products are delivered without warranty of any kind, whether express or implied, including any warranty
of merchantability and any warranty that the company's products are fit for any particular purpose. In no event shall company be liable for actions of third parties which
may affect the performance of its products or other factors outside company's control
which may require installation of additional equipment or affect the performance of the
products.
THE EXTERNAL ANTENNAS USED FOR THIS MODULE MUST PROVIDE A SEPARATION
DISTANCE OF AT LEAST 20 CM FROM ALL PERSONS AND MUST NOT BE CO-LOCATED
OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER
WARNING: Unauthorized antennas, modifications, or attachments could impair call
quality, damage the Module, or result in violation of FCC regulations. Do not use the
Module with a damaged antenna. Please contact your local authorized dealer for antenna replacement.
IMPORTAN T!
Read these safety guidelines prior to using your Module. Failure to follow these rules
and guidelines may be dangerous and/or illegal.
& L
IABILITY
W
AIVER
.
1
T
ECHNICAL SUPPORT
Te chnical support is available M onday through Friday 8:00 AM to 8:00 PM ET excluding holidays. Before calling technical support please ensure you have read the installation guide completely. Technical support requires you to provide:
Login name
•
• Password
• Serial number of the unit
These items are required in order to assist you.
UPLINK Technical Support
1600 Parkwood Circle, Suite 500
Atlanta, GA 30339
888-9-Uplink
Fax: 770-693-3501
For Customer Support, call 888-987-5465,
or visit www.uplink.com
2
D
ESCRIPTION
DigiCell AnyNET® Network Access Modules are comprised of various radio modules supporting multiple analog and digital radio technologies. Supported technologies include GSM,
®
CDMA, and AMPS. Supported services include Cellemetry
and SMS for either GSM or
CDMA. Support is also provided for expansion to broadband wireless. In addition, the Module
can also be optionally ordered and configured with an IP communications module providing
10/100 Ethernet connectivity.
security monitoring
mobile tracking
environmental alarms
vending intelligence
asset management
M2M Fixed and Mobile
Applications
Multi-mode/
Multi-path
Network Access Module
Cellular Network
CellemetryXG Network
Operations Center
Internet
M2M Solution
Partners
M2M Customers
All modules feature an RS-232 serial port that can be used to program the unit and execute
firmware flash upgrades in the field. The port also provides serial connectivity to auxiliary
devices, including SCADA systems and alarm panels .
This AnyNET Module is an always on multi-purpose FCC certified device capable of sending
and receiving digital data over the GSM Network. The operating frequencies are in the 850
MHz and 1900 MHz bands. The Module can be powered using a nominal 12 VDC supply and
the transmitter is capable of operating as a class 4 (2 W output) on 850 MHz and Class 1 (1
W att output) on 1900 MHz transmitter . The unit typically comes with a d ual band quarter-wave
antenna with frequency bands of 850 MHz and 1900 MHz. The Module’s four discrete inputs
are triggered by DC voltage signals. The pulse counter can be set to report on demand, or it can
be set to report and reset. The pulse counter automatically reports when the counter overflows
and the power input reports a low battery condition of less than 10.2 VDC.
3
I
NSTALLATION STEPS
1. For new customers, establish an account with Uplink by visiting the
www.uplink.com website and requesting a new account.
2. The AnyNET Module must be activated and configured from the Uplink website
at www.uplink.com or by calling Uplink Support at 1-888-987-5465.
3. Install the Module’s antenna on top of the unit.
4. Before permanently installing the unit, test signal strength of the unit by connecting a 12 VDC, 2 A capable power supply.
5. Upon initial power up, observe the status LEDs located on the Module's front
panel to determine unit and network status:
Table 1: LED indications
NETWORK
ON GSM and GPRS networks available
Slow Blink Only one network available
Fast Blink No network available
If after waiting for at least three minutes the unit continues with
NOTE
a fast blink call Uplink customer support at 1-888-987-5465 to
check network availability in your area.
SERVICE
OFF No GSM service
Slow Blink Service and signal less than -111 dBm (not recommended)
Fast Blink Service and signal between -109 dBm and -53 dBm (good)
ON Service and signal greater than -51 dBm (best)
COMMS
Intermittent Blink Active (internal device communications only)
6. After successfully testing the unit, disconnect all power before installation.
7. Mount or place the unit in an area that is dry and free from metal objects,
obstructions, and it is recommended that it is above grade level.
8. Wire unit per the Unit Wiring section on page 6.
4
9. The AnyNET Module is configured via the DIP switches on the front panel.
T
Figure 1: Detail of Dip Switch
Set DIP switches according to the following table:
Switch# Settings
S1 reserved (set to off)
S2 reserved (set to off)
Input 1 Type
OFF
OFF
ON
ON
S4
Standard Input
OFF
Pulse Counter
ON
Timed Bell
OFF
Sampled Siren
ON
S3 and S4 S3
S5 OFF Output 1 Normal Operation
ON Output 1 Trouble
S6 reserved
10. After attaching power, wait at least 2 minutes and then perform a central station
test to verify correct operation.
DIP Switch
erminal Block
Network port
(not applicable on this model)
Figure 2: AnyNET Module
Status LEDs
Comms
Service
Network
Serial
Interface
5
U
NIT
W
IRING
The location of the DIP switch, terminal block c onnections, network port, serial interface, and
status LEDs of the Module are shown in Figure 2 on page 5. Further detailed drawings
included below.
IN1 IN2 IN3
+ - + - + - + -
Figure 3: Detail of connections
IN4
OUTPUT1 OUTPUT2
12VDC NETWORK
+ -
NOTE: Future network
expansion port
Input 1 (Selectable Via DIP Switches)
Standard Input - (DIP switches S3 OFF, S4 OFF) This mode configures the unit to be tripped
from a DC voltage ranging from 9 VDC to 12 VDC or an open collector.
Timed Bell - (DIP switches S3 ON, S4 OFF) This mode configures the unit to be tripped from
a DC voltage ranging from 9 VDC to 12 VDC. The unit reads a pulsed voltage as a fire signal
and a steady voltage as a burglary signal.
Sampled Siren - (DIP switches S3 ON, S4 ON) This mode configures the unit to be tripped
from a siren driver or a panel with a built in siren driver. The unit reads a steady tone as a
fire signal and a yelping tone as a burglary signal.
NOTE: The input assumes that a speaker is connected to the panel. If you are not using
a speaker we recommend using a bell trip instead of a siren. This is an option on most
panels.
Pulse Counter - (DIP switches S3 OFF, S4 ON) This mode configures the unit to count the
number of times the unit has been tripped from a DC voltage, or an open collector. The maximum frequency pulse is 40Hz. The count will be reported on request.
Inputs 2, 3, and 4 (and Input 1 if Standard Type)
INPUT
–
INPUT
+
Figure 4: Wiring example for voltage trip
–
Switched 12 V
+
6
Voltage Tr ip - Inputs 2, 3, and 4 (and 1 if set for standard input) can be tripped by applying 12
V to the + input and 0 V to the - input. A signal must be continuously present for 500 ms.
INPUT
–
INPUT
+
+
12 V
Figure 5: Wiring example for open collector trip
OUTPUT
From Panel
Open Collector - Inputs 2, 3 and 4 (and 1 if set for standard input) can be tripped by applying
12 V to the + input and the Open Collector output of the panel to the - input. A signal must be
continuously present for 500 ms.
Outputs - Outputs 1 and 2 are dry contact relays rated for a maximum of 1 A at 24 VDC, and
are in the normally open condition. The outputs can be used to control other devices at the
installation site.
Power Supply - The customer-supplied 12 VDC, 2 A rated power supply must be connected to
the unit at the 12 V terminal block connector. Terminate the positive voltage from the power
source to the “+” connector of the unit and terminate the ground of the power source to the “-”
connector. The power supply must be capable of delivering at least 2 A.
Network Expansion Port - (Future) A serial RJ45 connector is provided for future optional
external network interface that will enable the AnyNET Module to link with and report through
a broadband connection using TCP/IP protocols.
Serial Interface - The Module’s six-pin connector provides for network retransmission of
user-defined data packets via the built-in RS-232 port.
Parts required to use the interface include:
Molex - 50-57-9406 - 2.54mm (.100") Pitch SL(tm) Crimp Housing, Single
Row, Version G, Positive Latch, 6 Circui ts
Molex - 16-02-0103 - SL(tm) Crimp Terminal 70058, 22-24 A WG, Bag Selective
Gold (Au)
7
You need to assemble your serial connection cable as detailed in the graphic below . Pinouts on
this connector are as follows:
Pin 1
Pin 2 Data to Unit
Pin 3 Data From Unit
Pin 4 Ground
Figure 6: Serial connector details
The serial communications protocol document is available upon request. A DB9 to Molex
serial cable is also available upon request from Uplink support.

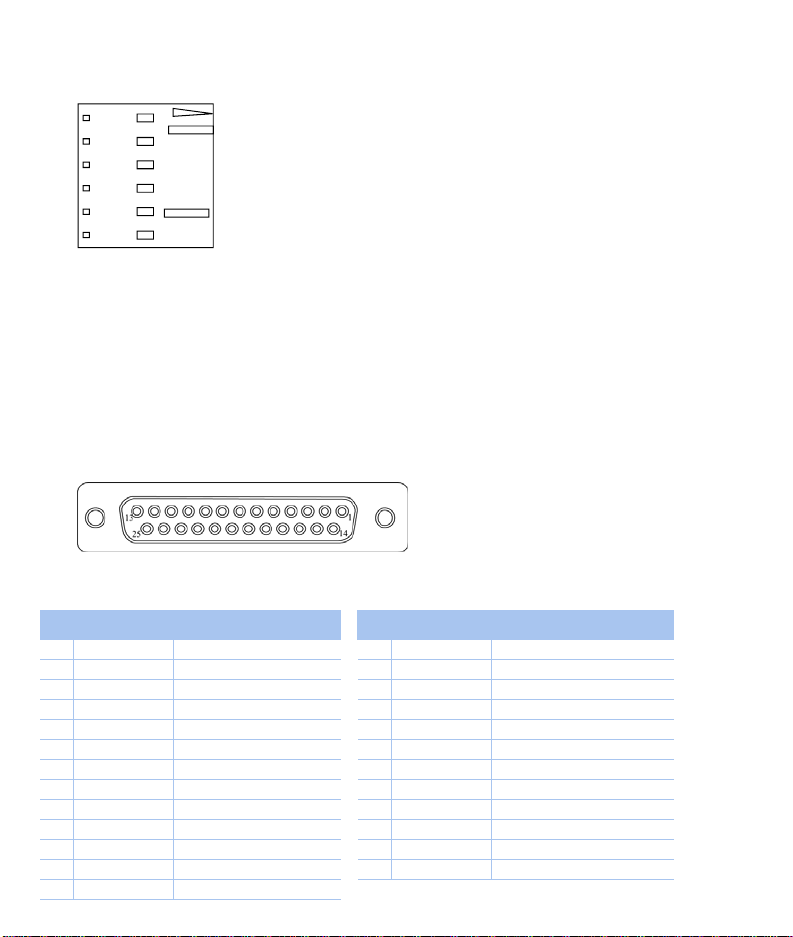

Optional DB25 Connector
The unit may be optionally configured with a DB25 connector in place of terminal block connections.
Figure 7: Optional DB25 Connector
Pinouts on this connector are as follows:
Pin Signal Notes Pin Signal Notes
1 Case Ground N/U 14 Power Ground +5V/+12V Supply/Battery Rtn
2 TXD - Data In Serial Data Input 15 Power Ground +5V/+12V Supply/Battery Rtn
3 RX D - D ata O u t Serial Data Output 16 + Battery Op t iona l +12 V B a tter y Backup In
4 Out 2 Relay Contact 17 + Battery Optional +12V Battery Backup In
5 Out 2 Relay Contact 18 +12 Power Input +12V Supply In at 2 A
6 Out 1 Relay Contact 19 +12 Power Input +12V Supply In at 2 A
7 Signal Ground Serial Data Common 20 Out 1 Relay Contact
8 +5 VDC Source Voltage (200 ma max) 21 Power Ground +5V/+12V Supply/Battery Return
9 nPSEN Factory Only - DO NOT USE 22 In 4 - Input 4 Negative
10 In 3 - Input 3 Negative 23 In 4 + Input 4 Positive (~9ma@12V)
11 In 3 + Input 3 Positive(~9ma@12V) 24 In 2 - Input 2 Negative
12 In 1 - Input 1 Negative 25 In 2 + Input 2 Positive (~9ma@12V)
13 In 1 + Input 1 Positi ve(~9ma@12V)
8
Network Expansion Port
The network expansion port is a serial RJ45 connector. This interface is essentially an interface
to a modem like device. All levels are 3V TTL.
8 7 6 5 4 3 2 1
Figure 8: RJ45 Network Expansion Port
NOTE: Not operational - do not use for phone
Pinouts on this connector are as follows:
Pin Signal Notes
1Ground
2 VCC (3.3 Volt) 3.3 Volt Supply
3 Reset Low = Reset
4 Data Input TTL
5 Data Output TTL
6 CTS TTL
7 DCD TTL
8 RTS TTL
A
NTENNA SPECIFICATION
Antennas used with this module should be of the following types:
Antenna type: External Dual Band ¼ wave antenna
Maximum Antenna Gain: 3.0 dBi
Antenna connector: SMA
Antenna type: External Dual Band ¼ wave antenna Magnet mount
Maximum Antenna Gain: 3.5 dBi
Antenna connector: SMA
Cable length and loss: 3 meter, RG-174, total loss 2.8 dB
9
FCC & I
This device complies with Part 15 of the FCC Rules. Op eration is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not in
stalled and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisio n
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
• which the receiver is connected.
• Consult the dealer or an experienced technician for help.
NDUSTRY CANADA REGULATORY COMPLIANCE
FCC RF Exposure Information
In August 1996 the Federal Communications Co mmission (F CC) of the Unite d States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted b y FCC regulated transmitters. Those guidelines are consistent with the safety standard previously
set by both U.S. and international standards bodies. The design of this module complies with the FCC guidelines and these international standards. For more information
about RF exposure, please visit the FCC website at www.fcc.gov. T HE TERM "IC:" BE-
FORE THE CERTIFICATION/REGISTRATION NUMBER ONLY SIGNIFIES THAT THE INDUSTRY CANADA TECHNICAL SPECIFICATIONS WERE MET.
-
THE EXTERNAL ANTENNAS USED FOR THIS MODULE MUST PROVIDE A SEPARATION
DISTANCE OF AT LEAST 20 CM FROM ALL PERSONS AND MUST NOT BE CO-LOCATED
OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER
.
10
Numerex Corp
www.nmrx.com
(770) 693-5950
1600 Parkwood Cir SE Suite 500
Atlanta, GA 30339
Loading...
