Lassen HD™ and Lassen SDI™ Routing Switchers
FEATURES
Multi-Format Multi-Rate Boards - Lassen HD routing
switchers incorporate multi-format and multi-rate video boards that pass HD-SDI, SDI, DVB-ASI, and MPEG-2 signals
Cost-effective SDI Only Models - Lassen SDI routing
switchers pass SDI, DVB-ASI and MPEG-2 signals
Compact Form Factor - Sizes from 8x8 in 2RU to 32x32
in 3RU
Digital and Analog Stereo Options - AES/EBU digital
audio or analog stereo audio available
IP (Ethernet) Control Via Standard TCP/IP Socket Connection - Mac or PC
RS-232/422 Control - Standard on all models
Comprehensive Line of Remote and Remote­programmable Control Panels - See the Control Panel
and Software section at the end of the brochure for all available options
Qwik Adjust Knob™ Rotary Control Interface - Intuitive
user interface with front panel LCD display
Use with other Sierra Video Routing Switchers -
Functions as either the master or the slave unit when used with other Sierra Video routing switchers
Redundant Power Supply Option
HD-SDI and SDI Routing Switchers
Lassen 1616DEE
2
W WW . S IE R RAV ID E O. CO M
FITS YOUR DIGITIAL WORKFLOW
Lassen HD and Lassen SDI routing switchers from Sierra
Video meet the needs of your HD-SDI and SDI workow with the ultimate in exible digital signal routing.
The Lassen HD routing switchers employ true multi­format and multi-rate digital video boards. They are capable of handling standard serial digital video signals including SMPTE 310M, SMPTE 259M, SMPTE 344M, ITU-R BT.601 and DVB-ASI up to 540 Mbps along with HD serial digital video signals conforming to SMPTE 292M (1.485Gbps single link) or SMPTE 372M (2.97Gbps dual link).
Lassen SDI routing switchers are SDI-only routing
switchers that provide the exibility of handling
standard serial digital video signals including SMPTE 310M, SMPTE 259M and DVB-ASI. Lassen SDI routing switchers offer additional cost-savings over Lassen HD routing switchers for facilities that only require the
routing of Standard Denition SDI signals. Combined
with audio, expandability and control options, these routing switchers are true digital performers.
MULTIPLE CONFIGURATIONS FOR MULTIPLE APPLICATIONS
Lassen HD and Lassen SDI routing switchers are compact and economical, perfect both for existing HD facilities and for facilities making the transition to digital or HD. Lassen HD routing switchers are also ideal for rental and staging companies looking to
offer full high denition and digital capabilities in a
single routing switcher. Any Lassen HD or Lassen SDI routing switcher can be paired with either 2-channel (4-stream) digital audio or analog stereo audio options in the same frame. Starting with 8x8 at 2RU up to 32x32 in 3RU, these digital powerhouses are
economical both in size and pricing. This exibility makes our Lassen products the perfect t for your
evolving digital operations in production, mobile and broadcast applications.
FLEXIBLE CONTROL OPTIONS
The entire Lassen Family of routing switchers has numerous control options available. Each unit comes with a front panel LCD display and Sierra Video Systems’ Qwik Adjust Knob™ rotary control interface that makes front panel control a breeze. Each Lassen model also offers IP (Ethernet) control via a standard TCP/IP socket connection and an RS-232/422 serial interface supported by all major third par ty control systems. Additionally, we offer a comprehensive range of remote control panel options with our SCP Series programmable control panels and our simple XY and single bus remote control panels.
DIGITAL OR ANALOG AUDIO
Lassen HD and Lassen SDI routing switchers populated with AES/EBU digital audio are able to handle all AES standards. Models with analog stereo audio provide audio input level adjustment from +20.5dB to -8dB. They also provide audio output level adjustment from +15dB to -59.5dB along with a mute setting. Lassen XL audio boards have been designed to eliminate the zipper effect associated with digital level controls. Adjusting the input or output audio levels yields only a smooth and pleasant transition.
ROOM FOR EXPANSION
For expanding facilities, our entire Lassen line of routing switchers is designed to connect with other Sier ra Video routing switchers. With the advent of the Lassen products, it is now practical to connect our small RS -422 machine control routing switcher to some of our smaller routing switchers. In addition, Lassen routing switchers can per form as either the master or the slave machine in your control system: the routing switcher can be inserted into an existing Sierra Video routing system providing additional format levels, or additional Lassen models can be linked to any Sierra Video SCP Series control panel for ultimate control of any size broadcast system.
FLEXIBLE AND FORWARD-COMPATIBLE
Lassen HD and Lassen SDI routing switchers from
Sier ra Video offer signal format exibility for your HD,
transition-to -HD, or SDI video application. In addition, they provide the full feature set and complete control
options your digital workow needs in the slim frame
size your facility requires.
3
W WW . S IE R RAV ID E O. CO M
Lassen HD Routing Switchers
MODEL RACK UNIT
88HDEE
88HDE
88HDS
88HD
1608HDEE
1608HDE
1608HDS
1608HD
1616HDEE
1616HDE
1616HDS
1616HD
3216HDEE
3216HDEER
3216HDE
3216HDER
3216HDS
3216HDSR
3216HD
3216HDR
3232HDEE
3232HDEER
3232HDE
3232HDER
3232HDS
3232HDSR
3232HD
3232HDR
HEIGHT
2RU HD-SDI/SDI video + AES
2RU HD-SDI/SDI video + AES
2RU HD-SDI/SDI video + analog
2RU HD-SDI /SDI video 8 8 8x8 HD-SDI/SDI video routing switcher w/ front control
2RU HD-SDI/SDI video + AES
2RU HD-SDI/SDI video + AES
2RU HD-SDI/SDI video + analog
2RU HD-SDI/SDI video 16 8 16 x 8 HD-SDI/SDI video routing switcher w/ front control
2RU HD-SDI/SDI video + AES
2RU HD-SDI/SDI video + AES
2RU HD-SDI/SDI video + analog
2RU HD-SDI/SDI video 16 16 16 x 16 HD-SDI/SDI video routing switcher w/ front control
3RU HD-SDI/SDI video + AES
4RU HD-SDI/SDI video + AES
3RU HD-SDI/SDI video + AES
4RU HD-SDI/SDI video + AES
3RU HD-SDI/SDI video + analog
4RU HD-SDI/SDI video + analog
3RU HD-SDI/SDI video 32 16 32 x 16 HD-SDI/SDI video routing switcher w/ front control
4RU HD-SDI/SDI video 32 16 32 x 16 HD-SDI/SDI video routing switcher w/ front control and
3RU HD-SDI/SDI video + AES
4RU HD-SDI/SDI video + AES
3RU HD-SDI/SDI video + AES
4RU HD-SDI/SDI video + AES
3RU HD-SDI/SDI video + analog
4RU HD-SDI/SDI video + analog
3RU HD-SDI/SDI video 32 32 32 x 32 HD-SDI/SDI video routing switcher w/ front control
4RU HD-SDI/SDI video 32 32
FORMAT INPUTS OUTPUTS DESCRIPTION
digital audio
digital audio
stereo audio
digital audio
digital audio
stereo audio
digital audio
digital audio
stereo audio
digital audio
digital audio
digital audio
digital audio
stereo audio
stereo audio
digital audio
digital audio
digital audio
digital audio
stereo audio
stereo audio
8 8 8 x 8 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital
8 8 8 x 8 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital
8 8 8 x 8 HD-SDI/SDI video + analog stereo audio routing switcher
16 8 16 x 8 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital
16 8 16 x 8 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital
16 8 16 x 8 HD-SDI/SDI video + analog stereo audio routing switcher
16 16 16 x 16 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital
16 16 16 x 16 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital
16 16 16 x 16 HD-SDI/SDI video + analog stereo audio routing switcher
32 16 32 x 16 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital
32 16
32 16 32 x 16 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital
32 16
32 16 32 x 16 HD-SDI/SDI video + analog stereo audio routing switcher
32 16 32 x 16 HD-SDI/SDI video + analog stereo audio routing switcher
32 32 32 x 32 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital
32 32 32 x 32 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital
32 32 32 x 32 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital
32 32 32 x 32 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital
32 32 32 x 16 HD-SDI/SDI video + analog stereo audio routing switcher
32 32 32 x 16 HD-SDI/SDI video + analog stereo audio routing switcher
audio routing switcher w/ front control
audio routing switcher w/ front control
w/ front control
audio routing switcher w/ front control
audio routing switcher w/ front control
w/ front control
audio routing switcher w/ front control
audio routing switcher w/ front control
w/ front control
audio routing switcher w/ front control
32 x 16 HD-SDI/SDI video + 2-streams (balanced) AES/EBU digital audio routing switcher w/ front control and redundant power supply
audio routing switcher w/ front control
32 x 16 HD-SDI/SDI video + 1-stream (unbalanced) AES/EBU digital audio routing switcher w/ front control and redundant power supply
w/ front control
w/ front control and redundant power supply
redundant power supply
audio routing switcher w/ front control
audio routing switcher w/ front control and redundant power supply
audio routing switcher w/ front control
audio routing switcher w/ front control and redundant power supply
w/ front control
w/ front control and redundant power supply
32 x 32 HD-SDI/SDI video routing switcher w/ front control and redundant power supply
4
W WW . S IE R RAV ID E O. CO M
Lassen HD Routing Switchers
MODEL RACK UNIT
HEIGHT
88DEE 2RU SDI/DVB-ASI video + AES
88DE 2RU SDI/DVB-ASI video + AES
88DS 2RU SDI/DVB-ASI video +
88D 2RU SDI/DVB-ASI video 8 8 8x8 SDI/DVB-ASI video routing switcher w/ front control
1608DEE 2RU SDI/DVB-ASI video + AES
1608DE 2RU SDI/DVB-ASI video + AES
1608DS 2RU SDI/DVB-ASI video +
1608D 2RU SDI/DVB-ASI video 16 8 16 x 8 SDI/DVB-ASI video routing switcher w/ front control
1616DEE 2RU SDI/DVB-ASI video + AES
1616DE 2RU SDI/DVB-ASI video + AES
1616DS 2RU SDI/DVB-ASI video +
1616D 2RU SDI/DVB-ASI video 16 16 16 x 16 SDI/DVB-ASI video routing switcher w/ front control
3216DEE 3RU SDI/DVB-ASI video + AES
3216DEER 4RU SDI/DVB-ASI video + AES
3216DE 3RU SDI/DVB-ASI video + AES
3216DER 4RU SDI/DVB-ASI video + AES
3216DS 3RU SDI/DVB-ASI video +
3216DSR 4RU SDI/DVB-ASI video +
3216D 3RU SDI/DVB-ASI video 32 16 32 x 16 SDI/DVB-ASI video routing switcher w/ front control
3216DR 4RU SDI/DVB-ASI video 32 16 32 x 16 SDI/DVB-ASI video routing switcher w/ front control and
3232DEE 3RU SDI/DVB-ASI video + AES
3232DEER 4RU SDI/DVB-ASI video + AES
3232DE 3RU SDI/DVB-ASI video + AES
3232DER 4RU SDI/DVB-ASI video + AES
3232DS 3RU SDI/DVB-ASI video +
3232DSR 4RU SDI/DVB-ASI video +
3232D 3RU SDI/DVB-ASI video 32 32 32 x 32 SDI/DVB-ASI video routing switcher w/ front control
3232DR 4RU SDI/DVB-ASI video 32 32 32 x 32 SDI/DVB-ASI video routing switcher w/ front control and
FORMAT INPUTS OUTPUTS DESCRIPTION
digital audio
digital audio
analog stereo audio
digital audio
digital audio
analog stereo audio
digital audio
digital audio
analog stereo audio
digital audio
digital audio
digital audio
digital audio
analog stereo audio
analog stereo audio
digital audio
digital audio
digital audio
digital audio
analog stereo audio
analog stereo audio
8 8 8 x 8 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control
8 8 8 x 8 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control
8 8 8 x 8 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control
16 8 16 x 8 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control
16 8 16 x 8 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control
16 8 16 x 8 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control
16 16 16 x 16 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control
16 16 16 x 16 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control
16 16 16 x 16 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control
32 16 32 x 16 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control
32 16 32 x 16 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control and redundant power supply
32 16 32 x 16 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control
32 16 32 x 16 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control and redundant power supply
32 16 32 x 16 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control
32 16 32 x 16 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control and redundant power supply
redundant power supply
32 32 32 x 32 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control
32 32 32 x 32 SDI/DVB-ASI video + 2-streams (balanced) AES/EBU digital
audio routing switcher w/ front control and redundant power supply
32 32 32 x 32 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control
32 32 32 x 32 SDI/DVB-ASI video + 1-stream (unbalanced) AES/EBU digital
audio routing switcher w/ front control and redundant power supply
32 32 32 x 16 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control
32 32 32 x 16 SDI/DVB-ASI video + analog stereo audio routing switcher
w/ front control and redundant power supply
redundant power supply
W WW . S IE R RAV ID E O. CO M
5
TECHNICAL SPECIFICATIONS
HD-SDI/SDI Multi-Rate Video Boards
DATA RATES
DATA TYPES
JITTER
INPUT
Video Level
Impedance
Return Loss
Cable Equalization Range
Connector Type
OUTPUT
Video Level
Impedance
Return Loss
Rise/Fall Times
Connector Type
SDI Video Boards
DATA RATE
DATA TYPES
JITTER
INPUT
Video Level
Impedance
Return Loss
Cable Equalization Range
Connector Type
OUTPUT
Video Level
Impedance
Return Loss
Rise/Fall Times
Connector Type
19Mbps – 1.485Gbps
SMPTE 372, SMPTE 310M, SMPTE 259M, SMPTE 344M, SMPTE 292M, DVB-ASI, ITU-R BT.601
< 0.2UI
800mV p-p +/-10%
75 Ohm
< - 15dB up to 1.5GHz
0 - 100 meters for SMPTE 292, Belden 8281 0 - 300 meters for all other standards, Belden 8281
BNC
800mV p-p +/- 10%
75 Ohm
< - 15dB up to 1.5GHz
< 270 psec
BNC
19 – 360Mbps
SMPTE 310M, SMPTE 259M, DVB-ASI, ITU-R BT.601
< 0.2 UI
800mV p-p +/-10%
75 Ohm
< - 15dB
0 – 300 meters, Belden 8281
BNC
800mV p-p +/- 10%
75 Ohm
< - 15dB
400 - 1500 psec
BNC
AES/EBU Digital Audio
DATA RATES
JITTER
MAX. DISTANCE
CABLE
INPUT
Input Type
Return Loss
Connector Type
OUTPUT
Audio Level
Return Loss
Connector Type
6
AES3 AES3id
32kHz - 96kHz 32kHz - 96kHz
< 0.025 UI p-p < 0.025 UI p-p
110m 100m
STP Coax
Balanced Unbalanced
> -30dB @ 6MHz > -30dB @ 6MHz
Terminal Block BNC
3.5V nominal 1V p-p terminated (75 Ohm)
> -30dB @ 6MHz > -30dB @ 6MHz
Terminal Block BNC
W WW . S IE R RAV ID E O. CO M
Analog Stereo Audio
INPUT GAIN ADJUST RANGE
OUTPUT GAIN ADJUST RANGE
FREQUENCY RESPONSE
DYNAMIC RANGE
CROSSTALK (all inputs hostile)
IM & THD (20 to 20KHz)
INPUT
Max. Source Level
Impedance
Connector Type
OUTPUT
Max. Source Level
Impedance
Connector Type
Control
SERIAL
PROTOCOL
ETHERNET
PROTOCOLS
WEB SERVER
CONTROL PANELS
+20.5dB to -8dB
+15dB to -59.5dB and fully off (MUTE)
20Hz to 20KHz +/- 0.5dB (typical -3dB @ 120KHz) (unity gain)
96dB (20-20KHz unweighted) (unity gain)
< -80dB @ 1KHz (unity gain) < -60dB @ 10KHz (unity gain)
THD: < 0.025% (20Hz – 20KHz @ +4dBu) (unity gain) IM: < 0.025 SMPTE-DIN @ +4dBu (unity gain) <0.01% CCIF @ +16dBu (unity gain)
+24dBu
> 20K
5 pin terminal block for balanced or unbalanced operation
+24dBu balanced +18dBu unbalanced
< 50 Ohm
5 pin terminal block for balanced or unbalanced operation
General Purpose 9 pin-D, switchable RS-232 or RS-422 9600, 38400, 115200 baud
SVS host, simple Kramer, and select others
10/100 Base-T, full duplex, RJ-45 connector
ARP, ICMP, TCP/IP, Telnet, HTTP
For control
Supports SCP programmable control panels, XY & single bus control panels
General
RACK UNIT SIZE/FRAME
8 & 16 Series
32 Series
32 Series with redundant power supply
DIMENSIONS
8 Series
16 Series
32 Series
32 Series with redundant power supply
Power
Redundant Power Supply
Storage Temperature
Operating Temperature
Humidity
Warranty
2RU
3RU
4RU
19”w x 3.5”h x 13.7”d
19”w x 3.5”h x 17.7”d
19”w x 5.25”h x 18.7”d
19”w x 7”h x 18.7”d
Mounts in standard 19” rack.
Depth measurements do not include front panel hardware or rear cabling
90 VAC -> 240 VAC 50/60 HZ (<150 Watts) auto-detecting
Optional on 32 Series models
-40 to +150 degrees F
30 degrees to 100 degrees F ambient
10% to 90 % non-condensing
7 Years
W WW . S IE R RAV ID E O. CO M
7
Lassen XL™ Routing Switchers
Compact Composite Video & Stereo Audio Routing Switchers
FEATURES
Compact Design - Space and cost saving compact
design with sizes from 12x8 in 2RU to 32x32 in 3RU
IP (Ethernet) Control Via Standard TCP/IP Socket Connection - Mac or PC
Enhanced Video Boards - 300MHz (-3dB)
RS-232/422 Control - Standard on all models
Comprehensive Line of Remote and Remote­programmable Control Panels – See the Control Panel
and Software section at the end of the brochure for all the available options
Qwik Adjust Knob™ Rotary Control Interface - Intuitive
user interface with front panel LCD display
Use with other Sierra Video Routing Switchers -
Functions as either the master or the slave unit when used with other Sierra Video routing switchers
Redundant Power Supply Option
Lassen 3232VSxl
8
W WW . S IE R RAV ID E O. CO M
CONVENIENTLY COMPACT AND FEATURE RICH
Lassen XL routing switchers provide all the features required for routing composite video and balanced stereo audio signals in a very compact footprint. They employ Sierra Video’s extremely responsive and user intuitive front panel Qwik Adjust Knob rotary control
interface and come in congurations ranging from
12x4 to 32x32.
The Lassen XL routing switchers are ideal for live-to­air and post-production facilities, remote trucks,
and corporate, scientic, military and educational
installations. Lassen XL is the perfect routing switcher for facilities that require full production capabilities in a small production space.
OUTSTANDING ROUTING IN COMPACT SIZES
The Lassen XL routing switchers are up to 50% smaller than their legacy counterparts in the Sierra Classic family - 32 inputs and 32 outputs of video and
audio t into a desirable 3RU frame with BNC video
connectors and terminal block audio connectors for easy installation. The 12 Series and 16 Series are a mere 2RU.
FLEXIBLE CONTROL OPTIONS
The entire family of Lassen XL routing switchers has numerous control options available. Each unit comes with a front panel LCD display and Sierra Video’s Qwik Adjust Knob™ rotary control interface that makes front panel control a breeze. Each Lassen XL model also offers IP (Ethernet) control via a standard TCP/IP socket connection and an RS-232/422 serial interface supported by all major third par ty control systems. Additionally, we offer a comprehensive range of remote control panel options with our SCP Series programmable control panels and our simple XY and single bus remote control panels.
BALANCED STEREO AUDIO
Lassen XL routing switchers are equipped with balanced stereo audio and provide audio input level adjustment from +20.5dB to -8dB. They also provide audio output level adjustment from +15dB to -59.5dB along with a mute setting. Lassen XL audio boards have been designed to eliminate the zipper effect associated with digital level controls. Adjusting the input or output audio levels yields only a smooth and pleasant transition.
ROOM FOR EXPANSION
For expanding facilities, our entire Lassen XL line of routing switchers is designed to connect with other Sier ra Video routing switcher families. With the advent of the Lassen products, it is now practical to connect our small RS-422 machine control routing switcher to some of our smaller routing switchers. In addition, Lassen routing switchers can per form as either the master or the slave machine in your control system: the routing switcher can be inser ted into an existing Sier ra Video routing system providing additional format levels, or additional Lassen models can be linked to any Sierra Video SCP Ser ies control panel for ultimate control of any size broadcast system.
SIGNAL ROUTING HAS NEVER BEEN MORE COMPACT
OR POWERFUL
The Lassen XL routing switchers from Sierra Video offer compact design, advanced features, and more control options than ever before. They are the ideal choice for demanding broadcast and post­production professionals.
Lassen 1616VSxl
Lassen 3232VSxl
9
W WW . S IE R RAV ID E O. CO M
Lassen XL Routing Switchers
MODEL RACK UNIT
1204Vxl
1204VSxl
1208Vxl
1208VSxl
1608Vxl
1608VSxl
1616Vxl
1616VSxl
3216Sxl
3216SRxl
3216Vxl
3216VRxl
3216VSxl
3216VSRxl
3232Sxl
3232SRxl
3232Vxl
3232VRxl
3232VSxl
3232VSRxl
HEIGHT
2RU Video 12 4
2RU Video + Analog
2RU Video 12 8 12x8 composite video routing switcher w/ front control
2RU Video + Audio 12 8 12x8 composite video + stereo audio routing switcher w/ front control
2RU Video 16 8 16x8 composite video video routing switcher w/ front control
2RU Video + Audio 16 8 16x8 composite video + stereo audio routing switcher w/ front control
2RU Video 16 16 16x16 composite video routing switcher w/ front control
2RU Video + Audio 16 16 16x16 composite video + stereo audio routing switcher w/ front control
3RU Stereo Audio 32 16 32x16 stereo audio routing switcher w/ front control
4RU Stereo Audio 32 16
3RU Video 32 16 32x16 composite video routing switcher w/ front control
4RU Video 32 16
3RU Video + Audio 32 16 32x16 composite video + stereo audio routing switcher w/ front control
4RU Video + Audio 32 16 32x16 composite video + stereo audio routing switcher w/ front control and
3RU Stereo Audio 32 32 32 x 32 stereo audio routing switcher w/ front control
4RU Stereo Audio 32 32 32 x 32 stereo audio routing switcher w/ front control and redundant power
3RU Video 32 32 32x32 composite video routing switcher w/ front control
4RU Video 32 32 32x32 composite video routing switcher w/ front control and redundant
3RU Video + Audio 32 32 32x32 composite video + stereo audio routing switcher w/ front control
4RU Video + Audio 32 32 32x32 composite video + stereo audio routing switcher w/ front control and
FORMAT INPUTS OUTPUTS DESCRIPTION
Stereo Audio
12x4 composite video routing switcher w/ front control
12 4 12x4 composite video + stereo audio routing switcher w/ front control
32x16 stereo audio routing switcher w/ front control and redundant power supply
32x16 composite video routing switcher w/ front control and redundant power supply
redundant power supply
supply
power supply
redundant power supply
TECHNICAL SPECIFICATIONS
Analog Composite Video
VIDEO GAIN
CROSSTALK
SWITCHING SPEED
INPUT
Video Level
Impedance
Return Loss
Connector Type
OUTPUT
Video Level
Impedance
Return Loss
Connector Type
10
Unity (adjustable per channel +/- 1.5dB)
-80dB @ 1MHz
-47dB@ 100MHz
Deterministic
300mV to 2.5V p-p
75 Ohm nominal
< -30dB @ 5MHz
BNC
300mV to 2.5V p-p
75 Ohm nominal
< -30dB @ 5MHz
BNC
W WW . S IE R RAV ID E O. CO M
Analog Stereo Audio
INPUT GAIN ADJUST RANGE
OUTPUT GAIN ADJUST RANGE
FREQUENCY RESPONSE
DYNAMIC RANGE
CROSSTALK (ALL INPUTS HOSTILE)
IM & THD (20 TO 20KHZ)
INPUT
Max. Source Level
Impedance
Connector Type
OUTPUT
Max. Source Level
Impedance
Connector Type
Control
SERIAL
PROTOCOLS
ETHERNET
PROTOCOLS
WEB SERVER
CONTROL PANELS
+ 20.5dB to - 8dB
+ 15dB to - 59.5dB and fully off (MUTE)
20Hz to 20KHz +/-0.5dB (typical -3dB @ 120KHz) (unity gain)
96dB (20-20kHz unweighted) (unity gain)
< - 80dB @ 1kHz (unity gain) < - 60dB @ 10kHz (unity gain)
THD: < 0.025% (20Hz - 20kHz @ + 4dBu) (unity gain) IM: < 0.025 SMPTE-DIN @ + 4dBu (unity gain) < 0.01% CCIF @ + 16dBu (unity gain)
+ 24dBu
> 20k
5 pin terminal block for balanced or unbalanced opertaion
+24dBu balanced +18dBu unbalanced
< 50 Ohm
5 pin terminal block for balanced or unbalanced operation
General Purpose 9 pin-D, switchable RS-232 or RS-422 9600, 38400, 115200 baud
SVS host, simple Kramer, and select others
10/100 Base-T, full duplex, RJ-45 connector
ARP, ICMP, TCP/IP, Telnet, HTTP
For control
Supports SCP programmable control panels, XY & single bus control panels
General
RACK UNIT SIZE/FRAME
12 & 16 Series
32 Series
32 Series with redundant power supply
DIMENSIONS
12 & 16 Series
32 Series
32 Series with redundant power supply
Power
Redundant Power Supply
Storage Temperature
Operating Temperature
Humidity
Warranty
2RU
3RU
4RU
19”w x 3.5”h x 17.7”d
19”w x 5.25”h x 18.7”d
19”w x 7”h x 18.7”d
Mounts in standard 19” rack
Depth measurements do not include front panel hardware or rear cabling
90 VAC -> 240 VAC 50/60 HZ (<150 Watts) auto-detecting
Optional on 32 Series models
-40 to +150 degrees F
30 degrees to 100 degrees F ambient
10% to 90 % non-condensing
7 Years
W WW . S IE R RAV ID E O. CO M
11
Software & Control

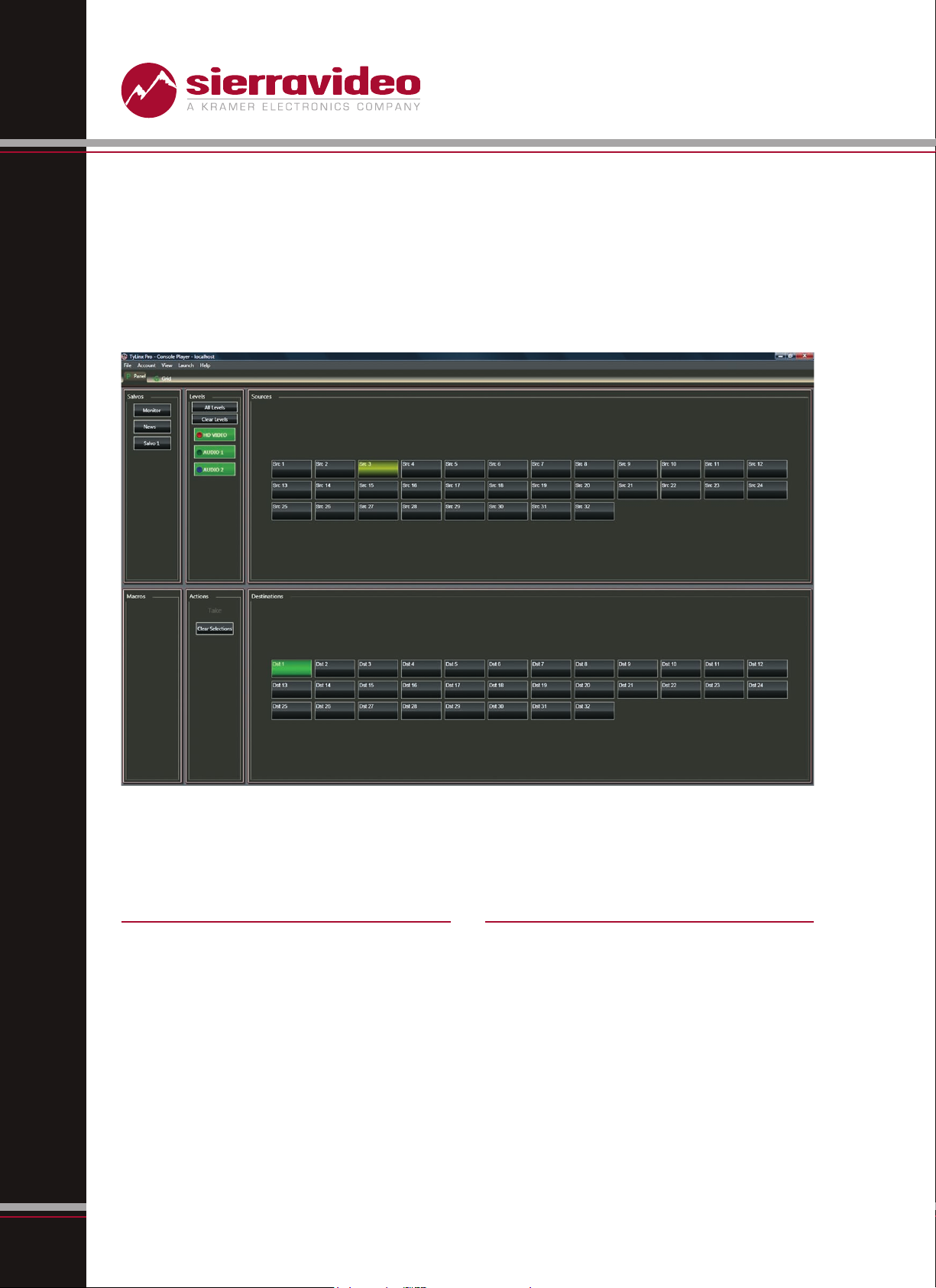

TyLinx Pro and TyLinx Pro Net Router Control Software
TyLinx Pro Router Control Software offers an intuitive, user-friendly interface for comprehensive routing system control with extensive options for customization. Our standard TyLinx Pro is free for download and provides unique
proles for each user with additional security features for the control system all based on a single host computer.
Our TyLinx Pro Net software is a network-enabled version of TyLinx Pro, offering the same robust features with
additional administrative and conguration capabilities, and allowing unlimited seats within your network.
TyLinx Pro Features:
Compatible with Windows® XP SP2, XP Pro x64 SP1,
Windows Server® 2003 Also compatible with Windows Vista® x 86 & x 64
editions Supports multiple routing switchers
Automatically retrieves source and destination names
from the router Records and stores routing commands for routine
routing requirements Virtual Room Grouping allows each user to create
custom views for their individual requirements Ethernet (IP) or RS-232 serial communication suppliers
Free download available at http://tylinxpro.sierravideo.com
12
TyLinx Pro Net Features:
Network-enabled with unlimited seats
Provides complete administrative, conguration, and
control functions Shared/savable database for off-site data storage
Windows & Mac OS® compatible
Supports multiple routing switchers
Provides all features of TyLinx Pro standard edition,
including retrieval of source and destination names, recorded/stored routing commands, and Virtual Room Grouping
Ethernet (IP) or RS-232 serial communication
W WW . S IE R RAV ID E O. CO M
Ponderosa
PC or MAC Clients
PC or MAC Clients
LAN
Serial (RS-232/422)
Wi-Fi
Wi-Fi
TyLinx Pro NET
Server
Internet
TyLinxProNet

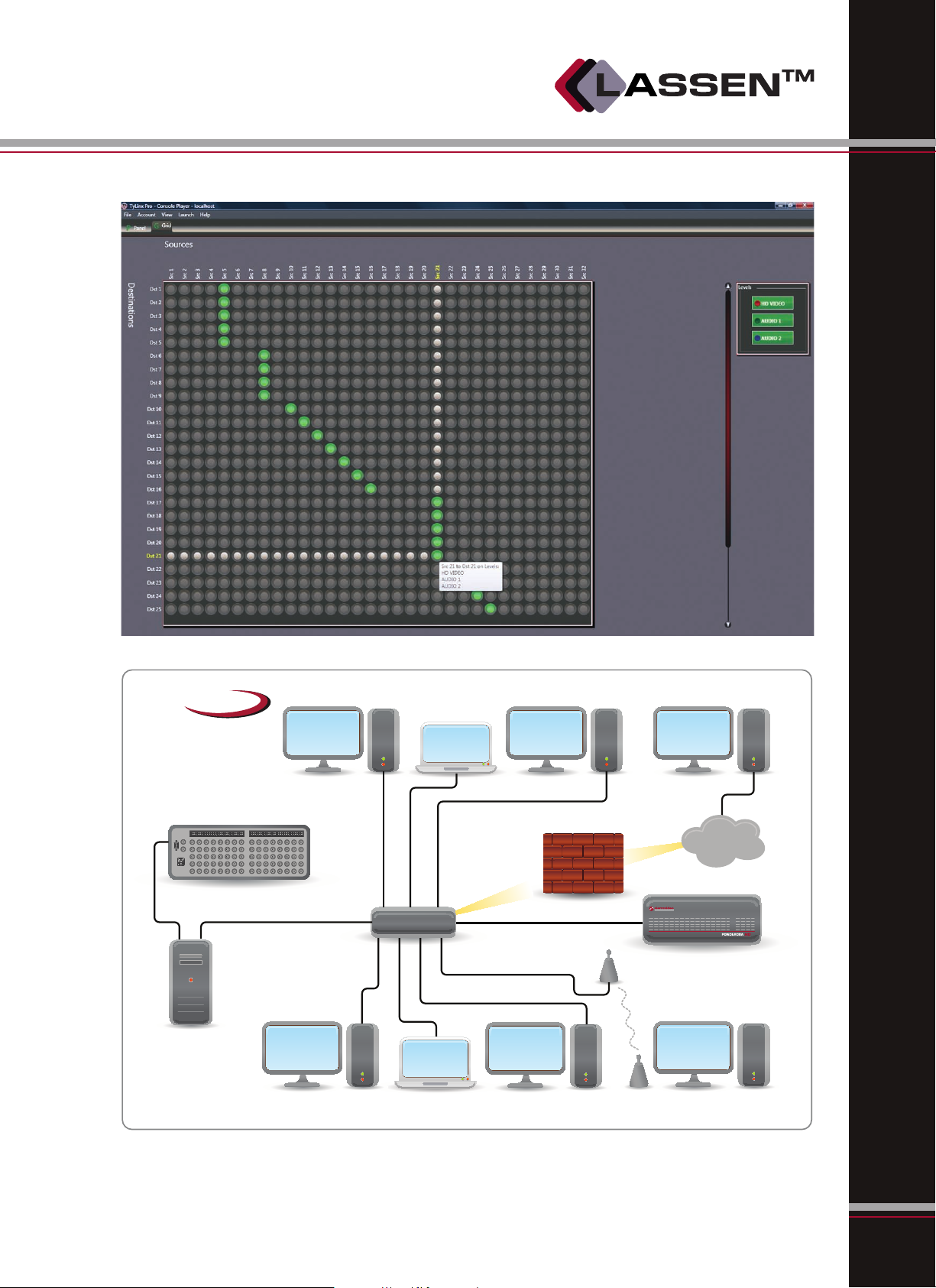

With TyLinx Pro Net, an unlimited number of users on PCs or Macs can connect to and control the routing system’s
conguration, control panels, and user proles, manage alarms or GPIs over the network.
W WW . S IE R RAV ID E O. CO M
13
Remote Control Panels
The SCP Series of programmable control panels
featu res tremendous exibility in ex ternal routing
switcher control. The series has an onboard microprocessor which is combined with an effective 1²C-bus architecture to provide customers w ith
a multitude of button congurations resulting in the most powerful user-denable line of control
panels the industr y has to offer. SCP Series panels are programmed using our own TyLinx Pro Router Control Soft ware and they provide error-free serial communication with our routing switchers.
Sierra Video also offers a complete array of convenient and simple Single-Bus, Button Per Source and XY panel for all our product families.
SCP-240
SCW-116 SCP-20
Sierra Video Systems Control Panels and Accessories
MODEL PART NUMBER SIZE DESCRIPTION
CONTROL PANELS SCP-20
804020 Desktop Programmable Desktop Control Panel
SCP-112
804112 1RU Basic Programmable Control Panel
SCP-132
804132 1RU Programmable Push Button w/ Rotary Control Panel
SCP-150
804150 1RU Programmable Push Button Control Panel
SCP-224
804224 2RU Advanced Programmable Control Panel
SCP-240
804240 2RU Multi-Bus/Multi-Level Programmable Control Panel
SCP-464
804464 4RU Fully programmable 128 XY button panel
SCW-116
804116 1RU Single gang Wall Plate Remote Control Panel
SINGLE BUS
804047 1RU 16 x 1 Single Bus LED Remote Control Panel
XY
804048 1RU 16 x 16 XY LED Remote Control Panel
XY
804148 2RU 16 x 16 XY LED Remote Control Panel
SINGLE BUS
804014 1RU 32 x 1 Single Bus LED Remote Control Panel
SINGLE BUS
804348 2RU 32 x 1 Single Bus LED Remote Control Panel
XY
804015 2RU 32 x 32 XY LED Remote Control Panel
SINGLE BUS
804084 2RU 48 x 1 Single Bus LED Remote Control Panel
XY
804085 3RU 48 x 48 XY LED Remote Control Panel
SINGLE BUS
804715 2RU 64 x 1 Single Bus LED Remote Control Panel
CONTROL SOFTWARE
TyLinx Pro
908340 N/A TyLinx Pro Router Control Software
TyLinx Pro Net
908350 N/A TyLinx Pro Net Network-Enabled Router Control Software
ACCESSORIES
CABLES
AC20103 1m Control Panel Cable, shielded pair
CABLES
AC20303 3m Control Panel Cable, shielded pair
CABLES
AC21503 15m Control Panel Cable, shielded pair
CONNECTORS
AC70001 N/A Connector kit, 2 ea. mini-XLR (Switchcraft TA3F or equal)
CONNECTORS
AC70002 N/A Connector kit, 10 ea. mini-XLR (Switchcraft TA3F or equal)
CONNECTORS
AC70003 N/A Cable kit, 10 ea. mini-XLR connectors w/150m. shielded pair
14
W WW . S IE R RAV ID E O. CO M
Reliable Products, Expert Support
For over 25 years, Sierra Video has been assisting customers and providing solutions for almost any signal routing application imaginable. Our outstanding Customer Service and Technical Support teams are industry experts, skilled at answering your questions and optimizing your systems. Call direct during business hours and speak with a Technical Suppo rt Engineer, or take advantage of our After-Hours Technical Service: check our website for details. Technical manuals and onl ine help are also available 24-hours a day at
ww w.sierravideo.com.
Whether you need immediate on-site guidance or have repair questions, contact the best real-time customer
service in the business. You can reach our Customer Service Department from 8 A.M. to 5 P.M. Pacic, Monday
through Friday, or access 24-hour online support: www.sierravideo.com.
A
V
R
R
E
I
S
7
Y
E
A
R
Trade In – Trade Up™ Routing Switcher Exchange Program
With Sierra Video, you can maximize the impact of your investment by adding or exchanging systems as your
needs grow. Most of our routing systems are designed to expand with you, using exible plug-in modules or easy factory modications. With these, you may choose from a variety of frames and modular combinations that
meet your needs. However, if your system is a single frame all-in-one solution, simply send it back and we will either modify it by adding new modules or you can opt to trade it in for a new, larger system using our unique Trade In – Trade Up Routing Switcher Exchange Program. The Trade In – Trade Up Routing Switcher Exchange Program allows a generous credit for a customer’s entire system when it is traded in for a larger Sierra Video routing switcher.
Let us know what your needs are and we will make every effort to accommodate you.
W WW . S IE R RAV ID E O. CO M
W
I
D
E
O
N
A
R
R
A
Seven-Year Warranty
Routers are the core of your system - “glueware” that is often taken for granted. In today’s demanding video environment, you need to know that the backbone of your system will keep on working. When choosing a routing switcher, it is important that you discuss your requirements with a knowledgeable sales staff and identify the
Y
T
company’s ability to provide long-term support. Be sure to make the right choice! Sierra Video is proud to offer a Seven-Year Warranty on most of our products. We’ve offered this warranty for two decades and stand behind our quality products. have been successful because we believe in providing quality products that don’t come back, to customers who do.
We
15
SIERRA VIDEO HEADQUARTERS
PO Box 2462 Grass Valley, CA, 95945, USA
Sales Outside the US:
Tel: (530) 478-1000 Fax: (530) 478-1105
Sales Inside the US:
Tel: (888) 886-8875 Fax: (530) 478-1700
Tech Support – Worldwide:
Tel: (530) 478-1000 After Hours: (530) 888-3195 E-mail: info@sierravideo.com Online: www.sierravideo.com
KRAMER ELECTRONICS, Ltd.
3 Am VeOlamo St. Jerusalem, Israel, 95463 Tel: + 972 2 654 4000 Fax: + 972 2 653 5369 E-mail: info@kramerel.com Web: www.kramerelectronics.com
KRAMER ELECTRONICS USA, INC. HEADQUARTERS
96 Route 173 West Suite 1 Hampton, NJ 08827 Tel: (908) 735 0018 (888) 275 6311 Fax: (908) 735 0515
Tech Support after 6pm EST:
(888) 275-6311 E-mail: info@kramerus.com Web: www.kramermatrix.com
KRAMER ELECTRONICS EUROPE SA
Rue du Bosquet 12 B B-1400 Nivelles, Belgium Tel: + 32 67 49 34 10 Fax: + 32 67 49 34 29 E-mail: info.kramee@skynet.be
KRAMER ELECTRONICS UK, Ltd.
2 Premus, Coldharbour Way, Aylesbury, Bucks. HP19 8AP Tel: + 44 1296 330011 Fax: + 44 1296 330055 E-mail: info@kramerelectronics.co.uk Web: www.kramerelectronics.co.uk
KRAMER ELECTRONICS FRANCE S.A.R.L.
Z.I de la Bonde - Parc de la Roseraie - Bat F 15 rue du Buisson aux Fraises, 91300 Massy Tel: + 33 (0)1 69 75 29 80 Fax: + 33 (0)1 60 11 76 94 E-mail: info@kramerfrance.com Web: www.kramerfrance.com
KRAMER ELECTRONICS ITALIA S.R.L.
Via Cesare Cantù, 25 20092 Cinisello Balsamo (MI) Tel: + 39 02 66594771 Fax: + 39 02 61296221 Cell: + 39 3387999739 E-mail: info@krameritalia.com Web: www.krameritalia.com
KRAMER ELECTRONICS ESPAÑA S.L.
Av. De Aragón 334 28022 Madrid Tel: + 34 917478410 Fax: + 34 917473409 E-mail: info@kramerspain.com Web: www.kramerspain.com
KRAMER GERMANY GMBH
An Fürthenrode 59 52511 Geilenkirchen Tel: + 49 (0) 2451 91161 0 Fax: + 49 (0) 2451 91161 10 E-mail: info@kramergermany.com Web: www.kramergermany.com
KRAMER ELECTRONICS SWEDEN AB
Energigatan 4, Kungsbacka 43437 Tel: + 46 300 43 18 10 E-mail: info@kramersweden.com Web: www.kramersweden.com
KRAMER ELECTRONICS POLSKA SP. Z O.O.
ul.Okrzei 1 A 03 -715 Warszawa, Poland Tel: + 48 22 333 80 31 Fax: + 48 22 333 80 30 E-mail: info@kramerpoland.com Web: www.kramerpoland.com
KRAMER ELECTRONICS CANADA
3465 Mainway, Unit #3 Burlington, Ontario L7M 1A9 Tel: 1-866-726-9921 (905) 592-9739 Fax: (905) 592-9762 E-mail: info@kramercanada.ca Web: www.kramercanada.ca
KRAMER ELECTRONICS RUSSIA
Moscow, Russia Tel/Fax: +7 495 7800302 E-mail: info@kramer.ru Web: www.kramer.ru
KRAMER ELECTRONICS MEXICO
Heriberto Frías # 918 Col. Del Valle, C.P. 03100 Ciudad de México Tel: + 52 (55) 5523-0604 + 52 (55) 5523-0629 Fax: + 52 (55) 5543-5945 E-mail: rsanchez@kramermexico.com Web: www.kramermexico.com
KRAMER LATIN AMERICA
Tel: + 1-305-600-4726 E-mail: info@kramerlatinamerica.com Web: www.kramerlatinamerica.com
KRAMER DO BRASIL COMÉRCIO DE ELETRÔNICOS LTDA
Av. Lacerda Franco, 1550, Cambuci São Paulo, SP, 01356-001, Brasil Tel: + 55-11-3926-9435 E-mail: info@kramerbrazil.com Web: www.kramerbrazil.com
KRAMER ELECTRONICS ARGENTINA
Tel: + 54 (11) 4554 4621 Cel: + 54 (911) 6398 7576 Local: 011 15 6398 7576 E-mail: info@kramerargentina.com Web: www.kramerargentina.com
KRAMER ELECTRONICS COLOMBIA
Comcel: (+57) 310 245 8036 Bogota: (+57-1) 613 9109 E-mail: info@kramercolombia.com Web: www.kramercolombia.com
KRAMER ASIA PACIFIC Pte, Ltd.
69 Ubi Crescent, #03-06/07 CES Building Singapore 408561 Tel: + 65 6274 4474 Fax: + 65 6274 4414 E-mail: kap@kramerasia.com Web: www.kramerasia.com
KRAMER ELECTRONICS AUSTRALIA Pty, Ltd.
Unit 4/42 Clinker St. QCL Industrial Park DARRA QLD 4078, Brisbane, Australia Tel: + 61 7 37 15 6200 Fax: + 61 7 37 15 6100 E-mail: sales@krameraustralia.com.au Web: www.krameraustralia.com.au
KRAMER ELECTRONICS CHINA
1204, Kuenyang International Business Plaza 798 Zhaojiabang Road, Shanghai 200030, China Tel: + 86 21 64453139, + 86 21 64453136 Fax: + 86 21 64455934 E-mail: info@kramerchina.com Web: www.kramerchina.com
KRAMER ELECTRONICS KOREA
#201 HyeopSung Bldg 309-148, Seongsu-dong 2Ga, Seongdong-gu Seoul, Korea Tel: + 82 2 467 4747 Fax: + 82 2 467 4750 E-mail: info@kramerkorea.com Web: www.kramerkorea.com
KRAMER ELECTRONICS INDIA PVT. LTD.
Unit 205, Saleh Centre; 18/10, Cunningham Road; Bangalore-560052. Karantaka, India. Tel: + 91 80 4148 5388 Fax: + 91 80 4148 5387 E-mail: sales@kramerindia.com Web: www.kramerindia.com
KRAMER ELECTRONICS JAPAN
Koike Building 2F 1-1-17 Kita-Shinagawa Shinagawa-ku, Tokyo 140-0001, Japan Tel: +81 3 3471 6149 Cell: +81 3 3405 6149 Fax: +81 3 3471 6149 E-mail: S.nakanishi@kramerjapan.com Web: www.kramerjapan.com
©20 09 Sierra V ideo. All r ights res erved.
Reproduction in whole o r in par t wi thout written permission i s prohib ited. Lasse n XL, Lassen HD, Lassen
CAT. No. 2902-00 0511
SDI, Qwik Adju st Knob, TyLin x Pro and TyLinx Pro Net are tradema rks of Sierra Video.
CAT. No. 2902-00 0510
Loading...
