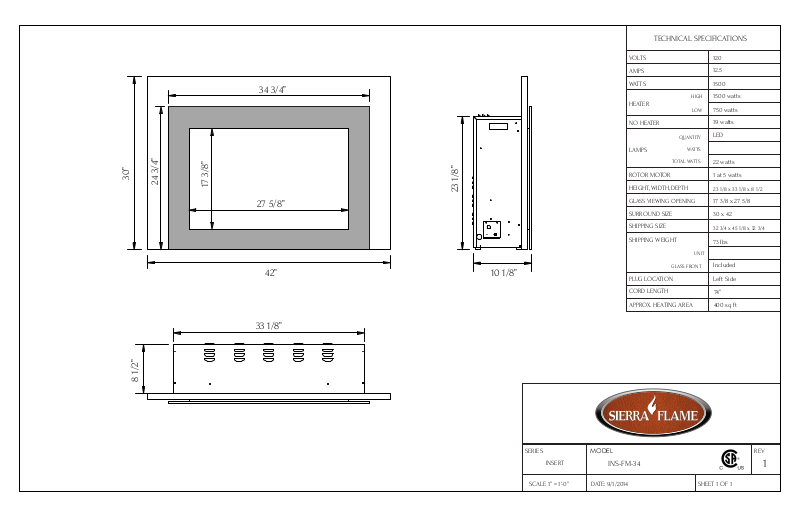

TECHNICAL SPECIFICATIONS
30”
24 3/4”
17 3/8”
34 3/4”
27 5/8”
23 1/8”
VOLTS
AMPS
WATTS
HEATER
NO HEATER
QUANTITY
LAMPS
ROTOR MOTOR
HEIGHT, WIDTH, DEPTH
GLASS VIEWING OPENING
SURROUND SIZE
SHIPPING SIZE
SHIPPING WEIGHT
WATTS
TOTAL WATTS
HIGH
LOW
120
12.5
1500
1500 watts
750 watts
19 watts
LED
22 watts
1 at 5 watts
23 1/8 x 33 1/8 x 8 1/2
17 3/8 x 27 5/8
30 x 42
32 3/4 x 45 1/8 x 12 3/4
73 lbs
8 1/2”
42”
33 1/8”
10 1/8”
GLASS FRONT
PLUG LOCATION
CORD LENGTH
APPROX. HEATING AREA
UNIT
Included
Left Side
74”
400 sq ft
SERIES MODEL
INSERT
SCALE 1” = 1’-0”
DATE: 9/1/2014
INS-FM-34
REV
1
SHEET 1 OF 1
TECHNICAL SPECIFICATIONS
762 mm
628.3 mm
441.3 mm
884 mm
702 mm
587 mm
VOLTS
AMPS
WATTS
HEATER
NO HEATER
QUANTITY
LAMPS
ROTOR MOTOR
HEIGHT, WIDTH, DEPTH
GLASS VIEWING OPENING
SURROUND SIZE
SHIPPING SIZE
SHIPPING WEIGHT
WATTS
TOTAL WATTS
HIGH
LOW
120
12.5
1500
1500 watts
750 watts
19 watts
LED
22 watts
1 at 5 watts
1 at 5 watts
58.7 x 84 x 76.2 cm
441.3 x 70.2 cm
76.2 x 106.8 cm
114.4 x 31.8 x 82.6 cm
33 kg
215.8 mm
1068 mm
840 mm
256.8 mm
GLASS FRONT
PLUG LOCATION
CORD LENGTH
APPROX. HEATING AREA
UNIT
Included
Left Side
190 cm
37 sqm
SERIES MODEL
INSERT
SCALE 1:12
DATE: 9/1/2014
INS-FM-34
REV
1
SHEET 1 OF 1
