Two- and Three-Way Zone Valves
Siemens
Product Guard
Warranty
1/2 to 1" Brass Body
Normally Open/Normally Closed/Diverting
Zone Valves
Description
Two- and Three-Way Zone Valves have a 1/10-inch
(2.5 mm) stroke. The Zone Valves work with any SFA/SFP
Series, SSA/SSP Series electric actuator, or with the
STA/STP Series Thermic actuator. The actuators accept
one of either 24 Vac or 120 Vac power supply signal to
provide on/off, oating or 0 to10 Vdc control.
Features
• All metal plug and seat for superior control
• Direct-coupled universal bonnet — install actuators
without tools
• Sweat or NPT end connections
• Order separately or with an actuator as a
complete assembly
Two-Way NPT Zone Valve.
Three-Way Sweat Zone Valve.
Applications
Typical applications for Two- and Three-Way Zone Valves
are hot or chilled water for zones with radiators; oor
heating via manifolds; fan coil units; cooling ceilings;
wall-mounted boilers; and VAV applications.
Recommendation:
Use only with Zone Valve Actuators.
A-107
Valves
Siemens
Product Guard
PLUS 3 Warranty
www.usa.siemens.com/hvac
Two- Three-Way Zone Valve Specifications
A-108
Valves
Line Size ...........................................1/2-inch to 1-inch (15 mm to 25 mm)
Body Style ........................................................................................Globe
Action
2-way .................................................... NO/NC Determined by Actuator
3-way ............................................Diverting/Mixing (Limited Application)
Valve Body Rating ........................................................... ANSI Class 125
Stem Travel (Stroke) ................................................... 1/10-inch (2.5 mm)
Materials
Body ............................................................................................. Brass
Trim ............................................................................................. Brass
Stem ........................................... Stainless Steel ASTM A582 Type 303
Packing............................................................................ EPDM O-rings
Zone Valve Body Product Ordering
Nominal
Valve Size
Inch mm Cv (Kvs) NPT Sweat
Two-Way Valve Bodies
0.5 15 1.0 (0.85) 599-00210 599-00510
0.5 15 2.5 (2.15) 599-00211 599-00511
0.5 15 4.0 (3.4) 599-00214 599-00514
0.75 20 4.1 (3.5) 599-00212 599-00512
1.00 25 7.0 (6.0) 599-00213 599-00513
Three-Way Valve Bodies
0.5 15 1.0 (0.85) 599-00230 599-00530
0.5 15 2.5 (2.15) 599-00231 599-00531
0.5 15 4.0 (3.4) 599-00234 599-00534
0.75 20 4.1 (3.5) 599-00232 599-00532
1.00 25 7.0 (6.0) 599-00233 599-00533
Flow
Rate Part No.
Controlled Medium ................................. Water, Glycol Solutions to 50%
Medium Temperature Range .............................34 to 230°F (1 to 110°C)
Maximum Inlet Pressure ............................................................125 psig
Leakage Rate ......................................................................ANSI Class III
Close-off Ratings .......................................... According to ANSI/FCI 70-2
Flow Characteristic .........................................................................Linear
Zone Valve Actuator Product Ordering
Description
Part No.
Normally Open
24 Vac, 0 to 10 Vdc, Modulating 24 Vac, 0-10 Vdc, Modulating SSP61U 248
24 Vac/dc, 2-Position, Spring Return
24 Vac, 2-Position, Spring Return
120 Vac, 2-Position, Spring Return
208 Vac, 2-Position, Spring Return
277 Vac, 2-Position, Spring Return
Normally Closed
24 Vac, Floating 24 Vac, Floating SSA81U 244
24 Vac, 0 to 10 Vdc, Modulating 24 Vac, 0-10 Vdc, Modulating SSA61U 245
24 Vac/dc, 2-Position, Spring Return
24 Vac, 2-Position, Spring Return
120 Vac, 2-Position, Spring Return
208 Vac, 2-Position, Spring Return
277 Vac, 2-Position, Spring Return
*Part numbers with /25 come with 8.2 ft. (2.5m) leads.
**Actuator only; not available as an assembly.
24 Vac/dc, 2-Position, Fail AB→A
24 Vac, 2-Position, Fail AB→A
120 Vac, 2-Position, Fail AB→A
208 Vac, 2-Position, Fail AB→A
277 Vac, 2-Position, Fail AB→A
24 Vac/dc, 2-Position, Fail AB→B
24 Vac, 2-Position, Fail AB→B
120 Vac, 2-Position, Fail AB→B
208 Vac, 2-Position, Fail AB→B
277 Vac, 2-Position, Fail AB→B
STP73U 347
SFP71U 243
SFP11U 241
SFP208U/25* **
SFP277U/25* **
STA73U 346
SFA71U 242
SFA11U 240
SFA208U/25* **
SFA277U/25* **
www.usa.siemens.com/hvac
Actuator
Prex CodeTwo-Way Valves Three-Way Valves

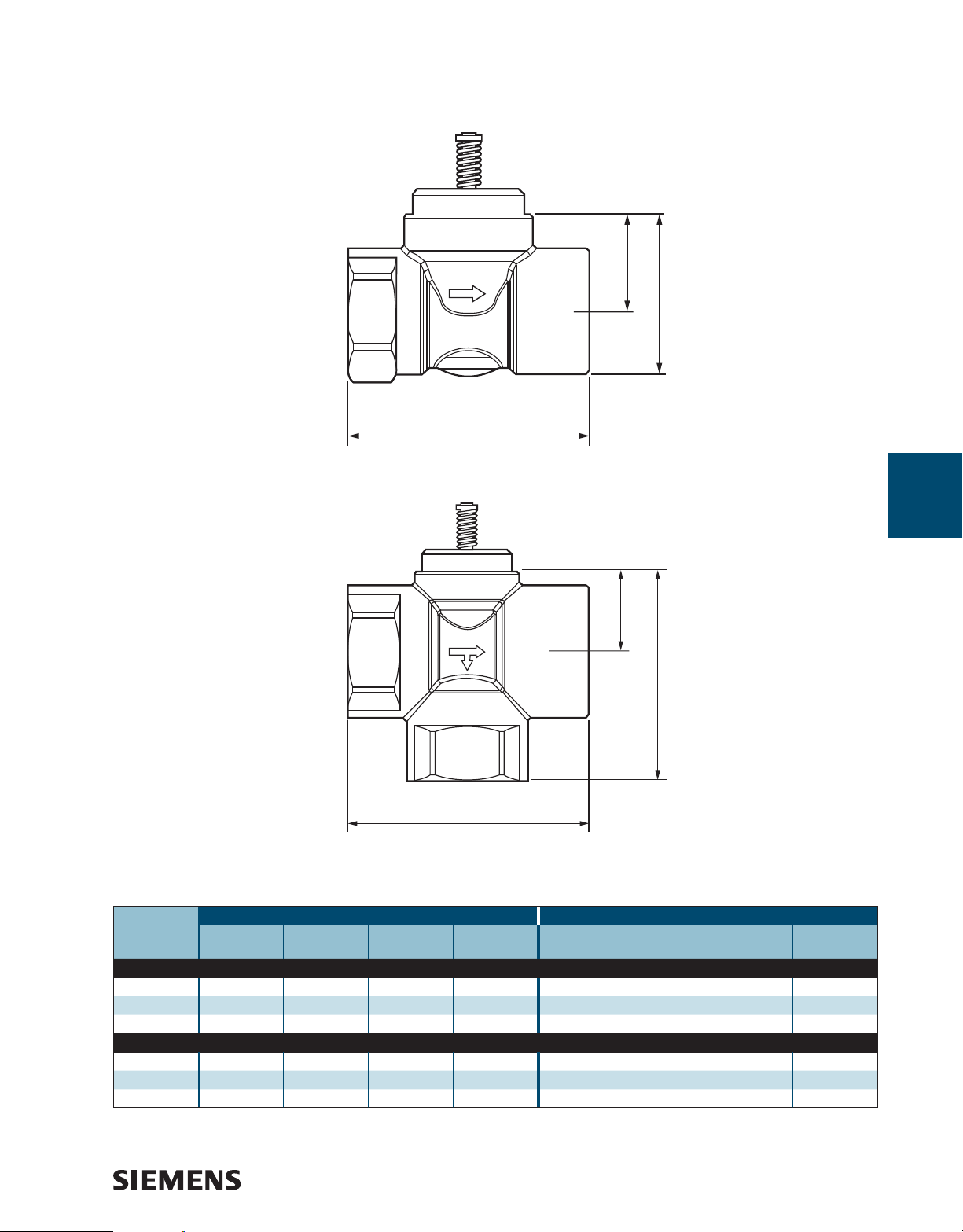

Dimensions
VE0257R1
B
VE0256R1
B
Two-Way Zone Valve Body
C
A
Three-Way Zone Valve Body
A-109
C
A
2-Way Valve 3-Way Valve
Valve Size
in. (mm)
0.5 (15) 2.76 (70) 1.63 (41.5) 1.00 (25.4) 0.82 (0.37) 2.76 (70) 2.34 (59.5) 1.00 (25.4) 1.08 (0.49)
0.75 (20) 2.76 (70) 1.77 (45) 1.00 (25.4) 0.99 (0.45) 2.76 (70) 2.34 (59.5) 1.00 (25.4) 1.26 (0.57)
1.0 (25) 3.50 (89) 2.10 (54) 1.00 (25.4) 1.68 (0.76) 3.50 (89) 2.85 (67.3) 1.00 (25.4) 2.14 (0.97)
0.5 (15) 2.66 (66) 1.48 (38) 1.00 (25.4) 0.60 (0.27) 2.66 (68) 2.26 (57.5) 1.00 (25.4) 0.71 (0.32)
0.75 (20) 2.76 (70) 1.63 (41.5) 1.00 (25.4) 0.71 (0.32) 2.76 (70) 2.34 (59.5) 1.00 (25.4) 0.86 (0.39)
1.00 (25) 3.50 (89) 1.77 (45) 1.00 (25.4) 1.06 (0.48) 3.50 (89) 2.65 (67) 1.00 (25.4) 1.24 (0.56)
Table expressed in inches (mm).
A B C
Weight
lb. (kg) A B C
NPT
Sweat
Weight
lb. (kg)
Valves
www.usa.siemens.com/hvac
