Siemens Building Technologies BT300 Dimensional Sheet

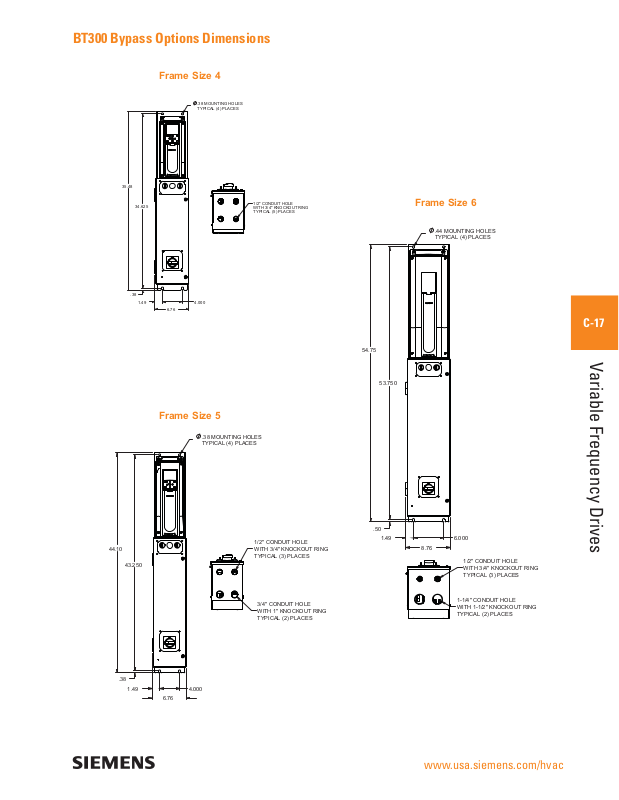

BT300 Bypass Options Dimensions

Frame Size 4

.38 MOUNTING HOLES
TYPICAL (4) PLACES

35.48

.38

34.625

1.49

4.000

6.76

Frame Size 5

.38 MOUNTING HOLES
TYPICAL (4) PLACES

1/2" CONDUIT HOLE

WITH 3/4" KNOCKOUT RING
TYPICAL (5) PLACES

54.75

53.750

Frame Size 6

.44 MOUNTING HOLES
TYPICAL (4) PLACES

C-17

Variable Frequency Drives

44.10

.38

43.250

1.49

6.76

4.000

1/2" CONDUIT HOLE
WITH 3/4" KNOCKOUT RING
TYPICAL (3) PLACES

3/4" CONDUIT HOLE
WITH 1" KNOCKOUT RING
TYPICAL (2) PLACES

.50

1.49

8.76

6.000

1/2" CONDUIT HOLE
WITH 3/4" KNOCKOUT RING
TYPICAL (3) PLACES

1-1/4" CONDUIT HOLE
WITH 1-1/2" KNOCKOUT RING
TYPICAL (2) PLACES

www.usa.siemens.com/hvac

C-18

BT300 Bypass Options Dimensions

Frame Size 7 Frame Size 8 & 9

.50 MOUNTING HOLES

TYPICAL (4) PLACES

58.50

57.375

TOP ENTRY, BLANK
CONDUIT PLATES

1.18 TYPICAL

(4) PLACES

.50

4.18

14.16

6.000

1/2" CONDUIT HOLE
WITH 3/4" KNOCKOUT RING
TYPICAL (3) PLACES

2" CONDUIT HOLE
WITH 2-1/2" KNOCKOUT RING
TYPICAL (2) PLACES

Variable Frequency Drives

92.99

90.71

29.409

1.28

32.58

(TYPE 1 & 12)

29.409

.94 (4) PLACES

TYPICAL

www.usa.siemens.com/hvac
