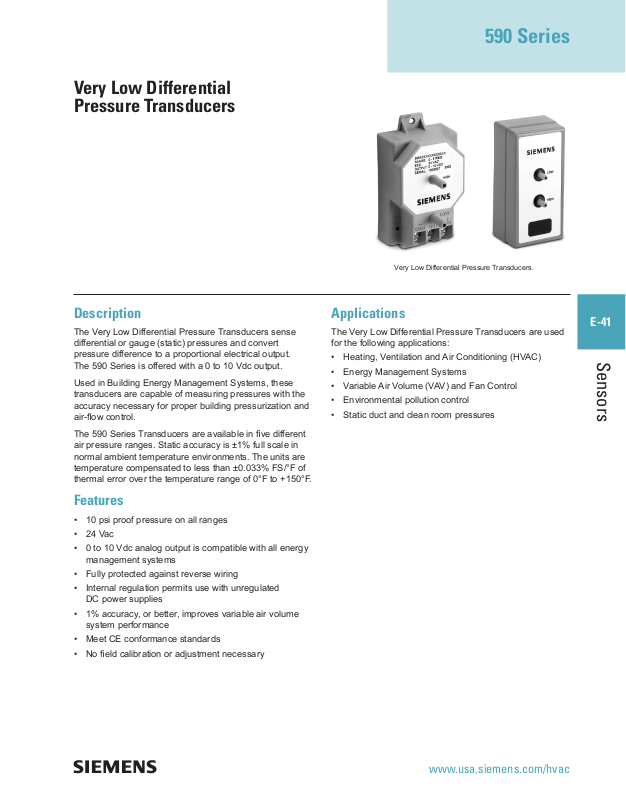

Siemens Building Technologies 590 Series Data Sheet

Very Low Differential
Pressure Transducers

590 Series

Very Low Differential Pressure Transducers.

Description

The Very Low Differential Pressure Transducers sense
differential or gauge (static) pressures and convert
pressure difference to a proportional electrical output.
The 590 Series is offered with a 0 to 10 Vdc output.

Used in Building Energy Management Systems, these
transducers are capable of measuring pressures with the
accuracy necessary for proper building pressurization and

air-ow control.

The 590 Series Transducers are available in ve different

air pressure ranges. Static accuracy is ±1% full scale in
normal ambient temperature environments. The units are
temperature compensated to less than ±0.033% FS/°F of
thermal error over the temperature range of 0°F to +150°F.

Features

• 10 psi proof pressure on all ranges

• 24 Vac

• 0 to 10 Vdc analog output is compatible with all energy
management systems

• Fully protected against reverse wiring

• Internal regulation permits use with unregulated
DC power supplies

• 1% accuracy, or better, improves variable air volume
system performance

• Meet CE conformance standards

• No eld calibration or adjustment necessary

Applications

The Very Low Differential Pressure Transducers are used

for the following applications:

• Heating, Ventilation and Air Conditioning (HVAC)

• Energy Management Systems

• Variable Air Volume (VAV) and Fan Control

• Environmental pollution control

• Static duct and clean room pressures

E-41

Sensors

www.usa.siemens.com/hvac

590 Series Specifications

E-42

Temperature

Operating* .................................................... 0 to +150°F (-18 to +65°C)

Storage ......................................................-40 to +185°F (-40 to +85°C)

* Operating Temperature limits of the electronics only.

Pressure media temperatures may be considerably higher or lower.

Physical Description

Case Fire Retardant Glass Filled Polyester

Electrical Connection..............................................Screw Terminal Strip

Pressure Fitting ......................................................................1⁄4" Fitting

Weight ......................................................................................3 ounces

Electrical Data (Voltage)

Circuit .................................................................. 3-wire (Com, Out, Exc)

Excitation/Output** ............................................ 12 to 30 Vac/0 to 10 Vdc

** Zero output factory-set to within ±50 mV (±25 mV for optional

accuracies).

Bi-directional Output at Zero Pressure .......................2.5 Vdc (±50 mV)

Output Impedance*** ................................................................ 100 Ohms

*** Calibrated into a 50K ohm load, operable into a 5000-ohm load

or greater.

Pressure Media ................... Typically air or similar non-conducting gases

590 Series Product Ordering

Description Accuracy Part No.

Differential Pressure Sensor, 5" WC, 10 Vdc Signal 1% 590-501

Differential Pressure Sensor, 2" WC, 24 Vac, 10 Vdc Signal 1% 590-502

Differential Pressure Sensor, 1" WC, 24 Vac, 10 Vdc Signal 1% 590-503

Differential Pressure Sensor, ±0.25" WC, 24 Vac, 10 Vdc Signal 1% 590-505

Differential Pressure Sensor In Conduit Box, 5" WC, 24 Vac, 10 Vdc Signal 1% 590-506

Differential Pressure Sensor In Conduit Box, 2" WC, 24 Vac, 10 Vdc Signal 1% 590-507

Differential Pressure Sensor In Conduit Box, 1" WC, 24 Vac, 10 Vdc Signal 1% 590-508

Differential Pressure Sensor In Conduit Box, ±0.25" WC, 24 Vac, 10 Vdc Signal 1% 590-510

Differential Pressure Transmitter, 1.0", 0.4%, 4 to 20 mA, Conduit Cover, 24 Vac 0.4% 590-780

Differential Pressure Transmitter, .65", 0.4%, 4 to 20 mA, Conduit Cover, 24 Vac 0.4% 590-781

Differential Pressure Transmitter, 0.5", 0.4%, 4 to 20 mA, Conduit Cover, 24 Vac 0.4% 590-782
