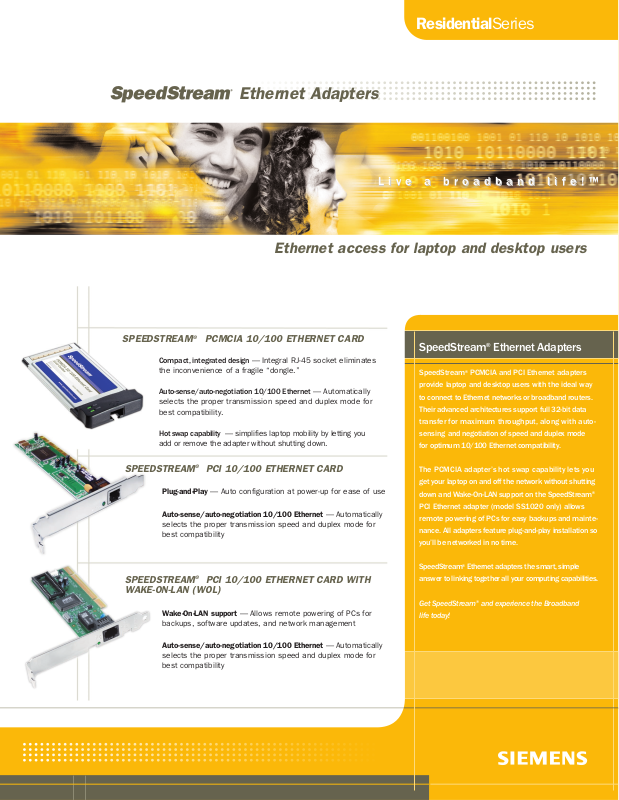

ResidentialSeries

EthernetAdapters

L i v e a b r o a d b a n d l i f e ! ™

Ethernet access for laptop and desktop users

SPEEDSTREAM® PCMCIA 10/100 ETHERNET CARD

Compact, integrated design — Integral RJ-45 socket eliminates the inconvenience of a fragile “dongle.”

Auto-sense/auto-negotiation 10/100 Ethernet — Automatically selects the proper transmission speed and duplex mode for best compatibility.

Hot swap capability — simplifies laptop mobility by letting you add or remove the adapter without shutting down.

SPEEDSTREAM® PCI 10/100 ETHERNET CARD

Plug-and-Play — Auto configuration at power-up for ease of use

Auto-sense/auto-negotiation 10/100 Ethernet — Automatically selects the proper transmission speed and duplex mode for best compatibility

SPEEDSTREAM® PCI 10/100 ETHERNET CARD WITH WAKE-ON-LAN (WOL)

Wake-On-LAN support — Allows remote powering of PCs for backups, software updates, and network management

Auto-sense/auto-negotiation 10/100 Ethernet — Automatically selects the proper transmission speed and duplex mode for best compatibility

SpeedStream® Ethernet Adapters

SpeedStream® PCMCIA and PCI Ethernet adapters provide laptop and desktop users with the ideal way to connect to Ethernet networks or broadband routers. Their advanced architectures support full 32-bit data transfer for maximum throughput, along with autosensing and negotiation of speed and duplex mode for optimum 10/100 Ethernet compatibility.

The PCMCIA adapter’s hot swap capability lets you get your laptop on and off the network without shutting down and Wake-On-LAN support on the SpeedStream® PCI Ethernet adapter (model SS1020 only) allows remote powering of PCs for easy backups and maintenance. All adapters feature plug-and-play installation so you’ll be networked in no time.

SpeedStream® Ethernet adapters the smart, simple answer to linking together all your computing capabilities.

Get SpeedStream® and experience the Broadband life today!

Ethernet Adapters

			PCMCIA 10/100 Ethernet Card (Model SS1012)					PCI 10/100 Ethernet Card (Model SS1019/SS1020)
		Features and Benefits						Features and Benefits
		•	Hot swap capability					• Wake-On-LAN support allows power-on for remote network management
		•	Low power consumption					(model SS1020 only)
		• Compact, integrated design — No dongle required						• Plug-and-play installation auto configures at power-up
		• Provides full-duplex operation on 10Base -T and 100Base -TX networks						• Automatic 10/100 Ethernet transmission speed sensing
		• Automatic 10/100 Ethernet transmission speed sensing						• Auto-negotiation of duplex mode for maximum compatibility
		• Auto-negotiation of duplex mode for maximum compatibility						• Activity LEDs indicate network status and transmission speed
		• Activity LEDs indicate network status and transmission speed						Technical Specifications
		• Plug-and-play installation configures at power-up with Windows®
								Power: PCI Bus supplied; 3.3 VDC, 190 mA (max)
		Technical Specifications						Form Factor: Single-slot PCI bus adapter
		Power: PCMCIA Bus supplied; 5 VDC, 400 mA (max)						Bus interface:
		Form Factor: Type II PCMCIA card						32 bit, 33 MHz PCI bus version 2.1; Bus Master capability
								Media Interface: One RJ-45
		Bus interface: Type II PCMCIA 32-bit CardBus
								Diagnostic LED:
		Media Interface: One RJ-45
								Activity LED indicates 10 Mbps/100 Mbps transmission
		Diagnostic LEDs: Activity indicator; 10/100 link indicator						speed and network status
		Standards Supported:						Standards Supported:
		IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX						IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
		Certifications: CE, FCC Part 15 Class B						and PCI Local Bus Specification, Rev. 2.1 or later
								Certifications: CE, FCC Part 15 Class B
		Warranty:
								Warranty:
		1 year parts and labor for hardware.
		Additional year available with product registration						1 year parts and labor for hardware.
		Minimum System Requirements:						Additional year available with product registration
								Minimum System Requirements:
		Available Type II PCMCIA 32-bit CardBus slot
		Supported OS: Windows® 98, 98SE, 2000, Me®, NT® 4.0						Pentium® 90 or faster processor
		Compatible OS: Linux®*, others*						Open PCI slot that supports bus mastering
								Plug-and-play compliant BIOS and Motherboard (PCI bus version 2.1)
								Supported OS: Windows® 98, 98SE, 2000, Me®, NT®4.0
								Compatible OS: Win 3.11*, 95*, Linux®*, Unix®*, NetWare®*, FreeBSD*,
								others*
		*No technical support provided or implied for these operating systems.						*No technical support provided or implied for these operating systems.
		Driver software may or may not be included, available, or required.
								Driver software may or may not be included, available, or required.

front	front
	RJ - 45
RJ - 45	Indicator Light
Model SS1012	Model SS1020/SS1019
