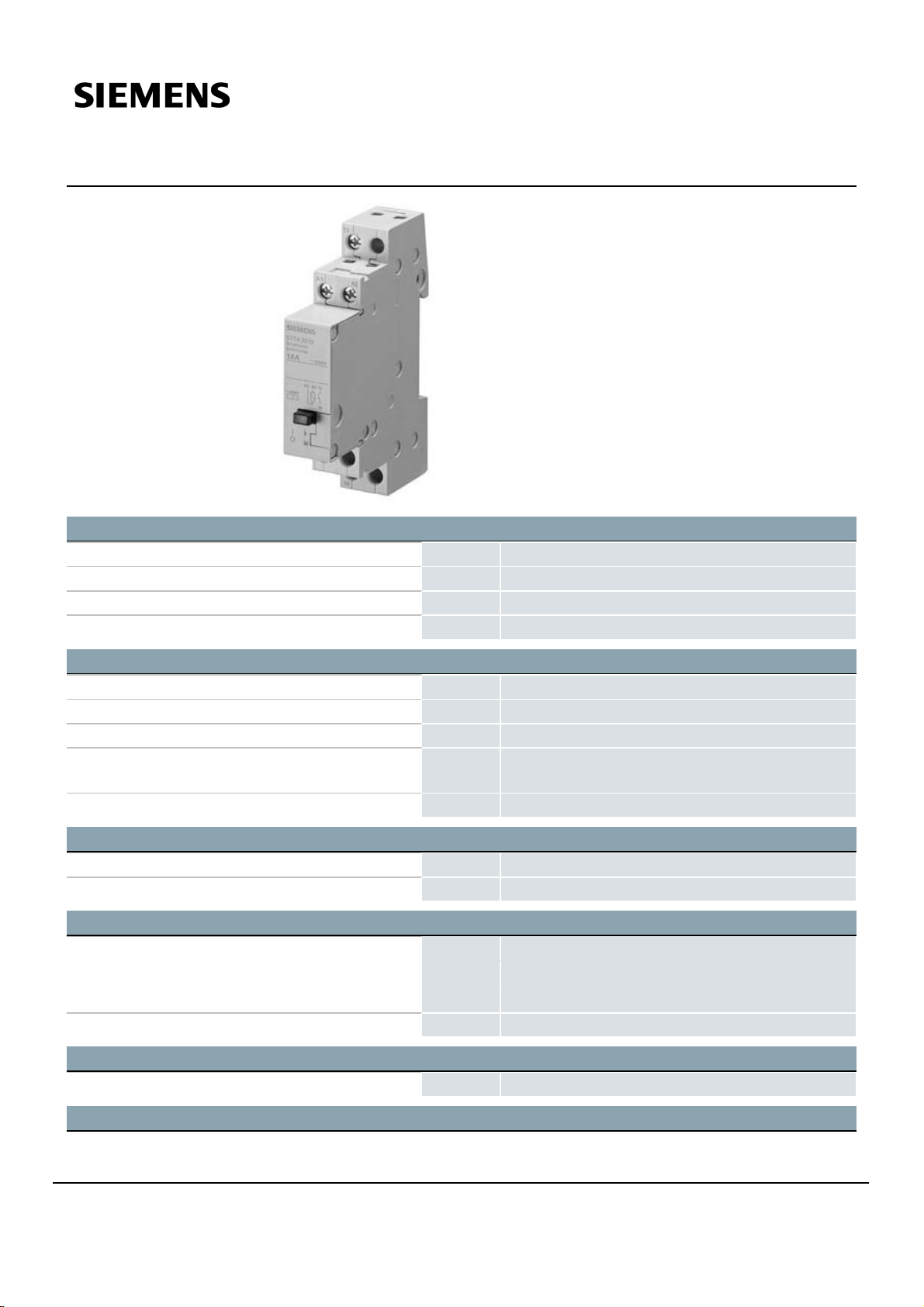

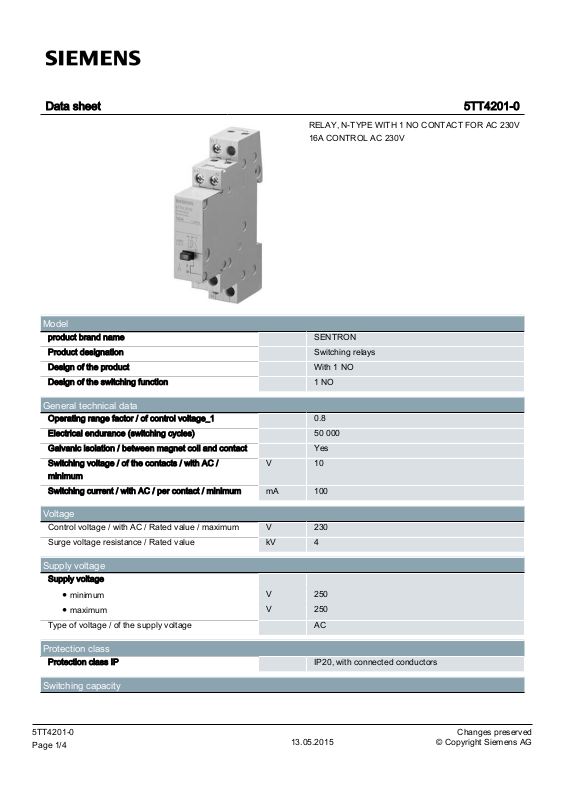

Page 1

Data sheet 5TT4201-0

RELAY, N-TYPE WITH 1 NO CONTACT FOR AC 230V

16A CONTROL AC 230V

Model

product brand name SENTRON

Product designation Switching relays

Design of the product With 1 NO

Design of the switching function 1 NO

General technical data

Operating range factor / of control voltage_1 0.8

Electrical endurance (switching cycles) 50000

Galvanic isolation / between magnet coil and contact Yes

Switching voltage / of the contacts / with AC /

minimum

Switching current / with AC / per contact / minimum mA 100

V 10

Voltage

Control voltage / with AC / Rated value / maximum V 230

Surge voltage resistance / Rated value kV 4

Supply voltage

● minimum

● maximum

Type of voltage / of the supply voltage AC

V 250

Protection class

Protection class IP IP20, with connected conductors

Switching capacity

5TT4201-0 Changes preserved

Page 1/

13.05.2015 © Copyright Siemens AG

Page 2

Switching capacity apparent power

● for uncompensated fluorescent lamp load

Switching capacity current / at cos phi 0.6 A 16

Switching capacity active power / with filament lamp

load

V·A 400

W 1200

Dissipation

Active power loss

● for rated value of the current / with AC / in hot

operating state / per pole

● Apparent power loss / of the magnet coil / with

pulse / Rated value

● Active power loss / of the magnet coil / with

pulse / Rated value

● Active power loss / at 16 A / per contact / Rated

value

W 1

V·A 3

W 2.4

W 1

Main circuit

Operating frequency / Rated value Hz 50

Operating voltage / with AC / Rated value / maximum V 250

Operating current

● Rated value

● at cos phi 0.6 ... 1 / Rated value

A 16

Control current

Type of voltage

● of control voltage_1

Control voltage

● _1 / initial value

● _1 / Full-scale value

Control voltage frequency

● _1 / initial value

● _1 / Full-scale value

Operating range factor / of control voltage_2 1.1

V 230

Hz 50

Product function

Product function / direct operation Yes

Inputs Outputs

Relay design partially electronic

Number

Number of terminals / with cross-head screw 1

Number of NC contacts 0

Number of NO contacts 1

Number of CO contacts 0

5TT4201-0 Changes preserved

Page 2/

13.05.2015 © Copyright Siemens AG

Page 3

Connections

Connectable conductor cross-section

● for flexible conductor / with core end processing

— minimum

— maximum

● for rigid conductor

— minimum

— maximum

mm² 1

mm² 6

mm² 1.5

mm² 6

Mechanical Design

Width of opening / of the contacts mm 1.2

mounting position any

Installation depth mm 90

Number of width units 1

Mounting type DIN rail

Required spacing / for live parts mm 6

Environmental conditions

Ambient temperature

● minimum

● maximum

● with relative humidity 95% / acc. to DIN 50015

°C -10

°C 40

°C 35

Certificates

General Product Approval Declaration of

Conformity

other

Test Certificates

other

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system)

https://eb.automation.siemens.com/mall/en/WW/Catalog/Product/5TT42010

Service&Support (Manuals, Certificates, Characteristics, FAQs,...)

http://support.automation.siemens.com/WW/view/en/5TT42010/all

5TT4201-0 Changes preserved

Page 3/

Page 4

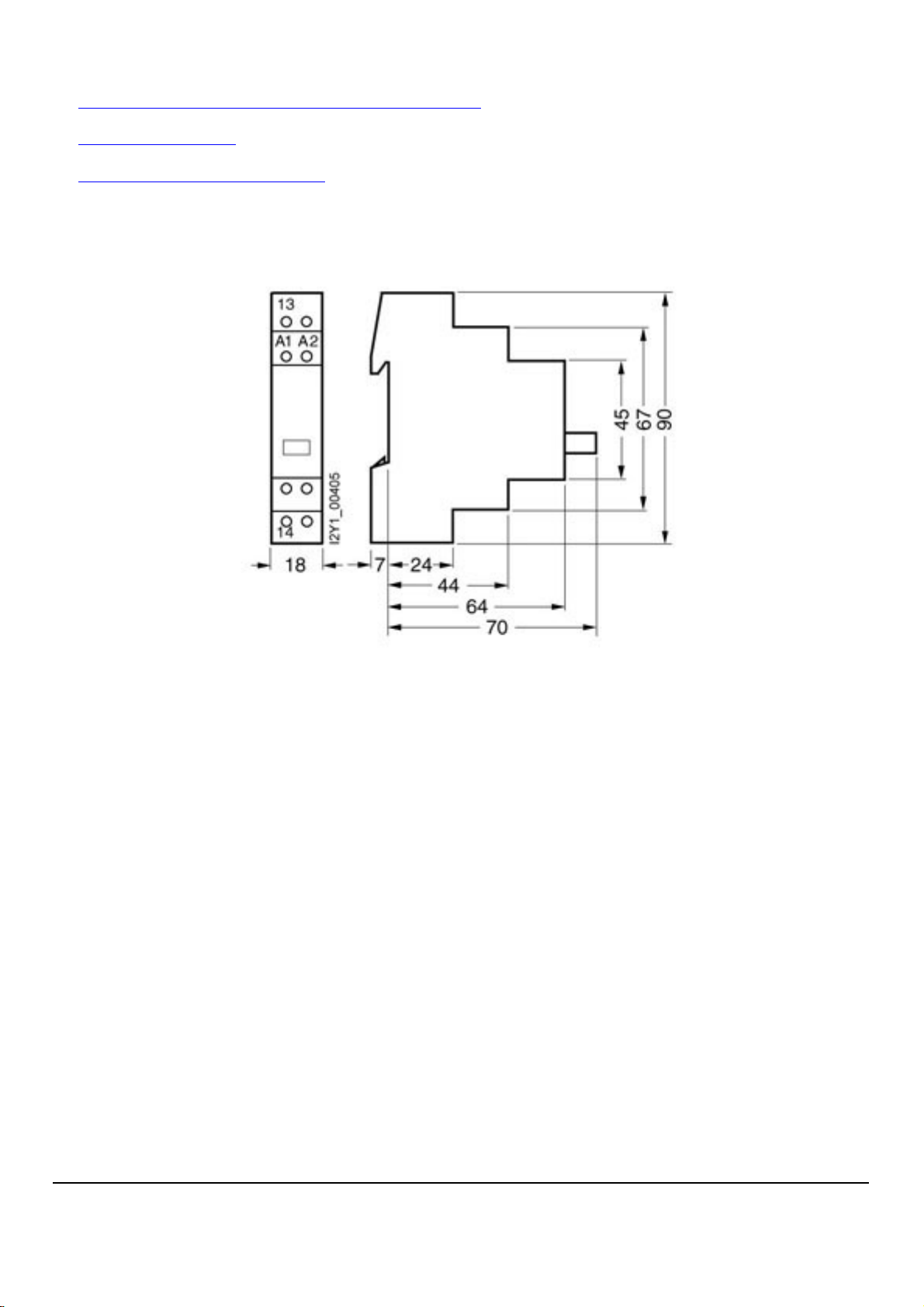

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)

http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TT42010

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://ausschreibungstexte.siemens.com/tiplv

last modified: 05.05.2015
