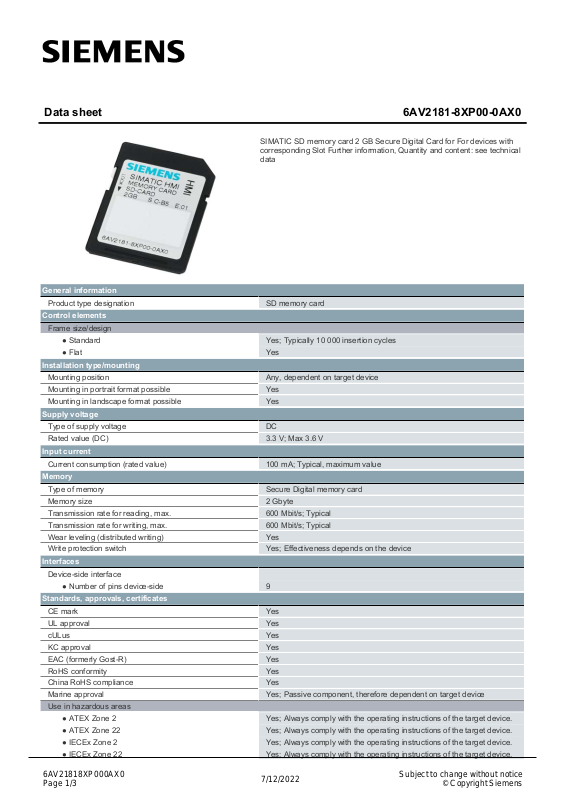

Data sheet 6AV2181-8XP00-0AX0
SIMATIC SD memory card 2 GB Secure Digital Card for For devices with
corresponding Slot Further information, Quantity and content: see technical
data
General information
Product type designation
SD memory card
Control elements
Frame size/design
● Standard
Yes; Typically 10 000 insertion cycles
● Flat
Yes
Installation type/mounting
Mounting position
Any, dependent on target device
Mounting in portrait format possible
Yes
Mounting in landscape format possible
Yes
Supply voltage
Type of supply voltage
DC
Rated value (DC)
3.3 V; Max 3.6 V
Input current
Current consumption (rated value)
100 mA; Typical, maximum value
Memory
Type of memory
Secure Digital memory card
Memory size
2 Gbyte
Transmission rate for reading, max.
600 Mbit/s; Typical
Transmission rate for writing, max.
600 Mbit/s; Typical
Wear leveling (distributed writing)
Yes
Write protection switch
Yes; Effectiveness depends on the device
Interfaces
Device-side interface
● Number of pins device-side
9
Standards, approvals, certificates
CE mark
Yes
UL approval
Yes
cULus
Yes
KC approval
Yes
EAC (formerly Gost-R)
Yes
RoHS conformity
Yes
China RoHS compliance
Yes
Marine approval
Yes; Passive component, therefore dependent on target device
Use in hazardous areas
● ATEX Zone 2
Yes; Always comply with the operating instructions of the target device.
● ATEX Zone 22
Yes; Always comply with the operating instructions of the target device.
● IECEx Zone 2
Yes; Always comply with the operating instructions of the target device.
● IECEx Zone 22
Yes; Always comply with the operating instructions of the target device.
6AV21818XP000AX0
Page 1/3
7/12/2022
Subject to change without notice
© Copyright Siemens
Page 2
● cULus Class I Zone 2, Division 2
Yes; Always comply with the operating instructions of the target device.
● FM Class I Division 2
Yes; Always comply with the operating instructions of the target device.
Marine approval
● Germanischer Lloyd (GL)
Yes; Always comply with the operating instructions of the target device.
● American Bureau of Shipping (ABS)
Yes; Always comply with the operating instructions of the target device.
● Bureau Veritas (BV)
Yes; Always comply with the operating instructions of the target device.
● Det Norske Veritas (DNV)
Yes; Always comply with the operating instructions of the target device.
● Lloyds Register of Shipping (LRS)
Yes; Always comply with the operating instructions of the target device.
● Nippon Kaiji Kyokai (Class NK)
Yes; Always comply with the operating instructions of the target device.
● Polski Rejestr Statkow (PRS)
Yes; Always comply with the operating instructions of the target device.
● Chinese Classification Society (CCS)
Yes; Always comply with the operating instructions of the target device.
● Compass working clearance
5 m
Ambient conditions
Suited for indoor use
Yes
Suited for outdoor use
No
Ambient temperature during operation
● min.
0 °C
● max.
55 °C
Ambient temperature during storage/transportation
● min.
-25 °C
● max.
70 °C
Relative humidity
● Operation, max.
95 %
● Condensation permissible
No; Condensation not permissible
Operating systems
pre-installed operating system
● Windows CE
No; Preinstalled system files
Runs under operating system
● Windows CE
Yes
● Windows Vista
Yes
● Windows XP
Yes
● Windows 7
Yes
● Windows 8
Yes
● Windows 10
Yes
● Linux
Yes
● other
Yes; Card must not be formatted!
Mechanics/material
Enclosure material (front)
● Plastic
Yes; Gold contacts
Enclosure color (front)
RAL 6034 (color deviation possible)
Service life
● Number of operating cycles, keys
10; Min. data storage without loss (in years)
Dimensions
Width
24 mm
Height
32 mm
Thickness
2.1 mm
Weights
Weight (without packaging)
3 g
Weight (with packaging)
6 g
Scope of supply
Delivery quantity in pieces
1
Other
Merchandise
No
Manufacturer name
SIEMENS AG
Manufacturer's address
Gleiwitzerstraße 555, 90475 Nuremberg, Germany
Target devices
Especially for KTP Mobile Panels 2nd Generation, MP377 and Comfort
Panels, but also for all other panels (other than Classic Panels) and PCs
with suitable slot
Note:
Not suitable for MP177, MP277, Mobile Panel 277, OP77, TP/OP177,
TP/OP277 and Mobile Panel 177
6AV21818XP000AX0
Page 2/3
7/12/2022
Subject to change without notice
© Copyright Siemens
Page 3
Usable in the following products
● Product 1
6AV2124-*
● Product 4
6AV2125-2G*
● Product 5
6AV2125-2J*
● Product 7
6AV6644-*
last modified:
2/22/2022
6AV21818XP000AX0
Page 3/3
7/12/2022
