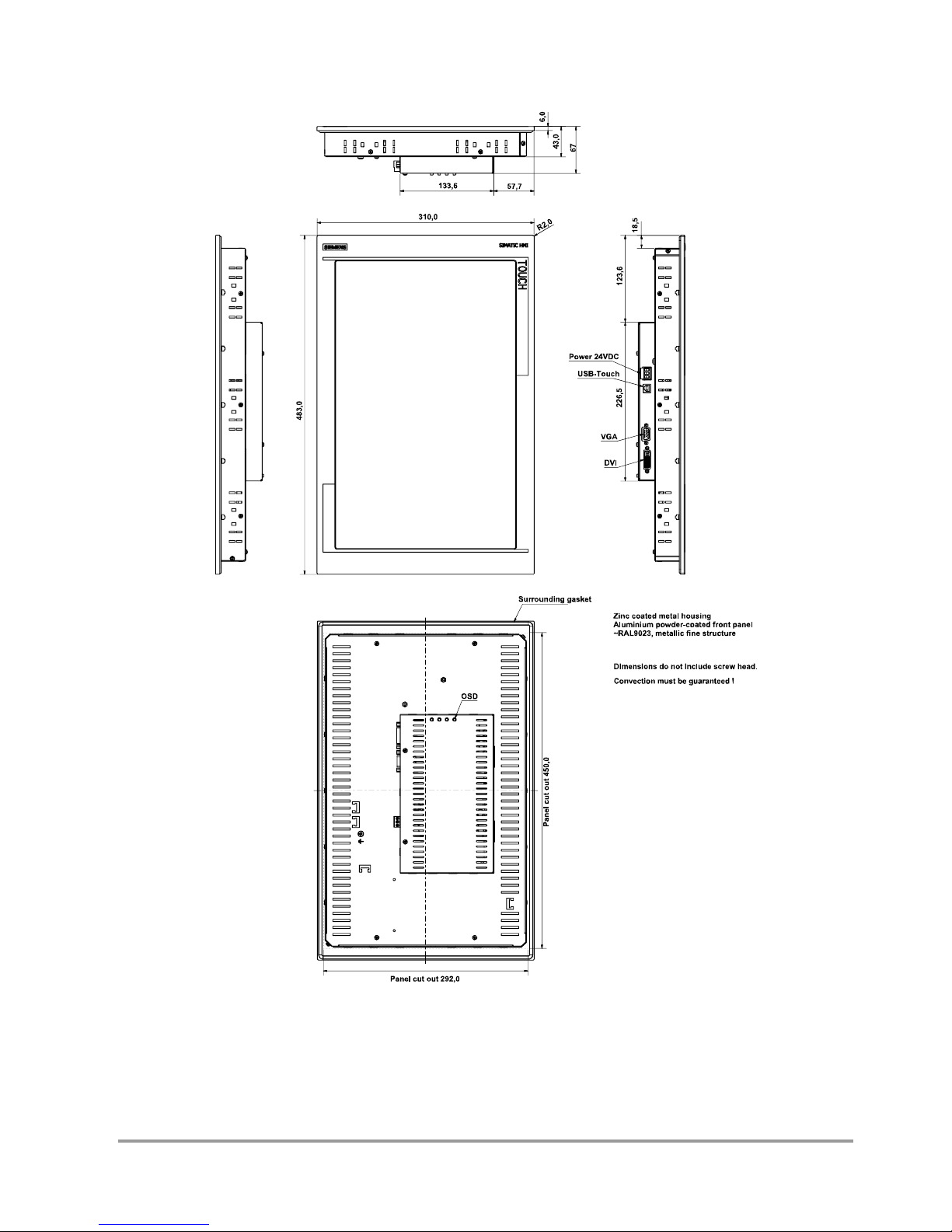

Fig. 3: Dimensions of the SCD1900 (landscape) ............................................................... 11

Fig. 4: Dimensions of the SCD1900 (portrait) ....................................................................12

Fig. 5: Location of the operation and alignment controls ...................................................18

Bedienhandbuch

SIMATIC HMI SCD1900 Seite 5 / 29 DOC-No.: SCD1900 MANUAL.DOC

1 Overview

The LCD device SCD1900 has been developed and constructed especially for industrial
applications. This device can be used in industrial systems with particular demands, e.g.
immune to electromagnetic radiation.

Its compact enclosure opens up a wide spectrum of possible application areas for the
SCD1900. The monitor is available for two orientations portrait and landscape.

With the use of the trend-setting LCD technology in this device relegated picture geometry
distortion and color patches are no longer an issue. Even at the low refresh rate of 50 Hz the
screen remains flicker-free. The SCD1900 thus fulfils even the strictest ergonomic
requirements. Pictures of lower resolution are expanded to fill the screen. The monitor is
available in landscape version and portrait version.

The SCD1900 can display up to 16.7 Mio. colors. This allows showing true color images and
videos. The LCD-device contains special hardware to convert a standard analogue VGA and
digital DVI video signal. Compatibility with conventional CRT devices is guaranteed.

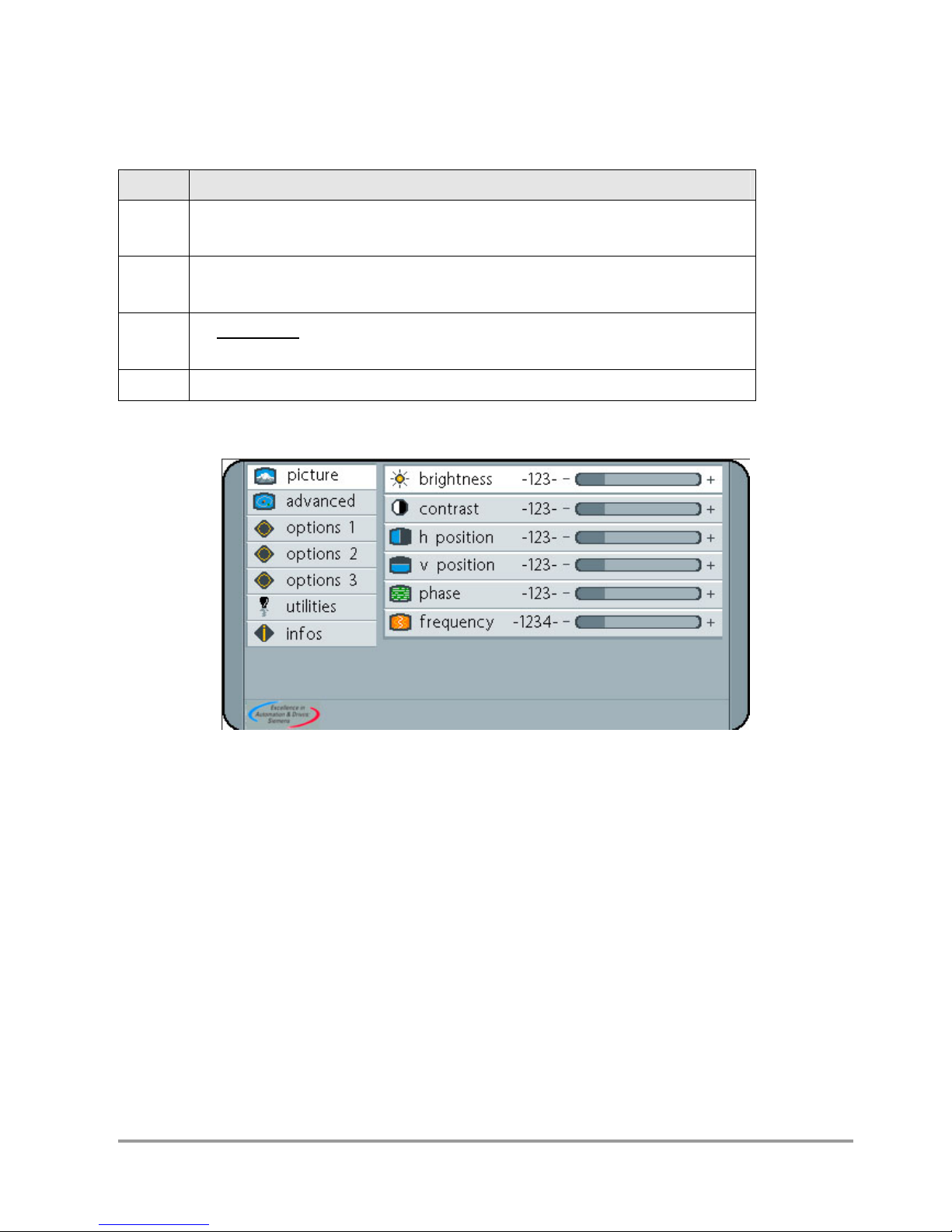

The adjustment of the device will be done via the clearly designed OSD (On Screen Display).

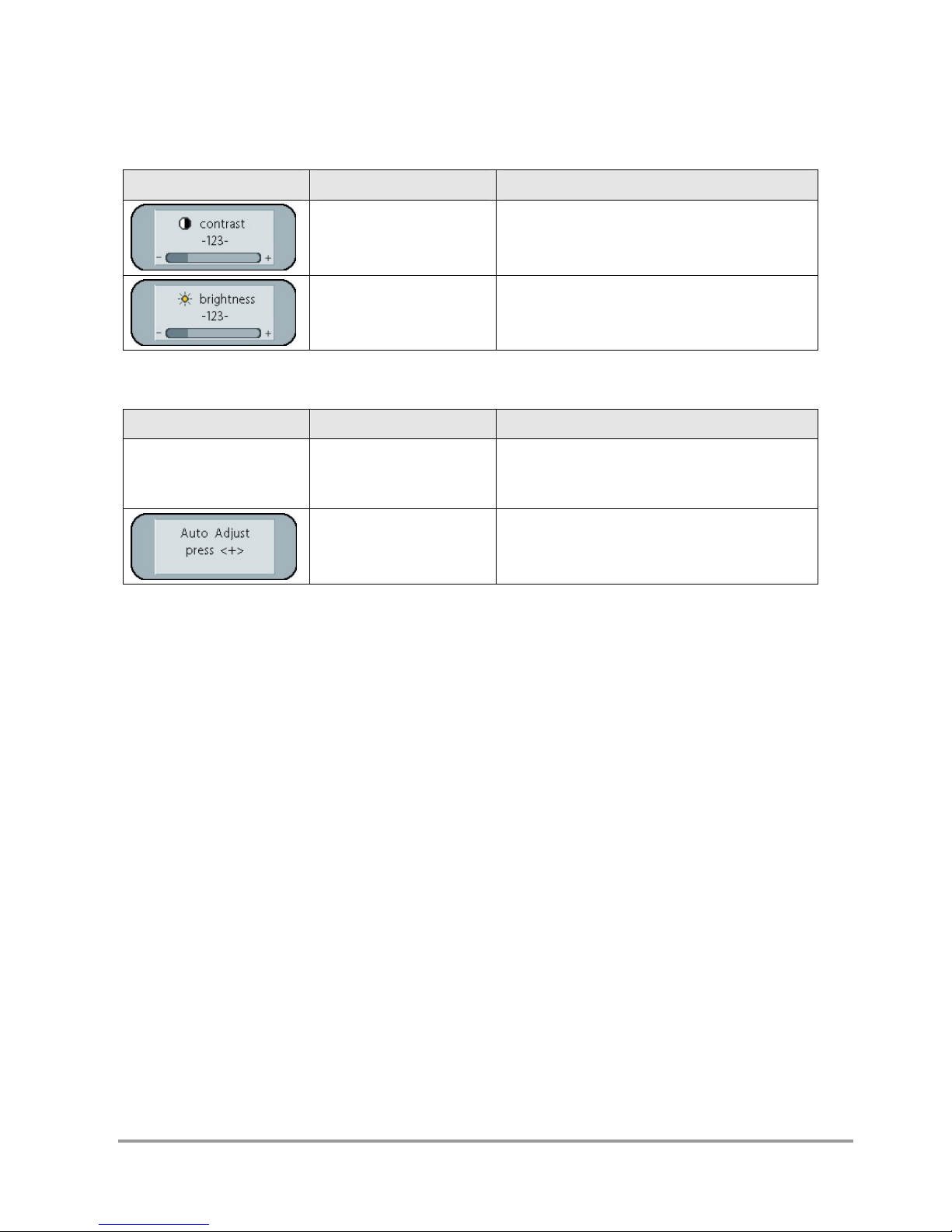

Tedious adjustments are a thing of the past with the “Automatic Alignment” function. At the
press of a button, the monitor performs these alignments automatically.

The SCD1900 is equipped with an active 19” TFT display module with a maximum resolution
of 1440 x 900 pixels. The integrated power management system VESA DPMS, allows a
significant reduction in power consumption when the synchronization signal from the
computer has been switched off, compared with that under “normal” operation.

Bedienhandbuch

SIMATIC HMI SCD1900 Seite 6 / 29 DOC-No.: SCD1900 MANUAL.DOC

1.1 Layout of this Handbook

This handbook should be kept within reach while installing and operating the LCD-device. It
has been laid out so that even inexperienced users can find the information they require.
Chapters are clearly arranged according to subject.

In detail, the chapters are arranged as follows:

Chapter 1 Introduction

This chapter provides a brief description of the SCD1900, including its
properties, application areas and special features.

Chapter 2 Installation

This chapter is mainly concerned with preparing the LCD-device for use, its
installation and cabling.

Chapter 3 Operation

All operations and adjustment possibilities for the SCD1900 are described here.

Chapter 4 Technical Data

This chapter contains technical details such as dimensions, power supply,
environmental considerations and EMC data.

Chapter 5 Remarks

The chapter gives you additional information and contact information.

Important: The manufacturer has gone to great lengths to match the quality of the

documentation to the high standard of this product. In achieving this, we are
reliant on the support of our customers.

Bedienhandbuch

SIMATIC HMI SCD1900 Seite 7 / 29 DOC-No.: SCD1900 MANUAL.DOC

1.2 Warnings and Safety Notes

Transport

The LCD-device should only be transported in its original packaging to ensure it will be
protected against shocks and rough handling.

Setting up

When installing the device, it should be noted whether any moisture (condensation) has
entered the unit during transport or storage. Additional important installation information can
be found in the “Technical Data” chapter.

EMC

This LCD-device is a component designed for building into industrial systems. The operator
of the entire plant is responsible for maintaining electromagnetic compatibility according to
EMC-law.

Repairs

Before the unit is opened, the supply voltage must be switched off. Only authorized persons
may open the unit.

Additions or changes to the unit may damage the system or affect its EMC behavior.

Cleaning

The unit must be isolated from the power supply before cleaning. If heavily soiled, the LCD­device can be cleaned with a damp cloth and mild detergent. Care must be taken to ensure
that no moisture enters the unit during cleaning.

Scouring powders and solvents must never be allowed to come in contact with the unit. The
inside of the unit is to be cleaned by qualified service technicians only.

Bedienhandbuch

SIMATIC HMI SCD1900 Seite 8 / 29 DOC-No.: SCD1900 MANUAL.DOC

1.3 Instructions for Handling Components Susceptible to Electrostatic discharge

Most of the assemblies within the SCD1900 contain components which can be destroyed by
electrostatic voltages. It is also possible for the assemblies to be damaged in such a way that
total failure does not occur.

If you (as an authorized service technician) are handling such assemblies then the following
precautions should be observed:

• When such assemblies are being handled, a means of electrostatic discharge must
be available. This can be, for example, a grounded object, which can be touched to
discharge electrostatic voltages.

• This applies to all insulated used tools. They must also be discharged at grounded
object.

• When assemblies are removed or added to the system, the unit must always be
switched off and the power supply cable disconnected.

• Vulnerable assemblies should always be held by their edge. Avoid touching tracks
and contact pins.

Bedienhandbuch

SIMATIC HMI SCD1900 Seite 9 / 29 DOC-No.: SCD1900 MANUAL.DOC

2 General Installation

Preparation for installing the LCD-device includes the following points:

• Removal of all packaging

• Checking of components for damage

• Comparison of components received with those on the delivery note

• Connection to the computer system and power supply

• Building into your system, bearing in mind technical and ergonomic aspects

2.1 Removing the Packaging and Checking Individual Parts

After unpacking all the delivered components, they should be checked for completeness and
for possible transport damage (visual inspection). If any deficiencies are found then please
contact the service department given on the delivery note. Have the delivery note number,
serial number and a description of the deficiency to hand.

The original packaging should be kept for future transportation.

2.2 Scope of Delivery

• Cable set 1,8 m – VGA, USB und DVI

• 10 bracket

• Documentation

• Driver-CD

2.3 Installing the LCD-Device

The SCD1900 will be placed in panel cut out and mounted with 10 clamps (see Fig. 1 and

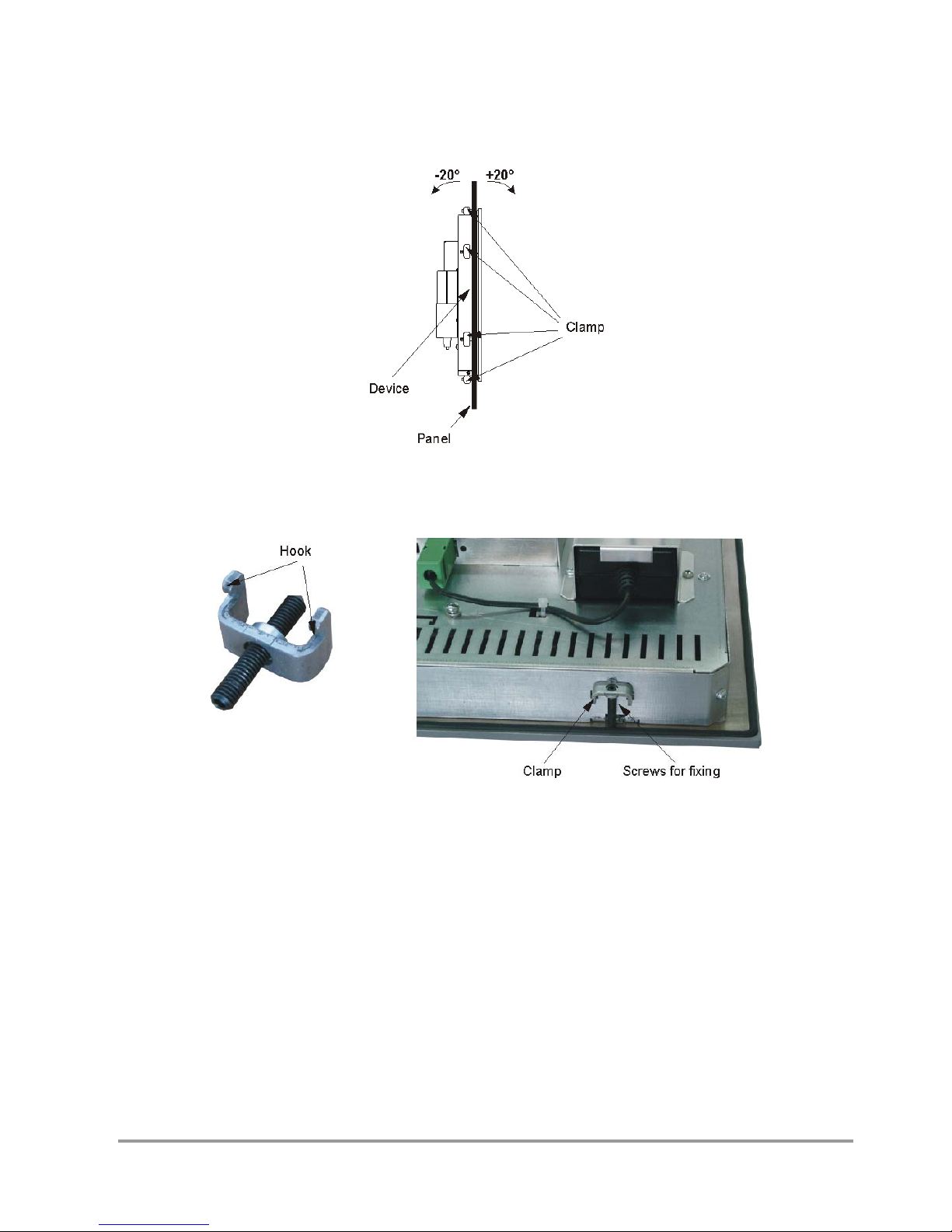

Fig. 2) at the cut out frame in the rear, 3 clamps each top/bottom and 2 clamps each left/right.
To fix the device the clamps will be hang in the prov

ided holes at the bezel and the screws
tighten (max 50 Ncm) (see Fig. 1 and Fig. 2). The panel cut out is prepared according to the

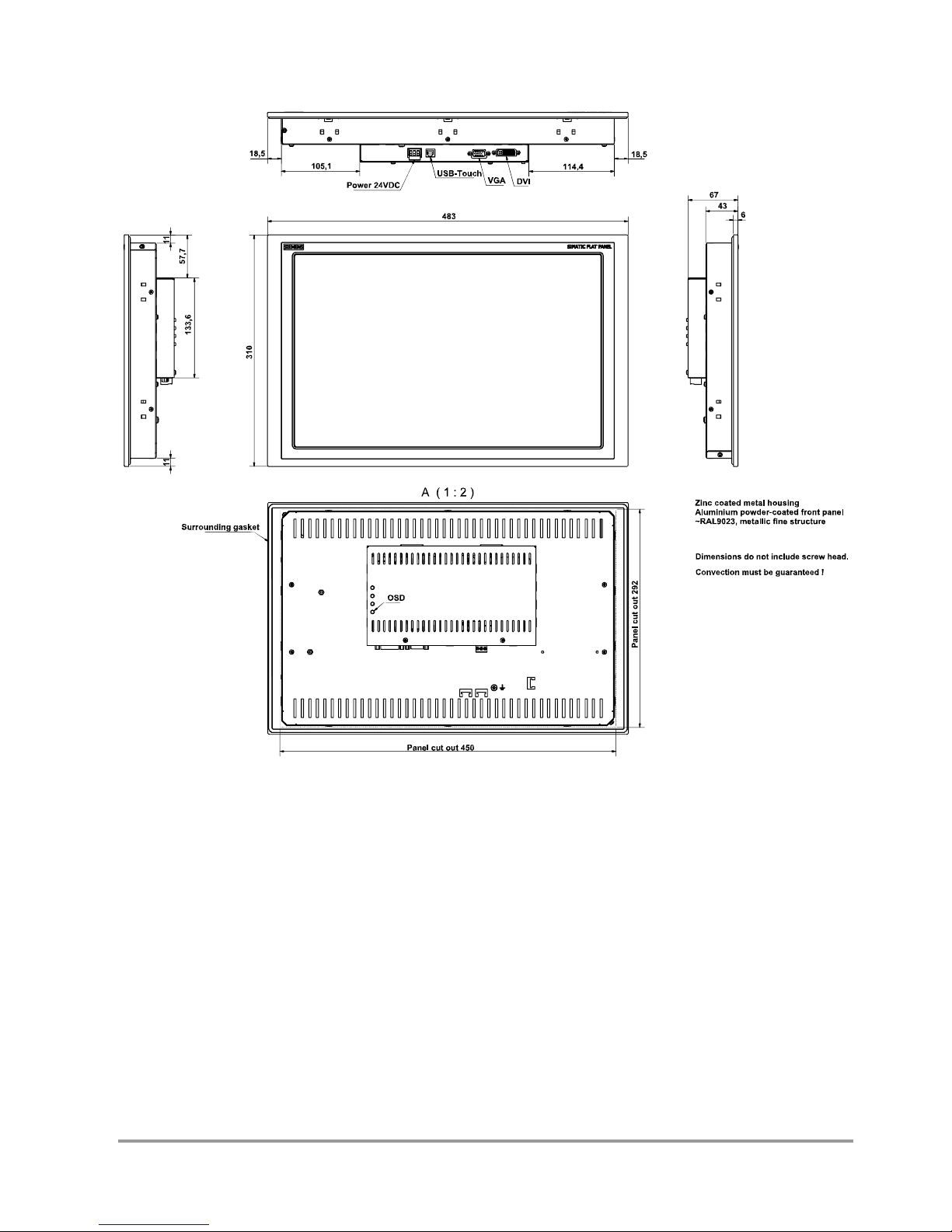

drawing (see Fig. 5)

The SCD1900 must be close-fitting to the panel to keep the protective. If the surface
structure is coarsely to leaks must be tested.

Attention:
All 10 clumps must be used and both hooks must be hanged up.

The monitor is available for two orientations portrait and landscape.
