SIMATIC Ident
RFID systems
SIMATIC RF645T
Compact Operating Instructions
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The
notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage
have no safety alert symbol. These notices shown below are graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of
injury to persons with a safety alert symbol may also include a warning relating to property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific task in accordance with
the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their
training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products
and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage,
installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any
problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.
Siemens Distributor
Page 2
SIMATIC RF645T
2 C79000-G8976-C477-01, 12/2017
1
Characteristics
SIMATIC RF645T is a passive and maintenance-free on-metal data storage medium. It is specially designed for mounting
directly on metal surfaces. It operates based on UHF Class 1 Gen 2 technology and is used to save the "Electronic Product
Code" (EPC) up to 448 bits. The transponder also has 2048 bits of user memory.
SIMATIC RF645T
Features
Application The areas of application are industrial asset
management, RF identification of tools, contain-
ers and metallic equipment.
Air interface
According to ISO 18000-63
Memory
•
EPC: 56 bytes / 448 bits
•
User memory: 256 bytes / 2048 bits
Reading range 1)
Up to 6.0 m
Installation For mounting directly on metal surfaces
1)
Depending on the environment, the employed reader / the antennas and the configured power
2
Ordering data
Table 2-1 Ordering data
Article number
SIMATIC RF645T
6GT2810-2HC05
Mounting cover for SIMATIC RF645T
6GT2898-5AA00
Retaining bracket for SIMATIC RF645T
6GT2898-5AB00
Delivery options:
The SIMATIC RF645T is available in the following form:
● Minimum order quantity: 20 transponders / 1 package
The mounting cover for SIMATIC RF645T is supplied in the following form:
● Minimum order quantity: 20 mounting covers / 1 package
The retaining bracket for SIMATIC RF645T is supplied in the following form:
● Minimum order quantity: 20 retaining brackets / 1 package
Page 3
SIMATIC RF645T
C79000-G8976-C477-01, 12/2017
3
3
Resistance to chemicals
Table 3-1 Chemical resistance - ABS (acrylonitrile/butadiene/styrene)
Substance
Evaluation
Mineral lubricants +
Aliphatic hydrocarbons
+
Aromatic hydrocarbons
-
Gasoline
+
Weak mineral acids
+
Strong mineral acids
-
Weak organic acids
+
Strong organic acids
￮
Oxidizing acids
-
Weak alkalis
+
Strong alkalis
+
Trichloroethylene
-
Perchloroethylene
￮
Acetone
￮
Alcohols
￮
Hot water (hydrolysis resistance)
+
UV light and weathering
￮
Explanation of the rating
+
Resistant
￮ Conditionally resistant
-
Not resistant
4
Read/write ranges
Table 4-1 Read range between RF600 antennas and SIMATIC RF645T 1)
Antenna type
Read ranges
RF620A
1.5 m
RF640A
5.0 m
RF642A
6.0 m
RF650A
4.0 m
RF660A
5.0 m
RF680A
5.0 m
1)
Ranges with max. reader performance (e.g. RF680R/RF685R) and mounting of the transponder on a metal base sur-
face of at least 15 cm x 15 cm
The write ranges amount to 60% of the specified read ranges.
Siemens Distributor
Page 4
SIMATIC RF645T
4 C79000-G8976-C477-01, 12/2017
5
Technical specifications
Table 5-1 Technical specifications of SIMATIC RF645T
6GT2810-2HC05
Product designation
SIMATIC RF645T
Radio frequency
Operating frequency (broadband)
• ETSI • 865 MHz to 868 MHz
• FCC, CMIIT and others • 902 MHz to 928 MHz
Memory
Chip (manufacturer/type)
NXP UCode 7xm-2k
Memory configuration
•
EPC • 56 bytes / 448 bits
•
User memory
•
256 bytes / 2048 bits
•
TID • 12 bytes / 96 bits
Number of write cycles (< 40 °C)
> 100 000
Number of read cycles (< 40 °C)
> 1014
Data retention time (< 40 °C)
20 years
Electrical data
Read range (on the metallic support)
≤ 6 m 1)
Protocol
EPCglobal Class 1 Gen 2 / ISO 18000-63
Transmission speed ≤ 320 kbps
Polarization Linear (long side = polarization axis)
Mechanical specifications
Material Plastic (ABS)
Silicone-free
Yes
Color
Black
Antenna material
Aluminum
Imprint
No
Page 5
SIMATIC RF645T
C79000-G8976-C477-01, 12/2017
5
6GT2810-2HC05
Permitted ambient conditions
Ambient temperature
•
In operation, during write/read access
•
-40 °C to +85 °C
• In operation, outside write/read access • -40 °C to +85 °C
• During transportation and storage • -40 °C to +85 °C
Distance from metal
For mounting directly on metal
Degree of protection
IP68
Shock according to DIN EN 60721-3-7
Class 7 M3 2)
500 m/s2
Vibrations according to EN 60068-2-6 2)
200 m/s2
Resistance to mechanical stress
Not permitted
Design, dimensions and weight
Dimensions (L x W x H)
52 (±0.5) × 36 (±0.5) × 12.5 mm
Weight
Approx. 25 g
Type of mounting
•
Glued
• Mounting cover (M4)
•
Retaining bracket (M5)
1)
Depending on the environment
2)
The values for shock and vibration are maximum values and must not be applied continuously.
6
Certificates and approvals
Table 6-1 Certificates and approvals
Labeling
Description
Conformity with the RED directive 2014/53/EU
Conformity with the RoHS directive 2011/65/EU
Federal Communications
Commission
Passive labels and transponders comply with the valid regulations; certification is not
required.
Siemens Distributor
Page 6
SIMATIC RF645T
6 C79000-G8976-C477-01, 12/2017
7
Dimension drawing
All dimensions in mm
SIMATIC RF645T
Figure 7-1 Dimension drawing of SIMATIC RF645T
Retaining bracket for SIMATIC RF645T

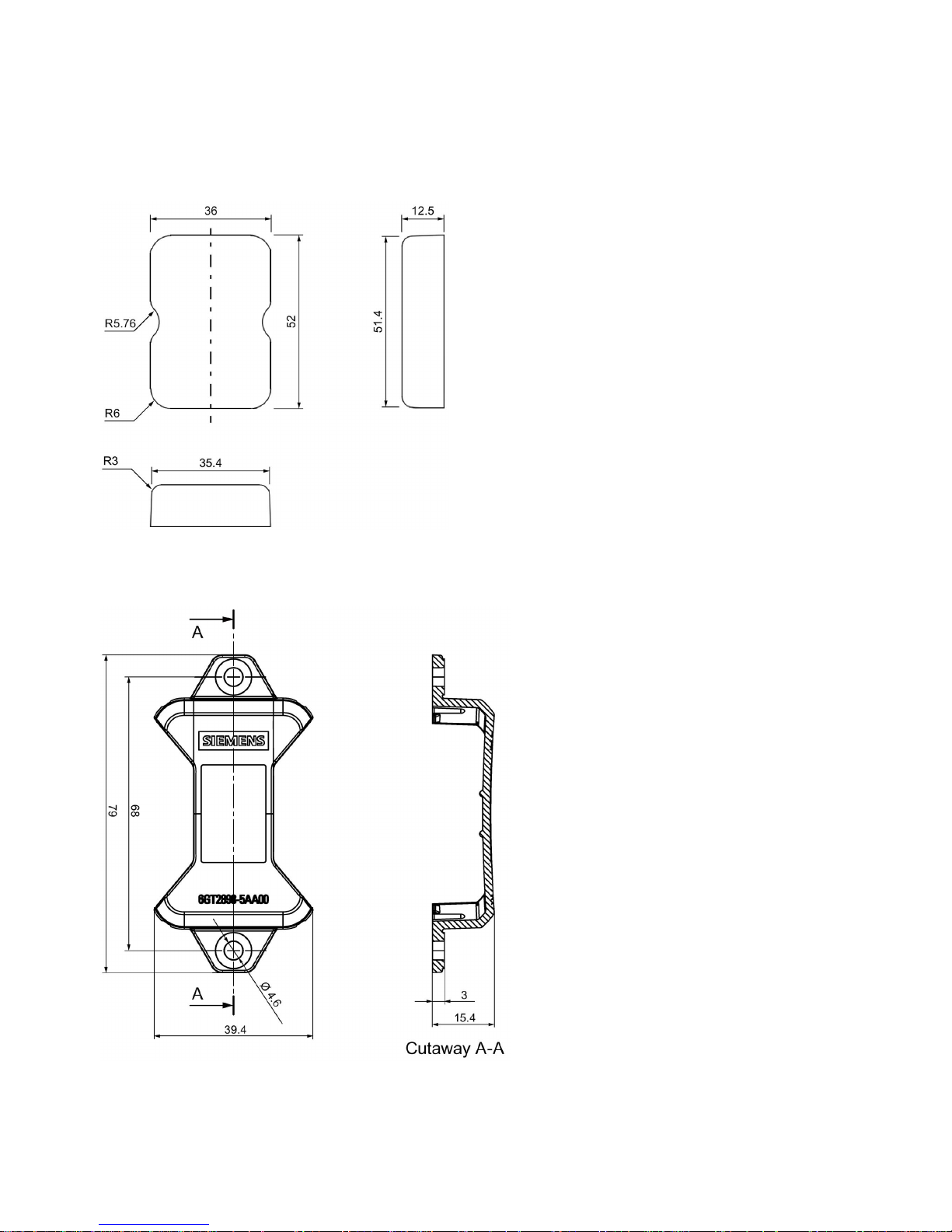

Figure 7-2 Dimension drawing mounting cover (6GT2898-5AA00) for SIMATIC RF645T
Page 7
SIMATIC RF645T
C79000-G8976-C477-01, 12/2017
7

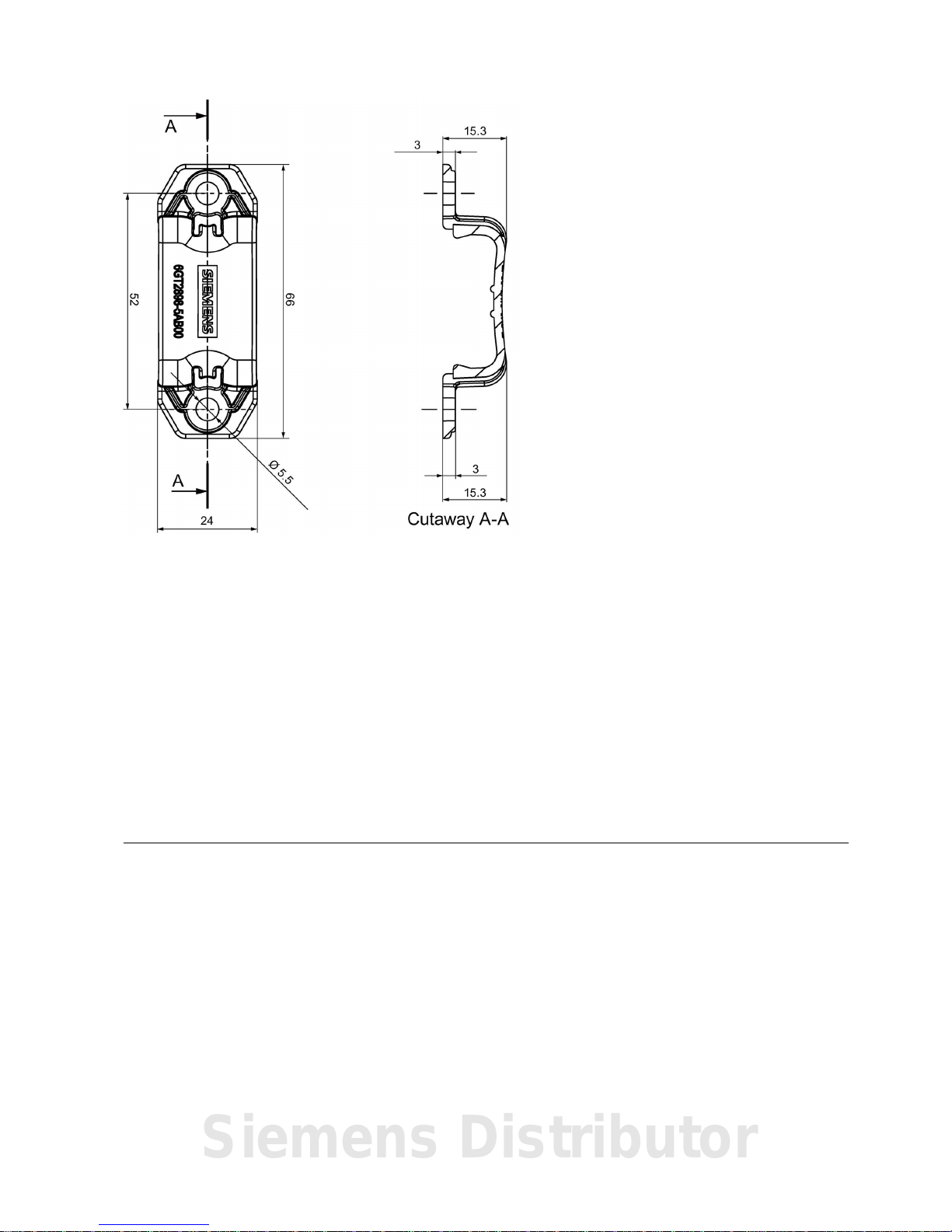

Figure 7-3 Dimension drawing (6GT2898-5AB00) for SIMATIC RF645T
SIMATIC RF645T
C79000
-G8976-C477-01, 12/2017
