Siemens SIMATIC Field PG P4 User Manual

Preface, Contents

A

B

SIMATIC

Field PG P4

Manual

Important Notes
Getting Familiarized with the

SIMATIC Field PG P4
Configuring And Operating The

SIMATIC Field PG P4

SIMATIC Field PG P4 Expansions
Configuring the SIMATIC

Field PG P4

Error Diagnostics

Hardware Information

Reinstallation of the Software

Appendices

1
2
3
4
5
6
7
8

ESD Guidelines

Technical Specifications

Glossary, Index

Edition 08/2004

A5E00180080-04

AChapterChapterOChapter

Safety Guidelines

This manual contains notices intended to ensure personal safety, as well as to protect the products and
connected equipment against damage. These notices are highlighted by the symbols shown below and
graded according to severity by the following texts:

Danger

!

indicates that death, severe personal injury or substantial property damage will result if proper precautions
are not taken.

Warning

!

indicates that death, severe personal injury or substantial property damage can result if proper
precautions are not taken.

Caution

!

indicates that minor personal injury can result if proper precautions are not taken.

Caution

indicates that property damage can result if proper precautions are not taken.

Notice

draws your attention to particularly important information on the product, handling the product, or to a
particular part of the documentation.

Qualified Personnel

Repair, maintenance and servicing of device only to be carried out by qualified personnel. Qualified
persons are defined as persons who are authorized to commission, to ground and to tag circuits,
equipment, and systems in accordance with established safety practices and standards.

Correct Usage

Note the following:

Warning

!

Trademarks

The reproduction, transmission or use of this document or its
contents is not permitted without express written authority.
Offenders will be liable for damages. All rights, including rights
created by patent grant or registration of a utility model or
design, are reserved.

Siemens AG
Organization Group Automation and Drives
Division Industrial Automation Systems
P.O. Box 4848, D- 90327 Nuernberg

Index-2

Siemens Aktiengesellschaft A5E00180080-04

This device and its components may only be used for the applications described in the catalog or the
technical description, and only in connection with devices or components from other manufacturers which
have been approved or recommended by Siemens.

This product can only function correctly and safely if it is transported, stored, set up, and installed
correctly, and operated and maintained as recommended.

SIMATIC, SIMATIC HMI and SIMATIC NET are registered trademarks of SIEMENS AG.
Third parties using for their own purposes any other names in this document which refer to trademarks

might infringe upon the rights of the trademark owners.

Disclaim of LiabilityCopyright W Siemens AG 2004 All rights reserved

We have checked the contents of this manual for agreement
with the hardware and software described. Since deviations
cannot be precluded entirely, we cannot guarantee full
agreement. However, the data in this manual are reviewed
regularly and any necessary corrections included in
subsequent editions. Suggestions for improvement are
welcomed.

 Siemens AG 2004
Technical data subject to change.

EWA 4NEB 780 6023-01

Field PG P 4

Preface

Purpose of the Manual

This manual contains all the information you need for commissioning and using the
SIMATIC Field PG P4 programming device.

It is intended both for programming and testing/debugging personnel who
commission the device itself and connect it with other units (automation systems,
further programming devices) as well as for service and maintenance personnel
who install expansions or carry out fault/error analyses.

Where is this Manual Valid?

This manual is valid for all supplied variations of the SIMATIC Field PG P4 and
describes the state of delivery as of August 2004.

Certifications, Standards and Approvals

Certifications

The device fulfils the following guidelines and certifications:

• EU guideline 73/23/EEC on low voltages

• EU guideline 89/336/EEC on electromagnetic compatibility

• Underwriters Laboratories (UL) to Standard UL 60950, 3rd Edition

• Canadian Standard Association (CSA) to Standard C22.2 No. 60950

Standards and Approvals

The device fulfils the requirements for the CE approval. Approvals for UL and CSA
are available.

Further information on the approvals, certificates, and licenses for your device is
provided in Chapter 1.

Incorporation into the Communications Environment

This manual forms part of the supplied DVD “Backup PG”.
For supplementary instructions on how to handle the software please refer to the

corresponding manuals.

SIMATIC Field PG P4 Manual
A5E00180080-04

iii

Preface

Structure of the Manual

Chapters 1 to 5 of the manual contain the most important instructions for
commissioning and using the Field PG P4. Chapters 6 to 8 are reference sections
required in special situations.

Important Notes

This chapter contains information on security, certificates, guidelines and
approbations.

Familiarizing Yourself

Before you initially start using the Field PG P4, you should inform yourself about its
components and their functions in Chapter 2.

Configuration and Operation

Before you start to use your programming device, you should read about the
components and functions of the SIMATIC Field PG P4 in Chapter 3.

Installation

Chapter 4 describes the basic steps necessary for commissioning the Field PG P4.
This chapter also contains instructions for working with submodules and memory
cards for programmable logic controllers and additional interfaces.

Expansion

Chapter 4 describes how to expand your SIMATIC Field PG P4 (for example,
installation of memory expansions). Please observe the safety instructions in this
section.

Configuration

Modifications made to the system hardware may make it necessary for you to
adapt the original hardware configuration. This is described in Chapter 5.

Error/fault diagnostics

Chapter 6 explains how to deal with simple faults and problems that you can
diagnose and, in some cases, eliminate yourself.

Reference data

Chapter 7 contains information about hardware addresses, interrupt assignments,
and connecting cables.

Reinstalling the Software

If it does happen that you need to reinstall the software you can find the
procedures in Chapter 8.

ESD guidelines

The guidelines on the handling of electrostatic-sensitive devices are particularly
important for service and maintenance technicians who are installing expansion
units or carrying out error analysis with the SIMATIC Field PG P4.

iv

SIMATIC Field PG P4 Manual

A5E00180080-04

Glossary

The glossary defines and explains important terms.

Alphabetical index

The alphabetical index will help you to find passages in the text relating to
important terms and keywords quickly and reliably.

Conventions

The abbreviation PG oder device is also used within this manual for the product
designation SIMATIC Field PG P4 P4.

Further Support

If you have questions related to the use of the products which are not answered in
this manual, please consult your Siemens representative in your local agency. You
will also find your representatives for repairs and spare parts at

Preface

http://www.siemens.com/automation/partner

Trainingscenter

Siemens offers a number of training courses to familiarize you with the SIMATIC
S7 automation system. Please contact your regional training center or our central
training center in D 90327 Nuremberg, Germany for details.

Telephone: [phone].
Internet: http://www.sitrain.com

SIMATIC Field PG P4 Manual
A5E00180080-04

v

Preface

A&D Technical Support

Worldwide, available 24 hours a day:

Johnson City

Nuernberg

Beijing

T echnical Support

Worldwide (Nuernberg)
T echnical Support

24 hours a day, 365 days a year
Phone: [phone]
Fax: [phone]
E-Mail: adsupport@

GMT: +1:00

Europe / Africa (Nuernberg)
Authorization

Local time: Mon.-Fri. 7:00 to 17:00
Phone: [phone]

Fax: [phone]
E-Mail: adsupport@

GMT: +1:00
The languages of the SIMATIC Hotlines and the authorization hotline are generally German and English.

siemens.com

siemens.com

United States (Johnson City)
Technical Support and

Authorization

Local time: Mon.-Fri. 8:00 to 17:00
Phone: [phone]
Fax: [phone]
E-Mail: simatic.hotline@

sea.siemens.com

GMT: –5:00

Asia / Australia (Beijing)
Technical Support and

Authorization

Local time: Mon.-Fri. 8:00 to 17:00
Phone: [phone]
Fax: [phone]
E-Mail: adsupport.asia@

siemens.com

GMT: +8:00

vi

SIMATIC Field PG P4 Manual

A5E00180080-04

Service & Support on the Internet

In addition to our documentation, we offer our Know-how online on the internet at:

http://www.siemens.com/automation/service&support

where you will find the following:

• The newsletter, which constantly provides you with up–to–date information on
your products.

• The right documents via our Search function in Service & Support.

• A forum, where users and experts from all over the world exchange their

experiences.

• Your local representative for Automation & Drives via our representatives
database.

• Information on field service, repairs, spare parts and more under “Services”.

Preface

SIMATIC Field PG P4 Manual
A5E00180080-04

vii

Preface

viii

SIMATIC Field PG P4 Manual

A5E00180080-04

Contents

Preface iii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 Important Notes 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Safety Instructions 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Certificates, Directives and Declarations 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 Certification for the USA, Canada and Australia 1-3. . . . . . . . . . . . . . . . . . . . .

1.4 Cleaning and Transporting the Field PG 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Getting Familiarized with the SIMATIC Field PG P4 2-1. . . . . . . . . . . . . . . . . . . . . . . .

2.1 Components of the SIMATIC Field PG P4 2-2. . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 Keyboard 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Touchpad 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 LED displays 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.5 On/Off Pushbutton (Power Button) 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6 Drives 2-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6.1 Floppy Disk Drive 2-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6.2 Hard Disk Drive 2-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.6.3 Optical Drive 2-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.7 External Power Unit and Battery 2-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Configuring And Operating The SIMATIC Field PG P4 3-1. . . . . . . . . . . . . . . . . . . . .

3.1 Unpacking and Setting Up the SIMATIC Field PG P4 3-2. . . . . . . . . . . . . . . . .

3.2 Connecting to the Power Supply 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Battery Operation 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4 Commissioning 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.1 Cold Start of the SIMATIC Field PG P4 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4.2 Restart of the SIMATIC Field PG P4 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5 Panel “Field PG” 3-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6 Connecting Peripheral Devices 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7 Working with SIMATIC S5 Memory Submodules 3-16. . . . . . . . . . . . . . . . . . . . .

3.8 Working with SIMATIC Memory Cards 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.9 Working with Micro Memory Cards 3-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.10 Working with PC Cards 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.11 Connecting the Field PG P4 to a SIMATIC S5 Network 3-20. . . . . . . . . . . . . . .

SIMATIC Field PG P4 Manual
A5E00180080-04

ix

Contents

3.12 Connecting the Field PG P4 to a SIMATIC S7 Network (MPI/DP) 3-21. . . . . .

3.13 Networking the Field PG P4 with Other Stations on PROFIBUS 3-23. . . . . . .

3.14 Ethernet (RJ45 Ethernet Interface) 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 SIMATIC Field PG P4 Expansions 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1 Installing Memory Expansion Submodules 4-2. . . . . . . . . . . . . . . . . . . . . . . . . .

4.2 Processor Upgrade 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3 Replacing Backup Battery 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Configuring the SIMATIC Field PG P4 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1 Changing the Device Configuration with SETUP 5-2. . . . . . . . . . . . . . . . . . . . .

5.2 The Main Menu 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.3 The Advanced Menu 5-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.4 The Security Menu 5-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.5 The Power Menu 5-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.6 The Boot Menu 5-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.7 The Version Menu 5-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.8 The Exit Menu 5-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Error Diagnostics 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Hardware Information 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.1 System Resources 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.2 Interface Pinout 7-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.3 Patch Cords 7-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Reinstallation of the Software 8-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.1 Cause / Remedy 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.2 Restoring the Hard Disk (Data Deleted) 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.2.1 Restoring the Software to Delivery Condition Using the Restore CD 8-3. . . .

8.2.2 Creating Partitions under Windows NT 8-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.2.3 Creating Partitions under Windows 2000/XP Professional 8-5. . . . . . . . . . . . .

8.3 Installing Drivers and Software 8-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.4 Installing the Recovery CD for Microsoft Windows NT 8-6. . . . . . . . . . . . . . . .

8.5 Installing the Recovery CD for Microsoft Windows 2000 8-8. . . . . . . . . . . . . .

8.5.1 Installing Drivers under Windows 2000 8-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8.6 Installing the Recovery CD for Microsoft Windows XP 8-10. . . . . . . . . . . . . . . .

8.7 Installing the SIMATIC Software 8-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SIMATIC Field PG P4 Manual

x

A5E00180080-04

Contents

A Guidelines for Handling Electrostatically-Sensitive Devices (ESD) A-1. . . . . . . . .

A.1 What is ESD? A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A.2 Electrostatic Charging of Persons A-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A.3 General Protective Measures Against Electrostatic

Discharge Damage A-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B Technical Specifications B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glossary Glossary-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index Index-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SIMATIC Field PG P4 Manual
A5E00180080-04

xi

Contents

xii

SIMATIC Field PG P4 Manual

A5E00180080-04

Important Notes

1.1 Safety Instructions

Caution

!

Notes on Inserting and Removing Modules

The safety instructions given on the backside of the title page of this manual must
be observed. Before adding to the Field PG P4’s functionality by expanding the
hardware configuration (see Chapter 4) observe the relevant safety instructions.

Modules containing electrostatically sensitive devices (ESDs) can be identified by
the following label:

1

Please observe and carefully follow the guidelines mentioned below when handling
modules equipped with electrostatically sensitive devices:

• Always discharge your body’s static electricity before handling modules
equipped with ESDs (for example by touching a grounded object).

• Devices and tools must be free of static electricity.

• Always pull the power plug and disconnect the battery before connecting or

disconnecting modules (containing ESDs).

• Touch modules fitted with ESDs by their edges only.

• Never touch wiring posts or printed conductors on modules (containg ESDs).

SIMATIC Field PG P4 Manual
A5E00180080-04

1-1

Important Notes

1.2 Certificates, Directives and Declarations

Notes on the CE Symbol

The following applies to the SIMATIC product described in this operating
instruction:

EMC Directive

This product fulfils the requirements for the EC directive 89/336/EEC on
“electromagnetic compatibility” and the following fields of application apply
according to this CE symbol:

Field of Application Requirement for

Emitted Interference Noise Immunity

Residential and commercial areas and
small businesses.

Industry EN 61000-6-4: 2001 EN 61000-6-2: 2001

EN 61000-6-3: 2001 EN 61000-6-1: 2001

The product is also compliant with the Standards EN 61000-3-2:2000 (Harmonic
currents) and EN 61000-3-3:1995 (Voltage fluctuation and flicker).

Low Voltage Directive

This product fulfils the requirements for the EC directive 73/23/EEC on
“low voltage” and was tested to EN60950.

Declaration of Conformity

The EC declarations of conformity and the documentation relating to this are
available to the authorities concerned, according to the above EC directive, from:

Siemens AG
Bereich Automation and Drives
A&D AS RD4
Postfach 1963
D-92209 Amberg
Tel.: [phone]
Fax: [phone]

Observing the Setup Guidelines

1-2

The setup guidelines and notes on safety given in the manual must be observed
on startup and during operation.

SIMATIC Field PG P4 Manual

A5E00180080-04

Connecting peripheral devices

Noise immunity when connected to industrial standard peripheral devices conforms
with the requirements of EN 61000-6-2:2001.

ISO 9001 Certificate

The quality assurance system for the whole product process (development,
production, and marketing) fulfills the requirements of ISO 9001 (corresponds to
EN29001: 1987).

This has been certified by the German society for the certification of quality
management systems (DQS).

EQ-Net certificate no.: 1323-01

Software License Agreement

The PG is shipped with the software already installed. Please observe the relevant
license agreements.

Important Notes

1.3 Certification for the USA, Canada and Australia

Security

One of the following markings on a device is indicative of the corresponding
approval:

Underwriters Laboratories (UL) to the UL 60950 standard, 3rd Edition.

Canadian Standard Association (CSA) to Standard C22.2. No. 60950

SIMATIC Field PG P4 Manual
A5E00180080-04

1-3

Important Notes

EMC

USA

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

Shielded cables must be used with this equipment to maintain compliance with
FCC regulations.

Federal Communications Commission

Radio Frequency Interference Statement

Shielded Cables

Canada

Australia

Modifications

Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.

Conditions of Operations

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.

Avis Canadien

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

1-4

This product meets the requirements of the AS/NZS 3548 Standard.

SIMATIC Field PG P4 Manual

A5E00180080-04

1.4 Cleaning and Transporting the Field PG

Cleaning

To prolong the lifetime of your Field PG and use it free of trouble, do not expose it
without cause to dust nor use aggressive cleaning agents to clean it.

• You can clean the display and the keyboard with customary screen cleaning
tissues.

• The other case parts can be cleaned with a common household detergent.

Caution

Never spray cleaning liquids directly onto the device and prevent ingress of liquid.

Important Notes

Transportation

Despite of the rugged structure of the Field PG, its installed components are
sensitive against severe vibration and impact. You can contribute to trouble-free
operation by taking a few precautions for the transportation.

• Ensure that the computer does not access anymore drives before you prepare

• Remove all floppy disks or CD-ROMs from the respective drive.

• Switch off the PG (refer to Chapter 2.5).

• Disconnect all external devices from your PG.

• Close the display and the interface covers on the rear side of the device.

• Use the handle and for short transports.

• Pack the Field PG and all accessories into the supplied rucksack case if you

You should use the original package for the shipment of the programming device.

it for transportation.

are going to transport it over greater distances.

SIMATIC Field PG P4 Manual
A5E00180080-04

1-5

Important Notes

1-6

SIMATIC Field PG P4 Manual

A5E00180080-04

Getting Familiarized with the SIMATIC Field PG P4

What do you find in this Chapter?

This chapter briefly presents the most important components of the SIMATIC
Field PG P4. Get familiarized with these elements before you start to commission
the PG.

Chapter Overview

Section Description Page

2.1 Components of the SIMATIC Field PG P4 2-2

2.2 Keyboard 2-9

2.3 Touchpad 2-13

2.4 LED displays 2-14

2.5 On/Off Pushbutton (Power Button) 2-15

2.6 Drives 2-17

2.7 External Power Supply and Battery 2-20

2

SIMATIC Field PG P4 Manual
A5E00180080-04

2-1

Getting Familiarized with the SIMATIC Field PG P4

P

2.1 Components of the SIMATIC Field PG P4

View with closed display

3

1

1 SystemĆLEDs

The system LEDs (battery status , device

2

On

, drives , MPI/DP

MPI/D

and Memory Card ) indicate the status of the battery, unit, drives, MPI/DP and
Memory Card interface.

These LEDs are also visible when the display is closed. The drive access displays
are arranged on the right hand side of the corresponding drives.
For detailed information on these LED displays refer to Chapter 2.4 of the
electronic manual.

2 KeyboardĆLEDs

The keyboard LEDs display the current status of the shift keys Num Lock
Caps Lock

A

and Scroll Lock

=O

. When the unit is booting, the displays of

1

,

these keys flicker briefly. The keyboard is ready for operation.

3 Device Handle

Folding handle for transporting the device.

Caution

!

Always stand the PG on its base. If you place it down on the interface side there is
a risk that it will fall over and that sensitive components of the unit get damaged.

2-2

SIMATIC Field PG P4 Manual

A5E00180080-04

Front view with open display

2

Getting Familiarized with the SIMATIC Field PG P4

8

8

1

2

6

4

1 Display

3

7

5

4

The Field PG P4’S 14.1” TFT display has a resolution of 1024 x 768 pixels (XGA)
or 1400 x 1050 pixels (SXGA+) with up to 256k colors.

2 Stereo Loudspeaker

The speaker outputs audio and system alarm signals generated by the software.
The loudness is adjusted via speaker icon in the task bar or in the Windows Start
menu via all Programs > Accessories > Entertainment> Volume Control.

3 Keyboard

The keyboard is split into three key areas: the alphanumerical keyboard with
special keys, the function keys and the control keys.

4 Mouse buttons

You can use the left or right mouse button to select menu items or process text or
graphic objects after having marked the respective object.

SIMATIC Field PG P4 Manual
A5E00180080-04

2-3

Getting Familiarized with the SIMATIC Field PG P4

5 Touchpad

The Touchpad has a pressure sensitive surface for precise mouse pointer
positioning.

6 On/OffĆbutton (Power Button)

Use the On/Off pushbutton to switch on the Field PG P4 (into active state) or to
switch it from active to inactive state (Off, Standby or Hibernate). The Power
Button can be parameterized in Windows. The Windows NT versions do not
support this power management.

7 Air venting slots

Here is the ventiduct.

Caution

!

The ventiducts for incoming and outgoing air must not be obstructed. Otherwise,
there is a risk of overheating. Do not operate your device with the display cover
completely closed in order to guarantee optimum cooling.

8 Display interlock

The display unit is connected to the base unit with two locks. The slide interlock is
mounted at the side of the display unit.

Rear view

1532 674

1 USB.

Universal Serial Bus connector. You can use the USB port (2.0) to connect external
devices, for example, CD drives, printers, modems as well as a mouse and
keyboard. The Windows NT versions only support mouse and keyboard.

2-4

SIMATIC Field PG P4 Manual

A5E00180080-04

Getting Familiarized with the SIMATIC Field PG P4

2 Interface Cable (I Cable)

You can connect the I Cable supplied in the consignment to this port.

LPT

COM2/V.24

S5ĆOnline AG (COM1/TTY)

The I Cable enables the connection to S5 automation devices (COM1/TTY), to
devices with a serial port (COM2/standard V.24) such as a modem or mouse and
to devices with a parallel port (standard LPT) such as a printer or scanner. Please,
use the I Cable on a level surface only (e.g. desk) to prevent contact problems.

Caution

!

Only the I Cable may be connected to this port. If you connect other devices with a
50-pin mini SCSI connectors, your Field PG P4 or the connected device may be
damaged as a result.

3 Ethernet

RJ45 Ethernet connector. Ethernet is a local area network with a bus structure for
data communication with a data transfer rate of 10/100 Mbit per second (Mbps).

4 MPI/DP Multipoint Interface

The MPI/DP interface is isolated from line potential. You can use it to connect the
SIMATIC Field PG P4 to an S7 automation system or to a PROFIBUS network.

5 VGA

Here you can connect an appropriate external monitor.

Caution

Make sure the monitor can handle the resolution and refresh rate settings.
Otherwise, it can result in damage.

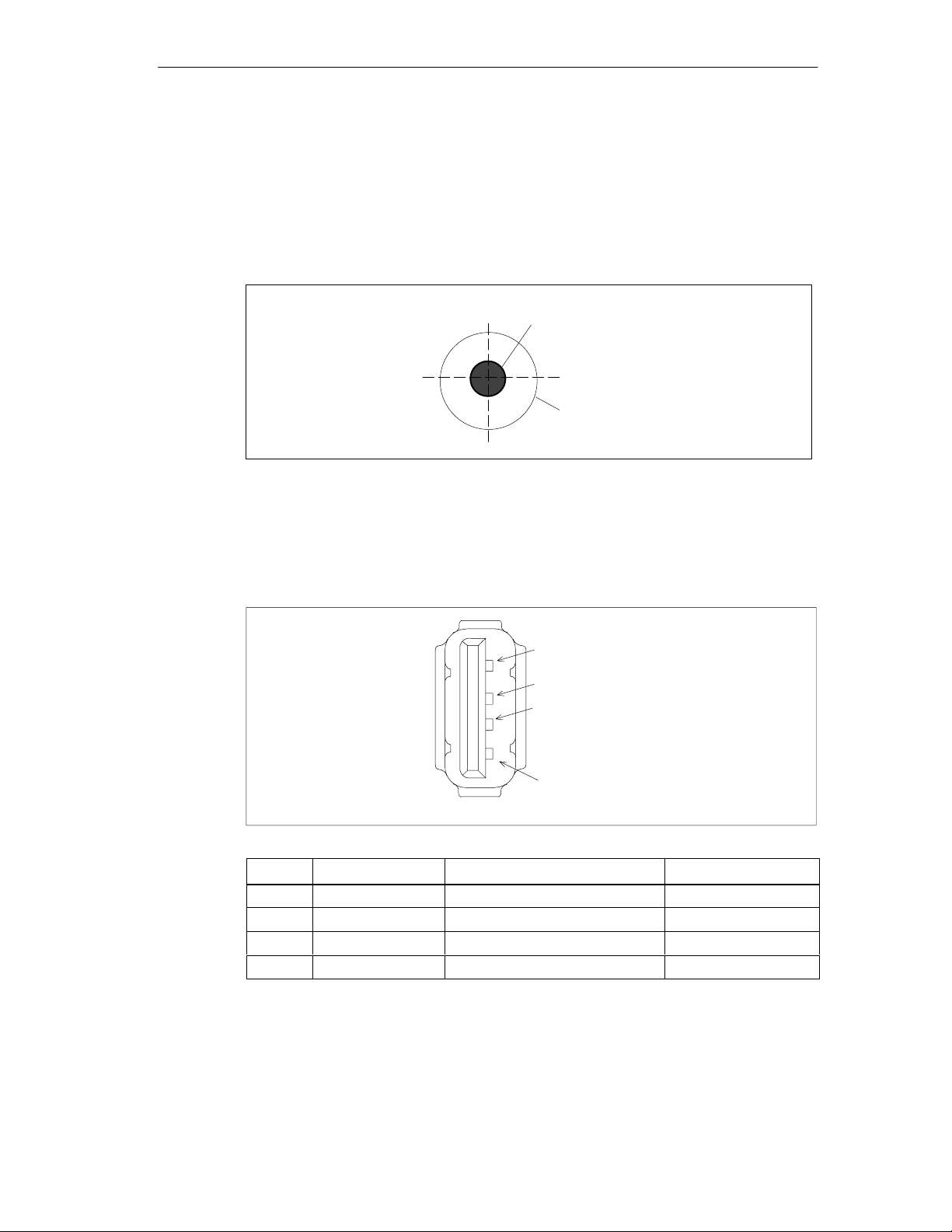

6 USB

Second USB port 2.0.

7 DCĆIn 17.5 V

Socket for the DC output plug of the power supply that is included in your
consignment.

SIMATIC Field PG P4 Manual
A5E00180080-04

2-5

Getting Familiarized with the SIMATIC Field PG P4

View of the right side

1

54

1 Optical drive

632

Depending on the device configuration, it can come with a DVD-ROM/CD-RW or a
DVD+R/+RW drive. For example, you can read the electronic manual of the
supplied ”Backup PG” DVD with this drive.

2 Floppy disk drive

You can use 3.5 disks (with 1.44 Mbytes or 720 Kbytes of memory).

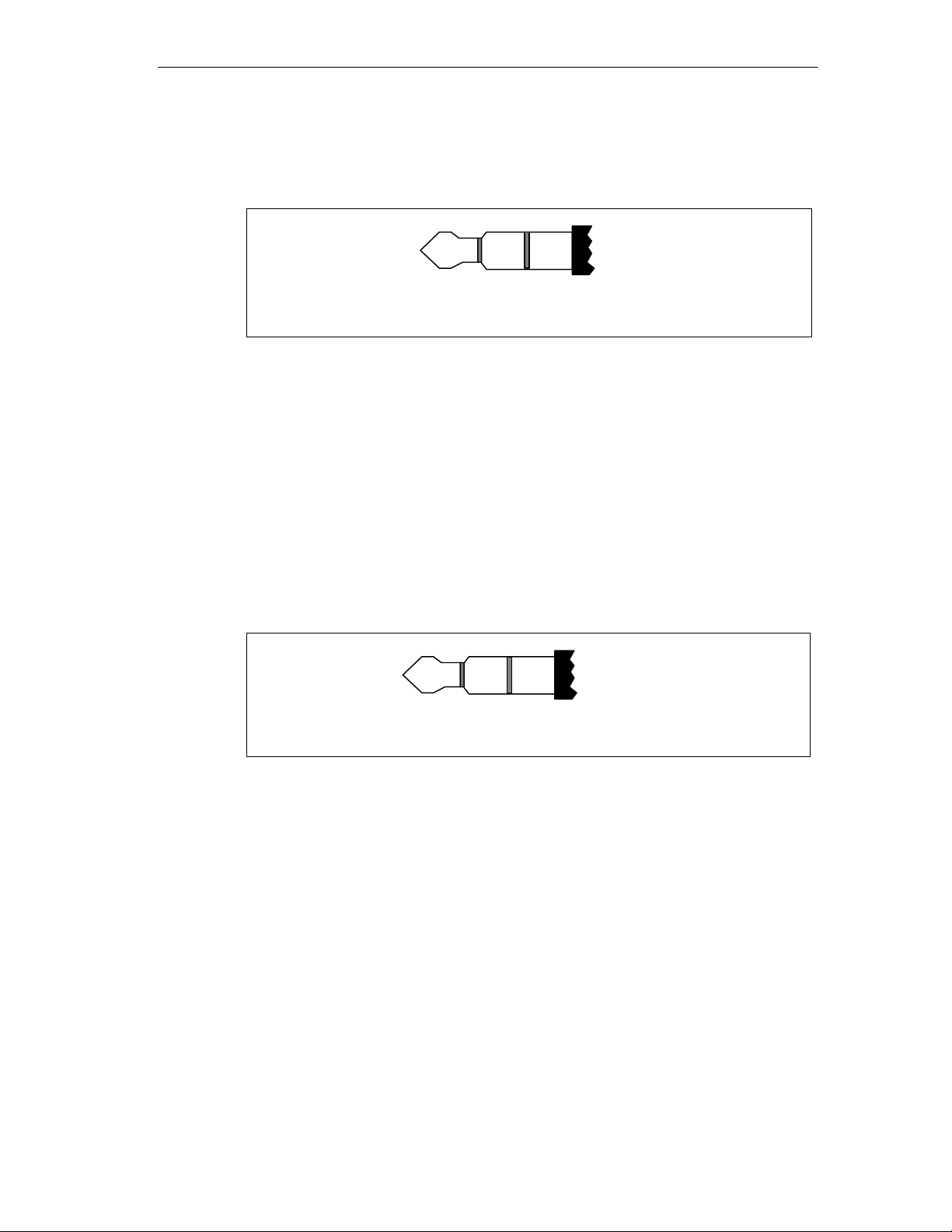

3 Headphones

You can connect an external stereo headphone or another audio output device to
this headphone jack. The internal speaker is automatically disabled when a
headphone is connected.

4 Microphone

You can connect an external microphone or another audio output device to this
microphone jack.

5 PC Card slot

The PC Card slot accepts Cardbus (32 Bit) and PCMCIA (16 bit) cards. You can
plug in credit card-size communication modules for MODEM, FAX-MODEM, ISDN,
Token Ring, ETHERNET, memory expansions and SCSI interfaces. CardBus
Cards are not supported by Windows NT.

2-6

6 Air venting slots

Here is the ventiduct.

Caution

!

The ventiducts for incoming and outgoing air must not be obstructed. Otherwise,
there is a risk of overheating.

SIMATIC Field PG P4 Manual

A5E00180080-04

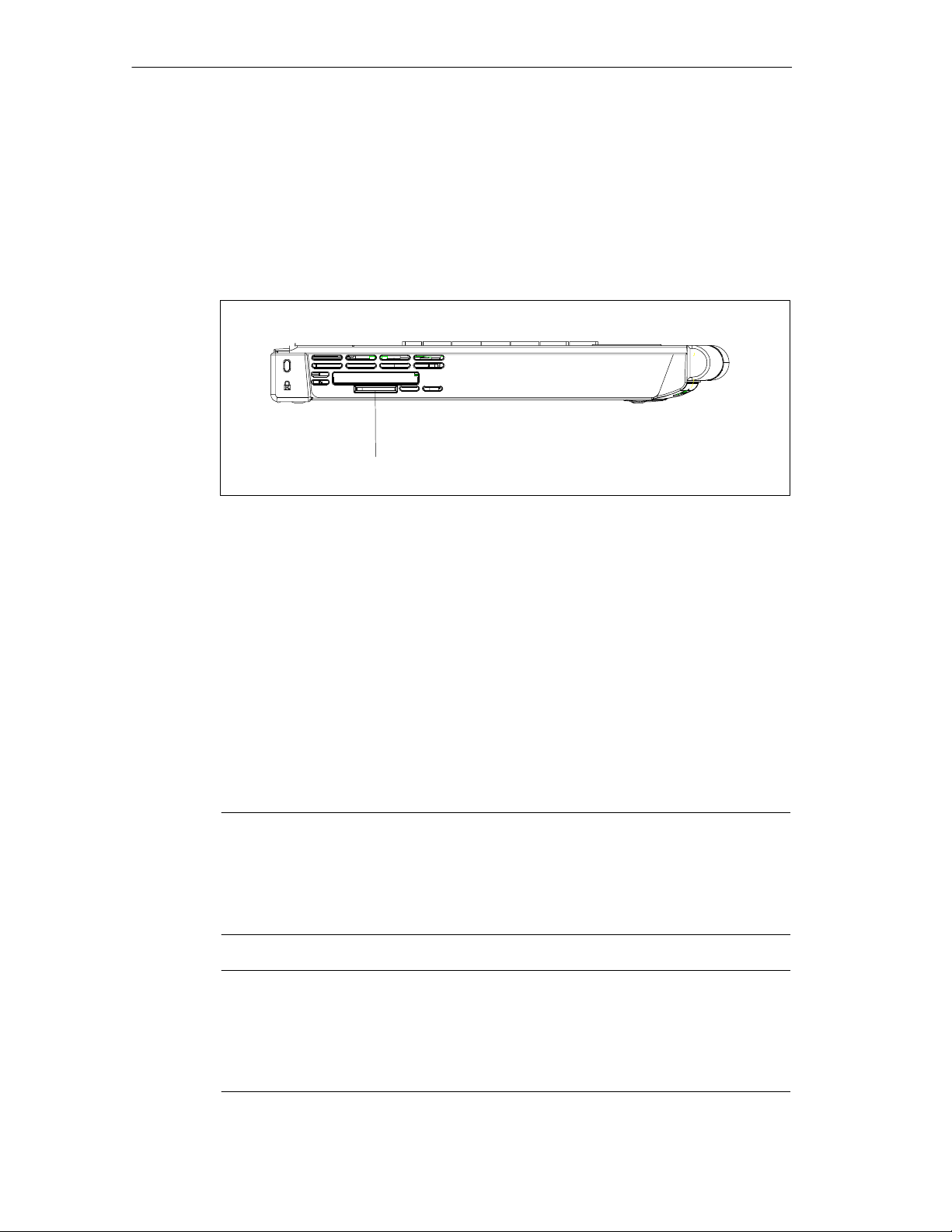

View of the left side

Getting Familiarized with the SIMATIC Field PG P4

21 43

1 Opening for the Kensington lock

Opening for the connection of a security cable. You can protect your PG against
theft by locking the cable to a writing desk or any other heavy appliance.

2 Air venting slots

Here is the ventiduct.

Caution

!

The ventiducts for incoming and outgoing air must not be obstructed. Otherwise,
there is a risk of overheating.

3 Memory Card interface

Interface for reading, programming or deleting SIMATIC Memory Cards for
SIMATIC S5 and SIMATIC S7. You can also use the supplied S5 adapter to
program or read SIMATIC S5 EPROM submodules.

4 Micro Memory Card interface

This interface can be used to read, program or delete Micro Memory Cards.

K

SIMATIC Field PG P4 Manual
A5E00180080-04

2-7

Getting Familiarized with the SIMATIC Field PG P4

Bottom view

1

2

1 Rechargeable battery

3

The supplied rechargeable battery is installed behind a cover. The rechargeable
battery (Lithium-Ion) makes the device portable, independent of an external power
supply. The battery pack also prevents data loss in case of power failure. Use the
recharchable battery supplied with the device only. See also section 3.3.

2 Memory expansion

You can install memory submodules in these slots to increase main memory.
Maximum memory expansion: 2 x 512 Mbytes. The memory modules can be
accessed by removing the lid from the bottom of the device. See also section 4.1.

3 Rating plate and Certificate of Authenticity

The rating plate and “Certificate of Authenticity” with the Microsoft Windows
“Product Key”. You need this to install new software.

2-8

SIMATIC Field PG P4 Manual

A5E00180080-04

2.2 Keyboard

Keyboard Layout

The keyboard is split into the following areas:

• Alphanumeric or typewriter keyboard with special keys

• Function keys

• Cursor control keys.

Repeat Function

All the keys on the keyboard are of the autorepeat type. The character is repeated
as long as the key is pressed.

Keyboard Caps

Getting Familiarized with the SIMATIC Field PG P4

The keyboard comes with international and German labeling.

International

Shift

Unshift

Fig. 2-1 The Keyboard Labeling System

Alphanumeric Keyboard

The largest block of keys on the keyboard is the alphanumeric keyboard with all
the keys for the letters of the alphabet, numerals and special characters. The
characters are arranged in basically the same way as on a normal typewriter.
However, there are a number of special keys which have special functions for the
SIMATIC Field PG P4.

?

\

ß

National

Together with
ALT

GR key

U

4

Together with the Fn key:
with Num Lock: 4
without Num Lock: Cursor left

SIMATIC Field PG P4 Manual
A5E00180080-04

2-9

Getting Familiarized with the SIMATIC Field PG P4

Special Keys

The special keys in the alphanumeric keyboard have the following functions:

Key Function

Backspace key

This key moves the cursor one space to the left and deletes the character at
this position.

Enter Key

(Return, Enter, Line Feed (“New Line”)

Enter

The return or enter key is used mainly to terminate a command line in the
operating system; that is, the command you have entered is executed when
you press this key. For other uses of this key, please refer to the user
manual of the relevant user program.

Caps

Lock

Fn

Num

Scroll

CAPS LOCK Key

If you press this key, the middle LED at the top right-hand corner of your
keyboard lights up. All letters are output as upper case letters and the num­bers as special characters. If you want to type lower case letters in this
position, you must first press the shift key.

If you are using an international keyboard, you cancel this function by
pressing the CAPS LOCK key again. The LED then goes out.

If you have a German keyboard, you must press the shift $ key to cancel
this function.

NUM Key

With these keys Fn+ ^ NUM , the emulated numeric block is switched from
the alphanumeric keyboard to numeric keys. The LED display lights up.
Press this key again to return to cursor control.

Scroll-Lock-Taste

Monitor scrolling is either enabled or disabled with this key.

Tab Key

This moves the cursor depending on the selected tabulator positions.

“Fn” Special Key (combination key)
In conjunction with a second key (key combination), you activate other key

codes for special applications with this key. This key is also used to emulate
the numeric keypad (Figure 2-3 Numeric Keypad).

2-10

Ctrl

CTRL Key (combination key)
This key is only used in combination with other keys. For example, you

press CTRL + ALT + Delete to reset and restart the operating system. For
other uses of this key, please refer to the user manual of the relevant user
program.

SIMATIC Field PG P4 Manual

A5E00180080-04

Getting Familiarized with the SIMATIC Field PG P4

Key Function

ALT Key (combination key)

Alt

Alt Gr

This key is only used in combination with other keys. For example, you can
enter the hexadecimal value of an ASCII character using this key and the
numeric keypad for example, F

ALT

Key (combination key)

Gr

+ ALT + 132 corresponds to “ä .

n

You can use this key together with the other combination keys to generate
other key codes. For example, you can generate the “\” character on the
German keyboard by typing ALT

Gr

+ ß.

Cursor Keys

The key block shown in the picture below is used for cursor control. Home and End
are operated in combination with the Fn key.

Print

SysRq

Pause

Break

PRINT (combination key)
Using the Print key, you can output the current screen display to a printer

(depending on the software used).

PAUSE (combination key)
The Pause key interrupts program execution in the majority of applications.

Cursor up

PgUp

Home

PgDn

End

Page back

Move cursor to beginning of file

Page forward

Move cursor to end of file

Cursor left

Fig. 2-2 Cursor Keys

SIMATIC Field PG P4 Manual
A5E00180080-04

Cursor right

Cursor down

2-11

Getting Familiarized with the SIMATIC Field PG P4

Numeric Keypad with Fn Key

By pressing Fn and one of these keys, the numbers and characters can be used
provided Num Lock is switched on.

Fig. 2-3 Numeric Keypad

Function Keys

A row with twelve programmable Function Keys is located above the alphanumeric
keyboard. The individual function of these keys depends on the software you are
working with.

Fn

& /

7 {

7

+

* (

8 [

8

U

4

J

( )

9 ]

9

I

5

K

) =

0 }

x

O

6

L

P



:Ö

;

1

2

M

0

3

+

> :

? _

.

,

/ –

–

2-12

SIMATIC Field PG P4 Manual

A5E00180080-04

2.3 Touchpad

Definition

The Touchpad is an input device for cursor control and menu operation (with
mouse operation) in numerous programs. You can move the cursor to any screen
position by touch.

A left button click on sets the mark. The right button assignment varies, depending
on the user program. You can select objects, process menus or trigger functions
with this Touchpad.

Operation

You can use the Touchpad the very same way as a mouse: the mouse pointer on
the screen follows the movement of your finger on the pad.

You can click on icons or text with both mouse buttons. First, move the mouse
pointer onto the icon. Then, select the icon with a left click.

Getting Familiarized with the SIMATIC Field PG P4

As an alternative, in a fully graphical user interface, for example, the Windows
GUI, you can mark an icon and then move the mouse pointer on top of it. You can
then open the icon with a double tap on the Touchpad.

You do not have to apply any pressure on the pad with your finger. The sensor
does not react to finger pressure, but rather to the brief capacitance change on the
touch point.

The touch pad function (mouse pointer and buttons) can be toggled on and off with
the key combinations Fn + ~.

SIMATIC Field PG P4 Manual
A5E00180080-04

2-13

Getting Familiarized with the SIMATIC Field PG P4

2.4 LED displays

Keyboard LEDs

LED displays for the Num-Lock, Shift-Lock and Scroll-Lock keys. They indicate the
current status of the shift keys.

Meaning of the keyboard LEDs

Symbol LED Meaning

green

1

off

Num-Lockon
Num-Lock off

green

A

=O

off

green
off

System LEDs

The system LEDs (battery, device, drives, MPI/DP and Memory Card) indicate the
status of the battery pack, the unit, the drives as well as the MPI/DP and Memory
Card interfaces. These LEDs are also visible when the display is closed.

Meaning of the System LEDs

Symbol LED Meaning

green
orange
red
off

green

On

orange
green flashing
orange flashing
off

green Access to external storage media (hard disk drive,

Shift-Lock on
Shift-Lock off

Scroll-Lock on
Scroll-Lock off

Battery is charged
Battery is being charged
Battery low (only with battery operation)
No battery installed

Line operation
Battery operation
Line operation, system in Standby mode
Battery operation, system in Standby mode
Unit is switched off

optical drive, floppy disk drive)

2-14

MPI/DP green MPI interface active

green Module programming, Memory Card or

Micro Memory Card active

Note

Battery charging is terminated when the battery pack is fully charged or if, for
example, the upper temperature limit is exceeded during charging. The current
battery status can be queried in Windows 2000 and Windows XP.

SIMATIC Field PG P4 Manual

A5E00180080-04

Getting Familiarized with the SIMATIC Field PG P4

2.5 On/Off Pushbutton (Power Button)

Switching the Field PG P4 On

Hold the On/Off button (Power Button) down for approx. 1 second to switch on the
device.

Switching the Field PG P4 Off

Either close the display lid, actuate the On-/Off-pushbutton (Power Button) or
select the respective Windows Start menu command to toggle the Field PG P4
from normal mode to one of the following modes:

• Standbymode (Save to RAM),

• Hibernate (Save to Disk),

• Off (Windows is shut down).

If operated under a Windows OS the device is switched off automatically when you
shut it down. If not operated under Windows you can switch the device off via
On-/Off pushbutton.

Notice

The Windows NT versions do not support the standby and hibernate operating
modes. After shut down the Field PG always has to be switched off via the Power
Button.

Hold down the On-/Off pushbutton for more than 7 seconds to trigger the
“Override” function. The device is switched off.

Note

Via Setup > Control Panel > Power Management under Windows 2000 and
Windows XP you can parameterize the reaction of the On-/Off-pushbutton and of
the display lid.

To isolate the unit totally from the power supply system, you must unplug the patch
cord and remove the rechargeable battery.

SIMATIC Field PG P4 Manual
A5E00180080-04

2-15

Getting Familiarized with the SIMATIC Field PG P4

Caution

The Field PG P4 supports different operating modes, according to the settings in
the Windows power options. The power options are preset at the factory in such a
way that the device always switches to defined operating modes (On, Standby,
Hibernate, Off).

When changing these settings or updating the device with additional hardware (for
example, USB components) or additional software, the operating modes can be
influenced in such a way that the device can no longer switch to the hibernate or
standby mode. Although the screen is dark, relevant components remain active
and consume power.

Before transporting the Field PG P4 in the carrying case, always shut it down or
set it to hibernate mode. You can recognize these modes when all status LEDs are
switched off after the power supply has been disconnected. By doing this you can
be sure that the device is not switched on during transport and that the battery is
not unintentionally discharged.

Energy Options

You can optimize the energy consumption of your PG using the energy options
while maintaining the PG in operate state.

In Standby mode the screen and the hard disk drive are switched off to relieve the
battery pack. After you switch the PG back to normal mode the desktop is restored
with your last configuration. Since PG memory information is not written to the hard
disk drive, you should save your job before you switch the PG to standby mode.
Information stored in memory is lost in case of a power failure.

Note

Select this mode if you briefly interrupt your work (few hours).

In Hybernate mode the screen and hard disk drive are switched off. All data in
memory is stored to the hard disk drive before the PG is switched off. When you
switch on your PG again, all programs and documents that were opened at the
time of shut-down are restored to the desktop. Hybernate mode relieves the
battery pack even more than Standby mode. However, it requires a longer time to
reactivate the PG from this hybernating state.

Note

Select this setting if you want to interrupt your work over an extended period
(several hours) or over night.

2-16

Briefly push the On/Off button to reactivate the PG from Standby or hybernate
mode. In standby mode the system LED flashes, in hybernate mode all displays
are switched off.

SIMATIC Field PG P4 Manual

A5E00180080-04

2.6 Drives

2.6.1 Floppy Disk Drive

You can use 3.5 disks (with 1.44 Mbytes or 720 Kbytes of memory).

Handling Diskettes

Access to the floppy drive is displayed by the drive’s status indicator and on the
status indicator for external devices at the front of the keyboard.

Caution

Risk of data loss!
Do not remove diskette until the access indicator on the drive has been switched

off.

Getting Familiarized with the SIMATIC Field PG P4

2.6.2 Hard Disk Drive

Hard disk drives with different capacity can be operated with the Field PG P4.
Whenever the hard disk is accessed, the status LED for external storage media at

the keyboard front lights up.

Caution

Drives are sensitive to vibrations and shock. Any vibrations occurring during
operation can result in loss of data or damage the drive.

SIMATIC Field PG P4 Manual
A5E00180080-04

2-17

Getting Familiarized with the SIMATIC Field PG P4

2.6.3 Optical Drive

Depending on the device configuration, it can come with a DVD-ROM/CD-RW or a
DVD+R/+RW drive. For example, you can read the electronic manual of the
supplied Backup PG DVD with this drive.

Opening the Drawer

Switch on the programming device. By briefly pressing the eject button, the drawer
springs out slightly. Now pull the drawer out until it clicks into position.

Inserting / Removing the data medium

Now insert the data medium in the drawer with the labeling face up, and press it
firmly down into the center of the turntable. To remove the data medium, hold it by
the edges and pull upwards.

Closing the Drawer

Push in the drawer until it closes completely. Do not press the eject button.

Emergency removal

By pushing a pin into the emergency release opening (for example, a paper clip)
while the device is switched off, you can force the drawer to open.

Notice

To ensure that the open drawer of the drive is not exposed to excessive force,
always support the front of the drawer with one hand while inserting or removing
the data medium with the other.

The data medium is tested when you close the drive and the access LED on the
drive flashes to indicate that the test is in progress:

– if the LED does not stop flashing the data medium is bad but readable,
– if the LED flashes several times and then remains on, the data medium is not

readable and defective.

Caution

Risk of data loss and damage to the drive.
Optical drives are highly sensitive to excessive vibration. Vibration during

operation can damage the drive or the data medium.
The burning operation with the DVD-ROM/CD-RW and DVD+R/+RW drive is only

permissible in an untroubled environment and under an ambient temperature not
exceeding 35C.

2-18

SIMATIC Field PG P4 Manual

A5E00180080-04

Additional Software

To be attain the full functionality of the DVD-ROM/CD-RW or DVD+R/+RW drive,
additional software (DVD player or burner software) is necessary. You can find it on
the CD included in the delivery of the device. To install the software place the CD
in the drive and follow the instructions on the screen.

Caution

Risk of data error when burning a CD–RW or DVD+RW!
The quality of recordable data media vary considerably, data error can therefore

not be completey ruled out when writing a data medium, even when no error
message is displayed. Correctly written data can only be guaranteed by an
additional comparison with the source data. To ensure an error-free copying
process do a data comparison after every burning session.

Getting Familiarized with the SIMATIC Field PG P4

SIMATIC Field PG P4 Manual
A5E00180080-04

2-19

Getting Familiarized with the SIMATIC Field PG P4

2.7 External Power Unit and Battery

External Power Unit

External power supply for the SIMATIC Field PG P4 for operation on 120 V or 230
V power supply networks. The voltage range is selected automatically. With line
operation the integrated battery is charged at the same time. The connecting cable
for the SIMATIC Field PG P4 is installed fixed on the external power supply. The
external power supply is connected with a patch cord to the mains.

Warning

!

The SIMATIC Field PG P4 must only be operated with the correct external power
supply and/or battery enclosed with the device.

The external power supply must not be covered up (risk of overheating).

Notice

The power plug must be disconnected to isolate the unit completely from mains.
A CSA or UL-listed cord set must be used for operation in Canada and the USA.

For the United States and Canada:

In the United States and Canada the cord must be UL-listed and CSA Labeled.
The male plug is a NEMA 5-15 style.

For operation with 120 V:

Use a UL-listed, CSA Labeled Cord Set, consisting of a min. 18 AWG. Type SVT
or SJT three conductor flexible cord, max. 4.5 m (15 feet) in length and a parallel
blade grounding type attachment plug, rated 15 A, min 125 V.

For operation with 240 V (within the USA):

Use a UL-listed, CSA Labeled Cord Set, consisting of a min. 18 AWG. Type SVT
or SJT three conductor flexible cord, max. 4.5 m (15 feet) in length and a tandem
blade grounding type attachment plug, rated 15 A, 250 V.

For operation with 230 V (outside of USA):

Use a cord set consisting of a min 18 AWG cord and grounding type attachment
plug rated 15 A, 250 V. The cord set should have the appropriate safety approvals
and marks for the country in which the equipment will be installed.

The unit is intended for operation with grounded power supply networks
(TN networks, VDE 0100 part 300 or IEC 364-3).
Operation with non-grounded or impedance-grounded networks (IT networks) is
not permitted.

2-20

The cord set must meet safety requirements in the respective country.

SIMATIC Field PG P4 Manual

A5E00180080-04

Battery

Getting Familiarized with the SIMATIC Field PG P4

The supplied rechargeable battery is installed behind a cover. The rechargeable
battery (Lithium-Ion) makes the device portable, independent of an external power
supply. The battery pack also prevents data loss in case of power failure. Use the
rechargeable battery supplied with the device only.

Once the external power supply unit is connected, the battery is charged. The
following conditions are important:

• When the device is switched off, charging takes approximately 3 hours (fast
charging).

• When the device is switched on, charging takes approximately 3 to 6 hours
(depends on the system load).

• Charging stops as soon as the battery is fully charged.

• A fully charged battery that is put on shelf runs down within approximately 2 to

4 months (depending on the temperature and whether it is installed). It must
then be recharged.

• Battery charging is terminated when the battery pack is fully charged or if, for
example, the upper temperature limit is exceeded during charging. The current
battery status can be queried in Windows 2000 and Windows XP. See also
Section 3.3 Battery Mode.

• It is advisable to run a teach-in cycle every now and again
(see Section 3.3).

When the unit is connected to the power supply, the green battery LED indicates
that the battery is fully charged. Battery charging is then stopped.

Notice

When not used over an extended period (> one week), switch off the Field PG P4
and remove the battery (see Section 3.3).

The battery LED lights red to warn of pending total discharge (see Section 3.3)
Please note that you must disconnect the power cord to separate the device totally

from mains.

You can check the battery status directly on the battery pack. Press the marked
spot on the battery briefly. The status is then displayed by the four LEDs.

The electronics of the battery has to be calibrated at regular intervals
(see Section 3.3) to compensate for measurement errors in the electronics and
also because the chemical properties of the battery change with time.

The capacity of the Lithium/Ion battery pack used in the Field PG P4 is reduced
each time it is charged / discharged, or if it is stored under temperature conditions
out of the specified hi and lo limits. This is why the operating time with one battery
charge may eventually be reduced considerably.

SIMATIC Field PG P4 Manual
A5E00180080-04

2-21

Getting Familiarized with the SIMATIC Field PG P4

The rechargeable battery has a typical service life of 300 charging cycles, i.e.
under normal conditions of use it can be charged and discharged within six months
after you have purchased the PG. Capacity loss beyond this time is
technology–related, and warranty is therefore excluded by all manufacturers of
similar devices. We recommend you replace the battery pack if the performance
deteriorates significantly. Always use the original Siemens battery packs.

Notes on the service life of your battery pack:

• The battery pack should always be fully charged / discharged – same as the
calibration of the battery.

• Frequent use: The more often you use the battery pack, the faster it reaches
the end of its service life. The Lithium / Ion battery pack has a typical service
life of 300 charging cycles.

• If the computer is usually operated by means of the power adapter, you should
fully load the battery pack and remove it for separate storage.

Warning

!

– Do not disassemble or mutilate, may cause burns.
– Do not incinerate or heat, may cause burns, exposion or release toxic materials.
– Do not short circuit, may cause burns.
– Keep away from children.

2-22

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring And Operating The SIMATIC Field PG P4

What Does This Chapter Contain?

The chapter below describes all tasks required to successfully set up your
workplace. These include:

• initial steps for commissioning your SIMATIC Field PG P4,

• working with battery operation and replacing the battery,

• connecting peripheral devices,

• working with memory submodules for the PLC and

• connecting your PG to other devices.

Chapter Overview

Section Description Page

3.1 Unpacking and Setting Up the SIMATIC Field PG P4 3-2

3.2 Connection to the Power Supply 3-4

3.3 Battery Operation 3-5

3.4 Commissioning 3-8

3.5 Panel “Field PG” 3-11

3.6 Connecting Peripheral Devices 3-12

3.7 Working with SIMATIC-S5 memory submodules 3-16

3.8 Working with SIMATIC Memory Cards 3-17

3.9 Working with Micro Memory Cards 3-18

3.10 Working with PC Cards 3-19

3.11 Connecting the Field PG P4 to a SIMATIC S5 Network 3-20

3.12 Connecting the Field PG P4 to a SIMATIC S7 Network (MPI/
DP)

3.13 Networking the Field PG P4 with Other Stations on PROFI­BUS

3.14 Ethernet (RJ45 Ethernet Interface) 3-24

3

3-21

3-23

Warning

!

SIMATIC Field PG P4 Manual
A5E00180080-04

When connecting long signal lines (especially for plant-wide connections), make
sure that the signal lines are connected to the local equipotential grounding system
(cable shield connected to protective conductor).

3-1

Configuring And Operating The SIMATIC Field PG P4

3.1 Unpacking and Setting Up the SIMATIC Field PG P4

Unpacking Your SIMATIC Field PG P4

Unpack your SIMATIC Field PG P4 as follows:

1. Remove the packing.

2. Do not throw the original packing away. Keep it if you need to transport the
device at a later time.

Checking the Contents

3. Check the packing list to make sure that no components are missing

4. Check the packing and its contents for any transport damages.

5. Please inform your local dealer of any shipping damages and discrepancies
between contents and packing list.

Entering the Serial number (S VP) and the Ethernet address

6. Enter the serial number (S VP) and the Ethernet address of your
programming device in the table of the Getting Started. You can find the serial
number on the type label attached to the base of the device. The Ethernet
address can be found in the BIOS setup settings in the main menu under the
’Hardware Options’ function.

If the device has to be repaired or has been stolen, it can easily be identified by
these numbers.

Entering the Microsoft Windows “Product Key” from the “Certificate of
Authenticity”

7. Enter the Microsoft Windows “Product Key” from the “Certificate of Authenticity”
(COA) in the table of the Getting Started. You will find the “Product Key” on the
device. You need the Windows “Product Key” if you want to reinstall the
operating system.

3-2

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring And Operating The SIMATIC Field PG P4

Setting up your SIMATIC Field PG P4

Find a comfortable and safe working position for your SIMATIC Field PG P4.

1. Put the SIMATIC Field PG P4 down on its base on an even surface at a
comfortable working height and distance.

2. Ensure there is an easily accessible mains outlet near your place of work.

3. Make sufficient desk space available to connect peripheral devices.

4. Open the display, by pulling the slide locks at the side of the display unit
towards the front.

5. Fold up the display and adjust it to a comfortable angle of inclination. The
display angle is adjustable from 0 ... 180.

Display lock

Fig. 3-1 Opening the Display

Caution

Always put the Field PG P4 down on its base. If you put it down on its interface
side you risk that it will fall over and damage sensitive internal components.

Moisture ingress can damage the PG.
If you transport the device in cold weather and if it is exposed to extreme

temperature fluctuation you have to acclimatize it to room temperature before you
start to operate it.

Do not switch on the device until inside condensation has dried off completely.
This is the case, for example, with a temperature rise from -20°C to + 20°C and
after a waiting period of approx. 12 hours.

Warning

!

The computer casing is made of magnesium. Contact with an external open fire
source bears the risk of fire / spreading fire.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-3

Configuring And Operating The SIMATIC Field PG P4

3.2 Connecting to the Power Supply

Connecting to the Power Supply

The SIMATIC Field PG P4 can be operated with the supplied external AC
adapter on 120 V/230 V power systems or with the battery. The external power
supply automatically selects the voltage. You should install the supplied battery
pack before you connect the device to the power supply:

1. Turn the Field PG P4 over and place it down on the table while the display unit
is closed.

2. Unlock and open the battery pack cover on the bottom of the device.

3. Insert the battery pack.

4. Close the cover and turn the device over again.

5. Plug the supplied patch cord into the external power supply and plug the
low-voltage plug into the unit’s connector.

6. Connect the external power supply to a socket outlet with grounded protective
conductor.

Connector for an external power supply
VN = 17.5 V DC

Fig. 3-2 Power supply connection

Warning

!

The SIMATIC Field PG P4 must only be operated with the provided power supply
unit and/or battery pack.

The external power supply must not be covered up (risk of over-heating).
For reasons of safety you must use the patch cord and power supply that is

included in the delivery. Operation of the unit is only permitted on grounded
120V/230V power supply networks.

3-4

SIMATIC Field PG P4 Manual

A5E00180080-04

3.3 Battery Operation

Battery Operation

If not connected to an external power supply unit, the SIMATIC Field PG P4 can
be operated with the internal battery pack.

1. Switch on the device. Make sure the battery is sufficiently charged before you
start work.

2. Work as usual with your SIMATIC Field PG P4.

3. In battery mode, the red signal of the battery LED indicates that the battery is in
low condition. Stop your work and save your data. There are only a few minutes
of battery operation remaining.

Notice

Do not start a work session in battery mode unless the battery is fully charged. This
is the only way of ensuring that the full on-battery operating time is available and that
you will be warned in good time when battery power is low. When connected to the
external power supply unit, the orange battery LED indicates that the battery is being
charged.

Configuring And Operating The SIMATIC Field PG P4

When connected to the external power supply unit, the green battery LED indicates
that the battery is fully charged and that charging has stopped.

The battery might be partially or totally discharged when you start commissioning (fro
example, running-down). Connect the device to the power supply unit and the unit to
mains to charge the battery.

As soon as the device is connected to mains via the power supply unit, the battery
is recharged.

Replacing the Battery

You can replace a run-down or defective battery with a new replacement battery:

1. Turn the Field PG P4 over and place it with closed display unit onto a flat mat.

2. Unlock and open the battery cover on the bottom of the casing.

3. Replace the battery.

4. Close the cover and turn the device over again.

Warning

!

Do not use a battery type other than that supplied. The battery is available as
spare part. Refer to the catalog for ordering data.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-5

Configuring And Operating The SIMATIC Field PG P4

Disposal of Used Batteries

Lithium-Ion batteries can be recycled. Their components can be used as raw
materials for new batteries or other products. Effective recycling of batteries is only
possible when the used batteries are collected according to type.

Notice

Observe the local regulations for disposal of recycling materials.

Charge-Status Indicator

The battery has electronic circuitry for showing the current charge status. The
electronics incorporate a metering unit which has to be calibrated at regular
intervals so that it can compensate for error. The chemical properties of the battery
change in the course of time, so the electronics have to relearn the battery’s
characteristics at regular intervals. A calibration cycle ensures that the battery’s
maximum charge capacity is at your disposal.

Notice

There is a danger of the charge-status indicator misinterpreting the actual capacity
of the battery if a lengthy period of time is allowed to pass between calibration
cycles. This can result in an unexpected shutdown with no prior warning.

Calibration cycle

Run a calibration cycle:

• Approximately every six months,

• if a prolonged period of time has elapsed since the battery was last used,

• if you think that the battery no longer operates at full capacity,

• if the programming device shuts down unexpectedly with no prior warning,

• if operating time on battery becomes shorter.

3-6

SIMATIC Field PG P4 Manual

A5E00180080-04

Performing a Calibration Cycle

Broadly speaking, the procedure for a calibration cycle is as follows:

1. Before starting battery calibration, you have to select SIMATIC battery
calibration under Control Panel > Power Options, than deactivate the
options Activate battery alarm when power level reaches in the tab Alarms
under Control Panel > Power Options.

2. Battery operation: Discharge the battery until the battery LED on the device
changes from red to green. To do this, remove the power supply from the Field
PG P4.
Duration: max. 3 hours.

3. Power supply operation: Fully charge the battery (without interruption) until
the battery LED on the device changes from orange to green. This will take a
maximum of 4 hours if the device is switched off. (Optional: to reduce the
recharge time, switch off the device if possible).

You can carry out an automatic calibration cycle with the “Field PG” panel (see
section 3.5).

Configuring And Operating The SIMATIC Field PG P4

SIMATIC Field PG P4 Manual
A5E00180080-04

3-7

Configuring And Operating The SIMATIC Field PG P4

3.4 Commissioning

Switching on the Field PG P4

The operating system and system software supplied with the SIMATIC Field PG
P4 are preinstalled on the hard disk. Time consuming installation of the operating
system and SIMATIC software programs is not required. Just unpack and power
up your unit and you can immediately start your programming tasks without having
to take extensive setup actions.

• To power up the device hold down the On/Off switch for on the top side of the
keybord for at least one second. When powering up the device you have to
distinguish between the following:

– Initial start to set up the Field PG P4’s software and a
– Restart after cold start and software activation.

3.4.1 Cold Start of the SIMATIC Field PG P4

When powering up the SIMATIC Field PG P4 for the first time the operating
system is set up automatically (depending on the version delivered: Windows NT,
Windows 2000 Professional or Windows XP Professional). Please proceed as
follows:

1. Switch on the Field PG P4.

2. The PG executes a self-test. During self-test the following message appears on
the screen:

Press <F2> to enter SETUP or <ESC> to show Bootmenu

Wait until the message disappears and follow the instructions displayed on the
screen.

3. Enter your product key. The product key can be found on the device in the line
“Product Key” of the “Certificate of Authenticity”.

Caution

Do not switch off the PG during cold start. Otherwise, full initialization will fail.
Do not change the BIOS default values.

3-8

SIMATIC Field PG P4 Manual

A5E00180080-04

Startup under Windows

Once you have entered the requisite information and configured the operating
system the PG is rebooted. The Welcome screen helps you to get familiar with
the Desktop - user interface.

Now the user interface is displayed following system startup every time you power
up or reset the PG.

Default country code of the Windows XP menus, dialogs and keyboard layout is
English. You can set another language and keyboard via the control panel with the
dialog Start > Control Panel > Date, Time, Language, and Regional Options >

Add other languages.

Authorization/ License Key

To use the STEP 5 or STEP 7 programming software, you require a
product-specific authorization or a License Key. Software protected thus may only
be used with the corresponding activation. The authorizations and license keys for
the SIMATIC software can be found on the License Key Disk supplied with your
PG.

Configuring And Operating The SIMATIC Field PG P4

To perform the software activation:

• Insert the License Key Disk in drive A:

• Click on the Windows Start button and

• select the menu command Simatic > License Management> Automation

License Manager to open the Automation License Manager. It will guide you
through the installation routine of the authorizations or License Keys onto your
hard disk.

Notice

The License Key Disk supplied with the PG contains only authorizations or
License Keys for the SIMATIC software you ordered only. The SIMATIC software
you receive will correspond to your order form.
The License Key Disk of the supplied version ”Upgrade Installation” contains only
the software for upgrading already existing authorizations or License Key.
Software without authorizations or a License Key in the scope of supply cannot be
used when installed on the PG.

Keep the License Key Disk in a safe place so that you can save the authorizations
or License Keys to diskette.

Additional software

You can now install the the supplied operating software for the DVD-ROM/CD-RW
or the DVD+R/+RW drive. Place the CD in the drive and follow the instructions on
the screen.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-9

Configuring And Operating The SIMATIC Field PG P4

3.4.2 Restart of the SIMATIC Field PG P4

Once the Field PG P4 is configured, the user interface of the corresponding
operating system is displayed following system startup every time you switch on or
reset the PG.

Starting SIMATIC Software Programs

STEP 5 (not available on all delivered versions)

• Click ”Start” on the Windows button and select the desired program choosing

Simatic > STEP 5.
Please note that you have to install the authorization disk before you start

working with STEP 5 (see Section 3.4.1).

Notice

When you use the P Tools (for editing PCP/M files) supplied with STEP 5,
remember that these are not fully supported by the Windows 2000 Professional or
Windows XP Professional operating systems. If you use the P Tools, we
recommend that you use MS-DOS, Windows 3.x or Windows 95.

STEP 7

• Click on the icon “SIMATIC Manager” on the Windows desktop or

• or click on “Start” and select the desired program by choosing Simatic >

STEP 7.

Note

The transfer of a STEP 7 configuration from on PG to another is supported by the
STEP 7 file archiving functions. Open the SIMATIC Manager. select the menu
command File > Archive or File > Retrieve. You can find details on this
procedure in the STEP 7 online help, section “Steps to take for
Archiving/Retrieving”.

STEP 7-Micro/WIN 32

• Click on the On the ”STEP7-MicroWIN“ icon on the Windows Desktop or

• Click ”Start” on the Windows task bar and select the desired program with

Simatic > STEP 7-MicroWIN 32.

3-10

SIMATIC Field PG P4 Manual

A5E00180080-04

3.5 Panel “Field PG”

Panel “Field PG” helps you to work better with the Field PG P4. It has the
following functions:

• Automatic execution of battery calibration.

• Setting the display brightness

• CPU and motherboard temperature display

• Setting the hardware properties of the PC Card and the MPI and Ethernet

interface

• Display of firmware versions

• Selecting the display device (display / external monitor)

The Panel is installed on devices with Windows XP and Windows 2000.

• Start the program via Start > Settings> Control panel> Field PG.
You can find additional support during operation in the respective Online Help.

Configuring And Operating The SIMATIC Field PG P4

SIMATIC Field PG P4 Manual
A5E00180080-04

3-11

Configuring And Operating The SIMATIC Field PG P4

3.6 Connecting Peripheral Devices

Connect devices to the I Cable

Fig. 3-3 Interface Cable Slots

The I Cable enables the connection to S5 automation devices (COM1/TTY), to
devices with a serial port (COM2/standard V.24) such as a modem or mouse and
to devices with a parallel port (standard LPT) such as a printer or scanner. Please,
use the I Cable on a level surface only (e.g. a desk) to prevent contact problems.

LPT

COM2/V.24

S5ĆOnline AG (COM1/TTY)

Interface Cable slot

Fig. 3-4 I Cable Slot on the PG

3-12

SIMATIC Field PG P4 Manual

A5E00180080-04

Connecting External Monitors

You must switch the PG off before you connect the monitor cable. You will find
further information about the connector pin assignment in Chapter 7.

Fig. 3-5 Connecting the Monitor

Configuring And Operating The SIMATIC Field PG P4

VGA socket

To connect the monitor, proceed as follows:

1. Switch off the SIMATIC Field PG P4 and the monitor.

2. Open the port cover on the rear of the device.

3. Plug the monitor cable into the VGA socket connector.

4. Secure the connector with the screws.

5. Plug the other end of the monitor cable into the monitor.

6. Switch on the SIMATIC Field PG P4 and the monitor.

7. Make the necessary changes in the SETUP program (Menu Main > Hardware

Options “CRT/LCD selection: Simultan. Auto”).

Note

Default setting is simultaneous operation of the flat screen display and of an external
monitor. The display unit is optimized for a format of 1024*768 pixels (XGA) or
1400 x 1050 pixels (SXGA+). Modes with lower resolution and text mode are
expanded to this format.

If you connect an external monitor with lower resolution than the display, the resolution
of the display is reduced to the resolution of the external monitor in simultaneous
operation.

You can optimize the external monitor display via BIOS Setup in the Main menu item
Hardware Options ”CRT/LCD selection: CRT only”.

You can use the program Panel “Field PG” to easily switch among the active display
devices.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-13

Configuring And Operating The SIMATIC Field PG P4

Caution

Ensure that the used monitor is suitable for the set resolution and refresh rate.

Connecting Devices to the USB Interface 2.0

You can connect USB devices (mouse, keyboard or printer) to the USB 2.0
interface connector.

1. Open the port cover on the rear of the device.

2. Plug the USB device cable into the USB interface.

The Plug and Play operating system recognizes the device and makes it available.
If you wish to connect more than two USB devices you must use a HUB. Both

interfaces are designed for use as high current USB 2.0 (500 mA) devices. They
may not be used simultaneously for high current (refer to the Appendix B,
Technical Data).

Fig. 3-6 USB connectors

Using a Mouse

You can connect a USB mouse parallel to the Touchpad.

USB connector

USB connector

3-14

SIMATIC Field PG P4 Manual

A5E00180080-04

Connecting a Microphone

The 3.5-mm phono jack can be used to connect microphones. Pin assignment:

Fig. 3-7 Pin assignment of the microphone plug

For microphone recordings, select all Programs > Accessories > Entertainment

> Sound Recorder in the Windows Start menu.

Connecting a Headphone

Configuring And Operating The SIMATIC Field PG P4

Mic

NF

3.5-mm microphone plug

Power

Mic­ground

You can connect headphones or active speakers with 3.5-mm stereo phono plugs
to this jack.

Loudness is controlled via taskbar button or all Programs > Accessories >
Entertainment > Volume Control in the Windows Start menu. The internal
speakers are switched off when a headphone is connected.

Left Right GND

3.5-mm headphone stereo phono plug

Fig. 3-8 Headphone stereo phono plug

SIMATIC Field PG P4 Manual
A5E00180080-04

3-15

Configuring And Operating The SIMATIC Field PG P4

3.7 Working with SIMATIC S5 Memory Submodules

Editing SIMATIC S5 Memory Submodules

You can read and program SIMATIC S5 memory submodules (EPROMs or
EEPROMs) via the Memory Card interface. Use the S5 adapter for S5 memory
submodules that is included in the scope of delivery for devices with Step 5
software. The S5 adapter consists of a Memory Card plug with an interface for the
connection of S5 memory modules. Refer to the STEP 5 manual for information on
operating the programming software.

Slot for S5 Adapters,
for SIMATIC S5 memory modules
and SIMATIC Memory Cards

Fig. 3-9 S5 Module Programming Interface

Notice

The S5 adapter and STEP 5 software is not included in all delivered versions.

Proceed as follows when working with S5 memory modules :

1. Switch on your device.

2. In your STEP 5 software, start the function Administration > Edit EPROM.

3. With the type label on the top, insert the SIMATIC S5 Memory Card or the S5
adapter into the Memory Card interface and then the S5 memory module.

4. You can read, program or erase (EEPROMs only) your S5 memory module with
the EPROM functions of the STEP 5 software.

5. Extract the S5 memory module.

6. Close the EPROM functions of your STEP 5 software.

Caution

!

You might damage the module if you insert or extract it while editing is in progress.
You must not remove the S5 memory module as long as the module programming

status display is lit.
Always discharge your body’s static electricity by briefly touching a grounded part

of the device before you insert an S5 Memory Card.

3-16

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring And Operating The SIMATIC Field PG P4

3.8 Working with SIMATIC Memory Cards

Working with SIMATIC Memory Cards

SIMATIC memory cards can be read, programmed, and erased. SIMATIC memory
cards are available for SIMATIC S5 and SIMATIC S7 software.

SIMATIC Memory Card

Fig. 3-10 Slot for SIMATIC Memory Cards

Proceed as follows when working with SIMATIC memory cards:

1. Switch on your device.

2. Start your SIMATIC programming function.

3. Plug a SIMATIC Memory Card into the Field PG P4 slot. Correct insertion
direction is spot marked on the Field PG P4 and on the Memory Card.

4. You can read, program, or erase the Memory Card with the programming
function of your SIMATIC programming software.

5. Close the programming function of your SIMATIC software.

6. Remove the SIMATIC memory card from the programming port for further use
in a programmable logic controller.

Caution

You must insert the Memory Card with the type label pointing towards the rear of
the unit.

You must not remove the SIMATIC Memory Card while the module programming
status LED is lit.

Always discharge your body’s static electricity by briefly touching a grounded part
of the device before you insert a SIMATIC Memory Card.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-17

Configuring And Operating The SIMATIC Field PG P4

3.9 Working with Micro Memory Cards

Working with Micro Memory Cards

Read, program and erase Micro Memory-Cards (MMC) via the Micro Memory Card
interface. Operation with Micro Memory Cards is supported by STEP 7 V5.1 or
higher.

Micro Memory Card

Fig. 3-11 Slot for Micro Memory-Cards

Proceed as follows when working with Micro Memory Cards:

1. Switch on your device.

2. Start your SIMATIC programming function.

3. Insert the Micro Memory-Card into the slot on the side of the device. The card’s
connector is encoded for insertion in one position only (with inclination to the
rear). A symbol on the PG housing indicates the plug-in direction.

4. Read, program, or erase the Micro Memory Card with the programming function
of your SIMATIC programming software.

5. Close the programming function of your SIMATIC programming software.

6. Remove the Micro Memory-Card from the interface.

Caution

You must not remove the SIMATIC Micro Memory Card while the module pro­gramming status display is lit.

Always discharge your body’s static electricity by briefly touching a grounded part
of the device before you insert a SIMATIC Micro Memory Card.

3-18

Note

Parallel operation of a Micro Memory Card (MMC) and of a Memory Card is not
possible. The PG is equipped with a priority circuit that switches off the MMC interface
when a Memory Card is inserted. The internal MMC is switched off as soon as a
Memory Card, an S5 adapter or an MMC adapter is added.

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring And Operating The SIMATIC Field PG P4

3.10 Working with PC Cards

PC-Cards

The PC card interface supports two type II or one type III Cardbus card (32-bit) or
PCMCIA card (16-bit). The SIMATIC Field PG P4 has two PC card ports. You can
plug credit-card format communication modules for MODEM, FAX-MODEM, ISDN,
Token Ring, ETHERNET, memory expansion and SCSI interface modules into
these ports.

PC card interface, type I/II

(Slot 1)

PC card interface, type I/II/III
(Slot 2)

Fig. 3-12 PC Card interface

Ejector for
PC-Cards

The PC-Card ejectors have a ballpoint pen mechanism. Before you insert the card
ensure that the ejector is engaged. To remove the PC-Card, push the ejector once
to unlock it and a second time to eject the card.

Caution

When you plug in the PC-Card, the Label must be on top.
Remove the card only after all data traffic has terminated (risk of data loss and

system failure).
You might damage the SIMATIC Field PG P4 and the PC-Card if you attempt to

insert the card the wrong way round.
Always discharge your body’s charge of static electricity by briefly touching a

grounded part of the device (e.g. the metal mount of the port) before inserting or
removing a card (in accordance with the instructions for handling electrostatically­sensitive components, EGB guidelines). Otherwise, disruptions might occur.

Notice

In order to use a PC card you must enter BIOS-SETUP, open the Main menu,
select the Hardware Option submenu and set “Cardbus/PCMCIA Slot” to
“Enabled”.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-19

Configuring And Operating The SIMATIC Field PG P4

3.11 Connecting the Field PG P4 to a SIMATIC S5 Network

Point-To-Point Connection

In this section, you will learn how to connect your Field PG P4 to a programming
device or S5 PLC using a point-to-point connection.

You can establish a point-to-point connection by connecting the Field PG P4 to
another programming device using a TTY connection.

Notice

The interface is connected to potential.
The SIMATIC STEP 5 programming software and the patch cord for the

connection to the S5 PLC is not supplied with all versions.

Connecting the Field PG P4 to the S5 PLC

You can connect the Field PG P4 to a SIMATIC S5 PLC via TTY port. The patch
cord for connecting to SIMATIC S5 CPUs is not included with all delivered versions
(Order no.:6ES5734-2BD20).

Interface cable port

I cable

Fig. 3-13 Connecting to an S5 PLC

You connect your Field PG P4 to a SIMATIC S5 PLC as follows:

1. Switch off your device.

2. Open the cover of the ports on the rear of the device.

3. Connect the interface cable to the Field PG P4.

4. Connect the patch cord to the TTY port of the Interface c a b l e ( S5-O n l ine AG ).

5. Secure the connector with screws.

6. Connect the patch cord to the corresponding port on the CPU of the PLC.

SIMATIC S5 patch cord

3-20

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring And Operating The SIMATIC Field PG P4

Caution

The interface port may be damaged if you use the wrong patch cord.

3.12 Connecting the Field PG P4 to a SIMATIC S7 Network
(MPI/DP)

Connecting an S7 Programmable Controller via an MPI/DP Interface

You can use the potential-separated*) MPI/DP interface to connect the SIMATIC
Field PG P4 to a SIMATIC S7 programmable controller or to a PROFIBUS
network. The MPI patch cord (5m) for connecting to SIMATIC S7-CPUs (Order
no.: 6ES7901-0BF00-0AA0) is included in the consignment. The data transfer rate
is limited to 187.5 Kbit/s when using this patch cord. For baud rates > 1.5 Mbit/s
you must use a PROFIBUS cable for 12 Mbit/s (Order no. 6ES7901-4BD00-0XA0).

MPI/DP interface

Fig. 3-14 Connection Using the MPI/DP Interface

For environments free
of interference:
Bus connector

6ES7972-0BB10-0XA0

or

6ES7972-0BB20-0XA0

6ES7901-0BF00-0AA0

(5–m length)

Proceed as follows when connecting to a SIMATIC S7 programmable logic
controller:

1. Switch off your device.

2. Open the interface cover on the left-hand side panel of the device.

SIMATIC Field PG P4 Manual
A5E00180080-04

3-21

Configuring And Operating The SIMATIC Field PG P4

3. Connect the cable to the MPI/DP interface.

Caution

Before plugging in the cables, the static charge on your body, the unit, and the
cables must be equalized. You can do this by briefly touching the metal mounting
plate for the interfaces on the rear panel.

*) Electrical isolation in the safety extra-low voltage circuit (SELV circuit).

Connecting

Via the MPI/DP interface, you can connect your programming devices to

• MPI networks (S7-200, S7-300, and S7-400) or

• PROFIBUS DP networks (DP components).

MPI/PROFIBUS DP Network

Up to 32 devices (PC, PG, or AS) can be connected to the MPI/DP interface to
form a network segment. The physical connection to the MPI/PROFIBUS DP
network is via a floating RS485 interface which is a component of the PG basic
module.

Several MPI/PROFIBUS DP network segments can be connected via repeaters.
The complete MPI/PROFIBUS DP network can comprise up to 127 stations. Data
transmission rates from 9.6 Kbps to 12 Mbps are possible in the PROFIBUS-DP
MPI network.

3-22

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring And Operating The SIMATIC Field PG P4

3.13 Networking the Field PG P4 with Other Stations on
PROFIBUS

Networking the SIMATIC Field PG P4 on PROFIBUS

PROFIBUS is an open and robust bus system for industrial use. It can be used to
configure networks with up to 32 stations per segment. PROFIBUS- DP supports
data-transfer rates from 9.6 Kbaud to 12 Mbaud.

How the Network Functions

The network operates on the “Master-Slave Principle with Token Passing”
(complying with DIN19245, PROFIBUS). It distinguishes between active and
passive stations. An active station receives the token and passes it on to the next
station within a specified time.

Hardware Requirements

Using the following components, for example, you can connect or network the
SIMATIC Field PG P4 with PROFIBUS:

• RS 485 MPI/DP interface adapter, integrated

• Shielded, twisted pair (bus cable or connecting cable to network).

SIMATIC Field PG P4 Manual
A5E00180080-04

3-23

Configuring And Operating The SIMATIC Field PG P4

3.14 Ethernet (RJ45 Ethernet Interface)

Networking Field PG P4 via RJ45 Ethernet Interface

The RJ45 Ethernet interface is a Twisted-Pair (TP) Interface for data transfer rates
of 10/100 Mbaud. This on-board interface is compatible with Intel pro/100+ PCI
Adapters.

The Plug & Play interface is automatically recognized in Windows. Protocols are
configured in the Windows system control.

Notice

A Class 5 Ethernet cable is required for operation with 100 Mbaud. Use a suitable
cable material depending on the length of the cable.

3-24

SIMATIC Field PG P4 Manual

A5E00180080-04

SIMATIC Field PG P4 Expansions

What Does This Chapter Contain?

This chapter shows you how to expand your SIMATIC Field PG P4 with additional
expansion memory submodules to increase its performance. Please note the
included comments on safety.

Chapter Overview

Section Description Page

4.1 Installing Memory Expansion Submodules 4-2

4.2 Processor Upgrade 4-4

4.3 Replacing Backup Battery 4-4

4

SIMATIC Field PG P4 Manual
A5E00180080-04

4-1

SIMATIC Field PG P4 Expansions

4.1 Installing Memory Expansion Submodules

Standard Memory

The motherboard has 2 slots for SO DIMM memory submodules (DDR 266,
PC 2100) . This allows you to expand the memory capacity of your SIMATIC
Field PG P4 to a maximum of 1 Gbyte.

Memory Submodules

Fig. 4-1 Positions of the SO DIMM Memory Submodules

You can install submodules of different capacity. Only one module must be
installed.

Memory Modules

256 Mbytes 512 Mbytes

256 Mbytes 1 –
512 Mbytes 2 –
512 Mbytes – 1
768 Mbytes 1 1
1024 Mbytes – 2

Notice

4-2

Please only use Siemens memory modules as these are qualified and released for
this device. Refer to the catalog for the ordering data.

SIMATIC Field PG P4 Manual

A5E00180080-04

Caution

The electronic components of the printed circuit boards are highly sensitive to
electrostatic discharge. Certain precautionary measures are therefore necessary
when handling such components. These measures are explained in the guidelines
for handling electrostatically-sensitive devices in Appendix A.

Installing memory submodules

To plug in expansion submodules, proceed as follows:

1. Switch off the device.

Caution

Do not install a memory module while the PG is switched on. You might damage
the PG as well as the memory module.

SIMATIC Field PG P4 Expansions

2. Remove all cables connected to the device, including the power adapter.

3. Close the display unit.

4. Place the PG onto a soft mat with the display unit facing down.

5. Remove the battery.

6. Remove the four retaining screws of the cover above the memory expansion

slot.

7. Remove the cover.

8. Plug the module into the slot. Note the recess (reversal protection) on the plug

side of the SO DIMM module.

9. Push the module down by applying light pressure until it locks into place.

10.Reinsert the battery.

11.Replace the cover and secure it with the four screws.

Caution

Make sure that the modules are seated securely in the slots, otherwise they can
drop out and be damaged.

The memory configuration is detected automatically. When you switch on the unit,
the distribution of “System and Extended Memory” is displayed on-screen.

SIMATIC Field PG P4 Manual
A5E00180080-04

4-3

SIMATIC Field PG P4 Expansions

4.2 Processor Upgrade

You can boost the performance of your SIMATIC Field PG P4 with a processor
upgrade. Consult your local dealer or service partner.

Notice

If an upgrade is implemented, for example to a processor with a different
frequency, it may be important to also upgrade the BIOS.

You must only install components approved by Siemens.

4.3 Replacing Backup Battery

The Field PG P4 has a backup battery which powers the hardware clock after the
device has been switched off.

Warning

!

Danger of explosion when replacing the battery improperly. Only replace with the
same type.

The backup battery can be ordered from Siemens as a spare part (order number:
A5E00047601).

Old lithium batteries should be given back to the manufacturer, recycled or
disposed of as hazardous waste.

If you have any questions, please consult your local dealer or service partner.

4-4

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring the SIMATIC Field PG P4

What Does This Chapter Contain?

In this chapter, you will learn how to configure your programming device. You need
to do this if you change your system by adding, removing, or exchanging
expansion modules and memory expansions, or by replacing a system module.

Chapter Overview

Section Description Page

5.1 Changing the Device Configuration with SETUP 5-2

5.2 The Main Menu 5-5

5.3 The Advanced Menu 5-14

5.4 The Security Menu 5-16

5.5 The Power Menu 5-17

5.6 The Boot Menu 5-19

5.7 The Version Menu 5-21

5.8 The Exit Menu 5-22

5

SIMATIC Field PG P4 Manual
A5E00180080-04

5-1

Configuring the SIMATIC Field PG P4

5.1 Changing the Device Configuration with SETUP

Changing the Device Configuration

Your PG configuration is set for working with the software supplied with the unit.
You should only change the preset values if you have modified your Field PG P4 in
any way or if a fault occurs when the unit is powered up.

SETUP-Program

The SETUP program is in the ROM-BIOS. Information about the system
configuration is stored in the battery-buffered RAM of the SIMATIC Field PG P4.

You can use SETUP to set the hardware configuration (for example, hard disk
type) and define the system characteristics. You can also use SETUP to set the
time of day and date.

Incorrect SETUP Data

If incorrect SETUP data are detected when you boot the system, the BIOS
prompts you to:

• Start SETUP by pressing F2 or

• Continue booting by pressing F1.

Starting SETUP

On completion of the startup test, the BIOS gives you the opportunity of starting
the SETUP program by displaying the following screen prompt:

PRESS < F2 > to enter SETUP or <ESC> to show Bootmenue

To start SETUP, proceed as follows:

1. Reset your PG (warm or cold restart).

2. Press the F2 key as long as the BIOS prompt appears on the screen.

SETUP Menus

The various menus and submenus are listed on the following pages. You can get
all the information you need for the SETUP entry selected from the “Item Specific
Help” part of the relevant menu.

5-2

SIMATIC Field PG P4 Manual

A5E00180080-04

Screen Display Following Power On

With the standard setting of your PG, the screen displays after power-on, for
example:

Phoenix NoteBIOS 4.0 Release 6.0 –A5E0001xxxx-ES00x

Copyright 1985-2002 Phoenix Technologies Ltd.

All Rights Reserved

SIEMENS Field PG P4 Version Vxx.xx.xx

CPU = Mobile Intel(R) Pentium(R)4 – M CPU 1.60GHz

640K System RAM Passed

61M Extended RAM Passed

512K Cache SRAM Passed

Fixed Disk 0: FUJITSU MHK2060AT

ATAPI CD–ROM: TOSHIBA CD–ROM XM–1902B

Mouse initialized

Configuring the SIMATIC Field PG P4

Press <F2> to enter SETUP or <ESC> to show Bootmenue

Notice

All information on on-screen displays and menu displays are samples. Deviations
to this example are possible.

Press the F2 key while the above display is shown, to select the ROM-based BIOS
setup program. In this program, you can set a number of system functions and
hardware configurations of your programming device.

The standard settings are effective on delivery. You can change these settings
using the BIOS setup. The modified settings become effective when you have
saved them and terminated the BIOS setup.

SIMATIC Field PG P4 Manual
A5E00180080-04

5-3

Configuring the SIMATIC Field PG P4

The following screen form appears when you start the BIOS setup:

Header

Menu bar

System Time:

System Date:
Diskette A: [1,44MB 3 1/2”]

Primary Master [10056MB]

Selectable
submenu

Operating keys

Primary Slave [None]
Secondary Master [CD-ROM]
Secondary Slave [None]

Memory Cache:

Boot Options
Keyboard Features
Hardware Options

System Memory:

Extended Memory:

Help

F1
ESC Exit

Fig. 5-1 Main SETUP Menu (sample)

Menu Structure

Advanced Security Power Boot Version ExitMain

PhoenixBIOS Setup Utility

[ 15:35:32 ]
[ 02/06/2003 ]

[Write Back]

640 KB

128511 KB

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Sub-MenuF9F10

Item Specific Help

<Tab>, <Shift-Tab>, or
<Enter> selects field.

Example:
Hour/Minute/Second
Month/Day/Year

Hilfefenster

Setup Defaults
Save and Exit

The screen is divided into four sections. In the top section, you can select the
menu screens [Main], [Advanced], [Security], [Po we r ] , [ B o o t Sequenc e],
[Ve rsio n ], [Exit]. In the left of the center section you can select various settings or
submenus. Brief help texts appear on the right for the currently selected menu
entry. The bottom section contains information for operator inputs.

You can move between the menu screens using the cursor keys [←] and [→].

Menu Meaning

Main System functions are set here
Advanced An extended system configuration can be set here
Security Security functions are set here, for example a password
Power Power functions can be selected here
Boot The boot priorities are defined here
Version Information about the programming device’s release status
Exit Used for terminating and saving

5-4

SIMATIC Field PG P4 Manual

A5E00180080-04

5.2 The Main Menu

Configuring the SIMATIC Field PG P4

PhoenixBIOS Setup Utility

Advanced Security Power Boot Version ExitMain

System Time:

System Date:
Diskette A: [1,44 MB 3 1/2”]

Selectable
submenu

Primary Master [10056MB]
Primary Slave [None]

Secondary Master [CD-ROM]
Secondary Slave [None]

Memory Cache:

Boot Options
Keyboard Features
Hardware Options

System Memory:

Extended Memory:

Help

F1
ESC Exit

Fig. 5-2 Main SETUP Menu (sample)

Settings in the Main Menu

In the Main menu, you can move upwards and downwards using the cursor keys
[↑] and [↓] to select the following system parameters:

[ 15:35:32 ]
[ 02/06/2003 ]

[Write Back]

128511 KB

Select Item

Select Menu

640 KB

+ / –

Enter

Change Values
Select

Sub-MenuF9F10

Item Specific Help

<Tab>, <Shift-Tab>, or
<Enter> selects field.

Example:
Hour/Minute/Second
Month/Day/Year

Setup Defaults
Save and Exit

Field Meaning

System Time For viewing and setting the current time
System Date For viewing and setting the current date
Diskette A Type of built-in floppy disk drive
Memory Cache For setting the cache options

By submenus

Primary Master Type of built-in drives
Secondary Master Type of built-in drives
Boot Options For setting boot options
Keyboard

Features
Hardware Options For setting PG hardware options

SIMATIC Field PG P4 Manual
A5E00180080-04

For setting keyboard-interface options (e. g. NUM Lock, Typematic
Rate)

5-5

Configuring the SIMATIC Field PG P4

System Time und System Date

System Time and System Date indicate the current values. Once you have
selected the appropriate option, you can use the [+] and [-] keys to modify the time
setting

Hour:Minute:Second
and the date
Month/Day/Year.
You can move between the entries in the date and time options (for example, from

hour to minute) using the tabulator key.

Diskette A

The type of disk drive built-in to the PG is set here. The following entries are
possible:

[Disabled] If a floppy drive does not exist
[1.44 MB, 3 1/2”] Setting for an integrated floppy drive A: for 3 1/2 inch/1.44 MB disks

Primary Master Primary Slave Secondary Master / Secondary Slave

When you select such a menu field via Enter key the following submenu is opened:

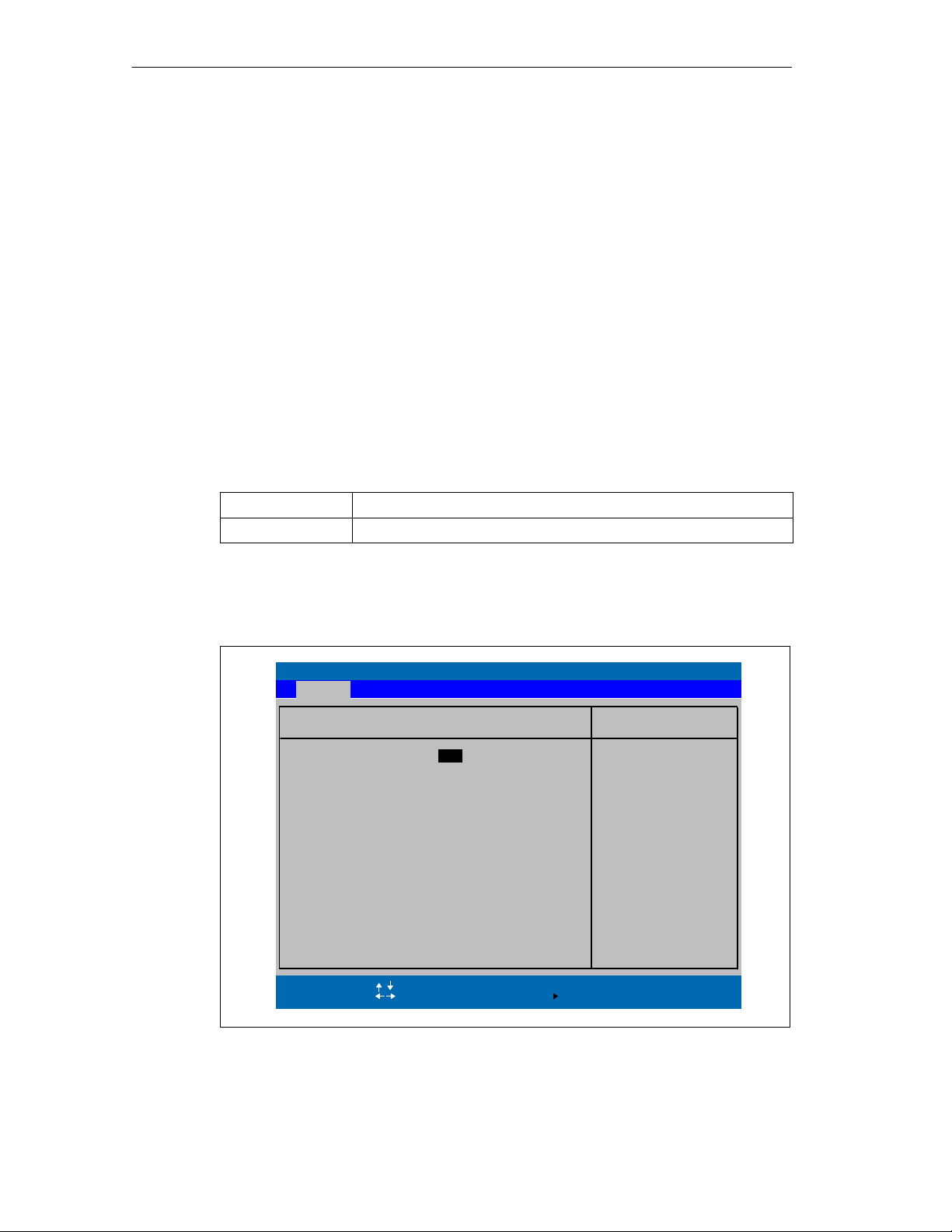

PhoenixBIOS Setup Utility

Main

Primary Master [10056 MB]

Type:

Total Sectors: 19640880
Maximum Capacity: 10056MB

Multi-Sector Transfers: [16 Sectors]
LBA Mode Control: [Enabled]
32 Bit I/O: [Enabled]

Transfer Mode:

Ulta DMA Mode

[ Auto ]

LBA Format

[FPIO 4 / DMA 2]
[Mode 5]

Item Specific Help

User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
hard-disk drive
installed here.
1–39 = you select
pre-determined type of
hard-disk drive
installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.

5-6

Help

F1
ESC Exit

Fig. 5-3 Primary Master

Select Item
Select Menu

+ / –

Enter

Change Values
Select

Sub-MenuF9F10

Setup Defaults
Save and Exit

SIMATIC Field PG P4 Manual

A5E00180080-04

”Type” Field

The parameters you can select here are usually stored on the IDE drive. The ’Auto’
setting in the ’Type’ field means that these values are automatically read from the
drive and written into memory .

If Type is selected for a drive that cannot be detected, a timer times out in
approximately 1 minute and the entries remain unchanged. You should always
check that the interfaces for which you select ’Auto’ are in fact connected to drives.

Select “User” if you want to define the hard-disk type yourself, in which case
remember that you also have to set the other fields, including Cylinder, Heads,
Sectors/Track and WritePrecomp, to the correct values for the type of hard disk in
question.

”Multi-Sector Transfer” Field

The entry in the Multi-Sector Transfer field defines the number of sectors
transferred per interrupt. The value depends on the drive and should be set only by
setting the Type field to Auto.

Configuring the SIMATIC Field PG P4

Disabled

2,4,8,16 sectors

”LBA Mode Control” field

If the LBA Mode Control field (enabled, disabled) is set to ’Enabled’, the system
supports hard disks with capacities greater than 528 Mbytes. The value depends
on the drive and should be set only by setting the Type field to Auto.

”32 Bit I/O” Field

The setting in the 32 Bit I/O field defines the mode of access for the drive

Disabled 16-Bit access

Enabled 32-Bit access (default)

”Transfer Mode” Field / “Ulta DMA Mode” Field

The settings in these fields define the interface’s data-transfer rate. The value
depends on the drive and should be set only by setting the Type field to Auto.

Possible settings for Ultra DMA Mode: Mode 2, Mode 4 oder Mode 5.
The auto function sets this value automatically.

Hit ESC to exit the submenu.

SIMATIC Field PG P4 Manual
A5E00180080-04

5-7

Configuring the SIMATIC Field PG P4

“Memory Cache” Field

The following pop-up menu appears when you select the option “Memory cache” in
the main menu:

Advanced Security Power Boot Version ExitMain

PhoenixBIOS Setup Utility

System Time:
System Date:

Diskette A: [ 1,44MB 3 1/2” ]
Primary Master [10056MB]
Primary Slave [None]

Secondary Master [CD-ROM]
Secondary Slave [None]

Memory Cache:

Boot Options
Keyboard Features
Hardware Options

System Memory:

Extended Memory:

Help

F1
ESC Exit

[ 15:35:32 ]
[ 02/06/2003]

[Write Back]

128511 KB

Select Item

Select Menu

Disabled
Write Through

Write Back

640 KB

+ / –

Enter

Change Values
Select

Item Specific Help

Controls caching of
system conventional
memory and memory
above one megabyte.

Sub-MenuF9F10

Setup Defaults
Save and Exit

Fig. 5-4 “Memory Cache” Menu

A cache is a fast memory buffer between the CPU and main memory (DRAM).
Recurrent memory access operations are executed in the fast cache, instead of
main memory, if the function is enabled. In rare instances involving some hardware
and software combinations, it may be necessary to disable the cache because the
program runtimes or waits are too short on account of the fast cache.

5-8

[Disabled] Cache is disabled
[Write Through] Write access is not concluded until the entry has been made in main

memory

[Write Back] Write access is concluded immediately, the entry in main memory takes

place in the background (default)

SIMATIC Field PG P4 Manual

A5E00180080-04

Option “Boot Options”

The following submenu appears when you select the option “Boot Options” in the
main menu:

Main

Configuring the SIMATIC Field PG P4

PhoenixBIOS Setup Utility

Boot Options

QuickBoot Mode:

SETUP prompt: [Enabled]
POST Errors: [Enabled]

Floppy check:

Summary screen:

Help

F1
ESC Exit

[Enabled]

[Disabled]

[Disabled]

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Sub-MenuF9F10

Item Specific Help

Allows the system to
skip certain tests
while booting. This
will decrease the
time needed to boot
the system.

Setup Defaults
Save and Exit

Fig. 5-5 ”Boot Options” Submenu

Quick Boot

Some hardware tests are skipped to speed up the boot procedure.

Mode
SETUP prompt The message PRESS <F2> to enter Setup appears at the bottom of the

screen during the system run-up phase.

POST Errors The boot process is stopped if an error is detected; you must press F1 to

confirm. Enter “Disabled”to avoid the necessity of acknowledging errors,
for example if no keyboard is connected.

Floppy check The floppy head is stepped inward and then back to its original position

during the system run-up phase. This test is useful because it reinitiali­zes the drive.

Summary
screen

The most important system parameters are displayed when the system
run-up phase completes.

’Enabled’ means that the feature is active. ’Disabled’ means that the feature is
inactive.

SIMATIC Field PG P4 Manual
A5E00180080-04

5-9

Configuring the SIMATIC Field PG P4

Example of a Summary screen:

PhoenixBIOS Setup Utility

CPU Type
CPU Speed

System Memory
Ext.Memory

Cache Ram

Hard Disk 0
Hard Disk 1
Hard Disk 2
Hard Disk 3

Pentium(R) 4 M

:

1.60GHz

:

640 KB

:

128511 KB

:

512 KB

:

10056MB

:

None

:

CD-ROM

:

None

:

System ROM
BIOS Date

COM Ports
LPT Ports
Display Type
PS/2 Mouse

Diskette A

E7A6 – FFFF

:

06/02/03

:

03F8

:

378

:

EGA / VGA

:

Installed

:

1,44 MB 3 1/2”

:

Fig. 5-6 Summary Screen

The Summary screen appears when the system run-up phase completes.

5-10

SIMATIC Field PG P4 Manual

A5E00180080-04

Option “Keyboard Features”

The following submenu appears when you select the “Keyboard Features” field in
the main menu:

Main

Configuring the SIMATIC Field PG P4

PhoenixBIOS Setup Utility

Keyboard Features

NumLock:

Key Click: [Disabled]
Keyboard auto-repeat rate:
Keyboard auto-repeat delay:

Help

F1
ESC Exit

[ Off ]

[30/sec]

[1/2 sec]

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Item Specific Help

Selects Power-On state
for NumLock on next boot

Sub-MenuF9F10

Fig. 5-7 ”Keyboard Features” Submenu

Numlock Switches Numlock on or off following power on
Key Click A keystroke can be heard
Keyboard auto-repeat

Increase of the automatic keyboard rate

rate
Keyboard auto-repeat

On-delay of automatic keyboard repeat

delay

Setup Defaults
Save and Exit

SIMATIC Field PG P4 Manual
A5E00180080-04

5-11

Configuring the SIMATIC Field PG P4

“Hardware Options” Field

The following submenu appears when you select the “Hardware Options” field in
the main menu:

Main

PhoenixBIOS Setup Utility

Hardware Options

PCI – MPI / DP:

Programming interface: [Enabled]
Cardbus / PCMCIA Slot:

Onboard Ethernet
Ethernet Address

LAN Remote Boot:

CRT / LCD selection: [Simultan Auto]
LCD-Screensize:

Frame Buffer Size: [32MB]
Touchpad

Onboard Audio Device

Help

F1
ESC Exit

[ Enabled ]

[Enabled]

[Enabled]

08000624E1CB

[Disabled]

[Expanded]

[Auto Detect]

[Enabled]

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Item Specific Help

Enable or disable the
PCI - Multi Point
Interface (MPI/DP).

Also, this item
Enables / Disables the
SIMATIC programming
interface.

Sub-MenuF9F10

Setup Defaults
Save and Exit

Fig. 5-8 ”Hardware Options” Submenu

The parameters of the interfaces present on the basic module are set here.

Entry Meaning

PCI - MPI / DP Enables the CP5611 compatible MPI/DP interface.
Programming interface Displays enable or disable status of the SIMA TIC Memory Card

Interface. Enable follows the enable of PCI-MPI/DP.

Cardbus / PCMCIA
Slot

[Disabled] Enable Cardbus / PCMCIA-

interface deactivated.

[Enabled] Resources are managed by BIOS PCI

Plug & Play mechanisms.

5-12

SIMATIC Field PG P4 Manual

A5E00180080-04

Configuring the SIMATIC Field PG P4

Entry Meaning

Onboard Ethernet Enable the on-board Ethernet interface. Resources are managed

by the BIOS PCI Plug & Play mechanism.
[Disabled] Ethernet inactive.

Ethernet interface hardware is switched off.
The operating system can not operate the interface

[Enabled] Ethernet active.

Subsequent plugging of the network cable

and its operation possible at any time (Hot-Plug).

If no cable is plugged on system start

the device checks during the boot sequence, for a
time of approx. 30 seconds, and when recovering
from suspend mode, for a time of approx.

40 seconds, for an existing Ethernet connection.

Noticeable delays do not occur as long as an

active network connection does not exist.

LAN Remote Boot [Enabled] [Disabled]

Switch on/off Oprom scan to activate remote
boot via the onboard Ethernet.

CRT / LCD selection [LCD only] All data is output only to the internal

LCD, the 15-way VGA port is disabled

[CRT only] For maximum resolution the display

signals are output only to the 15-way
VGA port; the LCD interface of the VGA
controller is disabled.

[Simultan. Auto] Choose Simultan. Auto if sometimes a CRT is

connected, CRT will only be active if connected.

[Simultan. Forced CRT] Both display interfaces are enabled

and operate simultaneously. Note,
however, that the LCD does not
support all resolutions.

LCD Screensize [Normal] The display window in Text and Graphic

modes is not expanded to full screen size.

[Expanded] The Graphic and Text modes are expanded

to full screen size.

Frame Buffer Size [8Mb] The Frame Buffer Size can be adjusted

[16Mb] to the graphics requirement of your application.
[32Mb]

Touchpad [Enabled] The Touchpad is switched on.

[Disabled] The Touchpad is switched off
[Auto Detect] The Touchpad is automatically detected.

Note: All modifications of this interface are not active

until a restart of the PG.

Onboard Audio Device [Enabled]

[Disabled] Please switch off to make additional resources

available.

SIMATIC Field PG P4 Manual
A5E00180080-04

5-13

Configuring the SIMATIC Field PG P4

5.3 The Advanced Menu

Menu Structure

Advanced

PhoenixBIOS Setup Utility

Security Power Boot Version ExitMain

Installed O/S:

Reset Configuration Data:

Serial port A: [Auto]
S5 TTY port: [Enabled]

Parallel port: [Disabled]

Mode: [Bi-directional]
Base I/O address: [378]

Interrupt: [IRQ 7]

IRQ Resource Exclusion

Local Bus IDE adapter: [Primary & Secondary]
Legacy USB Support: [Disabled]

Help

F1
ESC Exit

Fig. 5-9 ”Advanced” Menu

Settings in the Advanced Menu

Installed O/S Plug & play means that all modules are automatically detected

Item Specific Help

Select the operating
system installed
on your system which
you will use most
commonly.

Note: An incorrect
setting can cause
some operating
systems to display
unexpected behavior.

Sub-MenuF9F10

Setup Defaults
Save and Exit

Select Item
Select Menu

[ WinXP/2000 ]
[ No ]

+ / –

Change Values
Select

Enter

and installed, providing they support the Plug&Play functionality.
[other] BIOS handles the entire Plug&Play capability, default

configuration
[Win95] The operating system handles a part of the Plug& Play

[Win98] functions
[WinXP/2000]

5-14

Reset Configuration
Data

[Yes] All installations under Plug&Play are deleted and

reconfiguration is triggered the next time the system

boots. The entry is then reset to [No]. System

components that do not support Plug&Play have to be

entered manually.
[No] The Plug&Play system components are initialized

after the next system start.

Serial port A Configure Serial Port A with the options:

[Disabled] No configuaration
[Enabled] User configuration
[Auto] BIOS or OS chooses confuguration.

SIMATIC Field PG P4 Manual

A5E00180080-04

S5 TTY port Configure the TTY port with the options:

[Disabled] No configuaration
[Enabled] User configuration
[Auto] BIOS or OS chooses confuguration.

Local Bus IDE adapter [Disabled] No local IDE adapter.

[Primary] One IDE adapter for max. two drives.
[Secondary]
[Primary & Secondary] Two IDE adapters for max. four drives.

Legacy USB Support [Disabled] Disables the support for Legacy USB

[Enabled] Enables support for Legacy USB

The resources used by an interface are released when you disable the interface in
question.

Submenu IRQ Resource Exclusion

The I/O addresses and interrupts are default settings and recommended
respectively.

Configuring the SIMATIC Field PG P4

PhoenixBIOS Setup Utility

Advanced

IRQ Resource Exclusion

IRQ 3:

IRQ 4: [Available]
IRQ 5: [Available]
IRQ 7: [Available]
IRQ 9: [Available]
IRQ 10: [Available]
IRQ 11: [Reserved]

F1
ESC Exit

[ Available ]

Help

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Fig. 5-10 ”IRQ Resource Exclusion” Submenu

IRQ

Available IRQ can be assigned by the BIOS Plug&Play

mechanism to Plug and Play modules or to basic

board functions.
Reserved Must only be set if the respective interrupt is not to

be specifically assigned to a Plug & Play

PCMCIA module.

Item Specific Help

Reserves the specified
IRQ for use by legacy
ISA devices

Sub-MenuF9F10

Setup Defaults
Save and Exit

SIMATIC Field PG P4 Manual
A5E00180080-04

5-15

Configuring the SIMATIC Field PG P4

5.4 The Security Menu

You can only edit the fields enclosed in square brackets. Two passwords are
assigned to protect your programming device from unauthorized use. You can use
the supervisor password to prevent use of diskettes for the normal user and to limit
use of the hard disk.

Advanced Security

PhoenixBIOS Setup Utility

Power Boot Version ExitMain

Supervisor Password is:
User Password is:

Set User Password

Set Supervisor Password

Password on boot: [Disabled]

Fixed disk boot sector: [Normal]
Diskette access: [Supervisor]

Help

F1
ESC Exit

Select Item
Select Menu

+ / –

Enter

Disabled

Disabled

[ Enter ]

[ Enter ]

Change Values
Select

Item Specific Help

Supervisor Password
controls access to the
setup utility

Sub-MenuF9F10

Setup Defaults
Save and Exit

Fig. 5-11 ”Security” Menu

Set Supervisor Pass­word

This field opens the dialog box for entering a password. Once it
has been entered, the supervisor password can be changed or
deleted by pressing ”Return” and thus deactivated.

Set User Password This field opens the dialog box for entering a password. Once it

has been entered correctly, the user password can be changed
or deleted by pressing ”Return” and thus deactivated.

Password on boot [Disabled] No password required for system boot.

[Enabled] Supervisor or user password must be entered for
system boot.

5-16

Fixed disk boot sector Normal All types of hard-disk access are permitted.

protected No operating system can be installed.
This is a way of protecting against boot viruses.

Diskette access This mode of protection is not active unless ”Password on boot ”

is set to [enabled].
Supervisor Diskette access is not possible unless the

supervisor password was entered during
system boot.

User Diskette access is not possible unless the
user password was entered during system boot.

SIMATIC Field PG P4 Manual

A5E00180080-04

5.5 The Power Menu

This menu has the following structure:

Advanced Security Boot Version ExitMain

Power Savings:

Hard Disk Timeout: [Disabled]

Resume On Time [On]
Resume Time: [00.00.00]

Resume On Modem Ring: [Off]

After Power Failure: [Stay Off]
Speed Step Mode [Recommended]

Configuring the SIMATIC Field PG P4

PhoenixBIOS Setup Utility

Power

[Disabled]

Item Specific Help

[Enabled] [Disabled]
Switch on/off Power
Savings to conserves
system power.

Help

F1
ESC Exit

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Sub-MenuF9F10

Setup Defaults
Save and Exit

Fig. 5-12 “Power” Menu

The operating system controls the power management of the Field PG P4 via
ACPI (Advanced Configuration and Power Interface). The BIOS power
management functions can only be used with non-ACPI operating systems.

Power Savings [Disabled] Power management is only controlled via

[Enabled] The power-saving functions are set

Hard Disk Timeout [Disabled] The hard disk does not shut down.

[10, 15, 30, 45] Seconds or
[1, 2, 4, 6, 8, 10, 15] Minutes after the last hard disk access

Resume On Time [On] If this function is enabled the

[Off] ’Off’ means this function is disabled.

Resume Time Time for automatic restart
Resume On Modem

Ring

ACPI.

The next time it is accessed, the hard disk
starts spinning again after a brief delay.

programming device is automatically
switched on at the preset time.

Enabled wakes the system up when an
incoming call is detected on your modem.

SIMATIC Field PG P4 Manual
A5E00180080-04

5-17

Configuring the SIMATIC Field PG P4

After Power Failure [Stay Off] After power failure the device is not switched

[Last State] Provided it was switched on prior to a power

[Power On] Restores the previous power state before

Speed Step Mode Speed Step Mode is required to save energy consumption.

Speed Step switches between two clock rates dependig on the
supply voltage (battery or power supply).

[Battery Optimized] low performance, and thus

[Recommended] The function of the system depends on

or low with performace (battery).

on automatically.

failure, the device is switched on again

loss occured.

less energy consumption and thus
longer battery time

voltage supply
Voltage with high performance (power

supply)

5-18

SIMATIC Field PG P4 Manual

A5E00180080-04

5.6 The Boot Menu

This menu allows you to set the priority of boot devices.

+Removable Devices

+Hard Drive

CD-ROM Drive

Network Boot

Configuring the SIMATIC Field PG P4

PhoenixBIOS Setup Utility

Advanced Security Version ExitMain Power

Boot

Item Specific Help

Keys used to view or
configure devices:
<Enter> expands or
collapses devices with
a + or ­<+> and <-> moves
the device up or down.

Help

F1
ESC Exit

Select Item

Select Menu

+ / -

Enter

Change Values
Select

Sub-MenuF9F10

Setup Defaults
Save and Exit

Fig. 5-13 The ”Boot” Menu

This menu lists the boot devices in groups. The group with the highest priority is at
the top. The procedure for changing the sequence is as follows:

Use the ↑↓ keys to select a group and the + or - keys to move the group to its
new position in the sequence.

Note

During booting the boot drive can be selected with the ESC key. An instructional
text on how to do this is output.

SIMATIC Field PG P4 Manual
A5E00180080-04

5-19

Configuring the SIMATIC Field PG P4

Groups marked + can contain more than one device. When you select a group
marked in this way, hit Enter to view the list of devices in the group. See the figure
below for an illustration:

Advanced Security Version ExitMain Power

–Removable Devices

Floppy Drive

–Hard Drive

FUJITSU MHM2100AT–(PM)

Alternate Device

CD–ROM Drive

Network Boot

PhoenixBIOS Setup Utility

Boot

Item Specific Help

Keys used to view or
configure devices:
<Enter> expands or
collapses devices with
a + or –
<+> and <–> moves
the device up or down.

Help

F1
ESC Exit

Select Item

Select Menu

+ / –

Enter

Change Values
Select

Sub-MenuF9F10

Setup Defaults
Save and Exit

Fig. 5-14 The “Boot” Menu

This screen shows all possible boot devices; within a given group the highest
priority device is always listed first. Here again, you can change the sequence as
described above.

If a boot device is not available, the next device in the sequence is automatically
checked to ascertain whether or not it is bootable.

5-20

SIMATIC Field PG P4 Manual

A5E00180080-04

5.7 The Version Menu

This menu contains the information you will have to quote when you send us
technical questions about your system.

Advanced Security ExitMain Power Boot

SIMATIC PG

Bios Version
Bios Number

PhoenixBIOS Setup Utility

Field PG P4

Vxx.xx.xx
A5E000xxxxx–ESxx

Configuring the SIMATIC Field PG P4

Version

Item Specific Help

None of the items in
this menu can be
modified.

MPI/DP Firmware
ProgAS Firmware
E C Firmware Vxx

CPU Type
CPU ID
Code Revision

Help

F1
ESC Exit

Select Item

Select Menu

Fig. 5-15 The “Version” Menu

Vxx
Vxx

Pentium(R) P4 Mobile
0683
0007

+ / –

Change Values
Select

Enter

Sub-MenuF9F10

Setup Defaults
Save and Exit

SIMATIC Field PG P4 Manual
A5E00180080-04

5-21

Configuring the SIMATIC Field PG P4

5.8 The Exit Menu

The setup program is always terminated using this menu.

Main Power

Save Changes & Exit

Exit Without Saving Changes
Get Default Values
Load Previous Values
Save Changes

Advanced Security

PhoenixBIOS Setup Utility

Boot

Item Specific Help

Exit System Setup and
save your change to
CMOS.

Version

Exit

Help

F1
ESC Exit

Select Item

Select Menu

+ / –

Enter

Change Values
Execute

Command

F9
F10

Setup Defaults
Save and Exit

Fig. 5-16 The “Exit” Menu

Save Changes & Exit All changes are saved; a system restart is carried out with the

new parameters.

Discard Changes & Exit All changes are rejected; a system restart is carried out with

the previous parameters.
Get Default Values All parameters are set to safe values.
Load Previous Values The last saved values are reloaded.
Save Changes Save all Setup settings.

5-22

SIMATIC Field PG P4 Manual

A5E00180080-04

Error Diagnostics

6

What Does This Chapter Contain?

This chapter will help you to locate, identify, and in some cases eliminate simple
errors and faults.

Error/Fault Remedy

Device LED does not light up

• PG is switched off

• Power supply not properly connected

• Battery run down or not installed

External monitor remains dark

• LCD enabled is entered in SETUP • Enter CRT enabled or SIMULTANEOUS in SETUP

Message on the Display :”Invalid configuration information... Press the F1 key for continue, F2 to
run Setup utility”

• Configuration data not correct • Hit the “F2” key, check the configuration data in the

Message on the Display ”No boot device available” NTLDR not found, check boot data carrier

• No bootable disk in drive A:

• Wrong hard disk type entered in SETUP

Message on the Display : ”Keyboard stuck key failure”

• A key became blocked during the self-test of
the keyboard

Every time a key is pressed, a beep is heard and no characters are displayed

• Keyboard buffer overflow

< \ > key does not exist

• Wrong keyboard driver • German keyboard: <ALTGr> <ß>

• Press the Power Button

• Check the power supply, power cable, and power

plug

• Charge or install the battery

SETUP program, if necessary adapt the default
values, check the error messages in the first
SETUP menu

• Replace the disk with a boot disk

• Use the “Autodetect Fixed Disk” function

• Check the keyboard. Restart the system if need be.

• <CTRL> <PAUSE>

• International keyboard : <\> key

SIMATIC Field PG P4 Manual
A5E00180080-04

6-1

Error Diagnostics

6-2

SIMATIC Field PG P4 Manual

A5E00180080-04

Hardware Information

Chapter Overview

Section Description Page

7.1 System resources 7-2

7.2 Interface pinout 7-3

7.3 Cables 7-12

7

SIMATIC Field PG P4 Manual
A5E00180080-04

7-1

Hardware Information

7.1 System Resources

All system resources (hardware address, memory configuration, IRQ,
DMA channel) are assigned dynamically by the Windows OS, depending on the
hardware configuration, drivers and connected peripheral devices. You can view
the current configuration of system resources or possible conflicts with the
following operating systems:

Windows NT 4.0

Start > Programs > Administrative Tools (Common)> Windows NT
Diagnostics

Windows 2000/XP
Start > Run enter msinfo32 in the field Open and confirm with OK

7-2

SIMATIC Field PG P4 Manual

A5E00180080-04

7.2 Interface Pinout

DC-In

Jack for connecting the AC/DC adapter. Potentials:

Hardware Information

+ 17.5 VDC

0 V Ground

USB

Both interfaces are conceived for high-current USB 2.0 (500mA). However, they
cannot be used simultaneously as high-current interface.

4

3
2

1

Pin-No. Designation Description Input / Output

1 VCC +5V (fused) Output
2 - Data Data line Input / Output
3 + Data Data line Input / Output
4 GND Ground -

SIMATIC Field PG P4 Manual
A5E00180080-04

7-3

Hardware Information

VGA

15-pole socket for an external monitor. Pinout:

5

10

1

6

1115

Pin No. Designation Description Input/Output

1 R Red Output
2 G Green Output
3 B Blue Output
4 - Unassigned ­5 GND Ground ­6 GND Ground ­7 GND Ground ­8 GND Ground ­9 - Unassigned ­10 GND Ground ­11 - Unassigned ­12 DDC_DAT Display Data Channel Data Input / Output
13 EXT_H Horizontal synchronizing

Output

pulse
14 EXT_V Vertical synchronizing pulse Output
15 DDC_CLK Display Data Channel Clock Input / Output

7-4

SIMATIC Field PG P4 Manual

A5E00180080-04

MPI/DP

Hardware Information

Pinout of the MPI/DP socket:

5

9

1

6

Pin No. Designation Description Input/Output

1 - Unassigned ­2 - Unassigned ­3 LTG_B Signal line B of MPI module Input/output
4 RTS_AS RTSAS, control signal for received data

Input
stream. The signal is “1” active when the
directly connected programmable controller is
sending.

5 M5EXT M5EXT return line (GND) of the 5 V power

Output
supply. The current load caused by an
external user connected between P5EXT and
M5EXT must not exceed the maximum of
90 mA.

6 P5 EXT P5EXT power supply (+5 V) of the 5 V power

Output
supply. The current load caused by an
external user connected between P5EXT and
M5EXT must not exceed the maximum of
90 mA.

7 - Unassigned ­8 LTG_A Signal line A of the MPI module Input/output
9 RTS_PG RTS output signal of the MPI module. The

Output
control signal is “1” when the programming
device is sending.

Screen on connector casing

SIMATIC Field PG P4 Manual
A5E00180080-04

7-5

Hardware Information

Ethernet

Pinout of the Ethernet interface:

Fig. 7-1 Ethernet port

LED greenLED yellow

1 8

Pin-No.

1 TD+ Transmitted data Output
2 TD– Transmitted data Output
3 RD+ Received data Input
4, 5 * SYMR Internal 75 Ω output ­6 Received data Input
7, 8 * SYMT Internal 75 Ω output ­S Shield -

Designation Description Input / Output

LED yellow Connection ­LED green Activity -

* is not necessary for data transfer

7-6

SIMATIC Field PG P4 Manual

A5E00180080-04

Micro-In

Headphone

Plug for external microphone. Pinout:

NF

3.5-mm Microphone phono plug

Fig. 7-2 Microphone

Plug for external headphones. Pinout:

Left Ritht GND

Mic
Power

Mic­ground

Hardware Information

Fig. 7-3 Headphone

3.5-mm Stereo phono plug

SIMATIC Field PG P4 Manual
A5E00180080-04

7-7

Hardware Information

Interface Cable (I Cable)

Connector assignment on the Field PG P4

Pin No. Designation Description Input /Output

1 / AUTO FEED (LPT) Automatic new line Output (open Collector)
2 / ERROR (LPT) Device error Input (4,7 kW pull up)
3 / INIT (LPT) Reset / Initialization Output (open Collector)
4 / SELECT IN (LPT) Printer selection Output (open Collector)
5 GND1 (LPT) Ground ­6 GND2 (LPT) Ground ­7 GND3 (LPT) Ground ­8 GND4 (LPT) Ground ­9 GND5 (LPT) Ground ­10 GND6 (LPT) Ground ­11 GND7 (LPT) Ground ­12 GND8 (LPT) Ground ­13-17 - Unassigned ­18 GND (S5 AG) Ground ­19 - Unassigned ­20 +TTY RxD (S5 AG) TTY receive Input
21 –TTY RxD (S5 AG) TTY receive Input
22 DCD (COM2) Data carrier detect Input
23 RxD (COM2) Receive data Input
24 TxD (COM2) Transmit data Output
25 DTR (COM2) Data terminal ready Output
26 / Strobe CLK (LPT) Data message Output (open Collector)
27 Data - Bit 0 (LPT) Data line 0 Output (TTL levell)
28 Data - Bit 1 (LPT) Data line 1 Output (TTL levell)
29 Data - Bit 2 (LPT) Data line 2 Output (TTL levell)
30 Data - Bit 3 (LPT) Data line 3 Output (TTL levell)
31 Data - Bit 4 (LPT) Data line 4 Output (TTL levell)
32 Data - Bit 5 (LPT) Data line 5 Output (TTL levell)
33 Data - Bit 6 (LPT) Data line 6 Output (TTL levell)
34 Data - Bit 7 (LPT) Data line 7 Output (TTL levell)
35 /ACK (LPT) Acknoledge Input (4,7 kW pull up)

7-8

SIMATIC Field PG P4 Manual

A5E00180080-04
