Siemens RUGGEDCOM ROX II, RX1500, RX1512, RX1501, RX1510 User Manual

...
Download
Page 1
Preface
RUGGEDCOM ROX II v2.9
CLI User Guide
Introduction
Device Management
System Administration
Setup and Configuration
Troubleshooting
1
2
3
4
5
6
For RX1500, RX1501, RX1510, RX1511, RX1512
01/2016
RC1243-EN-02
Page 2
RUGGEDCOM ROX II
CLI User Guide
Copyright © 2016 Siemens Canada Ltd.
All rights reserved. Dissemination or reproduction of this document, or evaluation and communication of its contents, is not authorized except where expressly permitted. Violations are liable for damages. All rights reserved, particularly for the purposes of patent application or trademark registration.
This document contains proprietary information, which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of Siemens Canada Ltd..
Disclaimer Of Liability
Siemens has verified the contents of this document against the hardware and/or software described. However, deviations between the product and the documentation may exist.
Siemens shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.
The information given in this document is reviewed regularly and any necessary corrections will be included in subsequent editions. We appreciate any suggested improvements. We reserve the right to make technical improvements without notice.
Registered Trademarks
RUGGEDCOM™ and ROS™ are trademarks of Siemens Canada Ltd..
Linux® is the registered trademark of Linus Torvalds in the United States and other countries.
The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a world-wide basis.
Other designations in this manual might be trademarks whose use by third parties for their own purposes would infringe the rights of the owner.
Open Source
RUGGEDCOM ROX II is based on Linux®. Linux® is made available under the terms of the GNU General Public License Version 2.0 [http:// www.gnu.org/licenses/gpl-2.0.html].
RUGGEDCOM ROX II contains additional Open Source Software. For license conditions, refer to the associated License Conditions document.
Security Information
Siemens provides products and solutions with industrial security functions that support the secure operation of plants, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens' products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates.
For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity.
To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://
support.automation.siemens.com.
Warranty
Refer to the License Agreement for the applicable warranty terms and conditions, if any.
For warranty details, visit www.siemens.com/ruggedcom or contact a Siemens customer service representative.
ii
Page 3
RUGGEDCOM ROX II
CLI User Guide
Contacting Siemens
Address
Siemens Canada Ltd. Industry Sector 300 Applewood Crescent Concord, Ontario Canada, L4K 5C7
Telephone
Toll-free: 1 888 264 0006 Tel: +1 905 856 5288 Fax: +1 905 856 1995
E-mail
ruggedcom.info.i-ia@siemens.com
Web
www.siemens.com/ruggedcom
iii
Page 4
RUGGEDCOM ROX II
CLI User Guide
iv
Page 5
RUGGEDCOM ROX II
CLI User Guide

Table of Contents

Table of Contents
Preface ............................................................................................................. xxxv
Conventions ................................................................................................................................... xxxv
Alerts ..................................................................................................................................... xxxv
CLI Command Syntax ............................................................................................................ xxxv
Related Documents ....................................................................................................................... xxxvi
System Requirements .................................................................................................................... xxxvi
Accessing Documentation .............................................................................................................. xxxvi
License Conditions ........................................................................................................................ xxxvii
Training ........................................................................................................................................ xxxvii
Customer Support ......................................................................................................................... xxxvii
Chapter 1
Introduction .......................................................................................................... 1
1.1 Features and Benefits .................................................................................................................. 1
1.2 Feature Keys ............................................................................................................................... 5
1.3 Security Recommendations .......................................................................................................... 6
1.4 Available Services by Port ............................................................................................................ 9
1.5 User Permissions ....................................................................................................................... 10
1.6 Removable Memory ................................................................................................................... 12
Chapter 2
Using RUGGEDCOM ROX II ............................................................................ 15
2.1 Connecting to RUGGEDCOM ROX II .......................................................................................... 15

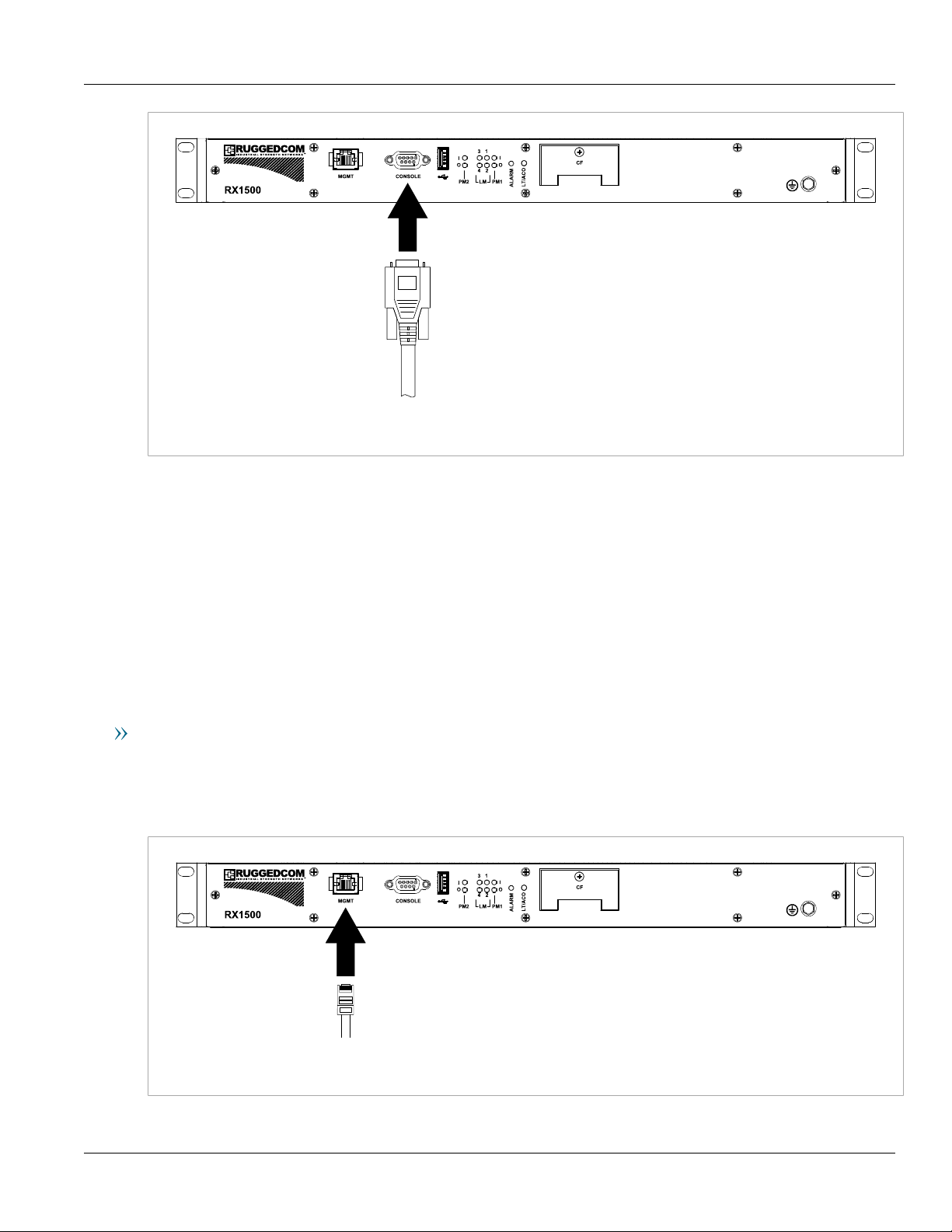

2.1.1 Connecting Directly .......................................................................................................... 15
2.1.2 Connecting Through the Network ..................................................................................... 17
2.2 Default User Names and Passwords ........................................................................................... 17
2.3 Logging In ................................................................................................................................. 18
2.4 Logging Out ............................................................................................................................... 19
2.5 Using Network Utilities ................................................................................................................ 19
2.5.1 Pinging a Host ................................................................................................................ 19
2.5.2 Dumping Raw Data to a Terminal or File ........................................................................... 20
2.5.3 Tracing the Route to a Remote Host ................................................................................ 20
2.5.4 Pinging an IPv4 Address Using MPLS Protocols ............................................................... 20
2.5.5 Tracing the Route of an IPv4 Address Using MPLS Protocols ............................................. 21
2.5.6 Tracing Activities on a Serial Port ..................................................................................... 21
v
Page 6
Table of Contents
2.6 Using the Command Line Interface ............................................................................................. 21
2.7 Configuring the CLI Interface ...................................................................................................... 43
2.8 Accessing Different Modes ......................................................................................................... 43
RUGGEDCOM ROX II
CLI User Guide
2.6.1 Accessing Different CLI Modes ........................................................................................ 21
2.6.2 Using Command Line Completion .................................................................................... 22
2.6.3 Displaying Available Commands ....................................................................................... 22
2.6.4 Editing Commands .......................................................................................................... 23
2.6.5 Using Output Redirects .................................................................................................... 25
2.6.6 Using Regular Expressions .............................................................................................. 28
2.6.7 Using CLI Utilities ............................................................................................................ 29
2.6.8 Specifying a Range ......................................................................................................... 29
2.6.9 Common Commands ....................................................................................................... 30
2.6.9.1 Basic CLI Commands ........................................................................................... 30
2.6.9.2 File Commands .................................................................................................... 32
2.6.9.3 Interface and Services Commands ......................................................................... 36
2.6.9.4 Administration Commands ..................................................................................... 37
2.6.9.5 Configuration Mode General Commands ................................................................ 39
2.8.1 Accessing BIST Mode ..................................................................................................... 44
2.8.2 Accessing Service Mode .................................................................................................. 46
2.8.3 Accessing Maintenance Mode .......................................................................................... 47
Chapter 3
Device Management .......................................................................................... 49
3.1 Determining the Product Version ................................................................................................. 50
3.2 Viewing Chassis Information and Status ...................................................................................... 50
3.2.1 Viewing the Slot Hardware ............................................................................................... 51
3.2.2 Viewing Module Information ............................................................................................. 51
3.2.3 Viewing Flash Card Storage Utilization ............................................................................. 52
3.2.4 Viewing CPU/RAM Utilization ........................................................................................... 53
3.2.5 Viewing the Slot Status .................................................................................................... 53
3.2.6 Viewing the Slot Sensor Status ........................................................................................ 54
3.2.7 Viewing the Power Controller Status ................................................................................. 55
3.3 Viewing the Parts List ................................................................................................................. 56
3.4 Shutting Down the Device .......................................................................................................... 56
3.5 Rebooting the Device ................................................................................................................. 57
3.6 Restoring Factory Defaults .......................................................................................................... 57
3.7 Decommissioning the Device ...................................................................................................... 57
3.8 Managing Files .......................................................................................................................... 58
3.8.1 Installing Files ................................................................................................................. 58
3.8.2 Backing Up Files ............................................................................................................. 58
3.9 Managing Logs .......................................................................................................................... 59
vi
Page 7
RUGGEDCOM ROX II
CLI User Guide
3.10 Managing the Software Configuration ........................................................................................ 71
3.11 Upgrading/Downgrading the RUGGEDCOM ROX II Software ...................................................... 72
3.12 Managing RUGGEDCOM ROX II Applications ........................................................................... 78
Table of Contents
3.9.1 Viewing Logs ................................................................................................................... 60
3.9.2 Deleting Logs .................................................................................................................. 61
3.9.3 Configuring a Source IP Address for Remote Syslog Messages .......................................... 61
3.9.4 Managing Diagnostic Logs ............................................................................................... 61
3.9.4.1 Enabling/Disabling the Developer's Log .................................................................. 62
3.9.4.2 Enabling/Disabling the SNMP Log ......................................................................... 62
3.9.4.3 Enabling/Disabling the NETCONF Summary Log .................................................... 63
3.9.4.4 Enabling/Disabling the NETCONF Trace Log .......................................................... 63
3.9.4.5 Enabling/Disabling the XPATH Trace Log ............................................................... 64
3.9.4.6 Enabling/Disabling the WebUI Trace Log ................................................................ 64
3.9.5 Configuring Secure Remote Syslog .................................................................................. 65
3.9.5.1 Enabling/Disabling Secure Remote Syslog ............................................................. 65
3.9.5.2 Viewing a List of Permitted Peers .......................................................................... 66
3.9.5.3 Adding a Permitted Peer ....................................................................................... 66
3.9.5.4 Deleting a Permitted Peer ..................................................................................... 66
3.9.6 Managing Remote Syslog Servers .................................................................................... 67
3.9.6.1 Viewing a List of Remote Servers .......................................................................... 67
3.9.6.2 Adding a Remote Server ....................................................................................... 67
3.9.6.3 Deleting a Remote Server ..................................................................................... 68
3.9.7 Managing Remote Server Selectors .................................................................................. 68
3.9.7.1 Viewing a List of Remote Server Selectors ............................................................. 69
3.9.7.2 Adding a Remote Server Selector .......................................................................... 69
3.9.7.3 Deleting a Remote Server Selector ........................................................................ 70
3.10.1 Saving the Configuration ................................................................................................ 71
3.10.2 Loading a Configuration ................................................................................................. 71
3.11.1 Configuring the Upgrade Source ..................................................................................... 72
3.11.2 Setting Up an Upgrade Server ........................................................................................ 73
3.11.2.1 Configuring the Upgrade Server ........................................................................... 73
3.11.2.2 Adding Software Releases to the Upgrade Server ................................................. 74
3.11.3 Upgrading the RUGGEDCOM ROX II Software ................................................................ 74
3.11.4 Stopping/Declining a Software Upgrade ........................................................................... 76
3.11.5 Downgrading the RUGGEDCOM ROX II Software ........................................................... 76
3.11.5.1 Rolling Back a Software Upgrade ......................................................................... 76
3.11.5.2 Downgrading Using ROXflash .............................................................................. 77
3.12.1 Viewing a List of Installed Applications ............................................................................ 78
3.12.2 Installing an Application ................................................................................................. 79
3.12.3 Upgrading an Application ............................................................................................... 79
vii
Page 8
Table of Contents
3.13 Managing Feature Keys ............................................................................................................ 81
3.14 Managing Fixed Modules .......................................................................................................... 84
3.15 Managing Line Modules ............................................................................................................ 85
3.16 Managing Event Trackers ......................................................................................................... 88
3.17 Managing Switched Ethernet Ports ............................................................................................ 91
3.18 Managing Routable Ethernet Ports .......................................................................................... 104
3.19 Managing Serial Ports ............................................................................................................ 106
RUGGEDCOM ROX II
CLI User Guide
3.12.4 Uninstalling an Application ............................................................................................. 79
3.12.5 Managing Application Repositories ................................................................................. 80
3.12.5.1 Viewing a List of Repositories .............................................................................. 80
3.12.5.2 Checking the Repository Connection .................................................................... 80
3.12.5.3 Adding a Repository ............................................................................................ 81
3.12.5.4 Deleting a Repository .......................................................................................... 81
3.13.1 Viewing the Contents of a Feature Key ........................................................................... 82
3.13.2 Installing Feature Keys ................................................................................................... 83
3.14.1 Viewing a List of Fixed Module Configurations ................................................................. 84
3.14.2 Adding a Fixed Module Configuration .............................................................................. 85
3.14.3 Deleting a Fixed Module Configuration ............................................................................ 85
3.15.1 Removing a Line Module ............................................................................................... 86
3.15.2 Installing a New Line Module ......................................................................................... 86
3.15.3 Viewing a List of Line Module Configurations ................................................................... 86
3.15.4 Configuring a Line Module ............................................................................................. 87
3.15.5 Enabling/Disabling Controlled Bypass for M12 Line Modules ............................................ 87
3.16.1 Viewing a List of Event Trackers .................................................................................... 89
3.16.2 Viewing Event Tracker Statistics ..................................................................................... 89
3.16.3 Adding an Event Tracker ................................................................................................ 90
3.16.4 Deleting an Event Tracker .............................................................................................. 91
3.17.1 Viewing a List of Switched Ethernet Ports ....................................................................... 91
3.17.2 Configuring a Switched Ethernet Port .............................................................................. 92
3.17.3 Configuring Port Security ............................................................................................... 96
3.17.4 Viewing Switched Ethernet Port Statistics ........................................................................ 98
3.17.5 Viewing RMON Port Statistics ........................................................................................ 99
3.17.6 Clearing Switched Ethernet Port Statistics ..................................................................... 101
3.17.7 Resetting a Switched Ethernet Port ............................................................................... 102
3.17.8 Testing Switched Ethernet Port Cables .......................................................................... 102
3.17.8.1 Running a Cable Diagnostic Test ....................................................................... 102
3.17.8.2 Viewing Cable Diagnostic Statistics .................................................................... 103
3.17.8.3 Clearing Cable Diagnostic Statistics ................................................................... 104
3.18.1 Viewing a List of Routable Ethernet Ports ...................................................................... 104
3.18.2 Configuring a Routable Ethernet Port ............................................................................ 105
viii
Page 9
RUGGEDCOM ROX II
CLI User Guide
3.20 Managing Serial Port Protocols ............................................................................................... 111
3.21 Managing Ethernet Trunk Interfaces ........................................................................................ 121
3.22 Managing Cellular Modem Interfaces ....................................................................................... 125
Table of Contents
3.19.1 Viewing a List of Serial Ports ........................................................................................ 107
3.19.2 Viewing Serial Port Statistics ........................................................................................ 107
3.19.3 Viewing Transport Connection Statistics ........................................................................ 108
3.19.4 Viewing DNP Device Table Statistics ............................................................................. 108
3.19.5 Clearing Serial Port Statistics ....................................................................................... 109
3.19.6 Configuring a Serial Port .............................................................................................. 109
3.19.7 Restarting the Serial Server .......................................................................................... 110
3.19.8 Resetting a Serial Port ................................................................................................. 110
3.20.1 Serial Port Protocol Concepts ....................................................................................... 111
3.20.1.1 Raw Socket Applications ................................................................................... 111
3.20.1.2 Modbus TCP Applications .................................................................................. 112
3.20.1.3 DNP Applications .............................................................................................. 113
3.20.1.4 Incoming/Outgoing Serial Connections ................................................................ 114
3.20.2 Viewing a List of Serial Port Protocols ........................................................................... 114
3.20.3 Adding a Serial Port Protocol ....................................................................................... 115
3.20.4 Configuring the DNP Protocol ....................................................................................... 115
3.20.5 Configuring the Modbus TCP Protocol .......................................................................... 116
3.20.6 Configuring the Raw Socket Protocol ............................................................................ 116
3.20.7 Deleting a Serial Port Protocol ...................................................................................... 118
3.20.8 Managing Device Address Tables ................................................................................. 118
3.20.8.1 Viewing a List of Device Address Tables ............................................................. 118
3.20.8.2 Adding a Device Address Table ......................................................................... 119
3.20.8.3 Deleting a Device Address Table ........................................................................ 119
3.20.9 Managing Remote Hosts .............................................................................................. 120
3.20.9.1 Viewing a List of Remote Hosts ......................................................................... 120
3.20.9.2 Adding a Remote Host ...................................................................................... 120
3.20.9.3 Deleting a Remote Host .................................................................................... 121
3.21.1 Viewing a List of Ethernet Trunk Interfaces .................................................................... 121
3.21.2 Adding an Ethernet Trunk Interface ............................................................................... 122
3.21.3 Deleting an Ethernet Trunk Interface ............................................................................. 124
3.21.4 Managing Ethernet Trunk Ports .................................................................................... 124
3.21.4.1 Viewing a List of Ethernet Trunk Ports ................................................................ 124
3.21.4.2 Adding an Ethernet Trunk Port ........................................................................... 125
3.21.4.3 Deleting an Ethernet Trunk Port ......................................................................... 125
3.22.1 Viewing a List of Cellular Modem Interfaces .................................................................. 126
3.22.2 Viewing the Status of a Cellular Modem Interface .......................................................... 126
3.22.3 Viewing PPP Interface Statistics ................................................................................... 127
ix
Page 10
Table of Contents
3.23 Managing WAN Interfaces ....................................................................................................... 133
3.24 Managing Virtual Switches ...................................................................................................... 145
RUGGEDCOM ROX II
CLI User Guide
3.22.4 Viewing the HSPA Network Status for Cellular Modems .................................................. 127
3.22.5 Viewing the CDMA Network Status for Cellular Modems ................................................. 128
3.22.6 Configuring a Cellular Modem Interface ......................................................................... 129
3.22.7 Activating a Cellular Modem Account ............................................................................ 130
3.22.7.1 Activating a Cellular Modem Account Over-the-Air ............................................... 130
3.22.7.2 Activating a Cellular Modem Account Manually ................................................... 131
3.22.8 Resetting the Cellular Modem ....................................................................................... 131
3.22.9 Running AT Commands ............................................................................................... 132
3.22.10 Connecting as a PPP Client ....................................................................................... 132
3.23.1 Viewing a List of WAN Interfaces .................................................................................. 133
3.23.2 Configuring a WAN Interface ........................................................................................ 133
3.23.3 Viewing WAN Statistics ................................................................................................ 134
3.23.4 Clearing WAN Statistics ............................................................................................... 135
3.23.5 Performing a Loopback Test ......................................................................................... 136
3.23.6 Configuring a T1 Line .................................................................................................. 136
3.23.7 Configuring an E1 Line ................................................................................................ 137
3.23.8 Configuring DDS .......................................................................................................... 138
3.23.9 Managing Channels ..................................................................................................... 138
3.23.9.1 Viewing a List of Channels ................................................................................ 138
3.23.9.2 Adding a Channel ............................................................................................. 139
3.23.9.3 Deleting Channels ............................................................................................. 140
3.23.10 Configuring an HDLC-ETH Connection ........................................................................ 140
3.23.11 Configuring a Multi Link PPP Connection ..................................................................... 141
3.23.12 Configuring a PPP Connection .................................................................................... 141
3.23.13 Configuring a Frame Relay Connection ....................................................................... 142
3.23.14 Managing Data Links for Frame Relay Connections ..................................................... 143
3.23.14.1 Viewing a List of Data Links ............................................................................. 143
3.23.14.2 Adding a Data Link .......................................................................................... 144
3.23.14.3 Deleting a Data Link ........................................................................................ 144
3.24.1 Viewing a List of Virtual Switches ................................................................................. 146
3.24.2 Adding a Virtual Switch ................................................................................................ 146
3.24.3 Deleting a Virtual Switch .............................................................................................. 147
3.24.4 Managing Virtual Switch Interfaces ............................................................................... 147
3.24.4.1 Viewing a List of Virtual Switch Interfaces ........................................................... 148
3.24.4.2 Adding a Virtual Switch Interface ........................................................................ 148
3.24.4.3 Deleting a Virtual Switch Interface ...................................................................... 149
3.24.5 Filtering Virtual Switch Traffic ........................................................................................ 149
3.24.5.1 Enabling/Disabling Virtual Switch Filtering ........................................................... 149
x
Page 11
RUGGEDCOM ROX II
CLI User Guide
3.25 Managing a Domain Name System (DNS) ............................................................................... 155
Table of Contents
3.24.5.2 Viewing a List of Virtual Switch Filters ................................................................ 150
3.24.5.3 Adding a Virtual Switch Filter ............................................................................. 150
3.24.5.4 Deleting a Virtual Switch Filter ........................................................................... 151
3.24.6 Managing Filtering Rules .............................................................................................. 151
3.24.6.1 Viewing a List of Rules ...................................................................................... 151
3.24.6.2 Viewing a List of Rules Assigned to a Virtual Switch Filter .................................... 152
3.24.6.3 Adding a Rule ................................................................................................... 152
3.24.6.4 Adding a Rule to a Virtual Switch Filter ............................................................... 153
3.24.6.5 Deleting a Rule ................................................................................................. 153
3.24.6.6 Deleting a Rule from a Virtual Switch Filter ......................................................... 154
3.24.7 Managing In/Out Interfaces ........................................................................................... 154
3.24.7.1 Viewing a List of In/Out Interfaces ...................................................................... 154
3.24.7.2 Adding In/Out Interfaces .................................................................................... 155
3.24.7.3 Deleting an In/Out Interface ............................................................................... 155
3.25.1 Managing Domain Names ............................................................................................ 156
3.25.1.1 Viewing a List of Domain Names ....................................................................... 156
3.25.1.2 Adding a Domain Name .................................................................................... 156
3.25.1.3 Deleting a Domain Name .................................................................................. 156
3.25.2 Managing Domain Name Servers ................................................................................. 157
3.25.2.1 Viewing a List of Domain Name Servers ............................................................. 157
3.25.2.2 Adding a Domain Name Server .......................................................................... 157
3.25.2.3 Deleting a Domain Name Server ........................................................................ 158
Chapter 4
System Administration ...................................................................................... 159
4.1 Configuring the System Name and Location ............................................................................... 159
4.2 Configuring the Hostname ........................................................................................................ 160
4.3 Customizing the Welcome Screen ............................................................................................. 160
4.4 Setting the User Authentication Mode ........................................................................................ 160
4.5 Setting the Maximum Number of Sessions ................................................................................. 161
4.6 Managing Alarms ..................................................................................................................... 161
4.6.1 Pre-Configured Alarms ................................................................................................... 162
4.6.2 Viewing a List of Active Alarms ...................................................................................... 162
4.6.3 Clearing and Acknowledging Alarms ............................................................................... 163
4.6.3.1 Clearing Alarms .................................................................................................. 163
4.6.3.2 Acknowledging Alarms ........................................................................................ 164
4.6.4 Configuring an Alarm ..................................................................................................... 164
4.7 Managing Certificates and Keys ................................................................................................ 165
4.7.1 Managing CA Certificates and CRLs ............................................................................... 165
4.7.1.1 Viewing a List of CA Certificates and CRLs .......................................................... 166
xi
Page 12
Table of Contents
4.8 Managing RADIUS Authentication ............................................................................................. 175
4.9 Managing Users ....................................................................................................................... 178
4.10 Managing Passwords and Passphrases ................................................................................... 181
4.11 Scheduling Jobs ..................................................................................................................... 188
RUGGEDCOM ROX II
CLI User Guide
4.7.1.2 Viewing the Status of a CA Certificate and CRL .................................................... 166
4.7.1.3 Adding a CA Certificate and CRL ......................................................................... 167
4.7.1.4 Deleting a CA Certificate and CRL ....................................................................... 168
4.7.2 Managing Private Keys .................................................................................................. 168
4.7.2.1 Viewing a List of Private Keys ............................................................................. 169
4.7.2.2 Adding a Private Key .......................................................................................... 169
4.7.2.3 Deleting a Private Key ........................................................................................ 170
4.7.3 Managing Public Keys ................................................................................................... 170
4.7.3.1 Viewing a List of Public Keys ............................................................................... 170
4.7.3.2 Adding a Public Key ............................................................................................ 171
4.7.3.3 Adding an IPSec-Formatted Public Key ................................................................ 171
4.7.3.4 Deleting a Public Key .......................................................................................... 172
4.7.4 Managing Certificates .................................................................................................... 172
4.7.4.1 Viewing a List of Certificates ................................................................................ 173
4.7.4.2 Viewing the Status of a Certificate ....................................................................... 173
4.7.4.3 Adding a Certificate ............................................................................................. 173
4.7.4.4 Deleting a Certificate ........................................................................................... 174
4.8.1 Configuring RADIUS Authentication for LOGIN Services .................................................. 176
4.8.2 Configuring RADIUS Authentication for PPP Services ...................................................... 177
4.8.3 Configuring RADIUS Authentication for Switched Ethernet Ports ....................................... 177
4.9.1 Viewing a List of Users .................................................................................................. 179
4.9.2 Adding a User ............................................................................................................... 179
4.9.3 Deleting a User ............................................................................................................. 179
4.9.4 Monitoring Users ........................................................................................................... 180
4.9.4.1 Kicking Users from the Network ........................................................................... 180
4.9.4.2 Sending Messages to Users ................................................................................ 180
4.10.1 Configuring Password/Passphrase Complexity Rules ..................................................... 181
4.10.2 Setting a User Password/Passphrase ............................................................................ 182
4.10.3 Setting the Boot Password/Passphrase ......................................................................... 183
4.10.4 Setting the Maintenance Password/Passphrase ............................................................. 184
4.10.5 Resetting the Admin Password/Passphrase ................................................................... 185
4.10.6 Resetting the Boot Password/Passphrase ..................................................................... 186
4.10.7 Resetting the Maintenance Password/Passphrase ......................................................... 186
4.11.1 Viewing a List of Scheduled Jobs .................................................................................. 188
4.11.2 Adding Scheduled Jobs ................................................................................................ 188
4.11.3 Deleting a Scheduled Job ............................................................................................. 190
xii
Page 13
RUGGEDCOM ROX II
CLI User Guide
Chapter 5
Table of Contents
Setup and Configuration .................................................................................. 191
5.1 Configuring a Basic Network ..................................................................................................... 192
5.1.1 Configuring a Basic IPv4 Network ................................................................................... 192
5.1.2 Configuring a Basic IPv6 Network ................................................................................... 193
5.2 Configuring ICMP Control ......................................................................................................... 193
5.3 Enabling and Configuring CLI Sessions ..................................................................................... 194
5.4 Enabling and Configuring SFTP Sessions .................................................................................. 195
5.5 Enabling and Configuring WWW Interface Sessions ................................................................... 195
5.6 Enabling/Disabling Brute Force Attack Protection ....................................................................... 196
5.7 Viewing the Status of IPv4 Routes ............................................................................................ 198
5.8 Viewing the Status of IPv6 Routes ............................................................................................ 198
5.9 Viewing the Memory Statistics ................................................................................................... 199
5.10 Managing NETCONF .............................................................................................................. 200
5.10.1 Enabling and Configuring NETCONF Sessions .............................................................. 200
5.10.2 Viewing NETCONF Statistics ........................................................................................ 202
5.11 Managing SNMP .................................................................................................................... 202
5.11.1 MIB Files and SNMP Traps .......................................................................................... 203
5.11.2 Enabling and Configuring SNMP Sessions ..................................................................... 205
5.11.3 Viewing Statistics for SNMP ......................................................................................... 206
5.11.4 Discovering SNMP Engine IDs ...................................................................................... 207
5.11.5 Managing SNMP Communities ..................................................................................... 207
5.11.5.1 Viewing a List of SNMP Communities ................................................................. 207
5.11.5.2 Adding an SNMP Community ............................................................................. 208
5.11.5.3 Deleting an SNMP Community ........................................................................... 208
5.11.6 Managing SNMP Target Addresses ............................................................................... 208
5.11.6.1 Viewing a List of SNMP Target Addresses .......................................................... 209
5.11.6.2 Adding an SNMP Target Address ....................................................................... 209
5.11.6.3 Deleting an SNMP Target Address ..................................................................... 210
5.11.7 Managing SNMP Users ................................................................................................ 210
5.11.7.1 Viewing a List of SNMP Users ........................................................................... 211
5.11.7.2 Adding an SNMP User ...................................................................................... 211
5.11.7.3 Deleting an SNMP User ..................................................................................... 212
5.11.8 Managing SNMP Security Model Mapping ..................................................................... 212
5.11.8.1 Viewing a List of SNMP Security Models ............................................................. 212
5.11.8.2 Adding an SNMP Security Model ....................................................................... 213
5.11.8.3 Deleting an SNMP Security Model ...................................................................... 213
5.11.9 Managing SNMP Group Access .................................................................................... 214
5.11.9.1 Viewing a List of SNMP Groups ......................................................................... 214
5.11.9.2 Adding an SNMP Group .................................................................................... 214
xiii
Page 14
Table of Contents
5.12 Managing Time Synchronization Functions ............................................................................... 216
5.13 Managing Cellular Modem Profiles .......................................................................................... 229
5.14 Managing the DHCP Relay Agent ........................................................................................... 234
RUGGEDCOM ROX II
CLI User Guide
5.11.9.3 Deleting an SNMP Group .................................................................................. 215
5.12.1 Configuring the Time Synchronization Settings .............................................................. 217
5.12.2 Configuring the System Time and Date ......................................................................... 217
5.12.3 Configuring the System Time Zone ............................................................................... 218
5.12.4 Configuring the Local Time Settings .............................................................................. 218
5.12.5 Configuring NTP Multicast Clients ................................................................................. 218
5.12.6 Configuring NTP Broadcast Clients ............................................................................... 219
5.12.7 Enabling/Disabling the NTP Service .............................................................................. 219
5.12.8 Viewing the NTP Service Status ................................................................................... 220
5.12.9 Viewing the Status of Reference Clocks ........................................................................ 220
5.12.10 Monitoring Subscribers ............................................................................................... 221
5.12.11 Managing NTP Servers .............................................................................................. 222
5.12.11.1 Viewing a List of NTP Servers .......................................................................... 223
5.12.11.2 Adding an NTP Server ..................................................................................... 223
5.12.11.3 Deleting an NTP Server ................................................................................... 224
5.12.12 Managing NTP Broadcast/Multicast Addresses ............................................................ 224
5.12.12.1 Viewing a List of Broadcast/Multicast Addresses ................................................ 224
5.12.12.2 Adding a Broadcast/Multicast Address .............................................................. 225
5.12.12.3 Deleting a Broadcast/Multicast Address ............................................................ 226
5.12.13 Managing Server Keys ............................................................................................... 226
5.12.13.1 Viewing a List of Server Keys .......................................................................... 226
5.12.13.2 Adding a Server Key ....................................................................................... 227
5.12.13.3 Deleting a Server Key ..................................................................................... 227
5.12.14 Managing Server Restrictions ..................................................................................... 227
5.12.14.1 Viewing a List of Server Restrictions ................................................................. 228
5.12.14.2 Adding a Server Restriction ............................................................................. 228
5.12.14.3 Deleting a Server Restriction ............................................................................ 229
5.13.1 Managing CDMA Profiles ............................................................................................. 229
5.13.1.1 Viewing a List of CDMA Profiles ......................................................................... 230
5.13.1.2 Adding a CDMA Profile ..................................................................................... 230
5.13.1.3 Deleting a CDMA Profile .................................................................................... 231
5.13.2 Managing GSM Profiles ............................................................................................... 232
5.13.2.1 Viewing a List of GSM Profiles ........................................................................... 232
5.13.2.2 Adding a GSM Profile ........................................................................................ 232
5.13.2.3 Deleting a GSM Profile ...................................................................................... 234
5.14.1 Configuring the DHCP Relay Agent .............................................................................. 235
5.14.2 Viewing a List of DHCP Client Ports ............................................................................. 235
xiv
Page 15
RUGGEDCOM ROX II
CLI User Guide
5.15 Managing the DHCP Server .................................................................................................... 236
Table of Contents
5.14.3 Adding DHCP Client Ports ............................................................................................ 236
5.14.4 Deleting a DHCP Client Port ........................................................................................ 236
5.15.1 Configuring the DHCP Server ....................................................................................... 237
5.15.2 Enabling/Disabling the DHCP Server ............................................................................ 237
5.15.3 Enabling/Disabling the DHCP Relay Support ................................................................. 238
5.15.4 Viewing a List of Active Leases .................................................................................... 238
5.15.5 Managing DHCP Listen Interfaces ................................................................................ 239
5.15.5.1 Viewing a List of DHCP Listen Interfaces ............................................................ 239
5.15.5.2 Adding a DHCP Listen Interface ......................................................................... 239
5.15.5.3 Deleting a DHCP Listen Interface ....................................................................... 240
5.15.6 Managing Shared Networks .......................................................................................... 240
5.15.6.1 Viewing a List of Shared Networks ..................................................................... 240
5.15.6.2 Adding a Shared Network .................................................................................. 241
5.15.6.3 Configuring Shared Network Options .................................................................. 241
5.15.6.4 Configuring a Shared Network Client .................................................................. 242
5.15.6.5 Customizing Shared Network Clients .................................................................. 243
5.15.6.6 Deleting a Shared Network ................................................................................ 243
5.15.7 Managing Subnets ....................................................................................................... 244
5.15.7.1 Viewing a List of Subnets .................................................................................. 244
5.15.7.2 Adding a Subnet ............................................................................................... 244
5.15.7.3 Configuring Subnet Options ............................................................................... 245
5.15.7.4 Configuring a Subnet Client ............................................................................... 246
5.15.7.5 Deleting a Subnet ............................................................................................. 247
5.15.8 Managing Custom Client Options for Subnets ................................................................ 247
5.15.8.1 Viewing a List of Custom Client Options ............................................................. 247
5.15.8.2 Adding a Custom Client Option .......................................................................... 248
5.15.8.3 Deleting a Custom Client Option ........................................................................ 248
5.15.9 Managing Hosts ........................................................................................................... 249
5.15.9.1 Viewing a List of Hosts ...................................................................................... 249
5.15.9.2 Adding a Host ................................................................................................... 249
5.15.9.3 Configuring Host Options ................................................................................... 250
5.15.9.4 Configuring a Host Client ................................................................................... 250
5.15.9.5 Deleting Hosts .................................................................................................. 251
5.15.10 Managing Custom Host Client Configurations .............................................................. 252
5.15.10.1 Viewing a List of Custom Host Client Configurations .......................................... 252
5.15.10.2 Adding Custom Host Client Configurations ........................................................ 252
5.15.10.3 Deleting Custom Host Client Configurations ...................................................... 253
5.15.11 Managing Host Groups ............................................................................................... 253
5.15.11.1 Viewing a List of Host Groups .......................................................................... 253
xv
Page 16
Table of Contents
5.16 Managing Port Mirroring .......................................................................................................... 264
5.17 Managing Firewalls ................................................................................................................. 268
RUGGEDCOM ROX II
CLI User Guide
5.15.11.2 Adding a Host Group ....................................................................................... 254
5.15.11.3 Configuring Host Group Options ....................................................................... 254
5.15.11.4 Configuring a Host Group Client ....................................................................... 255
5.15.11.5 Deleting a Host Group ..................................................................................... 256
5.15.12 Managing Custom Host Group Client Configurations .................................................... 256
5.15.12.1 Viewing a List of Custom Host Group Client Configurations ................................ 256
5.15.12.2 Adding Custom Host Group Client Configurations .............................................. 257
5.15.12.3 Deleting Custom Host Group Client Configurations ............................................ 257
5.15.13 Managing IP Pools ..................................................................................................... 258
5.15.13.1 Viewing a List of IP Pools ................................................................................ 258
5.15.13.2 Adding an IP Pool ........................................................................................... 258
5.15.13.3 Deleting an IP Pool ......................................................................................... 259
5.15.14 Managing IP Ranges for Subnets ............................................................................... 260
5.15.14.1 Viewing a List of IP Ranges for Subnets ........................................................... 260
5.15.14.2 Adding an IP Range to a DHCP Subnet ............................................................ 260
5.15.14.3 Deleting an IP Range From a Subnet ............................................................... 261
5.15.15 Managing IP Ranges for IP Pools ............................................................................... 261
5.15.15.1 Viewing a List of IP Ranges for IP Pools ........................................................... 261
5.15.15.2 Adding an IP Range to an IP Pool .................................................................... 262
5.15.15.3 Deleting an IP Range From an IP Pool ............................................................. 262
5.15.16 Managing Option 82 Classes for IP Pools .................................................................... 262
5.15.16.1 Viewing a List of Option 82 Classes for IP Pools ............................................... 263
5.15.16.2 Adding an Option 82 Class to an IP Pool .......................................................... 263
5.15.16.3 Deleting an Option 82 Class From an IP Pool ................................................... 264
5.16.1 Configuring Port Mirroring ............................................................................................. 265
5.16.2 Managing Egress Source Ports .................................................................................... 265
5.16.2.1 Viewing a List of Egress Source Ports ................................................................ 265
5.16.2.2 Adding an Egress Source Port ........................................................................... 266
5.16.2.3 Deleting an Egress Source Port ......................................................................... 266
5.16.3 Managing Ingress Source Ports .................................................................................... 266
5.16.3.1 Viewing a List of Ingress Source Ports ............................................................... 267
5.16.3.2 Adding an Ingress Source Port .......................................................................... 267
5.16.3.3 Deleting an Ingress Source Port ......................................................................... 267
5.17.1 Firewall Concepts ........................................................................................................ 269
5.17.1.1 Stateless vs. Stateful Firewalls ........................................................................... 269
5.17.1.2 Linux netfilter .................................................................................................... 269
5.17.1.3 Network Address Translation ............................................................................. 269
5.17.1.4 Port Forwarding ................................................................................................ 270
xvi
Page 17
RUGGEDCOM ROX II
CLI User Guide
Table of Contents
5.17.1.5 Protecting Against a SYN Flood Attack ............................................................... 270
5.17.2 Viewing a List of Firewalls ............................................................................................ 271
5.17.3 Adding a Firewall ......................................................................................................... 271
5.17.4 Deleting a Firewall ....................................................................................................... 272
5.17.5 Working with Multiple Firewall Configurations ................................................................. 272
5.17.6 Configuring the Firewall for a VPN ................................................................................ 273
5.17.7 Configuring the Firewall for a VPN in a DMZ ................................................................. 274
5.17.8 Managing Zones .......................................................................................................... 275
5.17.8.1 Viewing a List of Zones ..................................................................................... 275
5.17.8.2 Adding a Zone .................................................................................................. 276
5.17.8.3 Deleting a Zone ................................................................................................ 277
5.17.9 Managing Interfaces ..................................................................................................... 277
5.17.9.1 Viewing a List of Interfaces ................................................................................ 278
5.17.9.2 Adding an Interface ........................................................................................... 278
5.17.9.3 Associating an Interface with a Zone .................................................................. 279
5.17.9.4 Configuring a Broadcast Address ....................................................................... 280
5.17.9.5 Deleting an Interface ......................................................................................... 280
5.17.10 Managing Hosts ......................................................................................................... 281
5.17.10.1 Viewing a List of Hosts .................................................................................... 281
5.17.10.2 Adding a Host ................................................................................................. 281
5.17.10.3 Deleting a Host ............................................................................................... 282
5.17.11 Managing Policies ...................................................................................................... 283
5.17.11.1 Viewing a List of Policies ................................................................................. 283
5.17.11.2 Adding a Policy ............................................................................................... 284
5.17.11.3 Configuring the Source Zone ............................................................................ 285
5.17.11.4 Configuring the Destination Zone ...................................................................... 285
5.17.11.5 Deleting a Policy ............................................................................................. 285
5.17.12 Managing Network Address Translation Settings .......................................................... 286
5.17.12.1 Viewing a List of NAT Settings ......................................................................... 286
5.17.12.2 Adding a NAT Setting ...................................................................................... 287
5.17.12.3 Deleting a NAT Setting .................................................................................... 287
5.17.13 Managing Masquerade and SNAT Settings .................................................................. 288
5.17.13.1 Viewing a List of Masquerade and SNAT Settings .............................................. 288
5.17.13.2 Adding Masquerade or SNAT Settings .............................................................. 288
5.17.13.3 Deleting a Masquerade or SNAT Setting ........................................................... 289
5.17.14 Managing Rules ......................................................................................................... 290
5.17.14.1 Viewing a List of Rules .................................................................................... 290
5.17.14.2 Adding a Rule ................................................................................................. 291
5.17.14.3 Configuring the Source Zone ........................................................................... 292
5.17.14.4 Configuring the Destination Zone ..................................................................... 292
xvii
Page 18
Table of Contents
5.18 Managing IS-IS ...................................................................................................................... 294
RUGGEDCOM ROX II
CLI User Guide
5.17.14.5 Deleting Rules ................................................................................................ 293
5.17.15 Validating a Firewall Configuration ............................................................................... 293
5.17.16 Enabling/Disabling a Firewall ...................................................................................... 293
5.18.1 IS-IS Concepts ............................................................................................................ 294
5.18.1.1 IS-IS Routers .................................................................................................... 295
5.18.1.2 Network Entity Title (NET) Addresses ................................................................. 295
5.18.1.3 Advantages and Disadvantages of Using IS-IS .................................................... 296
5.18.2 Configuring IS-IS ......................................................................................................... 296
5.18.3 Viewing the Status of Neighbors ................................................................................... 297
5.18.4 Viewing the Status of the Link-State Database ............................................................... 298
5.18.5 Managing Area Tags .................................................................................................... 299
5.18.5.1 Viewing a List of Area Tags ............................................................................... 299
5.18.5.2 Adding an Area Tag .......................................................................................... 300
5.18.5.3 Deleting an Area Tag ........................................................................................ 301
5.18.6 Managing Interfaces ..................................................................................................... 302
5.18.6.1 Viewing a List of Interfaces ................................................................................ 302
5.18.6.2 Configuring an Interface .................................................................................... 302
5.18.7 Managing LSP Generation ........................................................................................... 304
5.18.7.1 Viewing a List of LSP Generation Intervals ......................................................... 304
5.18.7.2 Adding an LSP Generation Interval .................................................................... 304
5.18.7.3 Deleting an LSP Generation Interval ................................................................... 305
5.18.8 Managing SPF Calculations .......................................................................................... 305
5.18.8.1 Viewing a List of SPF Calculation Intervals ......................................................... 305
5.18.8.2 Adding an SPF Calculation Interval .................................................................... 306
5.18.8.3 Deleting an SPF Calculation Interval .................................................................. 306
5.18.9 Managing the Lifetime of LSPs ..................................................................................... 307
5.18.9.1 Viewing a List of LSP Lifetime Intervals .............................................................. 307
5.18.9.2 Adding an LSP Lifetime Interval ......................................................................... 307
5.18.9.3 Deleting an LSP Lifetime Interval ....................................................................... 308
5.18.10 Managing LSP Refresh Intervals ................................................................................. 308
5.18.10.1 Viewing a List of LSP Refresh Intervals ............................................................ 309
5.18.10.2 Adding an LSP Refresh Interval ....................................................................... 309
5.18.10.3 Deleting an LSP Refresh Interval ..................................................................... 309
5.18.11 Managing Network Entity Titles (NETs) ........................................................................ 310
5.18.11.1 Viewing a List of NETs ..................................................................................... 310
5.18.11.2 Adding a NET ................................................................................................. 311
5.18.11.3 Deleting a NET ................................................................................................ 311
5.18.12 Managing Redistribution Metrics ................................................................................. 312
5.18.12.1 Viewing a List of Redistribution Metrics ............................................................. 312
xviii
Page 19
RUGGEDCOM ROX II
CLI User Guide
5.19 Managing BGP ....................................................................................................................... 313
Table of Contents
5.18.12.2 Adding a Redistribution Metric .......................................................................... 312
5.18.12.3 Deleting a Redistribution Metric ........................................................................ 313
5.19.1 Configuring BGP .......................................................................................................... 314
5.19.2 Viewing the Status of Dynamic BGP Routes .................................................................. 315
5.19.3 Managing Route Maps ................................................................................................. 317
5.19.3.1 Viewing a List of Route Map Filters .................................................................... 318
5.19.3.2 Viewing a List of Route Map Filter Entries ........................................................... 318
5.19.3.3 Adding a Route Map Filter ................................................................................. 318
5.19.3.4 Adding a Route Map Filter Entry ........................................................................ 319
5.19.3.5 Deleting a Route Map Filter ............................................................................... 319
5.19.3.6 Deleting a Route Map Filter Entry ...................................................................... 320
5.19.3.7 Configuring Match Rules ................................................................................... 320
5.19.3.8 Configuring a Set .............................................................................................. 321
5.19.4 Managing Prepended and Excluded Autonomous System Paths ..................................... 321
5.19.4.1 Viewing a List of Prepended Autonomous System Path Filters .............................. 322
5.19.4.2 Viewing a List of Excluded Autonomous System Paths ........................................ 322
5.19.4.3 Adding a Prepended Autonomous System Path Filter .......................................... 323
5.19.4.4 Adding an Excluded Autonomous System Path filter ............................................ 323
5.19.4.5 Deleting a Prepended Autonomous System Path Filter ........................................ 323
5.19.4.6 Deleting an Excluded Autonomous System Path Filter ......................................... 324
5.19.5 Managing Prefix Lists and Entries ................................................................................. 324
5.19.5.1 Viewing a List of Prefix Lists .............................................................................. 324
5.19.5.2 Viewing a List of Prefix Entries ........................................................................... 325
5.19.5.3 Adding a Prefix List ........................................................................................... 325
5.19.5.4 Adding a Prefix Entry ........................................................................................ 326
5.19.5.5 Deleting a Prefix List ......................................................................................... 326
5.19.5.6 Deleting a Prefix Entry ...................................................................................... 327
5.19.6 Managing Autonomous System Paths and Entries ......................................................... 327
5.19.6.1 Viewing a List of Autonomous System Paths ....................................................... 327
5.19.6.2 Viewing a List of Autonomous System Path Entries ............................................. 328
5.19.6.3 Adding an Autonomous System Path Filter ......................................................... 328
5.19.6.4 Adding an Autonomous System Path Filter Entry ................................................. 328
5.19.6.5 Deleting an Autonomous System Path ................................................................ 329
5.19.6.6 Deleting an Autonomous System Path Filter Entry ............................................... 329
5.19.7 Managing Neighbors .................................................................................................... 329
5.19.7.1 Viewing a List of Neighbors ............................................................................... 330
5.19.7.2 Adding a Neighbor ............................................................................................ 330
5.19.7.3 Configuring the Distribution of Prefix Lists ........................................................... 331
5.19.7.4 Tracking Commands for BGP Neighbors ............................................................. 332
xix
Page 20
Table of Contents
5.20 Managing RIP ........................................................................................................................ 338
RUGGEDCOM ROX II
CLI User Guide
5.19.7.5 Deleting a Neighbor .......................................................................................... 332
5.19.8 Managing Networks ..................................................................................................... 332
5.19.8.1 Viewing a List of Networks ................................................................................. 333
5.19.8.2 Adding a Network ............................................................................................. 333
5.19.8.3 Tracking Commands for a BGP Network ............................................................. 334
5.19.8.4 Deleting a Network ............................................................................................ 334
5.19.9 Managing Aggregate Addresses ................................................................................... 335
5.19.9.1 Viewing a List of Aggregate Addresses ............................................................... 335
5.19.9.2 Adding an Aggregate Address ........................................................................... 335
5.19.9.3 Deleting an Aggregate Address .......................................................................... 335
5.19.10 Managing Aggregate Address Options ........................................................................ 336
5.19.10.1 Viewing a List of Aggregate Address Options .................................................... 336
5.19.10.2 Adding an Aggregate Address Option ............................................................... 336
5.19.10.3 Deleting an Aggregate Address Option ............................................................. 337
5.19.11 Managing Redistribution Metrics .................................................................................. 337
5.19.11.1 Viewing a List of Redistribution Metrics ............................................................. 337
5.19.11.2 Adding a Redistribution Metric .......................................................................... 337
5.19.11.3 Deleting a Redistribution Metric ........................................................................ 338
5.20.1 Configuring RIP ........................................................................................................... 339
5.20.2 Viewing the Status of Dynamic RIP Routes ................................................................... 340
5.20.3 Managing Prefix Lists and Entries ................................................................................. 341
5.20.3.1 Viewing a List of Prefix Lists .............................................................................. 342
5.20.3.2 Viewing a List of Prefix Entries ........................................................................... 342
5.20.3.3 Adding a Prefix List ........................................................................................... 343
5.20.3.4 Adding a Prefix Entry ........................................................................................ 343
5.20.3.5 Deleting a Prefix List ......................................................................................... 344
5.20.3.6 Deleting a Prefix Entry ...................................................................................... 344
5.20.4 Managing Networks ..................................................................................................... 344
5.20.4.1 Configuring a Network ....................................................................................... 345
5.20.4.2 Tracking Commands .......................................................................................... 345
5.20.5 Managing Network IP Address ...................................................................................... 346
5.20.5.1 Viewing a List of Network IP Addresses .............................................................. 346
5.20.5.2 Adding a Network IP Address ............................................................................ 346
5.20.5.3 Deleting a Network IP Address .......................................................................... 346
5.20.6 Managing Network Interfaces ....................................................................................... 347
5.20.6.1 Viewing a List of Network Interfaces ................................................................... 347
5.20.6.2 Adding a Network Interface ................................................................................ 347
5.20.6.3 Deleting a Network Interface .............................................................................. 348
5.20.7 Managing Neighbors .................................................................................................... 348
xx
Page 21
RUGGEDCOM ROX II
CLI User Guide
5.21 Managing OSPF ..................................................................................................................... 356
Table of Contents
5.20.7.1 Viewing a List of Neighbors ............................................................................... 348
5.20.7.2 Adding a Neighbor ............................................................................................ 348
5.20.7.3 Deleting a Neighbor .......................................................................................... 349
5.20.8 Managing the Prefix List Distribution ............................................................................. 349
5.20.8.1 Viewing a List of Prefix List Distribution Paths ..................................................... 349
5.20.8.2 Adding a Prefix List Distribution Path .................................................................. 350
5.20.8.3 Deleting a Prefix List Distribution Path ................................................................ 350
5.20.9 Managing Key Chains and Keys ................................................................................... 350
5.20.9.1 Viewing a List of Key Chains ............................................................................. 351
5.20.9.2 Viewing a List of Keys ....................................................................................... 351
5.20.9.3 Adding a Key Chain .......................................................................................... 352
5.20.9.4 Adding a Key .................................................................................................... 352
5.20.9.5 Deleting a Key Chain ........................................................................................ 353
5.20.9.6 Deleting a Key .................................................................................................. 353
5.20.10 Managing Redistribution Metrics ................................................................................. 354
5.20.10.1 Viewing a List of Redistribution Metrics ............................................................. 354
5.20.10.2 Adding a Redistribution Metric .......................................................................... 354
5.20.10.3 Deleting a Redistribution Metric ........................................................................ 355
5.20.11 Managing Routing Interfaces ....................................................................................... 355
5.20.11.1 Viewing a List of Routing Interfaces .................................................................. 355
5.20.11.2 Configuring a Routing Interface ........................................................................ 355
5.21.1 OSPF Concepts ........................................................................................................... 357
5.21.2 Configuring OSPF ........................................................................................................ 358
5.21.3 Viewing the Status of Dynamic OSPF Routes ................................................................ 359
5.21.4 Managing Prefix Lists and Entries ................................................................................. 362
5.21.4.1 Viewing a List of Prefix Lists .............................................................................. 362
5.21.4.2 Viewing a List of Prefix Entries ........................................................................... 362
5.21.4.3 Adding a Prefix List ........................................................................................... 363
5.21.4.4 Adding a Prefix Entry ........................................................................................ 364
5.21.4.5 Deleting a Prefix List ......................................................................................... 364
5.21.4.6 Deleting a Prefix Entry ...................................................................................... 365
5.21.5 Managing Areas .......................................................................................................... 365
5.21.5.1 Viewing a List of Areas ...................................................................................... 366
5.21.5.2 Adding an Area ................................................................................................. 366
5.21.5.3 Deleting an Area ............................................................................................... 367
5.21.6 Managing Route Maps ................................................................................................. 367
5.21.6.1 Viewing a List of Route Map Filters .................................................................... 368
5.21.6.2 Viewing a List of Route Map Filter Entries ........................................................... 368
5.21.6.3 Adding a Route Map Filter ................................................................................. 369
xxi
Page 22
Table of Contents
5.22 Managing Virtual Routing and Forwarding (VRF) ...................................................................... 379
RUGGEDCOM ROX II
CLI User Guide
5.21.6.4 Adding a Route Map Filter Entry ........................................................................ 369
5.21.6.5 Deleting a Route Map Filter ............................................................................... 370
5.21.6.6 Deleting a Route Map Filter Entry ...................................................................... 370
5.21.6.7 Configuring Match Rules ................................................................................... 371
5.21.7 Managing Incoming Route Filters .................................................................................. 371
5.21.7.1 Viewing List of Incoming Route Filters ................................................................ 372
5.21.7.2 Adding an Incoming Route Filter ........................................................................ 372
5.21.7.3 Deleting an Incoming Route Filter ...................................................................... 373
5.21.8 Managing Redistribution Metrics ................................................................................... 373
5.21.8.1 Viewing a List of Redistribution Metrics ............................................................... 373
5.21.8.2 Adding a Redistribution Metric ........................................................................... 374
5.21.8.3 Deleting a Redistribution Metric .......................................................................... 374
5.21.9 Managing Routing Interfaces ........................................................................................ 375
5.21.9.1 Viewing a List of Routing Interfaces ................................................................... 375
5.21.9.2 Configuring a Routing Interface .......................................................................... 375
5.21.10 Managing Message Digest Keys ................................................................................. 377
5.21.10.1 Viewing a List of Message Digest Keys ............................................................ 378
5.21.10.2 Adding a Message Digest Key ......................................................................... 378
5.21.10.3 Deleting a Message Digest Key ....................................................................... 379
5.22.1 VRF Concepts ............................................................................................................. 380
5.22.1.1 VRF and VRF-Lite ............................................................................................. 380
5.22.1.2 Advantages and Disadvantages of Using VRF .................................................... 380
5.22.2 Viewing VRF Interface Statistics ................................................................................... 381
5.22.3 Configuring VRF .......................................................................................................... 382
5.22.4 Configuring a VRF Interface ......................................................................................... 383
5.22.5 Managing VRF Definitions ............................................................................................ 383
5.22.5.1 Viewing a List of VRF Definitions ....................................................................... 384
5.22.5.2 Adding a VRF Definition .................................................................................... 384
5.22.5.3 Deleting a VRF Definition .................................................................................. 385
5.22.6 Managing Route Targets .............................................................................................. 385
5.22.6.1 Viewing a List of Route Targets .......................................................................... 386
5.22.6.2 Adding a Route Target ...................................................................................... 386
5.22.6.3 Deleting a Route Target ..................................................................................... 386
5.22.7 Managing VRF Instances and OSPF ............................................................................. 387
5.22.7.1 Viewing a List of VRF Instances ......................................................................... 387
5.22.7.2 Adding a VRF Instance and Configuring OSPF ................................................... 387
5.22.7.3 Deleting a VRF Instance .................................................................................... 389
5.22.8 Managing IP/VPN Tunnels ............................................................................................ 389
5.22.8.1 Viewing a List of IP/VPN Tunnels ....................................................................... 390
xxii
Page 23
RUGGEDCOM ROX II
CLI User Guide
5.23 Managing Static Routing ......................................................................................................... 403
Table of Contents
5.22.8.2 Adding an IP/VPN Tunnel .................................................................................. 390
5.22.8.3 Deleting an IP/VPN Tunnels .............................................................................. 390
5.22.9 Managing VPNv4 Neighbors ......................................................................................... 391
5.22.9.1 Viewing a List of Neighbors ............................................................................... 391
5.22.9.2 Adding a Neighbor ............................................................................................ 391
5.22.9.3 Deleting a Neighbor .......................................................................................... 391
5.22.10 Managing IPv4 Address Families ................................................................................ 392
5.22.10.1 Viewing a List of IPv4 Address Families ............................................................ 392
5.22.10.2 Adding an IPv4 Address Family ....................................................................... 393
5.22.10.3 Deleting an IPv4 Address Family ...................................................................... 393
5.22.11 Managing Redistribution for IPv4 Address Families ...................................................... 393
5.22.11.1 Viewing a List of Redistributions ....................................................................... 394
5.22.11.2 Adding a Redistribution .................................................................................... 394
5.22.11.3 Deleting a Redistribution .................................................................................. 394
5.22.12 Managing Neighbors for IPv4 Address Families ........................................................... 395
5.22.12.1 Viewing a List of Neighbors ............................................................................. 395
5.22.12.2 Adding a Neighbor .......................................................................................... 396
5.22.12.3 Configuring the Distribution of Prefix Lists ......................................................... 397
5.22.12.4 Tracking Commands ........................................................................................ 397
5.22.12.5 Deleting a Neighbor ......................................................................................... 398
5.22.13 Managing Static VRF Routes ...................................................................................... 398
5.22.13.1 Viewing a List of Static VRF Routes ................................................................. 398
5.22.13.2 Adding a Static VRF Route .............................................................................. 399
5.22.13.3 Configuring a Black Hole Connection for a Static VRF Route .............................. 400
5.22.13.4 Deleting a Static VRF Route ............................................................................ 400
5.22.14 Managing Gateways for Static VRF Routes ................................................................. 400
5.22.14.1 Viewing a List of Gateways for Static VRF Routes ............................................. 400
5.22.14.2 Adding a Gateway for a Static VRF Route ........................................................ 401
5.22.14.3 Deleting a Gateway for a Static VRF Route ....................................................... 401
5.22.15 Managing Interfaces for Static VRF Routes ................................................................. 402
5.22.15.1 Viewing a List of Gateways for Static VRF Routes ............................................. 402
5.22.15.2 Adding a Gateway for a Static VRF Route ........................................................ 402
5.22.15.3 Deleting a Gateway for a Static VRF Route ....................................................... 403
5.23.1 Viewing a List of Static Routes ..................................................................................... 403
5.23.2 Adding an IPv4 Static Route ......................................................................................... 404
5.23.3 Adding an IPv6 Static Route ......................................................................................... 405
5.23.4 Deleting a Static Route ................................................................................................ 405
5.23.5 Configuring a Black Hole Connection for an IPv4 Static Route ........................................ 405
5.23.6 Managing Gateways for Static Routes ........................................................................... 406
xxiii
Page 24
Table of Contents
5.24 Managing Static Multicast Routing ........................................................................................... 409
5.25 Managing Dynamic Multicast Routing ...................................................................................... 413
5.26 Managing Multicast Filtering .................................................................................................... 419
RUGGEDCOM ROX II
CLI User Guide
5.23.6.1 Configuring Gateways for IPv6 Static Routes ...................................................... 406
5.23.6.2 Viewing a List of Gateways for IPv4 Static Routes ............................................... 406
5.23.6.3 Adding a Gateway for an IPv4 Static Route ........................................................ 407
5.23.6.4 Deleting a Gateway for an IPv4 Static Route ....................................................... 407
5.23.7 Managing Interfaces for Static Routes ........................................................................... 407
5.23.7.1 Configuring Interfaces for IPv6 Static Routes ...................................................... 408
5.23.7.2 Viewing a List of Interfaces for IPv4 Static Routes ............................................... 408
5.23.7.3 Adding an Interface for an IPv4 Static Route ....................................................... 408
5.23.7.4 Deleting an Interface for an IPv4 Static Route ..................................................... 409
5.24.1 Enabling/Disabling Static Multicast Routing .................................................................... 409
5.24.2 Managing Static Multicast Groups ................................................................................. 410
5.24.2.1 Viewing a List of Static Multicast Groups ............................................................ 410
5.24.2.2 Adding a Static Multicast Group ......................................................................... 410
5.24.2.3 Deleting a Static Multicast Group ....................................................................... 411
5.24.3 Managing Out-Interfaces .............................................................................................. 411
5.24.3.1 Viewing a List of Out-Interfaces ......................................................................... 412
5.24.3.2 Adding an Out-Interface ..................................................................................... 412
5.24.3.3 Deleting an Out-Interface ................................................................................... 412
5.25.1 PIM-SM Concepts ........................................................................................................ 414
5.25.2 Configuring PIM-SM ..................................................................................................... 414
5.25.3 Viewing a List of PIM-SM Interfaces .............................................................................. 415
5.25.4 Enabling/Disabling a PIM-SM Interface .......................................................................... 416
5.25.5 Configuring a Static RP Address ................................................................................... 416
5.25.6 Managing a Boot Strap Router ..................................................................................... 416
5.25.6.1 Configuring a BSR Candidate ............................................................................ 417
5.25.6.2 Configuring a Group Prefix ................................................................................ 417
5.25.6.3 Configuring an RP Candidate ............................................................................. 417
5.25.7 Viewing the Status of PIM-SM ...................................................................................... 418
5.25.8 Viewing the Status of Dynamic Multicast Routing ........................................................... 419
5.26.1 Multicast Filtering Concepts .......................................................................................... 419
5.26.1.1 IGMP ................................................................................................................ 420
5.26.1.2 GMRP (GARP Multicast Registration Protocol) .................................................... 423
5.26.2 Enabling and Configuring GMRP .................................................................................. 426
5.26.3 Managing IGMP Snooping ............................................................................................ 426
5.26.3.1 Configuring IGMP Snooping ............................................................................... 427
5.26.3.2 Viewing a List of Router Ports ............................................................................ 427
5.26.3.3 Adding a Router Port ........................................................................................ 428
xxiv
Page 25
RUGGEDCOM ROX II
CLI User Guide
5.27 Managing VRRP ..................................................................................................................... 432
Table of Contents
5.26.3.4 Deleting a Router Port ....................................................................................... 428
5.26.4 Managing the Static Multicast Group Table .................................................................... 428
5.26.4.1 Viewing a List of Static Multicast Group Entries ................................................... 429
5.26.4.2 Adding a Static Multicast Group Entry ................................................................ 429
5.26.4.3 Deleting a Static Multicast Group Entry ............................................................... 429
5.26.5 Managing Egress Ports for Multicast Groups ................................................................. 430
5.26.5.1 Viewing a List of Egress Ports ........................................................................... 430
5.26.5.2 Adding an Egress Port ...................................................................................... 430
5.26.5.3 Deleting an Egress Port .................................................................................... 431
5.26.6 Viewing a Summary of Multicast Groups ....................................................................... 431
5.26.7 Viewing a List of IP Multicast Groups ............................................................................ 432
5.27.1 VRRP Concepts .......................................................................................................... 433
5.27.1.1 Static Routing vs. VRRP .................................................................................... 433
5.27.1.2 VRRP Terminology ............................................................................................ 434
5.27.2 Viewing the Status of VRRP ......................................................................................... 436
5.27.3 Enabling/Disabling VRRP ............................................................................................. 437
5.27.4 Managing VRRP Trackers ............................................................................................ 437
5.27.4.1 Viewing a List of VRRP Trackers ....................................................................... 438
5.27.4.2 Adding a VRRP Tracker .................................................................................... 438
5.27.4.3 Deleting a VRRP Tracker .................................................................................. 439
5.27.5 Managing VRRP Groups .............................................................................................. 439
5.27.5.1 Viewing a List of VRRP Groups ......................................................................... 439
5.27.5.2 Adding a VRRP Group ...................................................................................... 440
5.27.5.3 Deleting a VRRP Group .................................................................................... 440
5.27.6 Managing VRRP Instances ........................................................................................... 440
5.27.6.1 Viewing a List of VRRP Instances ...................................................................... 441
5.27.6.2 Adding a VRRP Instance ................................................................................... 441
5.27.6.3 Deleting a VRRP Instance ................................................................................. 443
5.27.7 Managing VRRP Monitors ............................................................................................ 443
5.27.7.1 Viewing a List of VRRP Monitors ....................................................................... 443
5.27.7.2 Adding a VRRP Monitor .................................................................................... 444
5.27.7.3 Deleting a VRRP Monitor ................................................................................... 444
5.27.8 Managing Track Scripts ................................................................................................ 444
5.27.8.1 Viewing a List of Track Scripts ........................................................................... 445
5.27.8.2 Adding a Track Script ........................................................................................ 445
5.27.8.3 Deleting a Track Script ...................................................................................... 446
5.27.9 Managing Virtual IP Addresses ..................................................................................... 446
5.27.9.1 Viewing a List of Virtual IP Addresses ................................................................ 446
5.27.9.2 Adding a Virtual IP Address ............................................................................... 447
xxv
Page 26
Table of Contents
5.28 Managing Link Failover Protection ........................................................................................... 447
5.29 Managing IPsec Tunnels ......................................................................................................... 456
RUGGEDCOM ROX II
CLI User Guide
5.27.9.3 Deleting a Virtual IP Address ............................................................................. 447
5.28.1 Viewing the Link Failover Log ....................................................................................... 448
5.28.2 Viewing the Link Failover Status ................................................................................... 449
5.28.3 Managing Link Failover Parameters .............................................................................. 449
5.28.3.1 Viewing a List of Link Failover Parameters .......................................................... 449
5.28.3.2 Adding a Link Failover Parameter ...................................................................... 450
5.28.3.3 Deleting a Link Failover Parameter ..................................................................... 451
5.28.4 Managing Link Failover Backup Interfaces ..................................................................... 451
5.28.4.1 Viewing a List of Link Failover Backup Interfaces ................................................ 451
5.28.4.2 Adding a Link Failover Backup Interface ............................................................. 452
5.28.4.3 Deleting a Link Failover Backup Interface ........................................................... 453
5.28.5 Managing Link Failover Ping Targets ............................................................................. 453
5.28.5.1 Viewing a List of Link Failover Ping Targets ........................................................ 454
5.28.5.2 Adding a Link Failover Ping Target ..................................................................... 454
5.28.5.3 Deleting a Link Failover Ping target .................................................................... 455
5.28.6 Testing Link Failover .................................................................................................... 455
5.28.7 Canceling a Link Failover Test ...................................................................................... 455
5.29.1 IPsec Tunneling Concepts ............................................................................................ 456
5.29.1.1 IPsec Modes ..................................................................................................... 457
5.29.1.2 Supported Encryption Protocols ......................................................................... 457
5.29.1.3 Public and Secret Key Cryptography .................................................................. 457
5.29.1.4 X509 Certificates ............................................................................................... 458
5.29.1.5 NAT Traversal ................................................................................................... 458
5.29.1.6 Remote IPsec Client Support ............................................................................. 458
5.29.1.7 IPsec and Router Interfaces ............................................................................... 459
5.29.2 Configuring IPsec Tunnels ............................................................................................ 459
5.29.3 Configuring Certificates and Keys ................................................................................. 460
5.29.4 Viewing the IPsec Tunnel Status ................................................................................... 460
5.29.5 Managing Pre-Shared Keys .......................................................................................... 462
5.29.5.1 Viewing a List of Pre-Shared Keys ..................................................................... 462
5.29.5.2 Adding a Pre-Shared Key .................................................................................. 462
5.29.5.3 Deleting a Pre-Shared Key ................................................................................ 463
5.29.6 Managing Connections ................................................................................................. 463
5.29.6.1 Viewing a List of Connections ............................................................................ 463
5.29.6.2 Adding a Connection ......................................................................................... 464
5.29.6.3 Configuring Dead Peer Detection ....................................................................... 466
5.29.6.4 Deleting a Connection ....................................................................................... 467
5.29.7 Managing the Internet Key Exchange (IKE) Protocol ...................................................... 467
xxvi
Page 27
RUGGEDCOM ROX II
CLI User Guide
5.30 Managing 6in4 and 4in6 Tunnels ............................................................................................. 474
5.31 Managing Layer 2 Tunnels ...................................................................................................... 476
Table of Contents
5.29.7.1 Viewing a List of IKE Algorithms ........................................................................ 467
5.29.7.2 Adding an IKE Algorithm ................................................................................... 468
5.29.7.3 Deleting an IKE Algorithm .................................................................................. 468
5.29.8 Managing the Encapsulated Security Payload (ESP) Protocol ......................................... 468
5.29.8.1 Configuring ESP Encryption ............................................................................... 469
5.29.8.2 Viewing a List of ESP Algorithms ....................................................................... 469
5.29.8.3 Adding ESP Algorithms ..................................................................................... 469
5.29.8.4 Deleting ESP Algorithms ................................................................................... 470
5.29.9 Configuring the Connection Ends .................................................................................. 470
5.29.10 Managing Private Subnets .......................................................................................... 472
5.29.10.1 Configuring Private Subnets for Connection Ends .............................................. 472
5.29.10.2 Viewing a List of Addresses for Private Subnets ................................................ 473
5.29.10.3 Adding an Address for a Private Subnet ........................................................... 473
5.29.10.4 Deleting an Address for a Private Subnet .......................................................... 473
5.30.1 Enabling/Disabling 6in4 or 4in6 Tunnels ........................................................................ 474
5.30.2 Viewing a List of 6in4 or 4in6 Tunnels ........................................................................... 474
5.30.3 Viewing the Status of 6in4/4in6 Tunnels ........................................................................ 475
5.30.4 Adding a 6in4 or 4in6 Tunnel ....................................................................................... 475
5.30.5 Deleting a 6in4 or 4in6 Tunnel ...................................................................................... 475
5.31.1 Viewing the Round Trip Time Statistics ......................................................................... 476
5.31.2 Configuring L2TP Tunnels ............................................................................................ 477
5.31.3 Configuring L2TPv3 Tunnels ......................................................................................... 478
5.31.4 Configuring the Layer 2 Tunnel Daemon ....................................................................... 480
5.31.5 Managing GOOSE Tunnels .......................................................................................... 481
5.31.5.1 Viewing the GOOSE Tunnel Statistics ................................................................ 482
5.31.5.2 Viewing a List of GOOSE Tunnels ...................................................................... 483
5.31.5.3 Adding a GOOSE Tunnel .................................................................................. 483
5.31.5.4 Deleting a GOOSE Tunnel ................................................................................. 483
5.31.6 Managing Remote Daemons for GOOSE Tunnels .......................................................... 484
5.31.6.1 Viewing a List of Remote Daemons .................................................................... 484
5.31.6.2 Adding a Remote Daemon ................................................................................ 484
5.31.6.3 Deleting a Remote Daemon ............................................................................... 485
5.31.7 Managing Generic Tunnels ........................................................................................... 485
5.31.7.1 Viewing the Generic Tunnel Statistics ................................................................. 485
5.31.7.2 Viewing a List of Generic Tunnels ...................................................................... 486
5.31.7.3 Adding a Generic Tunnel ................................................................................... 486
5.31.7.4 Deleting a Generic Tunnel ................................................................................. 487
5.31.8 Managing Remote Daemon IP Addresses for Generic Tunnels ........................................ 487
xxvii
Page 28
Table of Contents
5.32 Managing Generic Routing Encapsulation Tunnels ................................................................... 491
5.33 Managing Layer 3 Switching ................................................................................................... 494
5.34 Managing Classes of Service .................................................................................................. 504
RUGGEDCOM ROX II
CLI User Guide
5.31.8.1 Viewing a List of IP Addresses ........................................................................... 488
5.31.8.2 Adding an IP Address ....................................................................................... 488
5.31.8.3 Deleting an IP Address ...................................................................................... 488
5.31.9 Managing Remote Daemon Egress Interfaces for Generic Tunnels .................................. 489
5.31.9.1 Viewing a List of Egress Interfaces ..................................................................... 489
5.31.9.2 Adding an Egress Interface ................................................................................ 489
5.31.9.3 Deleting an Egress Interface .............................................................................. 490
5.31.10 Managing Ethernet Types for Generic Tunnels ............................................................. 490
5.31.10.1 Viewing a List of Ethernet Types ...................................................................... 490
5.31.10.2 Adding an Ethernet Type ................................................................................. 490
5.31.10.3 Deleting an Ethernet Type ............................................................................... 491
5.32.1 Viewing Statistics for GRE Tunnels ............................................................................... 492
5.32.2 Viewing a List of GRE Tunnels ..................................................................................... 493
5.32.3 Adding a GRE Tunnel .................................................................................................. 493
5.32.4 Deleting a GRE Tunnel ................................................................................................ 494
5.33.1 Layer 3 Switching Concepts ......................................................................................... 496
5.33.1.1 Layer 3 Switch Forwarding Table ....................................................................... 496
5.33.1.2 Static Layer 3 Switching Rules ........................................................................... 496
5.33.1.3 Dynamic Learning of Layer 3 Switching Rules ..................................................... 497
5.33.1.4 Layer 3 Switch ARP Table ................................................................................. 497
5.33.1.5 Multicast Cross-VLAN Layer 2 Switching ............................................................ 498
5.33.1.6 Size of the Layer 3 Switch Forwarding Table ....................................................... 498
5.33.1.7 Interaction with the Firewall ............................................................................... 498
5.33.2 Configuring Layer 3 Switching ...................................................................................... 499
5.33.3 Managing Static ARP Table Entries ............................................................................... 500
5.33.3.1 Viewing a List of ARP Table Entries ................................................................... 500
5.33.3.2 Adding a Static ARP Table Entry ........................................................................ 501
5.33.3.3 Deleting a Static ARP Table Entry ...................................................................... 501
5.33.4 Viewing a Static and Dynamic ARP Table Summary ....................................................... 502
5.33.5 Viewing Routing Rules ................................................................................................. 502
5.33.6 Flushing Dynamic Hardware Routing Rules ................................................................... 504
5.34.1 Configuring Classes of Service ..................................................................................... 505
5.34.2 Managing Priority-to-CoS Mapping ................................................................................ 506
5.34.2.1 Viewing a List of Priority-to-CoS Mapping Entries ................................................ 506
5.34.2.2 Adding a Priority-to-CoS Mapping Entry .............................................................. 506
5.34.2.3 Deleting a Priority-to-CoS Mapping Entry ............................................................ 507
5.34.3 Managing DSCP-to-CoS Mapping ................................................................................. 507
xxviii
Page 29
RUGGEDCOM ROX II
CLI User Guide
5.35 Managing MAC Addresses ...................................................................................................... 509
5.36 Managing Spanning Tree Protocol ........................................................................................... 512
Table of Contents
5.34.3.1 Viewing a List of DSCP-to-CoS Mapping Entries ................................................. 508
5.34.3.2 Adding a DSCP-to-CoS Mapping Entry ............................................................... 508
5.34.3.3 Deleting a DSCP-to-CoS Mapping Entry ............................................................. 508
5.35.1 Viewing a Dynamic List of MAC Addresses ................................................................... 509
5.35.2 Purging the Dynamic MAC Address List ........................................................................ 510
5.35.3 Configuring MAC Address Learning Options .................................................................. 510
5.35.4 Managing Static MAC Addresses .................................................................................. 511
5.35.4.1 Viewing a List of Static MAC Addresses ............................................................. 511
5.35.4.2 Adding a Static MAC Address ............................................................................ 511
5.35.4.3 Deleting a Static MAC Address .......................................................................... 512
5.36.1 RSTP Operation .......................................................................................................... 513
5.36.1.1 RSTP States and Roles .................................................................................... 513
5.36.1.2 Edge Ports ....................................................................................................... 515
5.36.1.3 Point-to-Point and Multipoint Links ..................................................................... 516
5.36.1.4 Path and Port Costs .......................................................................................... 516
5.36.1.5 Bridge Diameter ................................................................................................ 517
5.36.1.6 eRSTP ............................................................................................................. 517
5.36.1.7 Fast Root Failover ............................................................................................. 518
5.36.2 RSTP Applications ....................................................................................................... 518
5.36.2.1 RSTP in Structured Wiring Configurations ........................................................... 519
5.36.2.2 RSTP in Ring Backbone Configurations .............................................................. 520
5.36.2.3 RSTP Port Redundancy .................................................................................... 522
5.36.3 MSTP Operation .......................................................................................................... 522
5.36.3.1 MSTP Regions and Interoperability .................................................................... 523
5.36.3.2 MSTP Bridge and Port Roles ............................................................................. 524
5.36.3.3 Benefits of MSTP .............................................................................................. 525
5.36.3.4 Implementing MSTP on a Bridged Network ......................................................... 526
5.36.4 Configuring STP Globally ............................................................................................. 526
5.36.5 Configuring STP for Switched Ethernet Ports and Ethernet Trunk Interfaces ..................... 529
5.36.6 Managing Multiple Spanning Tree Instances Globally ..................................................... 530
5.36.6.1 Viewing Statistics for Multiple Spanning Tree Instances ....................................... 531
5.36.6.2 Viewing a List of Multiple Spanning Tree Instances .............................................. 532
5.36.6.3 Adding a Multiple Spanning Tree Instance .......................................................... 532
5.36.6.4 Deleting a Multiple Spanning Tree Instance ........................................................ 533
5.36.7 Managing Multiple Spanning Tree Instances Per-Port ..................................................... 533
5.36.7.1 Viewing Per-Port Multiple Spanning Tree Instance Statistics ................................. 534
5.36.7.2 Viewing a List of Per-Port Multiple Spanning Tree Instances ................................. 535
5.36.7.3 Adding a Port-Specific Multiple Spanning Tree Instance ....................................... 536
xxix
Page 30
Table of Contents
5.37 Managing VLANs .................................................................................................................... 541
RUGGEDCOM ROX II
CLI User Guide
5.36.7.4 Deleting a Port-Specific Multiple Spanning Tree Instances ................................... 537
5.36.8 Viewing the Status of RSTP ......................................................................................... 538
5.36.9 Viewing RSTP Per-Port Statistics .................................................................................. 539
5.36.10 Clearing Spanning Tree Protocol Statistics .................................................................. 541
5.37.1 VLAN Concepts ........................................................................................................... 542
5.37.1.1 Tagged vs. Untagged Frames ............................................................................ 542
5.37.1.2 Native VLAN ..................................................................................................... 542
5.37.1.3 Edge and Trunk Port Types ............................................................................... 542
5.37.1.4 Ingress and Egress Rules .................................................................................. 543
5.37.1.5 Forbidden Ports List .......................................................................................... 544
5.37.1.6 VLAN-Aware Mode of Operation ........................................................................ 544
5.37.1.7 GARP VLAN Registration Protocol (GVRP) ......................................................... 544
5.37.1.8 PVLAN Edge .................................................................................................... 546
5.37.1.9 VLAN Advantages ............................................................................................. 546
5.37.2 Configuring the Internal VLAN Range ............................................................................ 548
5.37.3 Managing VLANs for Switched Ethernet Ports ............................................................... 549
5.37.3.1 Viewing VLAN Assignments for Switched Ethernet Ports ...................................... 549
5.37.3.2 Configuring VLANs for Switch Ethernet Ports ...................................................... 550
5.37.4 Managing Static VLANs ............................................................................................... 551
5.37.4.1 Viewing a List of Static VLANs ........................................................................... 551
5.37.4.2 Adding a Static VLAN ........................................................................................ 551
5.37.4.3 Deleting a Static VLAN ...................................................................................... 552
5.37.5 Managing Forbidden Ports ........................................................................................... 552
5.37.5.1 Viewing a List of Forbidden Ports ....................................................................... 552
5.37.5.2 Adding a Forbidden Port .................................................................................... 553
5.37.5.3 Deleting a Forbidden Port .................................................................................. 553
5.37.6 Managing VLANs for HDLC-ETH Connections ............................................................... 553
5.37.6.1 Viewing a List of HDLC-ETH VLANs .................................................................. 554
5.37.6.2 Adding an HDLC-ETH VLAN ............................................................................. 554
5.37.6.3 Deleting an HDLC-ETH VLAN ............................................................................ 555
5.37.7 Managing VLANs for Virtual Switches ........................................................................... 555
5.37.7.1 Viewing a List of Virtual Switch VLANs ............................................................... 556
5.37.7.2 Adding a Virtual Switch VLAN ............................................................................ 556
5.37.7.3 Deleting a Virtual Switch VLAN .......................................................................... 556
5.37.8 Managing VLANs for Routable-Only Ethernet Ports ........................................................ 557
5.37.8.1 Viewing a List of VLANs for Routable Ethernet Ports ........................................... 557
5.37.8.2 Viewing a List of VLANs for T1/E1 Lines ............................................................ 558
5.37.8.3 Adding a VLAN to a Routable Ethernet Port ........................................................ 558
5.37.8.4 Adding a VLAN to a T1/E1 Line ......................................................................... 559
xxx
Page 31
RUGGEDCOM ROX II
CLI User Guide
5.38 Managing Network Discovery and LLDP .................................................................................. 560
5.39 Managing Traffic Control ......................................................................................................... 566
5.40 Managing IP Addresses for Routable Interfaces ....................................................................... 591
Table of Contents
5.37.8.5 Deleting a VLAN for a Routable Ethernet Port ..................................................... 559
5.37.8.6 Deleting a VLAN for a T1/E1 Line ...................................................................... 560
5.38.1 Configuring LLDP ........................................................................................................ 561
5.38.2 Viewing Global Statistics and Advertised System Information .......................................... 562
5.38.3 Viewing Statistics for LLDP Neighbors ........................................................................... 563
5.38.4 Viewing Statistics for LLDP Ports .................................................................................. 565
5.39.1 Enabling and Configuring Traffic Control ........................................................................ 567
5.39.2 Managing Traffic Control Interfaces ............................................................................... 568
5.39.2.1 Viewing a List of Traffic Control Interfaces .......................................................... 568
5.39.2.2 Adding a Traffic Control Interface ....................................................................... 569
5.39.2.3 Deleting a Traffic Control Interface ..................................................................... 570
5.39.3 Managing Traffic Control Priorities ................................................................................ 570
5.39.3.1 Viewing a List of Traffic Control Priorities ............................................................ 570
5.39.3.2 Adding a Traffic Control Priority .......................................................................... 571
5.39.3.3 Deleting a Traffic Control Priority ........................................................................ 572
5.39.4 Managing Traffic Control Classes .................................................................................. 572
5.39.4.1 Viewing a List of Traffic Control Classes ............................................................. 573
5.39.4.2 Adding a Traffic Control Class ............................................................................ 573
5.39.4.3 Deleting a Traffic Control Class .......................................................................... 575
5.39.5 Managing Traffic Control Devices .................................................................................. 575
5.39.5.1 Viewing a List of Traffic Control Devices ............................................................. 576
5.39.5.2 Adding a Traffic Control Device .......................................................................... 576
5.39.5.3 Deleting a Traffic Control Device ........................................................................ 577
5.39.6 Managing Traffic Control Rules ..................................................................................... 577
5.39.6.1 Viewing a List of Traffic Control Rules ................................................................ 578
5.39.6.2 Adding a Traffic Control Rule ............................................................................. 578
5.39.6.3 Configuring QoS Marking ................................................................................... 579
5.39.6.4 Deleting aTraffic Control Rule ............................................................................ 583
5.39.7 Managing QoS Mapping for VLANs .............................................................................. 583
5.39.7.1 Viewing a List of QoS Maps .............................................................................. 583
5.39.7.2 Adding a QoS Map ........................................................................................... 584
5.39.7.3 Deleting a QoS Map .......................................................................................... 585
5.39.8 Managing Egress Markers for QoS Maps ...................................................................... 586
5.39.8.1 Viewing a List of Egress Marks .......................................................................... 587
5.39.8.2 Adding an Egress Mark ..................................................................................... 588
5.39.8.3 Deleting an Egress Mark ................................................................................... 589
5.39.9 Viewing QoS Statistics ................................................................................................. 590
xxxi
Page 32
Table of Contents
5.41 Managing MPLS ..................................................................................................................... 598
RUGGEDCOM ROX II
CLI User Guide
5.40.1 Configuring Costing for Routable Interfaces ................................................................... 591
5.40.2 Viewing Statistics for Routable Interfaces ...................................................................... 591
5.40.3 Managing IPv4 Addresses ............................................................................................ 592
5.40.3.1 Viewing a List of IPv4 Addresses ....................................................................... 592
5.40.3.2 Adding an IPv4 Address .................................................................................... 593
5.40.3.3 Deleting an IPv4 Address .................................................................................. 593
5.40.4 Configuring IPv6 Neighbor Discovery ............................................................................ 594
5.40.5 Managing IPv6 Network Prefixes .................................................................................. 596
5.40.5.1 Adding an IPv6 Network Prefix .......................................................................... 596
5.40.5.2 Deleting an IPv6 Network Prefix ......................................................................... 597
5.40.6 Managing IPv6 Addresses ............................................................................................ 597
5.40.6.1 Viewing a List of IPv6 Addresses ....................................................................... 597
5.40.6.2 Adding an IPv6 Address .................................................................................... 598
5.40.6.3 Deleting an IPv6 Address .................................................................................. 598
5.41.1 Viewing the Status of IP Binding ................................................................................... 599
5.41.2 Viewing the Status of the Forwarding Table ................................................................... 599
5.41.3 Enabling/Disabling MPLS Routing ................................................................................. 600
5.41.4 Managing the MPLS Interfaces ..................................................................................... 600
5.41.4.1 Viewing the Status of MPLS Interfaces ............................................................... 601
5.41.4.2 Viewing a List of MPLS Interfaces ...................................................................... 601
5.41.4.3 Enabling/Disabling an MPLS Interface ................................................................ 602
5.41.5 Managing Static Label Binding ...................................................................................... 602
5.41.5.1 Viewing the Status of Static Label Binding .......................................................... 602
5.41.5.2 Viewing a List of Static Labels ........................................................................... 603
5.41.5.3 Adding a Static Label ........................................................................................ 603
5.41.5.4 Deleting a Static Label ...................................................................................... 604
5.41.6 Managing Static Cross-Connects .................................................................................. 604
5.41.6.1 Viewing the Status of Static Cross-Connects ....................................................... 605
5.41.6.2 Viewing a List of Static Cross-Connects .............................................................. 605
5.41.6.3 Adding a Static Cross-Connect .......................................................................... 606
5.41.6.4 Deleting a Static Cross-Connect ......................................................................... 606
5.41.7 Managing LDP ............................................................................................................. 607
5.41.7.1 Viewing the Status of LDP Binding ..................................................................... 607
5.41.7.2 Viewing the Status of the LDP Discovery Interfaces ............................................. 608
5.41.7.3 Viewing the Status of the LDP Neighbor Local Node Information ........................... 609
5.41.7.4 Viewing the Status of the LDP Neighbor Connection Information ........................... 609
5.41.7.5 Viewing the Status of the LDP Neighbor Discovery Information ............................. 610
5.41.7.6 Configuring LDP ................................................................................................ 611
5.41.7.7 Configuring Neighbor Discovery ......................................................................... 611
xxxii
Page 33
RUGGEDCOM ROX II
CLI User Guide
5.42 Managing the RUGGEDCOM CROSSBOW Application ............................................................ 613
5.43 Managing the RUGGEDCOM ELAN Application ....................................................................... 617
Table of Contents
5.41.7.8 Viewing a List of LDP Interfaces ........................................................................ 612
5.41.7.9 Enabling/Disabling an LDP Interface ................................................................... 612
5.42.1 Enabling/Disabling CROSSBOW ................................................................................... 613
5.42.2 Configuring the Client Connection ................................................................................. 613
5.42.3 Configuring the SAC Connection .................................................................................. 614
5.42.4 Configuring CROSSBOW Certificates and Private Keys .................................................. 614
5.42.5 Managing CROSSBOW CA Certificate Lists .................................................................. 615
5.42.5.1 Viewing a List of RUGGEDCOM CROSSBOW Certificate Lists ............................. 615
5.42.5.2 Adding a CA Certificate List ............................................................................... 615
5.42.5.3 Deleting a CA Certificate List ............................................................................. 616
5.42.6 Viewing the Status of RUGGEDCOM CROSSBOW ........................................................ 616
5.42.7 Viewing the RUGGEDCOM CROSSBOW Log ............................................................... 616
5.43.1 Configuring RUGGEDCOM ELAN ................................................................................. 617
5.43.2 Configuring Certificates and Private Keys ...................................................................... 618
5.43.3 Managing eLAN Addresses .......................................................................................... 618
5.43.3.1 Viewing a List of Network Addresses .................................................................. 619
5.43.3.2 Adding a Network Address ................................................................................ 619
5.43.3.3 Deleting a Network Address ............................................................................... 619
5.43.4 Managing CA Certificate Lists ....................................................................................... 620
5.43.4.1 Viewing a List of RUGGEDCOM ELAN CA Certificate Lists .................................. 620
5.43.4.2 Adding a CA Certificate List ............................................................................... 620
5.43.4.3 Deleting a CA Certificate List ............................................................................. 620
5.43.5 Enabling/Disabling RUGGEDCOM ELAN ....................................................................... 621
Chapter 6
Troubleshooting ................................................................................................ 623
6.1 Feature Keys ........................................................................................................................... 623
6.2 Ethernet Ports .......................................................................................................................... 623
6.3 Multicast Filtering ..................................................................................................................... 624
6.4 Spanning Tree ......................................................................................................................... 625
6.5 VLANs ..................................................................................................................................... 626
xxxiii
Page 34
Table of Contents
RUGGEDCOM ROX II
CLI User Guide
xxxiv
Page 35
RUGGEDCOM ROX II
CLI User Guide

Preface

This guide describes the CLI user interface for RUGGEDCOM ROX II v2.9 running on the RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512. It contains instructions and guidelines on how to use the software, as well as some general theory.
It is intended for use by network technical support personnel who are familiar with the operation of networks. It is also recommended for use by network and system planners, system programmers, and line technicians.

Conventions

This CLI User Guide uses the following conventions to present information clearly and effectively.

Alerts

Preface
The following types of alerts are used when necessary to highlight important information.
DANGER!
DANGER alerts describe imminently hazardous situations that, if not avoided, will result in death or serious injury.
WARNING!
WARNING alerts describe hazardous situations that, if not avoided, may result in serious injury and/or equipment damage.
CAUTION!
CAUTION alerts describe hazardous situations that, if not avoided, may result in equipment damage.
IMPORTANT!
IMPORTANT alerts provide important information that should be known before performing a procedure or step, or using a feature.
NOTE
NOTE alerts provide additional information, such as facts, tips and details.

CLI Command Syntax

The syntax of commands used in a Command Line Interface (CLI) is described according to the following conventions:
Conventions xxxv
Page 36
Preface
Example Description
RUGGEDCOM ROX II
CLI User Guide
command
command parameter
command parameter1 parameter2
command parameter1 parameter2
command [ parameter1 | parameter2 ]
command { parameter3 | parameter4 }
command parameter1 parameter2 { parameter3 |
parameter4 }

Related Documents

Other documents that may be of interest include:
• RUGGEDCOM RX1500 Installation Guide
• RUGGEDCOM RX1500 Data Sheet
Commands are in bold.
Parameters are in plain text.
Parameters are listed in the order they must be entered.
Parameters in italics must be replaced with a user-defined value.
Alternative parameters are separated by a vertical bar (|).
Square brackets indicate a required choice between two or more parameters.
Curly brackets indicate an optional parameter(s).
All commands and parameters are presented in the order they must be entered.

System Requirements

Each workstation used to connect to the RUGGEDCOM ROX II Rugged CLI interface must meet the following system requirements:
• Must have a working Ethernet interface compatible with at least one of the port types on the RUGGEDCOM RX1500
• The ability to configure an IP address and netmask on the computer’s Ethernet interface
• A suitable Ethernet cable
• An SSH client application installed on a computer

Accessing Documentation

The latest user documentation for RUGGEDCOM ROX II v2.9 is available online at
www.siemens.com/ruggedcom. To request or inquire about a user document, contact Siemens Customer
Support.
xxxvi Related Documents
Page 37
RUGGEDCOM ROX II
CLI User Guide

License Conditions

RUGGEDCOM ROX II contains open source software. Read the license conditions for open source software carefully before using this product.
License conditions are detailed in a separate document accessible via RUGGEDCOM ROX II. To access the license conditions, log in to the RUGGEDCOM ROX II CLI and type the following command:
file show-license LicenseSummary.txt

Training

Siemens offers a wide range of educational services ranging from in-house training of standard courses on networking, Ethernet switches and routers, to on-site customized courses tailored to the customer's needs, experience and application.
Siemens' Educational Services team thrives on providing our customers with the essential practical skills to make sure users have the right knowledge and expertise to understand the various technologies associated with critical communications network infrastructure technologies.
Siemens' unique mix of IT/Telecommunications expertise combined with domain knowledge in the utility, transportation and industrial markets, allows Siemens to provide training specific to the customer's application.
For more information about training services and course availability, visit www.siemens.com/ruggedcom or contact a Siemens sales representative.
Preface

Customer Support

Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods:
Online
Visit http://www.siemens.com/automation/support-request to submit a Support Request (SR) or check on the status of an existing SR.
Telephone
Call a local hotline center to submit a Support Request (SR). To locate a local hotline center, visit
http://www.automation.siemens.com/mcms/aspa-db/en/automation-technology/Pages/default.aspx.
Mobile App
Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to:
• Access Siemens' extensive library of support documentation, including FAQs and manuals
• Submit SRs or check on the status of an existing SR
• Contact a local Siemens representative from Sales, Technical Support, Training, etc.
• Ask questions or share knowledge with fellow Siemens customers and the support community
License Conditions xxxvii
Page 38
RUGGEDCOM ROX II
CLI User Guide
Preface
Customer Support xxxviii
Page 39
RUGGEDCOM ROX II
CLI User Guide

Introduction

Welcome to the RUGGEDCOM ROX II (Rugged Operating System on Linux®) v2.9 CLI User Guide for the RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512. This document details how to configure the RX1500 via the RUGGEDCOM ROX II Command Line Interface (CLI). RUGGEDCOM ROX II also features a Web interface, which is described in a separate CLI User Guide.
IMPORTANT!
This CLI User Guide describes all features of RUGGEDCOM ROX II, but some features can only be configured through the Web interface. This is indicated throughout the CLI User Guide where applicable.
The following sections provide more detail about RUGGEDCOM ROX II:
• Section 1.1, “Features and Benefits”
• Section 1.2, “Feature Keys”
• Section 1.3, “Security Recommendations”
Chapter 1
Introduction
• Section 1.4, “Available Services by Port”
• Section 1.5, “User Permissions”
Section 1.1

Features and Benefits

Feature support in RUGGEDCOM ROX II is driven by feature keys that unlock feature levels. For more information about feature keys, refer to Section 1.2, “Feature Keys”.
The following describes the many features available in RUGGEDCOM ROX II and their benefits:
• Cyber Security Cyber security is an urgent issue in many industries where advanced automation and communications networks play a crucial role in mission critical applications and where high reliability is of paramount importance. Key RUGGEDCOM ROX II features that address security issues at the local area network level include:
Passwords Multi-level user passwords secures against unauthorized configuration
SSH/SSL Extends capability of password protection to add encryption of passwords and data as
Enable/Disable Ports Capability to disable ports so that traffic cannot pass
802.1Q VLAN Provides the ability to logically segregate traffic between predefined ports on switches
they cross the network
SNMPv3 Encrypted authentication and access security
HTTPS For secure access to the Web interface
Firewall Integrated stateful firewall provides protected network zones
VPN/IPSEC Allows creation of secure encrypted and authenticated tunnels
Features and Benefits 1
Page 40
Chapter 1
Introduction
• Enhanced Rapid Spanning Tree Protocol (eRSTP)™ Siemens's eRSTP allows the creation of fault-tolerant ring and mesh Ethernet networks that incorporate redundant links that are pruned to prevent loops. eRSTP implements both STP and RSTP to promote interoperability with commercial switches, unlike other proprietary ring solutions. The fast root failover feature of eRSTP provides quick network convergence in case of an RSTP root bridge failure in a mesh topology.
• Quality of Service (IEEE 802.1p) Some networking applications such as real-time control or VoIP (Voice over IP) require predictable arrival times for Ethernet frames. Switches can introduce latency in times of heavy network traffic due to the internal queues that buffer frames and then transmit on a first come first serve basis. RUGGEDCOM ROX II supports Class of Service, which allows time critical traffic to jump to the front of the queue, thus minimizing latency and reducing jitter to allow such demanding applications to operate correctly. RUGGEDCOM ROX II allows priority classification by port, tags, MAC address, and IP Type of Service (ToS). A configurable weighted fair queuing algorithm controls how frames are emptied from the queues.
• VLAN (IEEE 802.1Q) Virtual Local Area Networks (VLAN) allow the segregation of a physical network into separate logical networks with independent broadcast domains. A measure of security is provided since hosts can only access other hosts on the same VLAN and traffic storms are isolated. RUGGEDCOM ROX II supports 802.1Q tagged Ethernet frames and VLAN trunks. Port based classification allows legacy devices to be assigned to the correct VLAN. GVRP support is also provided to simplify the configuration of the switches on the VLAN.
• Simple Network Management Protocol (SNMP) SNMP provides a standardized method, for network management stations, to interrogate devices from different vendors. SNMP versions supported by RUGGEDCOM ROX II are v1, v2c and v3. SNMPv3 in particular provides security features (such as authentication, privacy, and access control) not present in earlier SNMP versions. RUGGEDCOM ROX II also supports numerous standard MIBs (Management Information Base) allowing for easy integration with any Network Management System (NMS). A feature of SNMP supported by RUGGEDCOM ROX II is the ability to generate traps upon system events. RUGGEDCOM NMS, the Siemens management solution, can record traps from multiple devices providing a powerful network troubleshooting tool. It also provides a graphical visualization of the network and is fully integrated with all Siemens products.
• Remote Monitoring and Configuration with RUGGEDCOM NMS RUGGEDCOM NMS (RNMS) is Siemens's Network Management System software for the discovery, monitoring and management of RUGGEDCOM products and other IP enabled devices on a network. This highly configurable, full-featured product records and reports on the availability and performance of network components and services. Device, network and service failures are quickly detected and reported to reduce downtime.
RNMS is especially suited for remotely monitoring and configuring RUGGEDCOM routers, switches, serial servers and WiMAX wireless network equipment. For more information, contact a Siemens Sales representative.
• NETCONF Configuration Interface The NETCONF configuration interface allows administrators to set device parameters and receive device updates through the use of XML-based commands. This standard, supported by multiple vendors, makes it possible to greatly simplify the task of network management.
For more information about how to use NETCONF to configure RUGGEDCOM ROX II, refer to the RUGGEDCOM RUGGEDCOM ROX II NETCONF Reference Guide available on
www.siemens.com/ruggedcom.
• NTP (Network Time Protocol) NTP automatically synchronizes the internal clock of all RUGGEDCOM ROX II devices on the network. This allows for correlation of time stamped events for troubleshooting.
RUGGEDCOM ROX II
CLI User Guide
2 Features and Benefits
Page 41
RUGGEDCOM ROX II
CLI User Guide
• Port Rate Limiting RUGGEDCOM ROX II supports configurable rate limiting per port to limit unicast and multicast traffic. This can be essential to managing precious network bandwidth for service providers. It also provides edge security for Denial of Service (DoS) attacks.
• Broadcast Storm Filtering Broadcast storms wreak havoc on a network and can cause attached devices to malfunction. This could be disastrous on a network with mission critical equipment. RUGGEDCOM ROX II limits this by filtering broadcast frames with a user-defined threshold.
• Port Mirroring RUGGEDCOM ROX II can be configured to duplicate all traffic on one port to a designated mirror port. When combined with a network analyzer, this can be a powerful troubleshooting tool.
• Port Configuration and Status RUGGEDCOM ROX II allows individual ports to be hard configured for speed, duplex, auto-negotiation, flow control and more. This allows proper connection with devices that do not negotiate or have unusual settings. Detailed status of ports with alarm and SNMP trap on link problems aid greatly in system troubleshooting.
• Port Statistics and RMON (Remote Monitoring) RUGGEDCOM ROX II provides continuously updating statistics per port that provide both ingress and egress packet and byte counters, as well as detailed error figures.
Also provided is full support for RMON statistics. RMON allows for very sophisticated data collection, analysis and detection of traffic patterns.
• Event Logging and Alarms RUGGEDCOM ROX II records all significant events to a non-volatile system log allowing forensic troubleshooting. Events include link failure and recovery, unauthorized access, broadcast storm detection, and self-test diagnostics among others. Alarms provide a snapshot of recent events that have yet to be acknowledged by the network administrator. An external hardware relay is de-energized during the presence of critical alarms, allowing an external controller to react if desired.
• HTML Web Browser User Interface RUGGEDCOM ROX II provides a simple, intuitive user interface for configuration and monitoring via a standard graphical Web browser or via a standard telecom user interface. All system parameters include detailed online help to make setup a breeze. RUGGEDCOM ROX II presents a common look and feel and standardized configuration process, allowing easy migration to other RUGGEDCOM managed products.
• Command Line Interface (CLI) A command line interface used in conjunction with remote shell to automate data retrieval, configuration updates, and firmware upgrades. A powerful Telecom Standard style Command Line Interface (CLI) allows expert users the ability to selectively retrieve or manipulate any parameters the device has to offer.
• Link Backup Link backup provides an easily configured means of raising a backup link upon the failure of a designated main link. The main and backup links can be Ethernet, Cellular, T1/E1, DDS or T3. The feature can back up to multiple remote locations, managing multiple main: backup link relationships. The feature can also back up a permanent high speed WAN link to a permanent low speed WAN link and can be used to migrate the default route from the main to the backup link.
• OSPF (Open Shortest Path First) OSPF is a routing protocol that determines the best path for routing IP traffic over a TCP/IP network based on link states between nodes and several quality parameters. OSPF is an Interior Gateway Protocol (IGP), which is designed to work within an autonomous system. It is also a link state protocol, meaning the best route is determined by the type and speed of the inter-router links, not by how many router hops they are away from each other (as in distance-vector routing protocols such as RIP).
Chapter 1
Introduction
Features and Benefits 3
Page 42
Chapter 1
Introduction
• BGP (Border Gateway Protocol) BGPv4 is a path-vector routing protocol where routing decisions are made based on the policies or rules laid out by the network administrator. It is typically used where networks are multi-homed between multiple Internet Service Providers, or in very large internal networks where internal gateway protocols do not scale sufficiently.
• RIP (Routing Information Protocol) RIP version 1 and version 2 are distance-vector routing protocols that limit the number of router hops to 15 when determining the best routing path. This protocol is typically used on small, self-contained networks, as any router beyond 15 hops is considered unreachable.
• IS-IS (Intermediate System - Intermediate System) IS-IS is one of a suite of routing protocols tasked with sharing routing information between routers. The job of the router is to enable the efficient movement of data over sometimes complex networks. Routing protocols are designed to share routing information across these networks and use sophisticated algorithms to decide the shortest route for the information to travel from point A to point B. One of the first link-state routing protocols was IS-IS developed in 1985 and adopted by the ISO in 1998 (ISO/IEC 10589:2002). It was later republished as an IETF standard (RFC 1142 [http://tools.ietf.org/html/rfc1142]).
• Brute Force Attack Prevention Protection against Brute Force Attacks (BFAs) is standard in RUGGEDCOM ROX II. If an external host fails to log in to the CLI, NETCONF or Web interfaces after a fixed number of attempts, the host's IP address will be blocked for a period of time. That period of time will increase if the host continues to fail on subsequent attempts.
• USB Mass Storage Use a removable USB Mass Storage drive to manage important files and configure RUGGEDCOM ROX II.
▪ Upgrade/Downgrade Firmware – Use the USB Mass Storage drive as a portable repository for new or legacy
versions of the RUGGEDCOM ROX II firmware.
▪ Backup Files – Configure RUGGEDCOM ROX II to backup important information to the USB Mass Storage
drive, such as rollbacks, log files, feature keys and configuration files.
▪ Share Files – Quickly configure or upgrade other RUGGEDCOM RX1500 devices by copying files using the
same microSD/microSDHC Flash drive.
RUGGEDCOM ROX II
CLI User Guide
IMPORTANT!
Do not remove the USB Mass Storage drive during a file transfer.
NOTE
Only one partition is supported on the USB Mass Storage drive.
NOTE
Only USB Mass Storage drives with one partition are supported.
• Hot Swapping Modules Power Modules (PM) and Line Modules (LM) can be safely replaced with modules of exactly the same type while the device is running, with minimal disruption to the network. The device only needs to be restarted after swapping a module with a different type, such as an Ethernet module with a serial module.
Following a hot swap, the new module will be automatically configured to operate in the same operational state as the previous module.
4 Features and Benefits
Page 43
RUGGEDCOM ROX II
CLI User Guide
NOTE
A reboot is required if a module is installed in a slot that was empty when the device was started.
Section 1.2

Feature Keys

Feature keys add features to an existing installation of RUGGEDCOM ROX II. They can be purchased and installed at any time.
Three feature keys are currently available: L2STD, L3STD and L3SEC. By default, each new RX1500/RX1501/ RX1510/RX1511/RX1512 is ordered with a base feature key, which is permanently installed on the device. Additional feature keys can be installed on the compact flash card or placed on a USB Mass Storage device, which allows them to be moved to other devices when needed.
NOTE
Each feature key is signed with the serial number of the device it is intended to be used in. Feature keys can be used in other RUGGEDCOM ROX II devices, but a low-level alarm will be generated indicating a hardware mismatch.
Chapter 1
Introduction
Feature keys include the following features:
Feature
VLANs (802.1Q)
QoS (802.1p)
MSTP (802.1Q-2005)
RSTP
eRSTP™
SNTP
L2TPv2 and L2TPv3
Port Rate Limiting
Broadcast Storm Filtering
Port Mirroring
SNMP v1/v2/v3
RMON
CLI
a
Feature Key
Layer 2 Standard
Edition (L2STD)
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
ü ü ü
Layer 3 Standard
Edition (L3STD)
Layer 3 Security
Edition (L3SEC)
HTML User Interface
MPLS
DHCP
ü ü ü
û ü ü
û ü ü
Feature Keys 5
Page 44
Chapter 1
Introduction
Feature
Layer 2 Standard
Edition (L2STD)
Feature Key
Layer 3 Standard
Edition (L3STD)
RUGGEDCOM ROX II
CLI User Guide
Layer 3 Security
Edition (L3SEC)
VRRPv2 and VRRPv3
PIM-SM
Firewall
OSPF
BGP
RIP v1/v2
IS-IS
Traffic Prioritization
VPN
IPSec
Virtualization
a
Formerly 802.1s
û ü ü
û ü ü
û ü ü
û ü ü
û ü ü
û ü ü
û ü ü
û ü ü
û û ü
û û ü
ü ü ü
For information about installing and viewing the contents of feature keys, refer to Section 3.13, “Managing
Feature Keys”.
Section 1.3

Security Recommendations

To prevent unauthorized access to the device, note the following security recommendations:
Authentication
CAUTION!
Accessibility hazard – risk of data loss. Do not misplace the passwords for the device. If both the maintenance and boot passwords are misplaced, the device must be returned to Siemens Canada Ltd. for repair. This service is not covered under warranty. Depending on the action that must be taken to regain access to the device, data may be lost.
• Replace the default passwords for all user accounts, access modes (e.g. maintenance mode) and processes (where applicable) before the device is deployed.
• Use strong passwords. Avoid weak passwords such as password1, 123456789, abcdefgh, etc. For more information about creating strong passwords, refer to the password requirements in Section 4.10, “Managing
Passwords and Passphrases”.
• Make sure passwords are protected and not shared with unauthorized personnel.
• Do not re-use passwords across different user names and systems, or after they expire.
• Record passwords in a safe, secure, off-line location for future retrieval should they be misplaced.
• When RADIUS authentication is done remotely, make sure all communications are within the security perimeter or on a secure channel.
6 Security Recommendations
Page 45
RUGGEDCOM ROX II
CLI User Guide
• PAP (Password Authentication Protocol) is not considered a secure protocol and should only be enabled when required. Consider using CHAP (Challenge-Handshake Authentication Protocol) whenever possible.
Physical/Remote Access
• It is highly recommended to enable Brute Force Attack (BFA) protection to prevent a third-party from obtaining unauthorized access to the device. For more information, refer to Section 5.6, “Enabling/Disabling Brute Force
Attack Protection”.
• SSH and SSL keys are accessible to users who connect to the device via the serial console. Make sure to take appropriate precautions when shipping the device beyond the boundaries of the trusted environment:
▪ Replace the SSH and SSL keys with throwaway keys prior to shipping.
▪ Take the existing SSH and SSL keys out of service. When the device returns, create and program new keys
for the device.
• The default and auto-generated SSL certificates are self-signed. It is recommended to use an SSL certificate that is either signed by a trusted third-party Certificate Authority (CA) or by an organization's own CA. For more information, refer to Generating SSH Keys and SSL Certificates for ROS and ROX Using Windows [http:// w3.siemens.com/mcms/industrial-communication/Documents/AN22_Application-Note_EN.pdf].
• Restrict physical access to the device to only trusted personnel. A person with malicious intent in possession of the flash card could extract critical information, such as certificates, keys, etc. (user passwords are protected by hash codes), or reprogram the card.
Chapter 1
Introduction
• Passwords/passphrases for service mode and maintenance mode should only be given to a limited number of trusted users. These modes provide access to private keys and certificates.
• Control access to the serial console to the same degree as any physical access to the device. Access to the serial console allows for potential access to BIST mode, which includes tools that may be used to gain complete access to the device.
• When using SNMP (Simple Network Management Protocol):
▪ Limit the number of IP addresses that can connect to the device and change the community names. Also
configure SNMP to raise a trap upon authentication failures. For more information, refer to Section 5.11,
“Managing SNMP”.
▪ Make sure the default community strings are changed to unique values.
• When using RUGGEDCOM ROX II as a client to securely connect to a server (such as, in the case of a secure upgrade or a secure syslog transfer), make sure the server side is configured with strong ciphers and protocols.
• Limit the number of simultaneous Web Server, CLI, SFTP and NETCONF sessions allowed.
• If a firewall is required, configure and start the firewall before connecting the device to a public network. Make sure the firewall is configured to accept connections from a specific domain. For more information, refer to
Section 5.17, “Managing Firewalls”.
• Modbus is deactivated by default in RUGGEDCOM ROX II. If Modbus is required, make sure to follow the security recommendations outlined in this CLI User Guide and configure the environment according to defense­in-depth best practices.
• Configure secure remote system logging to forward all logs to a central location. For more information, refer to
Section 3.9, “Managing Logs”.
• Configuration files are provided in either NETCONF or CLI format for ease of use. Make sure configuration files are properly protected when they exist outside of the device. For instance, encrypt the files, store them in a secure place, and do not transfer them via insecure communication channels.
• It is highly recommended that critical applications be limited to private networks, or at least be accessible only through secure services, such as IPsec. Connecting a RUGGEDCOM ROX II device to the Internet is possible.
Security Recommendations 7
Page 46
Chapter 1
Introduction
RUGGEDCOM ROX II
CLI User Guide
However, the utmost care should be taken to protect the device and the network behind it using secure means such as firewall and IPsec. For more information about configuring firewalls and IPsec, refer to Section 5.17,
“Managing Firewalls” and Section 5.29, “Managing IPsec Tunnels”.
• Management of the certificates and keys is the responsibility of the device owner. Consider using RSA key sizes of 2048 bits in length for increased cryptographic strength. Before returning the device to Siemens Canada Ltd. for repair, replace the current certificates and keys with temporary throwaway certificates and keys that can be destroyed upon the device's return.
• Be aware of any non-secure protocols enabled on the device. While some protocols, such as HTTPS, SSH and 802.1x, are secure, others, such as Telnet and RSTP, were not designed for this purpose. Appropriate safeguards against non-secure protocols should be taken to prevent unauthorized access to the device/ network.
• Prevent access to external, untrusted Web pages while accessing the device via a Web browser. This can assist in preventing potential security threats, such as session hijacking.
• Make sure the device is fully decommissioned before taking the device out of service. For more information, refer to Section 3.7, “Decommissioning the Device”.
• Configure port security features on access ports to prevent a third-party from launching various attacks that can harm the network or device. For more information, refer to Section 3.17.3, “Configuring Port Security”.
Hardware/Software
CAUTION!
Configuration hazard – risk of data corruption. Maintenance mode is provided for troubleshooting purposes and should only be used by Siemens Canada Ltd. technicians. As such, this mode is not fully documented. Misuse of this maintenance mode commands can corrupt the operational state of the device and render it inaccessible.
• Make sure the latest firmware version is installed, including all security-related patches. For the latest information on security patches for Siemens products, visit the Industrial Security website [http:// www.industry.siemens.com/topics/global/en/industrial-security/news-alerts/Pages/alerts.aspx] or the
ProductCERT Security Advisories website [http://www.siemens.com/innovation/en/technology-focus/siemens-
cert/cert-security-advisories.htm]. Updates to Siemens Product Security Advisories can be obtained by subscribing to the RSS feed on the Siemens ProductCERT Security Advisories website, or by following @ProductCert on Twitter.
• Only enable the services that will be used on the device, including physical ports. Unused physical ports could potentially be used to gain access to the network behind the device.
• Use the latest Web browser version compatible with RUGGEDCOM ROX II to make sure the most secure Transport Layer Security (TLS) versions and ciphers available are employed. Additionally, 1/n-1 record splitting is enabled in the latest Web browser versions of Mozilla Firefox, Google Chrome and Internet Explorer, and mitigates against attacks such as SSL/TLS Protocol Initialization Vector Implementation Information Disclosure Vulnerability (e.g. BEAST).
• For optimal security, use SNMPv3 whenever possible. Use strong passwords with this feature. For more information about creating strong passwords, refer to the password requirements in Section 4.10, “Managing
Passwords and Passphrases”.
Policy
• Periodically audit the device to make sure it complies with these recommendations and/or any internal security policies.
• Review the user documentation for other Siemens products used in coordination with the device for further security recommendations.
8 Security Recommendations
Page 47
RUGGEDCOM ROX II
CLI User Guide
Section 1.4

Available Services by Port

The following table lists the services available by the device, including the following information:
• Services The service supported by the device
• Port Number The port number associated with the service
• Port Open The port state, whether it is always open and cannot be closed, or open only, but can be configured
• Port Default The default state of the port (i.e. open or closed)
• Access Authorized Denotes whether the ports/services are authenticated during access
Chapter 1
Introduction
Services Port Number Port Open
SSH TCP/22 Open (if configured with login) Open Yes
SSH (Service Mode) TCP/222 Open (if configured with login) Closed Yes
NETCONF TCP/830 Open (if configured with login) Open Yes
SFTP TCP/2222 Open (if configured with login) Closed Yes
HTTP TCP/80 Open (if configured with login) Open N/A
NTP UDP/123 Open (if configured) Closed No
SNMP UDP/161 Open (if configured with login) Closed Yes
HTTPS TCP/443 Open (if configured with login) Open Yes
TCP Modbus TCP/502 Open (if configured) Closed No
IPSec IKE UDP/500 Open (if configured) Closed Yes
IPSec NAT-T UDP/4500 Open (if configured) Closed Yes
DNPv3 TCP/20000 Open (if configured) Closed No
RawSocket TCP/configured Open (if configured) Closed No
DHCP Agent UDP/67 Open (if configured) Closed No
DHCP Server UDP/67 listening, 68 responding Open (if configured) Closed No
Port
Default
Access
Authorized
RADIUS UDP/1812 to send, opens random port
to listen
L2TP Random Port Open (if configured) Closed Yes
BGP TCP/179 Open (if configured) Closed No
RIP UDP/520 Open (if configured) Closed No
MPLS-Ping UDP/3503 Open (if configured) Closed No
Open (if configured) Closed Yes
Available Services by Port 9
Page 48
Chapter 1
Introduction
Section 1.5

User Permissions

The following table lists the operation, configuration, and action commands permitted to the administrator, operator, and guest users.
Types of user access:
• Create (C) - can create and remove optional parameters
• Execute (E) - can run an action or command
• No - no read/write/execute access
• Read (R) - read access
• Update (U) - can modify existing parameter
RUGGEDCOM ROX II
CLI User Guide
Commands/Paths Permitted
config private | exclusive | no-confirm Allowed Allowed No
/admin/software-upgrade R/U No No
/admin/rox-imaging R/U No No
/admin/authentication R/U No No
/admin/authentication/password­complexity
/admin/logging C/R/U No No
/admin/alarms (status) R R No Administrator and operator can see status
/admin/alarms-config/ R/U R/U No Administrator and operator cannot create
/admin/users C/R/U No No
/admin/users/userid R/U R/U No Operator can only change own password
/admin/cli R/U R/U No
/admin/snmp C/R/U No No
Administrator Operator Guest
R/U R No
Access
Notes
of active-alarms, acknowledge and clear alarms
or delete alarm-lists
and cannot create users.
/admin/netconf R/U No No
/admin/dns C/R/U No No
/admin/webui R/U R/U No
/admin/scheduler C/R/U No No
/admin/contact R/U R/U No
/admin/hostname R/U R/U No
/admin/location R/U R/U No
/admin/session-limits R/U R/U No
/admin/session-security R/U R/U No
10 User Permissions
Page 49
RUGGEDCOM ROX II
CLI User Guide
Chapter 1
Introduction
Commands/Paths Permitted
Access
Administrator Operator Guest
/admin/sftp R/U R/U No
/admin/time (status) R R No
/admin/switch-config (status) R/U R No
/admin/system R/U R/U No
/admin/sytem-name R/U R/U No
/admin/timezone R/U C/R/U No
/admin/clear-all-alarms (action) E C/R/U No
/admin/backup-files (action) E/R/U No No
/admin/delete-all-ssh-known-hosts (action) E E No
/admin/delete-logs (action) E No No
/admin/delete-ssh-known-host (action) E E No
/admin/full-configuration-load (action) E/U No No
/admin/full-configuration-save (action) E/U No No
/admin/install-files (action) E/U No No
/admin/reboot (action) E E No
Notes
/admin/restore-factory-defaults (action) E/U No No
/admin/set-system-clock (action) E/U E No
/admin/shutdown (action) E E No
/apps C/R/U C/R/U R
/chassis/part-list R/U R R
/chassis/fixed-modules C/R/U R/U R
/chassis/line-module-list R/U R R
/chassis/line-modules/line-module R/U R/U R
/interfaces R C/R/U R
/interface C/R/U R/U R
/routing C/R/U C/R/U R
/routing/dynamic/ospf/interface C/R/U R/U R
/routing/dynamic/rip/interface C/R/U R/U R
/routing/multicast/dynamic/pim-sm/
C/R/U R/U R
interface
/routing/dynamic/isis/interface C/R/U R/U R
/security/firewall C/R/U C/R/U R
/security/crypto C/R/U R R
/security/crypto/private-key C/R/U No No
User Permissions 11
Page 50
Chapter 1
Introduction
RUGGEDCOM ROX II
CLI User Guide
Commands/Paths Permitted
Access
Administrator Operator Guest
/services C/R/U C/R/U R
/services/time/ntp/key/ C/R/U No No
/tunnel C/R/U C/R/U R
/tunnel/ipsec C/R/U No No
/ip C/R/U C/R/U R
/mpls C/R/U C/R/U R
/mpls/interface-mpls R/U R/U R
/mpls/ldp/interface-ldp R/U R/U R
/switch C/R/U C/R/U R
/switch/vlans/all-vlans C/R/U C/R/U R
/switch/port-security R/U No No
/qos C/R/U C/R/U R
/global C/R/U No No
hints E E E
monitor E E No
Notes
mpls-ping E E No
mpls-traceroute E E No
ping E E No
ping6 E E No
reportstats E E No
ssh E No No
tcpdump E E No
telnet E E No
traceroute E E No
traceroute6 E E No
traceserial E E No
wizard E No No
Section 1.6

Removable Memory

The RUGGEDCOM RX1500 features a user-accessible memory slot that supports a USB Mass Storage device. The drive can be used to manage configuration, firmware and other files on the device or a fleet of devices.
12 Removable Memory
Page 51
RUGGEDCOM ROX II
CLI User Guide
• Upgrade/Downgrade Firmware – Use the USB Mass Storage device as a portable repository for new or legacy versions of the RUGGEDCOM ROX II firmware.
• Backup Files – Configure RUGGEDCOM ROX II to backup important information to the USB Mass Storage device, such as rollbacks, log files, feature keys and configuration files.
• Share Files – Quickly configure or upgrade other RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512 devices by copying files using the same USB Mass Storage device.
IMPORTANT!
Do not remove the USB Mass Storage device during a file transfer.
NOTE
Only one partition is supported on the USB Mass Storage device.
For information about how to insert or remove the USB Mass Storage device, refer to the Installation Guide for the RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512.
Chapter 1
Introduction
Removable Memory 13
Page 52
RUGGEDCOM ROX II
CLI User Guide
Chapter 1
Introduction
Removable Memory 14
Page 53
RUGGEDCOM ROX II
CLI User Guide

Using RUGGEDCOM ROX II

Using RUGGEDCOM ROX II
This chapter describes how to use the RUGGEDCOM ROX II interface. It describes the following tasks:
• Section 2.1, “Connecting to RUGGEDCOM ROX II”
• Section 2.2, “Default User Names and Passwords”
• Section 2.3, “Logging In”
• Section 2.4, “Logging Out”
• Section 2.5, “Using Network Utilities”
• Section 2.6, “Using the Command Line Interface”
• Section 2.7, “Configuring the CLI Interface”
• Section 2.8, “Accessing Different Modes”
Chapter 2
Section 2.1

Connecting to RUGGEDCOM ROX II

The following describes the various methods for connecting the device:
• Section 2.1.1, “Connecting Directly”
• Section 2.1.2, “Connecting Through the Network”
Section 2.1.1

Connecting Directly

RUGGEDCOM ROX II can be accessed through a direct serial or Ethernet connection.
Using the RS-232 Serial Console Port
To establish a serial connection to the device, do the following:
1. Connect a serial terminal or a computer running terminal emulation software to the RS-232 console port on
the device.
Connecting to RUGGEDCOM ROX II 15
Page 54
Chapter 2
Using RUGGEDCOM ROX II
Figure 1: RS-232 Console Port (RUGGEDCOM RX1500 Model Shown)
2. Configure the terminal as follows:
• 57600 bps
• No parity
• 8 bits
• Set the terminal type to VT100
• Disable hardware and software flow control
3. Establish a connection to the device and press any key. The login prompt appears.
4. Log in to RUGGEDCOM ROX II. For more information about logging in to RUGGEDCOM ROX II, refer to
Section 2.3, “Logging In”.
RUGGEDCOM ROX II
CLI User Guide
Using an Ethernet Port
To establish a direct Ethernet connection to the device, do the following:
1. Connect a serial terminal or a computer running terminal emulation software to either the MGMT (Management) port or any other RJ-45 Ethernet port on the device.
Figure 2: MGMT Port (RUGGEDCOM RX1500 Model Shown)
16 Connecting Directly
Page 55
RUGGEDCOM ROX II
CLI User Guide
Using RUGGEDCOM ROX II
2. Configure the IP address range and subnet for the serial terminal or computer's Ethernet port. The range is typically the IP address for the device's IP interface plus one, ending at *.*.*.254.
By default, the RUGGEDCOM RX1500 has a different IP address and subnet configured for two types of IP interfaces, both of which are mapped to one or more physical ports:
Port IP Address/Mask
MGMT 192.168.1.2/24
All other Ethernet ports 192.168.0.2/24
For example, if the serial terminal or computer is connected to the device's MGMT port, configure the serial terminal or computer's Ethernet port with an IP address in the range of 192.168.1.3 to 192.168.1.254. Connect to the device using the IP address 192.168.1.2, the address of the MGMT interface.
3. Launch the SSH client on the computer and connect to admin@{ipaddress}, where {ipaddress} is the IP address for the MGMT port. The login prompt appears:
Using username "admin". admin@192.168.0.2's password:
4. Log in to RUGGEDCOM ROX II. For more information about logging in to RUGGEDCOM ROX II, refer to
Section 2.3, “Logging In”.
Chapter 2
Section 2.1.2

Connecting Through the Network

To connect to RUGGEDCOM ROX II through the network, do the following:
1. On the workstation being used to connect to the device, configure the Ethernet port to use an IP address falling within the subnet of the device.
By default, the RUGGEDCOM RX1500 has a different IP address and subnet configured for two types of IP interfaces, both of which are mapped to one or more physical ports:
Port IP Address/Mask
MGMT 192.168.1.2/24
All other Ethernet ports 192.168.0.2/24
For example, if the device is connected via the MGMT port, configure the computer's Ethernet port with an IP address in the range of 192.168.1.3 to 192.168.1.254. Connect to the device using the IP address
192.168.1.2, the address of the MGMT interface.
2. Launch the SSH client on the computer and connect to admin@{ipaddress}, where {ipaddress} is the IP address for the port that is connected to the network.
3. Log in to RUGGEDCOM ROX II. For more information, refer to Section 2.3, “Logging In”.
Section 2.2

Default User Names and Passwords

The following default passwords are pre-configured on the device for each access mode:
Connecting Through the Network 17
Page 56
Chapter 2
Using RUGGEDCOM ROX II
CAUTION!
Security hazard – risk of unauthorized access and/or exploitation. To prevent unauthorized access to the device, change the default passwords before commissioning the device. For more information, refer to Section 4.10, “Managing Passwords and Passphrases”.
Mode Username Password
Service root admin
Maintenance root admin
Administrator admin admin
Operator oper oper
Guest guest guest
Section 2.3

Logging In

RUGGEDCOM ROX II
CLI User Guide
To log in to RUGGEDCOM ROX II, do the following:
1. Connect to the device. For more information about the various methods of connecting to the device, refer
Section 2.1, “Connecting to RUGGEDCOM ROX II”.
2. Once a connection is established with the device, press Enter. The login prompt appears.
NOTE
RUGGEDCOM ROX II features three default user accounts: admin, operator and guest. Additional user accounts can be added. For information about adding user accounts, refer to Section 4.9.2,
“Adding a User”.
3. Type the user name and press Enter. The password prompt appears.
NOTE
If a unique password/passphrase has not been configured, use the factory default password. For more information, refer to Section 2.2, “Default User Names and Passwords”.
IMPORTANT!
RUGGEDCOM ROX II features a Brute Force Attack (BFA) protection system to detect potentially malicious attempts to access the device. When enabled, the protection system will block an IP address after 15 failed login attempts over a 10 minute period. The IP address will be blocked for 720 seconds or 12 minutes the first time. If the same IP address fails again 15 times in a 10 minute period, it will be blocked again, but the waiting period will be 1.5 times longer than the previous wait period.
Siemens strongly recommends that BFA protection be enabled. For more information about enabling BFA protection, refer to Section 5.6, “Enabling/Disabling Brute Force Attack Protection”.
BFA protection is enabled by default for new installations of RUGGEDCOM ROX II.
4. Type the password associated with the username and press Enter.
login as: admin admin@127.0.0.1's password: Welcome to Rugged CLI
18 Logging In
Page 57
RUGGEDCOM ROX II
CLI User Guide
admin connected from 127.0.0.1 using console on ruggedcom ruggedcom#
Section 2.4

Logging Out

To log out of the device, type exit at the root level.
ruggedcom# exit
Section 2.5

Using Network Utilities

The following sections describe how to use the built-in RUGGEDCOM ROX II network utilities:
• Section 2.5.1, “Pinging a Host”
• Section 2.5.2, “Dumping Raw Data to a Terminal or File”
• Section 2.5.3, “Tracing the Route to a Remote Host”
• Section 2.5.4, “Pinging an IPv4 Address Using MPLS Protocols”
• Section 2.5.5, “Tracing the Route of an IPv4 Address Using MPLS Protocols”
• Section 2.5.6, “Tracing Activities on a Serial Port”
Using RUGGEDCOM ROX II
Chapter 2
Section 2.5.1

Pinging a Host

To ping a host, type:
• For Hosts with IPv4 Addresses
ping address iface interface count attempts wait seconds
• For Hosts with IPv6 Addresses
ping6 address iface interface count attempts wait seconds
Where:
• address is the IP address of the host
• attempts is the number of ping attempts
• interface is the interface to use
• seconds is the maximum number of seconds to for a response from the host
Logging Out 19
Page 58
Chapter 2
Using RUGGEDCOM ROX II
Section 2.5.2
RUGGEDCOM ROX II
CLI User Guide

Dumping Raw Data to a Terminal or File

Tcpdump is a packet analyzer for TCP/IP and other packets. It can be used to dump raw data to a terminal or file.
To dump raw data to a terminal or file, type tcpdump and configure the following parameters:
Parameter Description
address Displays the source IP for each packet.
count The number of packets to capture
hex Converts the data to hexadecimal or ASCII characters.
host The host name to be ignored or allowed.
interface The interface from the IP list to dump.
linkheader Displays the link level header.
port The ports to trace.
proto { tCP | uDP | iCMP | aRP | vRRP | IqMP | oSPF | eSP | Ah } The protocol(s) to filter out. To select more than one protocol, string
verbosity The verbosity level. Type v, vv or vvv to set the level.
Section 2.5.3
the lowercase letters together. For example, tui will filter out TCP, UDP and ICMP packets.
To ignore a protocol, place an n before the protocol name (e.g. ntui).

Tracing the Route to a Remote Host

To trace the route between the device and a remote host, type:
• For Hosts with IPv4 Addresses
traceroute host
• For Hosts with IPv6 Addresses
traceroute6 host
Where:
• host is the name or IP address of the remote host
Section 2.5.4

Pinging an IPv4 Address Using MPLS Protocols

To ping an IPv4 address using the MPLS protocols, type:
mpls-ping ipaddress/prefix number_of_pings
Where:
• ipaddress/prefix is the IPv4 address of the MPLS ping
• number_of_pings is the number of ping attempts
20 Dumping Raw Data to a Terminal or File
Page 59
RUGGEDCOM ROX II
CLI User Guide
Section 2.5.5
Using RUGGEDCOM ROX II
Chapter 2

Tracing the Route of an IPv4 Address Using MPLS Protocols

To trace the route of an IPv4 address using MPLS protocols, type:
mpls-traceroute remoteIPAddr/Pre
Where:
• remoteIPAddr/Pre is the IPv4 address of the MPLS trace route
Section 2.5.6

Tracing Activities on a Serial Port

To trace activities on a serial port, type:
traceserial [ port slot port | hex | protocol | tcp-udp ]
Where:
• port slot port defines the port to trace
• hex displays the content of serial data in a hex
• protocol traces the serial protocol on the serial port
• tcp-udp traces TCP-UDP events on the serial port
Section 2.6

Using the Command Line Interface

The following sections describe how use the Command Line Interface (CLI):
• Section 2.6.1, “Accessing Different CLI Modes”
• Section 2.6.2, “Using Command Line Completion”
• Section 2.6.3, “Displaying Available Commands”
• Section 2.6.4, “Editing Commands”
• Section 2.6.5, “Using Output Redirects”
• Section 2.6.6, “Using Regular Expressions”
• Section 2.6.7, “Using CLI Utilities”
• Section 2.6.8, “Specifying a Range”
• Section 2.6.9, “Common Commands”
Section 2.6.1

Accessing Different CLI Modes

RUGGEDCOM ROX II provides commands for monitoring and configuring software, hardware and network connectivity. The Command Line Interface (CLI) supports the following modes:
Tracing the Route of an IPv4 Address Using MPLS Protocols 21
Page 60
Chapter 2
Using RUGGEDCOM ROX II
Mode Description
RUGGEDCOM ROX II
CLI User Guide
Operational Mode Operational mode is the default mode after a user logs in to the device. It allows users to perform general
Configuration Mode Configuration mode is launched from the Operational Mode. It allows users to change the actual configuration
device management actions and provides troubleshooting and maintenance utilities. It is used for viewing the system status, controlling the CLI environment, monitoring and troubleshooting network connectivity, and launching the Configuration mode.
of the device.
All changes to the configuration are made on a copy of the active configuration, called the candidate configuration. Changes do not take effect until they are committed.
In both modes, the CLI prompt indicates the current mode. In Operational mode, the prompt is:
ruggedcom#
In Configuration mode, the prompt is:
ruggedcom(config)#
As a user navigates through the configuration data hierarchy, the prompt indicates the user's location in the configuration. For example, after navigating to interface » eth » lm3 » 1, the CLI prompt will be:
ruggedcom(config-eth-lm3/1)#
Section 2.6.2

Using Command Line Completion

Commands and parameters do not need to be entered completely for the CLI to recognize them. By typing the first few letters of a command and pressing Tab, the CLI will display the possible completions. If the first few letters are unique to a specific command, the full command is automatically displayed. If the first few letters match more than one possible command, a lit of possible completions appears.
NOTE
Automatic completion is disabled inside quotation marks. If the name of a command or parameter contains a space, such as a filename, escape the space with a \ or enclose the string in quotation marks. For example:
who file foo\ bar
or
who file "foo bar"
NOTE
Auto-completion also applies to filenames and directories, but cannot be initiated using a space. Auto­completion using a space is disabled when typing a filename or directory name.
Section 2.6.3

Displaying Available Commands

To display a list of available commands at any point in the CLI, type ?.
For example, in Operational mode, typing ? at the command prompt displays a list of all Operational mode commands:
22 Using Command Line Completion
Page 61
RUGGEDCOM ROX II
CLI User Guide
ruggedcom# ? Possible completions: admin Configures the general device characteristics autowizard Automatically query for mandatory elements clear Clear parameter commit Confirm a pending commit compare Compare running configuration to another configuration or a file . . . traceserial Trace serial ports activities who Display currently logged on users write Write configuration ruggedcom#
Using RUGGEDCOM ROX II
Section 2.6.4

Editing Commands

The following commands can be used to edit command lines and move around the command history.
Chapter 2
Moving the Cursor
Command Description
Ctrl+b or Left Arrow Moves the cursor back one character
Ctrl+f or Right Arrow Moves the cursor forward one character
Esc+b or Alt+b Moves the cursor back one word
Esc+f or Alt+f Moves the cursor forward one word
Ctrl+a or Home Moves the cursor to the beginning of the command line
Ctrl+e or End Moves the cursor to the end of the command line
Deleting Characters
Command Description
Ctrl+h, Delete or Backspace
Ctrl+d Delete the character after the cursor
Ctrl+k Delete all characters from the cursor to the end of the line
Ctrl+u or Ctrl+x Delete the whole line
Delete the character before the cursor
Ctrl+w, Esc+Backspace or Alt+Backspace
Esc+d or Alt+d Delete the whole after the cursor
Delete the whole before the cursor
Editing Commands 23
Page 62
Chapter 2
Using RUGGEDCOM ROX II
Inserting Recently Deleted Text
Command Description
Ctrl+y Inserts the most recently deleted text at the cursor's location
Displaying Previously Entered Commands
Command Description
Ctrl+p or Up Arrow Shows the previous command in the command history
Ctrl+n or Down Arrow Shows the next command in the command history
Ctrl+r Reverses the order of commands in the command history
RUGGEDCOM ROX II
CLI User Guide
show history
shows a list of previous commands
Capitalization
Command Description
Esc+c Capitalizes the first letter of the word at the cursor's location and sets all other characters to lowercase
Esc+l Changes the entire word at the cursor's location to lowercase
Esc+u Changes the entire word at the cursor's location to uppercase
Special Actions
Command Description
Ctrl+c Aborts a command or clears the command line
Ctrl+v or Esc+q Treats the next character(s) as character data, not a command
Ctrl+l Redraws the screen
Ctrl+t Transposes characters
Esc+m Enters multi-line mode
Ctrl+d Exits multi-line mode
Ctrl+z Exits configuration mode
Inserting Hard Returns
Command Description
Esc+M Inserts a hard return
24 Editing Commands
Page 63
RUGGEDCOM ROX II
CLI User Guide
Using RUGGEDCOM ROX II
Section 2.6.5

Using Output Redirects

Information returned from a CLI term can be processed in various ways using an output redirect term. To specify an output redirect, type | after the CLI term and then type the redirect term. To display the available redirects, type | ? after a CLI term. For example:
ruggedcom# show admin | ? Possible completions: append Append output text to a file begin Begin with the line that matches count Count the number of lines in the output display exclude Exclude lines that match include Include lines that match linnum Enumerate lines in the output more Paginate output nomore Suppress pagination notab Suppress table output repeat Repeat show term with a given interval save Save output text to a file select Select additional columns tab Enforce table output until End with the line that matches
Chapter 2
Parameter Description
append Appends the output text to a specified ASCII text file.
For example, running these two terms appends the admin and chassis information to the specified file:
ruggedcom# show admin | append foo.txt ruggedcom# show interface | append foo.txt
The resulting file contains the results of show interface appended to the results of show admin (lines truncated with ... are shortened for illustrative purposes only):
ruggedcom# file show-config foo.txt admin time gmtime "Wed Oct 22 20:05:50 2014" localtime "Wed Oct 22 16:05:50 2014" rox-imaging roxflash-progress phase Inactive status message "" image flashing 0 netconf statistics in bad hellos 0 in sessions 0 dropped sessions 0 in rpcs 0 in bad rpcs 0 out rpc errors 0 out notifications 0 alarms active-alarms chassis 11 1 severity notice description "Line Module with serial number L15R-1710-PR002 in slot lm4 is i nserted or up"
Using Output Redirects 25
Page 64
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
begin Begins the output with the line containing the specified text. Regular
expressions can be used with this redirect. For more information about regular expressions, refer to Section 2.6.6, “Using Regular
Expressions”.
For example, show admin | begin netconf returns all of the
admin information following the netconf line:
ruggedcom# show admin | begin netconf netconf statistics in sessions 0 in xml parse errs 0 in bad hellos 0 in rpcs 0 in bad rpcs 0 in not...
count Displays the number of lines returned by the term.
For example, show admin | count shows the number of lines in the admin information.
ruggedcom# show admin | count Count: 9 lines
exclude Excludes lines containing the specified text. Information that is a
child of the excluded line is also excluded. Regular expressions can be used with this redirect. For more information about regular expressions, refer to Section 2.6.6, “Using Regular Expressions”.
For example, show admin | exclude netconf shows the admin information, excluding the netconf lines.
ruggedcom# show admin | exclude netconf admin time gmtime "Tue Feb 15 08:25:27 2011\n" localtime "Tue Feb 15 03:25:27 2011\n" software-upgrade upgrade-progress software partition "Partition #1" current version "ROX 2.1.0 (2010-12-03 17:38) ... statistics in sessions 0 in xml parse errs 0 in bad hellos 0 in rpcs 0 in bad rpcs 0 in not... supported rpcs 0 out rpc replies 0 out rpc errors 0 out notifications 0
include Includes lines containing the specified text. Information that is a
child of the included line is usually included, but may not be in some cases. Regular expressions can be used with this redirect. For more information about regular expressions, refer to Section 2.6.6, “Using
Regular Expressions”.
For example, show admin | include time shows the time lines from the admin information.
ruggedcom# show admin | include time time gmtime "Tue Feb 15 08:34:55 2011\n" localtime "Tue Feb 15 03:34:55 2011\n" ruggedcom#
linnum Numbers the lines in the output. For example:
ruggedcom# show admin | linnum 1: admin 2: time
26 Using Output Redirects
Page 65
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
Using RUGGEDCOM ROX II
Chapter 2
3: gmtime "Tue Feb 15 08:37:42 2011\n" localtime "Tue Feb 15 03:37:42 2011\n" 4: software-upgrade . . .
more Paginates the output. When the output reaches the screen-length
setting, the CLI prompts you to press a key for more. Press Enter to advance line-by-line; press space to advance page-by-page.
nomore Suppresses pagination.
notab Suppresses table output.
For example, show chassis | begin line-modules shows the following table:
ruggedcom# show chassis | begin line-modules line-modules line-module BYPASS OVERCURRENT SLOT DETECTED MODULE STATUS STATUS
---------------------------------------------------------­lm1 1000TX w/ 2x RJ45 - ­lm2 none - ­lm3 6x RS232/RS422/RS485 via RJ45 - ­lm4 E1 w/ 2x BNC - ­lm5 none - ­lm6 none - -
power-controller PM MOV PM PM PM SLOT PROTECTION TEMPERATURE CURRENT VOLTAGE
-----------------------------------------------­pm1 na 43 2907 3381
For example, show chassis | begin line-modules | notab suppresses the table formatting:
ruggedcom# show chassis | begin line-modules | notab line-modules line-module lm1 detected module "1000TX w/ 2x RJ45" line-module lm2 detected module none line-module lm3 detected module "6x RS232/RS422/RS485 via RJ45" line-module lm4 detected module "E1 w/ 2x BNC" line-module lm5 detected module none line-module lm6 detected module none power-controller PM MOV PM PM PM SLOT PROTECTION TEMPERATURE CURRENT VOLTAGE
-----------------------------------------------­pm1 na 43 2892 3381
repeat Repeats the term at the specified interval. Specify an interval in
seconds. The term repeats until you cancel it with Ctrl-C.
Using Output Redirects 27
Page 66
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
For example, show admin | repeat 10s repeats the show admin term every 10 seconds.
save Saves the output to the specified ASCII text file.
For example, show chassis | save foo.txt saves the chassis information to the file foo.txt
RUGGEDCOM ROX II
CLI User Guide
select
tab Enforces table layout for columnar data.
until Includes output until a line containing the specified text appears.
This redirect is not yet implemented.
Regular expressions can be used with this redirect. For more information about regular expressions, refer to Section 2.6.6, “Using
Regular Expressions”.
For example, show chassis | begin cpu | until status returns the
chassis information beginning with cpu and ending with status:
ruggedcom# show chassis | begin cpu | until status cpu slot-cpu main detected module "RX1501 8 Gigabit Layer 3 w/ 6 LM slots and 1 PM slots" cpu load 22 ram avail 53 ram avail low 20 status
Section 2.6.6

Using Regular Expressions

RUGGEDCOM ROX II command line regular expressions are a subset of the regular expressions found in egrep and in the AWK programming language. Regular expressions can be used along with several of the output redirects. For more information about using output redirects, refer to Section 2.6.5, “Using Output Redirects”.
Character Description Example
. Matches any single character (e.g. .100, 100., .100.) .100
100.
.100.
* Matches zero (0) or more occurrences of a pattern 100*
+ Matches 1 or more occurrences of a pattern 100+
? Match 0 or 1 occurrences of a pattern 100?
^ Matches the beginning of the line ^100
$ Matches the end of the line 100$
() Matches only the characters specified (38a)
[] Matches any character other than those specified [^abc]
_ (underscore) The underscore character has special meanings in an autonomous system
path. It matches to:
• Each space ( ) and comma (,)
_100,100_, _100_
28 Using Regular Expressions
Page 67
RUGGEDCOM ROX II
CLI User Guide
Character Description Example
• Each AS set delimiter (e.g. { and })
• Each AS confederation delimiter (e.g. ( and ))
• The beginning and end of the line
Therefore, the underscore can be used to match AS values.
For example, to show all the IP interfaces that are in the up state:
ruggedcom# show interfaces ip | include up admin state up state up admin state up state up admin state up state up admin state up admin state up admin state up admin state up admin state up
Section 2.6.7
Using RUGGEDCOM ROX II
Chapter 2

Using CLI Utilities

The Operational mode provides a set of standard utility applications, similar to those on a typical Linux-based operating system.
Parameter Description
ssh [ host | address/name ] { bind-address | address } { cipher-spec | cipher } { login | name } { port | number } { sub-system }
telnet { host | address/name }
Further information about these well-known applications is publicly available on the Internet.
Opens a secure shell on another host. Parameters include:
• host is the name or IP address of the host. It is mandatory.
• bind-address is the source address of the connection. Only useful on systems with more than one address.
• cipher-spec is the cipher specification for encrypting the session. Supported cipher options include aes128-cbc, 3des­cbc, blowfish-cbc, cast128-cbc, arcfour128, arcfour256, arcfour, aes192-cbc, aes256-cbc, aes128-ctr, aes192-ctr and aes256-ctr.
• login is the users login name on the host.
• port is the TCP port number to open an SSH session to.
• sub-system invokes a subsystem on the remote system, such as NETCONF.
Opens a telnet session to another host. Parameters include:
• host is the name or IP address of the host
Section 2.6.8

Specifying a Range

Some CLI commands accept a range of values, such as LM1-3 or 3-6, to specify multiple targets. In the following example, a command is applied to port 1 on LM1, LM2 and LM3:
ruggedcom(config)# interface switch lm1-3 1
Using CLI Utilities 29
Page 68
Chapter 2
Using RUGGEDCOM ROX II
In this example, a command is issued to ports 1, 2 and 4 on LM1, LM2 and LM4:
ruggedcom(config)# interface switch lm1-2,4 1-2,4
When available, the range parameter can be included before the value range:
ruggedcom(config)# interface switch range lm1-3 1-6
Section 2.6.9

Common Commands

The following sections describe common commands that can be used in the CLI:
• Section 2.6.9.1, “Basic CLI Commands”
• Section 2.6.9.2, “File Commands”
• Section 2.6.9.3, “Interface and Services Commands”
• Section 2.6.9.4, “Administration Commands”
• Section 2.6.9.5, “Configuration Mode General Commands”
RUGGEDCOM ROX II
CLI User Guide
Section 2.6.9.1
Basic CLI Commands
Use the following commands to perform basic CLI functions.
Parameter Description
exit [ level | configuration-mode | no-confirm ]
help command
id
logout [ logout | sessionid ]
quit
Default: level
Exits from the current mode.
• level exits from the current mode. If performed at the top level, this command exits from the configuration mode.
• configuration-mode exits from configuration mode regardless of mode.
• no-confirm exits from configuration mode without prompting the user to commit any pending changes.
Displays help text for the specified command.
Displays the current user's information. For example:
ruggedcom# id user = admin(0), gid=0, groups=admin, gids=
Terminates the specified session. A session can by specified based on its user ID or session ID.
Logs out of and ends the CLI session.
send [ all | admin ] message
Sends a message to all users of the specified type. The message appears in both the CLI and web interface. For example:
ruggedcom# send all "Rebooting at midnight!"Message from admin@ruggedcom at 2011-02-15 08:42:49... Rebooting at midnight!
30 Common Commands
Page 69
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
Using RUGGEDCOM ROX II
Chapter 2
EOF
show [ admin | chassis | interface | interfaces | netconf | routing | services ]
Shows selected configuration information. Use auto completion to display the list of options available at each configuration level. For example:
ruggedcom# show chassis hardware slot-hardware
ORDER
SLOT FIELD DETECTED MODULE SERIAL NUMBER
------------------------------------------------------------­ pm1 48 48VDC (36-59VDC) Power Supply
lm1 XX none none
lm2 M1_ Old V90 Modem
lm3 TX01 2x 10/100Tx RJ45
lm4 TX01 2x 10/100Tx RJ45
lm5 DS3 1x T3/E3
lm6 TC2 2x Chan T1/E1
pm2 XX none none
main CM01 RX1000 Main Board RX1K-12-11-0015
show [ cli | history | jobs | log | logfile ]
show parser dump command
show running-config option
Shows selected system information.
• cli shows the CLI environment settings. For example:
ruggedcom# show cli autowizard true complete-on-space true display-level 99999999 history 100 ignore-leading-space true output-file terminal paginate true screen-length 65 screen-width 237 service prompt config true show-defaults false terminal xterm
• history displays the CLI command history.
• jobs displays currently running background jobs. For example:
ruggedcom# show jobs JOB COMMAND 2 monitor start /tmp/saved
• log and logfile display the selected log file. Use auto completion to view a list of available log files.
Displays all possible commands starting with the specified command.
Displays the current configuration. If an option parameter is not specified, the entire configuration will be displayed by default . Use
Basic CLI Commands 31
Page 70
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
auto completion to see a list of configuration options. Use | and one or more output redirects to restrict the information to be shown.
Section 2.6.9.2
File Commands
Operational mode provides commands for managing log, configuration and feature key files on the device.
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
compare file
file
Compares the running configuration to a file. A > character indicates text that is present in the selected file but not in the running configuration. A < character indicates text that is present in the running configuration, but not in the selected file. In the following example, the user information is present in the configuration, but not in the selected file:
ruggedcom# compare file deleted_users 125,127d124 < userid jsmith < password $1$N1YT8Azl$KcG1E6/r91EXc4mgEEsAW. role administrator < ! ruggedcom#
Performs file operations, including:
• compare-config
• copy-config
• delete-config
• delete-featurekey
• list-config
• list-featurekey
• rename-config
• rename-featurekey
• scp-config-from-url
• scp-config-to-url
• scp-featurekey-from-url
• scp-featurekey-to-url
• scp-log-to-url
• show-config
• show-featurekey
file compare-config filename1 filename2
Compares the contents of two files. A < character indicates text that is present in the first selected file but not in the second file. A > character indicates text that is present in the second selected file but not in the first file. In the following example, the user information is present in the second file, but not in the first:
ruggedcom# file compare deleted_users all_users 125,127d124 < userid jsmith < password $1$N1YT8Azl$KcG1E6/r91EXc4mgEEsAW. role administrator < !
32 File Commands
Page 71
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
Using RUGGEDCOM ROX II
Chapter 2
file copy-config current-filename new-filename
file delete-config filename
file delete-featurekey filename
file list-config
file list-featurekey
Copies a configuration file. After typing the command, press Tab to view a list of available files. For example, the following command copies the deleted_users file to the archive001 file:
ruggedcom# file copy-config deleted_users archive001
Deletes a configuration file. After typing the command, press Tab to view a list of available files. For example, the following command deletes the deleted_users file:
ruggedcom# file delete-config deleted_users
Deletes a feature key file. After typing the command, press Tab to view a list of available files. For example, the following command deletes the feature key 1_cmRX1K-12-11-0217.key file:
ruggedcom# file delete-featurekey 1_cmRX1K-12-11-0217.key
Lists the configuration files. For example:
ruggedcom# file list-config
--help 10.200.20.39 _tmp_confd_cmd.0 archive001 archive002 default_rx1000_config
Lists the feature key files. For example:
ruggedcom# file list-featurekey 1_cmRX1K-12-11-0015.key
file rename-config current-filename new-filename
file rename-config current-filename new-filename
file scp-config-from-url user@host:/path/current-
filename new-filename
Renames a configuration file. For example, the following command renames the test002 file to production_config:
ruggedcom# file rename-config test002 production_config
Renames a feature key file. For example, the following command renames the feature key 1_cmRX1K-12-11-0217.key file to
old_featurekey:
ruggedcom# file rename-featurekey 1_cmRX1K-12-11-0217.key old_featurekey
Securely copies a configuration file from a remote computer to the device. The remote computer must have an SCP or SSH (secure shell) service or client installed and running.
To use this command, the user credentials for the remote computer, the IP address or host name of the remote computer, the directory path to the configuration file on the remote computer, and the configuration file filename must all be known.
Type the command in the following format:
file scp-config-from-url user@host:/path/current- filename new-filename
Where:
• user is a user name with access rights to the remote computer.
• host is the host name or IP address of the remote computer.
• path path is the path to the configuration file on the remote computer.
File Commands 33
Page 72
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
• current-filename is the current filename of the configuration file.
• new-filename is the new filename for the configuration file. To use the current filename, specify the current filename or exclude this parameter from the command.
When prompted, type the password to connect to the remote computer. For example:
ruggedcom# file scp-config-from-url jsmith@10.200.20.39:/c:/ruggedcom/ standard_config standard_config jsmith@10.200.20.39's password: standard_config.txt 100% 7673 7.5KB/s 00:00
file scp-config-to-url current-filename user@host:/path/new-filename
Securely copies a configuration file from the device to a remote computer. The remote computer must have an SCP or SSH (secure shell) service or client installed and running.
To use this command, the user credentials for the remote computer, the IP address or host name of the remote computer, the directory path to the configuration file on the remote computer, and the configuration file filename must all be known.
Type the command in the following format:
file scp-config-to-url current-filename user@host:/path/new-filename
Where:
• current-filename is the current filename of the configuration file.
• user is a user name with access rights to the remote computer.
• host is the host name or IP address of the remote computer.
• path path specifies where to save the configuration file on the remote computer.
• new-filename is the new filename for the configuration file. To use the current filename, specify the current filename or exclude this parameter from the command.
When prompted, type the password to connect to the remote computer. For example:
ruggedcom# file scp-config-to-url default_config jsmith@10.200.20.39:/c:/ruggedcom/ default_config jsmith@10.200.20.39's password: standard_config.txt 100% 7673 7.5KB/s 00:00
file scp-featurekey-from-url user@host:/path/current-filename new-filename
Securely copies a feature key file from a remote computer to the device. The remote computer must have an SCP or SSH (secure shell) service or client installed and running.
To use this command, the user credentials for the remote computer, the IP address or host name of the remote computer, the directory path to the feature key file on the remote computer, and the feature key file filename must all be known.
Type the command in the following format:
file scp-featurekey-from-url current-filename user@host:/path/new-filename
Where:
• user is a user name with access rights to the remote computer.
34 File Commands
Page 73
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
Using RUGGEDCOM ROX II
Chapter 2
• host is the host name or IP address of the remote computer.
• path path is the path to the feature key file on the remote computer.
• current-filename is the current filename of the feature key file.
• new-filename is the new filename for the feature key file. To use the current filename, specify the current filename or exclude this parameter from the command.
When prompted, type the password to connect to the remote computer. For example:
ruggedcom# file scp-featurekey­from-url jsmith@10.200.20.39:/c:/ ruggedcom/1_cmRX1K-12-11-0015.key 1_cmRX1K-12-11-0015.key jsmith@10.200.20.39's password: 1_cmRX1K-12-11-0015.key 100% 192 0.2KB/s 00:00
file scp-featurekey-to-url current-filename user@host:/path/new-filename
Securely copies a feature key file to a remote computer from the device. The remote computer must have an SCP or SSH (secure shell) service or client installed and running.
To use this command, the user credentials for the remote computer, the IP address or host name of the remote computer, the directory path to the feature key file on the remote computer, and the feature key file filename must all be known.
Type the command in the following format:
file scp-featurekey-to-url current-filename user@host:/path/new-filename
Where:
• current-filename is the current filename of the feature key file.
• user is a user name with access rights to the remote computer.
• host is the host name or IP address of the remote computer.
• path path specifies where to save the feature key file on the remote computer.
• new-filename is the new filename for the feature key file. To use the current filename, specify the current filename or exclude this parameter from the command.
When prompted, type the password to connect to the remote computer. For example:
ruggedcom# file scp-featurekey-to-url 1_cmRX1K-12-11-0015.key jsmith@10.200.20.39:/c:/ ruggedcom/1_cmRX1K-12-11-0015.key jsmith@10.200.20.39's password: 1_cmRX1K-12-11-0015.key 100% 192 0.2KB/s 00:00
file scp-log-to-url current-filename user@host:/path/new-filename
scp-log-to-url
Securely copies a log file to a remote computer from the device. The remote computer must have an SCP or SSH (secure shell) service or client installed and running.
To use this command, the user credentials for the remote computer, the IP address or host name of the remote computer, the directory path to the log file on the remote computer, and the log file filename must all be known.
Where:
• current-filename is the current filename of the log file.
File Commands 35
Page 74
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
• user is a user name with access rights to the remote computer.
• host is the host name or IP address of the remote computer.
• path path specifies where to save the log file on the remote computer.
• new-filename is the new filename for the log file. To use the current filename, specify the current filename or exclude this parameter from the command.
When prompted, type the password to connect to the remote computer. For example:
ruggedcom# file scp-log-to-url syslog.1 jsmith@10.200.20.39:/c:/ruggedcom/syslog.1 jsmith@10.200.20.39's password: syslog.1 100% 12KB
12.4KB/s 00:00
file show-config filename
file show-featurekey filename
Section 2.6.9.3
Interface and Services Commands
Displays the content of a specified file. Use auto completion to display a list of available files. For example:
ruggedcom# file show-config added_users.txt admin system-name "System Name" location Location contact Contact admin hostname name ruggedcom domain localdomain admin session-limits max-sessions 50 . . .
Displays the content of a specified feature key file. Use auto completion to display a list of available feature key files. For example:
ruggedcom# file show-featurekey 1_cmRX1K-12-11-0015.key GPG_FEATUREKEY_LEVEL=1 GPG_FEATUREKEY_CM_SERIALNUMBER=RX1K-12-11-0015 GPG_FEATUREKEY_SIGNATURE=iEYEABECAAYFAk091pAACgkQP2pya +G5kdZeKACeKdHUB2G1T73Dymq8IjSdYDKAiskAn3abBpCEhfLXxY2ZlVbv GNwDZow2
Operational mode provides commands for restarting and displaying information for various interfaces and services.
Parameter Description
interfaces modem modem [ at | reset ]
interfaces serial restart-serserver
36 Interface and Services Commands
Sends an AT or reset command to the specified modem. Use auto completion to display a list of available modems.
• at: Sends an AT command to the selected modem. To send multiple AT commands, separate each command with a : colon.
• reset: Resets the modem.
Restarts the serial communication service.
Page 75
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
Using RUGGEDCOM ROX II
Chapter 2
interfaces clearstatistics [ ddsName | t1e1Name | t3e3Name ] name
services dhcpserver show-active-leases
Clears statistics for the specified WAN interface. Use tab completion to display a list of available WAN interfaces.
Displays active DHCP leases.
Section 2.6.9.4
Administration Commands
Operational mode provides commands for performing device administration tasks.
Parameter Description
admin acknowledge-all-alarms
admin clear-all-alarms
admin delete-all-ssh-known-hosts
admin delete-ssh-known-hosts
admin restore-factory-defaults
Acknowledges all system alarms.
Clears all system alarms.
Deletes the list of known hosts.
Deletes the host entry from the list of known hosts.
Restores the factory default configuration and settings, but does not erase any files you have saved on the device.
admin reboot
admin restore-factory-defaults
admin set-system-clock time YYYY-MM-DD HH:MM:SS
admin shutdown
admin software-upgrade decline-upgrade
admin software-upgrade launch-upgrade
admin software-upgrade rollback-reboot
maint-login
Reboots the device.
Restores the factory default configuration and settings, but does not erase any files you have saved on the device.
Sets the date and time on the device. To specify just the date, type the date in the format YYYY-MM-DD. To specify just the time, type the time in the format HH:MM:SS. To specify both date and time, enclose the string in quotation marks and type the date and time in the format "YYYY-MM-DD HH:MM:SS".
NOTE
When setting the time, specifying seconds seconds (SS) is optional.
Shuts down the device.
For more information on shutting down the device, refer to
Section 3.4, “Shutting Down the Device”
Cancels (or declines) a recent software upgrade that is waiting for a reboot to the upgraded partition.
Launches an upgrade in the alternate partition.
Boots to a previous software release on the alternate partition.
CAUTION!
Configuration hazard – risk of data loss/corruption. Maintenance mode is provided for troubleshooting purposes and should only be used by Siemens Canada Ltd. technicians. Maintenance mode is provided for
Administration Commands 37
Page 76
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
troubleshooting purposes and all possible commands are not documented. Misuse of maintenance mode commands can corrupt the operational state of the device and render the device inaccessible.
Logs in to the underlying operating system as the root user. The user must be an administrator and be able to provide the maint-login password.
monitor start filename
monitor stop filename
reportstats
config private
config exclusive
Starts displaying the specified system log or tracing the specified file. If necessary, the output can be redirected to a file. For information on how to redirect output, refer to Section 2.6.5, “Using
Output Redirects”. Use auto completion to view a list of available
logs and files.
Stops displaying the specified system log or tracing the specified file. Use auto completion to view a list of available logs and files.
Displays an extensive collection of device-specific statistics. If necessary, the output can be redirected to a file. For information on how to redirect output, refer to Section 2.6.5, “Using Output
Redirects”.
Enters a configuration mode where users can make changes to the system. This is the primary mode for most users who want to make changes to the device/network configuration. It can be accessed by multiple Operator and Admin users.
All changes made during a private configuration session are hidden from other users until they are committed. Each change must be committed before it is applied to the active system.
If a user opens an exclusive configuration session during another user's private configuration session, the user in the private configuration session cannot commit their changes until the other user ends their session.
Enters a configuration mode where users can make changes to the system. This mode is similar to the private configuration mode, except all other users are blocked from committing their changes until the user using the exclusive configuration mode exits. Only one Operator or Admin user can use the exclusive configuration mode at a time per device.
When committing changes in exclusive configuration mode, use the confirmed option to set a timeout period. Changes will be applied for the set period of time, after which the configuration will be reset to its previous settings. This allows users to test their configuration changes before fully applying them to the active system.
For more information about the confirmed option, refer to
Section 2.6.9.5, “Configuration Mode General Commands”.
IMPORTANT!
Always log out of the exclusive configuration mode or exit the transaction. If the session is terminated before a user exits properly, other users logged in to the device will continue to be blocked from making changes until the session timeout period expires.
38 Administration Commands
Page 77
RUGGEDCOM ROX II
CLI User Guide
Using RUGGEDCOM ROX II
Section 2.6.9.5
Configuration Mode General Commands
Configuration mode provides a set of general commands that allow users to work with configuration data.
Parameter Description
Chapter 2
abort
clear
commit no-confirm
commit abort
commit and-quit
commit check
commit confirmed timeout
Exits the configuration session without saving changes.
NOTE
In an edit exclusive session, any pending unconfirmed commits will not be canceled until their timeout periods expire. A new edit exclusive session cannot be opened until the timeout period ends.
Deletes all configuration changes.
Immediately commits the current set of configuration changes. This command will prompt the user to confirm the action. Use the no- confirm parameter to revert the configuration without requiring confirmation.
In an edit exclusive session, this command aborts/cancels all confirmed commits.
Commits all confirmed and unconfirmed changes and exits the configuration mode.
Validates the current configuration.
Temporarily commits changes for a period of time, allowing users to test the configuration before fully committing the changes. The changes must be committed using a standard commit command before the timeout period ends. If changes are not committed before the timeout period ends, they are automatically discarded and the previous settings are restored.
A timeout period can be specified at the end of the command. The default timeout period is 10 minutes. The minimum timeout period is 1 minute. For example:
ruggedcom(config-admin)# commit confirmed 2
To cancel a commit before the time elapses and discard the changes, type:
commit abort
To permanently commit the changes before the time elapses, type:
commit
commit comment text
commit label text
commit persist-id text
commit save-running file
Immediately commits the current set of configuration changes along with a custom comment. The comment will appear next to the commit in a list of pending of commits.
Immediately commits the current set of configuration changes along with a custom label. In a list of pending commits, the label will appear instead of the auto-generated commit ID.
Immediately commits the current set of configuration changes and assigns a user-specified ID or flag.
Immediately commits the current set of configuration changes and saves them to the specified file. It does not save the complete running configuration.
Configuration Mode General Commands 39
Page 78
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
copy
details
do
end
Copies a configured element to a new element. For example, the following command copies the userid admin to the new userid wsmith:
ruggedcom(config)# copy admin users userid admin smith
The new item has all of the attributes of the item from which it is copied. In this example, userid wsmith will have the same password and role attributes as the userid admin.
When used in combination with the save command, the details command includes default values in the saved configuration file. For example:
ruggedcom(config)# save {filename} | details
The details command can also be used to show default configuration values. For example:
ruggedcom(config)# show running-config admin session-limits | details
Performs an Operational mode command. For example, the following command performs the Operational mode ping command in the Configuration mode session:
ruggedcom(config)# do ping 172.30.134.12
Terminates the configuration session. The system prompts the user to commit uncommitted changes.
exit
help command
load [ merge | override ] filename
Exits from the current mode. Unlike the end command, the system does not prompt the user to commit uncommitted changes.
Displays help information for the specified command.
Loads a configuration from an ASCII CLI configuration file.
Two parameters are available for the CLI load command: override and merge.
• Override: this parameter is for users who have a full configuration file saved and want to load it back on to the device. The full configuration file can be previously created with the CLI save command executed from the top level in the configuration tree or with the admin full-configuration-save command. With the override parameter, the entire running configuration is overwritten by the contents of the configuration file.
The override option has the following restrictions:
▪ The configuration file must be a complete configuration for the
device. A complete configuration is the entire configuration tree.
▪ The load command must be invoked at the base of the
configuration tree.
• Merge: this parameter is for users who want to build a template configuration and load it to many devices. The template configuration file can be obtained by using the CLI save command. With the merge parameter, the contents of the configuration file will be merged with the running configuration. The remaining configurations, which are not included in the configuration file, will remain unchanged.
After loading the configuration, use the commit command to commit the changes.
40 Configuration Mode General Commands
Page 79
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
Using RUGGEDCOM ROX II
Chapter 2
move [ after | before | first | last | ipv4 ]
no
Moves an existing IPv4 address to a new position in the list of addresses. The address can be moved to the first or last (default) position in the list, or before or after another address. For example, the following command moves 172.30.137.37/9 before
172.30.137.31/19:
ruggedcom(config)# move ip fe-3-1 ipv4 address
172.30.137.37/19 before 172.30.137.31/19
Negates a command or sets it to its default setting. For example, the following command deletes the IP address 172.30.137.37/19:
ruggedcom(config)# no ip fe-3-1 ipv4 address
172.30.137.37/19
NOTE
The no command affects only the parameter or setting of the node explicitly specified in the command. When using no to negate a parameter or setting that has dependencies, clearing the specific parameter does not clear the related dependencies.
For example, the following command adds an IPv4 route with a gateway:
ruggedcom(config)# routing ipv4 route
192.168.33.0/24 via 192.168.11.2
The following command deletes the gateway, but it does not delete the route:
ruggedcom(config)# no routing ipv4 route
192.168.33.0/24 via 192.168.11.2
pwd
rename
resolved
revert no-confirm
rollback configuration number
The no deletes only the explicitly specified parameter or object.
Displays the path to the current node. For example, after navigating to an IPv4 address, the following command displays the path through the command hierarchy to the current node:
ruggedcom(config-address-172.30.137.31/19)# pwd Current submode path: ip fe-3-1 \ ipv4 \ address 172.30.137.31/19
Changes the value of a parameter. For example, the following command changes the IPv4 address 172.30.137.36/19 to
172.30.137.40/19:
ruggedcom(config)# rename ip fe-3-1 ipv4 address
172.30.137.36/19 172.30.137.40/19
Issue this command when conflicts have been resolved. Conflicts are normally discovered when the commit operation is performed. Conflicts typically arise when multiple users edit the same parts of a configuration.
Copies the running configuration into the current configuration. This discards all changes to the current configuration. This command will prompt the user to confirm the action. Use the no-confirm parameter to revert the configuration without requiring confirmation.
Returns the configuration to a previously committed configuration. The system stores a limited number of old configurations. After
Configuration Mode General Commands 41
Page 80
Chapter 2
Using RUGGEDCOM ROX II
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
reaching the maximum number of old configurations, storing a new configuration deletes the oldest configuration in the list. The most recently committed configuration (the running configuration) appears as item 0 in the list. Select a number from the list and press Enter.
ruggedcom(config)# rollback configuration Possible completions: 0 2012-01-08 13:51:46 by admin via cli 1 2012-01-08 13:50:58 by admin via cli 2 2012-01-08 12:05:46 by admin via cli 3 2012-01-08 10:47:42 by admin via cli 4 2012-01-08 07:49:38 by admin via cli 5 2012-01-08 07:46:14 by admin via cli
ruggedcom(config)# rollback configuration
After rolling back the configuration, use the commit command to commit the changes.
save filename
show
Saves the current configuration, without default values, to an ASCII file. Specify a filename for the file.
Current configuration means the configuration of the user's current level in the configuration data hierarchy. For example, if the user is at the top level, the save command will save the complete/full configuration of the device.
ruggedcom(config)# save {full-configuration­filename}
If the user is at a level other than the top level, such as the firewall level, the save command will save a partial configuration of the current level.
ruggedcom(config)#security firewall ruggedcom(config-firewall)# save {firewall­configuration-filename}
Use this command along with the details command to include default values in the saved configuration file. For example:
ruggedcom(config)# save {filename} | details
Shows configuration, history or command line interface parser information. Type show and press Tab to navigate through the items available to display.
This command can also be combined with the details command to display the default configuration values. For example:
ruggedcom# show running-config admin session­limits | details
top command
validate
wizard [ rox_flash | rox_upgrade ]
Exits to the top level of the command hierarchy and, optionally, runs a command.
Validates the current configuration.
Runs the rox_flash or rox_upgrade wizards. For more information, refer to Section 3.11.5.2, “Downgrading Using ROXflash” and
Section 3.11.3, “Upgrading the RUGGEDCOM ROX II Software”.
42 Configuration Mode General Commands
Page 81
RUGGEDCOM ROX II
CLI User Guide
Using RUGGEDCOM ROX II
Section 2.7

Configuring the CLI Interface

The following commands can be used to configure certain characteristics and customize the CLI interface.
Parameter Description
Chapter 2
autowizard { true | false }
clear history
display-level
history integer
output-file { filename | terminal }
paginate { true | false }
screen-length integer
screen-width integer
show-defaults { true | false }
When enabled, the CLI prompts for required settings when a new identifier is created.
Clears the CLI history.
Determines the depth of hierarchical information to display in command results.
Determines the number of items to record in the CLI history.
Directs CLI output to the specified ASCII text file, or to the terminal. Output is directed to the specified destination until another destination is set with a subsequent output-file command.
Lengthy output is paginated by default. When the output reaches the screen-length setting, the CLI prompts the user to press a key for more output. Press Enter to advance line-by-line or press Space to advance page-by-page. When disabled, output is not paginated.
Determines the number of lines in a terminal page.
Determines the length of terminal lines.
Determines if default values are shown when displaying the configuration. When enabled, default values appear as comments after the configured value. In the following example, the default value for the contact value is shown as a comment following the configured contact string of wsmith@example.com:
ruggedcom# show running-config admin contact admin contact "wsmith@example.com" ! Contact !
Default values only appear for parameters that have default values. If a parameter does not have a default value, no default appears when show-defaults is set to true.
terminal { dumb | vt100 | xterm | linux | ansi }
Determines the terminal type and controls how line editing is performed. Supported terminals are: dumb, vt100, xterm, linux, and ansi. Other terminals may also work but have no explicit support.
Section 2.8

Accessing Different Modes

Aside from normal mode, there are three additional modes within RUGGEDCOM ROX II that offer various controls over the operating system.
The following sections describe how to access the different modes within RUGGEDCOM ROX II:
• Section 2.8.1, “Accessing BIST Mode”
Configuring the CLI Interface 43
Page 82
Chapter 2
Using RUGGEDCOM ROX II
RUGGEDCOM ROX II
CLI User Guide
• Section 2.8.2, “Accessing Service Mode”
• Section 2.8.3, “Accessing Maintenance Mode”
Section 2.8.1

Accessing BIST Mode

BIST (Built-In-Self-Test) mode is used by RUGGEDCOM ROX II to test and configure internal functions of the device. The method for accessing BIST is different if a new software image has been flashed onto the flash card.
CAUTION!
Security hazard – risk of unauthorized access and/or exploitation. Access to BIST mode should be restricted to admin users only.
CAUTION!
Configuration hazard – risk of data corruption. BIST mode is provided for troubleshooting and advanced configuration purposes and should only be used by Siemens Canada Ltd. technicians. As such, this mode is not fully documented. Misuse of the commands available in this mode can corrupt the operational state of the device and render it inaccessible.
NOTE
BIST mode opens port 222.
To access BIST mode normally, do the following:
IMPORTANT!
Do not connect the device to the network when it is in BIST mode. The device will generate excess multicast traffic in this mode.
1. Disconnect the device from the network.
2. Connect to the RUGGEDCOM RX1500 through the RS-232 console connection and a terminal application. For more information, refer to Section 2.1.1, “Connecting Directly”.
3. Reboot the device. For more information, refer to Section 3.5, “Rebooting the Device”.
4. If prompted, provide the boot password/passphrase for the device.
5. As soon as the device starts to boot up, press ESC. A list of possible boot modes for each partition appears.
****Boot Partition 4**** [4-0]: Debian GNU/Linux, kernel 3.0.0-2-8360e [4-1]: Debian GNU/Linux, kernel 3.0.0-2-8360e (BIST mode) [4-2]: Debian GNU/Linux, kernel 3.0.0-2-8360e (single-user mode) [4-3]: Debian GNU/Linux, kernel 3.0.0-2-8360e (service mode)
****Boot Partition 6**** [6-0]: Debian GNU/Linux, kernel 3.0.0-2-8360e [6-1]: Debian GNU/Linux, kernel 3.0.0-2-8360e (BIST mode) [6-2]: Debian GNU/Linux, kernel 3.0.0-2-8360e (single-user mode) [6-3]: Debian GNU/Linux, kernel 3.0.0-2-8360e (service mode)
Auto booting [4-0], Hit [ESC] key to stop: 0 Welcome to the boot menu. Please select from the following options:
Enter [BootPartition-BootTarget] (e.g. '4.0') to boot. 'h' Show this help menu
44 Accessing BIST Mode
Page 83
RUGGEDCOM ROX II
CLI User Guide
'l' List the available boot targets 'c' Exit to the boot loader command line
Will reboot after 60 seconds of inactivity :
Using RUGGEDCOM ROX II
NOTE
In the example above, the text Auto booting [4-0] indicates the active partition is Boot Partition 4.
6. Enter boot mode on the active partition by typing the associated target number. For example, if the active partition is Boot Partition 6, type 6-1 and press Enter. The self-test cycle begins.
7. Press Ctrl+c to stop the self-test cycle and halt the excess multicast traffic. A BIST prompt appears.
BIST:~#
To access BIST mode after flashing a new software image on to the flash card, do the following:
1. Connect to the RUGGEDCOM RX1500 through the RS-232 console connection and a terminal application. For more information, refer to Section 2.1.1, “Connecting Directly”.
2. Cycle power to the device.
3. If prompted, provide the boot password/passphrase for the device.
Chapter 2
4. Press Ctrl+c to stop the self-test cycle and halt the excess multicast traffic. A BIST prompt appears.
BIST:~#
Once all configuration changes or tests are complete, it is important to change the boot mode by doing the following:
1. Set the next boot to normal by typing:
nextboot normal
2. Reboot the device by typing:
reboot
CAUTION!
Security hazard – risk of unauthorized access and/or exploitation. Upon accessing BIST mode on a device that is connected to a network, make sure SSH is disabled. Failure to disable SSH once in BIST mode would allow anyone with remote access to the device and the root password to access the Linux shell.
NOTE
SSH is enabled automatically once the device is rebooted in normal mode. It can also be enabled manually by typing:
/etc/init.d/ssh start
3. Once the device is rebooted, disable SSH immediately by typing:
/etc/init.d/ssh stop
4. Connect the device to the network.
Accessing BIST Mode 45
Page 84
Chapter 2
Using RUGGEDCOM ROX II
Section 2.8.2

Accessing Service Mode

Service mode grants access to the Linux shell.
To access service mode, do the following:
CAUTION!
Configuration hazard – risk of data corruption. Service mode is provided for troubleshooting and advanced configuration purposes and should only be used by Siemens technicians. As such, this mode is not fully documented. Misuse of the commands available in this mode can corrupt the operational state of the device and render it inaccessible.
CAUTION!
Security hazard – risk of unauthorized access and/or exploitation. SSH is automatically enabled on port 222 when the device is put in service mode. If the device is connected to the network, a user with remote access to the device and the root password could access the Linux shell. If required, protect the device by either:
• Disconnecting the device from the network
• Disabling SSH via maintenance mode before accessing service mode
RUGGEDCOM ROX II
CLI User Guide
IMPORTANT!
Changes made to the configuration in this mode will override the current configuration settings (e.g. IP addresses, VLAN settings, etc.), but are discarded following a system reboot.
1. Connect to RUGGEDCOM ROX II through the RS-232 console connection and a terminal application. For more information, refer to Section 2.1.1, “Connecting Directly”.
2. Reboot the device. For more information, refer to Section 3.5, “Rebooting the Device”.
3. As soon as the device starts to boot up, press ESC. A list of possible boot modes for each partition appears.
****Boot Partition 4**** [4-0]: Debian GNU/Linux, kernel 3.0.0-2-8360e [4-1]: Debian GNU/Linux, kernel 3.0.0-2-8360e (BIST mode) [4-2]: Debian GNU/Linux, kernel 3.0.0-2-8360e (single-user mode) [4-3]: Debian GNU/Linux, kernel 3.0.0-2-8360e (service mode)
****Boot Partition 6**** [6-0]: Debian GNU/Linux, kernel 3.0.0-2-8360e [6-1]: Debian GNU/Linux, kernel 3.0.0-2-8360e (BIST mode) [6-2]: Debian GNU/Linux, kernel 3.0.0-2-8360e (single-user mode) [6-3]: Debian GNU/Linux, kernel 3.0.0-2-8360e (service mode)
Auto booting [4-0], Hit [ESC] key to stop: 0 Welcome to the boot menu. Please select from the following options:
Enter [BootPartition-BootTarget] (e.g. '4.0') to boot. 'h' Show this help menu 'l' List the available boot targets 'c' Exit to the boot loader command line
Will reboot after 60 seconds of inactivity :
NOTE
In the example above, the text
46 Accessing Service Mode
Page 85
RUGGEDCOM ROX II
CLI User Guide
Auto booting [4-0]
Using RUGGEDCOM ROX II
indicates the active partition is Boot Partition 4.
4. Enter service mode on the active partition by typing the associated target number. For example, if the active partition is Boot Partition 6, type 6-3. A login prompt for service mode appears.
5. Type root and press Enter. A password prompt appears.
NOTE
If a unique password/passphrase has not been configured, use the factory default password. For more information, refer to Section 2.2, “Default User Names and Passwords”.
NOTE
The current service mode password/passphrase is the same as the password/passphrase for accessing maintenance mode.
6. Type the current service mode password/passphrase and press Enter.
ruggedcom login: root Password: Last login: Tue Oct 13 13:37:38 EDT 2020 on ttyS0 Linux ruggedcom 3.0.0-2-8360e #1 Thu Jan 24 21:20:30 UTC 2013 ppc
The programs included with the Debian GNU/Linux system are free software; the exact distribution terms for each program are described in the individual files in /usr/share/doc/*/copyright.
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent permitted by applicable law. 8t-eterminal size now 80x20
Welcome to ruggedcom Partition1 (Rev ROX 2.4.0 (2013-01-24 18:20)) RX1510 SN 12110102-0012-0030060017 13:42:07 up 7 min Temperature +38.5 C (+101.3 F) Disk 24% Memory 41%
root@ruggedcom:~#
Chapter 2
CAUTION!
Security hazard – risk of unauthorized access and/or exploitation. Upon accessing service mode on a device that is connected to a network, make sure SSH is disabled. Failure to disable SSH once in service mode would allow anyone with remote access to the device and the root password to access the Linux shell.
Section 2.8.3

Accessing Maintenance Mode

Maintenance mode grants access to the Linux shell.
To access maintenance mode, do the following:
CAUTION!
Configuration hazard – risk of data corruption. Maintenance mode is provided for troubleshooting purposes and should only be used by Siemens Canada Ltd. technicians. As such, this mode is not fully
Accessing Maintenance Mode 47
Page 86
Chapter 2
Using RUGGEDCOM ROX II
documented. Misuse of the commands available in this mode can corrupt the operational state of the device and render it inaccessible.
IMPORTANT!
Changes made to the configuration in this mode will override the current configuration settings (e.g. IP addresses, VLAN settings, etc.), but are discarded following a system reboot.
1. In normal mode, type maint-login and press Enter. A password prompt appears.
NOTE
The current maintenance mode password/passphrase is the same as the password/passphrase for accessing service mode.
2. Type the current maintenance mode password/passphrase and press Enter.
Example:
ruggedcom# maint-login Password:
Welcome to ruggedcom Partition2 (Rev ROX 2.4.0 (2013-01-24 18:20)) RX1511 SN R15R-3410-PR061 22:29:20 up 1 day, 8:42 Temperature +41.0 C (+105.8 F) Disk 25% Memory 43%
root@ruggedcom:~#
RUGGEDCOM ROX II
CLI User Guide
48 Accessing Maintenance Mode
Page 87
RUGGEDCOM ROX II
CLI User Guide

Device Management

Device Management
This chapter describes how to configure and manage the device and its components, such as module interfaces, logs and files. It describes the following tasks:
NOTE
For information about how to configure the device to work with a network, refer to Chapter 5, Setup and
Configuration.
• Section 3.1, “Determining the Product Version”
• Section 3.2, “Viewing Chassis Information and Status”
• Section 3.3, “Viewing the Parts List”
• Section 3.4, “Shutting Down the Device”
• Section 3.5, “Rebooting the Device”
• Section 3.6, “Restoring Factory Defaults”
Chapter 3
• Section 3.7, “Decommissioning the Device”
• Section 3.8, “Managing Files”
• Section 3.9, “Managing Logs”
• Section 3.10, “Managing the Software Configuration”
• Section 3.11, “Upgrading/Downgrading the RUGGEDCOM ROX II Software”
• Section 3.12, “Managing RUGGEDCOM ROX II Applications”
• Section 3.13, “Managing Feature Keys”
• Section 3.14, “Managing Fixed Modules”
• Section 3.15, “Managing Line Modules”
• Section 3.16, “Managing Event Trackers”
• Section 3.17, “Managing Switched Ethernet Ports”
• Section 3.18, “Managing Routable Ethernet Ports”
• Section 3.19, “Managing Serial Ports”
• Section 3.20, “Managing Serial Port Protocols”
• Section 3.21, “Managing Ethernet Trunk Interfaces”
• Section 3.22, “Managing Cellular Modem Interfaces”
• Section 3.23, “Managing WAN Interfaces”
• Section 3.24, “Managing Virtual Switches”
• Section 3.25, “Managing a Domain Name System (DNS)”
49
Page 88
Chapter 3
Device Management
Section 3.1

Determining the Product Version

During troubleshooting or when ordering new devices, Siemens Canada Ltd. personnel may request specific information about the device, such as the model, order code or serial number.
To display general information about the product, type:
show chassis chassis-status
A table or list similar to the following example appears:
ruggedcom# show chassis chassis-status chassis-status model RX1501 software license "Layer 3 Standard Edition" order code RX1501-L3-MNT-HI-L3SE-CG01-XX-S01-E02-XX-XX rox release "ROX 2.6.0-QA3.14 (2014-08-11 18:00)" system serial number RX1501R-0812-00664
This table or list provides the following information:
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
model Synopsis: A string
The RuggedCom device model name.
software-license Synopsis: A string
The current software capability.
mlfb Synopsis: A string 1 to 256 characters long
rox-release Synopsis: A string
system-serial-number Synopsis: A string 1 to 32 characters long
BootLoader Synopsis: A string
Section 3.2
Prerequisite: /ruggedcom:ruggedcom-internal/ ruggedcom:chassis-type/ruggedcom:family = 'RX1400'
MLFB(Machine-Readable Product Designation) or order code
The release of ROX running on the chassis.
The system serial number on the chassis label.
The version of the ROX bootloader software on the installed module.
Prerequisite: /ruggedcom:ruggedcom-internal/ ruggedcom:chassis-type/ruggedcom:family = 'RX1400'

Viewing Chassis Information and Status

The following sections describe how to view the routing status for various routing protocols and related statistics:
• Section 3.2.1, “Viewing the Slot Hardware”
• Section 3.2.2, “Viewing Module Information”
• Section 3.2.3, “Viewing Flash Card Storage Utilization”
50 Determining the Product Version
Page 89
RUGGEDCOM ROX II
CLI User Guide
• Section 3.2.4, “Viewing CPU/RAM Utilization”
• Section 3.2.5, “Viewing the Slot Status”
• Section 3.2.6, “Viewing the Slot Sensor Status”
• Section 3.2.7, “Viewing the Power Controller Status”
Section 3.2.1

Viewing the Slot Hardware

To view a list of the hardware installed in each slot, type:
show chassis hardware slot-hardware
A table or list similar to the following example appears:
ruggedcom# show chassis hardware slot-hardware | tab ORDER SLOT FIELD DETECTED MODULE SERIAL N
-------------------------------------------------------------------------------­pm1 HI 88-300 VDC or 85-264VAC, screw terminal block P15R-071 lm1 CG01 1000TX w/ 2x RJ45 L15R-081 lm2 XX none none lm3 S01 6x RS232/RS422/RS485 via RJ45 L15R-081 lm4 XX none none lm5 XX none none lm6 XX none none main RX1501-L3 RX1501 8 Gigabit Layer 3 w/ 6 LM slots and 1 PM slots 49110102
Device Management
Chapter 3
This table or list provides the following information:
Parameter Description
slot Synopsis: { ---, pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, swport, eth, serport,
order-field Synopsis: A string 1 to 25 characters long
detected-module Synopsis: A string 1 to 60 characters long
serial-number Synopsis: A string 1 to 64 characters long
celport, cm, em, trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
The order code of the chassis as derived from the current hardware configuration.
The installed module's type specifier.
The installed module's unique serial number.
Section 3.2.2

Viewing Module Information

To view information about the modules installed in the device, type:
show chassis info slot-info
A table or list similar to the following example appears:
ruggedcom# show chassis info slot-info | tab SLOT DETECTED MODULE BootLoader FPGA
Viewing the Slot Hardware 51
Page 90
Chapter 3
Device Management
--------------------------------------------------------------------------------­main RX1501 8 Gigabit Layer 3 w/ 6 LM slots and 1 PM slots 2010.09RR12 14-23
This table or list provides the following information:
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
slot Synopsis: { ---, pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, swport, eth, serport,
detected-module Synopsis: A string 1 to 60 characters long
boot-loader-version Synopsis: A string
fpga-version Synopsis: A string
celport, cm, em, trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
The installed module's type specifier.
The version of the ROX bootloader software on the installed module.
The version of the ROX FPGA firmware (if any) running on the installed module.
Section 3.2.3

Viewing Flash Card Storage Utilization

To view the Flash card storage utilization statistics for the Flash card installed in the device, type:
show chassis storage
A table or list similar to the following example appears:
ruggedcom# show chassis storage | tab storage flash storage name "Compact Flash" total capacity 994896 current partition "Partition #1" current partition capacity 490496 secondary partition capacity 490496 current partition usage 67
This table or list provides the following information:
Parameter Description
storage-name Synopsis: A string 0 to 32 characters long
The type of storage.
total-capacity Synopsis: An integer between 0 and 4294967295
The total capacity of the flash storage in KB.
current-partition Synopsis: A string 0 to 32 characters long
The partition ROX is currently running on and booted from.
current-partition-capacity Synopsis: An integer between 0 and 4294967295
The capacity of the current partition in KB.
secondary-partition-capacity Synopsis: An integer between 0 and 4294967295
The capacity of the secondary partition in KB.
current-partition-usage Synopsis: An integer between 0 and 100
52 Viewing Flash Card Storage Utilization
Page 91
RUGGEDCOM ROX II
CLI User Guide
Parameter Description
The %usage of the current partition.
Section 3.2.4

Viewing CPU/RAM Utilization

To view the CPU/RAM utilization statistics for each module installed in the device, type:
show chassis cpu slot-cpu
A table or list similar to the following example appears:
ruggedcom# show chassis cpu slot-cpu | tab RAM CPU RAM AVAIL SLOT DETECTED MODULE LOAD AVAIL LOW
--------------------------------------------------------------------------------­main RX1501 8 Gigabit Layer 3 w/ 6 LM slots and 1 PM slots 26 56 56
This table or list provides the following information:
Device Management
Chapter 3
Parameter Description
slot Synopsis: { ---, pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, swport, eth, serport,
detected-module Synopsis: A string 1 to 60 characters long
cpu-load Synopsis: An integer between 0 and 100
ram-avail Synopsis: An integer between 0 and 100
ram-avail-low Synopsis: An integer between 0 and 100
celport, cm, em, trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
The installed module's type specifier.
The CPU load, in percent, on the installed module.
The proportion of memory (RAM) currently unused, in percent, on the installed module.
The lowest proportion of unused memory (RAM), in percent, recorded for the installed module since start-up.
Section 3.2.5

Viewing the Slot Status

To view the overall status of each slot, type:
show chassis status slot-status
A table or list similar to the following example appears:
ruggedcom# show chassis status slot-status | tab STATUS START SLOT DETECTED MODULE STATE STRING UPTIME START DATE TIME
--------------------------------------------------------------------------------------------
Viewing CPU/RAM Utilization 53
Page 92
Chapter 3
Device Management
pm1 88-300 VDC or 85-264VAC, screw terminal block operating Normal 1D 4hr 47min 12sec 2012-10-24Z 06:44:32Z lm1 1000TX w/ 2x RJ45 operating Normal 0D 0hr 0min 0sec 2012-10-24Z 06:42:28Z lm2 none empty ---- 0D 0hr 0min 0sec 2012-10-24Z 06:42:28Z lm3 6x RS232/RS422/RS485 via RJ45 operating Normal 0D 0hr 0min 0sec 2012-10-24Z 06:42:28Z lm4 none empty ---- 0D 0hr 0min 0sec 2012-10-24Z 06:42:28Z lm5 none empty ---- 0D 0hr 0min 0sec 2012-10-24Z 06:42:28Z lm6 none empty ---- 0D 0hr 0min 0sec 2012-10-24Z 06:42:28Z main RX1501 8 Gigabit Layer 3 w/ 6 LM slots and 1 PM slots operating Normal 1D 4hr 47min 12sec 2012-10-24Z 06:44:32Z
This table or list provides the following information:
Parameter Description
RUGGEDCOM ROX II
CLI User Guide
slot Synopsis: { ---, pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, swport, eth, serport,
detected-module Synopsis: A string 1 to 60 characters long
state Synopsis: { unknown, empty, disabled, resetting, operating, failed, disconnected }
status-string Synopsis: A string
uptime Synopsis: A string
start-date Synopsis: A string
start-time Synopsis: A string
celport, cm, em, trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
The installed module's type specifier.
The current state of the installed module.
The runtime status of the installed module.
The total time elapsed since the start-up of the installed module.
The date on which the installed module was started up.
The time at which the installed module was started up.
Section 3.2.6

Viewing the Slot Sensor Status

To view information about the slot sensors, type:.
show chassis sensors slot-sensors
A table or list similar to the following example appears:
ruggedcom# show chassis sensors slot-sensors | tab CURRENT VOLTAGE SLOT DETECTED MODULE TEMPERATURE SUPPLY SUPPLY
-------------------------------------------------------------------------------------------­pm1 88-300 VDC or 85-264VAC, screw terminal block 48 2669 3385 lm1 1000TX w/ 2x RJ45 - - ­lm3 6x RS232/RS422/RS485 via RJ45 - - ­main RX1501 8 Gigabit Layer 3 w/ 6 LM slots and 1 PM slots 42 1661 3327
54 Viewing the Slot Sensor Status
Page 93
RUGGEDCOM ROX II
CLI User Guide
This table or list provides the following information:
Parameter Description
Device Management
Chapter 3
slot Synopsis: { ---, pm1, pm2, main, sm, lm1, lm2, lm3, lm4, lm5, lm6, swport, eth, serport,
detected-module Synopsis: A string 1 to 60 characters long
temperature Synopsis: An integer between 55 and 125
current-supply Synopsis: An integer between 0 and 15000
voltage-supply Synopsis: An integer between 0 and 15000
celport, cm, em, trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
The installed module's type specifier.
The temperature, in degrees C, of the installed module. If multiple temperature sensors are present on the board, the maximum reading is reported.
The power supply current, in mA, being drawn by the installed module.
Prerequisite: /ruggedcom:ruggedcom-internal/ruggedcom:chassis-type/ ruggedcom:family != 'RX1400'
The power supply voltage, in mV, seen by the installed module.
Section 3.2.7

Viewing the Power Controller Status

To view information about the power controller, type:
show chassis power-controller pm-status
A table or list similar to the following example appears:
ruggedcom# show chassis power-controller pm-status | tab PM MOV PM PM PM SLOT PROTECTION TEMPERATURE CURRENT VOLTAGE
------------------------------------------------­pm1 na 48 2666 3387
This table or list provides the following information:
Parameter Description
pm-slot Synopsis: { pm1, pm2 }
The name of the power module slot as labeled on the chassis.
mov-protection Synopsis: { na, working, damaged }
The state of the MOV protection circuit.
pm-temperature Synopsis: An integer between 55 and 125
The temperature (Celsius) inside the power module.
pm-current Synopsis: An integer between 0 and 15000
The current (mA) sourced by the power module.
pm-voltage Synopsis: An integer between 0 and 15000
The voltage (mV) sourced by the power module.
Viewing the Power Controller Status 55
Page 94
Chapter 3
Device Management
Section 3.3

Viewing the Parts List

To view a list of parts installed in the device, type:
show running-config chassis part-list
If jobs have been configured, a table or list similar to the following example appears:
ruggedcom# show running-config chassis part-list | tab MODEL ORDERFIELD PARTNUMBER PARTNAME
-------------------------------------------------------------------------------­RX1500 12 12-02-9999-001 12VDC (9-15VDC), screw terminal block RX1500 12P 12-02-9999-002 12VDC (9-15VDC), pluggable terminal block RX1500 24 12-02-0027-003 24VDC (10-36VDC), screw terminal block RX1500 24 12-02-0035-003 24VDC (10-36VDC), screw terminal block RX1500 24P 12-02-0027-004 24VDC (10-36VDC), pluggable terminal block RX1500 24P 12-02-0035-004 24VDC (10-36VDC), pluggable terminal block RX1500 48 12-02-0027-001 48VDC (36-72VDC), screw terminal block RX1500 48 12-02-0035-001 48VDC (36-72VDC), screw terminal block RX1500 48P 12-02-0027-002 48VDC (36-72VDC), pluggable terminal block RX1500 48P 12-02-0035-002 48VDC (36-72VDC), pluggable terminal block RX1500 4FX03 12-02-0018-005 4 x 100FX - Multimode, 1300nm, MTRJ connectors, 2km RX1500 4FX06 12-02-0018-002 4 x 100FX - Singlemode, 1300nm, LC connectors, 20km RX1500 4FX08 12-02-0018-003 4 x 100FX - Singlemode, 1300nm, LC connectors, 50km . . .
RUGGEDCOM ROX II
CLI User Guide
Section 3.4

Shutting Down the Device

To shut down the device, type:
CAUTION!
Security hazard – risk of unauthorized access and/or exploitation. Always shutdown the device before disconnecting power. Failure to shutdown the device first could result in data corruption.
NOTE
The device never enters a permanent shutdown state. When instructed to shutdown, the devices shuts down and provides a time-out period during which power can be disconnected from the device. The default time-out period is 300 seconds (five minutes). At the end of the time-out period, the device reboots and restarts.
NOTE
If wiring hinders the process of disconnecting power from the device, the power module(s) can be removed instead.
admin shutdown
56 Viewing the Parts List
Page 95
RUGGEDCOM ROX II
CLI User Guide
Section 3.5
Device Management

Rebooting the Device

To reboot the device, type:
admin reboot
Section 3.6

Restoring Factory Defaults

To restore the factory defaults for the device, navigate to admin » restore-factory-defaults and configure the following parameter(s):
admin restore-factory-defaults
If necessary, include the following options in the command:
Parameter Description
Chapter 3
delete-logs Synopsis: true or false
default-both-partitions Synopsis: true or false
delete-saved-configurations Synopsis: true or false
shutdown Synopsis: true or false
Section 3.7
Default: false
Delete system logs as well as restoring default settings.
Default: false
Perform the operation on both partitions.
Default: false
Delete saved configuration files (works with default-both-partitions option).
Default: false
Shutdown rather than reboot after restoring factory defaults.

Decommissioning the Device

Before taking the device out of service, either permanently or for maintenance by a third-party, make sure the device has been fully decommissioned. This includes removing any sensitive, proprietary information.
To decommission the device, do the following:
1. Obtain a copy of the RUGGEDCOM ROX II firmware currently installed on the device. For more information, contact Siemens Customer Support.
2. Log in to maintenance mode. For more information, refer to Section 2.8.3, “Accessing Maintenance Mode”.
3. Delete the current boot password/passphrase by typing:
rox-delete-bootpwd --force
4. Type exit and press Enter.
Rebooting the Device 57
Page 96
Chapter 3
Device Management
RUGGEDCOM ROX II
CLI User Guide
5. Log in to RUGGEDCOM ROX II. For more information, refer to Section 2.3, “Logging In”.
6. Flash the RUGGEDCOM ROX II firmware obtained in Step 1 to the inactive partition and reboot the device. For more information, refer to Section 3.11.5.2, “Downgrading Using ROXflash”.
7. Repeat Step 5 and Step 6 to flash the RUGGEDCOM ROX II firmware obtained in Step 1 to the other partition and reboot the device.
8. Shut down the device. For more information, refer to Section 3.4, “Shutting Down the Device”.
Section 3.8

Managing Files

The following sections describe how to manage important files on the device:
NOTE
Only feature keys and configuration files can be installed or backed up.
• Section 3.8.1, “Installing Files”
• Section 3.8.2, “Backing Up Files”
Section 3.8.1

Installing Files

To install a file on the device, such as a configuration file or feature key, do the following:
1. If the source of the file is a USB Mass Storage drive, insert the drive in the USB port on the device. For more information, refer to the RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512 Installation Guide.
2. Navigate to admin » install-files and configure the following parameter(s) as required:
Parameter Description
file-type { file-type } Synopsis: { config, featurekey, vmfile }
The file types to be copied.
url { url } Synopsis: A string 1 to 1024 characters long
The URL of the ROX II file to copy. Supported URIs are HTTP, SCP, SFTP, FTPS and FTP. To install from a USB flash drive or microSD/microSDHC drive (if applicable), the URL format is "usb://<usb-device-name>/path-to-file-on-system" or "sd://sd-1// path-to-file-on-system". Run "show chassis" to determine the name of the USB device. Note that only one single partition is supported for either data medium. For all other protocols, the format is "protocol://user:password@host:port/path-to-file". If "port" is not specified, the default port for the protocol is used.
Section 3.8.2

Backing Up Files

To backup files stored on the device, do the following:
58 Managing Files
Page 97
RUGGEDCOM ROX II
CLI User Guide
Device Management
1. If the file's destination is a USB Mass Storage drive, insert the drive in the USB port on the device. For more information, refer to the RUGGEDCOM RX1500/RX1501/RX1510/RX1511/RX1512 Installation Guide.
2. Make sure the CLI is in Configuration mode.
3. Navigate to admin » backup-files and configure the following parameter(s) as required:
Parameter Description
file-type { file-type } Synopsis: { config, featurekey, logfiles, rollbacks, licenses }
The file types to copy.
file { file } Synopsis: A string 1 to 255 characters long
The file names to copy.
Chapter 3
timestamp Synopsis: true or false
url { url } Synopsis: A string 1 to 1024 characters long
Default: false
If enabled, a time stamp will be appended to the file name. This option is not applicable to file names that contain '*'.
The URL of the ROX II file to copy. Supported URIs are HTTP, SCP, SFTP, FTPS and FTP. To save to a USB flash drive or microSD/microSDHC drive (if applicable), the URL format is "usb://<usb-device-name>/path-to-file-on-system" or "sd://sd-1// path-to-file-on-system". Run "show chassis" to determine the name of the USB device. Note that only one single partition is supported for either data medium. For all other protocols, the format is "protocol://user:password@host:port/path-to-file". If using a path only, close it with '/'. If "port" is not specified, the default port for the protocol is used.
Section 3.9

Managing Logs

RUGGEDCOM ROX II maintains various logs to record information about important events. Each log falls into one of the following log types:
Security Event Logs Information related to the following security events are logged by RUGGEDCOM ROX II:
NOTE
Passwords can be retried up to 3 times before the login attempt is considered a security event.
• Successful and unsuccessful login attempts
• Local and remote (RADIUS) authentication
• Security-sensitive commands (whether successful or unsuccessful)
• An optionally configurable SNMP Authentication Failure Trap (disabled by default) in accordance with SNMPv2-MIB
All security event logs are recorded in var/log/auth.log and can be viewed in the Authlog Viewer. For more information about viewing logs, refer to Section 3.9.1, “Viewing Logs”.
Syslogs Syslog allows users to configure local and remote syslog connections to record important, non-security event
Managing Logs 59
information. The remote Syslog protocol, defined in RFC 3164 [http://tools.ietf.org/html/rfc3164], is a UDP/ IP-based transport that enables a device to send event notification messages across IP networks to event message collectors, also known as Syslog servers. The protocol is designed to simply transport these event messages from the generating device to the collector.
Page 98
Chapter 3
Device Management
All log files are organized in the log directory (/var/log) according to the facility and priority at which they have been logged. Remote Syslog sends the requested logs to the remote server(s) at whichever facility and priority they were initially logged, after filtering the logs based on the selectors configured for the server.
The following log files are setup with the following default selectors:
• syslog catches all logs except daemon.debug, auth or authpriv logs
• daemon.log catches all err level (and above) logs written to the daemon facility
• messages catches all info, notice and warn level logs for all facilities except auth, authpriv, cron, daemon, mail and news
A selector setup using the following facilities at level info and up is recommended:
• daemon
• user
• kern
• syslog
Diagnostic Logs Diagnostic logs record system information for the purposes of troubleshooting.
The following sections describe how to view, configure and manage logs:
• Section 3.9.1, “Viewing Logs”
• Section 3.9.2, “Deleting Logs”
• Section 3.9.3, “Configuring a Source IP Address for Remote Syslog Messages”
• Section 3.9.4, “Managing Diagnostic Logs”
• Section 3.9.5, “Configuring Secure Remote Syslog”
• Section 3.9.6, “Managing Remote Syslog Servers”
• Section 3.9.7, “Managing Remote Server Selectors”
RUGGEDCOM ROX II
CLI User Guide
Section 3.9.1

Viewing Logs

Select logs can be viewed directly within the CLI. Otherwise, these and other logs can be downloaded from the device and viewed in a text editor/viewer.
NOTE
For information about downloading log files from the device, refer to Section 3.8.2, “Backing Up Files”.
To view a log in the CLI, do the following:
show log file
Where:
• file is the log file to view
For example, to view the auth.log, type:
show log auth.log
A result similar to the following is displayed:
ruggedcom# show log auth.log Jan 29 09:25:00 ruggedcom confd[2068]: audit user: admin/0 failed to login using externalauth: Local authentication Jan 29 09:25:00 ruggedcom confd[2068]: audit user: admin/0 logged in through Web UI from 192.168.0.200 Jan 29 09:25:00 ruggedcom confd[2068]: audit user: admin/32 assigned to groups: admin Jan 29 09:25:01 ruggedcom CRON[4599]: pam_unix(cron:session): session opened for user root by (uid=0)
60 Viewing Logs
Page 99
RUGGEDCOM ROX II
CLI User Guide
. . .
Section 3.9.2
Device Management

Deleting Logs

To delete all logs stored on the device, type:
admin delete-logs
Section 3.9.3

Configuring a Source IP Address for Remote Syslog Messages

IP packets for remote syslog messages include a destination IP address and a source IP address. The source IP address is the interface from which the message is sent (e.g. switch.0001). However, that address may not be meaningful within the system log, or the address may conflict with a firewall rule or policy. In such cases, an alternative source IP address can be configured for all remote syslog messages.
To configure a specific source IP address for all remote syslog messages, do the following:
1. Make sure the CLI is in Configuration mode.
2. Make sure an IP address is first defined for the desired interface. For more information, refer to either
Section 5.40.3.2, “Adding an IPv4 Address” or Section 5.40.6.2, “Adding an IPv6 Address”.
3. Configure the source IP address by typing:
Chapter 3
admin logging source-ip address
Where:
• address is the alternative source IP address
4. Type commit and press Enter to save the changes, or type revert and press Enter to abort.
Section 3.9.4

Managing Diagnostic Logs

Diagnostic logs are available for troubleshooting the device. Various device behavior is recorded in the following logs:
Log Filename
Developer's Log /var/log/confd-dev.log
SNMP Log /var/log/snmp-trace.log
NETCONF Summary Log /var/log/netconf.log
NETCONF Trace Log /var/log/netconf-trace.log
XPATH Trace Log /var/log/xpath-trace.log
Deleting Logs 61
Page 100
Chapter 3
Device Management
Log Filename
WebUI Trace Log /var/log/webui-trace.log
CAUTION!
Configuration hazard – risk of reduced performance. Enabling diagnostic logging will significantly affect the performance of RUGGEDCOM ROX II. Only enable diagnostic logging when directed by Siemens.
The following sections describe how to configure and manage diagnostic logs:
• Section 3.9.4.1, “Enabling/Disabling the Developer's Log”
• Section 3.9.4.2, “Enabling/Disabling the SNMP Log”
• Section 3.9.4.3, “Enabling/Disabling the NETCONF Summary Log”
• Section 3.9.4.4, “Enabling/Disabling the NETCONF Trace Log”
• Section 3.9.4.5, “Enabling/Disabling the XPATH Trace Log”
• Section 3.9.4.6, “Enabling/Disabling the WebUI Trace Log”
Section 3.9.4.1
Enabling/Disabling the Developer's Log
RUGGEDCOM ROX II
CLI User Guide
The Developer's log records internal system transactions from the operational view.
CAUTION!
Configuration hazard – risk of reduced performance. Enabling diagnostic logging will significantly affect the performance of RUGGEDCOM ROX II. Only enable diagnostic logging when directed by Siemens.
To enable or disable the Developer's log, do the following:
1. Make sure the CLI is in Configuration mode.
2. Enable or disable the Developer's log by typing the following commands:
Enable
admin logging diagnostics developer-log enabled
Disable
no admin logging diagnostics developer-log enabled
3. Configure the level of information provided by the Developer's log by typing:
Parameter Description
log-level { log-level } Synopsis: { error, info, trace }
4. Type commit and press Enter to save the changes, or type revert and press Enter to abort.
Default: info
Sets the verbosity level for developer logging.
Section 3.9.4.2
Enabling/Disabling the SNMP Log
The SNMP log records all SNMP related events.
62 Enabling/Disabling the Developer's Log
