Page 1
s
RDF301, RDF600KN
Semi-
flush mount
room t
hermostats
RDF301, RDF301.50..., RDF600KN
Basic d
ocumentation
Edition: 2.7
CE1P3171en
2017-12-07
RDF301.50, RDF600KN/S
communicating
,
RDF600KN/S
Building Technologies
RDF301.50H
Page 2
2 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Contents
1. About this document .............................................................................. 4
1.1 Revision history ......................................................................................... 4
1.2 New functions ............................................................................................ 5
1.3 Reference documents ............................................................................... 5
1.4 Before you start ......................................................................................... 7
1.4.1 Copyright ................................................................................................... 7
1.4.2 Quality assurance ..................................................................................... 7
1.4.3 Document use / request to the reader ...................................................... 7
1.5 Target audience, prerequisites .................................................................. 8
1.6 Glossary .................................................................................................... 8
2. Summary .................................................................................................. 9
2.1 Types ......................................................................................................... 9
2.2 Ordering .................................................................................................... 9
2.3 Functions ................................................................................................... 9
2.4 Integration via KNX bus .......................................................................... 11
2.5 Equipment com binations ......................................................................... 13
2.6 Accessories ............................................................................................. 13
3. Functions ............................................................................................... 14
3.1 Temperature control ................................................................................ 14
3.2 Operating m odes ..................................................................................... 15
3.2.1 Different ways to influence the operating mode ...................................... 16
3.2.2 Communication ex amples ....................................................................... 20
3.3 Room temperature setpoints ................................................................... 25
3.3.1 Description .............................................................................................. 25
3.3.2 Setting and adjusting setpoints ............................................................... 27
3.4 Applications overview .............................................................................. 28
3.4.1 Applications for fan coil systems ............................................................. 29
3.4.2 Applications for Universal systems* ........................................................ 30
3.4.3 Applications for heat pump systems ....................................................... 31
3.5 Additional functions ................................................................................. 32
3.6 Control sequences .................................................................................. 35
3.6.1 Sequences overview (setting via parameter P01) .................................. 35
3.6.2 Application m ode ..................................................................................... 36
3.6.3 2-pipe fan coil unit ................................................................................... 38
3.6.4 2-pipe fan coil unit with electric heater .................................................... 39
3.6.5 4-pipe fan coil unit ................................................................................... 41
3.6.6 Chilled / heated ceiling and radiator applications* .................................. 42
3.6.7 Compressor applications ......................................................................... 43
3.6.8 Setpoints and sequences ........................................................................ 44
3.7 Control outputs ........................................................................................ 46
3.7.1 Overview ................................................................................................. 46
3.7.2 Control outputs configuration (setting via DIP switches or tool) ............. 47
3.8 Fan control .............................................................................................. 48
3.9 Multifunctional input, digital input ............................................................ 51
3.10 Handling faults ........................................................................................ 53
3. 11 KNX communications .............................................................................. 54
Page 3
3 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.11.1 S-Mode .................................................................................................... 54
3.11.2 LTE Mode ................................................................................................ 54
3.11.3 Zone addressing in LTE Mode (in conjunction with Synco) .................... 55
3.11.4 Example of heating and cooling demand zone ....................................... 57
3.11.5 Send heartbeat and receive timeout ....................................................... 58
3.11.6 Startup ..................................................................................................... 58
3.11.7 Heating and cooling demand .................................................................. 58
3.11.8 Fault function on KNX ............................................................................. 59

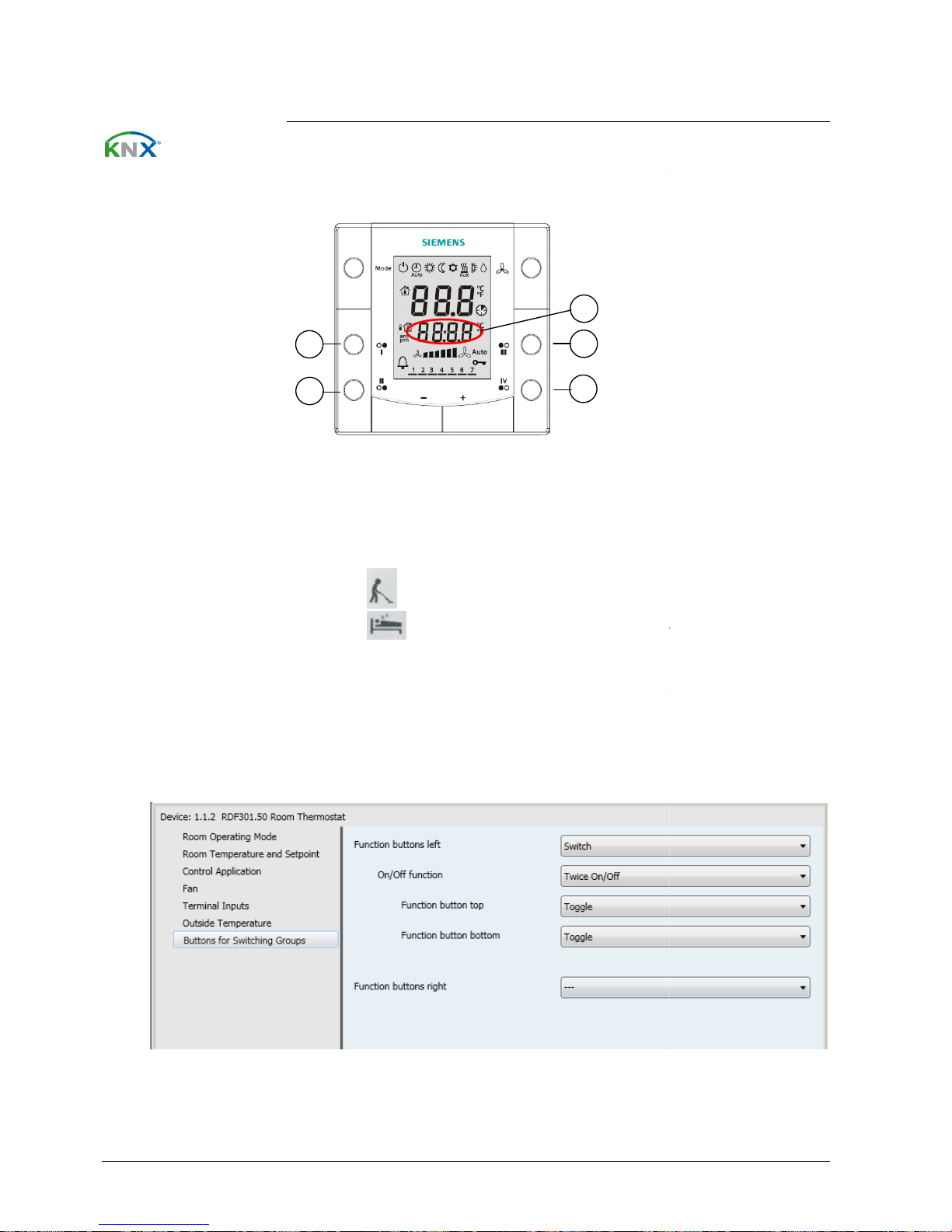

3.11.9 KNX switching groups (RDF600KN/S, RDF301.50, RDF301.50H only) 60
3.12 Communication objects (S-Mode) ........................................................... 62
3.12.1 Overview ................................................................................................. 62
3.12.2 Description of communication objects .................................................... 64
3.13 Communication objects (LTE-Mode) ....................................................... 67
3.14 Control parameters ................................................................................. 68
3.14.1 Parameter setting via local HMI .............................................................. 68
3.14.2 Parameter setting / download via tool ..................................................... 69
3.14.3 Parameters of the "Service level" ........................................................... 70
3.14.4 Parameters of the "Expert level with diagnostics and test" ................... 71
4. Handling ................................................................................................. 74
4.1 Mounting and installation ........................................................................ 74
4.2 Commissioning........................................................................................ 75
4.3 Operation ................................................................................................ 77
4.4 Remote operation.................................................................................... 78
4.5 Disposal .................................................................................................. 78
5. Supported KNX tools ............................................................................ 79
5.1 ETS ......................................................................................................... 79

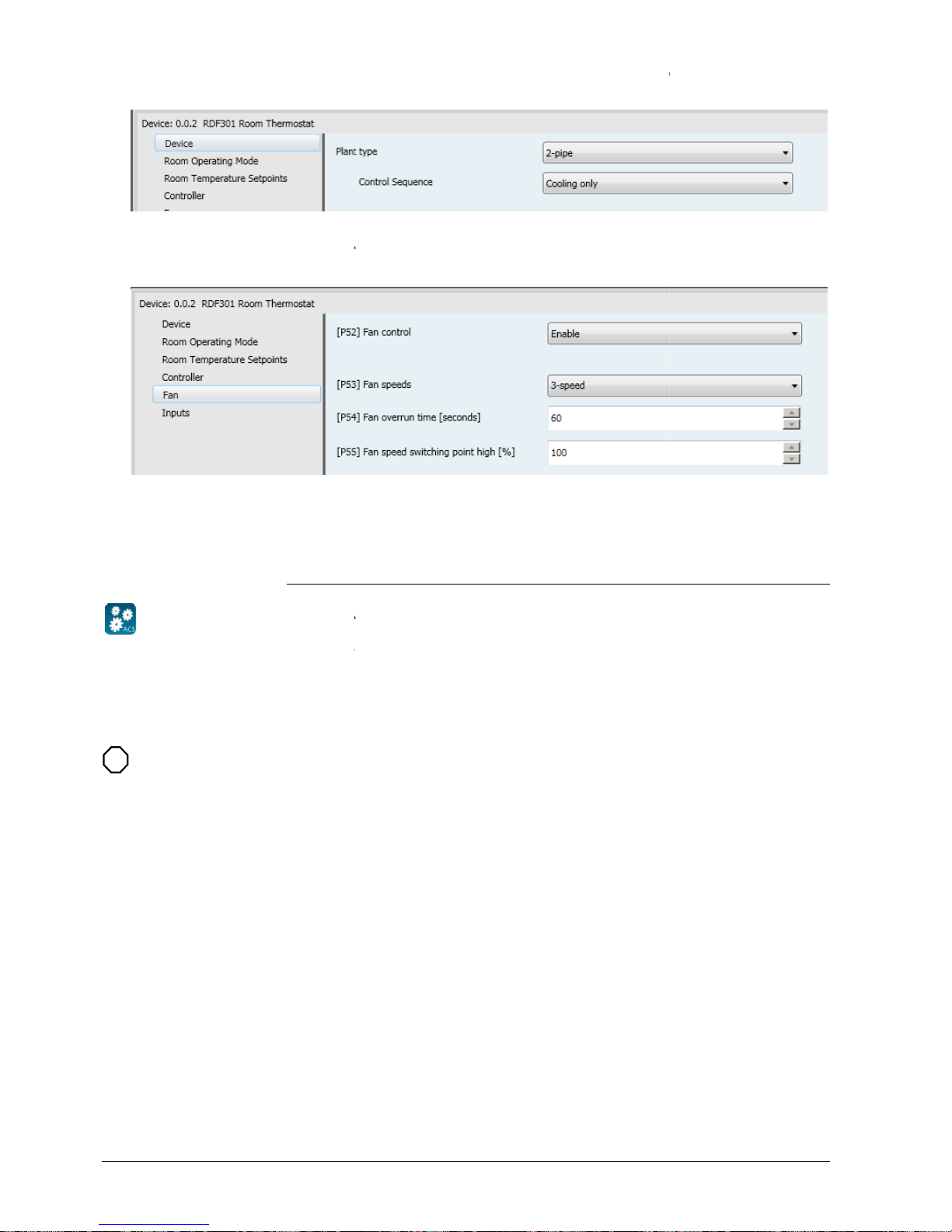

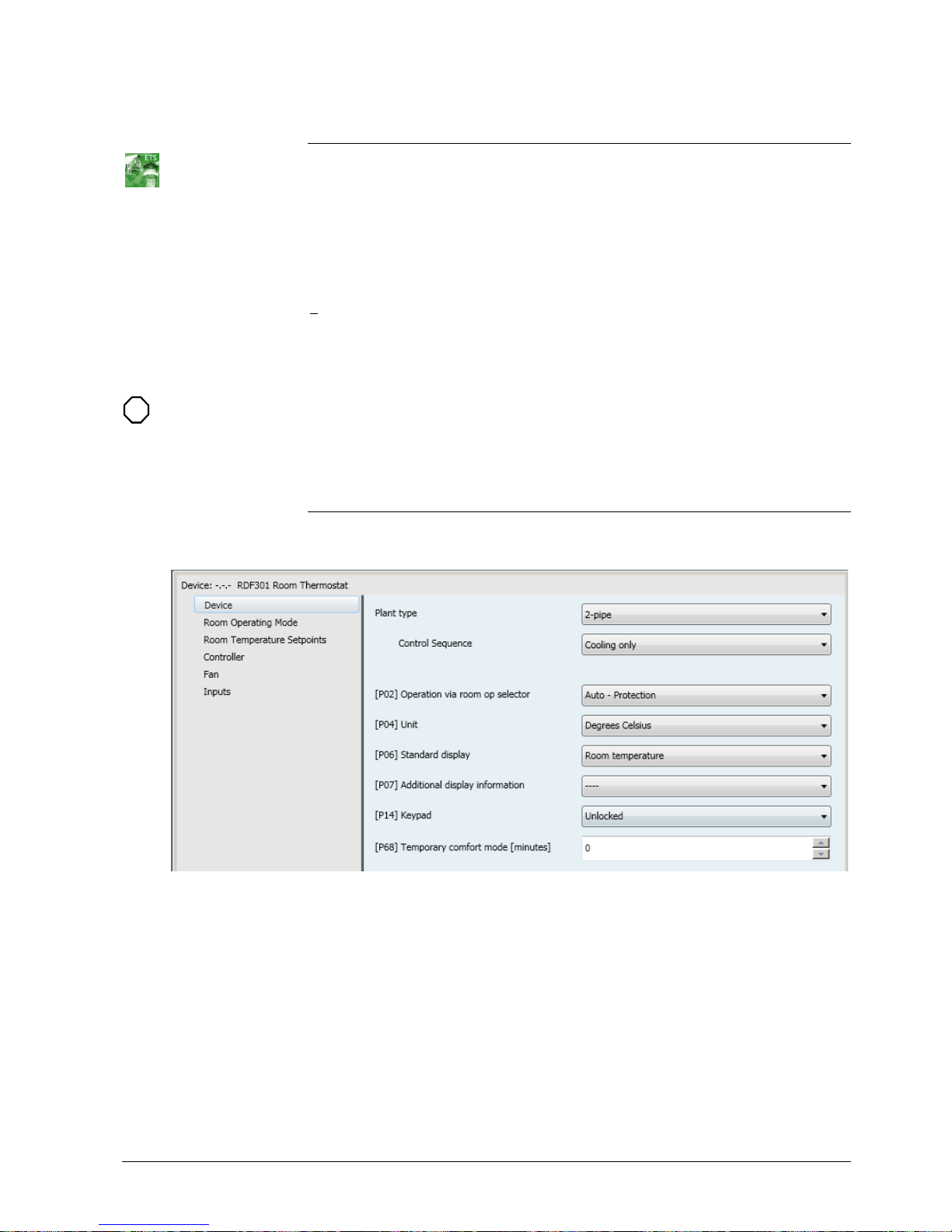

5.1.1 Parameter settings in ETS ...................................................................... 79
5.2 ACS Service and Operating tool ............................................................. 80
5.2.1 Parameter settings in ACS ...................................................................... 81

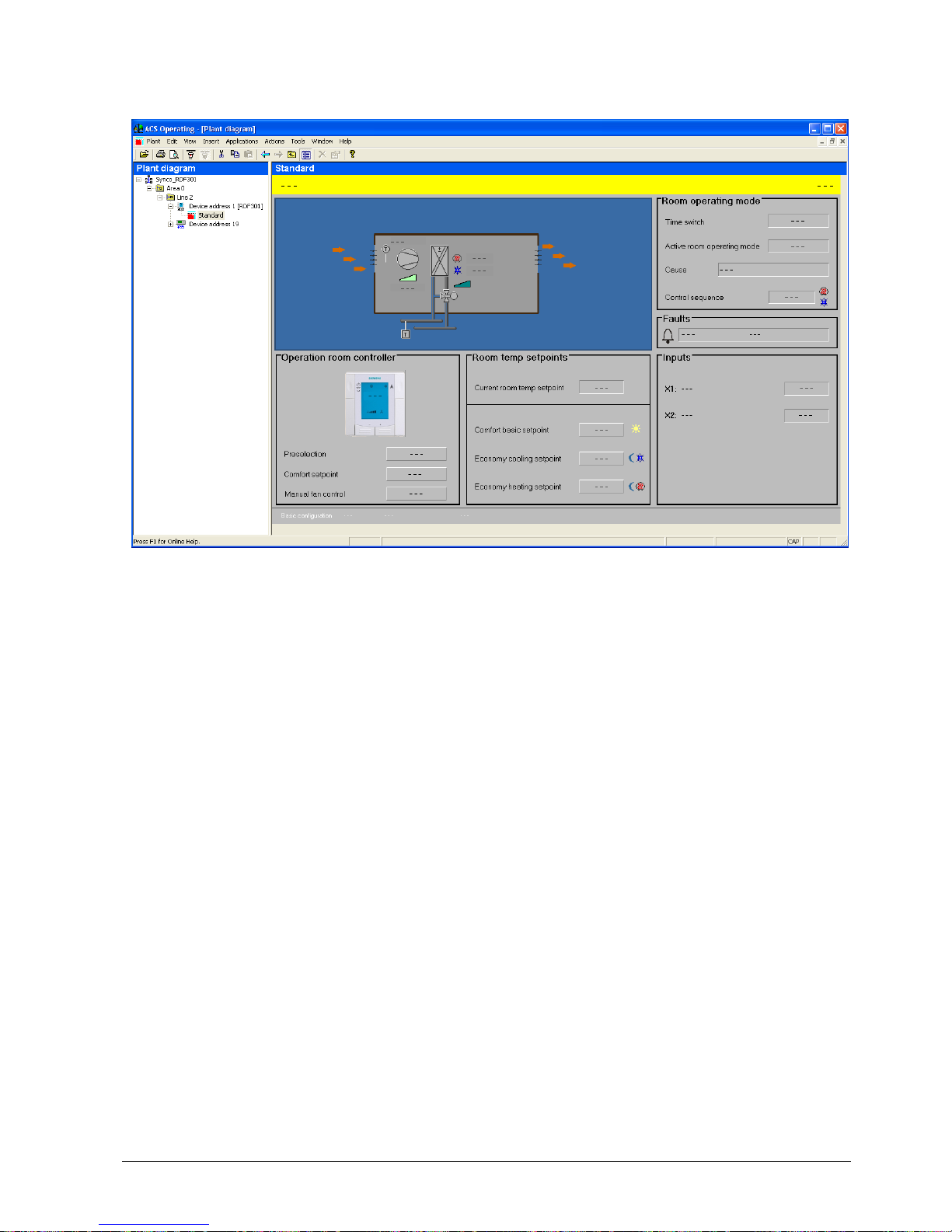

5.2.2 Operation and monitoring with ACS ........................................................ 82

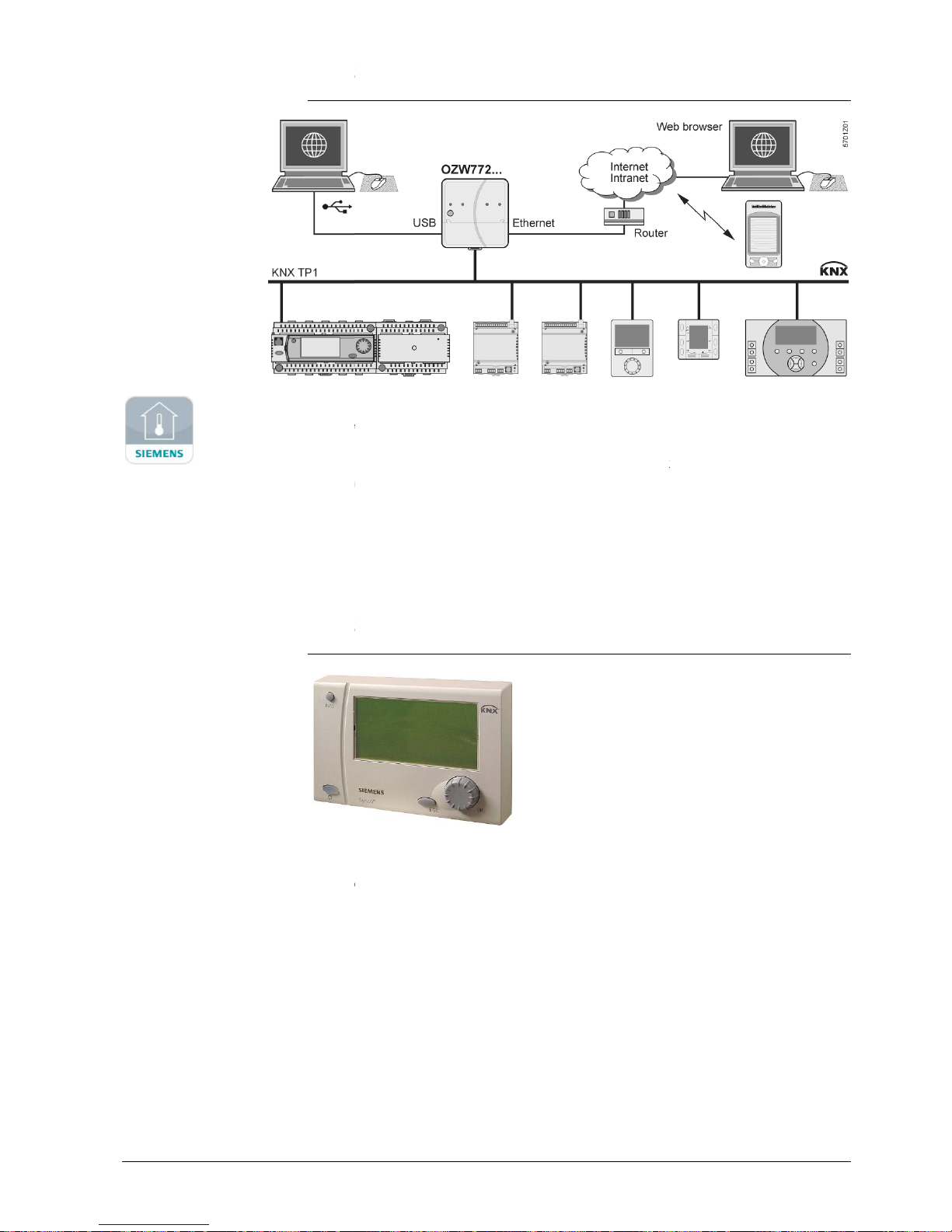

5.2.3 Operation and monitoring with OZW772 ................................................ 85
5.2.4 Operation and monitoring with RMZ972 ................................................. 85
6. Connection ............................................................................................ 86
6.1 Connection terminals .............................................................................. 86
6.2 Connection diagrams .............................................................................. 87
7. Mechanical design ................................................................................ 88
7.1 General ................................................................................................... 88

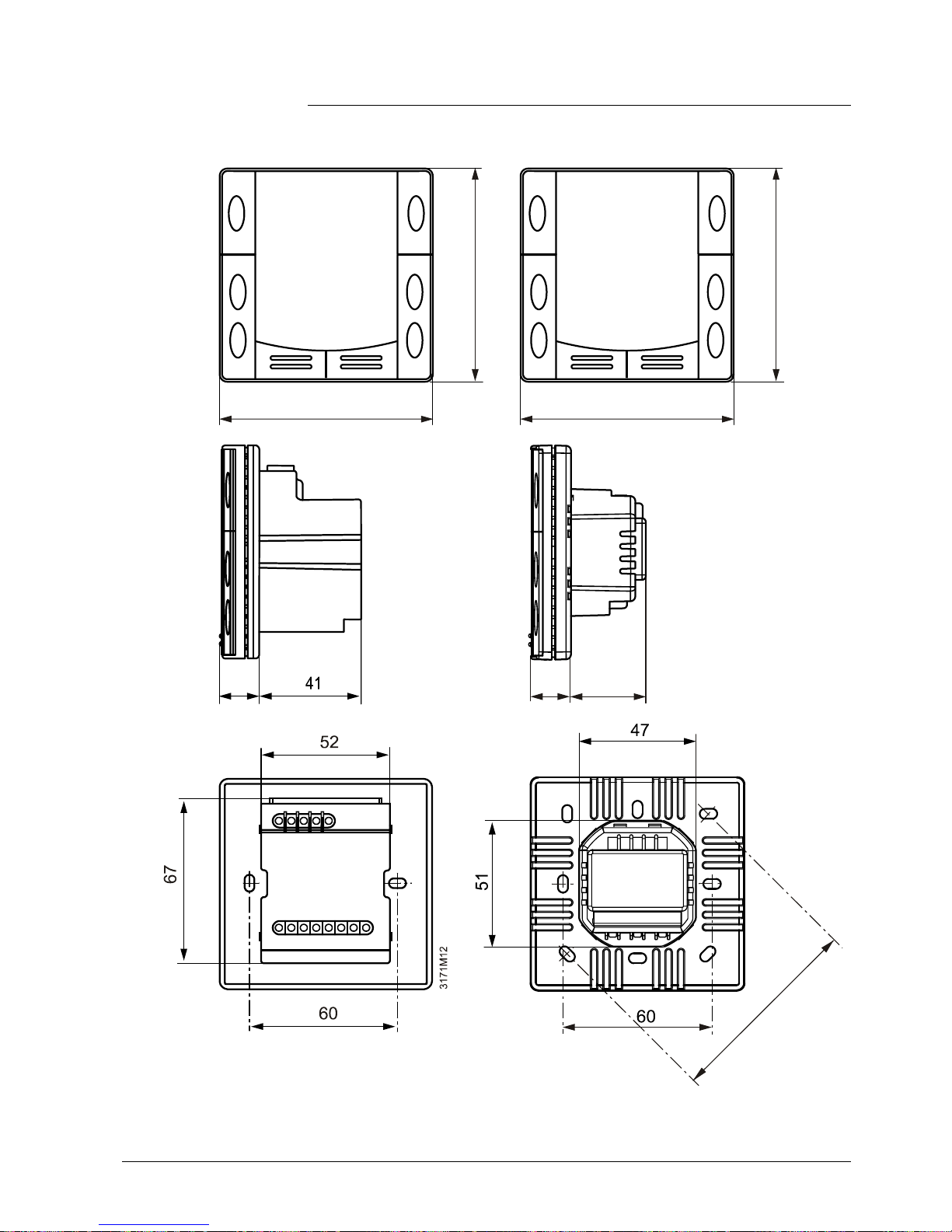

7.2 Dimensions ............................................................................................. 89
8. Technical data ....................................................................................... 90
Index 92
Page 4
4 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
1. About this document
1.1 Revision history
Edition Date Changes Section Pages
2.7 2017-11-30 - Add product name RDF600KN/S
- Update KNX and ACS logo
All All
2.6 2017-08-07 - Remove universal applications for RDF301 and
RDF301.50
- Add notes: RDF301.50 is not suitable for
applications in heating mode without fan
operations
All All
2.5 2017-02-17 Update “Send heartbeat and receive timeout” 3.11.5 57
2.4 2016-03-28 RDF600KN changes from SW V1.8 to V2.0
Presence detection function:
- V1.8 with only standard presence
- V2.0 with both standard presence (factory setting
P77 = 1) and hotel presence (P77 = 2)
Error handing and sensor errors
- V2.0 with additional alarms
Update Synco topology
All
3.10
2.4
All
54
11
2.3 2015-06-10 All Units:
Update mounting notes and connection diagrams
regarding overcurrent protection
Replace directives with declaration document number
4.1
6.2
8
74
87
90
2.2 June 2014 Added RDF301.50H
RDF600KN (SW V1.8)
- Update window contact and presence detector
function.
For all models:
Update with wiring and protection information
New S-Mode objects for Economy setpoint
All All
2.0 Oct 2012 Added RDF600…family All All
1.0 22 Jun 2010 First edition
Page 5
5 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
1.2 New functions
Availability of new functions depends on the software version used; see table
below.
RDF301 /
RDF301.50 /
RDF301.50H
RDF600KN
RDF600KN/S
Firmware updates SW = V4.1 SW < V1.8 SW = V1.8 SW >= V2.0
SW >= V1.0
Hotel presence
Standard presence mode
External sensor error
message Er3
Window contact
Operating mode switchover
contact
Fan stage in dead zone
(Comfort)
Fan start delay
Room temperature: S-Mode
object Economy heating
setpoint
Room temperature: S-Mode
object Economy cooling
setpoint
1.3 Reference documents
Subject Ref Doc No. Description
Semi-flush mount room
thermostats with KNX
communications,
RDF301, RDF301.50,
RDF600KN, RDF600KN/S
[1] CE1N3171 Data Sheet
[2] CE1B3171 Operating Instructions
[3]
[3a]
CE1M3171
CE1M3076.3
Mounting Instructions RDF301...
Mounting Instructions RDF600KN…
KNX Manual [4] Handbook for Home and Building Control – Basic Principles
(http://www.knx.org/knx-en/training/books-documentation/knx-association-
books/index.php)
Synco and KNX (see
www.siemens.com/synco
)
[5] CE1N3127 KNX bus, Data Sheet
[6] CE1P3127 Communication via the KNX bus for Synco 700, 900 and
RXB/RXL, Basic Documentation
[7]
XLS template
in HIT
Planning and commissioning protocol,
communication Synco 700
[8] CE1N3121 RMB795 central control unit, Data Sheet
[9] CE1Y3110 KNX S-Mode data points
[10] -- Product data for ETS
[11] CE1J3110 ETS product data compatibility list
[12] 0-92168en Synco Application Manual
Desigo
engineering documents
[13] CM1Y9775 Desigo RXB integration – S-Mode
[14] CM1Y9776 Desigo RXB / RXL integration – Individual Addressing
[15] CM1Y9777 Third-party integration
[16] CM1Y9778 Synco integration
[17] CM1Y9779 Working with ETS
Apogee [18] 565-132 Installation Instructions: KNX driver for PXC Modular
Page 6
6 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
engineering documents [19] 127-1676 Technical Spec Sheet: KNX driver for PXC Modular
[20] 140-0804 Technical reference for KNX driver
[21] 140-0804 Application 6205 point map for RDF
Page 7
7 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
1.4 Before you start
1.4.1 Copyright
This document may be duplicated and distributed only with the express permission
of Siemens, and may be passed only to authorized persons or companies with the
required technical knowledge.
1.4.2 Quality assurance
This document was prepared with great care.
∂ The contents of this document are checked at regular intervals
∂ Any corrections necessary are included in subsequent versions
∂ Documents are automatically amended as a consequence of modifications and
corrections to the products described
Please make sure that you are aware of the latest document revision date.
If you find lack of clarity while using this document, or if you have any criticisms or
suggestions, please contact the Product Manager in your nearest branch office.
The addresses of the Siemens Regional Companies are available at
www.buildingtechnologies.siemens.com.
1.4.3 Document use / request to the reader
Before using our products, it is important that you read the documents supplied
with or ordered at the same time as the products (equipment, applications, tools,
etc.) carefully and in full.
We assume that persons using our products and documents are authorized and
trained appropriately and have the technical knowledge required to use our
products as intended.
More information on the products and applications is available:
∂ On the intranet (Siemens employees only) at
https://workspace.sbt.siemens.com/content/00001123/default.aspx
∂ From the Siemens branch office near you
www.buildingtechnologies.siemens.com or from your system supplier
∂ From the support team at headquarters fieldsupport-zug.ch.sbt@siemens.com if
there is no local point of contact.
Siemens assumes no liability to the extent allowed under the law for any losses
resulting from a failure to comply with the aforementioned points or for the
improper compliance of the same.
Page 8
8 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
1.5
Target audience, prerequisites
This document assumes that users of the RDF
the ETS
and/or Synco ACS
It also presupposes that these users are aware of the specific conditions associ
ated with KNX.
In most countries, specific KNX know
certified by the
For
reference documentation, see section
1.6
Glossary
The inputs, outputs and parameters of an application can be influenced in various
ways. These are identified by the following symbols in this
Parameters identified by this symbol are set using
Parameters identified by th
Setting RDF KNX parameters is only supported by the following tool
versions:
– ETS3
or
– ACS v
ersion 5.11
Inputs and outputs identified by this symbol
They are called communication objects (CO).
The communication objects of the
partly in
LTE Mode
A list of the parameters is shown in section
ETS
ACS
STOP
Note!
, RDF600KN/S Basic D
ocumentation
KNX
thermostat
tools and able to use them.
-how is conveyed
through training centers
KNX Association (see www.knx.org/).
1.2.
document
ETS.
is symbol are set using
the ACS tool.
higher
or higher
communicate with other KNX devices.
RDF KNX
thermostats work
, and partly
in both. These objects are described accordingly.
3.13.
CE1P3171en
2017-12-07
s are familiar with
-
:
partly in S-Mode,
Page 9
9 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
2. Summary
2.1 Types
Product no. Stock no.
Operating
voltage
Control outputs
Suitable
conduit
box
2)
3-
pos
ON/
OFFDC0..10 V
KNX switching
groups
RDF301 S55770-T104 AC 230 V
1
1)
2
1)
--
square
RDF301.50 S55770-T105 AC 230 V
1
1)
2
1)
--
square
RDF301.50H S55770-T334 AC 230 V
1
1)
2
1)
-- Hotel: MUR, DND
3)
square
RDF600KN S55770-T293 AC 230 V
1
1)
2
1)
--
Round or
square
RDF600KN/S S55770-T400 AC 230 V
1
1)
2
1)
--
Round or
square
1)
Selectable: ON/OFF or 3-position.
2)
Square conduit box.
Round CEE conduit box min 60 mm diameter and min 40 mm depth.
3)
MUR: Make Up Room, DND: Do Not Disturb.
2.2 Ordering
∂ When ordering, please indicate both product no. / stock no. and name:
E.g. RDF301 / S55770-T104 room thermostat.
∂ Order valve actuators separately.
2.3 Functions
Fan coil units via ON/OFF or modulating control outputs:
∂ 2-pipe system
∂ 2-pipe system with electric heater
∂ 4-pipe system
Chilled / heated ceilings (or radiators)* via ON/OFF or modulating control
outputs:
∂ Chilled / heated ceiling
∂ Chilled / heated ceiling with electric heater
∂ Chilled / heated ceiling and radiator / floor heating
* Not applicable for RDF301, RDF301.50
Compressors: Via ON/OFF control
∂ 1-stage compressors in DX type equipment
∂ 1-stage compressors in DX type equipment with electric heater
The room thermostats are delivered with a fixed set of applications.
The relevant application is selected and activated during commissioning using
one of the following tools:
∂ Synco ACS
∂ ETS
∂ Local DIP switch and HMI
Use
Page 10
10 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
∂ Operating modes: Comfort, Economy (Energy Saving) and Protection
∂ ON/OFF or 3-position control outputs (relay)
∂ Output for 3-speed or 1-speed fan
∂ Automatic or manual heating / cooling changeover
∂ Backlit display
∂ AC 230 V operating voltage
∂ RDF600KN… for round CEE conduit box, with min 60 mm diameter,
min 40 mm depth or recessed square CEE conduit box
with 60.3 mm fixed centers
∂ RDF301… for recessed square CEE conduit box
with 60.3 mm fixed centers
∂ Room temperature control via built-in temperature sensor or external room
temperature / return air temperature sensor.
∂ Changeover between heating and cooling mode (automatic via local sensor or
bus, or manually).
∂ Selection of applications via DIP switches or commissioning tool.
∂ Select operating mode via operating mode button on the thermostat.
∂ Temporary Comfort mode extension.
∂ 1- or 3-speed fan control (automatically or manually).
∂ Display of current room temperature or setpoint in °C and/or °F.
∂ Minimum and maximum limitation of room temperature setpoint.
∂ Button lock (automatically or manually).
∂ 2 multifunctional inputs, freely selectable for:
– Sensor for automatic heating / cooling changeover
– External room temperature or return air temperature sensor
– Dew point sensor
– Electric heater enable
– Fault input
– Monitor input for temperature sensor or switch state
RDF301…
– Operating mode switchover contact … (keycard, window contact, etc.)
RDF600KN…:
– Window contact
– Presence detector (Standard presence mode and Hotel presence )
See pages 15 & 18.
∂ Advanced fan control function, e.g. fan kick, fan start, selectable fan operation
(enable, disable or depending on heating or cooling mode).
∂ "Purge" function together with 2-port valve in a 2-pipe changeover system.
∂ Reminder to clean fan filters (adjust with P62).
∂ Floor heating temperature limitation.
∂ Reload factory settings for commissioning and control parameters.
Features
Type of mounting /
suitable conduit boxes
Functions
Page 11
11 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
2.4 Integration via KNX bus
The RDF room thermostats can be integrated as follows:
∂ Integration into Synco 700 system via LTE Mode (easy engineering).
∂ Integration into Synco living via group addressing (ETS).
∂ Integration into Desigo and Apogee via group addressing (ETS) or
individual addressing.
∂ Integration into third-party systems via group addressing (ETS).
The following KNX functions are available:
∂ Central time program and setpoints, e.g. when using the RMB795 central
control unit.
∂ Outside temperature or time of day via bus displayed on thermostat.
∂ Remote operation and monitoring, e.g. using the RMZ792 bus operator unit.
∂ Remote operation and monitoring with web browser using the OZW772 web
server.
∂ Maximum energy efficiency due to exchange of relevant energy information,
e.g. with Synco 700 controllers (e.g. heating demand, cooling demand).
∂ RDF301.50 and RDF600KN/S only: 4 buttons to control KNX actuators via KNX
S-Mode
("switching groups" with functions such as switching, dimming, blinds control,
8-bit scene).
∂ RDF301.50H only: 4 buttons for Hotel applications to control via KNX S-Mode.
Same functions as RDF301.50, but with dedicated button labels for hotel
applications: Make Up Room, Do Not Disturb.
∂ Alarming, e.g. external fault contact, condensation, clean filter, etc.
∂ Monitoring input for temperature sensor or switch.
Engineering and commissioning can be done using…
– local DIP switches / HMI
– Synco ACS service tool
– ETS
The RDF room thermostats are especially tailored for integration into the Synco
700 system and operate together in LTE Mode. This extends the field of use of
Synco for individual room control in conjunction with fan coil units, VAV, chilled
ceilings and radiators.
Thanks to S-Mode extension to the QAX9x3 central apartment unit, communicating
room thermostats can be easily integrated into Synco living systems. Using the SMode data points of the central apartment unit, additional room information can be
exchanged with the room thermostat via KNX TP1 (RF function is not available on
the room thermostats). To make the integration, the ETS engineering tool is
required.
Synco 700
Synco living
Page 12
12 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Synco 700 Building automation and control system (BACS)
Synco living Room automation and control system
RDG..., RDF… Room thermostats
OZW772 Web server
RMZ792 Bus operator unit
QAW... Room unit
ACS Service tool using OCI700.1 and OCI702 (OCI700.1
and OCI702 are delivered with a service cable which
can be plugged into the service connector on a Synco
controller)
RXB Room controllers
QAX Room unit for RXB room controllers
The RDF KNX devices can be integrated into the Siemens building automation and
control systems (BACS) Desigo / Apogee or into 3rd-party systems. For integration,
either S-Mode (group addressing) or individual addressing can be used.
Synco topology
Legend:
Desigo, Apogee and
third-party systems
RDF600KN/S
Page 13
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
2.5
Description
Cable
changeover sensor
Room temperature sensor
Condensation
Electromotoric
Electromotoric
actuator
(only
available in AP, UAE, SA and IN)
Zone valve actuator
(only available in AP, UAE, SA and IN)
Thermal actuator (for radiator valves)
NO
Thermal actuator
(for small valves 2.5 mm)
Electrical actuator, 3
(for radiator valves)
Electrical actuator, 3
(for 2
-
Electrical actuator, 3
(for small valves 2.5 mm)
Electrical actuator, 3
(for small valves 5.5 mm)
Electrical actuator, 3
*) The documents can be downloaded from
Note:
For the
of the selected actuators and to this list, depending on which value is lower:
∂
Parallel operation of max 6 SS… actuators (3
∂
Parallel operation of max 10
2.6
Description
Changeover mounting kit
(50
pcs/package)
Pla
stic mounting bracket
moun
t thermostats RDF301... for
increasing the headroom in the conduit
box
by 10mm
KNX Power supply 160 mA (Siemens
KNX Power supply 320 mA (Siemens
KNX Power supply 640 mA (Siemens
ON/OFF actuators
3-position actuators
, RDF600KN/S Basic D
ocumentation
Equipment combinations
Product no.
temperature sensor or
QAH11.1
QAA32
monitor
QXA21..
ON/OFF actuator
SFA21...
ON/OFF valve and
MVI… /
MXI…
SUA…
STA23...
, NC
STP23...
-position
SSA31...
-position
and 3-port valves / V…P45)
SSC31
-position
SSP31
-position
SSB31...
-position
SAS31…
http://siemens.com/bt/download
maximal number of actuators in parallel, refer to information in the data sheets
-
pos) is possible
ON/OFF
actuators is possible
Accessories
Product no / SSN
ARG86.3
for semi-flush-
ARG70.3
BT LV)
5WG1 125
BT LV)
5WG1 125
BT LV)
5WG1 125
13 / 94
CE1P3171en
2017-12-07
Data sheet
*)
1840
1747
A6V10741072
4863
4867
4832
4884
4884
4893
4895
…
4864
4891
4581
.
.
.
Data
sheet
N3009
N3009
-1AB02
--
-1AB12
--
-1AB22
--
Page 14
14 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.
Functions
3.1
Temperature control
S
etting of the control parameters (P01
is described in section
The
thermostat
temperature sensor (QAA32), or external return air temperature sensor (QAH11.1),
and main
tains the setpoint by
and/or cooling equipment. The following control outputs are available

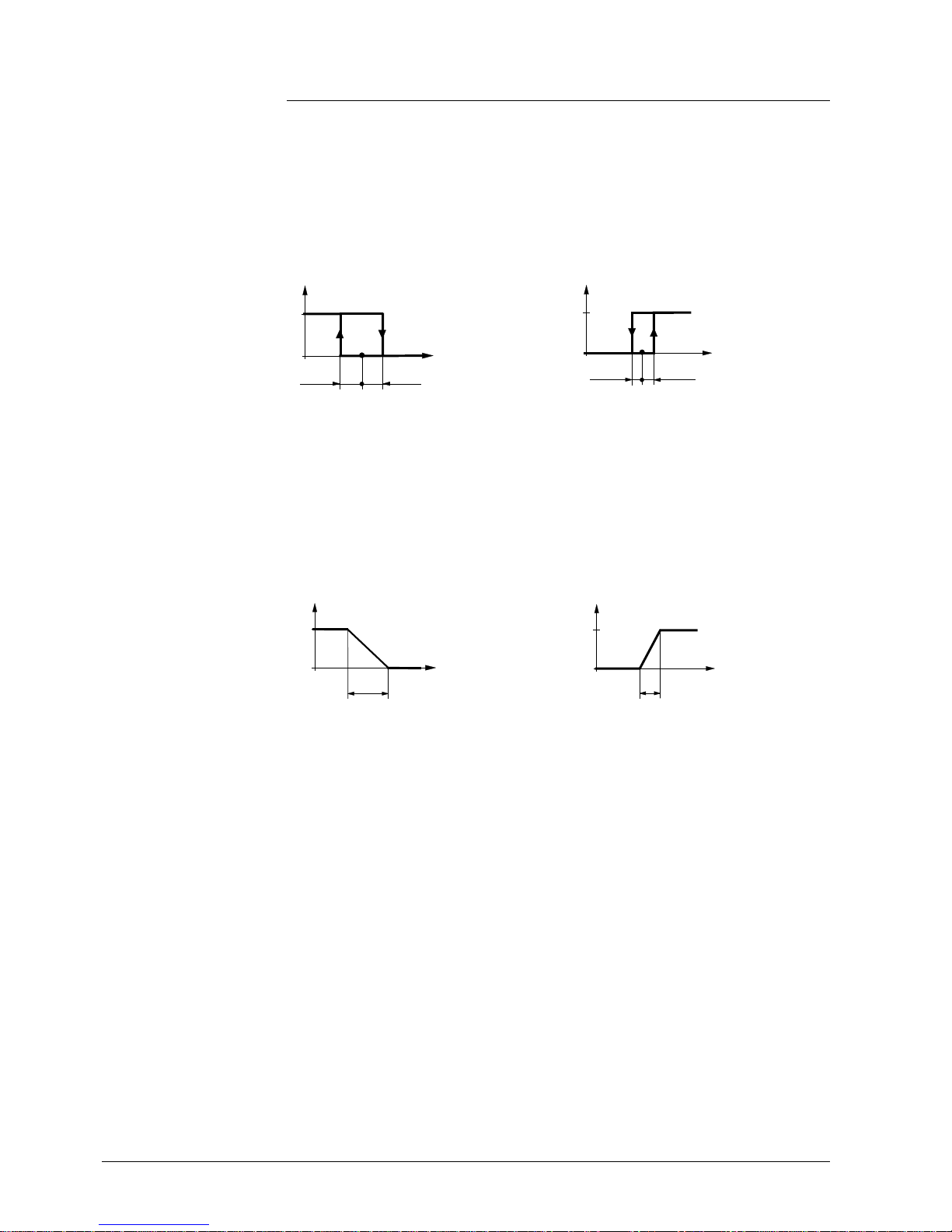

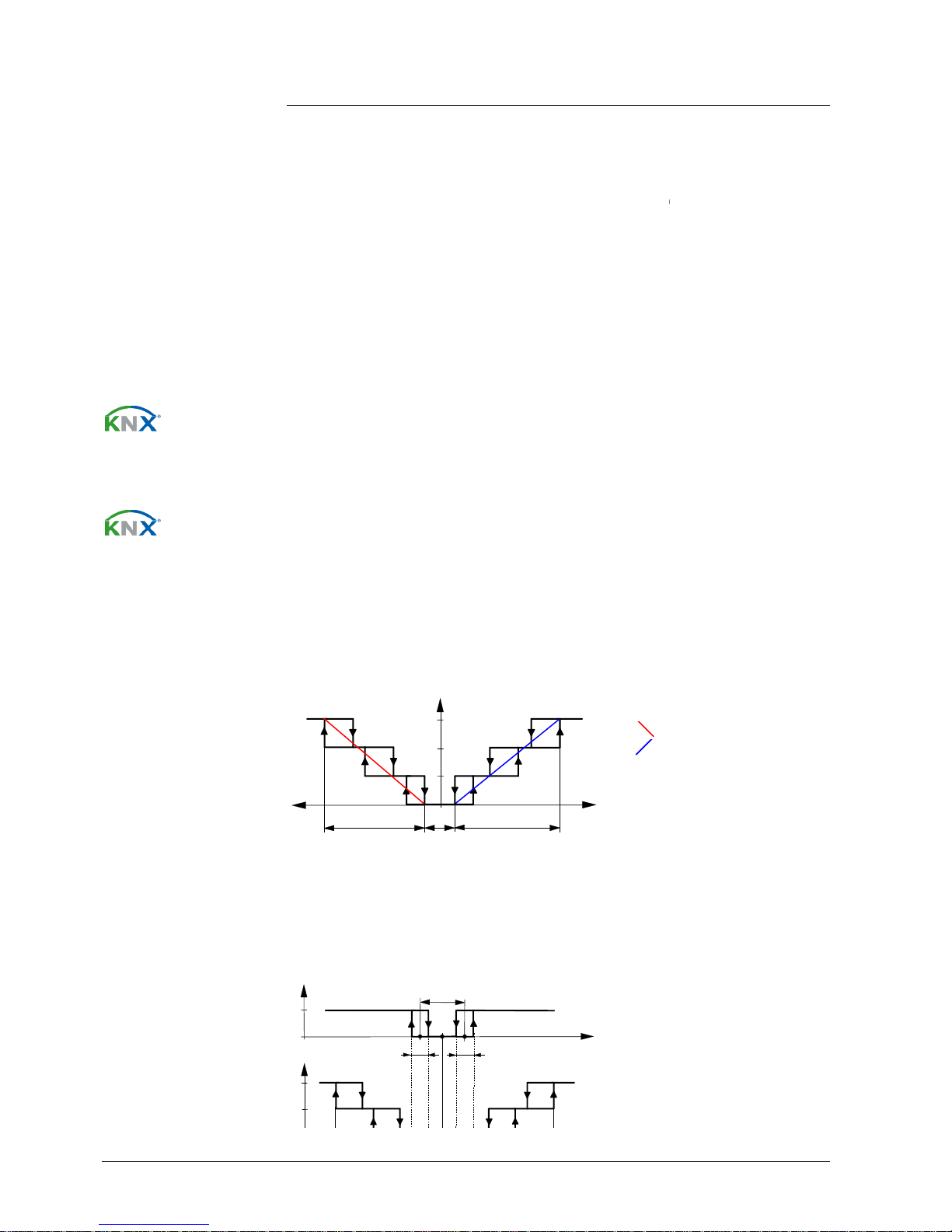

∂ ON/
OFF∂Modulating PI/P control with 3
applications

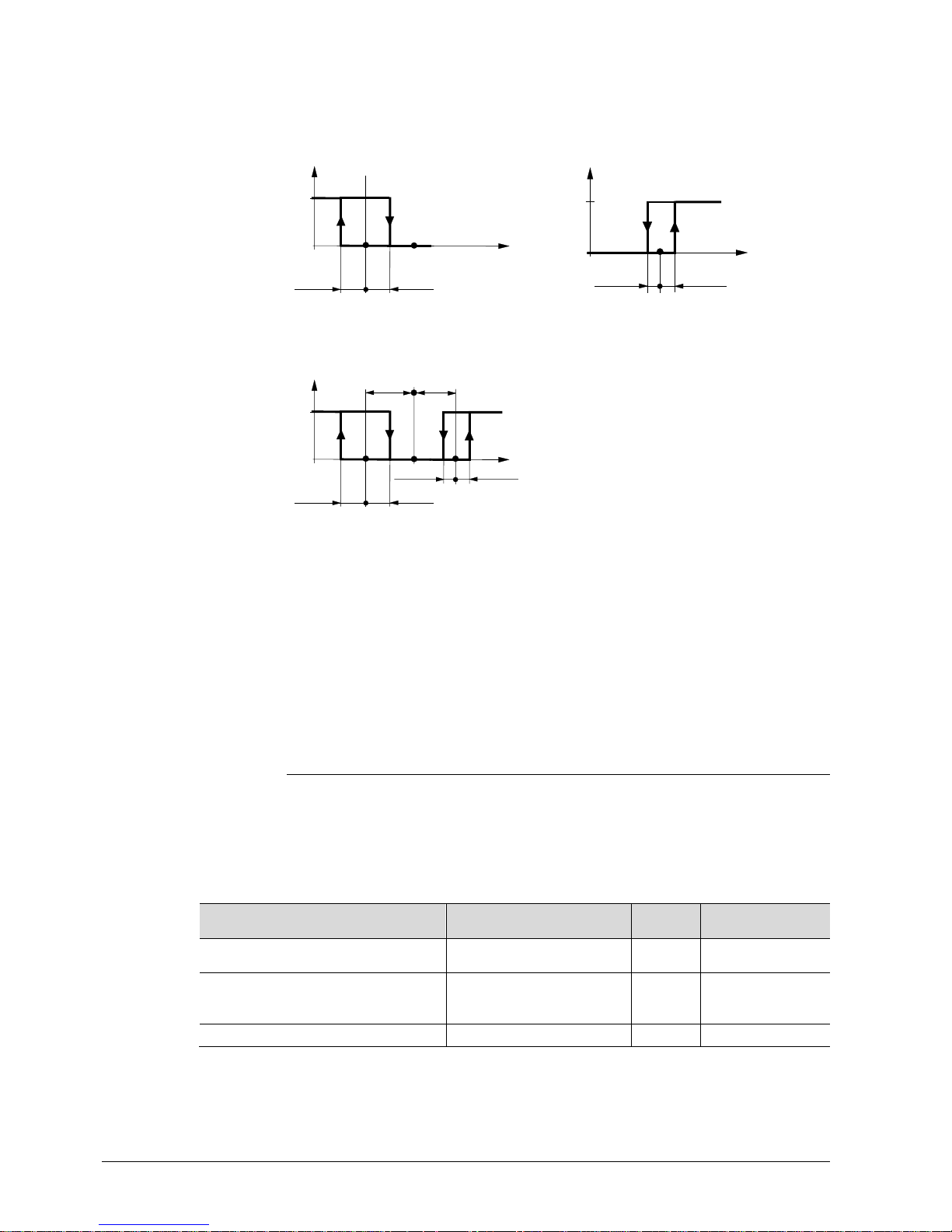

The switching differential
cooling mode (adjustable via parameters P30 and P31).
The integral action time
minutes (
RDF600KN
The display shows the acquired room temperature or the
ble via parameter P06. The factory setting displays the
Use parameter P04 to
needed.
The acquired room temperature (internal or external
information on the
∂ With
automatic
indicate that the system currently heats or cools (heating or cooling output is
activated).
∂ With
manual
currently operates in heating or cooling mode. Thus, the symbols are displayed
even when the thermostat operates in the neutral zone.
Concurrent display of the current temperature or setpoint in
P07 = 1
) is possible on the
The outside temperature can be displayed on the room thermostat
parameter P07
In
LTE Mode
zone 31.
In S-
Mode
KNX sensor device.
Time of day via bus can be displayed on the room thermostat
P07 = 3
or
The information can be received from a Synco controller with
functionality or any other KNX device if the corresponding communication object is
bound.
∂
When an application program is downloaded to the Synco devices via
correct group addresses need to be downloaded as well to display the time of
day on the
General note:
Parameters
Temperature control
Display
Room temperature
/
Concurrent display of
°C and °F
Outside temperature via
bus
Time of day via bus
Note:
, RDF600KN/S Basic D
ocumentation
,
etc., mentioned throughout the document)
3.13.
acquires the room temperature via built-
in sensor, external room
delivering
actuator control commands to heating
control (2-position)
-position control output
(only for 2
)
or proportional band
is 2 K for heating mode and 1 K for
for modulating
PI control is 5 minutes
), adjustable via parameter P35.
Comfort
current room temperature.
change the room temperature
display
sensor
bus.
changeover or continuous heating / cooling, symbols
changeover (P01 = 2), symbols /
indicate that the system
thermostats.
=
2. This temperature value has only information character.
,
the outside temperature can only be received on
, the corresponding communication object need
s
4. The display format is either in 12- or in 24-
hour
room thermostat (see Synco Knowledge
Base
CE1P3171en
2017-12-07
:
-pipe
(RDF301...) and 45
setpoint, selecta-
from °C to °F as
) is also available as
/
°C and °F (parameter
by setting
outside temperature
to be bound with a
by setting parameter
format.
time master
ETS, the
- KB771).
Page 15
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.2
The thermostat's operating mode can be influenced in different
Specific
The thermostat sends the
The following operating modes are available:
In Auto Timer mode the room operating mode is commanded via bus.
Auto Timer is replaced by Comfort when no time schedule via bus is present
In Comfort mode, the thermostat maintains the Comfort setpoint. This setpoint can
be defined via par
It can be locally adjusted via the
In Comfort mode, the fan can be set to automatic or manual fan speed: Low,
medium or high.
Standard presence
The thermostat switches to
KNX)
is active
Hotel presence
When
hotel
and
the
previous operating mode set by the hotel guests.
The setpoints (less heating and cooling than in Comfort mode) can be defined via
parameters P11 and P12.
The thermostat switches to
–
the operating mode button is pressed (only possible if parameter P02 is set to 2)
–
Economy is sent via bus
–
an operating mode switchover contact
presence detec
-
"Window state" is sent
presence detector (P02 is irrelevant) *)
In Protection mode, the system is...
–
protected against frost (factory setting 8 °C, can be disabled or changed via
P65)
–
protected against overheating (factory setting OFF, can be enabled or changed
via P66)
No other opera
via bus.
The thermostat switches to Protection mode when...
–
the operating mode button is pressed
–
Protection is sent vi
– the
window contact
–
"Window state" is sent
*)
Refer to chapter
contact (RDF301
(
RDF600KN
Room operating mode:
State
Auto Timer
Comfort
Presence detector
(RDF600KN…)
Economy
Room operating mode:
Window state
(RDF301…)
Protection
Room operating mode:
Window state
(RDF600KN…)
Note:
, RDF600KN/S Basic D
ocumentation
Operating modes
heating and cooling setpoints
are assigned to each
effective
room operating mode on the bus.
ameters P8, P9 and P10.
+/- buttons or via bus.
mode:
Comfort mode when
the presence detector
(room is occupied). *)
mode:
guests leave their rooms
, the thermostat switches to Economy mode
local HMI (keys) is locked. Upon
occupancy, the thermostat
Economy mode when...
on RDF301…
(e.g. keycard contact
tor, window contact) is active. *)
to the RDF301
via bus, e.g. from a KNX switch or a KNX
ting mode can be selected locally if Protection mode is commanded
and are displayed.
a bus
on RDF600KN is active
(open window)
to the RDF600KN
via bus, e.g. from a KNX switch *)
3.2.1
for detail regarding the operating mode switchover
...), window contact (RDF600KN…
) and presence detector
…).
15 / 94
CE1P3171en
2017-12-07
ways (see below).
operating mode.
(local or on
returns to the
.
Page 16
16 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.2.1
The operating mode can be influenced by different interventions.
The source of the
"Cause"
diagnostic data
OZW772.
Source Description
Local operation
via operating
mode button
∂
Operating mode is not Auto
∂
No time schedule via bus
∂
Temporary Comfort extension is active
∂
Operating mode switchover contact
∂ Window
contact
∂
Presence detector
Bus command
Room op. mode
∂
"Window state" sent via bus
∂
"Window state" sent via bus
∂ "
Presence detector
1)
∂
Time schedule available via bus
⇓
local operating mode is set to Auto
∂
Time schedule sends Protection mode via bus
⇓
operating mode cannot be changed locally
1)
RDF600KN SW version <
switchover contact
The following table shows the priorities of different interventions.
A lower number means a higher priority.
Priority Description
•
Commissioning
‚
Protection mode via bus
from time schedule
ƒ
Operating mode
switchover contact
(RDF301…)
ƒ
Window contact
(RDF600KN…)
1)
ƒ
"Window state" via bus
„
Presence detector
(RDF600KN…)
1)
Source for change of
operating mode
ACS
Priority of operating
mode interventions
, RDF600KN/S Basic D
ocumentation
Different way
s to influence the operating mode
effective room operating mode state
can be monitored using the
point in the ACS tool
, operator unit RMZ792 or
Value of DP "Cause"
Timer
Room operating mode
(pre-
selection
Timer
function
(RDF301..)
Room operating mode contact
(RDF600KN…)
1)
Window switch
(RDF600KN…)
1)
Presence detector
(RDF301….)
Room operating mode contact
(RDF600KN…)
1)
Window switch
" sent via bus (RDF600KN…)
Presence detector
Timer
Time switch
V1.8 works like RDF301…
with the operating mode
.
Remark
In parameter
setting mode (highest priority)
command an operating mode independent of all other settings
or intervention via bus and local input.
Protection mode, sent by a
time schedule
It cannot be overridden by the user n
or by an operating mode
switchover contact.
If the contact is closed, the operating mode changes to
Economy
. This overrides the operating mode on the
If the contact is closed, the operating mode changes to
Protection
. This overrides the operating mode on the
thermostat.
"Window state" sent via bus has the same effect as the
operating mode switchover contact
(on RDF301…)
window contact (on RDF600KN).
Note: Only one input source must be used, either local input
X1/X2 or KNX bus.
Standard presence mode: The thermostat switches to Comfort
mode when the presence detector (local or on KNX)
(room is occupied).
*)
Hotel presence mode: When hotel guests leave the
thermostat switches to Economy mode and
is locked. Upon
occupancy, the thermostat
previous operating mode set by the hotel guests.
CE1P3171en
2017-12-07
web server
selector
)
, you can always
, has priority 2.
thermostat.
local
or local
is active
ir rooms, the
the local HMI (keys)
returns to the
Page 17
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
„
Presence
detector via
bus (on
RDF600KN
1)
„
Operating mode button
„
Operating mode via bus
„
Temporary extended
Comfort mode via
operating mode button
„
Time schedule via bus
1)
If a time schedule
Timer
mode
Comfort
The display shows the Auto Timer mode symbol
effective room
By pressing the operating mode button, you can change to another operating
mode.
Automatic
Each time the time schedule sends a new operating mode (switching event), the
operating mode of the thermostat is set back to Auto
that the room temperature is maintained according to the time schedule.
If the time
either into
No intervention is possible neither by the user nor by an operating mode switch
over contact,
display w
The operating mode can be selected
The behavior of the operating mode
parameter P
P02 Without time
schedule
With time
dule via
1 ⇓
⇓
2 ⇓⇓
⇓
Auto Timer mode
with time schedule via
bus
Behavior when bus
sends new operating
mode
Pre-Comfort via bus
Behavior when bus
sends Protection
Availability of Economy
mode
, RDF600KN/S Basic D
ocumentation
…)
"Presence detector" sent via bus has the same effect as the
local presence detector.
The user can switch the operating mode using the operating
mode button.
The operating mode can be changed via bus
The operating mode can be
temporarily set from Economy to
Comfort by pressing the operating mode button, if...
– Economy was sent via bus
–
extended Comfort period >0 (parameter P68)
The last intervention wins, either locally or via bus
The operating mode sent via bus can be overridden by all other
interventions.
Exception: Protection mode has priority 2
Note: If the time schedule switches from Comfort to Economy,
but the presence detector is still active (room occupied), the
thermostat
continues to work in Comfort mode for the period of
occupancy.
RDF600KN SW version < V1.8
works like RDF301… with the operating
mode switchover contact as window contact or
presence detector
via bus is present, e.g. from central
control unit
is active. The thermostat
automatically changes
and Auto Economy according to the
time schedule via bus.
along with the symbol for the
operating mode (Auto Comfort or
Auto
fan is the default f
an speed in Auto Timer mode.
T
imer mode. This
schedule sends Pre-Comfort mode
, then this mode will be transformed
Economy (factory setting) or Comfort (
selectable
i
f Protection mode is set by the time sched
hen the user presses a button.
locally via the operating mode button.
button
(user profile)
02, factory setting is P02 = 1.
sche-
bus
Description
∂ Switching manually between 2
available (factory setting).
∂ Suited for hotel guest rooms
or commercial buildings.
∂ If a time schedule via bus
is available, then the Comfort
mode can be temporarily extended (see
⇓⇓
∂ Switching manually between 3
∂
Suited for homes and rooms where manual switching to
17 / 94
CE1P3171en
2017-12-07
.
.
.
.
, then the Auto
between Auto
Economy ).
is to assure
via parameter P88).
-
ule. OFF flashes on the
can be defined via
modes, Economy is not
below).
modes.
Page 18
18 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
The thermostat can be forced into Economy mode (e.g. when a window is opened,
when a presence detector signals "no one present", when the keycard of a hotel
room is withdrawn,
X2. Set parameter P38, P40 to 3.
ineffective and "
active.
The thermostat can be forced into
The contact can be connected to multifunctional input X1, X2. Set parameter P38,
P40 to 3.
User
contact is active.
RDF600KN SW version <
switchover function
The function
the KNX signal "Window state", e.g.
detector.
Only one input source must be used, either local input X1/X2
User operations are ineffective and
switch
over
The operating mode can be changed to Comfort and back to
depending of the room occupancy (room occupied or not occupied
detector or keycard)
Behavior w
∂
Whenever the presence detector is activated then the operating mode of the
thermostat goes to Comfort
∂
Whenever the presence detector is deactivated then the operating mode
to Economy
Behavior w
∂
When Time
-
Presence detector has
∂
When Time
-
Whenever the presence detector is activated then the operating mode goes
to Comf
-
Whenever the presence detector is deactivated then the operating mode
goes to (Auto) Economy
∂
When Time
-
Whenever the presence detector is activate
in Comfort
-
Whenever the presence detector is
keeps in Comfort
Important:
the operating mode keeps in Comfort mode until the Presence detector is
inactive
The contact (e.g. a card reader) can be connected to multifunctional input X1,
X2 (set parameter P38 or P40 to 10) or the occupancy is sent via bus from a KNX
Operating mode
switchover contact
(window contact)
(RDF301…)
Window contact
(RDF600KN…)
Note:
Room operating mode:
Window state
Note:
Room operating mode:
Presence detector
(RDF600KN…)
Standard presence mode:
(factory setting P77=1)
Note:
, RDF600KN/S Basic D
ocumentation
Economy mode is desired.
etc). The contact can be connected to multifunctional input X1,
P02 is not relevant.
User
OFF" is display
ed if the operating mode switch
Protection mode
when the window is opened
operations are ineffective and "OFF"
is displayed if the window
V1.8 works like RDF301…
with the operating mode
.
(operating mode switchover or window contact)
from a KNX switch or a KNX presence
"OFF" is displayed i
f the operating mode
/ window contact is active, or if "Window
state" is sent via bus.
.
ithout time schedule:
.
.
ith time schedule via bus:
-switch is on Protection
not influence on operating mode.
-switch is on Economy
ort.
.
-switch is on Comfort
d t
hen the operating mode keeps
.
deactivated then the operating mode
.
When Time-
switch goes to Eco but Presence detector is still active
.
CE1P3171en
2017-12-07
operations are
over contact is
.
is also available via
or KNX bus.
Economy mode
, via presence
goes
,
Page 19
19 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
presence detector sensor: Only one input source must be used, either local input
X1/X2 or KNX bus.
This function can be selected via parameter P77=2.
The presence detector status can be set via card reader or presence detector
connected to the local multifunctional input (set P38 or P40 to 10) or via KNX (SMode).
Response when the room is unoccupied, i.e. when the key card is removed from
the card reader or when the presence detector no longer detects movement.
∂ The operating mode of the thermostat switches to Economy.
∂ Changing the operating mode via local HMI is not possible (locked HMI) to
ensure Economy is active when rooms are unoccupied.
The operating mode can still be changed via bus, e.g. the hotel front desk switches
the operating mode to Protection upon check-out or extended vacancy.
Response when the room is occupied, i.e. when the key card is inserted or when
the presence detector detects movement.
∂ The thermostat returns to the last operating mode set for occupancy (either
Protection or Comfort)
If the operating mode is changed via bus during vacancy, the change is not based
on detection, e.g. front desk can set the operating mode to Comfort after guests
check in.
Hotel presence mode:
(P77=2)
Note:
Note:
Page 20
20 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Comfort mode can be temporarily extended (e.g. working after business hour or on
weekends) when the thermostat is in Economy mode. The operating mode button
switches the operating mode back to Comfort for the period preset in P68.
Press the operating mode button again to stop the timer.
The following conditions must be fulfilled:
∂ mode selection via operating mode button is set to "Protection-Auto"
(P02 = 1) and the time schedule via bus is Economy.
∂ Parameter P68 (extend Comfort period) is greater than 0.
During the temporary Comfort mode extension, symbol appears.
If parameter P68 (extend Comfort period) = 0, extended Comfort cannot be
activated; pressing the operating mode button will switch the thermostat to
Protection.
If the operating mode switchover contact is active, pressing the operating mode
button will show "OFF" (blinking).
3.2.2 Communication examples
The following examples show two typical applications of a central time schedule in
conjunction with local control of the room operating mode.
The room operating mode in rooms 1…2 of a building is determined by the time
schedule. Window contacts are fitted in all rooms.
The following conditions are specified:
The rooms are used and controlled by the time schedule as follows:
– Night setback from 17:00 to 08:00 (Economy)
– Protection from 20:00 to 06:00
– Lunch break from 12:00 to 13:00 (Pre-Comfort).
The substitution (parameter P88) for Pre-Comfort via bus is set on the thermostats
as follows:
– Room 1: Comfort (1)
– Room 2: Economy (0).
Temporary timer to
extend the Comfort
mode
Page 21
21 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Operating mode switchover
In room 1, the window is opened briefly, once in the morning, once in late
afternoon and once at night (1). Only the opening in the morning has a direct
impact on the effective room operating mode.
During lunch break, the time schedule changes to Pre-Comfort. The mode remains
in Comfort as set by parameter "Transformation Pre-Comfort" (P88 = 1).
Time schedule
Window contact
Room 1
Effective room
operating mode
Room 1
Comfort
Pre-Comfort
Economy
Protection
Window open
Window closed
Comfort
Economy
Protection
08:00
17:0013:0012:00
1)
06:00
20:00
1)
1)
2)
3171Z91
Example 1 (RDF301…)
Page 22
22 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Interaction of user operation (operating mode button) and central time
schedule
In room 2, the window is opened briefly, once in the morning and once at night (1).
Only the opening in the morning has a direct impact on the effective room operating mode.
With the operating mode button, the operating mode can be changed between
OFF and Auto or temporary Comfort extension respectively.
∂ During lunch break, the time schedule changes to Pre-Comfort. The mode of
the thermostat changes to Economy as set by parameter "Transformation PreComfort". (P88 = 0) (6)
∂ During lunch break, the user changes the operating mode to Comfort
(temporary Comfort extension) by pressing the operating mode button. (2)
At 13:00, the timer is reset due to mode change of the central time schedule
∂ In the afternoon, the user switches the thermostat off by pressing the operating
mode button. (3) At 17:00 the user setting is reset to Economy by the time
schedule.
∂ At 19:30, the user again extends the Comfort mode (4). At 20:00, the timer is
reset by the time schedule.
∂ After 20:00, pressing the operating mode button has no effect, as the central
time switch sets the thermostat to Protection. (5)
Time schedule
Room operating
mode
Operating mode
button on the
thermostat
Window contact
Room 2
Effective room
operating mode
Room 2
Comfort
Pre-Comfort
Economy
Protection
Pressed
Window open
Window closed
Comfort
Economy
Protection
08:00
17:0013:0012:00
06:00
20:00
1)
1)
5)
2)
3)
4)
6)
3171Z92
Example 2 (RDF301…)
Page 23
23 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Application with "Window Contact", "Standard Presence Detector" and
central time schedule
In room 3 operating mode Comfort is possible between 6:00 and 20:00, based on
time schedule or occupancy period. Outside this time the operating mode remains
in Protection.
∂ At 6:00 the central set the operating mode to Economy. (1)
∂ In the morning, as soon as the presence is detected (8:00 – 12:00), the
operating mode will be switched to Comfort. (2)
∂ The user will briefly open the window and the operating mode switches to
Protection. (3)
∂ In the afternoon the time schedule set the Comfort mode from 13:00 to 17:00.
(4)
∂ After 17:00 the room is still occupied and the operating mode remains in
Comfort (occupancy via presence detector). (5)
∂ Later people open the window and left the room for a short time. Operating
mode switches to Protection as long as the window is open. (6)
∂ As soon as the room is unoccupied the thermostat switches to Economy. (7)
∂ At 20:00 the room is set to protection according to time schedule. (8)
∂ After this time, the occupancy detected via presence detection has not effect,
as the central time switch sets the thermostat to Protection. (9)
Time schedule
Room operating
mode
Presence
detector
Window contact
Room 3
Effective room
operating mode
Room 3
Comfort
Pre-Comfort
Economy
Protection
Occupied
Unoccupied
Window open
Window closed
Comfort
Economy
Protection
RDF600KN SW version < V1.8 works like RDF301… with the operating mode
switchover function.
Example 3 (RDF600…)
Note:
Page 24
24 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Application with hotel presence detection function via key card reader
In room 4, hotel presence detection is selected via parameter P77, and the
multifunctional input X1/X2(set parameter P38 or P40 to 10) is connected to a card
reader in a hotel application.
∂ At 6:00 when the room is vacant, i.e. no key card inserted in the card reader,
the thermostat’s operating mode is set to Economy. (1)
∂ At 8:00 when the room is occupied, i.e. a key card inserted in the card reader,
the operating mode returns from Economy to the previous mode1)(2)
∂ A guest changes the operating mode to Comfort by pressing the operating
mode button. (3)
∂ The guest then opens a window and the operating mode immediately switches
to Protection. As soon as the window is closed, the operating mode is returns
to Comfort. (4)
∂ If the guest leaves the hotel room or removes the key card, the operating
mode returns to Economy, and the thermostat remains on Economy as the
local HMI2) is locked, i.e. the operating mode cannot be changed if no key card
is inserted. (5)
∂ When the guest returns to the hotel (room occupied), the operating mode
returns to the mode (Comfort) set previously by the guest. (6)
∂ When the guest turns off the room thermostat before going to sleep, the room
operating mode switches to Protection. (7)
∂ As the guest wakes up, he/she turns on the thermostat and the operating
mode switches to Comfort. (8)
∂ As soon as the room is unoccupied (guest leaves the room), the thermostat
returns to Economy to save energy. (9)
∂ When the guest checks out of the hotel, the operating mode can be set to
Protection via bus. (10)
Note:
1) The previous mode is the operating mode selected by either hotel guests via local
HMI, or the operating mode sent via bus.
2) Local HMI means operation by means of buttons, including setpoint adjustments,
fan speed, operating mode, etc.
Setting operating
mode via bus
Operating mode
button on the
thermostat
Key card reader
Window contact
Room 4
Effective room
operating mode
Room 4
Check out
Pressed
Occupied
Unoccupied
Window open
Window
closed
Comfort
Economy
Protection
RDF600KN SW version < V1.8 works like RDF301… with the operating mode
switchover function.
Note:
Example 4
(RDF600KN)
Page 25
25 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.3 Room temperature setpoints
3.3.1 Description
The factory setting for the Comfort basic setpoint is 21 °C and can be changed in
the thermostat’s EEPROM via parameter P08 or via bus with communication object
"Comfort basic setpoint". The last intervention always wins.
The Comfort setpoint can be adjusted via the +/- buttons,
or via bus from a remote device like a touchpanel, operating unit, etc.
The last intervention always wins.
If the "Temporary setpoint" function is enabled via parameter P69, the Comfort
setpoint adjusted via the +/- buttons or via bus is set back to the Comfort basic
setpoint stored in P08 when the operating mode changes.
For comfort or energy saving purposes, the setpoint setting range can be limited to
minimum (P09) and maximum (P10).
∂ If the minimum limit P09 is set lower than the maximum limit P10, both heating
and cooling are adjustable between these 2 limits.
∂ The customer adjusts the desired setpoint and the thermostat controls the room
temperature accordingly.
∂ For 4-pipe applications *), the selected comfort setpoint is in the middle of the dead
zone (P33). The unit stops to energize the heating / cooling outputs as soon as the
room temperature reaches the dead zone.
Example
5°C
40°C
25°C18°C
P10
P09
Cooling setpoint adjustable 18…25 °C
Heating setpoint adjustable 18…25 °C
∂ If the minimum limit P09 is set higher than the limit P10, then
– The setting range of cooling setpoint is from P09…40 °C in place of 5…40 °C
– The setting range of heating setpoint is from 5…P10 °C in place of 5…40 °C.
This allows the user to limit the maximum heating setpoint and the minimum
cooling setpoint. This concept helps to save energy costs.
∂ For 4-pipe applications *):
– The thermostat runs with the setpoint of the active sequence:
In heating mode, the heating setpoint is active and adjustable via rotary knob.
In cooling mode, the cooling setpoint is active and adjustable via rotary knob.
– Switching from the heating setpoint to the cooling setpoint and vice-versa
occurs when the room temperature reaches the adjusted limitation (P09 or
P10) of the inactive sequence. E.g. the thermostat is in heating sequence
and runs with the heating setpoint. When the room temperature reaches P09,
the thermostat switches to cooling mode and runs with the cooling setpoint, as
long as the room temperature does not drop below P10.
Example
5°C
40°C
25°C21°C
P09
P10
Cooling setpoint adjustable 25…40 °C
Heating setpoint adjustable 5…21 °C
For heating and cooling applications (e.g. 4-pipe):
– P09 is the setpoint for cooling and P10 the setpoint for heating.
– The setpoint cannot be adjusted via the rotary knob.
Use control parameters P11 and P12 to adjust the Economy mode setpoints.
The heating setpoint is factory-set to 15 °C, and the cooling setpoint to 30 °C.
Comfort mode
Temporary setpoint
Setpoint limitation
P09 < P10
(comfort concept)
P09 ≥ P10
(energy saving concept)
*) Note: RDF301...
for 4-pipe with P09 ≥ P10
Economy mode
Page 26
26 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Use control parameters P65 and P66 to adjust the Protection mode setpoints.
The heating setpoint is factory-set to 8 °C (frost protection) and to OFF for cooling.
If a setpoint (Economy or Protection) is set to OFF, the thermostat does not control
the room temperature in the corresponding mode (heating or cooling).
This means no protective heating or cooling function and thus risk of frost in
heating mode or risk of overtemperature in cooling mode!
The Economy setpoints are accessible at the service level (P11, P12); the
Protection setpoints at the expert level (P65, P66).
Protection mode
Caution
Page 27
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.3.2
Room temperature setpoints can be
–
set during commissioning
–
adjusted during runtime
The source ca
–
the local HMI
–
a tool
–
a central control unit
The thermostat stores the setpoints
–
in EEPROM in the form of parameters
–
in the runtime memory
The table below shows the interrelations:
Setpoint setting
Commis
sioning
– HMI
– Tool download
Input
Comfort basic setpoint
Dead zone Comfort
1)
Setpoints Heating
Setpoints Cooling
Setpoint Economy Heating
Setpoint Economy Cooling
Setpoints Heating
Setpoints Cooling
Setpoint Protection Heating
Setpoint Protection Cooling
Current
runtime
setpoints in
thermostat
Input
Mode
Comfort setpoint
Setpoint shift H
Setpo
Economy Heating
Economy Cooling
Setpoint shift H
Setpo
Protection Heating
Protection Cooling
Effective room operating mode
1)
Only required for heating AND cooling applications
2)
LTE Mode
3) S-
Mode:
The
current
on the bus for
Comfort basic setpoint
Comfort setpoint
Economy heating
setpoint
Economy cooling
setpoint
Current setpoint
, RDF600KN/S Basic D
ocumentation
Setting and adjusting setpoints
n be
Stored in EEPROM
of thermostat
LTE Mode
Input
S-Mode
Comfort basic setpoint
P08 Comfort basic setpoint
P33 Dead zone Comfort
P11
P12
P65 Protection Heating
P66 Protection Cooling
Setpoint
adjustment
LTE2)Input
S-Mode
3)
Local ope
-
ration
int shift C
Comfort setpoint + / - buttons
int shift C
Current setpoint (used by the
thermostat for temperature control)
(see
: the shift is added to the local shift.
the last intervention wins, either S-
Mode input or local operation
setpoint
(used by the thermostat for temperature control
use in the central control unit.
27 / 94
CE1P3171en
2017-12-07
1)
Economy Heating
Economy Cooling
New
current
runtime setpoints
in thermostat
Comfort setpoint
Economy Heating
Economy Cooling
Protection Heating
Protection Cooling
section 3.6.8).
.
) is available
Page 28
28 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
∂ The supported communication objects are different in LTE Mode and S-Mode.
∂ Changes via the local HMI or via tool have the same priority (last always wins).
∂ Setting the Comfort basic setpoint will reset the runtime Comfort setpoint to the
basic setpoint.
∂ Central setpoint shift is used for summer / winter compensation in particular.
∂ Setpoint shift does not affect the setpoints stored in parameters P08, P11, P12,
P33.
∂ Local shift and central shift are added together.
∂ Applies only to Comfort and Economy setpoints; Protection setpoints are not
shifted centrally.
∂ The resulting (current) setpoint heating and cooling is limited by the Protection
setpoint; if Protection setpoint is OFF, then minimum 5 °C and maximum 40 °C
are used.
∂ The resulting setpoints for cooling and heating of the same operating mode have
a minimum distance of 0.5 K between them.
∂ The result of local and central shift, together with the room operating mode, is
used by the thermostat for temperature control (current setpoint).
∂ The room thermostat always adopts the received setpoints from the controller
RMB795. Thus the Comfort setpoints locally adjusted on the RDF600KN room
thermostats are overwritten by the Comfort setpoints of the room group
(i.e. within every 15 min).
∂ On RMB SW Version >= 2.0 it is possible to define under which circumstances
the controller has to send out the setpoints:
- Always (every 15min)
- Not in Comfort mode
- Only when changed
∂ See "Setpoint priority" and "Setpoint Master" functions on RMB795B.
∂ RDF600KN SW version < V1.8: The local Comfort setpoints are overwritten only
if the RMB setpoints are changed.

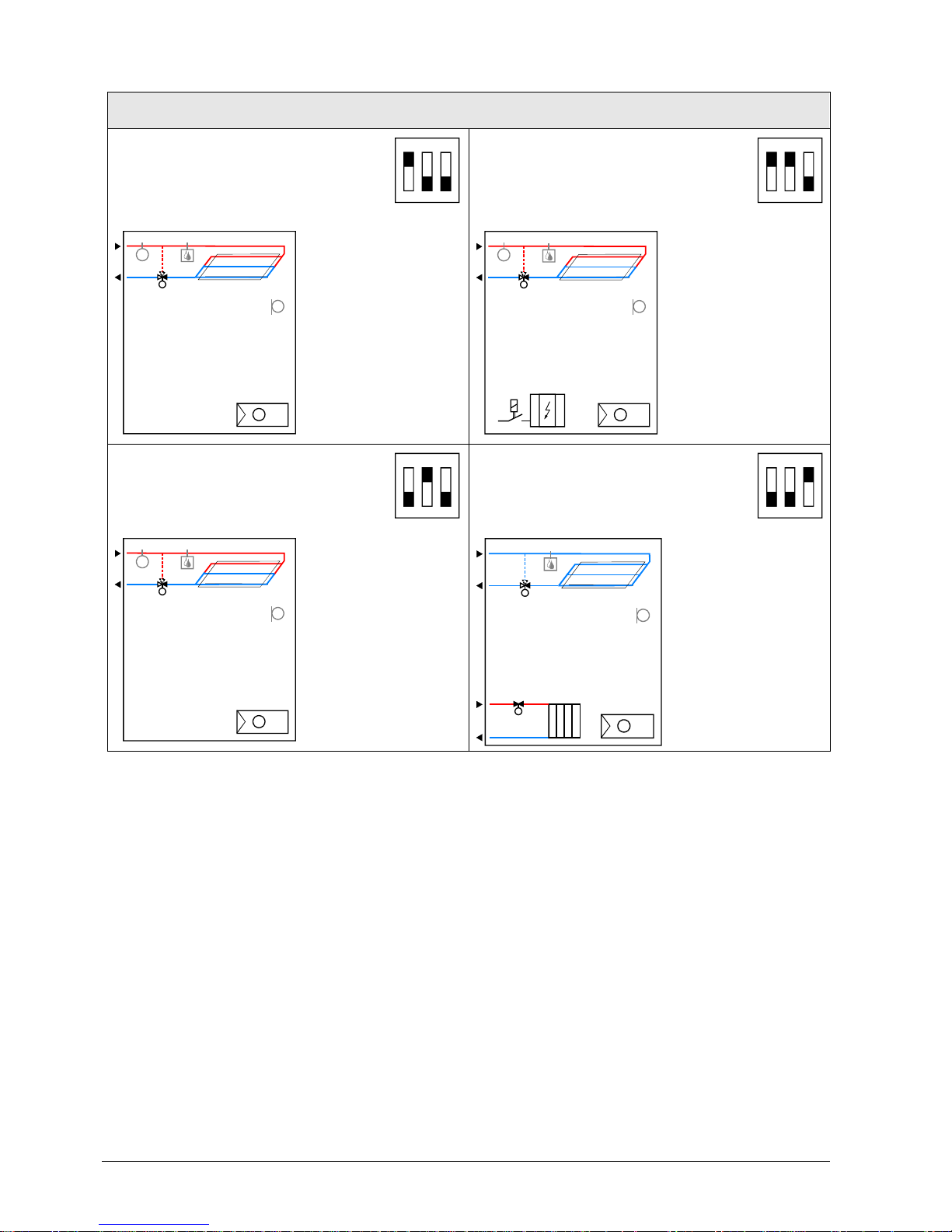

3.4 Applications overview
The thermostats support the following applications, which can be configured using
the DIP switches inside the front panel of the unit or a commissioning tool.
All DIP switches need to be set to OFF (remote configuration, factory setting) to
select an application via commissioning tool.
Remote configuration, via commissioning tool (factory set)
∂ Synco ACS
∂ ETS
DIP switches
1ON2 3
The tools provide the applications described in section 3.4.1.
For universal applications (chilled ceiling, etc.) and compressor applications, refer
to section 3.6.6 and section 3.6.7.
General notes:
Notes on setpoint
adjustment (LTE Mode
with Synco only)
Setpoint priority,
Setpoint Master RMB
(RDF600KN)
Note:
Remote configuration
Page 29
29 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.4.1 Applications for fan coil systems
Application and output signal, DIP switches, diagram
∂ 2-pipe fan coil unit ON/OFF
(heating or cooling)
1ON2 3
∂ 2-pipe fan coil unit with el. heater
(heating or cooling) ON/OFF
1ON2 3
30 7 6 D2 0
(B1)
M1
Y1
T
B2
T
T
(B1)
Y1
M1
3171D21
T
B2
YE
T
(B1)
T
(B1)
∂ 2-pipe fan coil unit 3-position
(heating or cooling)
1ON2 3
∂ 4-pipe fan coil unit ON/OFF
(heating and cooling)
∂
1ON2 3
30 7 6D 2 0
(B1)
M1
Y1
T
B2
T
T
(B1)
T
Y2
Y1
M1
3076D 22
(B1)
T
(B1)
Y1 Heating or heating/cooling valve
actuator
B1 Return air temperature sensor or external room
temperature sensor (optional)
Y2 Cooling valve actuator B2 Changeover sensor (optional)
YE Electric heater M1 1-speed or 3-speed fan*)
N1 Thermostat
Note : On RDF301 and RDF301.50, it is recommended that the fan is running in
deadzone, i.e. P60=0, or using a return air- or external temperature sensor.
Legend
Page 30
30 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07

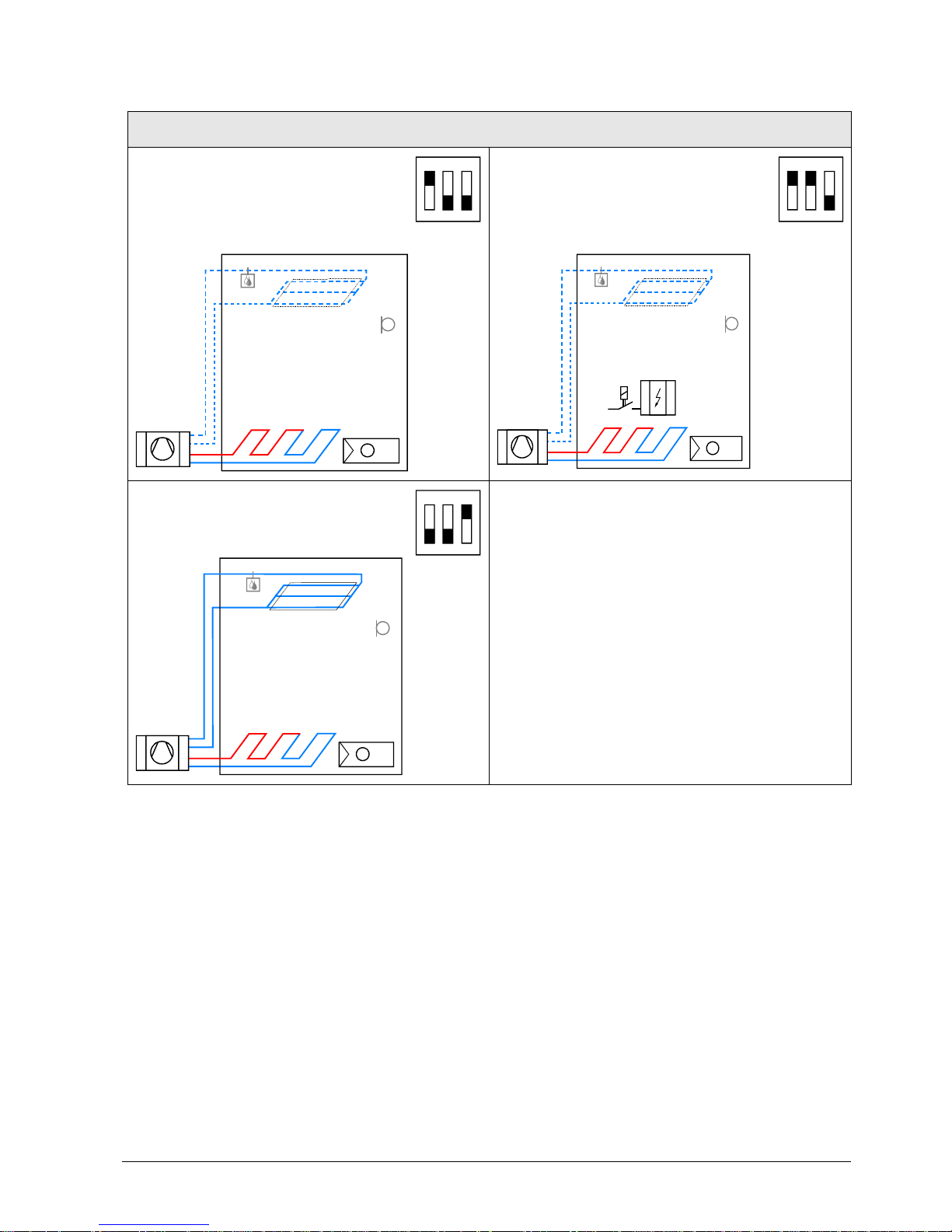

3.4.2 Applications for Universal systems*
Application and output signal, DIP switches, diagram
∂ Chilled / heated ceiling
(heating or cooling)
1ON2 3
∂ Chilled / heated ceiling with electric
heater (heating or cooling) ON/OFF
1ON2 3
31 91 S1 1
N1
T
B1
T
B2
T
D3
Y1
3191S12
N1
T
YE
B1
T
B2
T
D3
Y1
∂ Chilled / heated ceiling
(heating or cooling)
∂
1ON2 3
∂ Chilled ceiling and radiator ON/OFF
(heating and cooling)
1ON2 3
31 91 S1 1
N1
T
B1
T
B2
T
D3
Y1
3191S13
N1
T
B1
T
D3
Y1
YR
Y1 Heating or heating/cooling valve
actuator
B1 Return air temperature sensor or external room
temperature sensor (optional)
YR Radiator valve actuator B2 Changeover sensor (optional)
YE Electric heater M1 1-speed or 3-speed fan
N1 Thermostat D3 Dewpoint sensor
* Universal applications are not applicable for RDF301 and RDF301.50.
Legend
Page 31
31 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.4.3 Applications for heat pump systems
Application and output signal, DIP switches, diagram
∂ 1-stage compressor
(heating or cooling)
1ON2 3
∂ 1-stage compressor with electric
heater (heating or cooling) ON/OFF
1ON2 3
31 81S 31
N1
T
B1
T
D3
3181S32
N1
T
YE
B1
T
D3
∂ 1-stage compressor ON/OFF
(heating and cooling)
1ON2 3
31 81 S3 5
N1
T
B1
T
D3
Legend
N1 Thermostat B1 Return air temperature sensor or external
room temperature sensor (optional)
YE Electric heater D3 Dewpiont sensor
Page 32
32 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.5
Additional

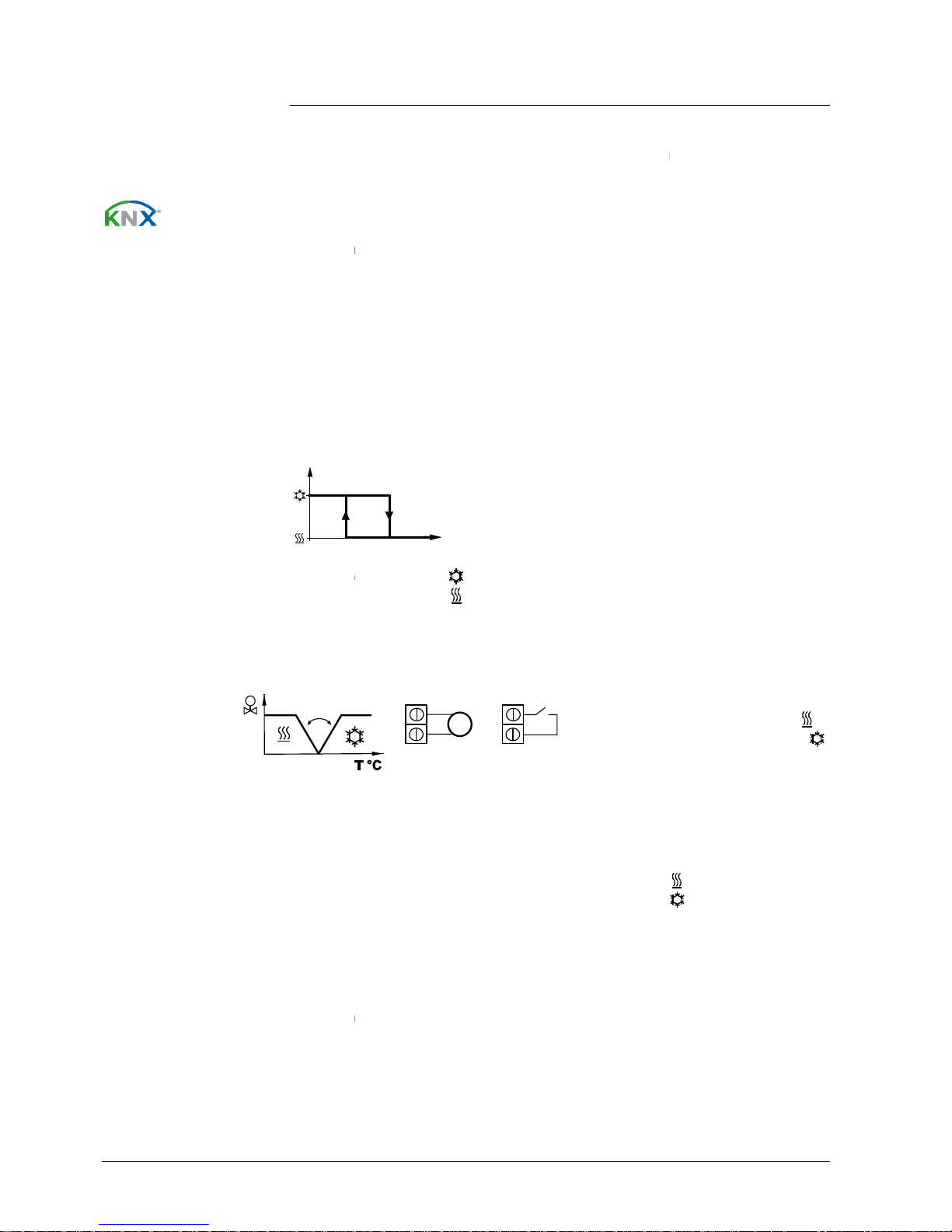

The heating
possible if the
(parameter P01 = 3) and no local input X1, X2 is assigned with this function.
In the absence of the required information (e.g. due to problems with data
communication, power fa
operating mode (heating or cooling).
If a cable temperature sensor (QAH11.1 + ARG86.3
parameter P38 / P40 is =
sensor is used to change over from heating to cooling mode, or vice versa. When
the water temperature is above 28 °C (parameter P37), the thermostat
over to heating mode, and to cooling mode when below 16 °C (parameter P36)
If the water temperature is between the 2 changeover points immediately after
power-
up, the thermostat starts in
The water temperature is acq
updated accordingly.
16
M
M

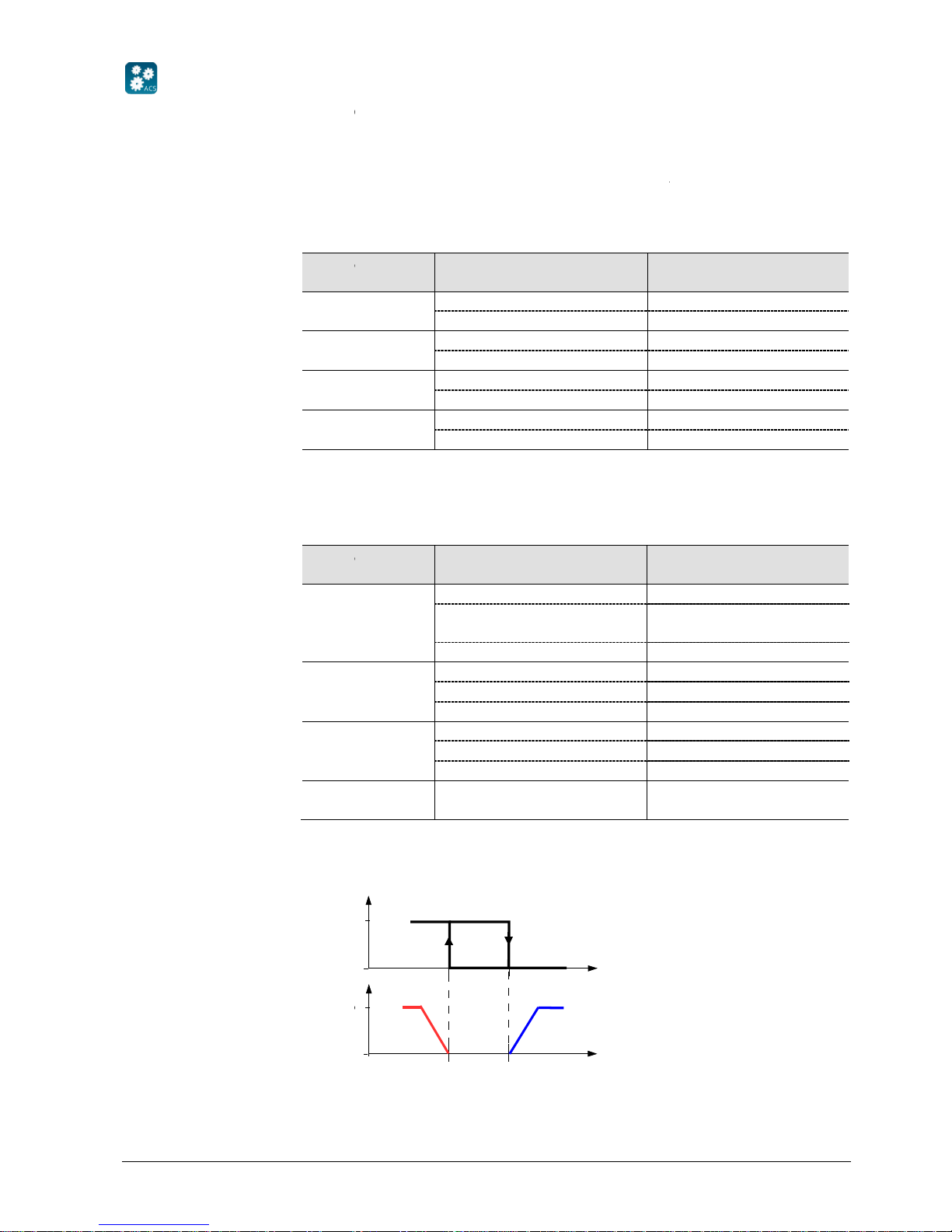

Operating mode
T
w
Water temperature
The QAH11.1 cable temperature sensor for automatic heating / cooling changeover
can be replaced by an external switch for manual, remote changeover:
The sensor or switch can be connected to input terminal X2 or X1, depending on
the commissioning of the inputs (P38, P40).
See also section
By using an external switch as changeover, the Opera
P39 or
P41
The assignment is fix:
If manual heating / cooling changeover is commissioned (P01 = 2), then heating /
cooling mode cannot be changed via bus / chang
remain in the last mode as selected locally via button.
The
thermostat
tem
perature sensor (QAA32), or external return air temperature sensor (QAH11.1)
connected to multifunctional input X1 or X2.
Inputs X1 or X2
See section
Heating / cooling
changeover via bus
Heating/cooling
changeover
Automatic heating /
cooling changeover via
changeover sensor
Changeover switch
Note
Manual heating /
cooling changeover
External / return air
temperature sensor
, RDF600KN/S Basic D
ocumentation
functions
/
cooling changeover information can be received via bus. This is only
control sequence
is set to automatic heating / cooling changeover
ilure, etc.), the thermostat
operates in the last valid room
) is connected to X1 / X2, and
2
, the water temperature acquired by the changeover
the previously active
mode.
uired at 30-
second intervals and the operating state is
T [°C]
w
28
Cooling mode
Heating mode
3076Z03
X2
M
T
X2
M
QAH11.1
Contact open
Contact closed
3.9.
ting action (via parameters
) cannot be modified.
Contact open ⇓
heating mode
Contact closed ⇓ cooling mode
e
over sensor / switch; it will
acquires the room temperature via built-
in sensor, external room
must be commissioned accordingly.
3.9.
CE1P3171en
2017-12-07
changes
.
⇓ heating mode
⇓ cooling mode
Page 33
33 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
The changeover sensor ensures changeover from heating to cooling mode based
on the acquired water temperature. We recommend activating the "Purge" function
(parameter P50) with 2-port valves. This function ensures correct acquisition of the
medium temperature even if the 2-port valve is closed for an extended period of
time. The valve is then opened for 1 to 5 minutes (adjustable) at 2-hour intervals
during off hours.
The "Purge" function (parameter P50) must be disabled if the thermostat is used in
compressor-based applications.
In very warm and humid climates, the fan can be run periodically or continuously at
a low fan speed (e.g. in empty apartments or shops) in Economy mode by setting
parameter P61, in order to avoid damage from moisture due to lack of air
circulation. See also section 3.8 for "Fan kick function".
Limit the ON/OFF switching cycle to protect the HVAC equipment, e.g. compressor
and reduce wear and tear. The minimum output ON-time and OFF-time for 2position control output can be adjusted from 1 to 20 minutes via parameters P48
and P49.
The factory setting is 1 minute.
Readjusting the setpoint or heating / cooling mode changeover immediately results
in calculation of the output state; the outputs may not hold the minimum 1-minute
ON/OFF time.
If parameter P48 or P49 is set to above 1 minute, the minimum ON/OFF time for
the control output is maintained as set, even if the setpoint or changeover mode is
readjusted.
All heating sequences can also be used for floor heating.
You can use fan coil unit heating / cooling sequences for floor heating or cooling by
disabling the fan via parameter P52.
The floor temperature should be limited for 2 reasons: Comfort and protection of
the floor.
The floor temperature sensor, connected to multifunctional input X1 or X2, acquires
the floor temperature. If the temperature exceeds the parameterized limit (parameter P51), the heating valve is fully closed until the floor temperature drops to a level
2 K below the parameterized limit.
In case of an external sensor error, if the room temperature drops below the
protection setpoint (e.g. 8 °C), the heating output of the thermostat remains
disabled, until the external sensor fault is removed.
This function is factory-set to OFF via P51 (disabled).
Input X1 or X2 must be commissioned accordingly (P38 or P40 = 1).
See section 3.9 .
Living rooms:
Up to 26 °C for long-time presence, up to 28 °C for short-time presence.
Bath rooms:
Up to 28 °C for long-time presence, up to 30 °C for short-time presence.
Purge function
Caution
Avoid damage from
moisture
Minimum output
ON-time / OFF-time
Floor heating /
Floor cooling
Floor temperature
limitation function
Recommended values
for P51:
Page 34
34 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
The table
below shows the relation
temperature display:
Parameter
P51
External temp.
sensor
available
Source for display
of room
temperature
OFF No Built-
in sensor
OFF Yes
External temp.
sensor
10...50 ˚C No / Faulty Built-
in sensor
10…50 ˚C Yes Built-
in sensor
Note
: once the fault is cleared, i.e. plug back / change to a working EXT Sensor, the thermostat should start to
work again in 1-2 minutes
The "F
loor
below:
Application Output Y11
Output Y21
2-pipe H/C valve
2-pipe & el
heater
H/C valve
El heater
4-pipe Heating valve
Cooling valve
*) If P13 = ON ⇓ electric
heater in cooling
Either floor temperature sensor or external room temperature sensor can be
Dew
point monitoring is essential to prevent condensation on the chilled ceiling
(cooling with fan disabled
the building.
A dew
point sensor with a
input X1
or
more condensation is detected, and the cooling output is disabled temporarily.
The condensation symbol
"
Condensation in room
The i
nput must be commissioned accordingly
See section
If the "B
utton
or unlocked by
If "
Auto lock
20 sec
onds
Note:
Dew point monitoring
Fault state
Fault information
Button lock
, RDF600KN/S Basic D
ocumentation
below shows the relation
among
parameter, temperature source and
Output control
according to
Floor temp.
limit
function
Built-in sensor Not active
External temp.
sensor
Not active
Heating output
will be turned
OFF
Not active
Built-in sensor +
limit by external
sensor
Active
temperature limitation"
function influences the outputs listed in the table
"Floor temp. limit" function has impact on
Heating
(P01 = 0/2/3)
Cooling
(P01 = 1/2/3)
Heat. and cool.
(P01 = 4)
Y11 N/A
Y21 Y21 *)
Y11 N/A Y11
mode
, parameter P52
). It helps avoid associated damage to
potential-free contact is connec
ted to multifunctional
X2. If there is condensation, the cooling valve is fully closed until no
" "
is displayed during temporary override
" will be sent via bus.
(P38, P40).
3.9.
lock"
function is enabled by parameter P14, the
pressing the operating mode button for 3
sec
" is configured, the thermostat
will automatically lock the
after the last adjustment (RDF301... /
RDF600KN
CE1P3171en
2017-12-07
Error Handling
--
--
Display “ Er3 “ and
heating output will
be turned OFF
--
Remark
Only el heater
used.
and the fault
buttons will be locked
onds.
buttons 10 /
…).
Page 35
35 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.6 Control sequences

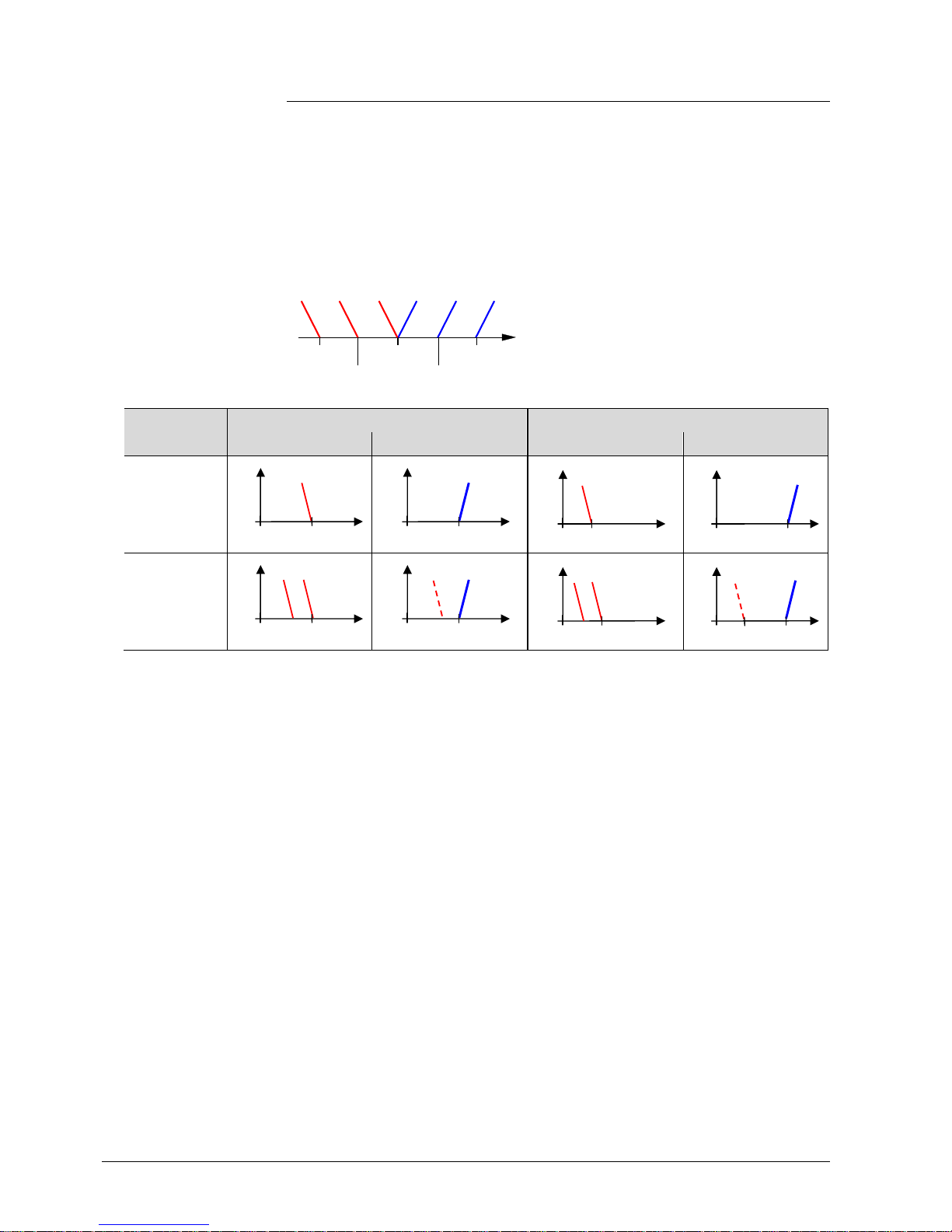

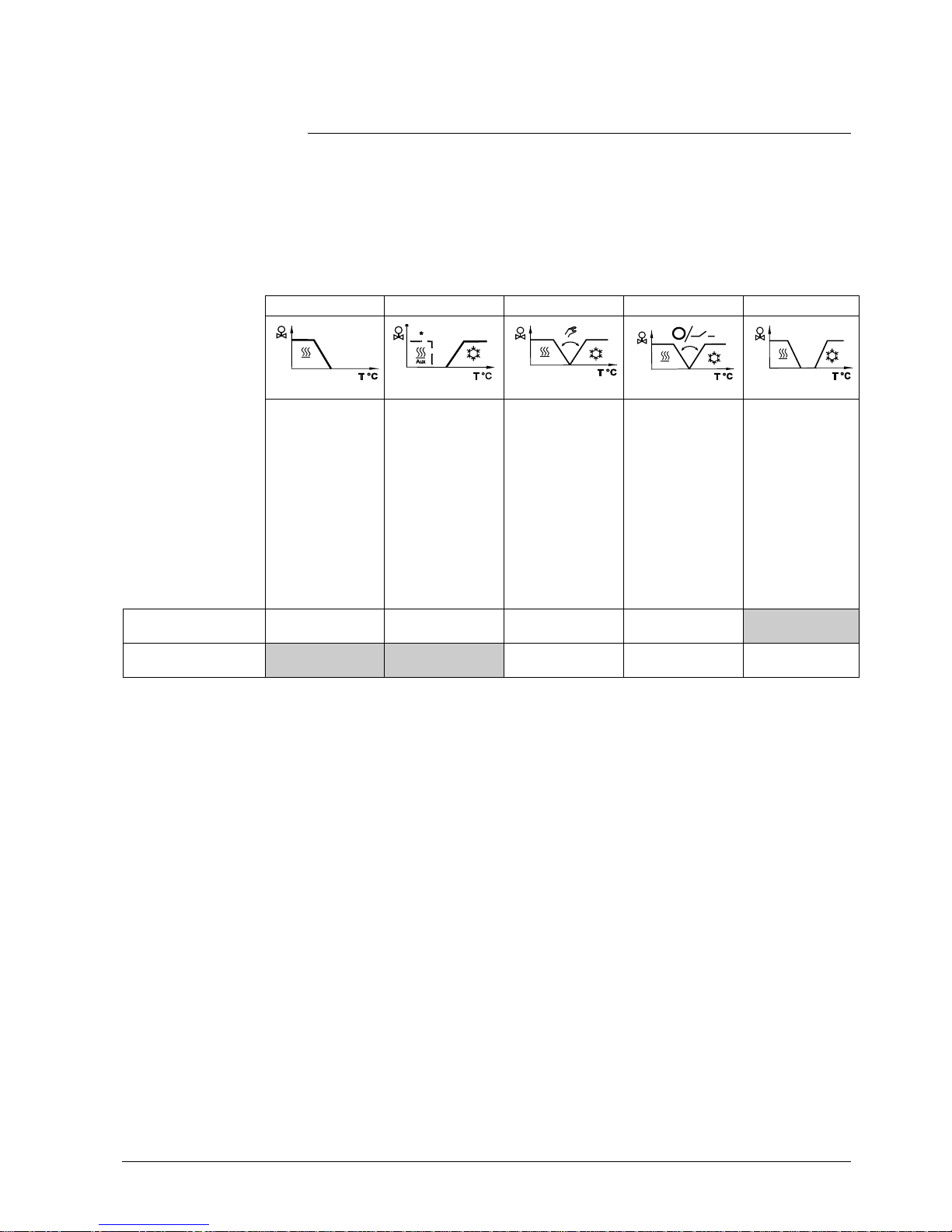

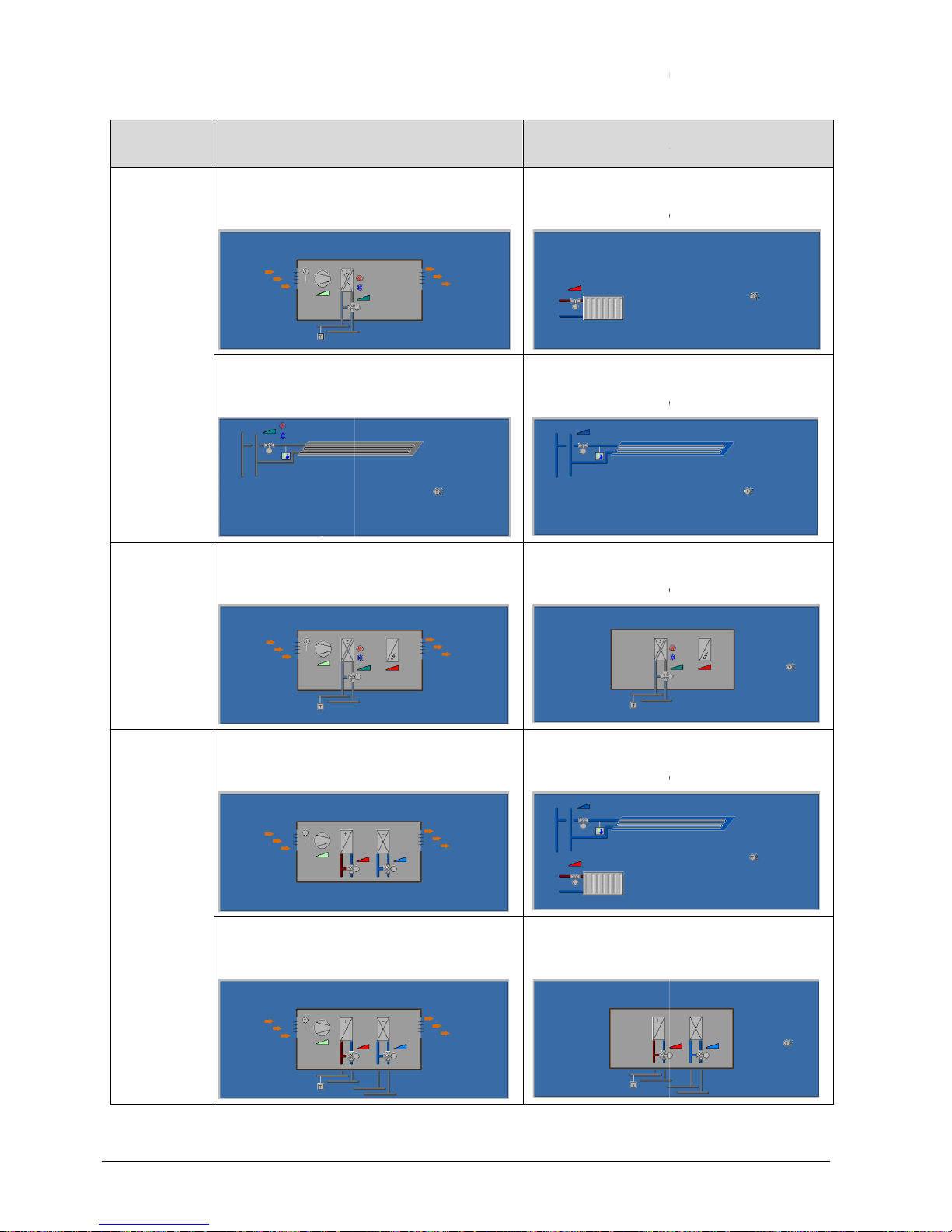

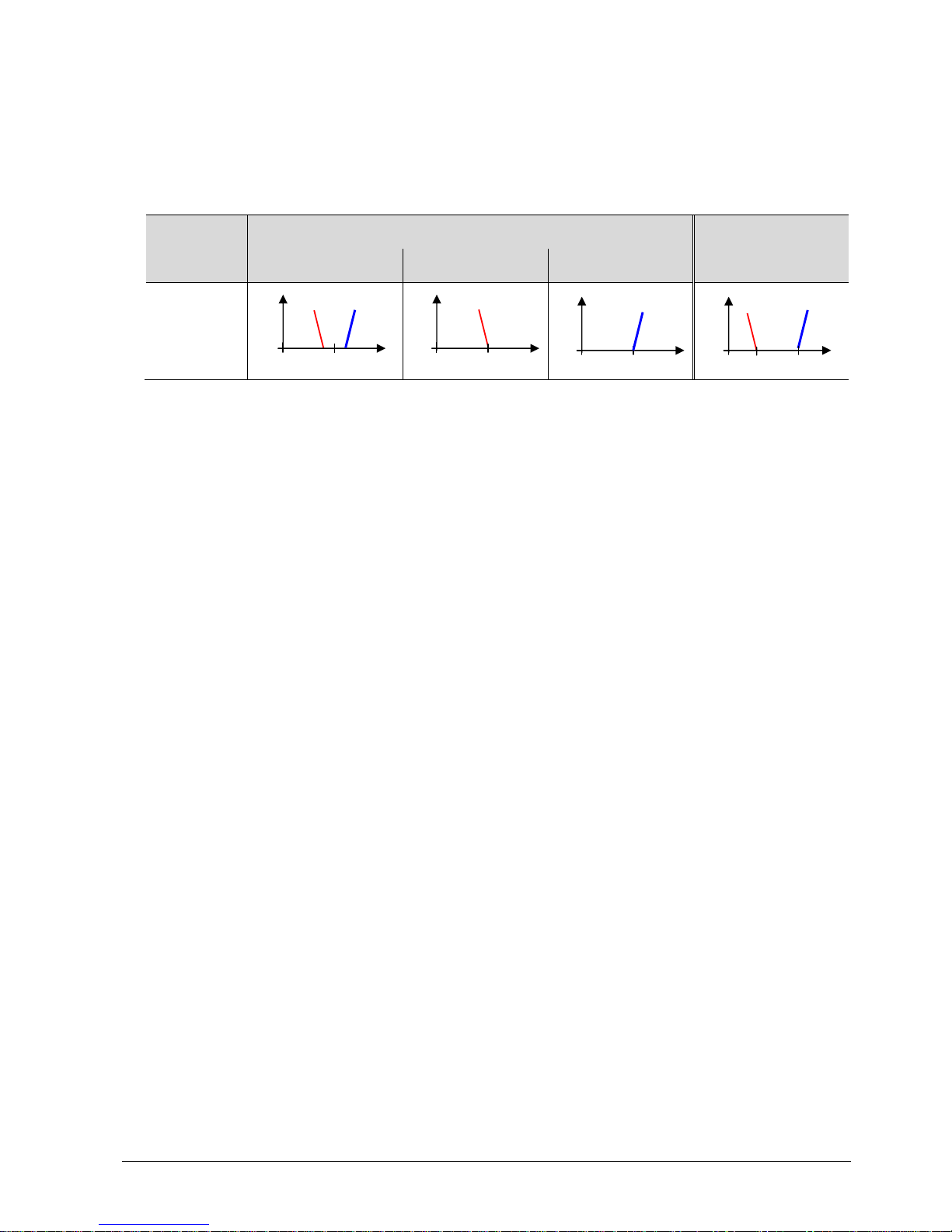

3.6.1 Sequences overview (setting via parameter P01)
The main control sequence (i.e. the water coil sequence of the fan coil unit) can be
set via parameter P01.
The following sequences can be activated in the thermostats (each without or with
auxiliary heating).
The available sequences depend on the application (selected via DIP switch, see
section 3.4).
Parameter
P01 = 0
P01 = 1
P01 = 2
P01 = 3
P01 = 4
Sequence
T
Available
for basic
application
1)
:
Heating Cooling
*) 2-pipe with
el. heater
Manually select
heating or cooling sequence
(using the
button on the
thermostat)
Automatic
heating /
cooling
changeover via
external water
temperature
sensor or
remote switch
Heating and
cooling
sequence, i.e.
4-pipe
2-pipe,
2-pipe & el heater
4-pipe
2)
2)
1)
For chilled / heated ceiling and radiator applications, see section 3.6.6;
for compressor applications, see section 3.6.7.
2)
For manual and automatic changeover with 4-pipe applications,
see section 3.6.5:
– 4-pipe manual changeover (P01 = 2) means activating either cooling or
heating outputs.
– 4-pipe automatic changeover (P01 = 3) means swapping the control outputs
according to a heating / cooling sensor or remote switch
("main and secondary" application), see section 3.6.5.
For the relation between setpoints and sequences, see section 3.6.8.
Note:
Page 36
36 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.6.2
The behavior of the
control
system
With
this signal
Application mode is supported in
The RDF
KNX thermostats
# Application
mode
0 Auto
1 Heat
2 Morning
warm-up
3 Cool
4 Night purge
5 Pre-cool
6 OFF
8 Emergency
heat
9 Fan only
With all other commands
cooling according to demand.
Application mode
, RDF600KN/S Basic D
ocumentation
Application mode
thermostat
can be influenced by a building automation
(BACS) via bus with the command "
Application mode
,
cooling and/or heating activity can be enabled or disabled.
LTE Mode and S-Mode.
support the
following commands:
Description
Thermostat automatically changes between
heating and cooling
Thermostat is only allowed to heat
If "Morning warm-up" is received, the room
should be heated up as fast as possible (if
necessary). The thermostat will only allow
heating
Thermostat is only allowed to provide cooling
Not supported by fan coil applications
If "Pre-cool" is received, the room should be
cooled down as fast as possible (if
necessary). The thermostat will only allow
cooling
Thermostat is not controlling the outputs,
which means all outputs go to off or 0%
The thermostat should heat as much as
possible. The thermostat will only allow
heating
All control outputs are set to 0% and only the
fan is set to high speed.
Function will be terminated by any operation
on the thermostat
,
the thermostat behaves like in Auto mode, i.e. heating or
CE1P3171en
2017-12-07
and
".
Control sequence
enabled
Heating and/or cooling
Heating only
Heating only
Cooling only
N/A (= Auto)
Cooling only
Neither heating nor
cooling
Heating only
Run fan in high speed
Page 37
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
The
state
(
diagnostic value
thermostat
With a 2 pipe application
application mode (see
changeover signal (via local sensor or bus), or fixed according to the selected
control sequence (P01 = heating (0) / cooling (1)).
Application
mod
e (via bus)
Auto (0)
Heat (1), (2), (8)
Cool (3), (5)
Night purge (4),
Fan
only (9)
With a 4
control sequence
cooling demand.
Application
Mode (via bus)
Auto (0)
Heat (1), (2), (8)
Cool (3),
Night purge (4),
Fan only (9)
The value of the output as a function of the room temperature is shown in the
following diagram in case of a heating and cooling system:
0
100%
0 = Cool
1 = Heat
ACS
Heating OR cooling
Heating AND cooling
, RDF600KN/S Basic D
ocumentation
(heating or cooling) of the thermostat
can be monitored
"Control sequence").
The last active mode is dis
is in the
dead zone or temperature control is disabled.
, the control sequence state
is determined by the
section 3.6.3) and by the state
of the heating / cooling
State changeover / continuous heating or cooling
C
ontrol sequence
Heating
Heating
Cooling
Cooling
Heating
Heating
Cooling
Heating
Heating
Cooling
Cooling
Cooling
Heating
Heating
Cooling
Cooling
-pipe, 2-pipe with electric heater, and 2-
pipe with radiator application
state
depends on the application mode and on the heating /
Heating / cooling demand
Control sequence
Heating
Heating
No demand
Heating
on
Cooling
Cooling
Heating
Heating
No demand
Heating
Cooling
Heating
(5)
Heating
Cooling
No demand
Cooling
Cooling
Cooling
No temperature control active
Heating
on
TR
Wheat Wcool
3171D01
Wheat =
c
Wcool =
c
37 / 94
CE1P3171en
2017-12-07

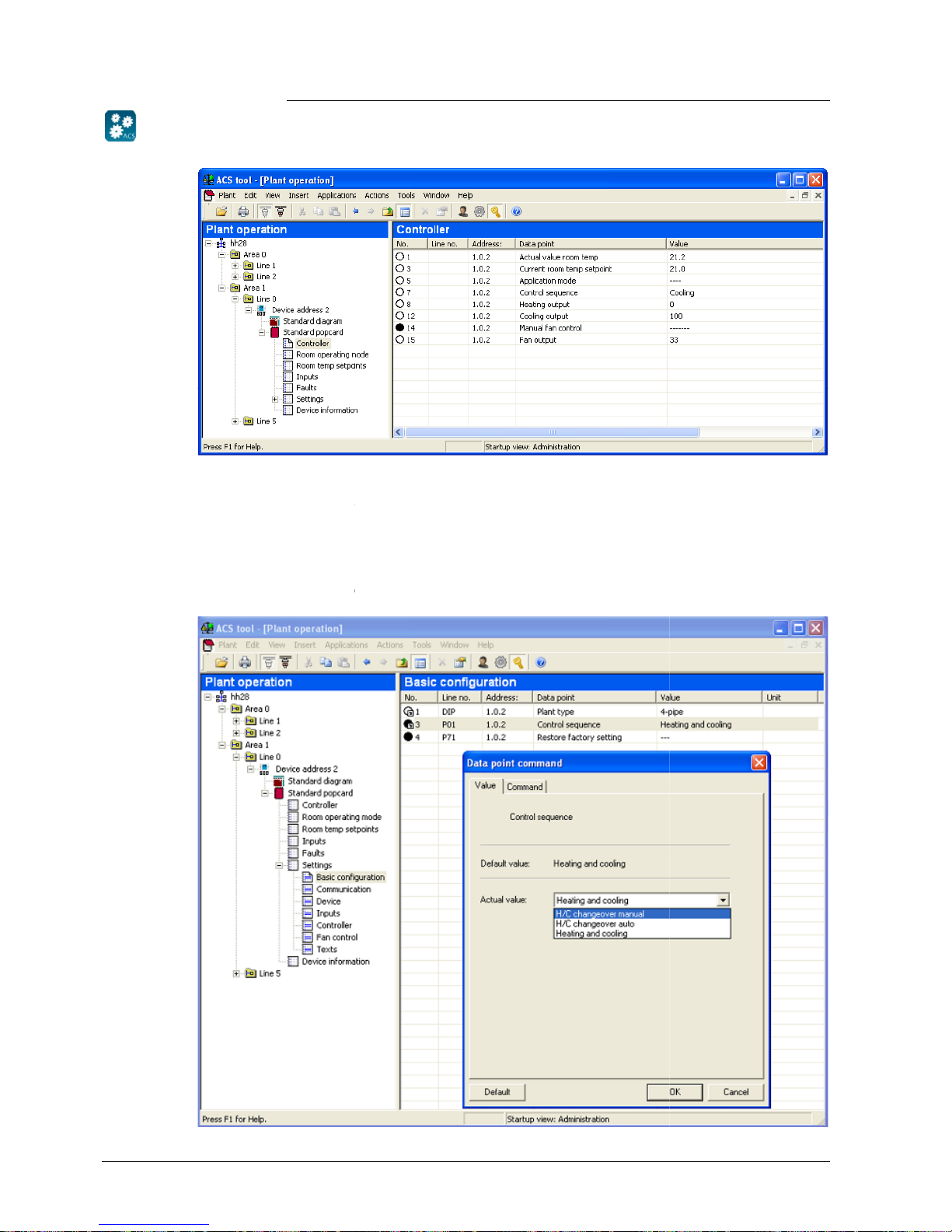

with the ACS tool
played when the
state
, the
state
/ cooling depending
last active sequence
/ cooling depending
last active sequence
urrent heating setpoint
urrent cooling setpoint
Page 38
38 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.6.3 2-pipe fan coil unit
On 2-pipe applications, the thermostat controls a valve in heating / cooling mode
with changeover (automatically or manually), heating only, or cooling only. Cooling
only is factory-set (P01 = 1).
ON/OFF control
The diagrams below show the control sequence for 2-position control.
Heating mode Cooling mode
½ SDH
0
½ SDH
w
Y
307
6
D
0
1
T[°C]
Y1
Y
½ SDC
0
½ SDC
w
3
076
D
0
2
T[°C]
Y1
T[°C] Room temperature SDH Switching differential "Heating" (P30)
w Room temperature setpoint SDC Switching differential "Cooling" (P31)
Y1 Control command "Valve" or "Compressor"
Modulating control: 3-position
The diagrams below show the control sequence for modulating PI control.
Heating mode Cooling mode
XpH
100
0
w
Y [%]
3076D03
T[°C]
Y1
XpC
Y [%]
100
0
w
3
076
D04
T[°C]
Y1
T[°C] Room temperature XpH Proportional band "Heating" (P30)
w Room temperature setpoint XpC Proportional band "Cooling" (P31)
Y1 Control command "Valve"
∂ The diagrams only show the PI thermostat’s proportional part.
∂ For the fan sequence see section 3.8.
Setting the sequence and the control outputs
Refer to section 3.4, section 3.6.1 and section 3.7.
Control sequence
ON/OFF output
Control sequence
modulating output
Notes:
Page 39
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.6.4
On 2-
pipe applications with
heating
auxiliary
Cooling only is factory
In cooling mode, the valve receives an
ture is above the setpoint.
The
electric
drops below
electric
"
Setpoint f
mode"
In heating mode, the valve receives an
ture is below the setpoint. The
source when the heating energy controlled by the valve is insufficient.
The
electric
"
setpoint
The
electric
valve is permanently disabled when manual changeover is selected (P01
Remote enabling
tariff regulations, energy saving
Input X1
section
The
electric
If "
Enable
assigned to a local input X1
An
electric
Heating or cooling with
auxiliary heater
Electric heating, active in
cooling mode
Note:
Electric heating in
heating mode
Electric heating and
manual changeover
Digital input "Enable
electric heater"
Enable electric heater
Note:
Caution
, RDF600KN/S Basic D
ocumentation
2-pipe fan coil unit with electric
heater
electric heater, the
thermostat
/
cooling mode with changeover, heating only, or cooling on
electric heater.
-set (P01 = 1) with enabled
electric
OPEN
command if the acquired tempera
heater receives an ON
command if the acquired room temperature
"setpoint" minus "dead zone" (=
setpoint for
heater is enabled (parameter P13 = ON).
or electric heater" is limited by parameter "
Maximum setpoint
(P10).
OPEN
command if the acquired tempera
electric
heater is used as
heater receives an ON
command, if the temperature is below
" minus "setpoint differential" (= setpoint for
electric
heater is active in heating mode only and the control output for the
/ disabling of the electric
heater is possible via input X1
s, etc.
or X2 must be commissioned accordingly
(parameter
3.9.
heater can also be enabled / disabled
via bus
electric heater"
input is used via bus, then the function
or X2.
heater must always be protected by a safety
39 / 94
CE1P3171en
2017-12-07
controls a valve in
ly plus an
heater (P13).
-
electric heater) while the
for Comfort
-
an additional heating
heater).
= 2).
or X2 for
s P38, P40). See
.
must not be
limit thermostat!
Page 40
40 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
ON/OFF control
The diagrams below show the control sequence for 2-position.
Heating mode
(automatic changeover = heating or heating only)
Cooling mode
(man. / auto. changeover = cooling or cooling only)
Y
½ SDH
1
0
½ SDH
w
307
6
D
0
6
T[°C]
Y1
½ SDH ½ SDH
YE
w
D
Y
½ SDC
0
½ SDC
w
307
6D0
5
T[°C]
Y1
½ SDH ½ SDH
YE
x
dz
Heating mode with manual changeover (P01 = 2) (manual changeover = heating)
½ SDH
0
½ SDH
w
Y
307
6D0
7
T[°C]
YE
T[°C] Room temperature
W Room temperature setpoint
Y1 Control command "Valve" or
"Compressor"
YE Control command "Electric heater"
SDH Switching differential "Heating" (P30)
SDC Switching differential "Cooling" (P31)
Xdz Dead zone (P33)
wD Setpoint differential (P34)
∂ The diagrams only show the PI thermostat’s proportional part.
∂ For the fan sequence see section 3.8.
∂ For better temperature control performance with 2-pos electric heater, we
suggest to set the switching differential heating (P30) to 1K.
Setting the sequence and the control outputs
Refer to section 3.4, section3.6.1, and section 3.7.
Control sequence
ON/OFF output
Note:
Page 41
41 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.6.5 4-pipe fan coil unit
On 4-pipe applications, the thermostat controls 2 valves in heating and cooling
mode, heating / cooling mode by manual selection, or heating and cooling mode
with changeover. Heating and cooling mode (P01 = 4) is factory-set.
The heating or cooling output can be released via operating mode button if
parameter P01 is set to Manual (P01 = 2).

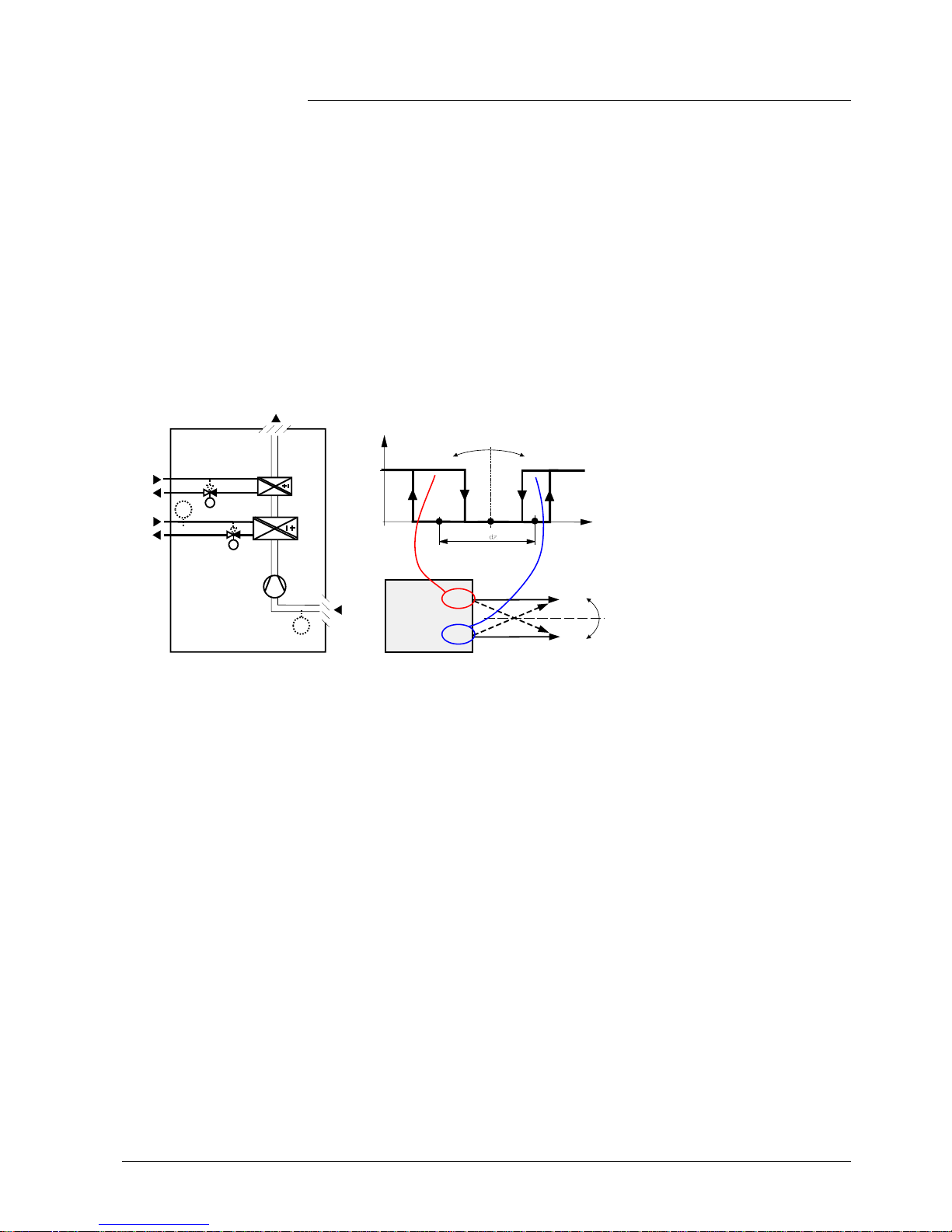

If parameter P01 is set to changeover (P01 = 3), the heating and cooling output is
swapped according to the input state of the changeover sensor / switch / bus input
(see automatic heating and cooling changeover sensor in section 3.5). This mode
is used for the so-called "Main and secondary" application. This is a 4-pipe fan coil
unit system with different capacities of the 2 coils. The water circuit is changed to
optimize the energy exchange depending on the season (summer / winter):
– Winter: Large coil (V1) for heating, small coil (V2) for cooling.
– Summer: Large coil (V1) for cooling, small coil (V2) for heating.
T
B1
V2
V1
M1
318 1D1 12
T
B2
Y
0
w
w
3
1
8
1
D
117
T[°C]
YC
YH
Changeover
YH
YC
V1
V2
Changeover
Note:
This example shows
ON/OFF control;
for modulating control, connect the
appropriate output
terminals
∂ The parameter for the heating and cooling changeover sensor (B2 in the above
diagram) must be set to 2 (X1 or X2, P38 or P40).
∂ The thermostat assumes winter operation when B2 > P37 (factory setting 28
°C).
∂ The thermostat assumes summer operation when B2 < P36
(factory setting 16 °C).
Heating and cooling
4-pipe application with
manual changeover
"Main and secondary"
application (4-pipe with
changeover)
Note:
Page 42
42 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
The diagrams below show the control sequence for 2-position control.
Heating mode with manual selection
(P01 = 2)
Cooling mode with manual selection
(P01 = 2)
Y
0
w
3076D01
T[°C]
½ SDH ½ SDH
Y1
Y
½ SDC
0
½ SDC
w
307
6D1
3
T[°C]
Y2
Heating and cooling mode (P01 = 04)
Y
½ SDC
0
½ SDC
w
3076D11
T[°C]
Y2
½ SDH ½ SDH
Y1
½ xdz½ x
dz
T[°C] Room temperature
w Room temperature setpoint
Y1 Control command "Valve" or "Comp." (H)
Y2 Control command "Valve" or "Comp." (C)
SDH Switching differential "Heating" (P30)
SDC Switching differential "Cooling" (P31)
Xdz Dead zone (P33)
∂ The diagrams only show the PI thermostat’s proportional part.
∂ For the fan sequence see section 3.8.
Setting the sequence and the control outputs
Refer to section 3.4, section 3.6.1, and section 3.7.
3.6.6 Chilled / heated ceiling and radiator applications*
For chilled / heated ceiling and radiator,
∂ set the corresponding basic application
∂ disable the fan (P52)
The following applications are available:
Application for
chilled / heated ceiling, radiator
Set basic application
See
section
Sequence
s
Chilled / heated ceiling with
changeover
2-pipe 3.6.3
H (\ )
C ( / )
Chilled / heated ceiling & el heater
(cooling only: disable el heater
via P13)
2-pipe and electric heater 3.6.4
El H + H ( 6
\
\
)
El H + C ( 6 \ / )
C ( / )
Chilled ceiling and radiator
4-pipe 3.6.5
H + C (
\
/
)
* Not applicable for RDF301 and RDF301.50.
ON/OFF control
Note:
Page 43
43 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.6.7 Compressor applications
For compressor applications,
∂ set the corresponding basic application
∂ disable the fan (P52) or set the fan speed (P53)
The following applications are available:
Application for
compressor
Set basic application
See
section
Sequences
1-stage compressor
for heating or cooling
2-pipe 3.6.3
H (\ )
C ( / )
1-stage compressor and electric
heater
(for cooling only: disable
electric heater via P13)
2-pipe and electric heater 3.6.4
El H + H ( 6
\
\
)
El H + C ( 6 \ / )
C ( / )
1-stage compressor
for heating and cooling
4-pipe 3.6.5
H + C (
\
/
)
∂ Minimum ON/OFF time: P48 / P49
∂ Fan operation:P52 (0 = disabled, 1 = enabled)
∂ Fan speed: P53 (1 = 1-speed, 2 = 3-speed)
Note:
Page 44
44 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.6.8 Setpoints and sequences
On changeover applications, the Comfort setpoints for heating and cooling
sequence are the same (w).
On 2-pipe applications with electric heater, the Comfort setpoint is either at the first
heating sequence (in heating mode) or at the cooling sequence (in cooling mode).
The setpoints for Economy and Protection mode are below the Comfort setpoints
(heating) and above the Comfort setpoints (cooling).
They can be set via parameters P11, P12 (Economy mode) and P65, P66
(Protection mode).
w
3
181D127
T[°C]
w
HeatProt
w
CoolProt
w
HeatEco
w
CoolEco
Comfort mode
Economy / Protection mode
Application
Heating Cooling
Heating Cooling
2-pipe
2-pipe and
electric
heater
1) If P13 = ON
2) In case of manual changeover (P01 = 2), the first heating sequence is disabled to prevent heating
(electric heater) and cooling (coil) at the same time
W = setpoint in Comfort mode
W
HeatEco/Prot
= setpoint heating in Economy or Protection mode
W
CoolEco/Prot
= setpoint cooling in Economy or Protection mode
YR = radiator sequence
YE = electric heater sequence
2-pipe applications
Y
T
W
H
eatEco/P
rot
W
CoolEco/P
rot
YE
1)
Y
T
W
H
eatEco/P
rot
YE
2)
Y
T
W
YE
1)
Y
T
W
YE
2)
Y
T
W
CoolEco/P
rot
Y
T
W
H
eatEco/P
rot
Y
T
W
Y
T
W
Page 45
45 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
On 4-pipe applications, the Comfort setpoint (w) is in the middle of the dead zone,
between the heating and cooling sequence.
The dead zone can be adjusted via parameter P33.
If manual changeover is selected, then either the cooling sequence or the heating
sequence is released. In this case, the Comfort setpoint is at the selected heating
or cooling sequence.
Comfort mode
Economy
/
Protection mode
Application
Heating and cooling Heating only
1)
Cooling only
1)
Heating and/or
cooling
4-pipe
1) Manual changeover, P01 = 2
W = setpoint in Comfort mode
W
HeatEco/Prot
= heating setpoint for Economy or Protection mode
W
CoolEco/Prot
= cooling setpoint for Economy or Protection mode
YE = electric heater sequence
4-pipe applications
Y
T
W
H
eatEco/P
rotWCoolEco/P
rot
Y
T
W
Y
T
W
Y
T
W
Page 46
46 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.7 Control outputs
3.7.1 Overview
Different control output signals are available. They need to be defined during
commissioning (see below).
Control output
Product no.
2-position 2-position
PWM
3-position DC 0…10 V
RDF301,
RDF301.50,
RDF301.50H,
RDF600KN,
RDF600KN/S
Y11, Y21
(2 x SPST)
---
Y11, Y21 *)
(1 x / )
---
*) Only on 2-pipe application
In the ACS tool, Y11 and Y21 are called Y1 and Y2.
The valve or compressor receives the OPEN/ON command via control output Y11
or Y21 when…
1. the acquired room temperature is below the setpoint (heating mode) or above
the setpoint (cooling mode).
2. the control outputs have been inactive for more than the "Minimum output
OFF-time" (factory setting 1 minute, adjustable via parameter P48).
OFF command when…
1. the acquired room temperature is above the setpoint (heating mode) or below
the setpoint (cooling mode).
2. the valve has been active for more than the "Minimum output on-time" (factory
setting 1 minute, adjustable via parameter P49).
The electric heater receives an ON command via the auxiliary heating control
output (Y…, see Mounting Instructions) when…
1. the acquired room temperature is below the "Setpoint for electric heater"
2. the electric heater has been switched off for at least 1 minute.
The OFF command for the electric heater is output when…
1. the acquired room temperature is above the setpoint (electric heater)
2. the electric heater has been switched on for at least 1 minute.
A safety limit thermostat (to prevent overtemperatures) must be provided externally.
When an electric heater is connected directly to the ON/OFF Y21, the current
causes the relay contact to heat up. This falsifies the reading of the internal
temperature sensor. The thermostat compensates the temperature if the rated
current/power of the electric heating is entered in the parameters.
P45 (load current el. Heater): Factory setting 0kW, setting range: 0.0…1.2 kW.
Output Y11 provides the OPEN command, and Y21 the CLOSE command to the
3-position actuator.
The factory setting for the actuator's running time is 150 seconds. It can be
adjusted via parameter P44.
The parameter is only visible if 3-position is selected via DIP switches.
Overview of control
outputs
Note:
ON/OFF control signal
(2-position)
Electric heater control
signal
(2-position)
Caution
Adaptive temperature
compensation for
electric heater
(RDF600KN)
3-position
control signal
Page 47
47 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
1. When the thermostat is powered up, a closing command for the actuator
running time + 150% is provided to ensure that the actuator fully closes and
synchronizes to the control algorithm.
2. When the thermostat calculates the positions "fully close" or "fully open", the
actuator's running time is extended + 150% to ensure the right actuator
position is synchronized to the control algorithm.
3. After the actuator reaches the position calculated by the thermostat, a waiting
time of 30 seconds is applied to stabilize the outputs.
3.7.2 Control outputs configuration (setting via DIP
switches or tool)
The type of the control outputs on 2-pipe applications (2- or 3-position) is set via
DIP switches (see section 3.4).
The DIP switches have no impact if the application is commissioned via tool.
Control outputs need to be set via ACS in this case.
In the tool, the parameter is called "Output Y1 / Y2", not Y11 / Y2.
Synchronization
Note:
Page 48
48 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.8
Fan control
The fan operates in automatic mode or at the selected speed with manual mode.
In automatic mode, the fan speed depends on the setpoint and the current room
temperature. When t
closes and the fan switches off or stays at fan
parameters
kick).
Factory setting for "Fan in
∂
RDF600KN
∂
RDF301…:
1)
P15 is not implemented into RDF600KN SW
2)
On RDF301 and RDF301.50, it is recommended that the fan is running in
deadzone, i.e. P60=0,
sensor.
The fan speed and mode can be changed
For this purpose
The fan speed and mode can be monitored via bus.
The individual switching points for
control parameters P55
switch
on point. The
control.
YH[%]
100
The diagram only shows the PI
O
n applications with 2
1)
The switching point for low fan speed (Q1) is synchronized to the heating
cooling output. Parameter
2)
The maxim
switching differential (SDH/SDC) via a look
Q
Q3
Q2
Y
1
0
Note:
Fan command value
Enable fan command
value
Fan operation
Fan stage 1-2-3
Fan output
3-speed fan control
with modulating
heating / cooling
control
Note:
3-speed fan control
with ON/OFF heating /
cooling control
, RDF600KN/S Basic D
ocumentation
he room temperature reaches the setpoint, the control valve
speed 1 according to the setting of
P151) (fan stage in dead zone Comfort on
RDF600KN) and P60 (fan
the dead zone":
:
Fan speed OFF: (P15 = 0, P60 = OFF)
Fan speed 1 (P60 = 0)
2)
version < V1.
or using a return air-
or external temperature
via bus.
,
the fan command value needs to be enabled.
ON
of each fan stage can be adjusted via
…P57. The fan speed switch
off point is
diagrams below show
fan speed control for
w
XpH
YC[%]
Q
Q3
Q2
Q1
0
0
XpC
100
x
dz
w
Room temperature setpoint
Q
Fan speed
Y
H
Control demand
Y
C
Control demand
XpH
Proportional band
XpC
Proportional band
X
dz
Dead zone
thermostat
’s proportional part.
-position control:
"
Switching point fan speed low
um switching range of the fan (XpH
Fan
/ X
pC
-up table.
Cool
T[癈]
w
x
dz
SDC
SDH
T[°C]
Room temperature
w
Room temperature setpoint
Q
Fan speed
Y
Control command
SDH
Switching differential
SDC
Switching differential
X
dz
Dead zone
XpH
Fan
Switching range for fan
"Heating"
CE1P3171en
2017-12-07
8.
20% below the
modulating PI
"Heating"
"Cooling"
"Heating"
"Cooling"
/
" P57 is not relevant.
Fan
) is defined by the
"Valve"
"Heating"
"Cooling"
Page 49
49 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
XpC
Fan
Switching range for fan
"Cooling"
SDH/SDC [K] 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 >4.5
XpH
Fan
/XpC
Fan
[K] 2 3 4 5 6 7 8 9 10
The thermostat can control a 1- or 3-speed fan (selected via control parameter
P53). A 1-speed fan is connected to terminal Q1, a 3-speed fan to terminals Q1,
Q2 and Q3.
Fan operation can be limited to be active with cooling only or heating only, or even
be totally disabled via control parameter "Fan operation" P52.
When fan operation is disabled, the fan symbol on the display disappears and
pressing the fan button has no impact.
This function allows you to use the thermostat on universal applications such as
chilled / heated ceilings and radiator, etc. (see section 3.6.6).
In automatic mode, a dwelling time of 2 minutes (factory setting) is active. The fan
maintains each speed for at least 2 minutes before it changes to the next speed.
This minimum on-time can be adjusted from 1…6 minutes via parameter P59.

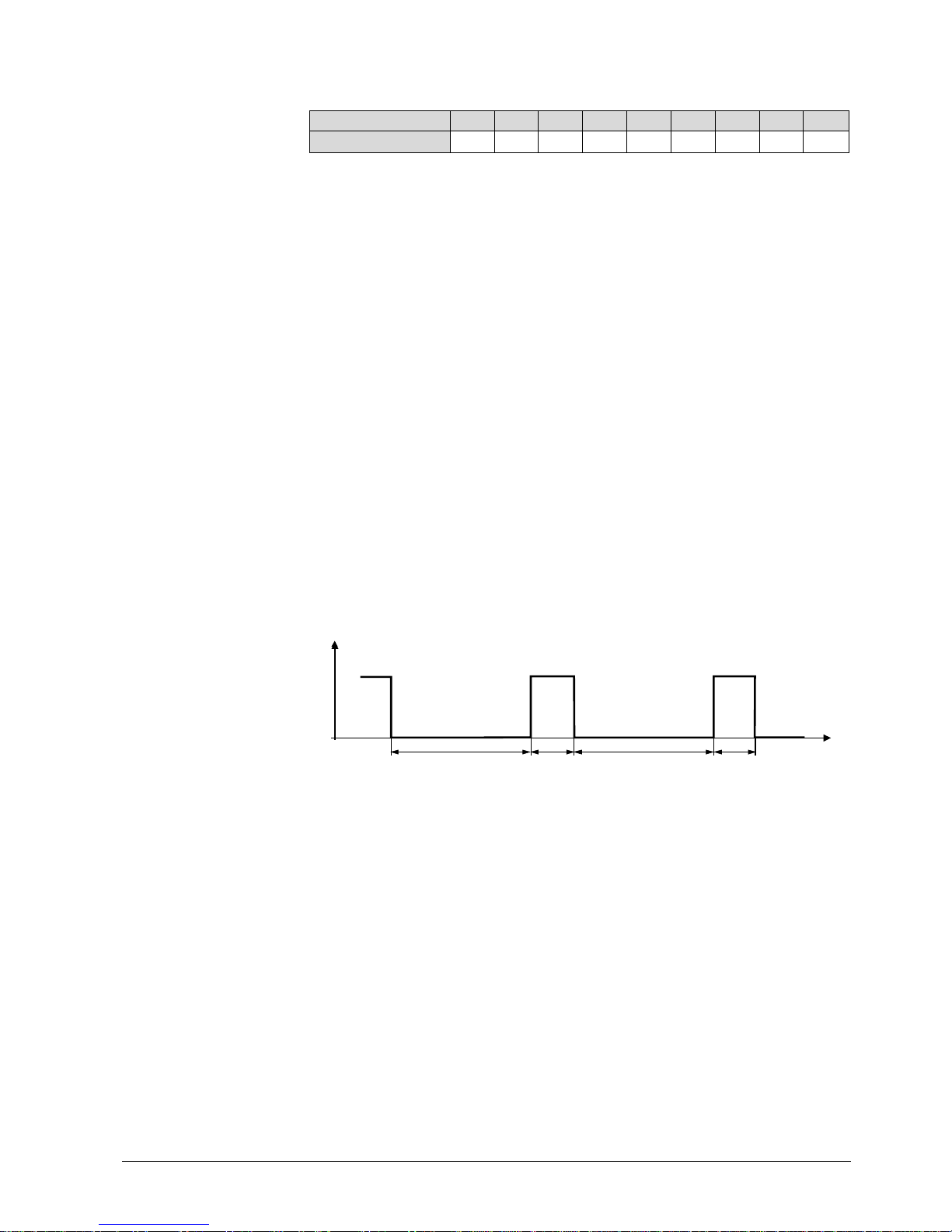

In automatic fan mode and with the room temperature in the dead zone, the control
valve is normally closed and the fan disabled. With the "Fan kick" function, the fan
can be released from time to time at low speed for minimum on-time (see above)
even if the valve is closed.
This function can be used to avoid damage from moisture due to a lack of air circulation, or to allow a return air temperature sensor to acquire the correct room
temperature.
Y
t [h:mm]
Q1
0
10385D22en
Periodic fan kick Minimum
on-time
Periodic fan kick Minimum
on-time
The periodic fan kick time can be selected individually for Comfort mode via
parameter P60, and for Economy mode via parameter P61.
Note: Fan kick value "0" means the fan runs continuously in the dead zone.
Fan kick value "OFF" means the fan does not run in the dead zone.
Via parameter P15 in "Service Level", the fan speed in the dead zone (in Comfort
mode) can be set according to customer preference.
The following options are available:
∂ Fan does not run in the dead zone (P15=0),
∂ Fan runs at low speed in Heating and Cooling mode (P15=1)
∂ Fan runs at low speed in Cooling mode only (P15=2).
The functions "Fan in dead zone" (P15) and "Fan kick" (P60) are combined as
follows:
∂ P60 = 0 Fan runs continuously in the dead zone, P15 has no influence
Look-up table with
ON/OFF control
1-speed / 3-speed fan
Fan operation as per
heating / cooling mode,
or disabled
Fan minimum
on- time
Fan operation in dead
zone (fan kick)
Fan operation in dead
zone P15, Comfort
mode (RDF600KN…)
Page 50
50 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
∂
P60 = OFF
P15 is not implemented into RDF600KN SW

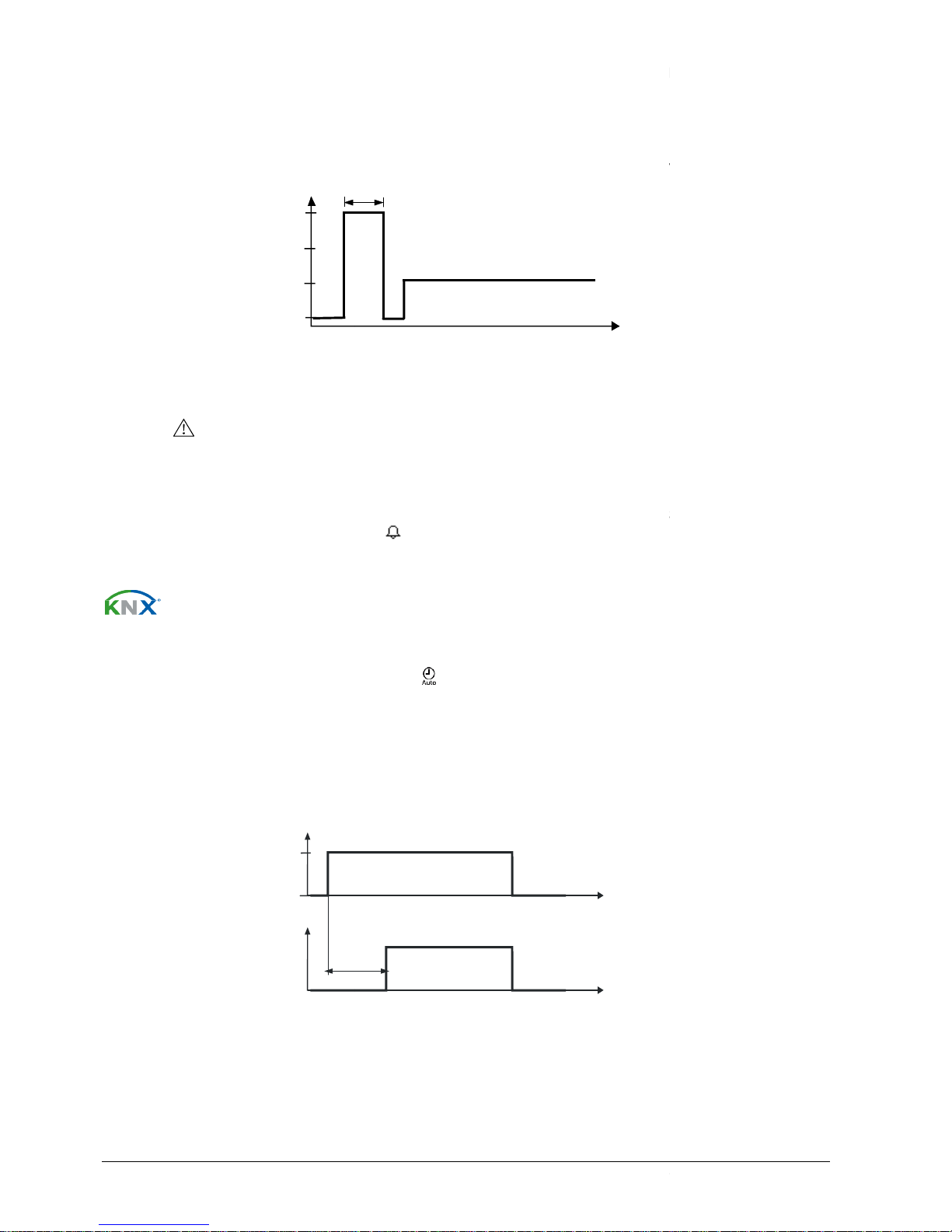

When the fan starts from standstill, it starts at speed 3 for 1 second to
fan motor start by overcoming inertia and friction (selected via parameter P58).
Q
Q3
Q2
Q1
0
1 sec
When the
(parameter P54) to avoid overtemperature of the
thermal cutout from responding.
In case of fan failure, the
overtemperature.
safety device (thermal cutout).
The "C
lean fan filter reminder
message
"
threshold is reached. This does not impact
continues to run normally.
The "C
lean filter reminder
Protection
In Auto Timer mode
changed to
default mode after each switchover from Comfort to
versa.
To let the heating / cooling coil reach its temperature, the fan start can be delayed
by a time period set via parameter P67.
Y
0
P 67
1
Q
This function (via parameter P67) is not implemented into RDF600KN SW
< V1.8.
Note:
Fan start
Fan overrun for electric
heater
Fan failure
Clean fan filter
reminder
Fault information
Fan in Auto Timer
mode
Fan start delay
(RDF600KN…)
Note:
, RDF600KN/S Basic D
ocumentation
Fan operation in dead zone according to P15
version < V1.
T
3181D22
electric
heater is switched off, the fan overruns for 60 seconds
electric
heater or prevent
thermostat cannot protect the
electric
For this reason, the electric
heater must feature a separate
"
function counts the fan operating hours and displays
FIL "
to remind the user to clean the fan filter as soon as the
the
thermostat's
The function is set via
parameter P62 (default = OFF
" is reset when the
operating mode is manually set to
and back.
, the
default fan mode is automatic. The fan mode can be
Manual by pressing
the FAN button. The fan returns to the automatic
Economy
T
3181D23
T
CE1P3171en
2017-12-07
.
8.
ensure safe
the
heater against
operation, which
(0)).
mode, and vice
version
Page 51
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.9
The
thermostat
An
NTC
input
) can be connected to the input terminals. The functionality of
be configured via parameters P38
The current temperature or
monitoring purpose
The parameters can be set to the following values:
#
Function of
input
0
Not used
1
External / return
air temperature
Heating/
cooling
changeover
2
Heating /
cooling
changeover
Window
state
(RDF600..)
3 W
indow
(
RDF600KN
1)
Window
state
(RDF301..)
3
Operating mode
switchover
(RDF301..)
4
Dew point
monitor
, RDF600KN/S Basic D
ocumentation
Multifunctional input, d
igital input
has 2 multifunctional inputs X1 and X2.
type sensor like the QAH11.1 (AI, analog input
) or a switch (DI
+ P39 for X1 and
P40
state of the inputs X1/X2 is
available on
s.
Description
No function.
Sensor input for external room temperature sensor or
return air temperature sensor to acquire the current
room temperature, or floor heating temperature
sensor to limit the heating output.
Note: The room temperatu
re is acquired by the built
sensor if the floor temperature limitation function is
enabled via parameter P51.
Sensor input for "Automatic heating /
changeover" function.
A switch can also be connected rather than a sensor
Important: Switch closed means always cooling, (this
cannot be changed), see section 3.5
.
Heating / cooling changeover is also possible via bus.
In
this case, the function must not be assigned to any
local input X1, X2. See also section
3.5
Diagnostic value 00
is displayed for closed contact /
100 for open contact, if a switch is connected.
contact…)Window contact input
to switch the operating mode to
Protection.
If the window contact is open
, user operations are
ineffective and "OFF" is displayed.
Window contact is also possible via bus. In this case,
the function must not be assigned to any local input
X1, X2. See also section 3.2.1.
Digital input to switch over the operating mode to
Economy.
If the operating mode switchover contact is active,
user operations are ineffective and "
OFF
displayed.
Operating mode switchover is also possible via bus.
In this case, the function must not be assigned to any
local input X1, X2. See also section
3.2.1
Digital input for a dew point sensor to detect
condensation. Cooling is stopped if
condensation
occurs.
51 / 94
CE1P3171en
2017-12-07
, digital
the inputs can
+ P41 for X2.
bus for
Type
X1/X2
--
-in
AI
cooling
.
AI /
DI
DI
" is
.
DI
DI
Page 52
52 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
#
Function of
input
Enable electric heater
5
Enable electric
heater
Fault
information
6 Fault
X1, X2
(Digital)
7 Monitor
input
(Digital)
X1, X2
(Temp.)
8
Monitor input
(Temperature)
Presence
detector
(RDF600…)
10
Presence
detector
(
RDF600KN
1)
∂
Operational action can be changed between normally open (NO) and normally
closed (NC) via parameter P39
∂
Each input X1
Exception:
∂ X1
is factory
"
External sensor
RDF600KN SW
switchover contact as window contact or presence detector
For more detailed information, refer to section
Note
1)
:
, RDF600KN/S Basic D
ocumentation
Description
Digital input to enable / disable the electric heater via
remote control.
Enable electric heater is also possible via bus. In this
case, the function must not be assigned to any local
input X1, X2. See also section 3.6.
Digital input to signal an external fault (example: dirty
air filter).
If the input is active, "ALx"
is displayed and a fault is
sent on the bus. See also section
3.11.8
(Alarm x, with x = 1 for X1, x = 2 for X2).
Note
: Fault displays have no impact on the
thermostat's operation. They merely represent a
visual signal.
Digital input to monitor the state of an external switch
via bus, e.g. to send a local alarm via KNX to the
central controller.
Sensor input to monitor the state of an external
sensor (e.g.
QAH11.1) via bus, e.g. to send a local
temperature (0...49°C) via KNX to the central
controller.
…)
Standard presence:
Presence detector input to switch
the
operating mode to Comfort in case of occupancy
and back to Economy when
the room is
Hotel presence:
Presence detector input to
the operating mode from Economy
during un
periods to the previous mode
(operating mode
selected by either hotel guests
via local HMI
via bus) for occupancy and return
to Economy when
the room is unoccupied.
Presence detector
is also possible via bus. In this
case, the function must not be assigned to any local
input X1, X2. See also section 3.2.1.
, P41.
or
X2 must be configured with a different function (1…5
1 or 2 inputs can be configured as fault (6)
or monitor
-set to "Operating mode switchover" / "
Window contact
" (1).
version < V1.8
works like RDF301… with the operating mode
3.4.
CE1P3171en
2017-12-07
Type
X1/X2
DI
.
DI
DI
AI
unoccupied.
change
occupied
or sent
DI
, 10).
input (7, 8).
" (3), X2 to
.
Page 53
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.10
When the room temperature is outside the measuring range, i.e. above 49
below 0 °C, the
°C". Af
ter the temperature returns to within the measuring range
continue to work.
For heating application, t
drops below the
The cooling output in cooling applications will be turned off when the temperature
exceeds the limit value,
No output is activated
When the built
shows the fault message “Er1” on the display. The
replace
When the internal
thermostat shows the fault message “Er2” on the display.
in the memory, a master re
defective
When the external sensor is
and is not working properly, e.g. faulty or sensor is missing, the thermostat show
the fault message “Er
The heating output
the floor
shown on
Note:
1) Er1 has a higher display priority than Er2.
2) Once the
working
For fault
In the event of a power failure, all working conditions (operating mode, setpoint, fan
stage, all control parameter settings) are stored without time limitation.
When power returns, the thermostat reloads this data and continues to work in the
same conditions as before.
Temperature out
of range
Fault “Er1” on display
Power failure
Fault “Er2” on display
Fault “Er3” on display
, RDF600KN/S Basic D
ocumentation
Handling faults
temperature value will blink at the limit
values
he heating output will be turned on when the temperature
limit value, provided
the Protection mode setpoint is not set to O
provided
the Protection mode setpoint is not set to Off.
if protection mode setpoint is set to
-
in sensor fails and no external sensor is connected, the thermostat
thermostat needs to be
d.
non-volatile memory
has error, e.g. unable to read or write
set can fix this error. Otherwise,
and need to be replaced.
selected for floor temperature limitation
3” on the display.
turns
off immediately to ensure safety
. The room temperature measured by in
ternal senso
the LCD display.
external
sensor fault is removed, the thermostat
mode.
status messages on the bus, see section
3.11.8
53 / 94
CE1P3171en
2017-12-07
°C or
, i.e. "0 °C" or "49
, the thermostat will
ff.
Off.
, the
If it is only data corruption
the thermostat is
(P51 ≠ OFF)
s
and avoid overheating of
r continues to be
returns to normal
.
Page 54
54 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.11 KNX communications
The RDF KNX thermostats support communications as per the KNX specification.
S-Mode Standard mode; engineering via group addresses.
LTE Mode Logical Tag Extended mode, for easy engineering,
is used in conjunction with Synco.
3.11.1 S-Mode
This mode corresponds to KNX communications.
Connections are established via ETS by assigning communication objects to group
addresses.
3.11.2 LTE Mode
LTE Mode was specifically designed to simplify engineering. Unlike with S-Mode,
there is no need to create the individual connections (group addresses) in the tool.
The devices autonomously establish connections.
To make this possible, the following circumstances are predefined:
∂ Every device or subdevice is located within a zone
∂ Every data point (input or output) is assigned to a zone
∂ Every data point (input or output) has a precisely defined "name".

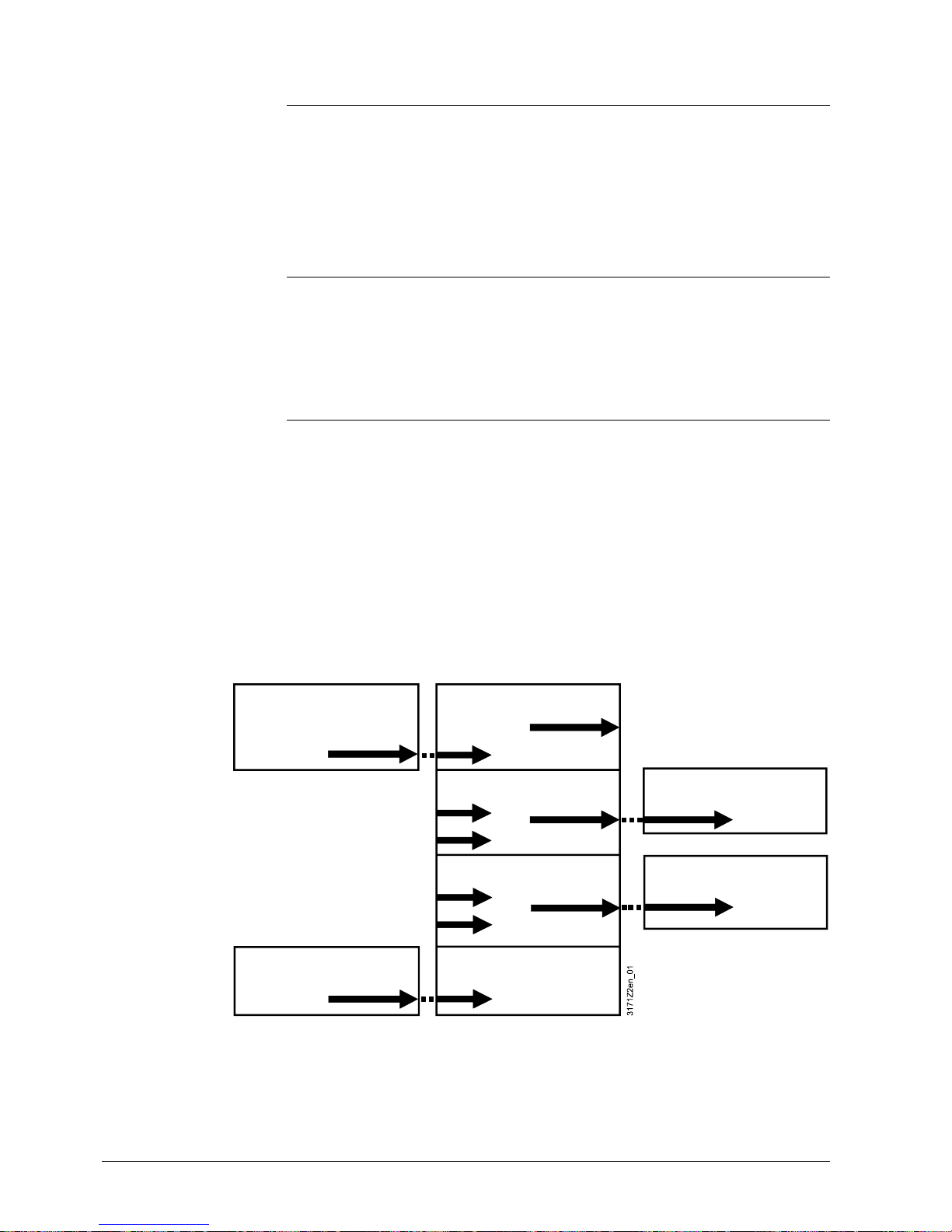

Whenever an output and an input with the same "name" are located in the same
zone, a connection is established automatically, as shown in the following diagram.
RDF / RDG
Chiller
Sensor
Outside temperature zone 31
Refr. distr zone 1
Geogr. zone 2.5.1
Heat distr zone 1
Cool demand
Outside temperature
Outside temperature
Cool demand
Outside temperature zone 31
Refr. distr zone 1
Heat demand
Time Switch
Operating mode Operating mode
Boiler
Heat distr zone 1
Heat demand
Geogr. zone 2.5.1 or 2.1.1
Room temperature
Definitions
Page 55
55 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
∂ For a detailed description of KNX (topology, bus supply, function and setting of
LTE zones, filter tables, etc.), see "Communication via the KNX bus for Synco
700, 900 and RXB/RXL, Basic Documentation" [6].
∂ LTE Mode data points and settings are described in the Synco Application
Manual [12].
∂ To engineer and commission a specific system, use the Synco700 planning and
commissioning protocol (XLS table in HIT, [7]).
3.11.3 Zone addressing in LTE Mode (in conjunction with
Synco)
In cases where RDF KNX room thermostats are used in LTE Mode (e.g. in
conjunction with Synco), zone addresses need to be allocated.
The following zone address must be defined together with the Synco devices at the
planning stage depending on the application.
Short description Factory setting Parameter
Geographical zone (apartment) --- (out of service) P82
Geographical zone (room) 1 P83
Heat distr zone heating coil 1 P84
Refr distr zone cooling coil 1 P85
"Subzone" of "Geographical zone" is fix 1 (not adjustable).
The device will send and receive LTE communication signals only if the zone
address is valid (not OSV = out of service).
Engineering and
commissioning
Note:
Page 56
56 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
The zones to be defined are as follows:
Geographical zone
(space zone)
(Apartment . Room . Subzone)
Apartment = ---, 1...126
Room = ---, 1...63
Subzone = fix 1
Zone in which an RDF KNX thermostat is physically located. Other
room-specific devices may also be located in this zone.
Information exchanged in this zone is related specifically to the device
like operating mode, setpoints, room temperature, etc.
The designations "Apartment", "Room" and "Subzone" do not need to
be taken literally. For example, Apartment can be used to refer to a
group of rooms, floor or section of a building. "Room", however, really
does refer to a room.
Subzone is not used for HVAC devices. It is more relevant to other
disciplines, such as lighting. Subzone is fix at "1" and not visible.
The time switch information is expected from the same zone where
the thermostat is located (Residential).
If no time switch information is received from the same zone, the
thermostat will use the information received from the same apartment
but with room "1" A.1.1 (Office).

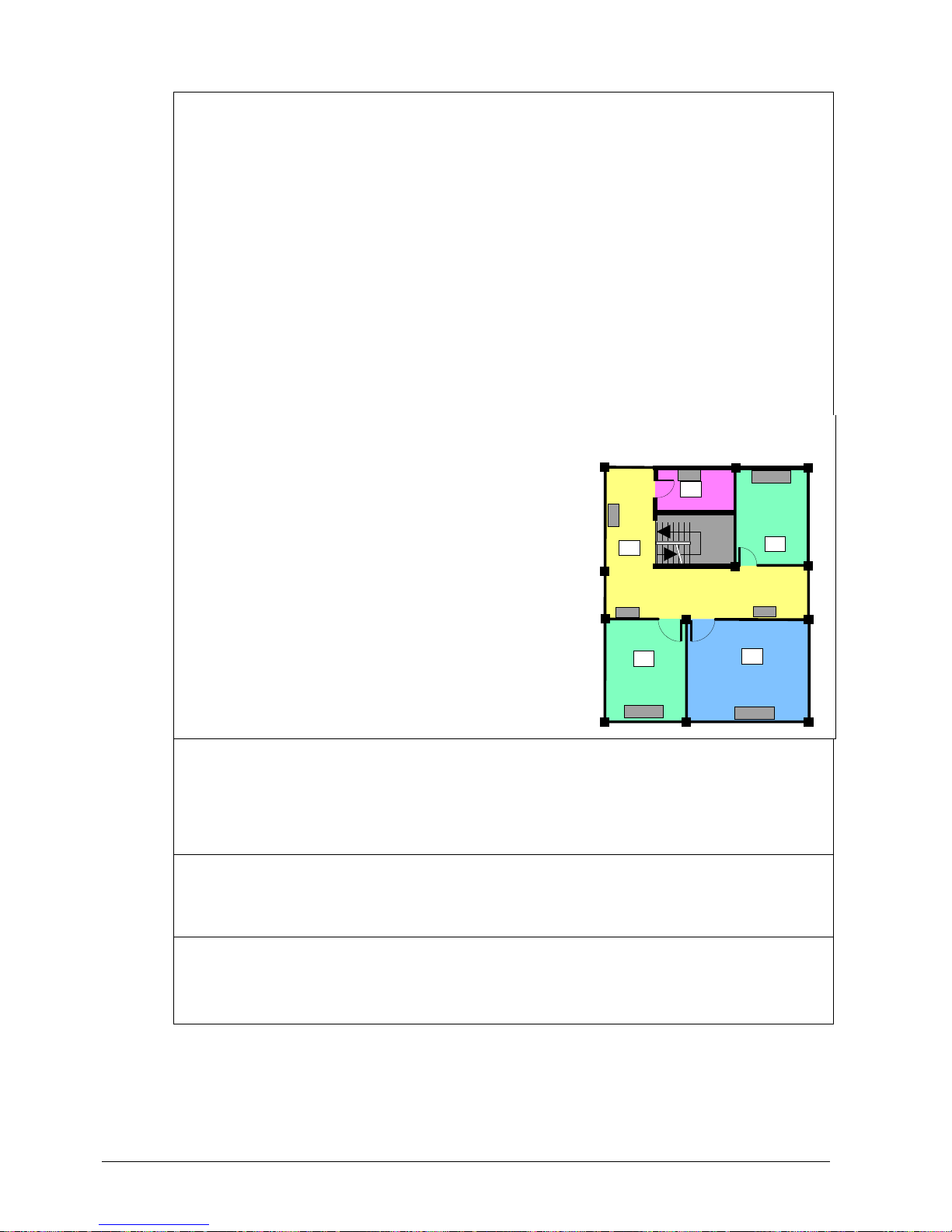

Example:
Commercial building
In a commercial building, the
time switch information is sent by
the RMB795 central control unit.
The zones are divided in so
called "Room groups" (e.g. 1...4),
where each "Room group" can
have an individual schedule. A
room thermostat in the same
"Room group" needs to have the
same Apartment Address.
Legend:
D = device address (P81)
G = geographical zone (P82, P83)
(Apartment.Room.Subzone)
D: 001
G: 3.1.1
Meeting room
Office 1
Server room
Office 2
2
4
D: 002
G: 2.1.1
D: 003
G: 2. 2.1
D: 10
G: 1.1.1
Corridor
D: 12
G: 1. 3.1
D: 11
G: 1.2.1
D: 004
G: 4. 1.1
1
2
3
3171z20 1
Heat distribution zone
heating coil
Zone = ---, 1...31
Information related specifically to the hot water system in heating coils
is exchanged within this zone. The zone also includes a Synco device
to process the information (e.g. RMH7xx or RMU7xx with
changeover).
Refrigeration
distribution zone
cooling coil
Zone = ---, 1...31
Information related specifically to the chilled water system is
exchanged within this zone (e.g. cooling demand). This zone also
includes a Synco device to process the information (e.g. RMU7xx).
Outside temperature
zone
Zone = fixed to 31
RDF301...: SW < V3.7: fixed to 1
Outside temperature received in outside temperature zone 31 will be /
can be displayed on the room thermostat when commissioned
accordingly (parameter P07 = 2).
Page 57
57 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07

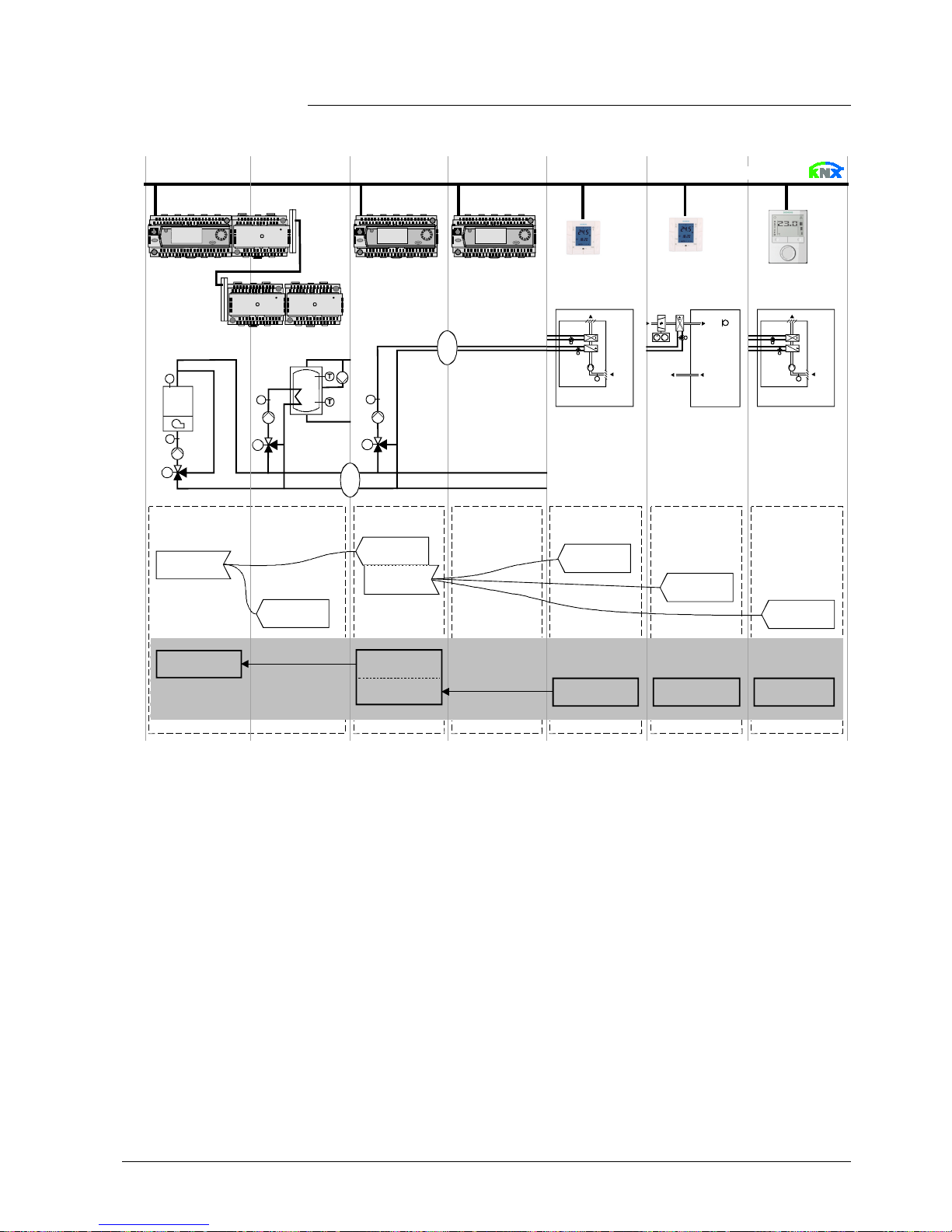

3.11.4 Example of heating and cooling demand zone
The building is equipped with Synco controls on the generation side and RDF /
RDG thermostats on the room side.
RMH760 RMH760 RMB795
Konnex TP1
RDG...RDU...
RDF...
T
T
T
T
1
2
P3171Z01
Heat requistion
Heat demand
Heat distr zone 1
Heat sour ce
Controller 1 Controller 2
Controller 3
Controller 4 Controller 5 Controller 6
Controller 1 Controller 2 Controller 3 Controller 4 Controller 5 Controller 6
Heating circuit
fan coil
Fan coil
room A
VAV box
room B
Fan coil
room C
DHW heating
Heat demand
Heat demand
Heat demand
Heat demand
Heat requistion
Heat distr zone
source side: 1
Heat distr zone 2
Heat distr zone 2 Heat distr zone 2
Heat distr zone 2
Setting values
MV MV
T
T T
In the case of a typical application, the individual RDF / RDG room thermostats

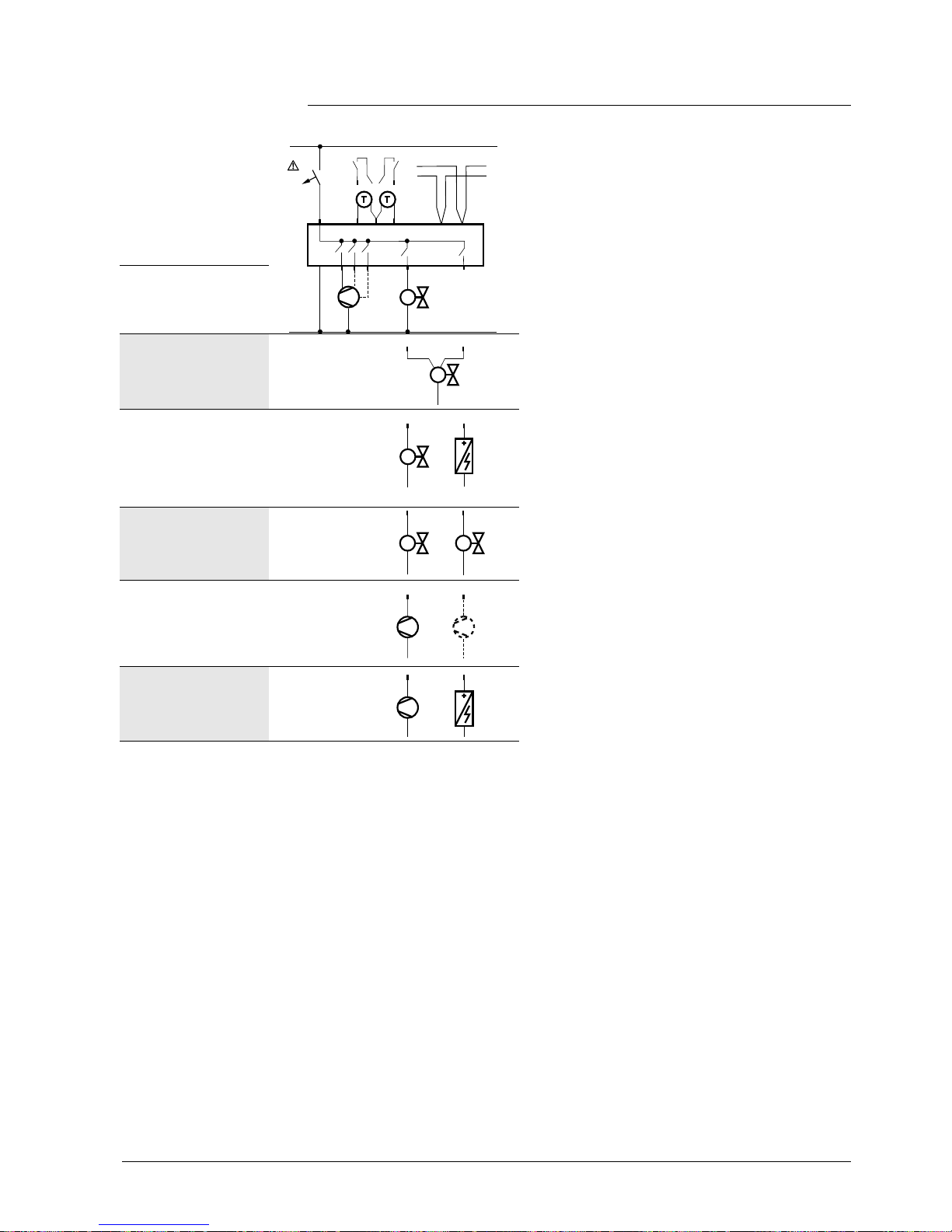

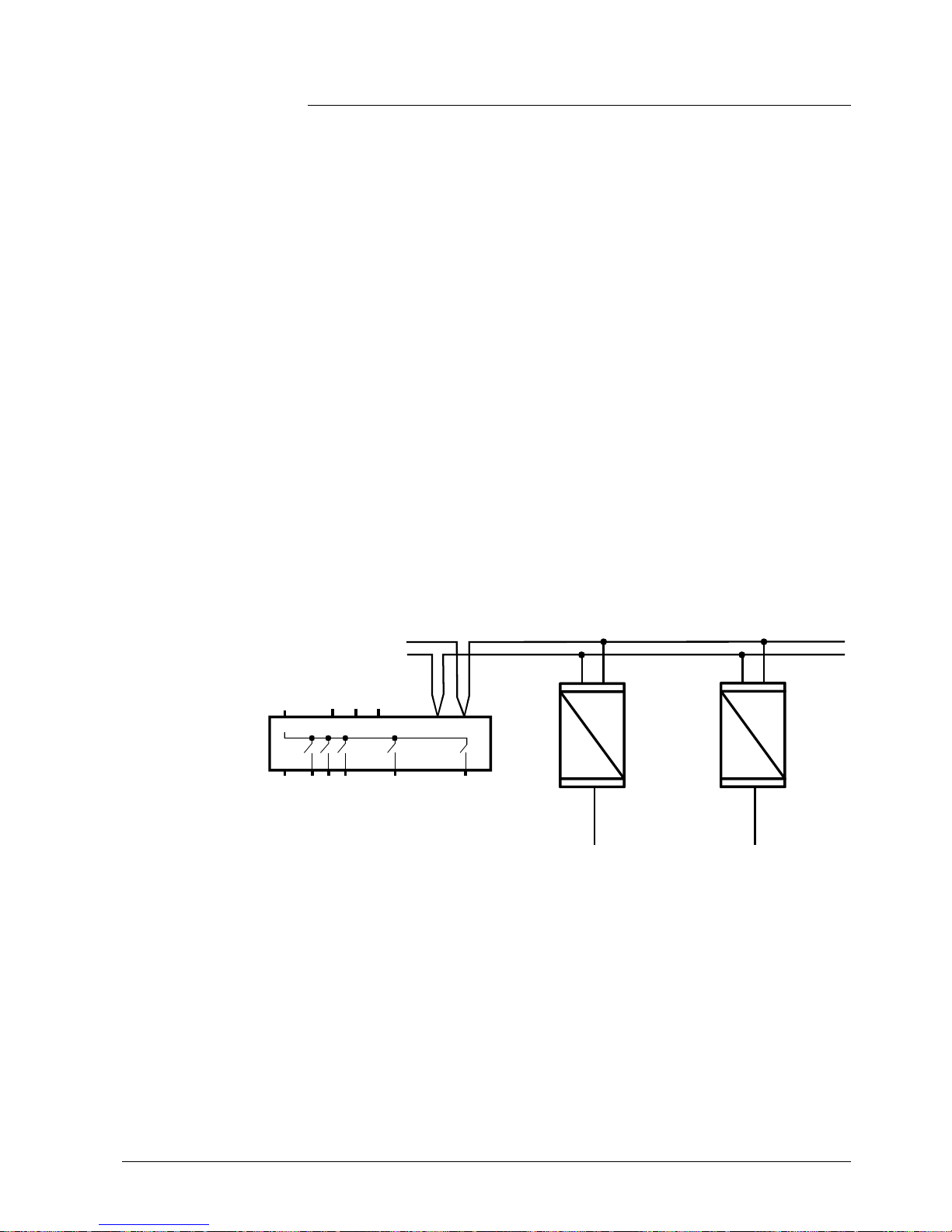

send their heat demand directly to the primary controller (in the above example to
the RMH760).
(1) and (2) designate the numbers of the distribution zone.
∂ This type of application can analogously be applied to refrigeration distribution
zones.
∂ If no 2-pipe fan coil is used, heat and refrigeration demand signals are sent
simultaneously to the primary plant.
Explanation relating to
the illustration
Note:
Page 58
58 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.11.5
In a KNX network,
between individual devices. The
which all the communication objects requested from a device must have been
received at least once. If a communication object is not received within this period, a
predefined value is used.
Similarly, the
nication objects requested must be transmitted at least once.
Fixed times are specified as follows:
–
Receive timeout:
–
Send heartbeat:
Object [KNX obj. Nr.]
Room operating mode:
Time switch [12]
Room operating mode:
Preselection [7]
Application mode [31]
Individual zones can also be disabled (
are not being used.
sent, and
will
3.11.6
The application is restarted after every reset, so tha
valve actuators are synchronized
After a reset, it takes up to 5 minutes for all t
restart. This is designed to avoid overloading the mains power supply when
restarting. At the same time, it reduces the load on the KNX network, as not all
thermostat
the
thermostat
3.11.7
In
conjunction with Synco
transmitted to the
An example for
In S-
Mode
LTE Mode / S-Mode
Reducing the bus load
Startup response
Startup delay
Heating output primary
Heating output
secondary
Cooling output primary
, RDF600KN/S Basic D
ocumentation
Send heartbeat and receive timeout
S-Mode and LTE Mode
communication objects can be exchanged
Receive timeout
defines the period of time within
Send heartbeat de
fines the period of time within which all the commu
31 minutes
15 minutes
I/O Minutes
Receive 31
Receive 31
Receive 31
o
ut of service) via control parameter if they
In disabled zones, t
he LTE signal will no
therefore reduce bus load.
Startup
t all the connected motorized
(see section 3.7).
he connected room
s transmit data at the same time. The delay (T
WaitDevice
's device address. After the delay,
the device starts to send.
Heating and cooling demand
,
the heating and/or cooling demand from each room is
BACS
to provide the required heating or cooling energy.
LTE Mode is described in section 3.11.4.
, the current state
signals of the control outputs are available
CE1P3171en
2017-12-07
-
Default value
Comfort
Auto
Auto
longer be periodically
thermostats to
) is determined by
.
Page 59
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.11.8
If a fault occurs (e.g. digital fault input, dew
etc.) then a fault will be sent on
An
RDF
highest alarm priority. This ensures that the management station does not miss any
alarms.
If alarms occur at the same time, the alarm with the highest priority will be first
displayed and sent
F
ault transmission is different in
S-Mode
Fault state
Fault information
information)
The table below
Prio Fault
- No fault
1
Bus power supply**)
2
Device address error
3
Condensation
4
External fault
5
External fault
6
Clean filter reminder
*)
Default alarm texts are stored in
be adjusted using the
**)
This e
power supply, bus is overloaded or bus signal is distorted)
∂
Priority order is #
∂
External faults #4…
alternating. On the bus
A supervisor alarm system may command
the bus
This has no
After a timeout of 48 hours
again.
Priority of alarms
Fault transmission
, RDF600KN/S Basic D
ocumentation
Fault function on KNX
point, communication
the bus.
thermostat listens on the bus and sends its
fault when
on the bus.
LTE Mode and S-Mode
L TE Mode
Alarm info (error
code + internal information)
(internal
Alarm text (default text can be edited with ACS tool)
shows the error code and default
alarm
Thermostat
Fault information on
Display Error code
Default fault text
--- 0 No fault
BUS,
BUSF
5000
No bus power
supply
Addr
6001
>1 id device address
4930
Condensation in the
room
input X1
AL1
9001
Fault input 1
input X2
AL2
9002
Fault input 2
FIL
3911
Dirty filter
the thermostat’s
non
ACS commissioning tool.
rror will not be sent on bus (
because there is no bus, not enough bus
1…6
5: If
faults are active, the display will show AL1, AL2,
, only the fault
with the highest priority will be sent
the thermostat
via the communication object "Fault t
ransmission
impact on the local display of faults.
, the sending of faults will
automatically
59 / 94
CE1P3171en
2017-12-07
configuration,
the fault has the
:
texts.
bus
Text
adjustable *)
---
---
-volatile memory and can
.
.
to stop sending faults to
" (disable / enable).
be enabled
Page 60
60 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies

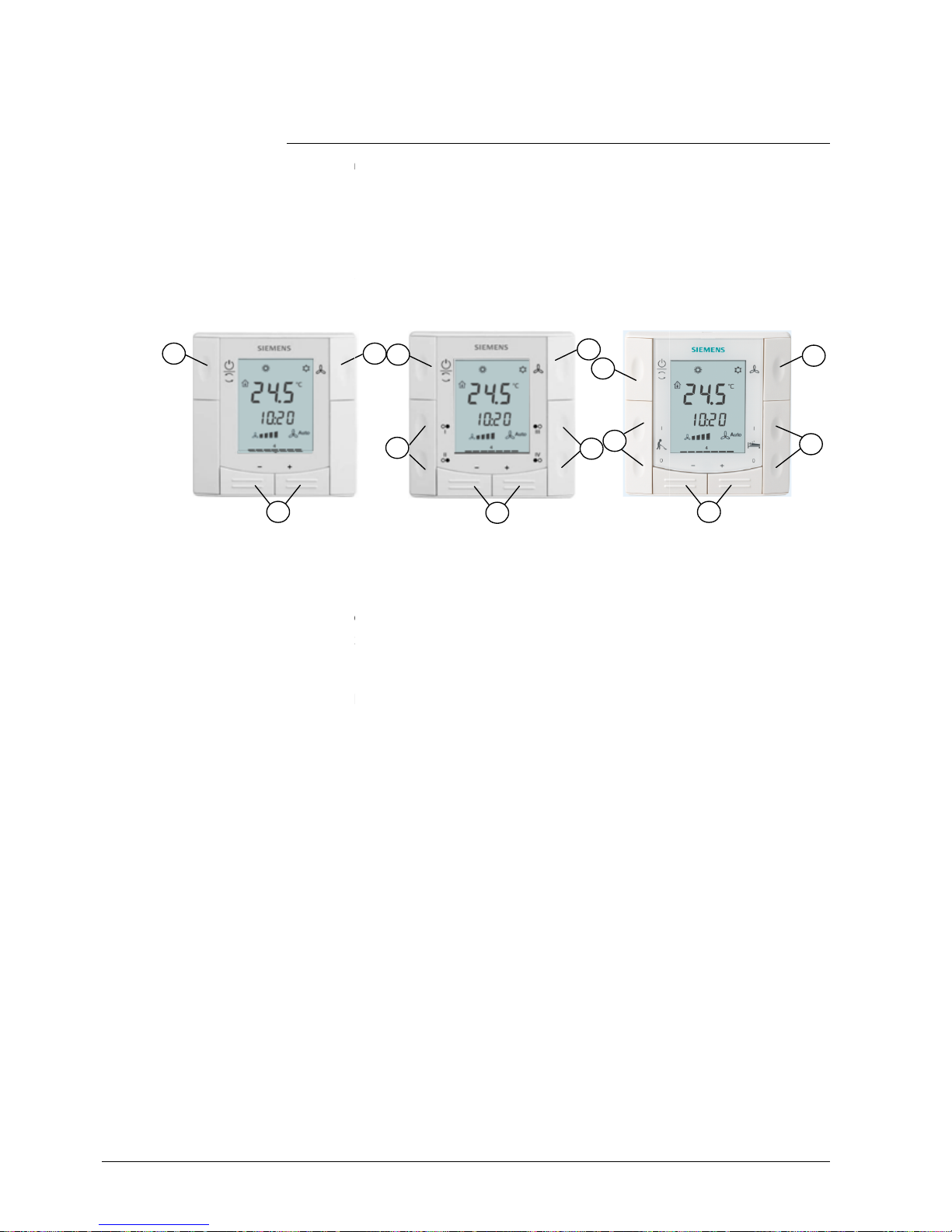

3.11.9
Light and blind
The communication object
KNX actuator module.
RDF301.50
1, 2
3, 4
5
RDF301.50H
1, 2
3, 4
5
RDF301.50
which
must be configured
Buttons
Commissioning
of switching groups
1
2
, RDF600KN/S Basic D
ocumentation
KNX switching groups (
RDF600KN/S,
RDF301.50H only)
s as well as scenes
are operated via switching groups.
s
of the buttons need to be bound to a corresponding
, RDF600KN/S

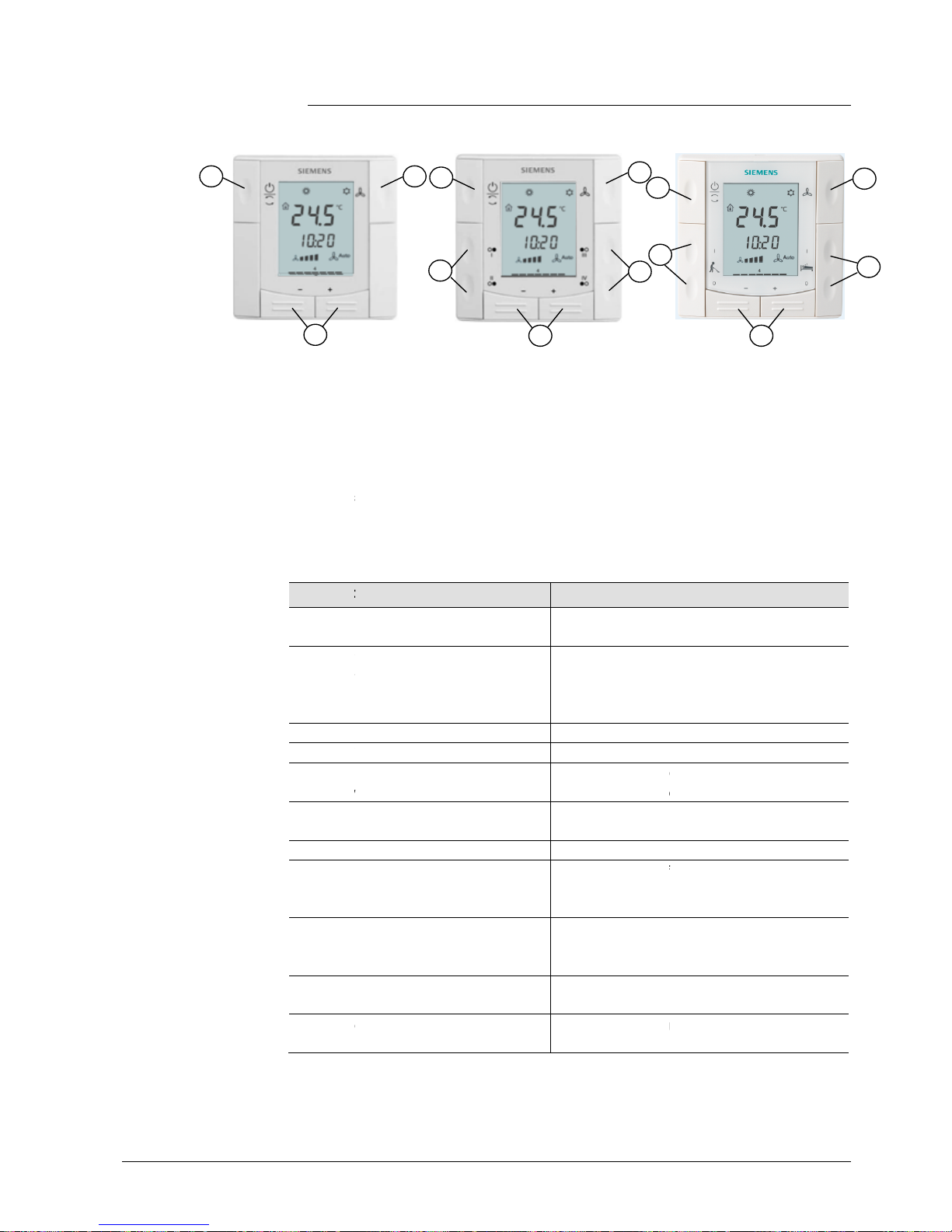

Buttons of switching group left (1).
Buttons of switching group right (2).
Display for indication while pressing buttons.
Button label: Make Up Room (MUR),
ON
Button label: Do Not Disturb (DND)
, ON/OFF.
Display for indication while pressing buttons.
…, RDF600KN/S
has 2 switching groups with a pair of button
via ETS.
(ETS)
4
3
5
CE1P3171en
2017-12-07
RDF301.50,
/ OF F.
each,
Page 61
61 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
#
Parameter
Parameter value
Function left / right buttons 0 Inactive (factory setting)
1 Switch
2 Dim
3 Shutter
4 Scene
#
Function
Parameter
Parameter value
Child Parameter:
1 Switch "ON/OFF"
functions
0 Top: ON; bottom: OFF
1 2 "ON/OFF" functions
Function top button:
0
Toggle (ON/OFF)
1
ON
2 OFF
Function bottom button:
0
Toggle (ON/OFF)
1
ON
2 OFF
#
Function
Parameter
Parameter
value
4 Scene Scene number top button 1…63
Scene number bottom button 1…63
The following functions are available:
– Switching: Toggle ON/OFF with 1 button or ON/OFF with 2 buttons
(1 + 2 or 3 + 4). "ON" or "OFF" is displayed.
RDF301.50H: toggle ON/OFF function must be configured for MUR and DND
hotel functions.
– Dim lights with 2 buttons (1 + 2 or 3 + 4):
ON/OFF with a short pulse (<0.5 s); "ON" or "OFF" is displayed.
Brighter / darker with a long pulse (>1 s); "dI" is displayed.
– Operate blinds with 2 buttons (1 + 2 or 3 + 4):
A long pulse (>1 s) starts the up/down motor; "UP" or "DOWN" is displayed.
A short pulse (<0.5 s) stops the motor or slightly adjusts the position of blinds;
"ON" or "OFF" is displayed.
– Scene (button 1, 2, 3 or 4):
A scene can be used to recall certain states of all actuators involved, as well as
to save new states as needed. E.g. differently dimmed lights and blind positions
considered adequate for certain events / times.
A short pulse (<0.5 s) starts the scene. "CALL" is displayed, the scene is read
from the bus.
A long pulse (>3 s) saves the actual position of all actuators involved as
adjusted previously; "SAVE" is displayed, the new scene is sent on the bus.
If commissioned as inactiv e , then pressing the buttons has no effect.
Parameters per switching
group
Parameters per single
button
Operating switching
groups
Note:
Page 62
62 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07

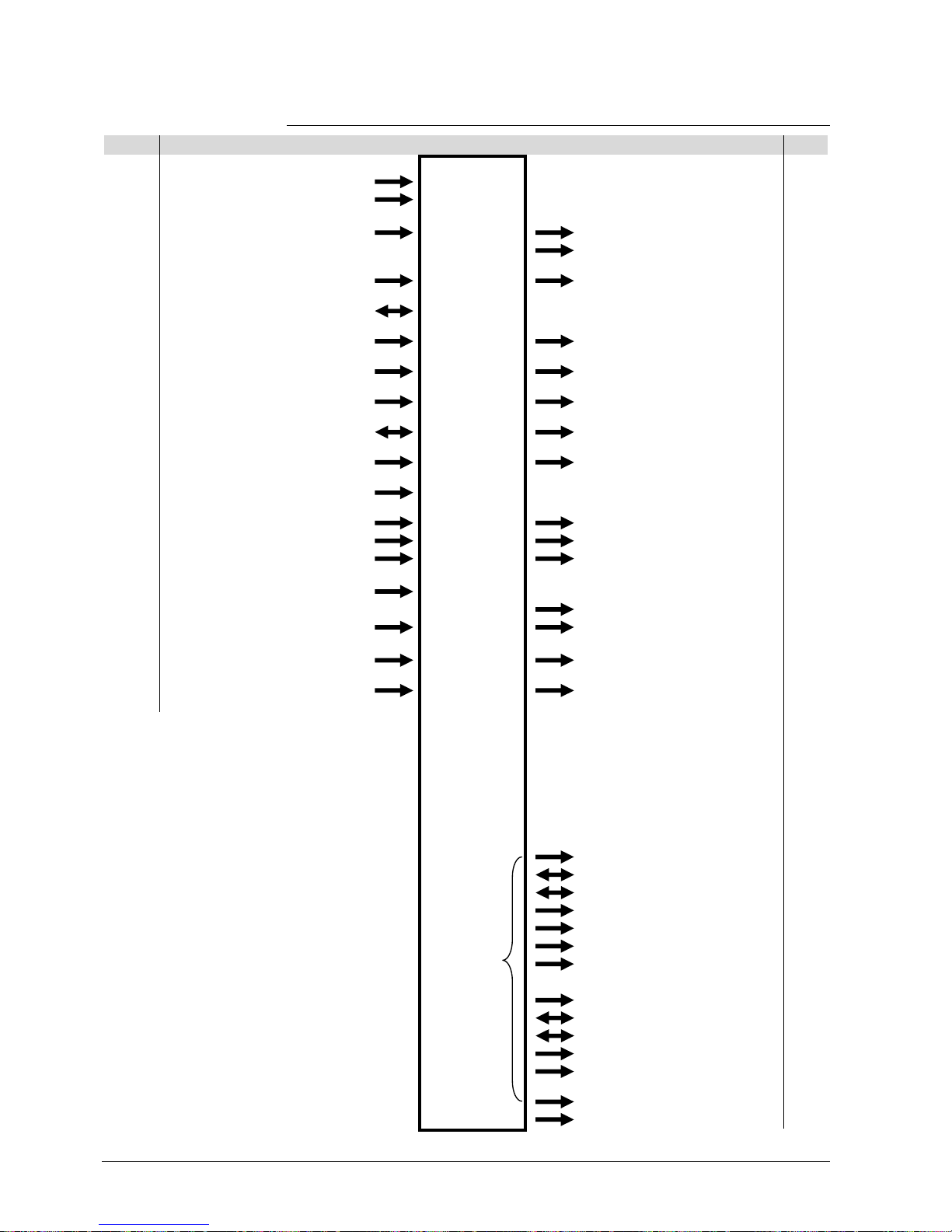

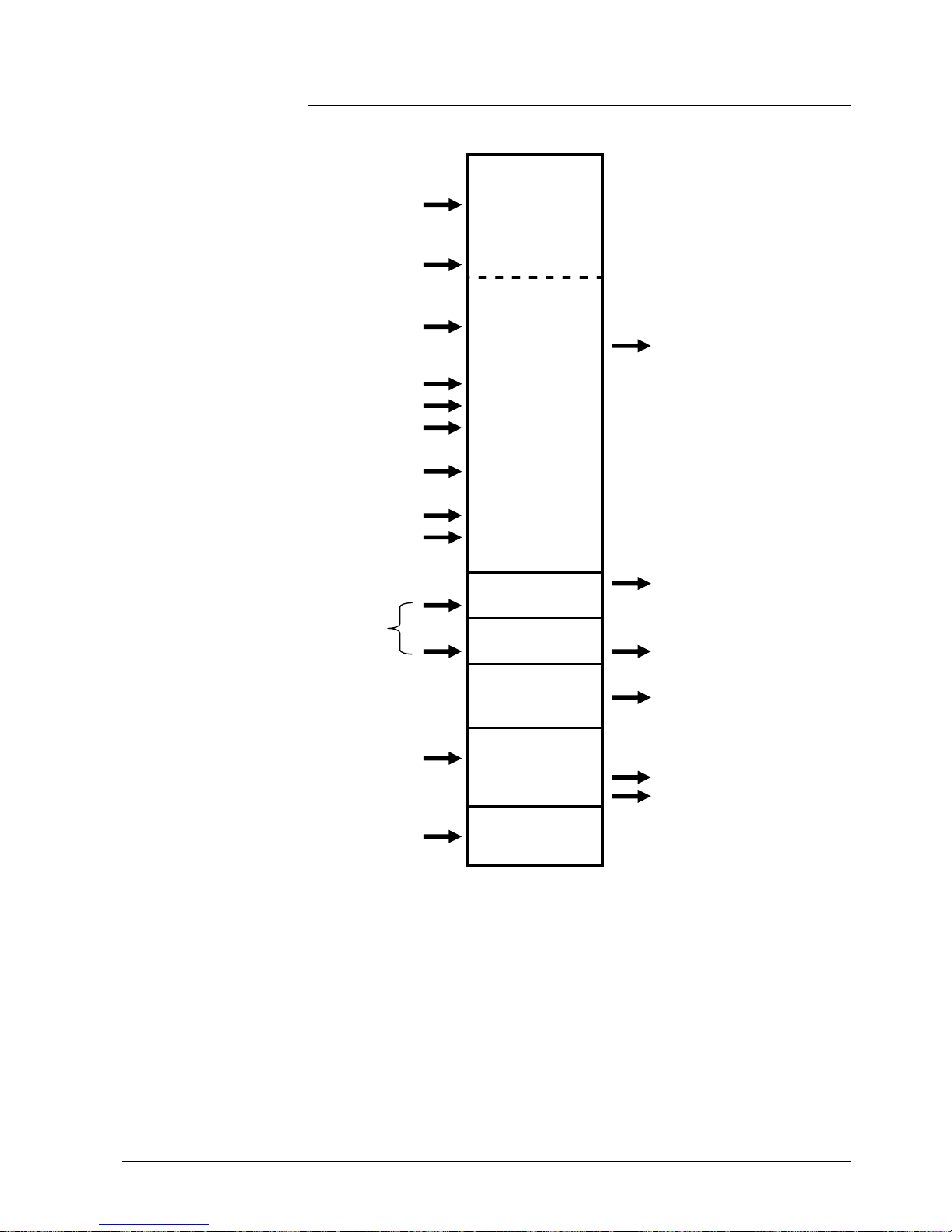

3.12 Communication objects (S-Mode)
3.12.1 Overview
Page Object # and name Thermostat Object # and name Page
14 1 System time
14 3 Time of day
14 44 Outside temperature 21 Room temperature 14
16 Room operating mode:
State
1)
15
16 12 Room operating mode:
Time switch1)
24 Room temperature:
Current setpoint
27
16 7 Room operating mode:
Preselection
1)
15, 18,5120 Room operating mode:
Window state
33 Fan operation
(0 = Auto / 1 = Manual)
48
15, 18,4945 Room operating mode:
Presence detector
3)
35 Fan output 48
27 22 Room temperature:
Comfort basic setpoint
36 Fan stage 1 48
27 23 Room temperature:
Comfort setpoint
37 Fan stage 2 48
24 46 Room temperature:
Economy heating setpoint
3)
38 Fan stage 3 48
24 47 Room temperature:
Economy cooling setpoint
3)
36 31 Application mode 25 Heating output primary
2)
58
48 32 Enable fan command value 26 Heating output secondary2) 58
48 34 Fan command value 27 Cooling output primary
2)
58
39, 52 29 Enable electric heater
39/40 X1 (temperature / digital) 52
39, 52 29 Enable electric heater 41/42 X2 (temperature / digital) 52
32, 51 30 Heating/cooling changeover 5 Fault state 34,
59
59 6 Fault transmission 4 Fault information 34,
50
Erro
r!
Boo
kma
rk
not
defi
ned.
, 59
45.. Buttons left: ON/OFF 60
45.. Button top left: ON/OFF 60
46.. Button bottom left: ON/OFF 60
47 Buttons left: Dim up/down 60
48 Buttons left: Blind step/stop 60
RDF301.50… 49 Buttons left: Blind up/down 60
RDF600KN/S
only
2)
50 Buttons left: Scene 60
51.. Buttons right: ON/OFF 60
51.. Button top right: ON/OFF 60
53.. Button bottom right: ON/OFF 60
53 Buttons right: Dim up/down 60
54 Buttons right: Blind
step/stop
60
55 Buttons right: Blind up/down 60
56 Buttons right: Scene 60
Page 63
63 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Input communication object
Output communication object
Input & output communication object
1) 8-bit and 1-bit object available, selectable via parameter in ETS
2) Availability depending on selected application / function
3) Only on RDF600KN SW >= V1.8
Page 64
64 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.12.2 Description of communication objects
Obj Object name Function Type/ length Flags
1 System time Time and
date
19.001
8 Byte
CWU
System time for display on the room thermostat. See parameter
P07 (3 or 4)
3 Time of day Time and
date
10.001
3 Byte
CWU
Another object for receiving the time of day for display on the room
thermostat. See parameter P07 (3 or 4)
4 Fault information Alarm
Info
219.001
6 Byte
CT
Common alarm output. If an alarm occurs, the alarm number is
transmitted
5 Fault state Faulty /
normal
1.005
1 bit
CT
Common alarm output. If an alarm occurs, the alarm flag is set
6 Fault
transmission
Enable /
disable
1.003
1 bit
CWU
A supervisor alarm system can disable the broadcasting of alarms
by the devices. This has no impact on the local display of alarms.
After a timeout of 48 hours, the sending of faults will automatically
be enabled again.
7 Room operating
mode:
Preselection
Auto
Comfort
PreComf.
Economy
Protection
20.102
1 Byte
CWTU
Controls the room operating mode selection of the thermostat via
bus.
The command can also be submitted as four 1-bit communication
objects (8...11). The last interaction wins – either from local
operating mode button or via bus.
Note: The thermostat will transform Pre-Comfort either into
Economy or Comfort (selectable via P88).
8
9
10
11
Operating mode:
Preselection
Auto
Comf
Eco
Prot
Trigger 1.017
1 bit
CW
Switch room operating mode to either Auto, Comfort, Economy or
Protection.
The last interaction wins – either from the local operating mode
button or via bus.
12 Room operating
mode: Time
switch
Comfort
Economy
PreComf.
Protection
20.102
1 Byte
CWU
This information is provided by a central time switch or a
supervisor and defines the actual HVAC operating mode.
The command can also be submitted via three 1-bit
communication objects (13...15).
Protection has the highest priority and cannot be overridden.
Note: The thermostat will transform Pre-Comfort either into
Economy or Comfort (selectable P88).
13
14
15
Time switch
Comfort
Economy
Protection
Trigger 1.017
1 bit
CW
Switch the HVAC mode to either Comfort, Economy or Protection
mode.
Obj Object name Function Type/ length Flags
16 Room operating
mode: State
Comfort
Economy
Protection
20.102
1 Byte
CRT
Effective room operating mode used by the thermostat
(considering time switch, user selection, window contact, etc.) This
state information is available via one 8-bit enumeration or three 1bit communication objects (17...19). Note: The thermostat does not
support Pre-Comfort.
17
18
19
Room operating
mode:
State Comfort
State Economy
State Protection
ON
OFF
1.002
1 bit
CT
Corresponding communication object sends "True"
21 Room
temperature
Temp.
value
9.001
2 Bytes
CRT
The value of the room temperature measured via built-in or
external sensor is available via this communication object.
22 Room tempera-
ture: Comfort
basic setpoint
Temp.
value
9.001
2 Bytes
CWU
If function "Temporary setpoint" is enabled via parameter P69, then
after an operating mode change, the setpoint adjustments made
by the user and via communication object 23 will be dismissed and
the thermostat will be reset to the Comfort basic setpoint.
Note: Setpoints that have been changed via the local HMI may be
overwritten during a system startup from a central master
controller, e.g.RMB795.
The Comfort basic setpoint is stored in EEPROM (see section
3.3.2).⇓ The service life of the EEPROM depends on the number
of write cycles. Never write this communication object cyclically!
23 Room
temperature:
Comfort setpoint
Temp.
value
9.001
2 Bytes
CWTU
Communication object used to shift the setpoint used by the
thermostat (see section 3.3.2). Same priority as local setpoint shift
on the thermostat. The last intervention wins.
Note: The Comfort basic setpoint (object 22) will not be changed.
24 Current setpoint Temp.
value
9.001
2 Bytes
CRT
Current setpoint, including shift, compensation, etc., used by the
thermostat for temperature control
25 Heating output
primary
0…100 % 5.001
8 bit
CRT
Indicates the position of the heating actuator of first stage.
E.g. 2-pipe with electric heater application: Output of heating coil.
26 Heating output
secondary
0…100% 5.001
8 bit
CRT
Indicates the position of the heating actuator of the second stage.
E.g. 2-pipe with electric heater application: Output of the electric
heater.
27 Cooling output
primary
0…100% 5.001
8 bit
CRT
Indicates the position of the cooling actuator of the first stage.
E.g. 2-pipe with electric heater application: Output of the cooling
coil
29 Enable electric
heating
Enable /
disable
1.003
1 bit
CWU
An electric heater can be disabled with this communication object
(e.g. to meet tariff regulations).
The same function is also available via local multifunctional input
X1/X2 (parameter P38, P40).
Only one input source must be used, either local input X1/X2 or
KNX bus.
Page 65
65 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Obj Object name Function Type/ length Flags
30 Heating / cooling
changeover
Heat /
Cool
1.100
1 bit
CWU
Changeover information transmitted via bus.
Default: Current mode before power down.
The same function is also available via local multifunctional input
X1/X2 (parameter P38, P40).
Only one input source must be used, either local input X1/X2 or
KNX bus..
31 Application mode HVAC
control
mode
20.105
8 bit
CWU
0 Auto (default) Heating and/or cooling
1 Heat Heating only
2 Morning warmup* Heating only
3 Cool Cooling only
5 Precool* Cooling only
6 OFF Neither heating nor cooling
8 Emergency heat* Heating only
9 Fan only Fan runs at high speed
* Function handled like Heat (1) or Cool (3)
32 Enable fan
command value
Enable
Disable
1.003
1 bit
CWU
Set fan mode to Auto (disable) or Manual (enable) by a KNX
control unit. If Manual, the value received on Fan command value
(34) will be used to command the fan speed.
Default: Enable
The last interaction wins – either from the local fan mode button or
via bus.
33 Fan operation Auto
Manual
1.001
1 bit
CRT
Indicates the status of the fan mode: Auto (0) or Manual (1).
34 Fan command
value
0…100% 5.001
8 bit
CWU
The fan can be set to a specified speed by a KNX control unit
when manual fan operation is enabled.
Speed Fan command value (physical KNX value)
1 1...33% (1…85)
2 34…67% (86...170)
3 68…100% (171…255)
Fan speed "0" is not supported by the thermostat and the fan
speed will remain unchanged.
35 Fan output 0…100% 5.001
8 bit
CRT
Indicates the current fan speed as a value 0...100%
Speed Fan output (physical KNX value)
OFF 0% (0)
1 33% (84 )
2 66% (186)
3 100% (255)
36
37
38
Fan speed 1
Fan speed 2
Fan speed 3
ON
OFF
1.001
1 bit
CRT
Indicate the state of the relay outputs
39
40
X1: Temperature
X2: Temperature
Temp.
value
9.001
2 Byte
CRT
Indicate the values of the temperature sensors connected to the
local inputs X1 / X2
41
42
X1: Digital
X2: Digital
ON
OFF
1.001
1 bit
CRT
Indicate the status of the digital inputs (adjusted by parameters
P39/P41) including considering of operating action
44 Outside
temperature
Temp.
value
9.001
2 Byte
CWU
The outside temperature measured by a KNX sensor can be
displayed on the thermostat, if parameter P07 "Additional user
information" is set = 2 (outside temperature).
Obj Object name Function Type/ length Flags
45 Buttons left
ON/OFF
ON
OFF
1.001
1 bit
CT
51 Buttons right
ON/OFF
Switch control: Parameter ON/OFF functions = Top: ON; Bottom:
OFF
When pressing the button, the corresponding switching telegram is
sent immediately.
45 Button
top left: ON/OFF
ON
OFF
1.001
1 bit
CT
CWTU 1)
46 Button
bottom left: ON/OFF
51 Button
top right: ON/OFF
52 Button
bottom: Right
ON/OFF
Switch control: Parameter ON/OFF functions = 2 "ON/OFF"
functions.
When pressing the button, the corresponding switching telegram is
sent immediately: ON, OFF or Toggle.
1) If "Toggle" is selected, the communication object becomes
output and synchronization input
45
51
Buttons left:
ON/OFF
Buttons right:
ON/OFF
ON
OFF
1.001
1 bit
CT
47
53
Buttons left: Dim
up/down
Buttons right:
Dim up/down
Darker /
Brighter
1.001
4 bit
CT
On a short operation of the button, a switching telegram is sent,
e.g. press left top button: "On" is sent, press left bottom button:
"OFF" is sent.
When pressing the buttons longer, a dimming telegram is sent,
e.g. press left top button: "Brighter" is sent, press left bottom
button: "Darker" is sent.
On releasing the button, a "Stop" telegram is sent.
48
54
Buttons left:
Blind step/stop
Buttons right:
Blind step/stop
Step /
Stop
1.001
1 bit
CT
49
55
Buttons left:
Blind up/down
Buttons right:
Blind up/down
Up /
Down
1.001
1 bit
CT
On a short operation of the button, a telegram is sent to adjust the
louvers or stop the blinds if moving up or down.
On a long operation of the button, a telegram is sent to raise or
lower the blinds (up or down)
50
56
Buttons left:
Scene
Buttons right:
Scene
Scene
control
18.001
8 bit
CT
The "Scene (8-bit)" function is used to change the characteristics
of a preset scene, i.e. brightness levels and switching states of a
group within a scene, without using the ETS.
For scene control, short and long (<1 s / > 3 s) pressing on the
buttons are distinguished.
On a short press, a telegram is sent to recall the corresponding
scene. On a long press, a telegram is sent to save the corresponding scene.
For each button a different scene number can be configured in
ETS.
Page 66
66 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Specific RDF600KN objects
1)
20 Window state
(RDF600KN)
Open
Closed
1.019
1 bit
CWU
The RDF600KN is set to Protection if value "1" (open) is received.
It switches back to the previous mode when the value is "0"
(closed).
"Window state" is sent e.g by a KNX switch. It has the same effect
as the local window contact X1, X2 (parameter P38, P40).
Only one input source must be used, either local input X1/X2 or
KNX bus.
45 Presence detector
(RDF600KN)
Unoccupied
Occupied
1.019
1 bit
CWU
Standard presence: The thermostat is set to Comfort mode if value
"1" (occupied) is received. It switches back to the Economy when
the value is "0" (unoccupied).
Hotel presence: The thermostat is set to previous mode (operating
mode selected by either hotel guests via local HMI or the operating
mode sent via bus) if value "1" (occupied) is received. It switches
back to the Economy when the value is "0" (unoccupied).
"Presence detector" is sent via KNX. It has the same effect as the
local presence detector function on X1, X2 (parameter P38, P40).
Only one input source must be used, either local input X1/X2 or
KNX bus.
46 Room
temperature:
Economy heating
setpoint
(RDF600KN)
Temp. value
9.001
2 Bytes
CWU
Communication object to adjust the Economy heating setpoint
used by the thermostat (see section 3.3.2). It will direct change the
value of the local parameter Economy setpoint P11.
S-Mode object needs to be enabled by setting “Room temp. :
Economy setpoints” to “as group object.
The Economy setpoint is stored in EEPROM. The service life of
the EEPROM depends on the number of write cycles. Never write
this communication object cyclically.
47 Room
temperature:
Economy cooling
setpoint
(RDF600KN)
Temp. value
9.001
2 Bytes
CWU
Communication object to adjust the Economy cooling setpoint
used by the thermostat (see section 3.3.2). It will direct change the
value of the local parameter Economy setpoint P12.
S-Mode object needs to be enabled by setting “Room temp. :
Economy setpoints” to “as group object.
The Economy setpoint is stored in EEPROM. The service life of
the EEPROM depends on the number of write cycles. Never write
this communication object cyclically.
1) RDF600KN SW < V1.8 works like RDF301… with the operating
mode switchover contact as window contact or presence detector.
Specific RDF301 object
20 Window state
(on RDF301…)
Open
Closed
1.019
1 bit
CWU
The RDF301 is set to Economy mode if value "1" (open) is
received. It switches back to the previous mode when the value is
"0" (closed).
"Window state" is sent e.g by a KNX switch or a KNX presence
detector. It has the same effect as the local operating mode
switchover contact X1, X2 (parameter P38, P40).
Only one input source must be used, either local input X1/X2 or
KNX bus.
Page 67
67 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.13 Communication objects (LTE-Mode)
RDF
Geographical zone
A.R.S
Room operating mode:
Time switch
(Time switch zone)
X.1.1 / X.Y.1
Application mode
Room operating mode:
Preselection
Geographical zone
A.R.S
X.Y.1
Room temperature output
Comfort setpoint
Setpoints heating
Setpoints cooling
Fan speed
Setpoint shift heating
Setpoint shift cooling
Heat distr. zone
Heating coil energy demand
heating coil
Heating/Cooling changeover
Ref. distr. zone
cooling coil
Cooling coil energy demand
Heat distr. zone
heating surface
Energy demand heating
surface
Broadcast
Fault transmission
Fault information
Fault text
Outside air temp. zone
Outside temperature
fix 31
Page 68
68 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.14 Control parameters
A number of control parameters can be readjusted to optimize control performance.
This can be done on the thermostat via HMI or via commissioning / operating tool.
These parameters can also be set during operation without opening the unit.
In the event of a power failure, all control parameter settings are retained, see page 53.
The control parameters are assigned to 2 levels:
∂ "Service level", and
∂ "Expert level" including communications, diagnostics and test.
The "Service level" contains a small set of parameters to set up the thermostat for
the HVAC system and to adjust the user interface. These parameters can be
adjusted any time.
Change parameters at the "Expert level" carefully, as they impact the thermostat’s
control performance and functionality.
3.14.1 Parameter setting via local HMI
1. Press buttons + and – simultaneously for 4 seconds.
Release and press button + again within 2 seconds until the display shows "P01".
Continue with step 2.
1. Press buttons + and – simultaneously for 4 seconds.
Release and press button – again within 2 seconds until the display shows "P01".
2. Repeatedly press the + or – button to select the required parameter.
P01
P02 P 08 P14
+- +
- -
+
3171z99
End
-
+
P13
+-
3. Press + and – simultaneously. The current value of the selected parameter
begins to flash, allowing you to change the value by repeatedly pressing + or –.
4. The next parameter is displayed when you press + and – again simultaneously.
5. Repeat steps 2 to 4 to display and change additional parameters.
6. Press + or – until "End" is displayed, and then press + and – simultaneously to
save the change and exit parameter entry mode.
The factory setting for the control parameters can be reloaded via parameter P71,
by changing the value to "ON", and confirming by pressing buttons + and –
simultaneously. The display shows "8888" during reload.
Enter only "Service"
level
Enter "Service" and
"Expert" level.
Adjust parameters
Reset parameters
Page 69
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
3.14.2
Control parameters can be adjusted via
commissioning or during normal operation with a tool like ACS
With
the
–
during commissioning via
–
during normal operation
Most parameters can be changed during nor
server or
ETS is an engineering tool and can be used for the full commissioning of the
KNX
thermostat
for the
∂
Setting RDF KNX parameters is only supported by ETS4 or higher / ACS version
5.11 or higher.
∂
The RDF KNX thermostats (without ETS parameter download) require version
ETS3f or higher
Connecting
section
ACS
OZW772 Web server,
RMZ792 bus operator
unit
ETS
Note:
Connecting a KNX tool
, RDF600KN/S Basic D
ocumentation
Parameter setting / download via tool
bus either by
parameter download during
ACS tool, the parameters can be changed…
parameter
download (all parameters)
via Popcard (
most of the parameter
mal operation using
the RMZ792 bus operator unit.
s
. Device address, application, control parameters and parameters
switching groups can be defined and downloaded via ETS
.
a KNX commissioning / operating tool to the
4.2.
69 / 94
CE1P3171en
2017-12-07
.
s).
the OZW772 web
RDF
.
RDF is described in
Page 70
70 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.14.3 Parameters of the "Service level"
Parameter
Name Factory setting Range
RDF301..
RDF600KN…
Dependencies
Service level
P01 Control sequence
2-pipe:
1 = Cooling only
4-pipe:
4 = Heating and Cooling
0 = Heating only
1 = Cooling only
2 = H/C changeover manual
3 = H/C changeover auto
4 = Heating and Cooling
P02
Operation via room op
selector
1 1 = Auto – Protection
2 = Auto - Comfort - Economy –
Protection
P01
P04 Unit 0
0 = °C
1 = °F
P05 Measured value correction 0 K – 3 ... 3 K
P06 Standard display 0
0 = Room temperature
1 = Setpoint
P07
Additional display
information
0
0 = --- (No display)
1 = °C and °F
2 = Outside temperature (via bus)
3 = Time of day (12h) (via bus)
4 = Time of day (24h) (via bus)
P08 Comfort basic setpoint 21 °C 5 ... 40 °C
P09 Comfort setpoint minimum 5 °C 5 ... 40 °C
P10 Comfort setpoint maximum 35 °C 5 ... 40 °C
P11 Economy heating setpoint 15 °C
OFF, 5 ... WCoolEco;
WCoolEco = 40 °C max
P12 Economy cooling setpoint 30 °C
OFF, WHeatEco ... 40 °C;
WHeatEco = 5C min
P13
Electric heater when
cooling
ON
ON: Enabled
OFF: Disabled
Appl.
P14 Button lock 0
0 = Unlocked
1 = Auto lock
2 = Manual lock
P15
Fan stage in dead zone
(Comfort)
(RDF600KN)
4)
0 0 = Disabled
1 = Low speed (Heat and Cool)
2 = Low speed (Cooling only)
x
4)
Not available on RDF600KN SW < V1.8
Parameter display depends on selected application and function.
Note:
Page 71
71 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
3.14.4 Parameters of the "Expert level
with diagnostics and test"
Parameter
Name Factory setting Range
RDF301..
RDF600KN
Dependencies
Expert level
P30
Heat P-band Xp /
switching diff
2 K 0.5 … 6 K
P31
Cool P-band Xp /
switching diff
1 K 0.5 … 6 K
P33 Dead zone Comfort mode 2 K 0.5 … 5 K
Appl.
P34 Setpoint differential 2 K 0.5 … 5 K
Appl.
P35
Integral action time Tn
RDF301... /
RDF600KN
5 min
45 min
0…10 min
0...120 min
x
xP46
P46
P36
H/C ch'over swi point
cooling
16 °C 10…25 °C
P38, P40
P37
H/C ch'over swi point
heating
28 °C 27…40 °C
P38, P40
P38 Input X1
RDF301…..
(range 0..8)
RDF600KN
5)
(range 0..10)
3 = Op mode contact,
window contact
0 = --- (no function)
1 = Room temp ext. sensor /
Return air temp (AI)
2 = H/C changeover (AI/DI)
3 = Operating mode contact,
Window contact (DI)
4 = Dew point sensor (DI)
5 = Enable electric heater (DI)
6 = Fault input (DI)
7 = Monitor input (Digital)
8 = Monitor input (Temp)
10: Presence detector (DI)
P39 Normal position input X1 0 (N.O.)
0 = Normally open / Open
1 = Normally closed / Close
P38
P40 Input X2
RDF301…..
(range 0..8)
RDF600KN
5)
(range 0..10)
1 = Ext. sensor
0 = --- (no function)
1 = Room temp ext. sensor /
Return air temp (AI)
2 = H/C changeover (AI/DI)
3 = Operating mode contact,
Window contact (DI)
4 = Dew point sensor (DI)
5 = Enable electric heater (DI)
6 = Fault input (DI)
7 = Monitor input (Digital)
8 = Monitor input (Temp)
10: Presence detector (DI)
P41 Normal position input X2 0 (N.O.)
0 = Normally open / Open
1 = Normally closed / Close
P40
P44
Actuator running time
Y11/Y21
150 s 20…300 sec
P46
P45
RDF600KN:
Power of electric heater
on Y21 (for adaptive
temperature
compensation
0.0 kW 0.0...1.2 kW
x
P46 Output Y11/Y21 ON/OFF (1)
0 = 3-position
1 = ON/OFF
Appl.
P48
ON time minimum 2-pos
output
1 min. 1...20 min
P46
P49
OFF time minimum 2-pos
output
1 min. 1...20 min
P50 Purge time OFF OFF: Not active
1…5 min: Active with selected
duration
P38, P40
Page 72
72 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Parameter
Name Factory setting Range
RDF301..
RDF600KN
Dependencies
Expert level
P51
Flow temp limit floor
heating
OFF OFF, 10...50 °C
P38, P40
P52 Fan control 1
0 = Disabled
1 = Enabled
2 = Heating only
3 = Cooling only
P53 Fan speeds 3-speed
1 = 1-speed
2 = 3-speed
P52
P54 Fan overrun time 60 sec 0...360 sec
P52, Appl.
P55
Fan speed switching point
high
100% 80...100%
P52, P53,
DIP
P56
Fan speed switching point
med
65% 30..75%
P52, P53,
DIP
P57
Fan speed switching point
low
10% 1...15%
P52, P53,
DIP
P58 Fan start kick ON
ON: Enabled
OFF: Disabled
P52
P59 On time minimum fan 2 min 1...6 min
P52
P60
6)
Periodic fan kick Comfort
RDF301...
RDF600KN
0
OFF
0…89 min, OFF(90*))
x
x
P52
P61 Periodic fan kick Eco OFF 0…359 min, OFF(360*))
P52
P62 Service filter OFF (0*)) OFF, 100…9900 h
P52
P65
Protection heating
setpoint
8 °C
OFF, 5…WCoolProt;
WCoolProt = 40 °C max
P66 Protection cooling setpoint OFF
OFF, WHeatProt… 40;
WHeatProt = 5°C min
P67
Fan start delay
(RDF600KN )
4)
0 s 0...360 s x
P52, P46
P68 Temporary Comfort mode 0 (= OFF) 0...360 min
P02
P69
Temporary Comfort
setpoint
OFF
OFF = Disabled
ON = Enabled
P71 Restore factory setting OFF
OFF = Disabled
ON = Reload start
"8888" is displayed for 3s during
reload process
P77 Presence detection
1 = Standard presence
mode
1 = Standard presence mode
2 = Hotel presence mode
x
*)
The numbers are displayed in ACS tool
4)
Not available on RDF600KN SW < V1.8
5)
On RDF600KN SW < V1.8, setting range 0…8
6)
On RDF301 and RDF301.50, it is recommended that the fan is running in deadzone, i.e.
P60=0, or using a return air- or external temperature sensor.
Page 73
73 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Parameter
Name
Factory setting Range
RDF301..
RDF600KN
Dependen-cies
Communications
P81 Device address
1)
255 1…255
P82
Geographical zone
(apartment)
2)
--- ---, 1...126
P83
Geographical zone (room)
2)
1 ---, 1...63
P84
Heat distr zone heating
coil
--- ---, 1...31
Appl., P01
P85
Refrig distr zone cooling
coil
--- ---, 1...31
Appl., P01
P88
Transformation PreComfort
0
0 = Economy
1 = Comfort
1)
Physical address = Area.Line. DeviceAddress. Factory setting for Area = 0, Line = 2.
Can be changed by special management service e.g. from line coupler or via ACS commissioning tool.
2)
Type = geographical zone A.R.S. In RDF sub zone = fixed value 1.
Parameter
Name Range
Dependen-cies
Diagnostics & test
d01 Application number
NONE = (No application)
2P = 2-pipe
2P3P = 2-pipe 3-position
2PEH = 2-pipe with electric heater
4P = 4-pipe
d02 X1 state
"---" = function not selected
0 = Not activated (for DI)
1 = Activated (DI)
0…49 °C = Current temp. value (for AI)
00 = H/C Input shorted
100 = H/C Input open
d03 X2 state
"---" = function not selected
0 = Not activated (for DI)
1 = Activated (DI)
0…49 °C = Current temp. value (for AI)
00 = H/C Input shorted
100 = H/C Input open
d05
Test mode for checking
the Y11/Y21 actuator's
running direction
3)
"---" = no signal on outputs Y11 and Y21
OPE = output Y11 forced opening
CLO = output Y21 forced closing
P46
3
)
This parameter can only be quit when the setting is back at "---".
Press buttons + and – simultaneously to escape.
Page 74
74 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
4. Handling
4.1 Mounting and installation

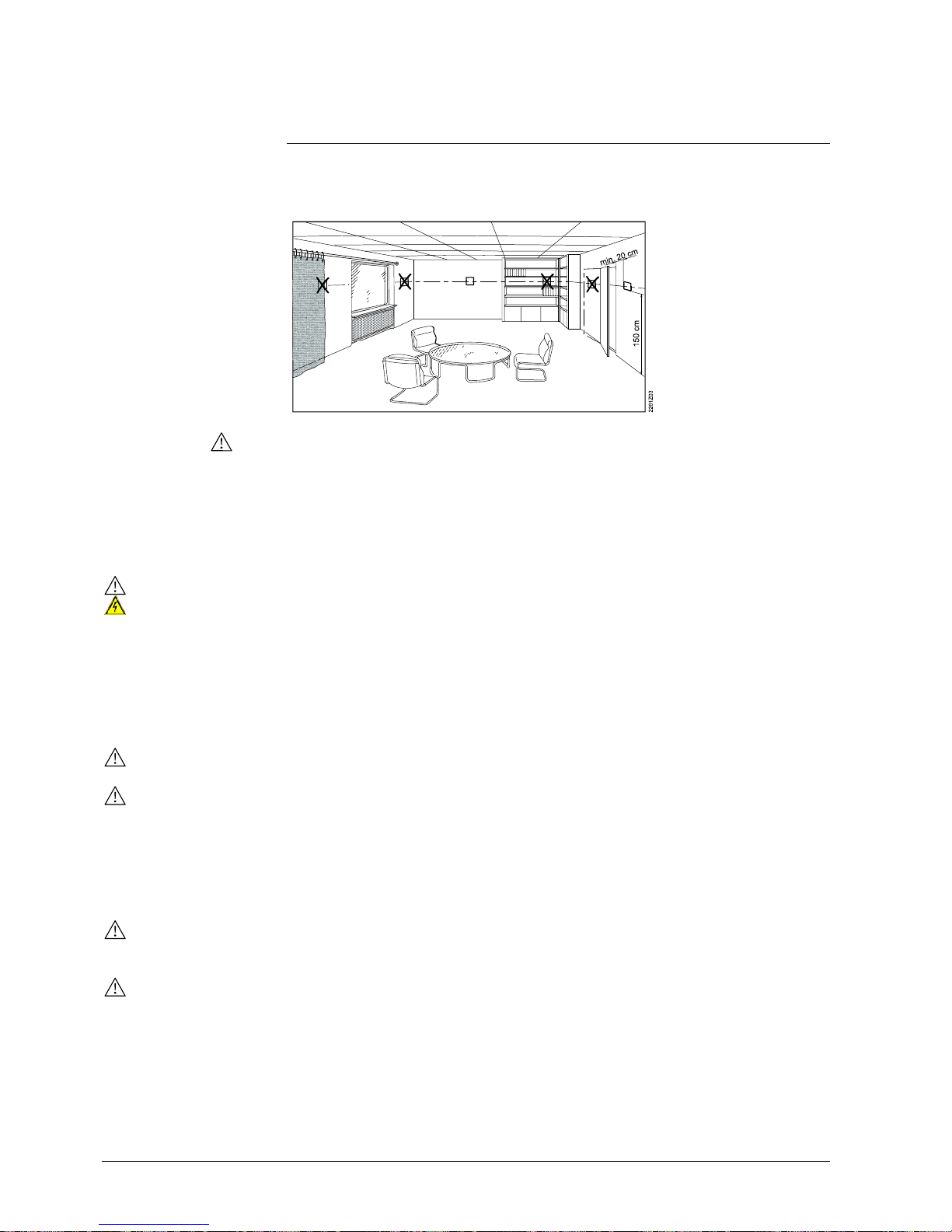

Mount the room thermostat on the conduit box. Do not mount on a wall in niches or
bookshelves, behind curtains, above or near heat sources, or exposed to direct
solar radiation. Mount about 1.5 m above the floor.
Mounting /
dismounting
∂ Mount the room thermostat in a clean, dry indoor place without direct airflow
from a heating / cooling device, and not exposed to dripping or splash water.
∂ In case of limited space in the conduit box, use mounting bracket ARG70.3 to
increase the headroom by 10 mm.
Wiring
See Mounting Instructions enclosed with the thermostat.
M3171... [3], M3076.3 [3a]
∂ Comply with local regulations to wire, protection and earth the thermostat.
Warning!
No internal line protection for supply lines to external consumers (Q1, Q2,
Q3, Yxx)
Risk of fire and injury due to short-circuits!
∂ Adapt the line diameters as per local regulations to the rated value of the
installed overcurrent protection device.
∂ The AC 230 V mains supply line must have an external circuit breaker with a
rated current of no more than 10 A.
∂ Properly size the cables to the thermostat, fan and valve actuators for
AC 230 V mains voltage.
∂ Use only valve actuators rated for AC 230 V.
∂ Cables of SELV inputs X1-M/X2-M: Use cables with 230 V insulation, as the
conduit box carries AC 230 V mains voltage.
∂ Inputs X1-M or X2-M of different units (e.g. summer/winter switch) may be
connected in parallel with an external switch. The maximum contact current
rating for the external switch should fulfill the overall sensing current of all
connected inputs.
∂ KNX communication cables (input CE+ / CE-): Use cables with 230 V
insulation, as the conduit box carries AC 230 V mains voltage.
∂ Disconnect from supply before opening the cover.
∂ When a KNX bus power supply is connected on the line with communicating
thermostats and Synco controller, the internal KNX power supply of the Synco
controllers must be switched off.
Page 75
75 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
4.2 Commissioning
The room thermostats are delivered with a fixed set of applications.
Select and activate the relevant application during commissioning using one of the
following tools:
– Local DIP switch and HMI
– Synco ACS
– ETS
Set the DIP switches before snapping the front panel to the mounting plate, if you
want to select an application via DIP switches.
All DIP switches need to be set to "OFF" (remote configuration), if you want to
select an application via commissioning tool.
After power is applied, the thermostat resets and all LCD segments flash, indicating that the reset was correct. After the reset, which takes about 3 seconds, the
thermostat is ready for commissioning by qualified HVAC staff.
If all DIP switches are OFF, the display reads "NONE" to indicate that application
commissioning via a tool is required.
Each time the application is changed, the thermostat reloads the factory setting for
all control parameters, except for KNX device and zone addresses!
Connect the Synco ACS or ETS tools to the KNX bus cable at any point for
commissioning:
L
N
Y11
Y21
X1M
X2
N1
3171 A0 3
Q1 Q2 Q3
CE+ CE-
KNX
KNX
V24
ETS
RS232
Siemens
N148 /
UP146 /
UP152
KNX
USB
ETS / ACS
Siemens
OCI700
ACS and ETS require an interface:
– RS232 KNX interface (e.g. Siemens N148 / UP146 / UP152)
– OCI700 USB-KNX interface
An external KNX bus power supply is required if an RDF is connected directly to a
tool (ACS or ETS) via KNX interface.
Applications
DIP switches
Note:
Connect tool
Note:
Page 76
76 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
The thermostat's control parameters can
the entire system
The parameters can be adjusted using
–
Local HMI
–
Synco ACS
– ETS
Commissioning
possible with ETS)
The control parameters of the thermostat can be set to ensure optimum
performance of the entire system (see
∂
The control sequence may need to be set via parameter P01 depending on the
application. The factory setting is as follows:
Application
2-
pipe and chilled /
4-
pipe, chilled ceiling and radiato
∂
When the thermostat is used with a compressor, adjust the minimum output on
time (parameter P48) and
damaging the compressor or shortening its life due to frequent switching
∂
Recalibrate the t
thermostat does not match the room temperature measured
of operation)
∂
We recommend to review the setpoints and s
P08…P12) and change them as needed to achieve maximum comfort and save
energy
.
The programming mode helps identify the thermostat in the KNX network during
commissioning.
Press buttons
programming mode, which is indicated on the display with
Programming mode remains active until thermostat identification is complete.
Assign device address (P81) via HMI, ACS or ETS
With device address set to 255, the communication is deactivated (no exchange of
process data).
Use ETS
to assign the KNX group addresses of the
objects.
RDF301.50
which must be configured via ETS. The switching groups only work
Each device has a unique KNX serial number inside
sticker with the same KNX serial number is enclosed in the packaging box. This
sticker is intended for installers for documentation purposes.
Control parameters
Control sequence
Compressor-based
applications
Calibrate sensor
Setpoint and range
limitation
Programming mode
Assign KNX device
address
Assign KNX group
addresses
Switching groups
RDF301.50...and
RDF600KN/S only
KNX serial number
, RDF600KN/S Basic D
ocumentation
be set to ensure optimum perfor
.
of switching groups for RDF301.50…and
RDF600KN/S
.
section 3.14).
Factory setting P01
heated ceiling 1 = c
ooling only
r 4 =
h
OFF-
time (parameter P49) for Y11/Y21 to avoid
emperature sensor if the room temperature displayed on the
. To do this, change parameter P05.
etpoint ranges (parameters
.
"operating mode" and "+"
simultaneously for 6 sec to activate
"PrO
.
thermostat's
and RDF301.50H have
2 switching groups with a pair of buttons each,
the front panel. An additional
CE1P3171en
2017-12-07
mance of
is only
ooling only
eating and cooling
-
.
(after min. 1 hour
g
".
communication
in S-Mode.
Page 77
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
4.3
See
also
RDF301, RDF600KN
1 Operating mode selector
2 Button to change fan
3 Buttons to adjust setpoints and control parameters
RDF301.50,
RDF600KN/S
4 Four buttons to control KNX actuators via KNX
(functions: switching, dimming, blind control, 8
RDF301.50H
5 Four dedicated buttons for hotel functions (Make Up Room, Do Not Disturb) via
KNX
User action
Normal operation
Press any button
(thermostat in normal operation)
Press left button
Press
left button (P01 = 2)
Press left button while "Operating
mode switchover"
Press left button >5
(RDF301
Press right button
Press + or
Press + and
then press + again >3 seconds
Press + and
then press
Press operating mode button and
simultaneously for 6 sec
Layout
Button operation
1
3
, RDF600KN/S Basic D
ocumentation
Operation
Operating Instructions B3171 [2]
enclosed with the
RDF301.50, RDF600KN/S
operation
S-
Mode
-
bit scene)
S-Mode (functions: switching)
Effect, description
A
ctual operating mode and
indicated by symbols
B
acklit LCD turns on and…
further action)
After the last operation and a timeout of
seconds, the LCD backlight turns off
(operating mode)
Change operating mode
Toggle between heating and cooling
via bus is activated
Activate "Extend Comfort mode"
(for details, see page
/ >3 seconds
... / RDF600KN…)
Activate / deactivate button lock
Change fan mode
–
Adjusts the Comfort room temperature
setpoint .
Thermostat changes to Comfort
– >3 seconds, release,
Go to parameter setting mode
level"
– >3 seconds, release,
– again >3 seconds
Go to parameter setting mode
level"
, diagnostics and test
"+"
onds
Enter (KNX) p
rogramming mode
2
2
1
3
4
4
5
1
77 / 94
CE1P3171en
2017-12-07
thermostat.
RDF301.50H
state are
(see below for
10
20)
mode
"Service
"Expert
5
2
3
Page 78
78 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
Display
1 Operating mode
2 Displays room temperature, set
3
4 Heating
4.4
Remote
The RDF
KNX
OZW772
web server
4.5
Disposal
The device is considered an electronic device for disposal in terms of the
European Directive 2012/19/EU and may not be disposed of as domestic
garbage.
∂
Dispose of the device through channels provided for this purpose.
∂
Comply with all local and currently applicable laws and regulations.
1
2
5
3 8
6
9
7
4
10
, RDF600KN/S Basic D
ocumentation
Protection
Comfort
Economy
Auto Timer according to
schedule (via bus)
-
points and control parameters.
Symbol indicates current room
temperature
Fan mode
Auto fan active
Fan speed
low, medium, high
/ cooling mode
Cooling
Heating
Electric heater active
5
Condensation in room (dew
point sensor active)
6
Indicates fault or
7
Temporary
extension active
8 Additional user information, like
outside
time of day from KNX bus.
Selectable via parameters
9
Button lock active
10
Weekday 1…7 from KNX bus
(1 = Monday / 7 = Sunday)
operation
thermostats can be operated
from a remote location
, a RMZ792 bus operating unit
or the ACS tool
CE1P3171en
2017-12-07
reminder
Comfort mode
temperature or
using a
.
Page 79
79 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
5. Supported KNX tools
5.1 ETS
ETS is an engineering tool. It can be used for the full commissioning of the RDF
KNX thermostats.
The following functions can be realized with ETS4:
– Define and download the physical address
– Define and download the application (plant type, control sequence)
– Set up and download the thermostat's control parameters
– Download the switching group parameters (RDF301.50, RDF600KN/S)
– Set up and download group addresses.
This basic documentation does not describe how to operate ETS and commission
a device. Refer to the KNX Manual for more details.
Setting RDF KNX parameters is only supported by ETS4 or higher.
ETS4 can be updated online.
5.1.1 Parameter settings in ETS
For setting the parameters, open the project and select a device.
To start the parameter settings, select Edit, then Edit p arameters.
∂ The ETS version 3f or higher can be used to assign the communication objects
to group addresses (S-Mode).
∂ The ETS4 or higher can be used to download the application and parameters.
ETS
STOP
Note!
Note:
Page 80
80 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
The
application
loaded.
The
control parameters
loaded. Refer to section
5.2
ACS Service and Operating
With the ACS tool
address, application, parameters)
during normal operation.
This M
anual does not describe how the physical address is defined. Also
gives a brief overview of the main functionality of ACS.
For more information
Setting RDF KNX parameters is only supported by
higher.
ACS
STOP
Note!
, RDF600KN/S Basic D
ocumentation
(plant type) and Control Sequence
can be adjusted and down
, ([Pxx] description) can also be adjusted and down
3.13.
t
ool
, the RDF KNX thermostats
can be commissioned (physical
. They can be
operated or monitored
, refer to the ACS online help.
ACS
CE1P3171en
2017-12-07
-
-
via bus
, it only
Version 5.11 or
Page 81
81 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07

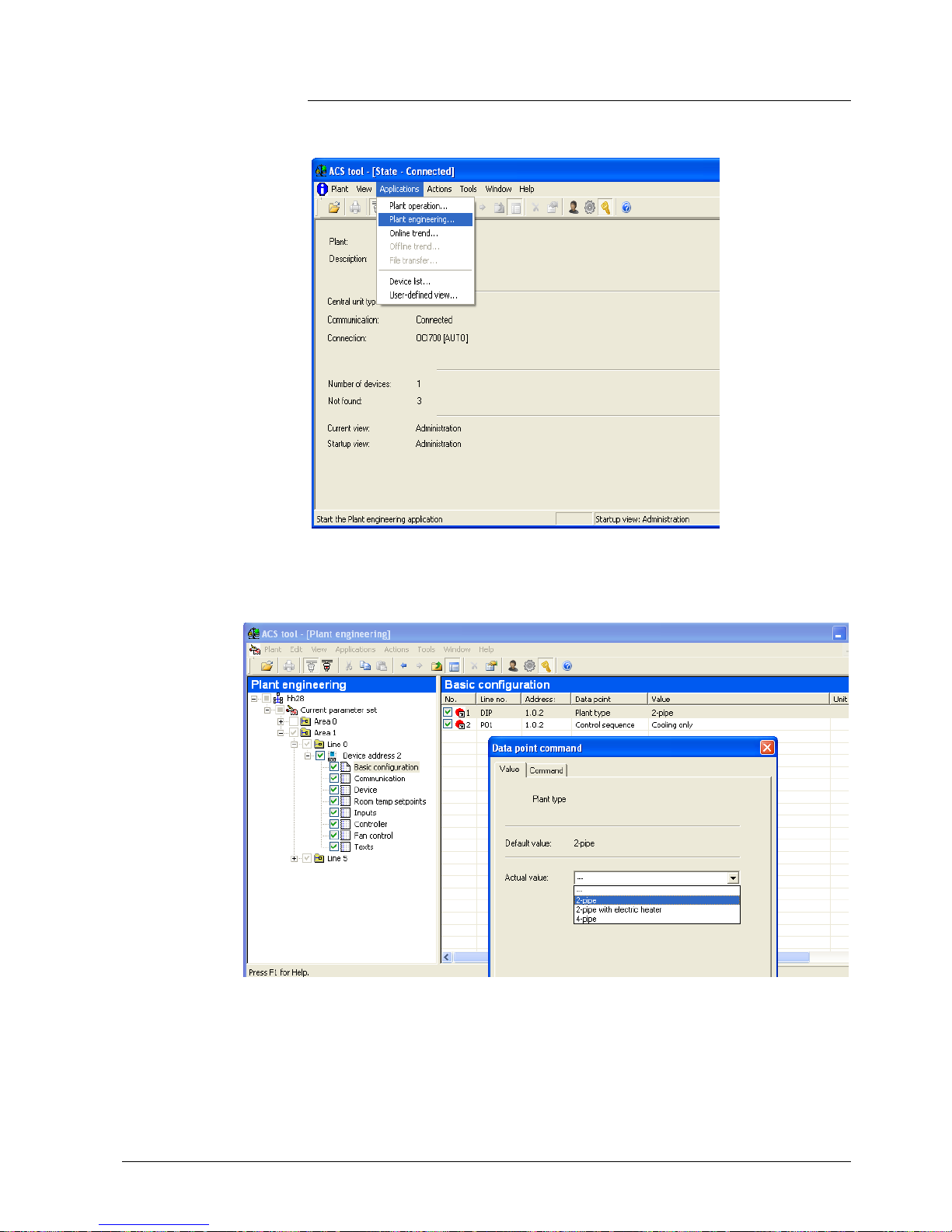

5.2.1 Parameter settings in ACS
In the ACS program, select Plant, then Open to open the plant.
To start the parameter settings, select Applications, then Plant engineering…:
The application and control parameters can be adjusted and downloaded.
Column Line no. contains the parameter number as shown in the parameter table.
Refer to section 3.13, control parameters.
Page 82
82 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
5.2.2
In the
ACS
To start monitoring and operation, select
ACS supports parameter
To change
∂
Make sure you have logged on with sufficient access
∂ O
nly control parameter can be changed
ACS
Parameter settings in
ACS
Note:
, RDF600KN/S Basic D
ocumentation
Operation and monitoring with ACS
program, select Plant, then Open
to open the plant.
Applications,
then
settings even
during normal operation.
a control parameter, select Popcard, then
Settings
right
, no application!
CE1P3171en
2017-12-07
Plant operation.
.
Page 83
83 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
ACS offers plant diagrams for easy monitoring and operation of the thermostat.
To start this application, select Applications, then Pant diagram.
Plant diagram in ACS
Page 84
84 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
ACS
provides standard plant diagram
on the
configuration as follow
∂ Plant type
Application
Configuration
2-pipe
2-pipe fan coil unit
– Control sequence:
N
– Fan operation: N
ot disabled
Chilled / heated ceiling
– Control sequence:
C
– Fan operation: D
isabled
2-pipe and
electric
heater
2-pipe fan coil unit
with el
– Control sequence:
N
– Fan operation: N
ot disabled
4-pipe
4-pipe fan coil unit
– Control sequence:
N
– Fan operation: N
ot disabled
Fan coil unit main
/ secondary
– Control sequence:
A
– Fan operation: N
ot disabled
*
Not applicable for RDF301
, RDF600KN/S Basic D
ocumentation
s for RDF KNX
thermostats
s:
Application
Configuration
o impact (P01 = any)
(P52 <> 0)
Radiator*
– Control sequence:
H
– Fan operation: D
isabled
*
hangeover (P01 = 2,3)
(P52 = 0)
Chilled ceiling*
– Control sequence:
C
– Fan operation: D
isabled
ectric heater
o impact (P01 = any)
(P52 <> 0)
Single stage with el
ectric
– Control sequence:
N
– Fan operation: D
isabled
ot auto c/o (P01 <> 3)
(P52 <> 0)
Chilled ceiling with
radiator
– Control sequence:
N
– Fan operation: D
isabled
uto c/o (P01 = 3)
(P52 <> 0)
Main / secondary
– Control sequence:
A
– Fan operation: D
isabled (P52
and RDF301.50.
CE1P3171en
2017-12-07
, which depend
eating only (P01 = 0)
(P52 = 0)
ooling only (P01 = 1)
(P52 = 0)
heater
o impact (P01 =any)
(P52 = 0)
*
o impact (P01 =any)
(P52 = 0)
uto c/o (P01 = 3)
= 0)
Page 85
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
5.2.3
The
OZW772
remote location
A
start page
navigation enables users to access
The entire installation can be visualized in the form of plant diagrams.
state
messages can be forwarded to different message receivers
SMS,
etc.
For details
5.2.4
For details
The application cannot be displayed in
(
Parameter
0 = no application
1 = 2
2 = 2
4 = 4
Home Control app
for plant control
Note:
, RDF600KN/S Basic D
ocumentation
Operation
and monitoring with OZW772
web server enables users to operate a
Synco
– via PC, or from a smart phone –
using the HomeControl app.
shows the most important data points.
A combination of menu / path
all
data points quickly and straightforwardly.
, see Commissioning I
nstructions CE1C5701.
Operation
and monitoring with RMZ972
The RMZ792 is a communicating operator unit
designed for operating Synco™ 700 and RDF
KNX devices in a KNX network.
The operator unit is suited both for fixed
installation and mobile use (e.g. for use by the
service engineer).
Third-
party devices cannot be operated with it.
, see Basic Documentation CE1P3113.
the form of text,
instead a number is used:
Plant type on menu Basic setting):
-pipe
-pipe and electric heater
-pipe
85 / 94
CE1P3171en
2017-12-07
HVAC system from a
Alarm and
, such as e-mail,
Page 86
86 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
6. Connection
6.1 Connection terminals
L X1M
N
Q1 Q2 Q3
Y11N
SELV
Y21
X2
3171A01
CE+ CE
-
L, N Operating voltage AC 230 V
Q1 Control output "Fan speed 1 AC 230 V"
Q2 Control output "Fan speed 2 AC 230 V"
Q3 Control output "Fan speed 3 AC 230 V"
Y11,Y21 Control output "Valve" AC 230 V (NO, for normally
closed valves), output for compressor or output for
electric heater
X1, X2 Multifunctional inputs for temperature sensor (e.g.
QAH11.1) or potential-free switch
Factory setting:
– X1 = Operating mode switchover contact
– X2 = External sensor
(function can be selected via parameters P38 / P40).
M Measuring neutral for sensor and switch
CE+ KNX data +
CE- KNX data -
Page 87
87 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
6.2 Connection diagrams
Application
N1 Room thermostat
RDF301... , RDF600KN…
M1 1- or 3-speed fan
Y1 Valve actuator, 2- or 3-position
Y1, Y2 Valve actuator, 2-position
E1 Electric heater
C1, C2 1-stage compressor
S1, S2 Switch (keycard, window contact,
presence detector, etc.)
B1, B2 Temperature sensor (return air
temperature, external room
temperature, changeover sensor,
etc.)
CE+ KNX data +
CE- KNX data –
2-pipe, 2-position
2-pipe, 3-position
– Y11 = Open
– Y21 = Close
2-pipe and electric
heater
4-pipe
– Y1 = Heating
– Y2 = Cooling
1-stage compressor
– C1 = Heating
and / or
– C2 = Cooling)
1-stage compressor
and electric heater
L
N
10 A
L
N
Y11
Y21
AC 230 V
X1MX2
N1
M1
Y1
5(2)A
max.
5(2)A
max.
B2
S2
B1
S1
3
1
71A
1
2
Q1 Q2 Q3
I II III
CE+ CE-
KNX
Y1
5(2)A
max.
E1
5(2)A
max.
5(2)A
max.
Y1
C1
5(2)A
max.
Y1
5(2)A
max.
Y2
5(2)A
max.
C1
5(2)A
E1
5(2)A
C2
5(2)A
max.
Page 88
88 / 94
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
7.
Mechanical design
7.1
General
The thermostats consist of 2 parts:
∂
Front panel with
sensor
.
∂
Mounting base with power electronics
The rear of the mounting base
Slide the front panel in the mounting base and snap on.
RDF301, RDF600KN
1 Operating mode selector
2
Button for
3 Buttons
to
RDF301.50,
RDF600KN/S
4 Four buttons to control KNX actuators via KNX
(functions: switching, dimming, blind control, 8
RDF301.50H 5 Four
dedicated
via KNX
S
For o
peration
1
3
, RDF600KN/S Basic D
ocumentation
electronics, operating elements and built
.
carries
the screw terminals.
RDF301.50, RDF600KN/S
RDF301.50H
fan operation
adjust setpoints and control parameters
S-Mode
-bit scene)
buttons for hotel functions (Make Up Room, Do Not Disturb)
S
-Mode (functions: switching)
, refer to section 4.3.
2
2
1
3
4
4
5
1
CE1P3171en
2017-12-07
-in room temperature
5
2
3
Page 89
89 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
7.2 Dimensions
Dimensions in mm
RDF301... RDF600KN…
86
8
6
3
076M01
86
8
6
3
076M01
3171M13
14
30
16
3076M12
8
0
3
076M1
3_0
1
Page 90
90 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
8. Technical data
Power supply
Rated voltage AC 230 V
Overvoltage category III
Frequency 50/60 Hz
Power consumption
RDF301...
RDF600KN…
Max. 4 VA / 3.0 W
Max. 3.5 VA / 1.2 W
No internal fuse!
External preliminary protection with max C 10A circuit breaker is required in all
cases.
Outputs Fan control Q1, Q2, Q3-N
Rating Min, Max resistive (inductive)
AC 230 V
Min. 5 mA, Max. 5(2) A
Fans must NOT be connected in parallel!
Connect one fan directly, for additional fans,
one relay for each speed.
Control output Y11-N / Y21-N (NO)
Rating Min, Max resistive (inductive)
Max. total load current through terminal "L"
(Qx+Yxx)
AC 230 V
Min. 5 mA, Max. 5(2) A
Max. 7A
Caution
No internal fuse
External preliminary protection with max. C 10 A circuit breaker in the supply line
required under all circumstances
Inputs
Multifunctional input X1-M/X2-M
Temperature sensor input
Type
Temperature range
Cable length
Digital input
Operating action
Contact sensing
Parallel connection of several thermostats
for one switch
Insulation against mains voltage (SELV)
QAH11.1 (NTC)
0...49 °C
Max. 80 m
Selectable (NO/NC)
SELV DC 0...5 V/
max. 5 mA
Max. 20 thermostats per
switch
4 kV, reinforced insulation
Function of inputs:
External temperature sensor, heating / cooling
changeover sensor, operating mode switchover
contact, dew point monitor contact, enable electric
heater contact, fault contact, monitoring input
Selectable
X1: P38
X2: P40
KNX bus Interface type KNX, TP1-64
(electrically isolated)
Bus current RDF301...
RDF600KN…
20 mA
5 mA
Bus topology: See KNX Manual (see section 1.2 "Reference documents")
Caution
STOP
Note!
Page 91
Siemens
RDF301, RDF301.50..., RDF600KN
Building Technologies
Operational data
Switching differential (adjustable)
Heating mode
Cooling mode
Setpoint setting and range
Comfort
Economy
Protection
Multifunctional input X1/X2
Input X1
Input X2
Built-
in room temperature sensor
Measuring
Accuracy at 25 °C
Temperature calibration range
Settings and display resolution
Setpoints
Current temperature value displayed
Environmental conditions
Operation
Climatic conditions
Temperature
Humidity
Transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
Storage
Climatic conditions
Temperature
Humidity
Standards and directives
EU C
onformity
Electronic control type
RCM
Safety class
Pollution class
Degree of protection of housing
The product environmental declaration
RDF600KN/S
assessments (RoHS compliance, materials composition, packaging,
environmental benefit, disposal).
General
Connection terminals
Minimal wiring cross section on
L, N, Q1, Q2, Q3, Y11, Y21
Housing front color
Weight without / with packaging
*)
The documents can be downloaded from
Environmental
Compatibility
, RDF600KN/S Basic D
ocumentation
(P30)
(P31)
2 K (0.5...6 K)
1 K (0.5...6 K)
(P08)
(P11-P12)
(P65-P66)
21°C (5...40 °C)
15°C/30 °C
8°C/OFF (OFF, 5...40 °C)
default value (P38)
default value (P40)
Selectable 0...8
3 (operating mode
1 (external temperature
range
0…49 °C
< ± 0.5 K
± 3.0 K
0.5 °C
0.5 °C
IEC
Class 3K5
0...50 °C
<95% r.h.
IEC
Class 2K3
-
<95% r.h.
Class 2M2
IEC
Class 1K3
-
<95% r.h.
(CE) RDF301...
RDF600KN...
CE1T3171xx
CE1T3171xx_1
2.B (micro
on operation)
Mark conformity (Emission) RDF301…
RDF600KN…
CE1T3171en_C1
CE1T3076en_C1
II as per EN
Normal
IP30 as per EN
CE1E3076_3en
*)
) contains data on environmen
tally compatible product design and
RDF301...
RDF600KN…
http://s
iemens.com/bt/download
91 / 94
CE1P3171en
2017-12-07
(OFF, 5...40 °C)
switchover)
sensor)
60721-3-3
60721-3-2
25...60 °C
60721-3-1
25...60 °C
*)
*)
-disconnection
*)
*)
60730
60529
(for RDF600KN and
Solid wires or prepared
stranded wires
1 x 0.4…1.5 mm
2
min 1.5 mm
2
RAL 9003 white
0.240 kg / 0.320 kg
0.150 kg / 0.220 kg
.
Page 92
92 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic documentation CE1P3171en
Building Technologies Index 2017-12-07
Index
1
1-speed fan ........................................................... 48
3
3-position control signal ........................................ 45
3-speed fan ........................................................... 48
A
Applications overview ........................................... 27
Auto Timer mode .................................................. 16
Automatic heating / cooling changeover ......... 31, 34
Automatic heating / cooling changeover via bus .. 31
B
Basic application ................................................... 41
Button lock ............................................................ 33
C
Celsius .................................................................. 13
Changeover switch ............................................... 31
Chilled / heated ceiling applications ..................... 41
Clean fan filter reminder ....................................... 49
Compressor applications .......................... 29, 30, 42
Control outputs configuration ................................ 46
Control outputs overview ...................................... 45
Control parameters ............................................... 66
Control sequences ................................................ 34
Cooling demand .................................................... 57
Cooling sequence ................................................. 34
D
Dew point monitoring ...................................... 33, 50
Diagnostic ............................................................. 66
Disposal ................................................................ 76
E
Effect of Protection via time schedule................... 16
Electric heater ....................................................... 38
Enable / disable electric heater....................... 38, 51
Expert level parameters ........................................ 66
Extension of Comfort mode .................................. 19
External / return air temperature ........................... 50
External / return air temperature sensor ............... 31
F
Fahrenheit ............................................................. 13
Fan in Auto Timer mode ........................................ 49
Fan in dead zone .................................................. 68
Fan kick function ................................................... 48
Fan minimum on-time ........................................... 48
Fan operation as per heating / cooling mode, or
disabled ............................................................. 48
Fan operation in dead zone .................................. 48
Fan overrun .......................................................... 49
Fan start ............................................................... 49
Fan start delay ...................................................... 49
Fault ...................................................................... 51
Fault on KNX ........................................................ 58
Fault, handling ...................................................... 52
Floor cooling ......................................................... 32
Floor heating ......................................................... 32
Floor temperature limitation function .................... 32
H
Heating / cooling changeover ......................... 31, 50
Heating and cooling sequence ............................. 34
Heating demand ................................................... 57
Heating sequence................................................. 34
I
Integral action time ............................................... 13
K
KNX addressing .................................................... 74
M
Main and secondary ............................................. 40
Manual heating / cooling changeover .................. 31
Minimum output .................................................... 32
Moisture ................................................................ 32
Mounting and installation ...................................... 72
Multifunctional inputs ............................................ 50
O
ON/OFF control signal .......................................... 45
Operating mode
Priority intervention ........................................... 15
Operating mode button ......................................... 16
Operating mode switchover .................................. 50
Outside temperature ............................................. 13
P
Parameter setting ................................................. 66
Power failure ......................................................... 52
Precomfort ............................................................ 16
Presence detector ................................................ 14
Proportional band ................................................. 13
Protection mode / Standby ................................... 14
Purge function ...................................................... 32
PWM ..................................................................... 45
Page 93
93 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
R
Radiator applications ............................................ 41
Reload factory settings ......................................... 66
Remote heating / cooling changeover ................. 31
Reset parameters ................................................. 66
S
Sensor input .......................................................... 50
Setpoint Comfort mode ......................................... 43
Setpoint Economy mode ...................................... 43
Setpoint limitation ................................................. 24
Setpoint priority ..................................................... 27
Setpoint Protection mode ..................................... 43
Setpoints and sequences ..................................... 43
Standby / Protection mode .................................... 14
Switching differential ............................................. 13
Switching groups ................................................... 59
Synchronization ..................................................... 45
T
Temperature out of range ...................................... 52
Temporary setpoint ................................................ 24
Test ........................................................................ 66
Time of day ............................................................ 13
Time schedule change mode ................................ 16
W
Window state .............................................14, 15, 50
Page 94
94 / 94
Siemens RDF301, RDF301.50..., RDF600KN, RDF600KN/S Basic Documentation CE1P3171en
Building Technologies 2017-12-07
Issued by
Siemens Switzerland Ltd.
Building Technologies Division
International Headquarters
Gubelstrasse 22
CH-6300 Zug
Tel. +41 58-724 24 24
© Siemens Switzerland Ltd, 2010 - 2017
Technical specifications and availability subject to change without notice.
www.siemens.com/buildingtechnologies
