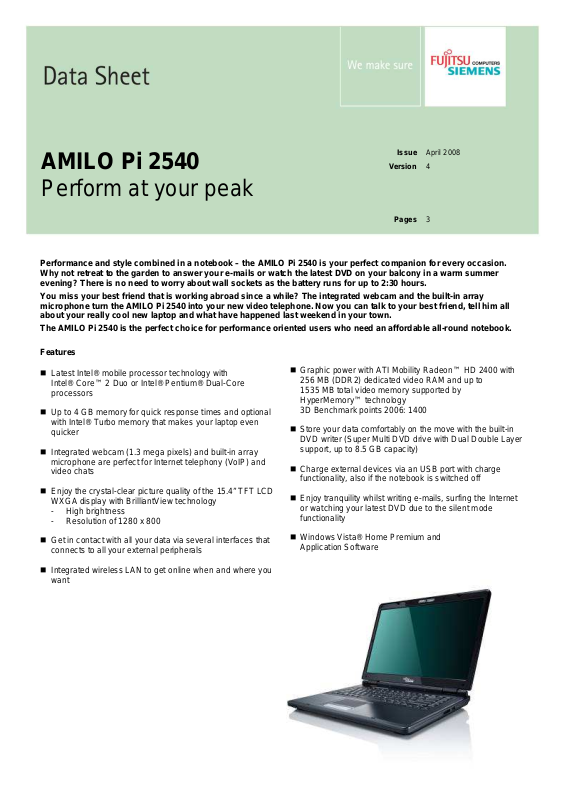

AMILO Pi 2540

Version 4

Perform at your peak

Pages 3

Performance and style combined in a notebook – the AMILO Pi 2540 is your perfect companion for every occasion.
Why not retreat to the garden to answer your e-mails or watch the latest DVD on your balcony in a warm summer
evening? There is no need to worry about wall sockets as the battery runs for up to 2:30 hours.

You miss your best friend that is working abroad since a while? The integrated webcam and the built-in array
microphone turn the AMILO Pi 2540 into your new video telephone. Now you can talk to your best friend, tell him all
about your really cool new laptop and what have happened last weekend in your town.

The AMILO Pi 2540 is the perfect choice for performance oriented users who need an affordable all-round notebook.

Features

 Latest Intel® mobile processor technology with

Intel® Core™ 2 Duo or Intel® Pentium® Dual-Core
processors

 Up to 4 GB memory for quick response times and optional

with Intel® Turbo memory that makes your laptop even
quicker

 Integrated webcam (1.3 mega pixels) and built-in array

microphone are perfect for Internet telephony (VoIP) and
video chats

 Enjoy the crystal-clear picture quality of the 15.4” TFT LCD

WXGA display with BrilliantView technology

- High brightness

- Resolution of 1280 x 800

 Get in contact with all your data via several interfaces that

connects to all your external peripherals

 Integrated wireless LAN to get online when and where you

want

 Graphic power with ATI Mobility Radeon™ HD 2400 with

256 MB (DDR2) dedicated video RAM and up to
1535 MB total video memory supported by
HyperMemory™ technology
3D Benchmark points 2006: 1400

 Store your data comfortably on the move with the built-in

DVD writer (Super Multi DVD drive with Dual Double Layer
support, up to 8.5 GB capacity)

 Charge external devices via an USB port with charge

functionality, also if the notebook is switched off

 Enjoy tranquility whilst writing e-mails, surfing the Internet

or watching your latest DVD due to the silent mode
functionality

 Windows Vista® Home Premium and

Application Software

Issue April 2008

Data Sheet  Issue: April 2008 AMILO Pi 2540 Page 2 / 3

Operating system

Windows Vista® Home Premium (32-bit version)

Fujitsu Siemens Computers recommends
Windows Vista® Home Premium

Optional Application Software

Microsoft® Works
Vista DVD Playback Pack
Nero 7 Essentials (CD/DVD write software)
CyberLink PowerDV (software for webcam)
Adobe Reader
Norton Internet Security 2007
Country specific Internet Service Providers

Fujitsu Siemens Computers Recovery Program

Backup and restore the original status of the hard disk and
create system restore disks

or individual recovery media on CD or DVD are included

Manuals

Manual (on hard disk), quick start guide, safety guide,
warranty guide, recovery guide

Drivers

Updates downloadable at
http://www.fujitsu-siemens.com

System, processor, architecture

Chipset: Intel® 965PM+ICH8-M
CPU: Intel® Core™ 2 Duo processor
T8100 (2.1 GHz, 800 MHz, 3 MB L2 cache)
T7250 (2.0 GHz, 800 MHz, 2 MB L2 cache)

Intel® Pentium® Dual-Core processor
T2330 (1.6 GHz, 533 MHz, 1 MB L2 cache)

Memory

2 SO-DIMM memory slots (no memory on board)
1 GB DDR2 667 MHz module
2 GB DDR2 667 MHz module
Up to 4 GB system memory possible1

Turbo Memory (optional)

Intel® Turbo Memory (1 GB)

Storage devices/drives
HDD (SATA / 5400 rpm):

160, 250 or 320 GB SATA hard disk

ODD:

Super Multi format DVD burner with double layer (DL)
support
Read speed: CD-ROM 24x, DVD-ROM 8x
Write speed: CD-R 24x, CD-RW 16x, DVD+R 8x,
DVD-R 8x, DVD+RW 8x, DVD-RW 6x,
DVD+R DL (8.5 GB) 4x,
DVD-R DL (8.5 GB) 4x, DVD-RAM 5x

Display

15.4” TFT WXGA display with BrilliantView technology
Resolution (physic.) 1280 x 800
Brightness (typ.) up to 180 cd/m²
Contrast (typ.) up to 300:1

Compliance with standards
ISO 13406-2 class II

ACPI functions

S1 standby (LCD off)
S3 save to RAM
S4 save to disk
S5 soft off
Complete boot

Graphics

PCI Express graphic card ATI Mobility Radeon™ HD 2400
with 256 MB dedicated video RAM (DDR2) and
up to 1535 MB total video memory supported by
HyperMemory™ technology 2
(Benchmark: 3D mark 2006 up to 1400 points)

- ATI PowerPlay™ 7.0 for extended battery life

- ATI Avivo™ HD Display Technology for superior
quality pictures and videos

- Full DirectX® 10 Shader Model support for realistic
mobile gaming

I/O Interfaces

3x USB 2.0 ports, 1x CIR
1x DVI-D, 1x VGA
1x modem, 1x LAN
1x ExpressCard slot (34/54 mm)
1x headphone out combined with 1x S/PDIF digital out
1x microphone in combined with 1x line in,
1x power supply
1x 4-in-1 card reader SD/MS/MMC/MMCPRO

Communications

Built-in 56 K, V.92 fax modem
10/100 Mbps LAN
Integrated Wireless LAN (WLAN) 802.11b/g:

- speeds up to 54 Mbps

- industry standard wireless LAN security support
For use in BE, CH, DK, DE, EE, FI, FR, EL, IE, IS, IT, LI,
LV, LT, LU, MT, NL, NO, PL, AT, PT, SE, SK, ES, CZ, HU,
UK, CY, NL

Audio

Support of HD audio for S/PDIF output with up to 7.1
channels,
2 built-in speakers (2 x 2 W),
2 built-in array microphones,
microphone in combined with stereo line-in,
headphone out combined with S/PDIF support
1x volume regulator (per function key)

Webcam

1.3 Mpixel, auto focus, automatic brightness adjustment
with status LED (on/off/busy)
