Siemens MICROMASTER 6SE92 Getting Started

Page 1

Press this green button (RUN button) to start the motor.

This is the STOP button.

While the motor is turning, press this UP button and watch as the motor turns faster and the value in the display increases. It will keep increasing until it reaches 50 Hz.

When the inverter reaches 50Hz output, press this DOWN button and watch the motor speed and display value decrease.

Jog

Forward/ reverse

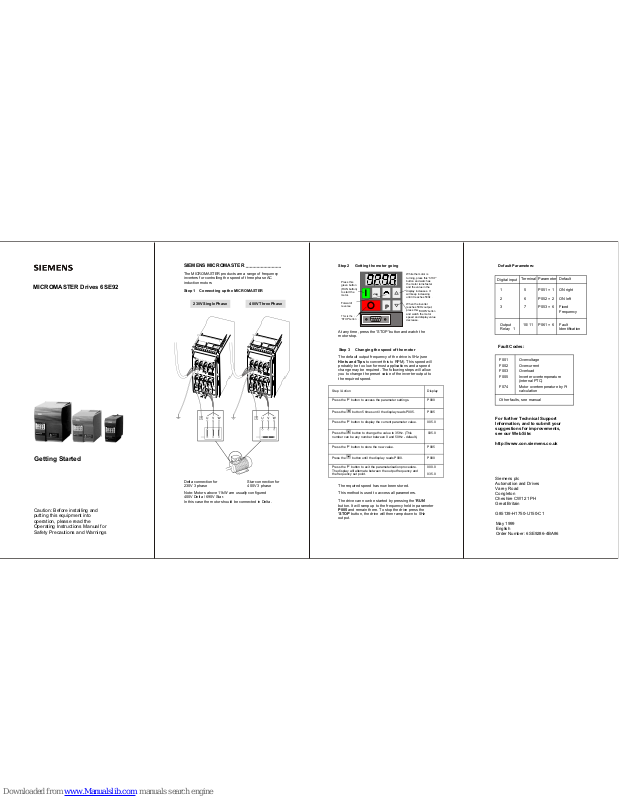

MICROMASTER Drives 6SE92

Getting Started

Caution: Before installing and putting this equipment into operation, please read the Operating Instructions Manual for Safety Precautions and Warnings

SIEMENS MICROMASTER

The MICROMASTER products are a range of frequency inverters for controlling the speed of three phase AC induction motors

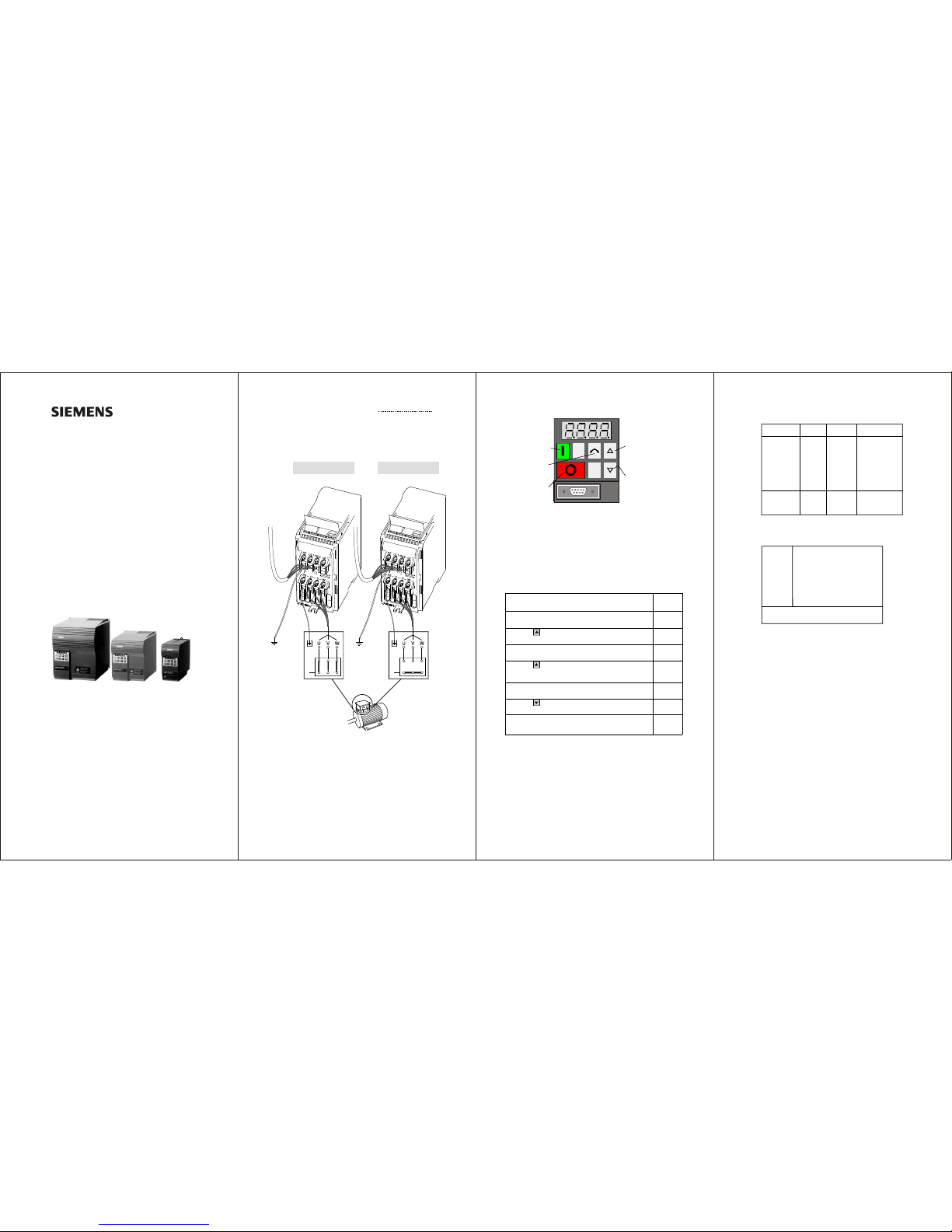

Step 1 Connecting up the MICROMASTER

230V Single Phase 400V Three Phase

Delta connection for 230V 3 phase

Star connection for 400V 3 phase

Note: Motors above 11kW are usually configured 400V Delta / 690V Star. In this case the motor should be connected in Delta.

At any time, press the 'STOP' button and watch the motor stop.

Step 3 Changing the speed of the motor

Step 2 Getting the motor going

The default output frequency of the drive is 5Hz (see Hints and Tips to convert this to RPM). This speed will probably be too low for most applications and a speed change may be required. The following steps will allow you to change the preset value of the inverter output to the required speed.

Step / Action

Display

Press the 'P' button to access the parameter settings.

P000

P005

005.0

035.0

P005

P000

000.0

035.0

Press the button 5 times until the display reads P005.

Press the 'P' button to display the current parameter value.

Press the button to change the value to 35Hz. (This number can be any number between 0 and 50Hz - default.)

Press the 'P' button to store the new value.

Press the button until the display reads P000.

Press the 'P' button to exit the parameterisation procedure. The display will alternate between the output frequency and the frequency set point.

The required speed has now been stored.

This method is used to access all parameters.

The drive can now be started by pressing the 'RUN' button. It will ramp up to the frequency held in parameter P005 and remain there. To stop the drive press the 'STOP' button, the drive will then ramp down to 0Hz output.

Default Parameters:

Digital input

ParameterTerminal Default

P051 = 1

P052 = 2

P053 = 6

ON right

ON left

Fixed Frequency

Output Relay 1

10/11

P061 = 6

Fault Identification

Fault Codes:

Motor overtemperature by I²t calculation

Other faults, see manual

F001 F002 F003 F005

F074

Overvoltage Overcurrent Overload

Inverter overtemperature (internal PTC)

http://www.con.siemens.co.uk

For further Technical Support Information, and to submit your suggestions for improvements, see our Web Site:

May 1999 English Order Number: 6SE9286-4BA86

Siemens plc Automation and Drives Varey Road Congleton Cheshire CW12 1PH Great Britain

G85139-H1750-U150-C1

This is the STOP button''

STOP''

'DOWN' button

Page 2

3_ Mot IEC 56 IM B3

1LA7053-2AA10

Nr. ED510 3053 IP54 Rot KL 16

12 022 I.CI.F

60 Hz 440V Y

0.34A

0.14kW

3360 /min

VDE 0530 S.F. – 1.15

Cos 0.81

P085P082

P083

0.61 0.35A

50Hz

230 400

0.12kW

2800 /min

Cos .810

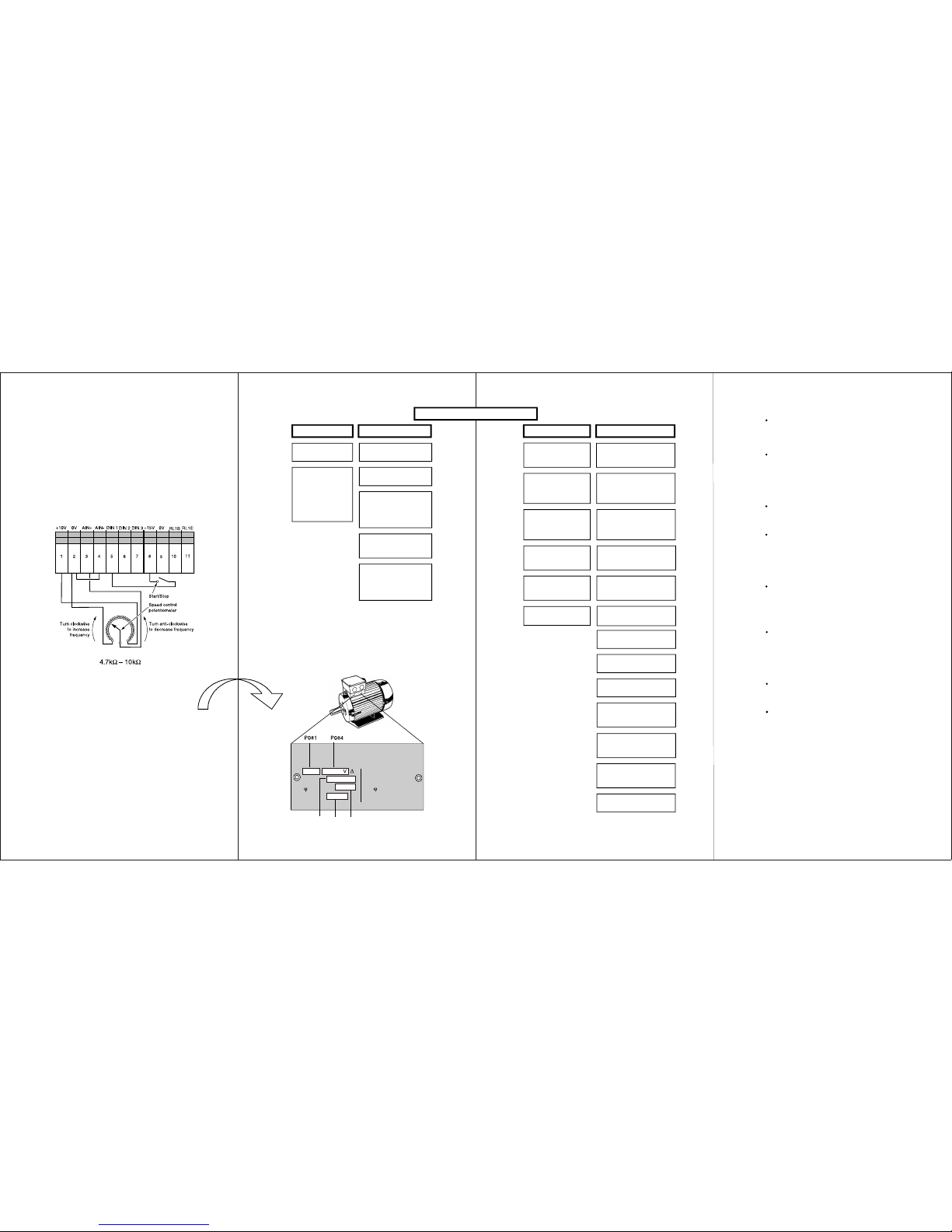

Step 4 Controlling the motor speed with a potentiometer

A potentiometer can be used to control the running speed of the inverter. This is achieved by varying the voltage applied to the analogue input. Connect the potentiometer to the control terminals shown below. Starting and stopping of the motor may be achieved by connecting a switch to the digital input terminals shown.

P006 Set to 1 to allow analogue input P007 Set to 0 to enable control via digital input

The following parameter settings are required

To get the best performance from your drive, you should enter information from your motor ratings plate into certain parameters. The following diagram indicates the location of the information and the parameters which should be entered.

Telling the drive about your motor

Commissioning MICROMASTER Basic

Display parameters

Basic parameters

Select display

via P001

0 = output frequency 1 = frequency setpoint 2 = motor current 5 = Motor speed (RPM)

Display frequency,

motor current and motor

speed:

P001

Ramp-up time

P002 0-650 sec.

Ramp-down time

P003 0-650 sec.

0 = digital 1 = analog 2 = fixed frequency

Frequency setpoint

P006

Keypad control

P007

0 = disable 1 = enable

Parameter protection P009

0 = only P001-P009 can be altered 2, 3 = all can be altered.

Motor parameters

Frequently used parameters

Nominal rating plate frequency for motor

P081 0-400Hz

Nominal rating plate speed

for motor

P082 0-9999 RPM

Nominal rating plate

current for motor

P083 0.1-99.9A

Nominal rating plate

voltage for motor

P084 0-1000V

Nominal rating plate power

for motor

P085 0-100kW

Motor current limit

P086 0-250%

Minimum motor frequency

P012

0-400Hz.

Maximum motor frequency

P013

0-400Hz

Automatic restart after mains

failure

P015

0 = disable 1 = enable

Start on the fly

P016

0 = disable 2 = enable

Analogue input

P023

0 = 0-10V 1 = 2-10V

Fixed frequency operation

P041-048

0-400Hz

Input terminal function

P051-053

Selection relay output

P061

DC injection braking

P073 0-150%

Pulse frequency

P076

See Operator Manual

Control mode

P077

See Operator Manual

Continuous boost

P078

0-250%

See Operator Manual for other

parameters

Hints and Tips

The direction of rotation of the motor can be reversed during commissioning by changing over two of the output connections on the inverter, or by pressing the Forward/Reverse button.

Parameters P000 to P009 can always be read or set. Access to all other parameters is controlled by the contents of P009. The factory default value is '0' which only allows access to P000 to P009. Changing its value to '3' allows all parameters to be accessed permanently. See Operator Manual for the function of other values of P009.

In case there are problems with the parameter settings and wish to start again, change P944 to '1'. This will perform a reset to the default values.

The value displayed in P000 is the output frequency of the inverter, this is the default setting but it can be changed by altering the value in P001. For example, changing P001 to a value of '5' will cause the inverter to display the RPM of the motor in P000. See the Operator Manual for other settings of P001.

The default value (0) of parameter P006 ensures that the drive runs at the frequency set in P005. In order to control the output frequency by an analogue input signal, the value of P006 should be set to '1'. For other methods of control using P006, see the Operator Manual.

An F002 fault is often caused by either too short a ramp up time or too much voltage boost. An increase in the value in P002 will increase the ramp time. Alternatively lower the values in P078 and P079 to reduce the voltage boost. Please note that if P078 falls below '100' (default value) then the motor may under-perform at low frequencies.

An F001 fault is often caused by attempting to stop the motor too quickly increasing the value in P003 (ramp-down time) will reduce this possibility.

If the display flashes during operation, the drive is registering a warning. Check P931 for the cause.
