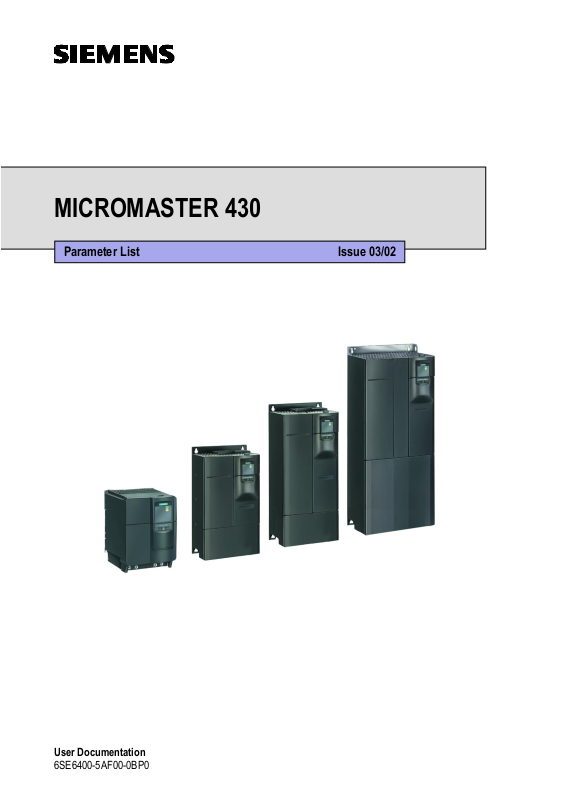

MICROMASTER 430

Parameter List Issue 03/02

User Documentation

6SE6400-5AF00-0BP0

Getting Started Guide

Is for quick commissioning with SDP and BOP-2.

Operating Instructions

Gives information about features of the MICROMASTER 430, Installation, Commissioning, Control modes, System Parameter structure, Troubleshooting, Specifications and available options of the MICROMASTER 430

Parameter List

The Parameterlist containes the description of all Parameters structured in functional order and a detailed description. The Parameter list also includes a series of function plans.

Catalogues

In the catalogue you will find all needs to select a certain inverter, as well as filters chokes, operator panels or communications options.

Parameter List

MICROMASTER 430

Parameter List

User Documentation

Function Diagrams

Alarms and Warnings

alid fo

Converter Type

MICROMASTER 430 Software V2.0

Issue 03/02

Parameters Issue 03/02

Warning

Please refer to all Definitiones and Warnings contained in the Operating Instructions. You will find the Operating Instructions on the Docu CD delivered with your inverter. If the CD is lost, it can be ordered via your local Siemens department under the Order No. 6SE6400-5FA00-1AG00.

Further information can be obtained from Internet website:

http://www.siemens.de/micromaster

Approved Siemens Quality for Software and Training is to DIN ISO 9001, Reg. No. 2160-01

The reproduction, transmission or use of this document, or its contents is not permitted unless authorized in writing. Offenders will be liable for damages. All rights including rights created by patent grant or registration of a utility model or design are reserved.

MICROMASTER® is a registered trademark of Siemens

Other functions not described in this document may be available. However, this fact shall not constitute an obligation to supply such functions with a new control, or when servicing.

We have checked that the contents of this document correspond to the hardware and software described. There may be discrepancies nevertheless, and no guarantee can be given that they are completely identical. The information contained in this document is reviewed regularly and any necessary changes will be included in the next edition. We welcome suggestions for improvement.

Siemens handbooks are printed on chlorine-free paper that has been produced from managed sustainable forests. No solvents have been used in the printing or binding process.

Document subject to change without prior notice.

Order number: 6SE6400-5AF00-0BP0 Printed in the Federal of German

Siemens-Aktiengesellschaft.

Parameter List MICROMASTER 430

4 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

Parameters MICROMASTER 430

This Parameter List must only be used together with the Operating Instructions or the Reference Manual of the MICROMASTER 430. Please pay special attention to the Warnings, Cautions, Notices and Notes contained in these manuals.

Table of Contents

1 Parameters.................................................................................................................... 7

1.1 Introduction to MICROMASTER 430 System Parameters ............................................ 7

1.2 Quick commissioning (P0010=1) ................................................................................... 9

1.3 Parameter Description.................................................................................................. 11

2 Function Diagrams................................................................................................... 169

3 Faults and Alarms .................................................................................................... 191

3.1 Fault messages .......................................................................................................... 191

3.2 Alarm messages......................................................................................................... 196

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

Parameter List MICROMASTER 430

6 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

1 Parameters

1.1 Introduction to MICROMASTER 430 System Parameters

The layout of the parameter description is as follows.

1 Par number 2 Parameter name 9 Min:

[index] 3 CStat: 5 Datatype 7 Unit: 10 Def:

4 P-Group: 6 active: 8 Quick Comm: 11 Max:

13 Description:

1. Parameter number Indicates the relevant parameter number. The numbers used are 4-digit numbers in the range 0000 to 9999. Numbers prefixed with an “r” indicate that the parameter is a “read-only” parameter, which displays a particular value but cannot be changed directly by specifying a different value via this parameter number (in such cases, dashes “-“ are entered at the points “Unit”, “Min”, “Def” and “Max” in the header of the parameter description. All other parameters are prefixed with a “P”. The values of these parameters can be changed directly in the range indicated by the “Min” and “Max” settings in the header.

[index] indicates that the parameter is an indexed parameter and specifies the number of indices available.

2. Parameter name Indicates the name of the relevant parameter. Certain parameter names include the following abbreviated prefixes: BI, BO, CI, and CO followed by a colon. These abbreviations have the following meanings:

BI = Binector input, i.e. parameter selects the source of a

BO = Binector output, i.e. parameter connects as a binary signal

P9999.C

r9999

(0)

binary signal

12 Level:

CI = Connector input, i.e. parameter selects the source of an

CO = Connector output, i.e. parameter connects as an analog

P9999.D

(999:9)

r9999 [99]

analog signal

signal

CO/BO = Connector/Binector output, i.e. parameter connects as an

r9999 r9999

analog signal and/or as a binary signal

To make use of BiCo you will need access to the full parameter list. At this level many new parameter settings are possible, including BiCo functionality. BiCo functionality is a different, more flexible way of setting and combining input and output functions. It can be used in most cases in conjunction with the simple, level 2 settings.

The BiCo system allows complex functions to be programmed. Boolean and mathematical relationships can be set up between inputs (digital, analog, serial etc.) and outputs (inverter current, frequency, analog output, relays, etc.).

3. CStat Commissioning status of the parameter. Three states are possible: Commissioning C Ready to run U Run T This indicates when the parameter can be changed. One, two or all three states may be specified. If all three states are specified, this means that it is possible to change this parameter setting in all three inverter states

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

4. P-Group Indicates the functional group of the particular.

Note

Parameter P0004 (parameter filter) acts as a filter and focuses access to parameters according to the functional group selected.

5. Datatype The data types available are shown in the table below.

Notation Meaning

U16 16-bit unsigned

U32 32-bit unsigned

I16 16-bit integer

I32 32-bit integer

Float Floating point

6. Active Indicates whether ♦ Immediately changes to the parameter values take effective immediately

after they have been entered, or

♦ first confirm the “P” button on the operator panel (BOP or AOP) must be

pressed before the changes take effect.

7. Unit Indicates the unit of measure applicable to the parameter values

8. QuickComm Indicates whether or not (Yes or No) a parameter can only be changed during quick commissioning, i.e. when P0010 (parameter groups for commissioning) is set to 1 (quick commissioning).

9. Min Indicates the minimum value to which the parameter can be set.

10. Def Indicates the default value, i.e. the value which applies if the user does not specify a particular value for the parameter.

11. Max Indicates the maximum value to which the parameter can be set.

12. Level Indicates the level of user access. There are four access levels: Standard, Extended, Expert and Service. The number of parameters that appear in each functional group depends on the access level set in P0003 (user access level).

13. Description The parameter description consists of the sections and contents listed below. Some of these sections and contents are optional and will be omitted on a caseto-case basis if not applicable.

Description: Brief explanation of the parameter function.

Diagram: Where applicable, diagram to illustrate the effects of parameters

on a characteristic curve, for example

Settings: List of applicable settings. These include

Possible settings, Most common settings, Index and Bitfields

Example: Optional example of the effects of a particular parameter setting.

Dependency: Any conditions that must be satisfied in connection with this

parameter. Also any particular effects, which this parameter has on other parameter(s) or which other parameters have on this one.

Warning / Caution / Notice / Note:

Important information which must be heeded to prevent personal injury or damage to equipment / specific information which should be heeded in order to avoid problems / information which may be helpful to the user

More details: Any sources of more detailed information concerning the

particular parameter.

Parameter List MICROMASTER 430

8 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

1.2 Quick commissioning (P0010=1)

The following parameters are necesarry for quick commissioning (P0010=1).

No Name Access level Cstat

P0100 Europe / North America 1 C

P0205 Inverter application 3 C P0300 Select motor type 2 C

P0304 Motor voltage rating 1 C P0305 Motor current rating 1 C

P0307 Motor power rating 1 C P0308 Motor cosPhi rating 2 C

P0309 Motor efficiency rating 2 C P0310 Motor frequency rating 1 C

P0311 Motor speed rating 1 C P0320 Motor magnetizing current 3 CT

P0335 Motor cooling 2 CT P0640 Motor overload factor [%] 2 CUT

P0700 Selection of command source 1 CT P1000 Selection of frequency setpoint 1 CT

P1080 Min. speed 1 CUT P1082 Max. speed 1 CT

P1120 Ramp-up time 1 CUT P1121 Ramp-down time 1 CUT

P1135 OFF3 ramp-down time 2 CUT P1300 Control mode 2 CT

P1500 Selection of torque setpoint 2 CT P1910 Select motor data identification 2 CT P3900 End of quick commissioning 1 C

When P0010=1 is chosen, P0003 (user access level) can be used to select the parameters to be accessed. This parameter also allows selection of a user-defined parameter list for quick commissioning.

At the end of the quick commissioning sequence, set P3900 = 1 to carry out the necessary motor calculations and clear all other parameters (not included in P0010=1) to their default settings.

Note

This applies only in Quick Commissioning mode.

Reset to Factory default

To reset all parameters to the factory default settings; the following parameters should be set as follows:

Set P0010=30.

Set P0970=1.

Note

The reset process takes approximately 10 seconds to complete. Reset to Factory default

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

Seven-segment display

The seven-segment display is structured as follows:

9 811 1013 1215 14Segment Bit

Segment Bit

1 03 25 47 6

The significance of the relevant bits in the display is described in the status and control word parameters.

Parameter List MICROMASTER 430

10 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

1.3 Parameter Description

r0000 Drive display Min: -

Datatype: U16 Unit: - Def: -

P-Group: ALWAYS Max: -

Displays the user selected output as defined in P0005.

Note:

Pressing the "Fn" button for 2 seconds allows the user to view the values of DC link voltage, output frequency, output voltage, output current, and chosen r0000 setting (defined in P0005).

r0002 Drive state Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays actual drive state.

Settings:

0 Commissioning mode (P0010 != 0) 1 Drive ready 2 Drive fault active 3 Drive starting (DC-link precharging) 4 Drive running 5 Stopping (ramping down)

Dependency:

State 3 visible only while precharging DC link, and when externally powered communications board is fitted.

P0003 User access level Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 1 P-Group: ALWAYS Active: first confirm QuickComm. No Max: 4

Defines user access level to parameter sets. The default setting (standard) is sufficient for most simple applications.

Settings:

0 User defined parameter list - see P0013 for details on use 1 Standard: Allows access into most frequently used parameters. 2 Extended: Allows extended access e.g. to inverter I/O functions. 3 Expert: For expert use only. 4 Service: Only for use by authorized service personal - password protected.

P0004 Parameter filter Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: ALWAYS Active: first confirm QuickComm. No Max: 22

Filters available parameters according to functionality to enable a more focussed approach to commissioning.

Example:

P0004 = 22 specifies that only PID parameters will be visible.

Settings:

0 All parameters 2 Inverter 3 Motor 4 Speed sensor 5 Technol. application / units 7 Commands, binary I/O 8 ADC and DAC 10 Setpoint channel / RFG 12 Drive features 13 Motor control 20 Communication 21 Alarms / warnings / monitoring 22 Technology controller (e.g. PID)

Dependency:

Parameters marked "Quick Comm: Yes" in the parameter header can only be set when P0010 = 1 (Quick Commissioning).

Note:

The inverter will start with any setting of P0004.

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0005[3] Display selection Min: 2

CStat: CUT Datatype: U16 Unit: - Def: 21 P-Group: FUNC Active: first confirm QuickComm. No Max: 2890

Selects display for parameter r0000 (drive display).

Settings:

21 Actual frequency 25 Output voltage 26 DC link voltage 27 Output current

Index:

P0005[0] : 1st. Drive data set (DDS) P0005[1] : 2nd. Drive data set (DDS) P0005[2] : 3rd. Drive data set (DDS)

Notice:

These settings refer to read only parameter numbers ("rxxxx").

Details:

See relevant "rxxxx" parameter descriptions.

P0006 Display mode Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 2 P-Group: FUNC Active: first confirm QuickComm. No Max: 4

Defines mode of display for r0000 (drive display).

Settings:

0 In Ready state alternate between setpoint and output frequency. In run display output frequency 1 In Ready state display setpoint. In run display output frequency. 2 In Ready state alternate between P0005 value and r0020 value. In run display P0005 value 3 In Ready state alternate between r0002 value and r0020 value. In run display r0002 value 4 In all states just display P0005

Note:

When inverter is not running, the display alternates between the values for "Not Running" and "Running".

Level:

Per default, the setpoint and actual frequency values are displayed alternately.

P0007 Backlight delay time Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: FUNC Active: first confirm QuickComm. No Max: 2000

Defines time period after which the backlight display turns off if no operator keys have been pressed.

Value:

P0007 = 0: Backlight always on (default state).

P0007 = 1 - 2000: Number of seconds after which the backlight will turn off.

Level:

Parameter List MICROMASTER 430

12 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0010 Commissioning parameter

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: ALWAYS Active: first confirm QuickComm. No Max: 30

Filters parameters so that only those related to a particular functional group are selected.

Settings:

0 Ready 1 Quick commissioning 2 Inverter 29 Download 30 Factory setting

Dependency:

Reset to 0 for inverter to run.

P0003 (user access level) also determines access to parameters.

Note:

P0010 = 1 The inverter can be commissioned very quickly and easily by setting P0010 = 1. After that only the important parameters (e.g.: P0304, P0305, etc.) are visible. The value of these parameters must be entered one after the other. The end of quick commissioning and the start of internal calculation will be done by setting P3900 = 1 - 3. Afterward parameter P0010 will be reset to zero automatically.

P0010 = 2 For service purposes only.

P0010 = 29 To transfer a parameter file via PC tool (e.g.: DriveMonitor, STARTER) parameter P0010 will be set to 29 by the PC tool. When download has been finished PC tool resets parameter P0010 to zero.

P0010 = 30 When resetting the parameters of inverter P0010 must be set to 30. Resetting of the parameters will be started by setting parameter P0970 = 1. The inverter will automatically reset all its parameters to their default settings. This can prove beneficial if you experience problems during parameter setup and wish to start again. Duration of factory setting will take about 60 s.

Min: 0

Level:

If P3900 is not 0 (0 is the default value), this parameter is automatically reset to 0.

P0011 Lock for user defined parameter Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: FUNC Active: first confirm QuickComm. No Max: 65535

Details:

See parameter P0013 (user defined parameter)

P0012 Key for user defined parameter Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: FUNC Active: first confirm QuickComm. No Max: 65535

Details:

See parameter P0013 (user defined parameter).

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0013[20] User defined parameter Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: FUNC Active: first confirm QuickComm. No Max: 65535

Defines a limited set of parameters to which the end user will have access.

Instructions for use: Step 1: Set P0003 = 3 (expert user) Step 2: Go to P0013 indices 0 to 16 (user list) Step 3: Enter into P0013 index 0 to 16 the parameters required to be visible in the user-defined list.

The following values are fixed and cannot be changed:

- P0013 index 19 = 12 (key for user defined parameter)

- P0013 index 18 = 10 (commissioning parameter filter)

- P0013 index 17 = 3 (user access level)

Step 4: Set P0003 = 0 to activate the user defined parameter.

Index:

P0013[0] : 1st user parameter P0013[1] : 2nd user parameter P0013[2] : 3rd user parameter P0013[3] : 4th user parameter P0013[4] : 5th user parameter P0013[5] : 6th user parameter P0013[6] : 7th user parameter P0013[7] : 8th user parameter P0013[8] : 9th user parameter P0013[9] : 10th user parameter P0013[10] : 11th user parameter P0013[11] : 12th user parameter P0013[12] : 13th user parameter P0013[13] : 14th user parameter P0013[14] : 15th user parameter P0013[15] : 16th user parameter P0013[16] : 17th user parameter P0013[17] : 18th user parameter P0013[18] : 19th user parameter P0013[19] : 20th user parameter

Dependency:

First, set P0011 ("lock") to a different value than P0012 ("key") to prevent changes to user-defined parameter. Then, set P0003 to 0 to activate the user-defined list.

Level:

When locked and the user-defined parameter is activated, the only way to exit the user-defined parameter (and view other parameters) is to set P0012 ("key") to the value in P0011 ("lock").

Note:

Alternatively, set P0010 = 30 (commissioning parameter filter = factory setting) and P0970 = 1 (factory reset) to perform a complete factory reset.

The default values of P0011 ("lock") and P0012 ("key") are the same.

r0018 Firmware version Min: -

Datatype: Float Unit: - Def: -

P-Group: INVERTER Max: -

Displays version number of installed firmware.

Level:

Parameter List MICROMASTER 430

14 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0019 CO/BO: BOP control word

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays status of operator panel commands.

The settings below are used as the "source" codes for keypad control when connecting to BICO input parameters.

Bitfields:

Bit00 ON/OFF1 0 NO

1 YES

Bit01 OFF2: Electrical stop 0 YES

1NO

Bit08 JOG right 0 NO

1 YES

Bit11 Reverse (setpoint inversion) 0 NO

1 YES

Bit12 Hand Operation 0 NO

1 YES

Bit13 Motor potentiometer MOP up 0 NO

1 YES

Bit14 Motor potentiometer MOP down 0 NO

1 YES

Bit15 Auto Operation 0 NO

1 YES

Note:

When BICO technology is used to allocate functions to panel buttons, this parameter displays the actual status of the relevant command.

The following functions can be "connected" to individual buttons:

- ON/OFF1,

- OFF2,

- JOG,

- REVERSE,

- INCREASE,

- DECREASE

Min: -

r0020 CO: Act. frequency setpoint Min: -

P-Group: CONTROL Max: -

Displays actual frequency setpoint (output from ramp function generator).

Datatype: Float Unit: Hz Def: -

r0021 CO: Act. frequency Min: -

P-Group: CONTROL Max: -

Displays actual inverter output frequency (r0024) excluding slip compensation, resonance damping and frequency limitation.

Datatype: Float Unit: Hz Def: -

r0022 Act. rotor speed Min: -

P-Group: CONTROL Max: -

Displays calculated rotor speed based on inverter output frequency [Hz] x 120 / number of poles.

Note:

This calculation makes no allowance for load-dependent slip.

Datatype: Float Unit: 1/min Def: -

r0024 CO: Act. output frequency Min: -

P-Group: CONTROL Max: -

Displays actual output frequency (slip compensation, resonance damping and frequency limitation are included).

Datatype: Float Unit: Hz Def: -

r0025 CO: Act. output voltage Min: -

P-Group: CONTROL Max: -

Displays [rms] voltage applied to motor.

Datatype: Float Unit: V Def: -

r0026 CO: Act. DC-link voltage Min: -

P-Group: INVERTER Max: -

Displays DC-link voltage.

Datatype: Float Unit: V Def: -

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

r0027 CO: Act. output current Min: -

Datatype: Float Unit: A Def: -

P-Group: CONTROL Max: -

Displays [rms] value of motor current [A].

r0031 CO: Act. filtered torque Min: -

Datatype: Float Unit: Nm Def: -

P-Group: CONTROL Max: -

Displays motor torque.

r0032 CO: Act. power Min: -

Datatype: Float Unit: - Def: -

P-Group: CONTROL Max: -

Displays motor power.

Dependency:

Value is displayed in [kW] or [hp] depending on setting for P0100 (operation for Europe / North America).

r0035[3] CO: Act. motor temperature Min: -

Datatype: Float Unit: °C Def: -

P-Group: MOTOR Max: -

Displays measured motor temperature.

Index:

r0035[0] : 1st. Drive data set (DDS) r0035[1] : 2nd. Drive data set (DDS) r0035[2] : 3rd. Drive data set (DDS)

r0037[2] CO: Inverter temperature [°C] Min: -

Datatype: Float Unit: °C Def: -

P-Group: INVERTER Max: -

Displays measured heatsink temperature and calculated junction temperature of IGBTs based on thermal model.

Index:

r0037[0] : Measured heat sink temperature r0037[1] : Chip temperature

r0038 CO: Act. power factor Min: -

Datatype: Float Unit: - Def: -

P-Group: CONTROL Max: -

Displays actual power factor.

Dependency:

Applies when V/f control is selected in P1300 (control mode); otherwise, the display shows the value zero.

r0039 CO: Energy consumpt. meter [kWh] Min: -

Datatype: Float Unit: kWh Def: -

P-Group: INVERTER Max: -

Displays electrical energy used by inverter since display was last reset (see P0040 - reset energy consumption meter).

Dependency:

Value is reset when

- P0010 = 1, P3900 = 1 -3 quick commissioning,

- P0010 = 30, P0970 = 1 factory reset or

- P0040 = 1 reset energy consumption meter.

P0040 Reset energy consumption meter Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: INVERTER Active: first confirm QuickComm. No Max: 1

Resets value of parameter r0039 (energy consumption meter) to zero.

Settings:

0 No reset 1 Reset r0039 to 0

Dependency:

No reset until "P" is pressed.

r0050 CO: Active command data set Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays currently selected and active command data set (CDS).

Settings:

0 1st. Command data set (CDS) 1 2nd. Command data set (CDS) 2 3rd. Command data set (CDS)

Details:

See parameter P0810.

Level:

Parameter List MICROMASTER 430

16 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0051[2] CO: Active drive data set (DDS)

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays currently selected and active drive data set (DDS).

Settings:

0 1st. Drive data set (DDS) 1 2nd. Drive data set (DDS) 2 3rd. Drive data set (DDS)

Index:

r0051[0] : Selected drive data set r0051[1] : Active drive data set

Details:

See parameter P0820.

Min: -

r0052 CO/BO: Act. status word 1 Min: -

P-Group: COMMANDS Max: -

Displays first active status word of inverter (bit format) and can be used to diagnose inverter status. The display segments for the status word are shown in the "Introduction to MICROMASTER System Parameters".

Bitfields:

Bit00 Drive ready 0 NO

Bit01 Drive ready to run 0 NO

Bit02 Drive running 0 NO

Bit03 Drive fault active 0 NO

Bit04 OFF2 active 0 YES

Bit05 OFF3 active 0 YES

Bit06 ON inhibit active 0 NO

Bit07 Drive warning active 0 NO

Bit08 Deviation setpoint / act. value 0 YES

Bit09 PZD control 0 NO

Bit10 Maximum frequency reached 0 NO

Bit11 Warning: Motor current limit 0 YES

Bit12 Motor holding brake active 0 NO

Bit13 Motor overload 0 YES

Bit14 Motor runs right 0 NO

Bit15 Inverter overload 0 YES

Note:

Output of Bit3 (Fault) will be inverted on digital output (Low = Fault, High = No Fault).

Datatype: U16 Unit: - Def: -

1 YES

1NO

1 YES

1NO

1 YES

1NO

1 YES

1NO

1 YES

1NO

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

r0053 CO/BO: Act. status word 2 Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays second status word of inverter (in bit format).

Bitfields:

Bit00 DC brake active 0 NO

1 YES

Bit01 Act. freq. r0021 > P2167 (f_off) 0 NO

1 YES

Bit02 Act. freq. r0021 > P1080 (f_min) 0 NO

1 YES

Bit03 Act. current r0027 >= P2170 0 NO

1 YES

Bit04 Act. freq. r0021 >= P2155 (f_1) 0 NO

1 YES

Bit05 Act. freq. r0021 < P2155 (f_1) 0 NO

1 YES

Bit06 Act. freq. r0021 >= setpoint 0 NO

1 YES

Bit07 Act. Vdc r0026 < P2172 0 NO

1 YES

Bit08 Act. Vdc r0026 > P2172 0 NO

1 YES

Bit09 Ramping finished 0 NO

1 YES

Bit10 PID output r2294 == P2292 (PID_min) 0 NO

1 YES

Bit11 PID output r2294 == P2291 (PID_max) 0 NO

1 YES

Bit14 Download data set 0 from AOP 0 NO

1 YES

Bit15 Download data set 1 from AOP 0 NO

1 YES

Details:

See description of seven-segment display given in the "Introduction to MICROMASTER System Parameters" in this manual.

r0054 CO/BO: Act. control word 1 Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays first control word of inverter and can be used to diagnose which commands are active.

Bitfields:

Bit00 ON/OFF1 0 NO

1 YES

Bit01 OFF2: Electrical stop 0 YES

1NO

Bit02 OFF3: Fast stop 0 YES

1NO

Bit03 Pulse enable 0 NO

1 YES

Bit04 RFG enable 0 NO

1 YES

Bit05 RFG start 0 NO

1 YES

Bit06 Setpoint enable 0 NO

1 YES

Bit07 Fault acknowledge 0 NO

1 YES

Bit08 JOG right 0 NO

1 YES

Bit09 JOG left 0 NO

1 YES

Bit10 Control from PLC 0 NO

1 YES

Bit11 Reverse (setpoint inversion) 0 NO

1 YES

Bit13 Motor potentiometer MOP up 0 NO

1 YES

Bit14 Motor potentiometer MOP down 0 NO

1 YES

Bit15 CDS Bit 0 (Local/Remote) 0 NO

1 YES

Details:

See description of seven-segment display given in the "Introduction to MICROMASTER System Parameters" in this manual.

Level:

Parameter List MICROMASTER 430

18 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0055 CO/BO: Add. act. control word

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays additional control word of inverter and can be used to diagnose which commands are active.

Bitfields:

Bit00 Fixed frequency Bit 0 0 NO

1 YES

Bit01 Fixed frequency Bit 1 0 NO

1 YES

Bit02 Fixed frequency Bit 2 0 NO

1 YES

Bit03 Fixed frequency Bit 3 0 NO

1 YES

Bit04 Drive data set (DDS) Bit 0 0 NO

1 YES

Bit05 Drive data set (DDS) Bit 1 0 NO

1 YES

Bit08 PID enabled 0 NO

1 YES

Bit09 DC brake enabled 0 NO

1 YES

Bit11 Droop 0 NO

1 YES

Bit12 Torque control 0 NO

1 YES

Bit13 External fault 1 0 YES

1NO

Bit15 Command data set (CDS) Bit 1 0 NO

1 YES

Details:

See description of seven-segment display given in the "Introduction to MICROMASTER System Parameters" in this handbook.

Min: -

r0056 CO/BO: Status of motor control Min: -

P-Group: CONTROL Max: -

Displays status of motor control (MM420: V/f status), which can be used to diagnose inverter status.

Bitfields:

Bit00 Init. control finished 0 NO

Bit01 Motor demagnetizing finished 0 NO

Bit02 Pulses enabled 0 NO

Bit03 Voltage soft start select 0 NO

Bit04 Motor excitation finished 0 NO

Bit05 Starting boost active 0 NO

Bit06 Acceleration boost active 0 NO

Bit07 Frequency is negative 0 NO

Bit08 Field weakening active 0 NO

Bit09 Volts setpoint limited 0 NO

Bit10 Slip frequency limited 0 NO

Bit11 F_out > F_max Freq. limited 0 NO

Bit12 Phase reversal selected 0 NO

Bit13 I-max controller active 0 NO

Bit14 Vdc-max controller active 0 NO

Bit15 KIB (Vdc-min control) active 0 NO

Details:

See description of seven-segment display given in the introduction.

Datatype: U16 Unit: - Def: -

1 YES

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

r0061 CO: Act. rotor speed Min: -

Datatype: Float Unit: Hz Def: -

P-Group: CONTROL Max: -

Displays current speed detected by encoder.

r0065 CO: Slip frequency Min: -

Datatype: Float Unit: % Def: -

P-Group: CONTROL Max: -

Displays slip frequency of motor in [%] relative to the rated motor frequency (P0310).

Details:

For V/f control, see also P1335 (slip compensation).

r0067 CO: Act. output current limit Min: -

Datatype: Float Unit: A Def: -

P-Group: CONTROL Max: -

Displays valid maximum output current of inverter.

This value is influenced by P0640 (max. output current), the derating characteristics and the thermal motor and inverter protection.

Dependency:

P0610 (motor I2t temperature reaction) defines reaction when limit is reached.

Note:

Normally, current limit = rated motor current (P0305) x motor current limit (P0640). It is less than or equal to maximum inverter current r0209.

The current limit may be reduced if the motor thermal model calculation indicates that overheating will occur.

r0071 CO: Max. output voltage Min: -

Datatype: Float Unit: V Def: -

P-Group: CONTROL Max: -

Displays maximum output voltage.

Level:

r0071

(Inverter)

P0304

(Motor)

Dependency:

Actual maximum output voltage depends on the actual input supply voltage.

max

= f(Vdc,MOD

max

P0310

(Motor)

Flux

(Inverter)

max

)

out

Power

Field weakening

r0080 CO: Actual torque Min: -

P-Group: CONTROL Max: -

Displays actual torque.

Datatype: Float Unit: Nm Def: -

Level:

Parameter List MICROMASTER 430

20 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0086 CO: Act. active current

Datatype: Float Unit: A Def: -

P-Group: CONTROL Max: -

Displays active (real part) of motor current.

Dependency:

Applies when V/f control is selected in P1300 (control mode); otherwise, the display shows the value zero.

Min: -

P0095[10] CI: Display PZD signals Min: 0:0

CStat: CT Datatype: U32 Unit: - Def: 0:0 P-Group: CONTROL Active: first confirm QuickComm. No Max: 4000:0

Selects source of display for PZD signals.

Index:

P0095[0] : 1st PZD signal P0095[1] : 2nd PZD signal P0095[2] : 3rd PZD signal P0095[3] : 4th PZD signal P0095[4] : 5th PZD signal P0095[5] : 6th PZD signal P0095[6] : 7th PZD signal P0095[7] : 8th PZD signal P0095[8] : 9th PZD signal P0095[9] : 10th PZD signal

r0096[10] PZD signals Min: -

P-Group: CONTROL Max: -

Displays PZD signals in [%].

Index:

r0096[0] : 1st PZD signal r0096[1] : 2nd PZD signal r0096[2] : 3rd PZD signal r0096[3] : 4th PZD signal r0096[4] : 5th PZD signal r0096[5] : 6th PZD signal r0096[6] : 7th PZD signal r0096[7] : 8th PZD signal r0096[8] : 9th PZD signal r0096[9] : 10th PZD signal

Note:

r0096 = 100 % corresponds to 4000 hex.

Datatype: Float Unit: % Def: -

P0100 Europe / North America Min: 0

CStat: C Datatype: U16 Unit: - Def: 0 P-Group: QUICK Active: first confirm QuickComm. Yes Max: 2

Determines whether power settings (e.g. nominal rating plate power - P0307) are expressed in [kW] or [hp].

Level:

The default settings for the nominal rating plate frequency (P0310) and maximum motor frequency (P1082) are also set automatically here, in addition to reference frequency (P2000).

Settings:

0 Europe [kW], frequency default 50 Hz 1 North America [hp], frequency default 60 Hz 2 North America [kW], frequency default 60 Hz

Dependency:

The setting of DIP switch 2 under the I/O board determines the validity of settings 0 and 1 for P0100 according to the table below:

DIP2 P0100

setting

OFF 1

ON 0

Stop drive first (i.e. disable all pulses) before you change this parameter.

P0010 = 1 (commissioning mode) enables changes to be made.

Changing P0100 resets all rated motor parameters as well as other parameters that depend on the rated motor parameters (see P0340 - calculation of motor parameters).

Notice:

P0100 setting 2 (==> [kW], frequency default 60 [Hz]) is not overwritten by the setting of DIP switch 2 (see table above).

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Power [kW] frequency default 50 [Hz]

Power [hp] frequency default 60 [Hz]

Meaning Meaning

overwrites

setting

Power [hp] frequency default 60 [Hz]

Power [kW] frequency default 50 [Hz]

Parameters Issue 03/02

P0199 Equipment system number Min: 0

CStat: UT Datatype: U16 Unit: - Def: 0 P-Group: - Active: first confirm QuickComm. No Max: 255

Equipment system number. This parameter has no operation effect.

r0200 Act. power stack code number Min: -

P-Group: INVERTER Max: -

Identifies hardware variant as shown in table below.

Code-

No.

271 6SE6430-2UD27-5CA0 3AC380-480V +10% -10% 47-63Hz 7,5 no IP20 C

272 6SE6430-2UD31-1CA0 3AC380-480V +10% -10% 47-63Hz 11 no IP20 C

273 6SE6430-2UD31-5CA0 3AC380-480V +10% -10% 47-63Hz 15 no IP20 C

274 6SE6430-2AD27-5CA 0 3A C380-480V +10% -10% 47-63Hz 7,5 Cl. A IP20 C

275 6SE6430-2AD31-1CA0 3A C380-480V +10% -10% 47-63Hz 11 Cl. A IP20 C

276 6SE6430-2AD31-5CA0 3A C380-480V +10% -10% 47-63Hz 15 Cl. A IP20 C

277 6SE6430-2UD31-8DA0 3AC380-480V +10% -10% 47-63Hz 18,5 no IP20 D

278 6SE6430-2UD32-2DA0 3AC380-480V +10% -10% 47-63Hz 22 no IP20 D

279 6SE6430-2UD33-0DA0 3AC380-480V +10% -10% 47-63Hz 30 no IP20 D

280 6SE6430-2AD31-8DA0 3A C380-480V +10% -10% 47-63Hz 18,5 Cl. A IP20 D

281 6SE6430-2AD32-2DA0 3A C380-480V +10% -10% 47-63Hz 22 Cl. A IP20 D

282 6SE6430-2AD33-0DA0 3A C380-480V +10% -10% 47-63Hz 30 Cl. A IP20 D

283 6SE6430-2UD33-7EA 0 3A C380-480V +10% -10% 47-63Hz 37 no IP20 E

284 6SE6430-2UD34-5EA 0 3A C380-480V +10% -10% 47-63Hz 45 no IP20 E

285 6SE6430-2AD33-7EA0 3AC380-480V +10% -10% 47-63Hz 37 Cl. A IP20 E

286 6SE6430-2AD34-5EA0 3AC380-480V +10% -10% 47-63Hz 45 Cl. A IP20 E

287 6SE6430-2UD35-5FA0 3AC380-480V +10% -10% 47-63Hz 55 no IP20 F

288 6SE6430-2UD37-5FA0 3AC380-480V +10% -10% 47-63Hz 75 no IP20 F

289 6SE6430-2UD38-8FA0 3AC380-480V +10% -10% 47-63Hz 90 no IP20 F

290 6SE6430-2AD35-5FA0 3A C380-480V +10% -10% 47- 63Hz 55 Cl. A IP20 F

291 6SE6430-2AD37-5FA0 3A C380-480V +10% -10% 47- 63Hz 75 Cl. A IP20 F

MM430

MLFB

Datatype: U32 Unit: - Def: -

Input Voltage & Frequency

VT Power

Internal

Filter

Protection

Degree

Level:

Frame

Size

Notice:

Parameter r0200 = 0 indicates that no power stack has been identified.

P0201 Power stack code number Min: 0

CStat: C Datatype: U16 Unit: - Def: 0 P-Group: INVERTER Active: first confirm QuickComm. No Max: 65535

Confirms actual power stack identified.

r0203 Act. inverter type Min: -

Datatype: U16 Unit: - Def: -

P-Group: INVERTER Max: -

Type number of actual power stack identified.

Settings:

1 MICROMASTER 420 2 MICROMASTER 440 3 MICRO- / COMBIMASTER 411 4 MICROMASTER 410 5 Reserved 6 MICROMASTER 440 PX 7 MICROMASTER 430

r0204 Power stack features Min: -

Datatype: U32 Unit: - Def: -

P-Group: INVERTER Max: -

Displays hardware features of power stack.

Bitfields:

Bit00 DC input voltage 0 NO

1 YES

Bit01 RFI filter 0 NO

1 YES

Note:

Parameter r0204 = 0 indicates that no power stack has been identified.

Level:

Parameter List MICROMASTER 430

22 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0206 Rated inverter power [kW] / [hp]

Datatype: Float Unit: - Def: -

P-Group: INVERTER Max: -

Displays nominal rated motor power from inverter.

Dependency:

Value is displayed in [kW] or [hp] depending on setting for P0100 (operation for Europe / North America).

Min: -

r0207 Rated inverter current Min: -

P-Group: INVERTER Max: -

Displays maximum continuous output current of inverter.

Datatype: Float Unit: A Def: -

r0208 Rated inverter voltage Min: -

P-Group: INVERTER Max: -

Displays nominal AC supply voltage of inverter.

Value:

r0208 = 230 : 200 - 240 V +/- 10 % r0208 = 400 : 380 - 480 V +/- 10 % r0208 = 575 : 500 - 600 V +/- 10 %

Datatype: U32 Unit: V Def: -

r0209 Maximum inverter current Min: -

P-Group: INVERTER Max: -

Displays maximum output current of inverter.

Datatype: Float Unit: A Def: -

P0210 Supply voltage Min: 0

CStat: CT Datatype: U16 Unit: V Def: 230 P-Group: INVERTER Active: Immediately QuickComm. No Max: 1000

Optimizes Vdc controller, which extends the ramp-down time if regenerative energy from motor would otherwise cause DC link overvoltage trips.

Level:

Reducing the value enables controller to cut in earlier and reduce the risk of overvoltage.

Dependency:

Set P1254 ("Auto detect Vdc switch-on levels") = 0. Cut-in levels for Vdc-controller and compound braking are then derived directly from P0210 (supply voltage).

Vdc_max switch-on level

Compound braking switch-on level

Note:

If mains voltage is higher than value entered, automatic deactivation of the Vdc controller may occur to avoid acceleration of the motor. An alarm will be issued in this case (A0910).

0210P21.15 ⋅⋅= 0210P21.13 ⋅⋅=

r0231[2] Max. cable length Min: -

P-Group: INVERTER Max: -

Indexed parameter to display maximum allowable cable length between inverter and motor.

Index:

r0231[0] : Max. allowed unscreened cable length r0231[1] : Max. allowed screened cable length

Notice:

For full EMC compliance, the screened cable must not exceed 25 m in length when an EMC filter is fitted.

Datatype: U16 Unit: m Def: -

P0290 Inverter overload reaction Min: 0

CStat: CT Datatype: U16 Unit: - Def: 2 P-Group: INVERTER Active: first confirm QuickComm. No Max: 3

Selects reaction of inverter to an internal over-temperature.

Settings:

0 Reduce output frequency 1 Trip (F0004) 2 Reduce pulse frequency and output frequency 3 Reduce pulse frequency then trip (F0004)

Notice:

P0290 = 0: Reduction of output frequency is usually only effective if the load is also reduced. This is for example valid for variable torque applications with a quadratic torque characteristic as pumps or fans.

Level:

A trip will always result eventually, if the action taken does not sufficiently reduce internal temperature.

The pulse frequency is normally reduced only if higher than 2 kHz (see P0291 - configuration of inverter protection).

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0291[3] Inverter protection Min: 0

CStat: CT Datatype: U16 Unit: - Def: 1 P-Group: INVERTER Active: Immediately QuickComm. No Max: 7

Control bit 0 for enabling/disabling automatic pulse frequency reduction at output frequencies below 2 Hz.

Bit 2 shows if phase loss dedection (input phase) of 3 phase inverters is enabled after factory reset. Default setting of phase loss is disabled for FSA - FSC. FSD and greater it is enabled.

Bitfields:

Bit00 Pulse frequency reduced below 2Hz 0 NO

1 YES

Bit01 Reserved 0 NO

1 YES

Bit02 Phase loss detection enable 0 NO

1 YES

Index:

P0291[0] : 1st. Drive data set (DDS) P0291[1] : 2nd. Drive data set (DDS) P0291[2] : 3rd. Drive data set (DDS)

Details:

See P0290 (inverter overload reaction)

P0292 Inverter overload warning Min: 0

CStat: CUT Datatype: U16 Unit: °C Def: 15 P-Group: INVERTER Active: first confirm QuickComm. No Max: 25

Defines temperature difference (in [°C]) between inverter over-temperature trip and warning thresholds.

P0295 Inverter fan off delay time Min: 0

CStat: CUT Datatype: U16 Unit: s Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 3600

Defines inverter fan switch off delay time in seconds after drive has stopped.

Note:

Setting to 0, inverter fan will switch off when the drive stops, that is no delay.

P0304[3] Rated motor voltage Min: 10

CStat: C Datatype: U16 Unit: V Def: 230 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 2000

Nominal motor voltage [V] from rating plate. Following diagram shows a typical rating plate with the locations of the relevant motor data.

Level:

P0310

No UD 0013509-0090-0031 TICI F 1325 IP 55 IM B3

50 Hz

P0307

Index:

P0304[0] : 1st. Drive data set (DDS) P0304[1] : 2nd. Drive data set (DDS) P0304[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

5.5kW 19.7/11.A

Cos

ϕϕϕϕ=

0.81

==∆/Υ

∆/Υ=

220-240/380-420 V

====

∆/Υ∆/Υ

19.7-20.6/11.4-11.9 A

P0308

P0304P0305

230-400 V

1455/min

P0311

3~Mot 1LA7130-4AA10

60 Hz

6.5kW

Cos

ϕϕϕϕ=

0.82

ΥΥΥΥ=

440-480

11.1-11.3 A

EN 60034

460 V

10.9 A

1755/min

95.75%

45kg

P0309

Parameter List MICROMASTER 430

24 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0305[3] Rated motor current

CStat: C Datatype: Float Unit: A Def: 3.25 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 10000.00

Nominal motor current [A] from rating plate - see diagram in P0304.

Index:

P0305[0] : 1st. Drive data set (DDS) P0305[1] : 2nd. Drive data set (DDS) P0305[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

Depends also on P0320 (motor magnetization current).

Note:

For asynchronous motors, the maximum value is defined as the maximum inverter current (r0209).

For synchronous motors, the maximum value is defined as twice the maximum inverter current (r0209).

The minimum value is defined as 1/32 times inverter rated current (r0207).

Min: 0.01

P0307[3] Rated motor power Min: 0.01

CStat: C Datatype: Float Unit: - Def: 0.75 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 2000.00

Nominal motor power [kW/hp] from rating plate.

Index:

P0307[0] : 1st. Drive data set (DDS) P0307[1] : 2nd. Drive data set (DDS) P0307[2] : 3rd. Drive data set (DDS)

Dependency:

If P0100 = 1 ([kW],frequency default 50 Hz), values will be in [hp] - see diagram P0304 (rating plate).

Changeable only when P0010 = 1 (quick commissioning).

P0308[3] Rated motor cosPhi Min: 0.000

CStat: C Datatype: Float Unit: - Def: 0.000 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 1.000

Nominal motor power factor (cosPhi) from rating plate - see diagram P0304.

Index:

P0308[0] : 1st. Drive data set (DDS) P0308[1] : 2nd. Drive data set (DDS) P0308[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

Level:

Visible only when P0100 = 0 or 2, (motor power entered in [kW]).

Setting 0 causes internal calculation of value (see r0332).

P0309[3] Rated motor efficiency Min: 0.0

CStat: C Datatype: Float Unit: % Def: 0.0 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 99.9

Nominal motor efficiency in [%] from rating plate.

Index:

P0309[0] : 1st. Drive data set (DDS) P0309[1] : 2nd. Drive data set (DDS) P0309[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

Visible only when P0100 = 1, (i.e. motor power entered in [hp]).

Setting 0 causes internal calculation of value (see r0332).

Note:

P0309 = 100 % corresponds to superconducting.

Details:

See diagram in P0304 (rating plate).

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0310[3] Rated motor frequency Min: 12.00

CStat: C Datatype: Float Unit: Hz Def: 50.00 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 650.00

Nominal motor frequency [Hz] from rating plate.

Index:

P0310[0] : 1st. Drive data set (DDS) P0310[1] : 2nd. Drive data set (DDS) P0310[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

Pole pair number recalculated automatically if parameter is changed.

Details:

See diagram in P0304 (rating plate)

P0311[3] Rated motor speed Min: 0

CStat: C Datatype: U16 Unit: 1/min Def: 0 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 40000

Nominal motor speed [rpm] from rating plate.

Index:

P0311[0] : 1st. Drive data set (DDS) P0311[1] : 2nd. Drive data set (DDS) P0311[2] : 3rd. Drive data set (DDS)

Dependency:

Changeable only when P0010 = 1 (quick commissioning).

Setting 0 causes internal calculation of value.

Required for vector control and V/f control with speed controller.

Slip compensation in V/f control requires rated motor speed for correct operation.

Level:

Pole pair number recalculated automatically if parameter is changed.

Details:

See diagram in P0304 (rating plate)

r0313[3] Motor pole pairs Min: -

Datatype: U16 Unit: - Def: -

P-Group: MOTOR Max: -

Displays number of motor pole pairs that the inverter is currently using for internal calculations.

Value:

r0313 = 1 : 2-pole motor r0313 = 2 : 4-pole motor etc.

Index:

r0313[0] : 1st. Drive data set (DDS) r0313[1] : 2nd. Drive data set (DDS) r0313[2] : 3rd. Drive data set (DDS)

Dependency:

Recalculated automatically when P0310 (rated motor frequency) or P0311 (rated motor speed) is changed.

P0320[3] Motor magnetizing current Min: 0.0

CStat: CT Datatype: Float Unit: % Def: 0.0 P-Group: MOTOR Active: Immediately QuickComm. Yes Max: 99.0

Defines motor magnetization current in [%] relative to P0305 (rated motor current).

Index:

P0320[0] : 1st. Drive data set (DDS) P0320[1] : 2nd. Drive data set (DDS) P0320[2] : 3rd. Drive data set (DDS)

Dependency:

Affected by P0366 - P0369 (magnetizing curve imag. 1 - 4): Setting 0 causes calculation by P0340 = 1 (data entered from rating plate) or by P3900 = 1 - 3 (end of quick commissioning).

Level:

Parameter List MICROMASTER 430

26 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0330[3] Rated motor slip

P-Group: MOTOR Max: -

Displays nominal motor slip in [%] relative to P0310 (rated motor frequency) and P0311 (rated motor speed).

[%] r0330 ⋅

Index:

r0330[0] : 1st. Drive data set (DDS) r0330[1] : 2nd. Drive data set (DDS) r0330[2] : 3rd. Drive data set (DDS)

P0311

P0310

Datatype: Float Unit: % Def: -

r0313

⋅−

% 100

Min: -

r0331[3] Rated magnetization current Min: -

P-Group: MOTOR Max: -

Displays calculated magnetizing current of motor in [A].

Index:

r0331[0] : 1st. Drive data set (DDS) r0331[1] : 2nd. Drive data set (DDS) r0331[2] : 3rd. Drive data set (DDS)

Datatype: Float Unit: A Def: -

r0332[3] Rated power factor Min: -

P-Group: MOTOR Max: -

Displays power factor for motor

Index:

r0332[0] : 1st. Drive data set (DDS) r0332[1] : 2nd. Drive data set (DDS) r0332[2] : 3rd. Drive data set (DDS)

Dependency:

Value is calculated internally if P0308 (rated motor cosPhi) set to 0; otherwise, value entered in P0308 is displayed.

Datatype: Float Unit: - Def: -

P0335[3] Motor cooling Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: MOTOR Active: first confirm QuickComm. Yes Max: 3

Selects motor cooling system used.

Settings:

0 Self-cooled: Using shaft mounted fan attached to motor 1 Force-cooled: Using separately powered cooling fan 2 Self-cooled and internal fan 3 Force-cooled and internal fan

Index:

P0335[0] : 1st. Drive data set (DDS) P0335[1] : 2nd. Drive data set (DDS) P0335[2] : 3rd. Drive data set (DDS)

Notice:

Motors of series 1LA1 and 1LA8 have an internal fan. This internal motor fan must not be confused with the fan at the end of the motor shaft.

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0340[3] Calculation of motor parameters Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: MOTOR Active: first confirm QuickComm. No Max: 4

Calculates various motor parameters, including:

P0344 Motor weight P0346 Magnetization time P0347 Demagnetization time P0350 Stator resistance P0611 Motor I2t time constant P1253 Vdc-controller output limitation P1316 Boost end frequency P2000 Reference frequency P2002 Reference current

Settings:

0 No calculation 1 Complete parameterization 2 Calculation of equivalent circuit data 3 Calculation of V/f data 4 Calculation of controller settings only

Index:

P0340[0] : 1st. Drive data set (DDS) P0340[1] : 2nd. Drive data set (DDS) P0340[2] : 3rd. Drive data set (DDS)

Note:

This parameter is required during commissioning to optimize inverter performance.

P0344[3] Motor weight Min: 1.0

CStat: CUT Datatype: Float Unit: kg Def: 9.4 P-Group: MOTOR Active: Immediately QuickComm. No Max: 6500.0

Specifies motor weight [kg].

Index:

P0344[0] : 1st. Drive data set (DDS) P0344[1] : 2nd. Drive data set (DDS) P0344[2] : 3rd. Drive data set (DDS)

Note:

This value is used in the motor thermal model.

Level:

It is normally calculated automatically from P0340 (motor parameters) but can also be entered manually.

P0346[3] Magnetization time Min: 0.000

CStat: CUT Datatype: Float Unit: s Def: 1.000 P-Group: MOTOR Active: Immediately QuickComm. No Max: 20.000

Sets magnetization time [s], i.e. waiting time between pulse enable and start of ramp-up. Motor magnetization builds up during this time.

Magnetization time is normally calculated automatically from the motor data and corresponds to the rotor time constant (r0384).

Index:

P0346[0] : 1st. Drive data set (DDS) P0346[1] : 2nd. Drive data set (DDS) P0346[2] : 3rd. Drive data set (DDS)

Note:

If boost settings are higher than 100 %, magnetization may be reduced.

Notice:

An excessive reduction of this time can result in insufficient motor magnetization.

P0347[3] Demagnetization time Min: 0.000

CStat: CUT Datatype: Float Unit: s Def: 1.000 P-Group: MOTOR Active: Immediately QuickComm. No Max: 20.000

Changes time allowed after OFF2 / fault condition, before pulses can be re-enabled.

Index:

P0347[0] : 1st. Drive data set (DDS) P0347[1] : 2nd. Drive data set (DDS) P0347[2] : 3rd. Drive data set (DDS)

Note:

The demagnetization time is approximately 2.5 x rotor time constant (r0384) in seconds.

Notice:

Not active following a normally completed ramp-down, e.g. after OFF1, OFF3 or JOG.

Level:

Overcurrent trips will occur if the time is decreased excessively.

Parameter List MICROMASTER 430

28 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0350[3] Stator resistance (line-to-line)

CStat: CUT Datatype: Float Unit: Ohm Def: 4.00000 P-Group: MOTOR Active: Immediately QuickComm. No Max: 2000.00000

Stator resistance value in [Ohms] for connected motor (from line-to-line). The parameter value includes the cable resistance.

There are three ways to determine the value for this parameter:

1. Calculate using

P0340 = 1 (data entered from rating plate) or P0010 = 1, P3900 = 1,2 or 3 (end of quick commissioning).

2. Measure using P1910 = 1 (motor data identification - value for stator resistance is overwritten).

3. Measure manually using an Ohmmeter.

Index:

P0350[0] : 1st. Drive data set (DDS) P0350[1] : 2nd. Drive data set (DDS) P0350[2] : 3rd. Drive data set (DDS)

Note:

Since measured line-to-line, this value may appear to be higher (up to 2 times higher) than expected.

The value entered in P0350 (stator resistance) is the one obtained by the method last used.

Min: 0.00001

P0352[3] Cable resistance Min: 0.0

CStat: CUT Datatype: Float Unit: Ohm Def: 0.0 P-Group: MOTOR Active: Immediately QuickComm. No Max: 120.0

Describes cable resistance between inverter and motor for one phase.

The value corresponds to the resistance of the cable between the inverter and the motor, relative to the rated impedance.

Index:

P0352[0] : 1st. Drive data set (DDS) P0352[1] : 2nd. Drive data set (DDS) P0352[2] : 3rd. Drive data set (DDS)

r0384[3] Rotor time constant Min: -

P-Group: MOTOR Max: -

Displays calculated rotor time constant [ms].

Index:

r0384[0] : 1st. Drive data set (DDS) r0384[1] : 2nd. Drive data set (DDS) r0384[2] : 3rd. Drive data set (DDS)

Datatype: Float Unit: ms Def: -

r0395 CO: Total stator resistance [%] Min: -

P-Group: MOTOR Max: -

Displays stator resistance of motor as [%] of combined stator/cable resistance.

Note:

100 % means :

Z ⋅

ratedmot

Datatype: Float Unit: % Def: -

0304P 0305P

r0396 CO: Act. rotor resistance Min: -

P-Group: MOTOR Max: -

Displays (adapted) rotor resistance of the motor equivalent circuit (phase value) in [%].

Note:

100 % means :

Notice:

Values greater than 25 % tend to produce excessive motor slip. Check rated motor speed [rpm] value (P0311).

Z ⋅

ratedmot

Datatype: Float Unit: % Def: -

0304P 0305P

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0400[3] Select encoder type Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: ENCODER Active: Immediately QuickComm. No Max: 2

Selects encoder type.

Parameter Terminal Track Encoder type

P0400 = 1 A

P0400 = 2

Settings:

0 Disabled 1 Single channel encoder 2 Quadrature encoder without zero pulse

Index:

P0400[0] : 1st. Drive data set (DDS) P0400[1] : 2nd. Drive data set (DDS) P0400[2] : 3rd. Drive data set (DDS)

Note:

Encoders with zero pulse can also be connected, but the zero pulse is not used in MM4.

Single ended

Differential

Single ended

Differential

Level:

The term "quadrature" in setting 2 refers to two periodic functions separated by a quarter cycle or 90 degrees.

r0403 CO/BO: Encoder status word Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays status word of encoder (in bit format).

Bitfields:

Bit00 Encoder module active 0 NO

1 YES

Bit01 Encoder error 0 NO

1 YES

Bit02 Signal o.k. 0 NO

1 YES

Bit03 Encoder low speed loss 0 NO

1 YES

Bit04 HW timer used 0 NO

1 YES

Details:

See description of seven-segment display given in the "Introduction to MICROMASTER System Parameters" in this manual.

Level:

Parameter List MICROMASTER 430

30 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0408[3] Encoder pulses per revolution

CStat: CT Datatype: U16 Unit: - Def: 1024 P-Group: ENCODER Active: Immediately QuickComm. No Max: 20000

Specifies the number of encoder pulses per revolution.

Index:

P0408[0] : 1st. Drive data set (DDS) P0408[1] : 2nd. Drive data set (DDS) P0408[2] : 3rd. Drive data set (DDS)

Note:

The encoder resolution (pulses per revolution P0408) which may be entered will be limited by the max. pulse frequency of the encoder option board (f_max = 300 kHz).

The following equation calculates the encoder frequency depending on the encoder resoulution and the rotational speed (rpm). The encoder frequency has to be less than the max. pulse frequency:

> f =

P0408 x RPM

max

Min: 2

P0492[3] Allowed speed difference Min: 0.00

CStat: CT Datatype: Float Unit: Hz Def: 10.00 P-Group: ENCODER Active: Immediately QuickComm. No Max: 100.00

Used for high speed encoder loss detection. Selects the allowable difference in calculated speed signals between samples before it is considered to have lost the speed signal feedback.

Dependency:

This parameter is updated when motor start-up time P0345 is changed or when a speedloop optimisation is performed (P1960 = 1). There is a fixed delay of 40 ms before acting upon loss of encoder at high speeds.

Caution1:

When allowed speed difference is set to 0, both the high speed and low speed encoder loss detection is disabled, thus encoder loss will not be detected.

Level:

If encoder loss detection is disabled and encoder loss occurs, then operation of the motor may become unstable.

P0494[3] Delay speed loss reaction Min: 0

CStat: CUT Datatype: U16 Unit: ms Def: 10 P-Group: ENCODER Active: first confirm QuickComm. No Max: 65000

Used for low speed encoder loss detection. If the motor shaft speed is less than the value in P0492 then encoder loss is detected using a low speed encoder loss detection algorithm. This parameter selects the delay between loss of encoder at low speed and reaction to the encoder loss.

Index:

P0494[0] : 1st. Drive data set (DDS) P0494[1] : 2nd. Drive data set (DDS) P0494[2] : 3rd. Drive data set (DDS)

Dependency:

This parameter is updated when motor start-up time P0345 is changed or when a speedloop optimisation is performed (P1960 = 1).

Caution1:

When the delay in P0494 is set to 0, then low speed encoder loss detection is disabled and low speed encoder loss cannot be detected (high speed encoder loss detection will still operate if P0492 > 0).

If low speed encoder loss detection is disabled and encoder should be lost at low speed, then operation of motor may become unstable.

P0500[3] Technological application Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: TECH_APL Active: first confirm QuickComm. Yes Max: 1

Selects technological application. Sets control mode (P1300).

Settings:

0 Constant torque 1 Pumps and fans

Index:

P0500[0] : 1st. Drive data set (DDS) P0500[1] : 2nd. Drive data set (DDS) P0500[2] : 3rd. Drive data set (DDS)

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0601[3] Motor temperature sensor Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: MOTOR Active: first confirm QuickComm. No Max: 2

Selects motor temperature sensor.

Settings:

0 No sensor 1 PTC thermistor 2 KTY84

Index:

P0601[0] : 1st. Drive data set (DDS) P0601[1] : 2nd. Drive data set (DDS) P0601[2] : 3rd. Drive data set (DDS)

Dependency:

If "no sensor" is selected, the motor temperature monitoring will be done based on the estimated value of the thermal motor model.

The temperature of the motor, when a thermal sensor is connected is calculated using the thermal motor model. When a KTY sensor is fitted, the loss of connection can be detected (Warning A0512). Using the methods described above the monitoring of the temperature will automatically switch to the thermal model using values derived from the estimated value. Using a PTC sensor the temperature of the motor is calculated by the sensor in conjunction with the thermal model. This allows for redundancy of the monitoring process.

Warning

5 V

ADC

A0512

= 4 s

Signal

loss

detection

Equivalent circuit data

Power dissipation

V,mot

P0601

P0601 = 2

No sensor

PTC KTY

Thermal

motor

model

r0035

r0631

r0632

r0633

P0604

Level:

Motor

1≥

temp.

reaction

P0610

P0604[3] Threshold motor temperature Min: 0.0

CStat: CUT Datatype: Float Unit: °C Def: 130.0 P-Group: MOTOR Active: Immediately QuickComm. No Max: 200.0

Enters warning threshold for motor temperature protection. The trip temperature defined always 10 % higher than the warning level P0604. When act. motor temperature exeeds trip temperature than inverter trip as defined in P0610.

Index:

P0604[0] : 1st. Drive data set (DDS) P0604[1] : 2nd. Drive data set (DDS) P0604[2] : 3rd. Drive data set (DDS)

Note:

Default value depends on P0300 (select motor type).

P0610[3] Motor I2t temperature reaction Min: 0

CStat: CT Datatype: U16 Unit: - Def: 2 P-Group: MOTOR Active: first confirm QuickComm. No Max: 2

Defines reaction when motor temperature reaches warning threshold.

Settings:

0 No reaction, warning only 1 Warning and Imax reduction (results in reduced output frequency) 2 Warning and trip (F0011)

Index:

P0610[0] : 1st. Drive data set (DDS) P0610[1] : 2nd. Drive data set (DDS) P0610[2] : 3rd. Drive data set (DDS)

Dependency:

Trip level = P0604 (motor temperature warning level) * 105 %

Level:

Parameter List MICROMASTER 430

32 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0625[3] Ambient motor temperature

CStat: CUT Datatype: Float Unit: °C Def: 20.0 P-Group: MOTOR Active: Immediately QuickComm. No Max: 80.0

Measures ambient temperature of motor at time of motor data identification.

Index:

P0625[0] : 1st. Drive data set (DDS) P0625[1] : 2nd. Drive data set (DDS) P0625[2] : 3rd. Drive data set (DDS)

Min: -40.0

P0640[3] Motor overload factor [%] Min: 10.0

CStat: CUT Datatype: Float Unit: % Def: 110.0 P-Group: MOTOR Active: Immediately QuickComm. Yes Max: 400.0

Defines motor overload current limit in [%] relative to P0305 (rated motor current).

Index:

P0640[0] : 1st. Drive data set (DDS) P0640[1] : 2nd. Drive data set (DDS) P0640[2] : 3rd. Drive data set (DDS)

Dependency:

Limited to maximum inverter current or to 400 % of rated motor current (P0305), whichever is the lower.

Details:

See function diagram for current limitation.

P0700[3] Selection of command source Min: 0

CStat: CT Datatype: U16 Unit: - Def: 2 P-Group: COMMANDS Active: first confirm QuickComm. Yes Max: 6

Selects digital command source.

Settings:

0 Factory default setting 1 BOP (keypad) 2 Terminal 4 USS on BOP link 5 USS on COM link 6 CB on COM link

Index:

P0700[0] : 1st. Command data set (CDS) P0700[1] : 2nd. Command data set (CDS) P0700[2] : 3rd. Command data set (CDS)

Note:

Changing this parameter resets (to default) all settings on item selected. For example: Changing form 1 to 2 resets all digital inputs to default settings.

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0701[3] Function of digital input 1 Min: 0

CStat: CT Datatype: U16 Unit: - Def: 1 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 1.

Settings:

0 Digital input disabled 1 ON/OFF1 2 ON reverse /OFF1 3 OFF2 - coast to standstill 4 OFF3 - quick ramp-down 9 Fault acknowledge 10 reserved 11 reserved 12 Reverse 13 MOP up (increase frequency) 14 MOP down (decrease frequency) 15 Fixed setpoint (Direct selection) 16 Fixed setpoint (Direct selection + ON) 17 Fixed setpoint (Binary coded selection + ON) 25 DC brake enable 26 Enable Essential Service 27 Enable PID 28 Bypass mode command input 29 External trip 33 Disable additional freq setpoint 99 Enable BICO parameterization

Index:

P0701[0] : 1st. Command data set (CDS) P0701[1] : 2nd. Command data set (CDS) P0701[2] : 3rd. Command data set (CDS)

Dependency:

Setting 99 (enable BICO parameterization) requires

- P0700 command source or

- P0010 = 1, P3900 = 1, 2 or 3 quick commissioning or

- P0010 = 30, P0970 = 1 factory reset in order to reset.

Notice:

Setting 99 (BICO) for expert use only.

P0702[3] Function of digital input 2 Min: 0

CStat: CT Datatype: U16 Unit: - Def: 12 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 2.

Settings:

Index:

P0702[0] : 1st. Command data set (CDS) P0702[1] : 2nd. Command data set (CDS) P0702[2] : 3rd. Command data set (CDS)

Details:

See P0701 (function of digital input1).

Level:

Parameter List MICROMASTER 430

34 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0703[3] Function of digital input 3

CStat: CT Datatype: U16 Unit: - Def: 9 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 3.

Settings:

Index:

P0703[0] : 1st. Command data set (CDS) P0703[1] : 2nd. Command data set (CDS) P0703[2] : 3rd. Command data set (CDS)

Details:

See P0701 (function of digital input 1).

Min: 0

P0704[3] Function of digital input 4 Min: 0

CStat: CT Datatype: U16 Unit: - Def: 15 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 4.

Settings:

Index:

P0704[0] : 1st. Command data set (CDS) P0704[1] : 2nd. Command data set (CDS) P0704[2] : 3rd. Command data set (CDS)

Details:

See P0701 (function of digital input 1).

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0705[3] Function of digital input 5 Min: 0

CStat: CT Datatype: U16 Unit: - Def: 15 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 5 (via analog input).

Settings:

Index:

P0705[0] : 1st. Command data set (CDS) P0705[1] : 2nd. Command data set (CDS) P0705[2] : 3rd. Command data set (CDS)

Details:

See P0701 (function of digital input 1).

P0706[3] Function of digital input 6 Min: 0

CStat: CT Datatype: U16 Unit: - Def: 15 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 6 ( via analog input)

Settings:

Index:

P0706[0] : 1st. Command data set (CDS) P0706[1] : 2nd. Command data set (CDS) P0706[2] : 3rd. Command data set (CDS)

Details:

See P0701 (function of digital input 1).

Level:

Parameter List MICROMASTER 430

36 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0707[3] Function of digital input 7

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 7 (via analog input).

Settings:

0 Digital input disabled 1 ON/OFF1 2 ON reverse /OFF1 3 OFF2 - coast to standstill 4 OFF3 - quick ramp-down 9 Fault acknowledge 10 reserved 11 reserved 12 Reverse 13 MOP up (increase freq.) 14 MOP down (decrease freq.) 25 DC brake enable 26 Enable Essential Service 28 Bypass mode command input 29 External trip 33 Disable additional freq setpoint 99 Enable BICO parameterization

Index:

P0707[0] : 1st. Command data set (CDS) P0707[1] : 2nd. Command data set (CDS) P0707[2] : 3rd. Command data set (CDS)

Note:

Signals above 4 V are active, signals below 1,6 V are inactive.

Details:

See P0701 (function of digital input 1).

Min: 0

P0708[3] Function of digital input 8 Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 99

Selects function of digital input 8 (via analog input)

Settings:

0 Digital input disabled 1 ON/OFF1 2 ON reverse /OFF1 3 OFF2 - coast to standstill 4 OFF3 - quick ramp-down 9 Fault acknowledge 10 reserved 11 reserved 12 Reverse 13 MOP up (increase freq.) 14 MOP down (decrease freq.) 25 DC brake enable 26 Enable Essential Service 28 Bypass mode command input 29 External trip 33 Disable additional freq setpoint 99 Enable BICO parameterization

Index:

P0708[0] : 1st. Command data set (CDS) P0708[1] : 2nd. Command data set (CDS) P0708[2] : 3rd. Command data set (CDS)

Note:

Signals above 4 V are active, signals below 1,6 V are inactive.

Details:

See P0701 (function of digital input 1).

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0718 CO/BO: Hand / Auto Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: COMMANDS Active: Immediately QuickComm. No Max: 1

From a defaulted drive 0 = Auto operation i.e. the control from the analogue and digital inputs 1 = Hand operation i.e. the control comes from the BOP

Using the Hand / Auto buttons on the BOP will change this parameter.

r0019

Bit 12 Hand

r0019

Bit 15 Auto

P0718

}

Hand

Auto

Default:

P0810 = 718:0

ΤΤ⇔

Hand/Auto

P0718 = 0 : P0700[0] = 2

P0718 = 1 : P0700[1] = 1

CDS1/CDS2

P1000[0] = 2

P1000[1] = 1

(Terminal) (ADC)

(BOP) (MOP)

Level:

Note:

Changeing CDS values will effect the operation of Hand / Auto

Parameter List MICROMASTER 430

38 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0719[3] Selection of cmd. & freq. setp.

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 66

Central switch to select control command source for inverter.

Switches command and setpoint source between freely programmable BICO parameters and fixed command/setpoint profiles. Command and setpoint sources can be changed independently.

The tens digit chooses the command source and the units digit chooses the setpoint source.

Settings:

0 Cmd = BICO parameter Setpoint = BICO parameter 1 Cmd = BICO parameter Setpoint = MOP setpoint 2 Cmd = BICO parameter Setpoint = Analog setpoint 3 Cmd = BICO parameter Setpoint = Fixed frequency 4 Cmd = BICO parameter Setpoint = USS on BOP link 5 Cmd = BICO parameter Setpoint = USS on COM link 6 Cmd = BICO parameter Setpoint = CB on COM link 10 Cmd = BOP Setpoint = BICO parameter 11 Cmd = BOP Setpoint = MOP setpoint 12 Cmd = BOP Setpoint = Analog setpoint 13 Cmd = BOP Setpoint = Fixed frequency 15 Cmd = BOP Setpoint = USS on COM link 16 Cmd = BOP Setpoint = CB on COM link 40 Cmd = USS on BOP link Setpoint = BICO parameter 41 Cmd = USS on BOP link Setpoint = MOP setpoint 42 Cmd = USS on BOP link Setpoint = Analog setpoint 43 Cmd = USS on BOP link Setpoint = Fixed frequency 44 Cmd = USS on BOP link Setpoint = USS on BOP link 45 Cmd = USS on BOP link Setpoint = USS on COM link 46 Cmd = USS on BOP link Setpoint = CB on COM link 50 Cmd = USS on COM link Setpoint = BICO parameter 51 Cmd = USS on COM link Setpoint = MOP setpoint 52 Cmd = USS on COM link Setpoint = Analog setpoint 53 Cmd = USS on COM link Setpoint = Fixed frequency 54 Cmd = USS on COM link Setpoint = USS on BOP link 55 Cmd = USS on COM link Setpoint = USS on COM link 60 Cmd = CB on COM link Setpoint = BICO parameter 61 Cmd = CB on COM link Setpoint = MOP setpoint 62 Cmd = CB on COM link Setpoint = Analog setpoint 63 Cmd = CB on COM link Setpoint = Fixed frequency 64 Cmd = CB on COM link Setpoint = USS on BOP link 66 Cmd = CB on COM link Setpoint = CB on COM link

Index:

P0719[0] : 1st. Command data set (CDS) P0719[1] : 2nd. Command data set (CDS) P0719[2] : 3rd. Command data set (CDS)

Note:

If set to a value other than 0 (i.e. BICO parameter is not the setpoint source), P0844 / P0848 (first source of OFF2 / OFF3) are not effective; instead, P0845 / P0849 (second source of OFF2 / OFF3) apply and the OFF commands are obtained via the particular source defined.

Min: 0

Level:

BICO connections made previously remain unchanged.

r0720 Number of digital inputs Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays number of digital inputs.

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Level:

Parameters Issue 03/02

r0722 CO/BO: Binary input values Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays status of digital inputs.

Bitfields:

Bit00 Digital input 1 0 OFF

1ON

Bit01 Digital input 2 0 OFF

1ON

Bit02 Digital input 3 0 OFF

1ON

Bit03 Digital input 4 0 OFF

1ON

Bit04 Digital input 5 0 OFF

1ON

Bit05 Digital input 6 0 OFF

1ON

Bit06 Digital input 7 (via ADC 1) 0 OFF

1ON

Bit07 Digital input 8 (via ADC 2) 0 OFF

1ON

Note:

Segment is lit when signal is active.

P0724 Debounce time for digital inputs Min: 0

CStat: CT Datatype: U16 Unit: - Def: 3 P-Group: COMMANDS Active: Immediately QuickComm. No Max: 3

Defines debounce time (filtering time) used for digital inputs.

Settings:

0 No debounce time 1 2.5 ms debounce time 2 8.2 ms debounce time 3 12.3 ms debounce time

P0725 PNP / NPN digital inputs Min: 0

CStat: CT Datatype: U16 Unit: - Def: 1 P-Group: COMMANDS Active: Immediately QuickComm. No Max: 1

Switches between active high (PNP) and active low (NPN). This is valid for all digital inputs simultaneously.

Level:

The following is valid by using the internal supply:

Value:

NPN: Terminals 5/6/7/8/16/17 must be connected via terminal 28 ( O V). PNP: Terminals 5/6/7/8/16/17 must be connected via terminal 9 (24 V).

Settings:

0 NPN mode ==> low active 1 PNP mode ==> high active

r0730 Number of digital outputs Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays number of digital outputs (relays).

Level:

Parameter List MICROMASTER 430

40 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0731[3] BI: Function of digital output 1

CStat: CUT Datatype: U32 Unit: - Def: 52:3 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4000:0

Defines source of digital output 1.

Settings:

52.0 Drive ready 0 Closed

52.1 Drive ready to run 0 Closed

52.2 Drive running 0 Closed

52.3 Drive fault active 0 Closed

52.4 OFF2 active 1 Closed

52.5 OFF3 active 1 Closed

52.6 Switch on inhibit active 0 Closed

52.7 Drive warning active 0 Closed

52.8 Deviation setpoint/actual value 1 Closed

52.9 PZD control (Process Data Control) 0 Closed

52.A Maximum frequency reached 0 Closed

52.B Warning: Motor current limit 1 Closed

52.C Motor holding brake (MHB) active 0 Closed

52.D Motor overload 1 Closed

52.E Motor running direction right 0 Closed

52.F Inverter overload 1 Closed

53.0 DC brake active 0 Closed

53.1 Act. freq. r0021 > P2167 (f_off) 0 Closed

53.2 Act. freq. r0021 > P1080 (f_min) 0 Closed

53.3 Act. current r0027 >= P2170 0 Closed

53.4 Act. freq. r0021 >= P2155 (f_1) 0 Closed

53.5 Act. freq. r0021 < P2155 (f_1) 0 Closed

53.6 Act. freq. r0021 >= setpoint 0 Closed

53.7 Act. Vdc r0026 < P2172 0 Closed

53.8 Act. Vdc r0026 > P2172 0 Closed

53.A PID output r2294 == P2292 (PID_min) 0 Closed

53.B PID output r2294 == P2291 (PID_max) 0 Closed

Index:

P0731[0] : 1st. Command data set (CDS) P0731[1] : 2nd. Command data set (CDS) P0731[2] : 3rd. Command data set (CDS)

Min: 0:0

P0732[3] BI: Function of digital output 2 Min: 0:0

CStat: CUT Datatype: U32 Unit: - Def: 52:7 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4000:0

Defines source of digital output 2.

Settings:

52.0 Drive ready 0 Closed

52.1 Drive ready to run 0 Closed

52.2 Drive running 0 Closed

52.3 Drive fault active 0 Closed

52.4 OFF2 active 1 Closed

52.5 OFF3 active 1 Closed

52.6 Switch on inhibit active 0 Closed

52.7 Drive warning active 0 Closed

52.8 Deviation setpoint/actual value 1 Closed

52.9 PZD control (Process Data Control) 0 Closed

52.A Maximum frequency reached 0 Closed

52.B Warning: Motor current limit 1 Closed

52.C Motor holding brake (MHB) active 0 Closed

52.D Motor overload 1 Closed

52.E Motor running direction right 0 Closed

52.F Inverter overload 1 Closed

53.0 DC brake active 0 Closed

53.1 Act. freq. r0021 > P2167 (f_off) 0 Closed

53.2 Act. freq. r0021 > P1080 (f_min) 0 Closed

53.3 Act. current r0027 >= P2170 0 Closed

53.4 Act. freq. r0021 >= P2155 (f_1) 0 Closed

53.5 Act. freq. r0021 < P2155 (f_1) 0 Closed

53.6 Act. freq. r0021 >= setpoint 0 Closed

53.7 Act. Vdc r0026 < P2172 0 Closed

53.8 Act. Vdc r0026 > P2172 0 Closed

53.A PID output r2294 == P2292 (PID_min) 0 Closed

53.B PID output r2294 == P2291 (PID_max) 0 Closed

Index:

P0732[0] : 1st. Command data set (CDS) P0732[1] : 2nd. Command data set (CDS) P0732[2] : 3rd. Command data set (CDS)

Note:

Other settings are possible in "Expert" mode (see P0003 - user access level).

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0733[3] BI: Function of digital output 3 Min: 0:0

CStat: CUT Datatype: U32 Unit: - Def: 0:0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4000:0

Defines source of digital output 2.

Settings:

52.0 Drive ready 0 Closed

52.1 Drive ready to run 0 Closed

52.2 Drive running 0 Closed

52.3 Drive fault active 0 Closed

52.4 OFF2 active 1 Closed

52.5 OFF3 active 1 Closed

52.6 Switch on inhibit active 0 Closed

52.7 Drive warning active 0 Closed

52.8 Deviation setpoint/actual value 1 Closed

52.9 PZD control (Process Data Control) 0 Closed

52.A Maximum frequency reached 0 Closed

52.B Warning: Motor current limit 1 Closed

52.C Motor holding brake (MHB) active 0 Closed

52.D Motor overload 1 Closed

52.E Motor running direction right 0 Closed

52.F Inverter overload 1 Closed

53.0 DC brake active 0 Closed

53.1 Act. freq. r0021 > P2167 (f_off) 0 Closed

53.2 Act. freq. r0021 > P1080 (f_min) 0 Closed

53.3 Act. current r0027 >= P2170 0 Closed

53.4 Act. freq. r0021 >= P2155 (f_1) 0 Closed

53.5 Act. freq. r0021 < P2155 (f_1) 0 Closed

53.6 Act. freq. r0021 >= setpoint 0 Closed

53.7 Act. Vdc r0026 < P2172 0 Closed

53.8 Act. Vdc r0026 > P2172 0 Closed

53.A PID output r2294 == P2292 (PID_min) 0 Closed

53.B PID output r2294 == P2291 (PID_max) 0 Closed

Index:

P0733[0] : 1st. Command data set (CDS) P0733[1] : 2nd. Command data set (CDS) P0733[2] : 3rd. Command data set (CDS)

Note:

Other settings are possible in "Expert" mode (see P0003 - user access level).

r0747 CO/BO: State of digital outputs Min: -

Datatype: U16 Unit: - Def: -

P-Group: COMMANDS Max: -

Displays status of digital outputs (also includes inversion of digital outputs via P0748).

Bitfields:

Bit00 Digital output 1 energized 0 NO

1 YES

Bit01 Digital output 2 energized 0 NO

1 YES

Bit02 Digital output 3 energized 0 NO

1 YES

Dependency:

Bit 0 = 0 : Relay de-energized / contacts open

Level:

Bit 0 = 1 : Relay energized / contacts closed

P0748 Invert digital outputs Min: 0

CStat: CUT Datatype: U16 Unit: - Def: 0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 7

Defines high and low states of relay for a given function.

Bitfields:

Bit00 Invert digital output 1 0 NO

1 YES

Bit01 Invert digital output 2 0 NO

1 YES

Bit02 Invert digital output 3 0 NO

1 YES

r0750 Number of ADCs Min: -

Datatype: U16 Unit: - Def: -

P-Group: TERMINAL Max: -

Displays number of analog inputs available.

Parameter List MICROMASTER 430

Level:

42 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

r0752[2] Act. input of ADC [V] or [mA]

Datatype: Float Unit: - Def: -

P-Group: TERMINAL Max: -

Displays smoothed analog input value in volts before the characteristic block.

Index:

r0752[0] : Analog input 1 (ADC 1) r0752[1] : Analog input 2 (ADC 2)

Min: -

P0753[2] Smooth time ADC Min: 0

CStat: CUT Datatype: U16 Unit: ms Def: 3 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 10000

Defines filter time (PT1 filter) in [ms] for analog input.

Index:

P0753[0] : Analog input 1 (ADC 1) P0753[1] : Analog input 2 (ADC 2)

Note:

Increasing this time (smooth) reduces jitter but slows down response to the analog input.

P0753 = 0 : No filtering

r0754[2] Act. ADC value after scaling [%] Min: -

P-Group: TERMINAL Max: -

Shows smoothed value of analog input in [%] after scaling block.

Index:

r0754[0] : Analog input 1 (ADC 1) r0754[1] : Analog input 2 (ADC 2)

Dependency:

P0757 to P0760 define range (ADC scaling).

Datatype: Float Unit: % Def: -

r0755[2] CO: Act. ADC after scal. [4000h] Min: -

P-Group: TERMINAL Max: -

Displays analog input, scaled using ASPmin and ASPmax.

Datatype: I16 Unit: - Def: -

Level:

Analog setpoint (ASP) from the analog scaling block can vary from min. analog setpoint (ASPmin) to a max. analog setpoint (ASPmax) as shown in P0757 (ADC scaling).

The largest magnitude (value without sign) of ASPmin and ASPmax defines the scaling of 16384.

Example:

ASPmin = 300 %, ASPmax = 100 % then 16384 represents 300 %. This parameter will vary from 5461 to 16364

ASPmin = -200 %, ASPmax = 100 % then 16384 represents 200 %. This parameter will vary from -16384 to +8192

Index:

r0755[0] : Analog input 1 (ADC 1) r0755[1] : Analog input 2 (ADC 2)

Note:

This value is used as an input to analog BICO connectors.

ASPmax represents the highest analog setpoint (this may be at 10 V).

ASPmin represents the lowest analog setpoint (this may be at 0 V).

Details:

See parameters P0757 to P0760 (ADC scaling)

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0756[2] Type of ADC Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 4

Defines type of analog input and also enables analog input monitoring.

To switch over from voltage to current analog input it is not sufficient to merely modify parameter P0756. Rather, the DIPs on the terminal board must also be set to the correct position. The DIP settings are as follows:

- OFF = voltage input (10 V)

- ON = current input (20 mA)

Allocation of DIPs to analog inputs is as follows:

- DIP on left (DIP 1) = Analog input 1

- DIP on right (DIP 2) = Analog input 2

Settings:

0 Unipolar voltage input (0 to +10 V) 1 Unipolar voltage input with monitoring (0 to 10 V) 2 Unipolar current input (0 to 20 mA) 3 Unipolar current input with monitoring (0 to 20 mA) 4 Bipolar voltage input (-10 V to +10 V)

Index:

P0756[0] : Analog input 1 (ADC 1) P0756[1] : Analog input 2 (ADC 2)

Dependency:

Function disabled if analog scaling block programmed to output negative setpoints (see P0757 to P0760).

Notice:

When monitoring is enabled and a deadband defined (P0761), a fault condition will be generated (F0080) if the analog input voltage falls below 50 % of the deadband voltage.

On account of h/w restirction it is not possible to select the bipolar voltage (see Enum declaration) for analog input 2 (P0756[1] = 4).

Details:

See P0757 to P0760 (ADC scaling).

Level:

Parameter List MICROMASTER 430

44 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0757[2] Value x1 of ADC scaling [V / mA]

CStat: CUT Datatype: Float Unit: - Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 20

Parameters P0757 - P0760 configure the input scaling as shown in the diagram:

P0756 = 0 ... 3 P0761 = 0

100 %

ASPmax

P0760

P0757

P0759

P0758

ASPmin

Where: Analog setpoints represent a [%] of the normalized frequency in P2000. Analog setpoints may be larger than 100 %. ASPmax represents highest analog setpoint (this may be at 10 V or 20 mA). ASPmin represents lowest analog setpoint (this may be at 0 V or 20 mA).

10 V 20 mA

Min: -20

Level:

100%

V mA

4000H 10 V or 20 mA

Default values provide a scaling of 0 V or 0 mA = 0 %, and 10 V or 20 mA = 100 %.

P0756 = 4 P0761 = 0

ASPmax

P0760

P0757

-10 V

Index:

P0757[0] : Analog input 1 (ADC 1) P0757[1] : Analog input 2 (ADC 2)

Notice:

The value x2 of ADC scaling P0759 must be greater than the value x1 of ADC scaling P0757.

100 %

ASPmin

P0758

P0759

10 V

4000H 10 V

100%

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0758[2] Value y1 of ADC scaling Min: -99999.9

CStat: CUT Datatype: Float Unit: % Def: 0.0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 99999.9

Sets value of Y1 in [%] as described in P0757 (ADC scaling)

Index:

P0758[0] : Analog input 1 (ADC 1) P0758[1] : Analog input 2 (ADC 2)

Dependency:

Affects P2000 to P2003 (reference frequency, voltage, current or torque) depending on which setpoint is to be generated.

P0759[2] Value x2 of ADC scaling [V / mA] Min: -20

CStat: CUT Datatype: Float Unit: - Def: 10 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 20

Sets value of X2 as described in P0757 (ADC scaling).

Index:

P0759[0] : Analog input 1 (ADC 1) P0759[1] : Analog input 2 (ADC 2)

Notice:

The value x2 of ADC scaling P0759 must be greater than the value x1 of ADC scaling P0757.

P0760[2] Value y2 of ADC scaling Min: -99999.9

CStat: CUT Datatype: Float Unit: % Def: 100.0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 99999.9

Sets value of Y2 in [%] as described in P0757 (ADC scaling).

Index:

P0760[0] : Analog input 1 (ADC 1) P0760[1] : Analog input 2 (ADC 2)

Dependency:

Affects P2000 to P2003 (reference frequency, voltage, current or torque) depending on which setpoint is to be generated.

Level:

Parameter List MICROMASTER 430

46 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0761[2] Width of ADC deadband [V / mA]

CStat: UT Datatype: Float Unit: - Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 20

Defines width of deadband on analog input. The diagrams below explain its use.

Example:

ADC value 2 to 10 V (0 to 50 Hz) The below example produces a 2 to 10 V analog input (0 to 50 Hz): P2000 = 50 Hz P0759 = 8 V P0760 = 75 % P0757 = 2 V P0758 = 0 % P0761 = 2 V

P0756 = 0 or 1

P0761 > 0

0 < P0758 < P0760

100 %

ASPmax

P0760

P0758

0 > P0758 > P0760

P0757

P0761

P0759

10 V 20 mA

Min: 0

Level:

P0757 > P0761

100%

V mA

4000H 10 V or 20 mA

P0757 = P0761

ASPmin

ADC value 0 to 10 V (-50 to +50 Hz): The below example produces a 0 to 10 V analog input (-50 to +50 Hz) with center zero and a "holding point"

0.2 V wide (0.1 V to each side of center).

P2000 = 50 Hz P0759 = 8 V P0760 = 75 % P0757 = 2 V P0758 = -75 % P0761 = 0.1 V

P0756 = 0 or 1

P0761 > 0 P0758 < 0 < P0760

100 %

ASPmax

P0760

P0757

P0758

P0761

P0759

4000H 10 V or 20 mA

10 V 20 mA

100%

V mA

P0757 < P0761

ASPmin

ADC value -10 to +10 V (-50 to +50 Hz):

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

The below example produces a -10 to +10 V analog input (-50 to +50 Hz) with center zero and a "holding point" 0.2 V wide (0.1 V to each side of center).

P0756 = 4 P0761 > 0 P0758 < 0 < P0760

ASPmax

P0760

P0757

-10 V

100 %

P0761

P0758

P0759

10 V

4000H 10 V

100%

ASPmin

Index:

P0761[0] : Analog input 1 (ADC 1) P0761[1] : Analog input 2 (ADC 2)

Note:

P0761[x] = 0 : No deadband active.

Notice:

Deadband starts from 0 V to value of P0761, if both values of P0758 and P0760 (y coordinates of ADC scaling) are positive or negative respectively. However, deadband is active in both directions from point of intersection (x axis with ADC scaling curve), if sign of P0758 and P0760 are opposite.

Min. frequency P1080 should be zero when using center zero setup. There is no hysteresis at the end of the deadband.

P0762[2] Delay for loss of signal action Min: 0

CStat: CUT Datatype: U16 Unit: ms Def: 10 P-Group: TERMINAL Active: Immediately QuickComm. No Max: 10000

Defines time delay between loss of analog setpoint and appearance of fault code F0080.

Index:

P0762[0] : Analog input 1 (ADC 1) P0762[1] : Analog input 2 (ADC 2)

Note:

Expert users can choose the desired reaction to F0080 (default is OFF2).

r0770 Number of DACs Min: -

Datatype: U16 Unit: - Def: -

P-Group: TERMINAL Max: -

Displays number of analog outputs available.

P0771[2] CI: DAC Min: 0:0

CStat: CUT Datatype: U32 Unit: - Def: 21:0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 4000:0

Defines function of the 0 - 20 mA analog output.

Settings:

21 CO: Act. frequency (scaled to P2000) 24 CO: Act. output frequency (scaled to P2000) 25 CO: Act. output voltage (scaled to P2001) 26 CO: Act. DC-link voltage (scaled to P2001) 27 CO: Act. output current (scaled to P2002)

Index:

P0771[0] : Analog output 1 (DAC 1) P0771[1] : Analog output 2 (DAC 2)

Level:

Parameter List MICROMASTER 430

48 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0773[2] Smooth time DAC

CStat: CUT Datatype: U16 Unit: ms Def: 2 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 1000

Defines smoothing time [ms] for analog output signal. This parameter enables smoothing for DAC input using a PT1 filter.

Index:

P0773[0] : Analog output 1 (DAC 1) P0773[1] : Analog output 2 (DAC 2)

Dependency:

P0773 = 0: Deactivates filter.

Min: 0

r0774[2] Act. DAC value [V] or [mA] Min: -

P-Group: TERMINAL Max: -

Shows value of analog output in [V] or [mA] after filtering and scaling.

Index:

r0774[0] : Analog output 1 (DAC 1) r0774[1] : Analog output 2 (DAC 2)

Datatype: Float Unit: - Def: -

P0776[2] Type of DAC Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 1

Defines type of analog output.

Settings:

0 Current output 1 Voltage output

Index:

P0776[0] : Analog output 1 (DAC 1) P0776[1] : Analog output 2 (DAC 2)

Note:

The analog output is designed as a current output with a range of 0...20 mA.

Level:

For a voltage output with a range of 0...10 V an external resistor of 500 Ohms has to be connected at the terminals (12/13 or 26/27).

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0777[2] Value x1 of DAC scaling Min: -99999.0

CStat: CUT Datatype: Float Unit: % Def: 0.0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 99999.0

Defines x1 output characteristic in [%]. Scaling block is responsible for adjustment of output value defined in P0771 (DAC connector input).

Parameters of DAC scaling block (P0777 ... P0781) work as follows:

Output signal (mA)

P0780 Y2

P0778 Y1

P0777

Where: Points P1 (x1, y1) and P2 (x2, y2) can be chosen freely.

Example:

The default values of the scaling block provides a scaling of: P1: 0.0 % = 0 mA or 0 V and P2: 100.0 % = 20 mA or 20 V.

Index:

P0777[0] : Analog output 1 (DAC 1) P0777[1] : Analog output 2 (DAC 2)

Dependency:

Affects P2000 to P2003 (referency frequency, voltage, current or torque) depending on which setpoint is to be generated.

P0779

20 mA

100%(-100%)

P0778[2] Value y1 of DAC scaling Min: 0

CStat: CUT Datatype: Float Unit: - Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 20

Defines y1 of output characteristic.

Index:

P0778[0] : Analog output 1 (DAC 1) P0778[1] : Analog output 2 (DAC 2)

P0779[2] Value x2 of DAC scaling Min: -99999.0

CStat: CUT Datatype: Float Unit: % Def: 100.0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 99999.0

Defines x2 of output characteristic in [%].

Index:

P0779[0] : Analog output 1 (DAC 1) P0779[1] : Analog output 2 (DAC 2)

Dependency:

Affects P2000 to P2003 (referency frequency, voltage, current or torque) depending on which setpoint is to be generated.

P0780[2] Value y2 of DAC scaling Min: 0

CStat: CUT Datatype: Float Unit: - Def: 20 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 20

Defines y2 of output characteristic.

Index:

P0780[0] : Analog output 1 (DAC 1) P0780[1] : Analog output 2 (DAC 2)

Level:

Parameter List MICROMASTER 430

50 6SE6400-5AF00-0BP0

Issue 03/02 Parameters

P0781[2] Width of DAC deadband

CStat: CUT Datatype: Float Unit: - Def: 0 P-Group: TERMINAL Active: first confirm QuickComm. No Max: 20

Sets width of dead-band in [mA] or [V] for analog output.

Index:

P0781[0] : Analog output 1 (DAC 1) P0781[1] : Analog output 2 (DAC 2)

Min: 0

P0800[3] BI: Download parameter set 0 Min: 0:0

CStat: CT Datatype: U32 Unit: - Def: 0:0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4000:0

Defines source of command to start download of parameter set 0 from attached AOP. The first three digits describe the parameter number of the command source, the last digit refers to the bit setting for that parameter.

Settings:

722.0 = Digital input 1 (requires P0701 to be set to 99, BICO)

722.1 = Digital input 2 (requires P0702 to be set to 99, BICO)

722.2 = Digital input 3 (requires P0703 to be set to 99, BICO)

722.3 = Digital input 4 (requires P0704 to be set to 99, BICO)

722.4 = Digital input 5 (requires P0705 to be set to 99, BICO)

722.5 = Digital input 6 (requires P0706 to be set to 99, BICO)

Index:

P0800[0] : 1st. Command data set (CDS) P0800[1] : 2nd. Command data set (CDS) P0800[2] : 3rd. Command data set (CDS)

Note:

Signal of digital input: 0 = No download 1 = Start download parameter set 0 from AOP.

P0801[3] BI: Download parameter set 1 Min: 0:0

CStat: CT Datatype: U32 Unit: - Def: 0:0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4000:0

Defines sources of command to start download of parameter set 1 from attached AOP. The first three digits describe the parameter number of the command source, the last digit refers to the bit setting for that parameter.

Settings:

722.0 = Digital input 1 (requires P0701 to be set to 99, BICO)

722.1 = Digital input 2 (requires P0702 to be set to 99, BICO)

722.2 = Digital input 3 (requires P0703 to be set to 99, BICO)

722.3 = Digital input 4 (requires P0704 to be set to 99, BICO)

722.4 = Digital input 5 (requires P0705 to be set to 99, BICO)

722.5 = Digital input 6 (requires P0706 to be set to 99, BICO)

Index:

P0801[0] : 1st. Command data set (CDS) P0801[1] : 2nd. Command data set (CDS) P0801[2] : 3rd. Command data set (CDS)

Note:

Signal of digital input: 0 = No download 1 = Start download parameter set 1 from AOP.

P0809[3] Copy command data set (CDS) Min: 0

CStat: CT Datatype: U16 Unit: - Def: 0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 2

Calls 'Copy command data set' function.

Index:

P0809[0] : Copy from CDS P0809[1] : Copy to CDS P0809[2] : Start copy

Note:

Start value in index 2 is automatically reset to '0' after execution of function.

Level:

Parameter List MICROMASTER 430 6SE6400-5AF00-0BP0

Parameters Issue 03/02

P0810 BI: CDS bit 0 (Local / Remote) Min: 0:0

CStat: CUT Datatype: U32 Unit: - Def: 718:0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4095:0

Selects command source from which to read Bit 0 for selecting a command data set (CDS).

Selection of CDS

BI: CDS bit 1

P0811

(0:0)

BI: CDS b0 loc/rem

P0810

(0:0)

CO/BO: Add. CtrlWd

CO/BO: Act CtrlWd1

CDS active

r0050

Switch-over time

aprox. 4 ms

The actual active command data set (CDS) is displayed in parameter r0050.

selected

CDS

r0055

Bit15

1. CDS 0 0

2. CDS 0 1

3. CDS 1 0

3. CDS 1 1

r0054

Bit15

active

CDS

r0050

Settings:

722.0 = Digital input 1 (requires P0701 to be set to 99, BICO)

722.1 = Digital input 2 (requires P0702 to be set to 99, BICO)

722.2 = Digital input 3 (requires P0703 to be set to 99, BICO)

722.3 = Digital input 4 (requires P0704 to be set to 99, BICO)

722.4 = Digital input 5 (requires P0705 to be set to 99, BICO)

722.5 = Digital input 6 (requires P0706 to be set to 99, BICO)

722.6 = Digital input 7 (via analog input 1, requires P0707 to be set to 99)

722.7 = Digital input 8 (via analog input 2, requires P0708 to be set to 99)

Note:

P0811 is also relevant for command data set (CDS) set selection.

P0811 BI: CDS bit 1 Min: 0:0

CStat: CUT Datatype: U32 Unit: - Def: 0:0 P-Group: COMMANDS Active: first confirm QuickComm. No Max: 4095:0

Selects command source from which to read Bit 1 for selecting a command data set (see P0810).
