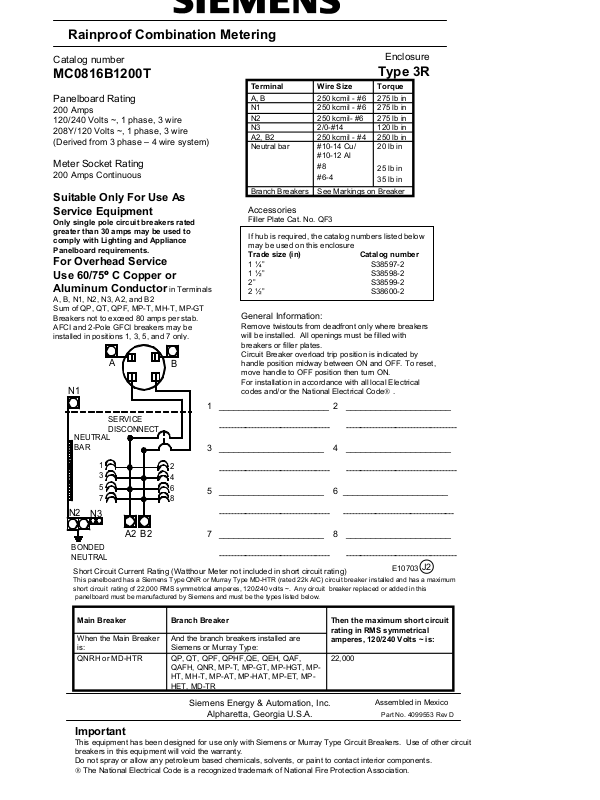

Rainproof Combination Metering
Catalog number
MC0816B1200T
Panelboard Rating
200 Amps
120/240 Volts ~, 1 phase, 3 wire
208Y/120 Volts ~, 1 phase, 3 wire
(Derived from 3 phase – 4 wire system)
Meter Socket Rating
200 Amps Continuous
Suitable Only For Use As
Service Equipment
Only single pole circuit breakers rated
greater than 30 amps may be used to
comply with Lighting and Appliance
Panelboard requirements.
For Overhead Service
Use 60/75° C Copper or
Aluminum Conductor
A, B, N1, N2, N3, A2, and B2
Sum of QP, QT, QPF, MP-T, MH-T, MP-GT
Breakers not to exceed 80 amps per stab.
AFCI and 2-Pole GFCI breakers may be
installed in positions 1, 3, 5, and 7 only.
A
N1
SERVICE
NEUTRAL
BAR
N2
DISCONNECT
1
3
5
7
N3
in Terminals
B
2
4
6
8
Neutral bar
#10-14 Cu/
#10-12 Al
#8
#6-4
See Markings on BreakerBranch Breakers
Accessories
Filler Plate Cat. No. QF3
If hub is required, the catalog numbers listed below
may be used on this enclosure
Trade size (in) Catalog number
1 ¼” S38597-2
1 ½” S38598-2
2” S38599-2
2 ½” S38600-2
General Information:
Remove twistouts from deadfront only where breakers
will be installed. All openings must be filled with
breakers or filler plates.
Circuit Breaker overload trip position is indicated by
handle position midway between ON and OFF. To reset,
move handle to OFF position then turn ON.
For installation in accordance with all local Electrical
codes and/or the National Electrical Code .
1 ______________________
--------------------------------------
3 _____________________
--------------------------------------
5 _____________________
--------------------------------------
Enclosure
Type 3R
TorqueWire SizeTerminal
275 lb in250 kcmil - #6A, B
275 lb in250 kcmil - #6N1
275 lb in250 kcmil- #6N2
120 lb in2/0-#14N3
250 lb in250 kcmil - #4A2, B2
20 lb in
25 lb in
35 lb in
2 _____________________
--------------------------------------
4 _____________________
--------------------------------------
6 _____________________
--------------------------------------
A2
B2
BONDED
NEUTRAL
Short Circuit Current Rating (Watthour Meter not included in short circuit rating)
This panelboard has a Siemens Type QNR or Murray Type MD-HTR (rated 22k AIC) circuit breaker installed and has a maximum
short circuit rating of 22,000 RMS symmetrical amperes, 120/240 volts ~. Any circuit breaker replaced or added in this
panelboard must be manufactured by Siemens and must be the types listed below.
Branch BreakerMain Breaker
When the Main Breaker
is:
QNRH or MD-HTR
And the branch breakers installed are
Siemens or Murray Type:
QAFH, QNR, MP-T, MP-GT, MP-HGT, MPHT, MH-T, MP-AT, MP-HAT, MP-ET, MPHET, MD-TR
7 _____________________
--------------------------------------
Siemens Energy & Automation, Inc.
Alpharetta, Georgia U.S.A.
8 _____________________
-------------------------------------J2
E10703
Then the maximum short circuit
rating in RMS symmetrical
amperes, 120/240 Volts ~ is:
22,000QP, QT, QPF, QPHF,QE, QEH, QAF,
Assembled in Mexico
Part No. 4099553 Rev D
Important
This equipment has been designed for use only with Siemens or Murray Type Circuit Breakers. Use of other circuit
breakers in this equipment will void the warranty.
Do not spray or allow any petroleum based chemicals, solvents, or paint to contact interior components.
The National Electrical Code is a recognized trademark of National Fire Protection Association.
