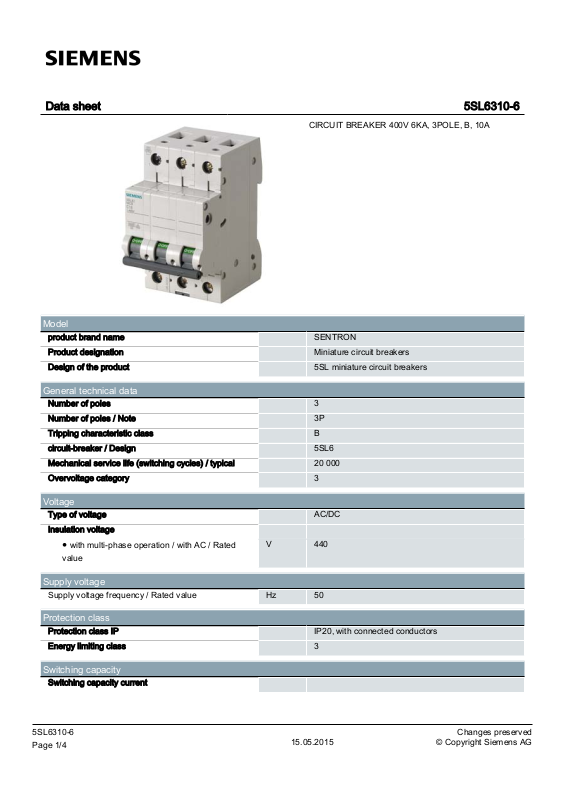

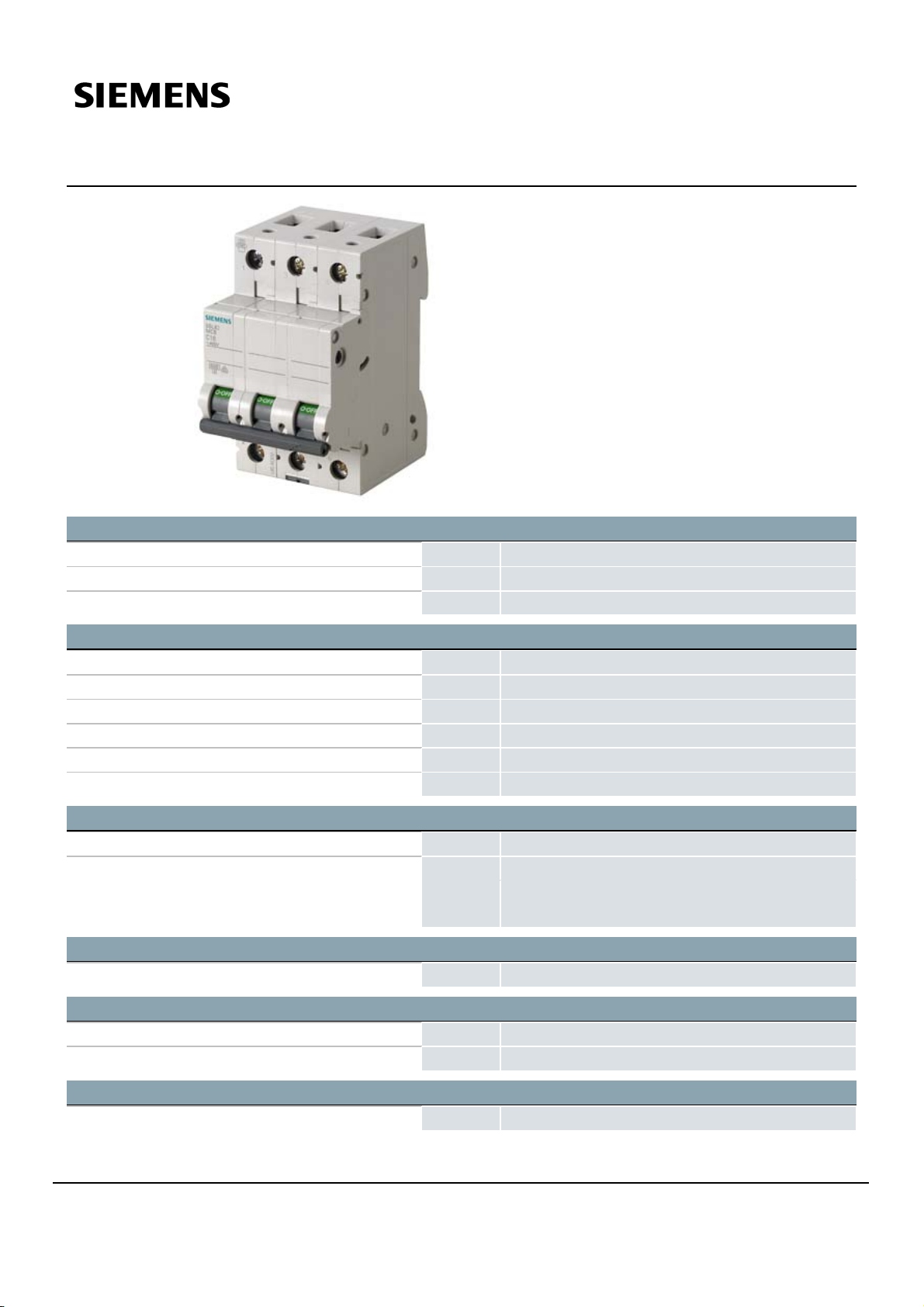

Data sheet 5SL6310-6
4
CIRCUIT BREAKER 400V 6KA, 3POLE, B, 10A
Model
product brand name SENTRON
Product designation Miniature circuit breakers
Design of the product 5SL miniature circuit breakers
General technical data
Number of poles 3
Number of poles / Note 3P
Tripping characteristic class B
circuit-breaker / Design 5SL6
Mechanical service life (switching cycles) / typical 20000
Overvoltage category 3
Voltage
Type of voltage AC/DC
Insulation voltage
● with multi-phase operation / with AC / Rated
value
V 440
Supply voltage
Supply voltage frequency / Rated value Hz 50
Protection class
Protection class IP IP20, with connected conductors
Energy limiting class 3
Switching capacity
Switching capacity current
5SL6310-6 Changes preserved
Page 1/
15.05.2015 © Copyright Siemens AG
Page 2
● acc. to EN 60898 / Rated value
4
● acc. to IEC 60947-2 / Rated value
kA 6
kA 6
Dissipation
Active power loss
● for rated value of the current / with AC / in hot
operating state / per pole
W 1.5
Electricity
rated current In / IEC, DIN/VDE / at 40 Cel A 9.51662
Current / with AC / Rated value A 10
Main circuit
Operating voltage
● minimum
● for DC / Rated value / maximum
● with multi-phase operation / with AC / maximum
V 24
V 60
V 440
Product details
Product feature / Touch protection Yes
Product property
● halogen-free
● sealable
● silicon-free
Product expansion / can be installed / supplementary
devices
Yes
Yes
Yes
Yes
Product function
Product function / neutral conductor switching No
Number
Number of test cycles / for environmental testing /
acc. to IEC 60068-2-30
Connections
Connectable conductor cross-section / stranded
● minimum
● maximum
Connectable conductor cross-section
● solid
— minimum
— maximum
● finely stranded / with core end processing
— minimum
— maximum
Tightening torque / with screw-type terminals
● minimum
mm² 0.75
mm² 35
mm² 0.75
mm² 35
mm² 0.75
mm² 25
N·m 2.5
6
5SL6310-6 Changes preserved
Page 2/
15.05.2015 © Copyright Siemens AG
Page 3
● maximum
4
N·m 3
Mechanical Design
Height mm 90
Width mm 54
Depth mm 76
mounting position any
Installation depth mm 70
Number of width units 3
Net weight g 354
Environmental conditions
Degree of pollution 2
Influence of the surrounding temperature Periodically +55°C, max. 95% humidity
Ambient temperature
● minimum
● maximum
● during storage / minimum
● during storage / maximum
°C -25
°C 45
°C -40
°C 75
Certificates
Equipment marking
● acc. to DIN EN 61346-2
● acc. to DIN EN 81346-2
F
F
General Product Approval
Declaration of
Conformity
Test
Certificates
other other
other
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system)
https://eb.automation.siemens.com/mall/en/WW/Catalog/Product/5SL63106
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
http://support.automation.siemens.com/WW/view/en/5SL63106/all

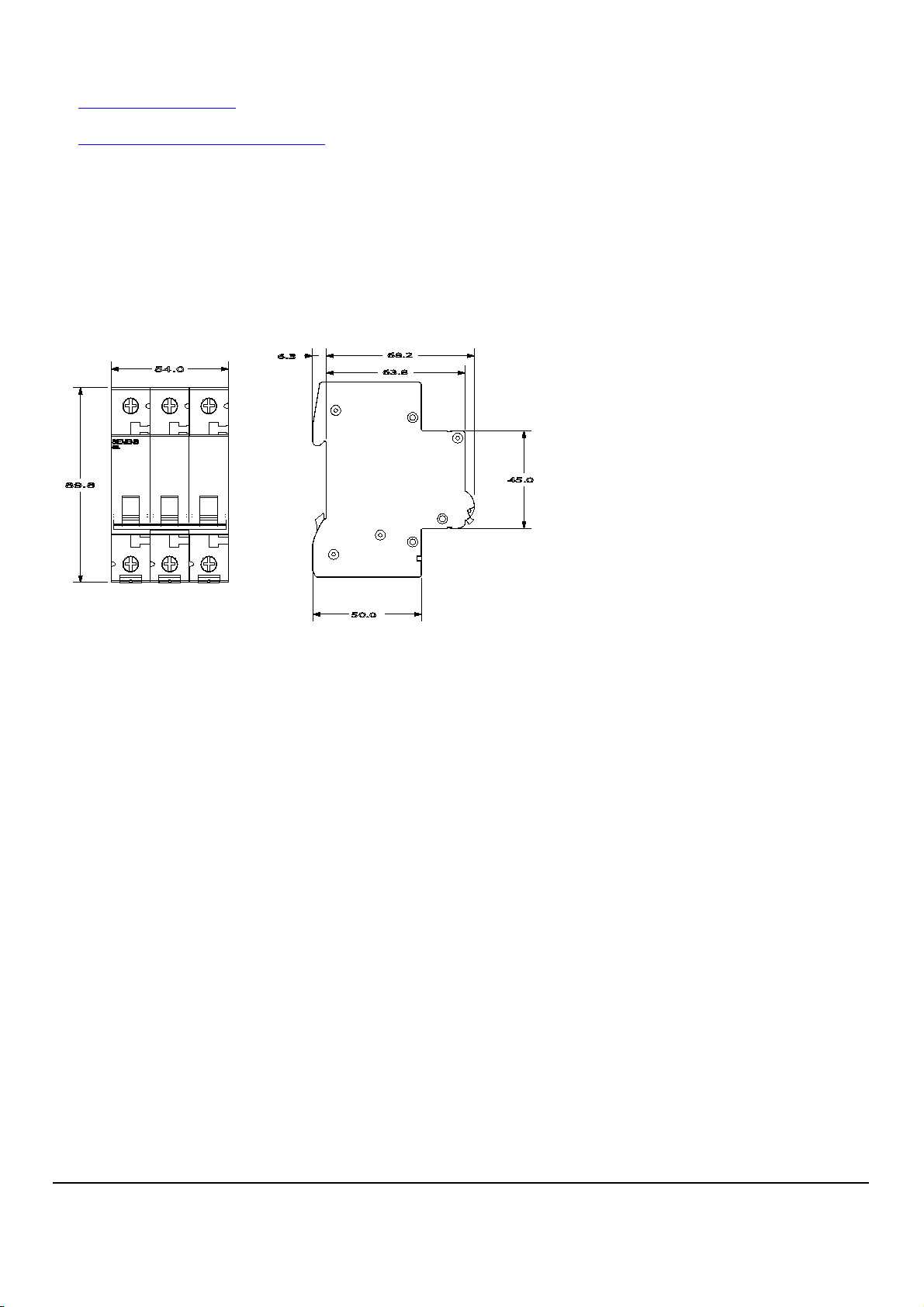

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5SL63106
TSE
5SL6310-6 Changes preserved
Page 3/
15.05.2015 © Copyright Siemens AG
Page 4
CAx-Online-Generator
4
http://www.siemens.com/cax
Tender specifications
http://ausschreibungstexte.siemens.com/tiplv
last modified: 05.05.2015
5SL6310-6 Changes preserved
Page 4/
15.05.2015 © Copyright Siemens AG
