Siemens KI86NNSE0 User guide

Fridge-freezer

KI85N.. KI86N..

Information for Use

en

Register your product on My Siemens and discover
exclusive services and offers.

siemens-home.bsh-group.com/welcome

The future moving in.

Siemens Home Appliances

en

Table of contents

1 Safety ............................................4

1.1 General information....................4

1.2 Intended use...............................4

1.3 Restriction on user group...........4

1.4 Safe transport.............................4

1.5 Safe installation ..........................5

1.6 Safe use .....................................6

1.7 Damaged appliance...................8

2 Preventing material damage .......9

3 Environmental protection and

saving energy...............................9

3.1 Disposing of packaging .............9

3.2 Saving energy.............................9

4 Installation and connection.........9

4.1 Scope of delivery........................9

4.2 Criteria for the installation

location .....................................10

4.3 Installing the appliance ............10

4.4 Preparing the appliance for

the first time..............................10

4.5 Connecting the appliance to

the electricity supply.................11

5 Familiarising yourself with

your appliance............................12

5.1 Appliance .................................12

5.2 Control panel............................13

6 Features......................................14

6.1 Shelf..........................................14

6.2 Snack container .......................14

6.3 Fruit and vegetable con-

tainer.........................................14

6.4 Door rack..................................14

6.5 Accessories..............................14

7 Basic operation ..........................15

7.1 Switching on the appliance......15

7.2 Operating tips...........................15

7.3 Switching off the appliance ......15

7.4 Setting the temperature............15

8 Additional functions ..................15

8.1 Super function ..........................15

9 Alarm...........................................16

9.1 Door alarm ...............................16

9.2 Fan alarm .................................16

10 Refrigerator compartment .......16

10.1 Tips for storing food in the

refrigerator compartment .......16

10.2 Chill zones in the refriger-

ator compartment...................17

10.3 "OK" sticker ............................17

11 Freezer compartment...............17

11.1 Freezing capacity ...................17

11.2 Fully utilising the freezer

compartment volume .............17

11.3 Tips for storing food in the

freezer compartment ..............18

11.4 Tips for freezing fresh food ....18

11.5 Shelf life of frozen food at

−18°C....................................18

11.6 Defrosting methods for

frozen food .............................18

12 Defrosting .................................19

12.1 Defrosting in the refriger-

ator compartment...................19

12.2 Defrosting in the freezer

compartment ..........................19

13 Cleaning and servicing ............19

13.1 Preparing the appliance for

cleaning ..................................19

13.2 Cleaning the appliance ..........19

13.3 Cleaning the condensation

channel and drainage hole ....20

13.4 Removing the fittings..............20

14 Troubleshooting.......................22

14.1 Power failure...........................24

14.2 Conducting an appliance

self-test ...................................24

2

15 Storage and disposal ...............24

15.1 Taking the appliance out of

operation ................................24

15.2 Disposing of old appliance ....24

16 Customer Service.....................25

16.1 Product number (E-Nr.) and

production number (FD).........25

17 Technical data ..........................25

en

3

en Safety

1 Safety

Observe the following safety instructions.

1.1 General information

¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe

for future reference or for the next owner.

¡ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

This appliance is only intended to be fully fitted in a kitchen.
Only use this appliance:

¡ for chilling and freezing food and for making ice cubes.
¡ In private households and in enclosed spaces in a domestic en-

vironment.

¡ Up to an altitude of 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil­dren unless they are being supervised.
Children above the age of three years old and younger than eight
years old may load and unload the the fridge-freezer.

1.4 Safe transport

WARNING‒Risk of injury!

The high weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.

4

Safety en

1.5 Safe installation

WARNING‒Risk of electric shock!

Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the

specifications on the rating plate.

▶ Connect the appliance to a power supply with alternating cur-

rent only via a properly installed socket with earthing.

▶ The protective conductor system of the domestic electrical in-

stallation must be properly installed.

▶ Never equip the appliance with an external switching device,

e.g. a timer or remote control.

▶ When the appliance is installed, the mains plug of the power

cord must be freely accessible. If free access is not possible, an
all-pole isolating switch must be installed in the permanent elec­trical installation according to the installation regulations.

▶ When installing the appliance, check that the power cable is not

trapped or damaged.

If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with heat sources.

WARNING‒Risk of explosion!

If the appliance's ventilation openings are sealed, a leak in the re­frigeration circuit may result in a flammable mixture of gas and air.
▶ Keep ventilation openings, in the appliance enclosure or in the

built-in structure, clear of obstruction.

WARNING‒Risk of fire!

It is dangerous to use an extended power cord and non-approved
adapters.

▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-

turer.

▶ If the power cord is too short and a longer one is not available,

please contact an electrician to have the domestic installation
adapted.

5

en Safety

Portable multiple socket strips or portable power supply units may
overheat and cause a fire.
▶ Do not place portable multiple socket strips or power supply

units on the back of the appliance.

1.6 Safe use

WARNING‒Risk of electric shock!

An ingress of moisture can cause an electric shock.

▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners to clean the appli-

ance.

WARNING‒Risk of suffocation!

Children may put packaging material over their heads or wrap
themselves up in it and suffocate.

▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to
suffocate.

▶ Keep small parts away from children.
▶ Do not let children play with small parts.

WARNING‒Risk of explosion!

If the cooling circuit is damaged, flammable refrigerant may es­cape and explode.
▶ To accelerate the defrosting process, do not use any other

mechanical devices or means other than those recommended
by the manufacturer.

▶ If food is stuck to the freezer compartment, loosen it with a blunt

implement such as the handle of a wooden spoon.
Products which contain flammable propellants and explosive sub­stances may explode, e.g. spray cans.
▶ Do not store products which contain flammable propellants (e.g.

spray cans) or explosive substances in the appliance.

6

Safety en

WARNING‒Risk of fire!

Electrical devices within the appliance may cause a fire, e.g. heat­ers or electric ice makers.
▶ Do not operate electrical devices within the appliance.

WARNING‒Risk of injury!

Containers that contain carbonated drinks may burst.
▶ Do not store containers that contain carbonated drinks in the

freezer compartment.
Injury to the eyes caused by escaping flammable refrigerant and
hazardous gases.
▶ Do not damage the tubes of the refrigerant circuit or the insula-

tion.

WARNING‒Risk of cold burns!

Contact with frozen food and cold surfaces may cause burns by
refrigeration.
▶ Never put frozen food straight from the freezer compartment

into your mouth.
▶ Avoid prolonged contact of the skin with frozen food, ice and

surfaces in the freezer compartment.

CAUTION‒Risk of harm to health!

To prevent food from being contaminated, you must observe the
following instructions.
▶ If the door is open for an extended period of time, this may lead

to a considerable temperature increase in the compartments of

the appliance.
▶ Regularly clean the surfaces that may come into contact with

food and accessible drain systems.
▶ Store raw meat and fish in suitable containers in the refrigerator

so that they do not touch or drip on other food.
▶ If the fridge/freezer is empty for an extended period of time,

switch off the appliance, defrost it, clean it and leave the door

open to prevent the formation of mould.

7

en Safety

Metal or metal-style parts in the appliance may contain aluminium.
If acidic food comes into contact with aluminium in the appliance,
aluminium foil ions may pass into the food.
▶ Do not consume soiled food.

1.7 Damaged appliance

WARNING‒Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always

unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately un-

plug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. →Page25
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained

specialist staff.

▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-

placed with a special connection cable, which is available from

the manufacturer or his Customer Service.

WARNING‒Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful
gases may escape and ignite.
▶ Keep naked flames and ignition sources away from the appli-

ance.

▶ Ventilate the room.
▶ Switch off the appliance. →Page15
▶ Unplug the appliance from the mains or switch off the circuit

breaker in the fuse box.
▶ Call after-sales service. →Page25

8

Preventing material damage en

2 Preventing material

damage

ATTENTION!

Using the base, runners or appliance
doors as a seat surface or climbing
surface may damage the appliance.

▶ Do not stand or support yourself

on the base, runners or doors.
Contamination with oil or fat may
cause plastic parts and door seals to
become porous.

▶ Keep plastic parts and door seals

free of oil and grease.
Metal or metal-style parts in the appli­ance may contain aluminium. Alu­minium reacts when it comes into
contact with acidic foods.

▶ Do not store unpackaged food in

the appliance.

3 Environmental protec-

tion and saving energy

– Maintain a 30mm clearance to

electric or gas cookers.

– Maintain a 300mm clearance to

oil or solid-fuel cookers.

¡ Never cover or block the external

ventilation openings.

Saving energy during use

Note:The arrangement of the fittings

does not affect the energy consump­tion of the appliance.

¡ Open the appliance only briefly

and then close it carefully.

¡ Never cover or block the interior

ventilation openings or the exterior
ventilation openings.

¡ Transport purchased food in a

cool bag and place in the appli­ance quickly.

¡ Allow warm food and drinks to

cool down before storing them.

¡ Thaw frozen food in the refrigerator

compartment to utilise the low tem­perature of the food.

¡ Always leave some space between

the food and to the back panel.

3.1 Disposing of packaging

The packaging materials are environ­mentally compatible and can be re­cycled.

▶ Sort the individual components by

type and dispose of them separ-

ately.

3.2 Saving energy

If you follow these instructions, your
appliance will use less power.

Selecting the installation location

¡ Keep the appliance out of direct

sunlight.
¡ Install the appliance as far away as

possible from heating elements,

cookers and other heat sources:

4 Installation and con-

nection

4.1 Scope of delivery

After unpacking all parts, check for
any transport damage and for com­pleteness of delivery.
If you have any complaints, contact
your dealer or our after-sales service
→Page25.

The delivery consists of the following:
¡ Built-in appliance

9

en Installation and connection

4

¡ Equipment and accessories

1

¡ Installation material
¡ Installation instructions
¡ User manual
¡ Customer service directory
¡ Warranty enclosure

2

¡ Energy label
¡ Information on energy consump-

tion and noises

4.2 Criteria for the installation

location

WARNING

Risk of explosion!

If the appliance is in a space that is
too small, a leak in the refrigeration
circuit may result in a flammable mix­ture of gas and air.

▶ Only install the appliance in a

space with a volume of at least

1m3 per 8g refrigerant. The

volume of refrigerant is indicated

on the rating plate. →"Appliance",

Fig. 1 /4, Page13

The weight of the appliance ex works
may be up to 65kg depending on
the model.
The subfloor must be sufficiently
stable to bear the weight of the appli­ance.

Permitted room temperature

The permitted room temperature de­pends on the appliance's climate
class.
The climate class can be found on
the rating plate. →"Appliance", Fig.

1 /

, Page13

Climate
class

Permitted room tem­perature

SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C

The appliance is fully functional within
the permitted room temperature.
If an appliance with climate class SN
is operated at colder room temperat­ures, the appliance will not be dam­aged up to a room temperature of
5°C.

Over-and-under and side-by-side installation

If you want to install 2 refrigerating
appliances one over the other or side
by side, you must maintain a clear­ance of at least 150mm between the
appliances. Selected appliances can
be installed without a minimum clear­ance. Ask your dealer or kitchen
planner about this.

4.3 Installing the appliance

▶ Install the appliance in accordance

with the enclosed installation in­structions.

4.4 Preparing the appliance for the first time

1. Remove the informative material.

2. Remove the protective foil and

transit bolts, e.g. remove the ad­hesive strips and carton.

3. Clean the appliance for the first

time. →Page19

1

Depending on the appliance specifications

2

Not in all countries

10

4.5 Connecting the appliance to the electricity supply

1. Insert the non-heating appliance

plug of the power cable into the
appliance.

2. Insert the mains plug of the appli-

ance's power cable in a socket
nearby.

The connection data of the appli­ance can be found on the rating

plate. →"Appliance", Fig. 1 /4,

Page13

3. Check the mains plug is inserted

properly.

a The appliance is now ready for

use.

Installation and connection en

11

en Familiarising yourself with your appliance

3

4

5

6

A

B

1

2

A

B

1

2

3

5 Familiarising yourself with your appliance

5.1 Appliance

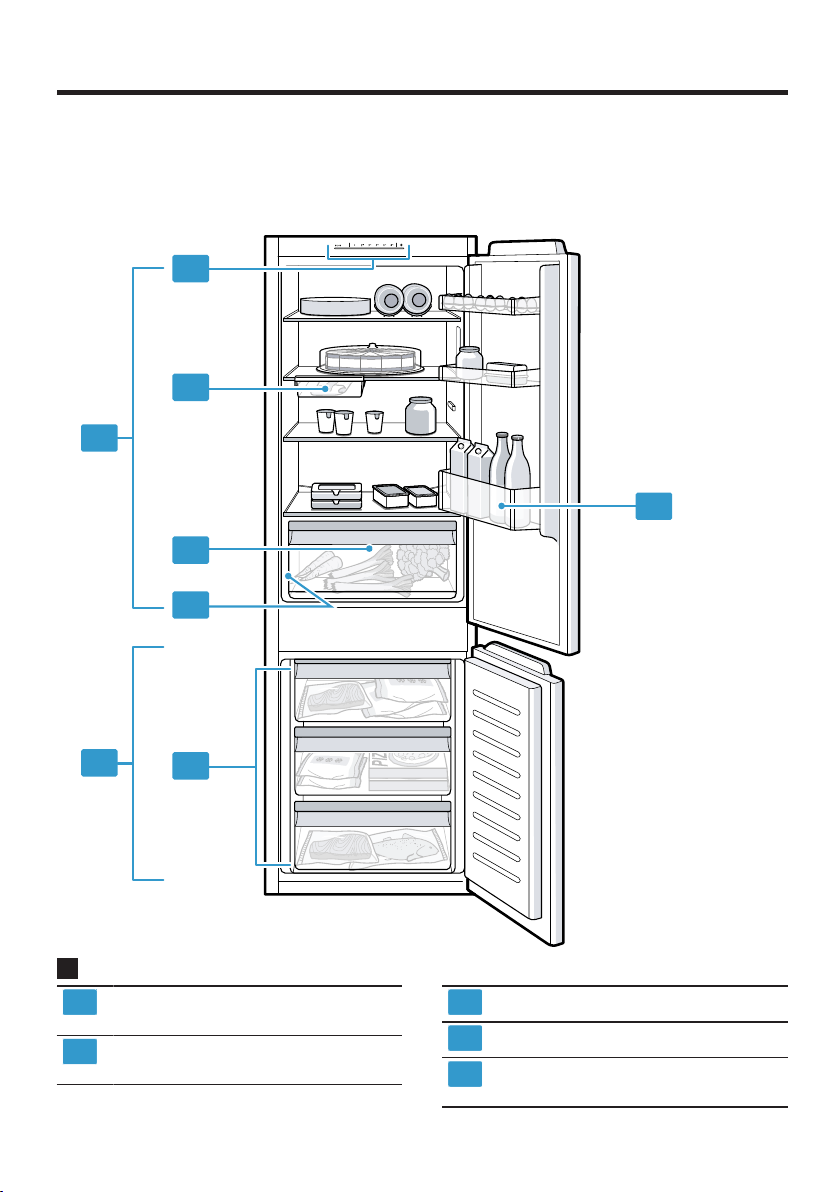

You can find an overview of the parts of your appliance here.

1

12

Refrigerator compartment
→Page16

Freezer compartment
→Page17

Control panel →Page13

Snack container →Page14

Fruit and vegetable container
→Page14

Familiarising yourself with your appliance en

4

5

6

1 4 532

1

2

3

4

5

Rating plate →Page25

Frozen food container
→Page21

Note:Deviations between your appli­ance and the diagrams may differ
with regard to their features and size.

Door storage compartment
for large bottles →Page14

5.2 Control panel

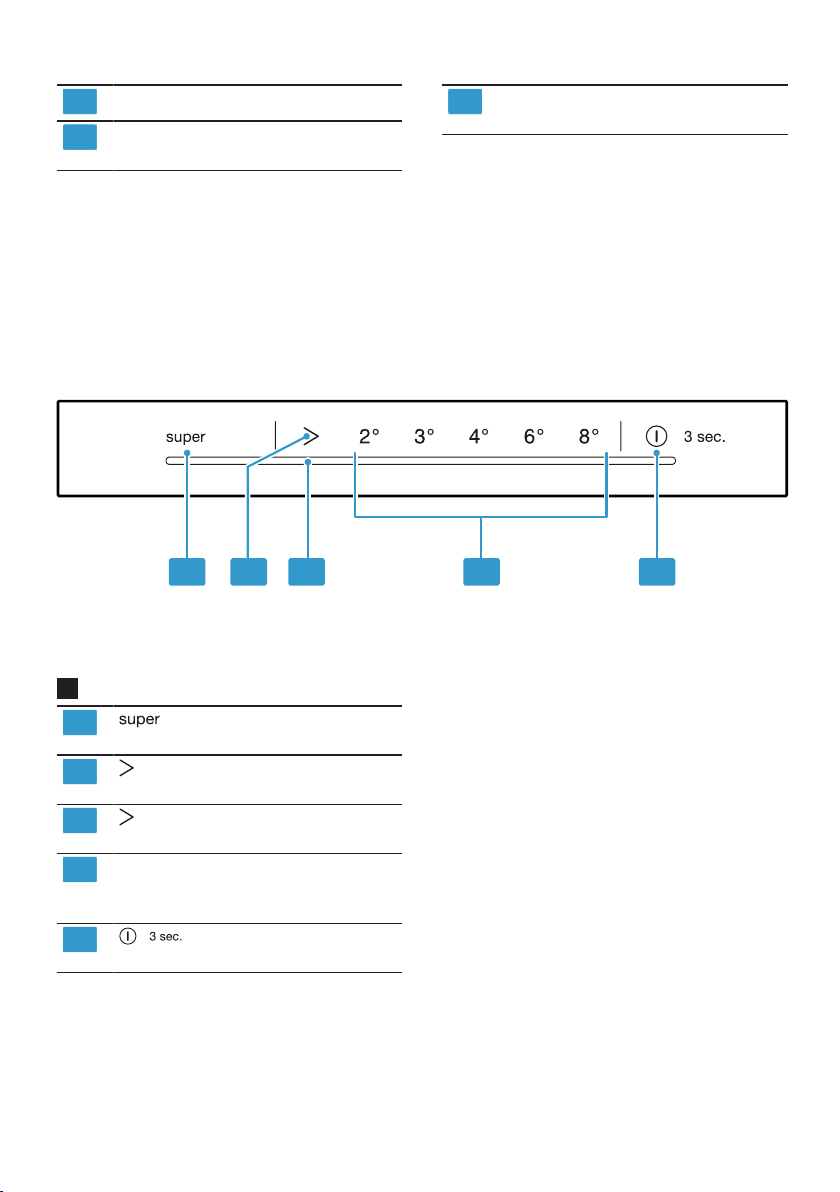

You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.

2

switches the Super func-

tion on or off.

sets the temperature of the

refrigerator compartment.

lights up when the alarm is

switched on.
Displays the set temperature

for the refrigerator compart­ment in°C.

switches the appli-

ance on or off.

13

en Features

6 Features

The features of your appliance de­pend on the model.

6.1 Shelf

To vary the shelf as required, you
can remove the shelf and re-insert it
elsewhere.
→"Removing the shelf", Page20

6.2 Snack container

Store packaged food or small snacks
in the snack container.

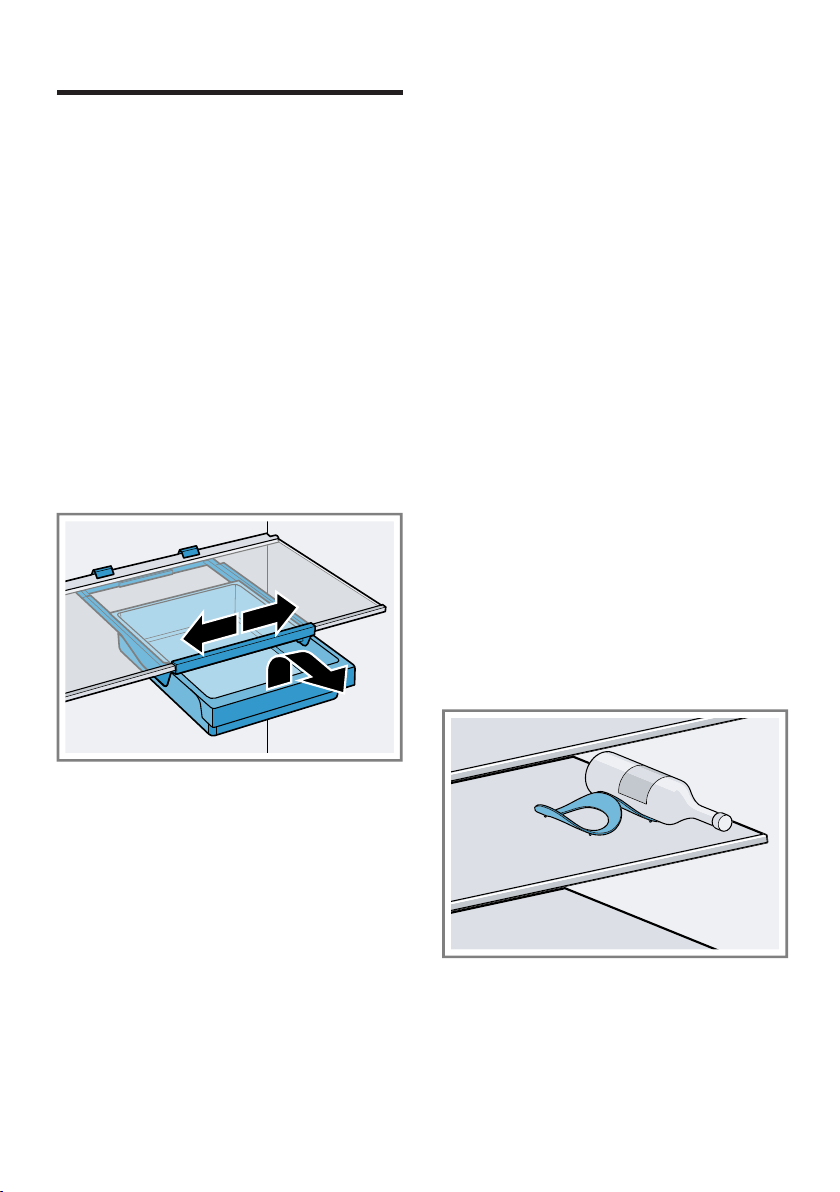

You can remove the snack container.
To do this, pull out and remove the
snack container. You can move the
holder for the snack container.

To ensure that the quality and aroma
are retained, store fruit and veget­ables that are sensitive to cold out­side of the appliance at temperatures
of approx. 8°C to 12°C, e.g. pine­apple, bananas, citrus fruits, cucum­bers, courgettes, peppers, tomatoes
and potatoes.

6.4 Door rack

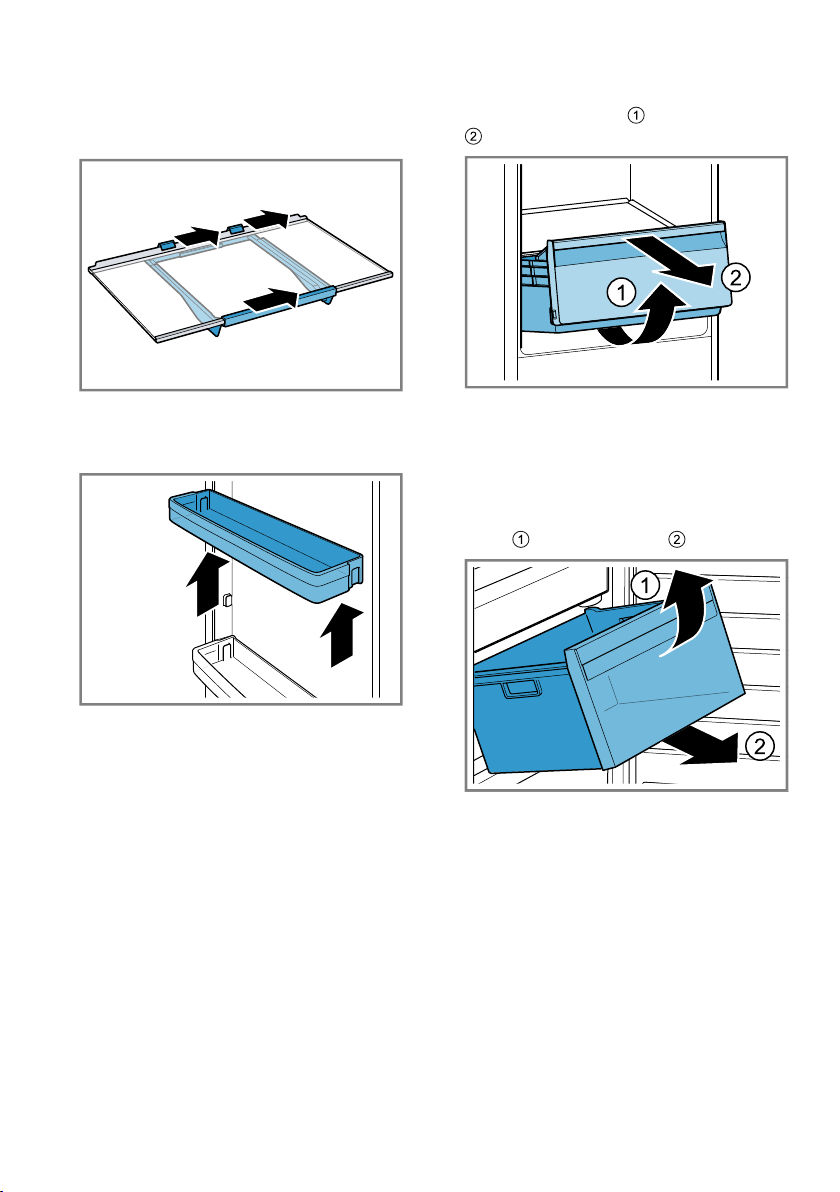

To adjust the door rack as required,
you can remove the door rack and
re-insert elsewhere.
→"Removing door rack", Page21

6.5 Accessories

Use original accessories. These have
been made especially for your appli­ance.
The accessories for your appliance
depend on the model.

Egg tray

Store eggs safely on the egg tray.

Bottle shelf

Store bottles securely on the bottle
shelf.

6.3 Fruit and vegetable con­tainer

Store fresh fruit and vegetables in
their packaging in the fruit and veget­able container.
Cover any chopped fruit and veget­ables, or store in air-tight packaging.
Condensation may form in the fruit
and vegetable container depending
on the food and quantity stored.
Remove the condensation with a dry
cloth.

14

Ice cube tray

Use the ice cube tray to make ice
cubes.

operation en

Making ice cubes

Use only drinking water tomake ice
cubes.

1. Fill the ice cube tray with drinking

water up to ¾ and place in the
freezer compartment.

If the ice cube tray is stuck to the
freezer compartment, loosen it with
a blunt implement only (e.g. spoon
handle).

2. To loosen the ice cubes, twist the

ice cube tray slightly or hold it
briefly under flowing water.

operation

7 Basic operation

operation

7.1 Switching on the appli­ance

1. Electrically connect the appliance.

→Page11
Note:If the appliance has been

previously switched off using the
control panel, press and hold

for threeseconds.

a The appliance begins to cool.

2. Set the required temperature.

→Page15

7.3 Switching off the appli­ance

▶ Press and hold for

threeseconds.

7.4 Setting the temperature

Setting the refrigerator compartment temperature

▶ Press repeatedly until the tem-

perature display shows the re­quired temperature.

The recommended temperature in
the refrigerator compartment is
4°C.
→""OK" sticker", Page17

Setting the freezer compartment temperature

▶ In order to set the freezer compart-

ment temperature, change the re­frigerator compartment temperat­ure →Page15.

The refrigerator compartment tem­perature influences freezer com­partment temperature. Refrigerator
compartment temperatures that
are set to warm generate warmer
freezer compartment temperatures.

7.2 Operating tips

¡ Once you have switched on the

appliance, the set temperature is
only reached after several hours.
Do not put any food in the appli­ance until the set temperature has
been reached.

¡ The housing around the freezer

compartment is temporarily heated
slightly. This prevents condensa­tion in the area of the door seal.

¡ When you close the door, a va-

cuum may be created. The door is
then difficult to open again. Wait a
moment until the vacuum is offset.

8 Additional functions

8.1 Super function

With the Super function, the refriger­ator compartment and the freezer
compartment cool more intensively.
Switch on the Super function 4 to
6hours before placing food weighing
2kg or more.
In order to utilise the freezing capa­city, use the Super function.
→"Freezing capacity", Page17

15

en Alarm

Note:When the Super function is

switched on, increased noise may
occur.

Switching on Super function

▶ Press .

a lights up.

Note:After approx. 50hours, the ap­pliance switches to normal operation.

Switching off Super function

▶ Press .

9 Alarm

9.1 Door alarm

If the appliance door is open for a
while, the door alarm switches on.
A warning tone sounds and lights
up.
After 10 minutes, the interior lighting
flashes.

Switching off the door alarm

▶ Close the appliance door or press

.

a The warning tone is switched off.

9.2 Fan alarm

If the freezer compartment fan fails,
the fan alarm switches on.

and all LEDs on the temperature
display flash and a warning signal
sounds.

Switching off the fan alarm

1. Press .

a The warning tone is switched off.
a The temperature display again in-

dicates the set temperature.

2. Call customer service.

The customer service number can
be found in the enclosed customer
service directory.

10 Refrigerator compart-

ment

You can keep meat, sausage, fish,
dairy products, eggs, prepared meals
and pastries in the refrigerator com­partment.
The temperature can be set from
2°C to 8°C.
The refrigerator compartment can
also be used to store highly perish­able foods in the short to medium
term. The lower the selected temper­ature, the longer the food remains
fresh.

10.1 Tips for storing food in
the refrigerator compart­ment

¡ Only store food when fresh and

undamaged.

¡ Store food covered or in air-tight

packaging.

¡ To avoid impeding the circulation

of air and to prevent food from
freezing, do not place food so that
it has direct contact with the back
wall.

¡ Allow hot food and drinks to cool

down first before placing in the ap­pliance.

¡ Observe the best-before date or

use-by date specified by the manu­facturer.

16

Freezer compartment en

10.2 Chill zones in the refri­gerator compartment

The air circulation in the refrigerator
compartment creates different chill
zones.

Coldest zone

The coldest zone is between the
shelf above the vegetable container
and the shelf above that.

Tip:Store highly perishable food
such as fish, sausages and meat in
the coldest zone.

Warmest zone

The warmest zone is at the very top
of the door.

Tip:Store food that does not spoil
easily in the warmest zone, e.g. hard
cheese and butter. Cheese can then
continue to release its aroma and the
butter will still be easy to spread.

10.3 "OK" sticker

The "OK" sticker lets you check
whether the refrigerator compartment
reaches the safe temperature ranges
of +4°C or colder recommended for
food.
The "OK" sticker is not included with
all models.
If the sticker does not indicate "OK",
gradually reduce the temperature.
→"Setting the refrigerator compart-

ment temperature", Page15

Once the appliance is switched on, it
may take up to 12hours until the set
temperature is reached.

Correct setting

11 Freezer compartment

You can store frozen food, freeze
food and make ice cubes in the
freezer compartment.
The temperature in the freezer com­partment depends on the temperat­ure in the refrigerator compartment.
Long-term storage of food should be
at –18°C or lower.
The freezer compartment can be
used to store perishable food long­term. The low temperatures slow
down or stop the spoilage.

11.1 Freezing capacity

The freezing capacity indicates the
quantity of food that can be frozen
right through to the centre within a
specific period of time.
Information on freezing capacity can
be found on the rating plate. →"Appli-

ance", Fig. 1 /4, Page13

Prerequisites for freezing capacity

1. Approx. 24hours before placing

fresh food in the appliance, switch
on Super function.
→"Switching on Super function",

Page16

2. Place food in the top frozen food

container first.

3. Freeze fresh food as close as pos-

sible to the side panels.

11.2 Fully utilising the freezer compartment volume

Learn how to store the maximum
amount of frozen food in the freezer
compartment.

1. Remove all fittings from the freezer

compartment, apart from the bot­tom frozen food container.
→Page20

17

en Freezer compartment

2. Stack food in the appliance, start-

ing in the bottom frozen food con­tainer.

11.3 Tips for storing food in the freezer compartment

¡ Store food in air-tight packaging.
¡ Do not bring food which is to be

frozen into contact with frozen
food.

¡ Place thefood over thewhole area

ofthefrozen food containers.

¡ To quickly and gently freeze larger

quantities of fresh food, place this
in the top frozen food container.

¡ To ensure that the air can circulate

freely in the appliance, push the
frozen food containers in as far as
they will go.

11.4 Tips for freezing fresh food

¡ Freeze fresh and undamaged food

only.

¡ Freeze food in portions.
¡ Cooked food is more suitable than

food that can be eaten raw.

¡ Vegetables: Wash, chop up and

blanch before freezing.

¡ Fruit: Wash, pit and perhaps peel,

possibly add sugar or ascorbic
acid solution.

¡ Food that is suitable for freezing in-

cludes baked items, fish and sea­food, meat, game, poultry, eggs
without shells, cheese, butter and
quark, ready meals and leftovers.

¡ Food that is unsuitable for freezing

includes lettuce, radishes, eggs in
shells, grapes, raw apples and
pears, yoghurt, sour cream, crème
fraîche and mayonnaise.

Packing frozen food

If you select suitable packaging ma­terial and the correct type of pack­aging, you can determine the product
quality and prevent freezer burn.

1. Place the food in the packaging.

2. Squeeze out the air.

3. Pack food airtight to prevent it

from losing flavour and drying out.

4. Label the packaging with the con-

tents and the date of freezing.

11.5 Shelf life of frozen food
at −18°C

Food Storage time

Fish, sausages, pre­pared meals and
baked goods

Poultry, meat up to

Vegetables, fruit up to

The imprinted freezer calendar indic­ates the maximum storage duration
in months at a constant temperature
of –18°C.

up to
6months

8months

12months

11.6 Defrosting methods for frozen food

CAUTION

Risk of harm to health!

During the thawing process, bacteria
may multiply and spoil the frozen
food.

▶ Do not refreeze food after it has

been defrosted or started to de­frost.

▶ Refreeze food only after cooking.
▶ These items should no longer be

stored for the maximum storage
period.

18

Defrosting en

¡ Defrost animal-based food, such

as fish, meat, cheese, quark, in the
refrigerator compartment.

¡ Defrost bread at room temperat-

ure.

¡ Prepare food for immediate con-

sumption in the microwave, in the
oven or on the hob.

12 Defrosting

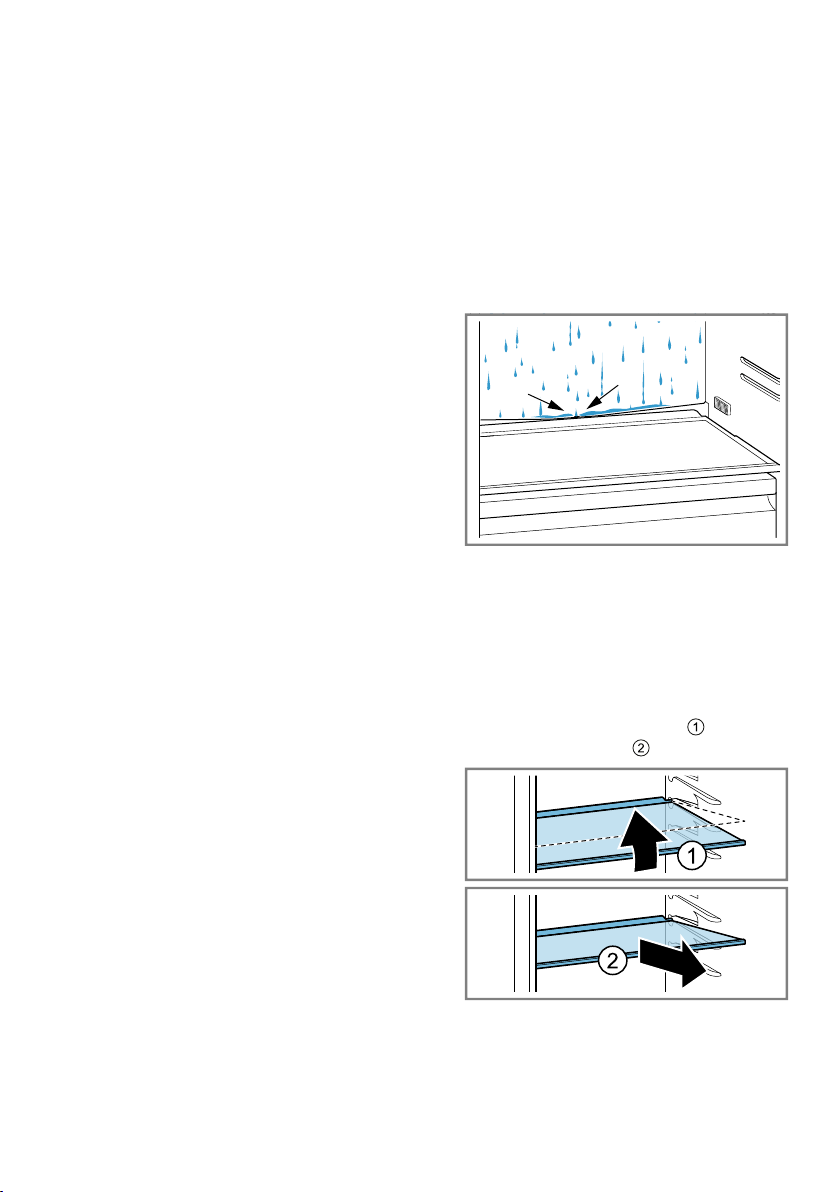

12.1 Defrosting in the refri­gerator compartment

When the appliance is operating,
condensation droplets or frost form
on the rear panel of the refrigerator
compartment due to functional reas­ons. The back panel in the refriger­ator compartment defrosts automatic­ally.

Condensation runs through the con­densation channel into the drainage
hole to the evaporation pan and does
not have to be wiped away.
To ensure that the condensation can
drain and odours do not form, ob­serve the following information:
→"Cleaning the condensation chan-
nel and drainage hole", Page20.

12.2 Defrosting in the freezer compartment

The fully automatic NoFrost system
ensures that the freezer compartment
remains frost-free. Defrosting is not
required.

13 Cleaning and servi-

cing

To keep your appliance working effi­ciently for a long time, it is important
to clean and maintain it carefully.
Customer Service must clean inac­cessible points. Cleaning by cus­tomer service can give rise to costs.

13.1 Preparing the appliance for cleaning

1. Switch off the appliance.

→Page15

2. Disconnect the appliance from the

power supply.
Unplug the appliance from the

mains or switch off the circuit
breaker in the fuse box.

3. Take out all of the food and store it

in a cool place.
Place ice packs (if available) onto

the food.

4. Remove all fittings and accessor-

ies from the appliance.
→Page20

13.2 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an
electric shock.

▶ Do not use steam- or high-pres-

sure cleaners to clean the appli­ance.

19

en Cleaning and servicing

Liquid in the lighting or in the con­trols can be dangerous.

▶ The rinsing water must not drip

into the lighting or controls.

ATTENTION!

Unsuitable cleaning products may
damage the surfaces of the appli­ance.

▶ Do not use hard scouring pads or

cleaning sponges.

▶ Do not use harsh or abrasive de-

tergents.

▶ Do not use cleaning products with

a high alcohol content.
If liquid gets into the drainage hole,
the evaporation pan may overflow.

▶ The rinsing water must not get into

the drainage hole.
If you clean fittings and accessories
in the dishwasher, this may cause
them to become deformed or discol­our.

▶ Never clean fittings and accessory

in the dishwasher.

1. Prepare the appliance for cleaning.

→Page19

2. Clean the appliance, the fittings,

the accessories and the door seals

with a dish cloth, lukewarm water

and a little pH-neutral washing-up

liquid.

3. Dry thoroughly with a soft, dry

cloth.

4. Insert the fittings.

5. Electrically connect the appliance.

→Page11

6. Putting the food into the appliance.

13.3 Cleaning the condensa­tion channel and drain­age hole

Regularly clean the condensation
channel and drainage hole to ensure
that the condensation can drain.

▶ Carefully clean the condensation

channel and the drainage hole,
e.g. using a cotton bud.

13.4 Removing the fittings

If you want to clean the fittings thor­oughly, remove these from your ap­pliance.

Removing the shelf

▶ Lift the shelf at the front , pull it

out and remove it ⁠.

20

Removing the snack container with holder

1. Remove the snack container.

Cleaning and servicing en

2. Remove the shelf with the holder.

3. Slide the holder sideways off the

shelf.

Removing door rack

▶ Lift the door rack and remove it.

2. Lift the fruit and vegetable con-

tainer at the front and remove it

⁠.

Removing the frozen food container

1. Take out the frozen food container

as far as it will go.

2. Lift the frozen food container at the

front and remove it ⁠.

Removing the fruit and vegetable container

1. Pull out the fruit and vegetable

container as far as it will go.

21

en Troubleshooting

14 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshoot­ing information before contacting after-sales service. This will avoid unneces­sary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist

staff.

▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced with a

special connection cable, which is available from the manufacturer or his
Customer Service.

Fault Cause and troubleshooting

The appliance is not
cooling, the displays
and lighting are lit.

The LED lighting does
not work.

The temperature dif­fers greatly from the
setting.

The base of the refri­gerator compartment
is wet.

The appliance hums,
bubbles, buzzes,
gargles, clicks or
crackles.

Showroom mode is switched on.

▶

Carry out the appliance self-test. →Page24

a Once the appliance self-test has ended, the appli-

ance switches to normal operation.

Different causes are possible.

▶ Call customer service.

The customer service number can be found in the
enclosed customer service directory.

Different causes are possible.

1.

Switch off the appliance. →Page15

2. Switch the appliance back on after fiveminutes.

→Page15

‒ If the temperature is too warm, check the temper-

ature again after a couple of hours.

‒ If the temperature is too cold, check the temper-

ature again on the following day.

The condensation channel or drainage hole are
blocked.

▶ Clean the condensation channel and the drainage

hole. →Page20

Not a fault. A motor is running, e.g. refrigerating unit,
fan. Refrigerant flows through the pipes. The motor,
switches or solenoid valves are switching on or off.
Automatic defrosting is running.
No action required.

22

Fault Cause and troubleshooting

The appliance makes
noises.

Fittings wobble or stick.

▶ Check the removable fittings and, if required, re-

place these.

Bottles or containers are touching.

▶ Move the bottles or containers away from each

other.

Super function is switched on.
No action required.

Troubleshooting en

23

en Storage and disposal

14.1 Power failure

During a power failure, the temperat­ure in the appliance rises; this re­duces the storage time and the qual­ity of the frozen food.
On the website for your appliance,
the technical data provides you with
the storage times for frozen food in
the event of a fault.

Notes

¡ Open the appliance as little as

possible during a power failure
and do not place any other food in
the appliance.

¡ Check the quality of the food

immediately after a power failure.
– Dispose of any frozen food that

has defrosted and is hotter than
5°C.

– Cook or fry slightly thawed

frozen food, and then either con­sume it or freeze it again.

14.2 Conducting an appliance self-test

Your appliance has an appliance self­test which displays faults that can be
eliminated by your customer service.

1. Switch off the appliance.

→Page15

2. Disconnect the appliance from the

power supply.
Unplug the appliance from the

mains or switch off the circuit
breaker in the fuse box.

3. Electrically reconnect the appli-

ance after fiveminutes. →Page11

4. Within the first 10seconds after

connecting to the power supply,
press and hold for three to five
seconds until an audible signal
sounds.

a If, at the end of the appliance self-

test, two audible signals sound
and the temperature display indic-

ates the set temperature, your ap­pliance is OK. The appliance
switches to normal operation.

a If, at the end of the appliance self-

test, 5audible signals sound and
the temperature display LEDs light
up with a different brightness, in­form customer service. The LEDs
provide customer service with in­formation about this fault.

15 Storage and disposal

15.1 Taking the appliance out of operation

1. Switch off the appliance.

→Page15

2. Disconnect the appliance from the

power supply.
Unplug the appliance from the

mains or switch off the circuit
breaker in the fuse box.

3. Remove all of the food.

4.

Clean the appliance. →Page19

5. To guarantee the ventilation inside

the appliance, leave the appliance
open.

15.2 Disposing of old appli­ance

Valuable raw materials can be re­used by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the
appliance, thereby putting their lives
at risk.

▶ Leave shelves and containers in-

side the appliance to prevent chil­dren from climbing in.

▶ Keep children away from the re-

dundant appliance.

24

Customer Service en

WARNING

Risk of fire!

If the tubes are damaged, flammable
refrigerant and harmful gases may
escape and ignite.

▶ Do not damage the tubes of the re-

frigerant circuit or the insulation.

1. Unplug the appliance from the

mains.

2. Cut through the power cord.

3. Dispose of the appliance in an en-

vironmentally friendly manner.
Information about current disposal

methods are available from your
specialist dealer or local authority.

This appliance is la­belled in accordance
with European Directive
2012/19/EU concerning
used electrical and elec­tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determ­ines the framework for
the return and recycling
of used appliances as
applicable throughout
the EU.

16 Customer Service

tion of the warranty (manufacturer's
warranty for private consumers) in
the European Economic Area is 2
years according to the terms of war­ranty applicable to the location. The
terms of warranty do not affect other
rights or claims held by yourself un­der local legislation.

Detailed information on the warranty
period and terms of warranty in your
country is available from our after­sales service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (E­Nr.) and the production number (FD)
of your appliance.
The contact details for Customer Ser­vice can be found in the enclosed
Customer Service directory or on our
website.

16.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E­Nr.) and the production number (FD)
on the appliance's rating plate.

→"Appliance", Fig. 1 /4, Page13
Make a note of your appliance's de­tails and the Customer Service tele­phone number to find them again
quickly.

Function-relevant genuine spare parts
according to the corresponding Eco­design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on
which your appliance was placed on
the market within the European Eco­nomic Area.

Note:Under the terms of the manu­facturer's warranty applicable to the
location, the use of Customer Service
is free of charge. The minimum dura-

17 Technical data

Refrigerant, cubic capacity and fur­ther technical specifications can be
found on the rating plate.

→"Appliance", Fig. 1 /4, Page13
This product contains a light source
from energy efficiency class E. The
light source is available as a spare
part and should only be replaced by
trained specialist staff.

25

en Technical data

You can find more information about
your model online at
https://eprel.ec.europa.eu/1. This web
address is linked to the official EU
EPREL product database. Please
then follow the instructions on
searching for the model. The model
identifier is made up of the charac­ters before the slash in the product
number (E-Nr.) on the rating plate. Al­ternatively, you can also find the
model identifier in the first line of the
EU energy label.

1

Only applies to countries in the European Economic Area

26

BSH Hausgeräte GmbH

Carl-Wery-Straße 34
81739 München, GERMANY
siemens-home.bsh-group.com

Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom

Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG

*9001705232*

9001705232 (020620)
en
