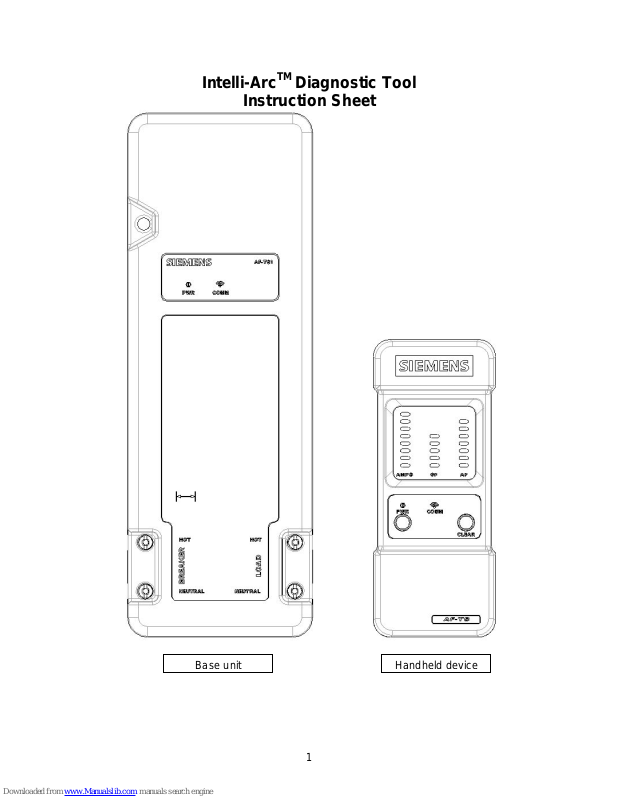

Siemens Intelli-Arc Instruction Sheet

Intelli-Arc

Instruction Sheet

TM

Diagnostic Tool

1

DANGER

Hazardous voltage. Will cause death or serious injury.

This device necessitates working on or near equipment with exposed electrical
hazards. Turn off and lock out power supplying equipment before connecting Intelli-Arc
Diagnostic Tool. Ensure a safe work zone before re-energizing equipment for testing
purposes.

SAFETY INSTRUCTIONS

1. Intelli-Arc Diagnostic Tool must be installed and operated only by a
qualified electrician.

2. To be installed only on a single phase 120VAC grounded system.

3. The Intelli-Arc Diagnostic Tool is not a protective device. For use only on
the load side of a listed branch circuit protection device rated at 20
Amperes or less.

4. To prevent severe shock or electrocution, always turn the power off
before working on or inside equipment.

5. It is the qualified electrician’s responsibility to ensure a secured, safe
working area around the enclosure before turning on power to the
equipment.

6. Intelli-Arc Diagnostic Tool is intended for temporary installation only.
Never leave the work site with the Diagnostic Tool connected.

7. Always replace all doors and covers before departing from the work site.

CAUTION

Hazard of Equipment Damage.
Will cause Damage to the Intelli-Arc Diagnostic Tool.

Do not reverse-feed or back-wire. Do not subject to megger, high voltage,
or hi-pot test. Remove the Intelli-Arc Diagnostic Tool before high-potting
occurs on the system or on the circuit.

2

General

The Intelli Arc Diagnostic Tool is intended to analyze house hold circuits to localize arc faults. It can indicate early
warnings of possible arcing before an AFCI breaker would trip. The Intelli Arc Diagnostic Tool may show contributions
from different loads that each individually would not create a trip condition. However, the combination of these loads may
create a situation that results in a trip condition of an AFCI breaker.

The Intelli Arc Detector does NOT protect from arcing in any circuit and it does not prevent any damage that an arc fault
can cause. It is a measurement tool to support the detection of an arc fault.

The Intelli Arc Diagnostic Tool is for indoor use only for measurements of category III in branch circuits of maximum 20A
rated current.

If this product is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment

Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

One Intelli Arc Diagnostic Tool set consists of one Carrying Case Including:

1. 1 Intelli Arc Diagnostic Tool IDT5000B – Base Unit

2. 1 Intelli Arc Diagnostic Tool IDT5000H – Handheld Unit

3. 4 wires AWG 12, 4-5 ft. length

4. 2 AA alkaline batteries for the Handheld Unit

5. 8 replacement screws for the terminal lugs of the Base Unit

6. 1 Instruction Sheet

For technical support related to the operation of this device please contact:
Siemens Energy & Automation, Inc.

3333 Old Milton Parkway
Alpharetta, GA 30005
1-800-964-4114

[e-mail]

3
