Page 1

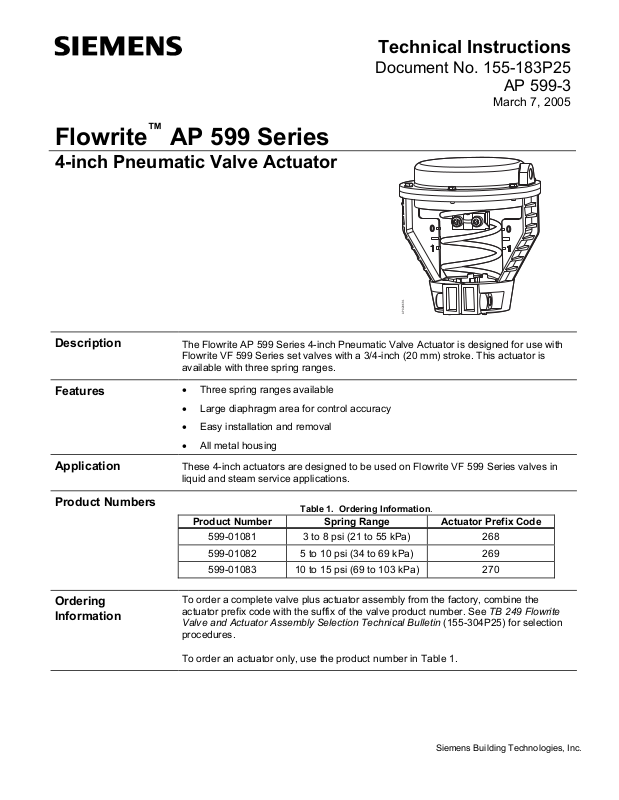

Flowrite™ AP 599 Series
4-inch Pneumatic Valve Actuator
Technical Instructions
Document No. 155-183P25
AP 599-3
March 7, 2005
Description
Features
Application
Product Numbers
Ordering
Information
AP0206R1
The Flowrite AP 599 Series 4-inch Pneumatic Valve Actuator is designed for use with
Flowrite VF 599 Series set valves with a 3/4-inch (20 mm) stroke. This actuator is
available with three spring ranges.
• Three spring ranges available
• Large diaphragm area for control accuracy
• Easy installation and removal
• All metal housing
These 4-inch actuators are designed to be used on Flowrite VF 599 Series valves in
liquid and steam service applications.
Table 1. Ordering Information.
Product Number Spring Range Actuator Prefix Code
599-01081 3 to 8 psi (21 to 55 kPa) 268
599-01082 5 to 10 psi (34 to 69 kPa) 269
599-01083 10 to 15 psi (69 to 103 kPa) 270
To order a complete valve plus actuator assembly from the factory, combine the
actuator prefix code with the suffix of the valve product number. See TB 249 Flowrite
Valve and Actuator Assembly Selection Technical Bulletin (155-304P25) for selection
procedures.
To order an actuator only, use the product number in Table 1.
Siemens Building Technologies, Inc.
Page 2
Technical Instructions Flowrite AP 599 Series 4-inch Pneumatic Valve Actuator
Document No. 155-183P25
March 7, 2005
Warning/Caution Notations
Specifications
WARNING:
CAUTION:
Effective diaphragm area 11-inch2 (71 cm2)
Diaphragm material Silicone
Nominal spring range 3 to 8 psi (21 to 55 kPa)
5 to 10 psi (34 to 69 kPa)
10 to 15 psi (69 to 103 kPa)
Nominal stroke 3/4-inch (20 mm)
Maximum diaphragm pressure 35 psi (241 kPa)
Air Connection 1/8-inch NPT
Ambient operating and storage temperature 0 to 225°F (-18 to 107°C)
Mounting location NEMA 1 (interior only)
Dimensions 5-3/4 inch H × 5-1/2 inch diameter
(146 mm H × 137 mm diameter)
Weight 2.5 lb (1.1 kg)
Personal injury/loss of life may occur if you do not perform a
procedure as specified.
Equipment damage may occur if you do not perform a
procedure as specified.
Accessory
Service Kit
Operating
Finger Guard Kit (Package of one includes
two half shells, mounting clips, and
installation instructions) 599-10241
Diaphragm replacement kit (Package of one) 599-01093
The control air signal upon the diaphragm causes the valve to modulate whenever the
air pressure is within the spring range of the actuator. The actuator spring provides the
necessary force to hold the stem in the stem up position.
3/4 in
(20 mm)
AP0219R1

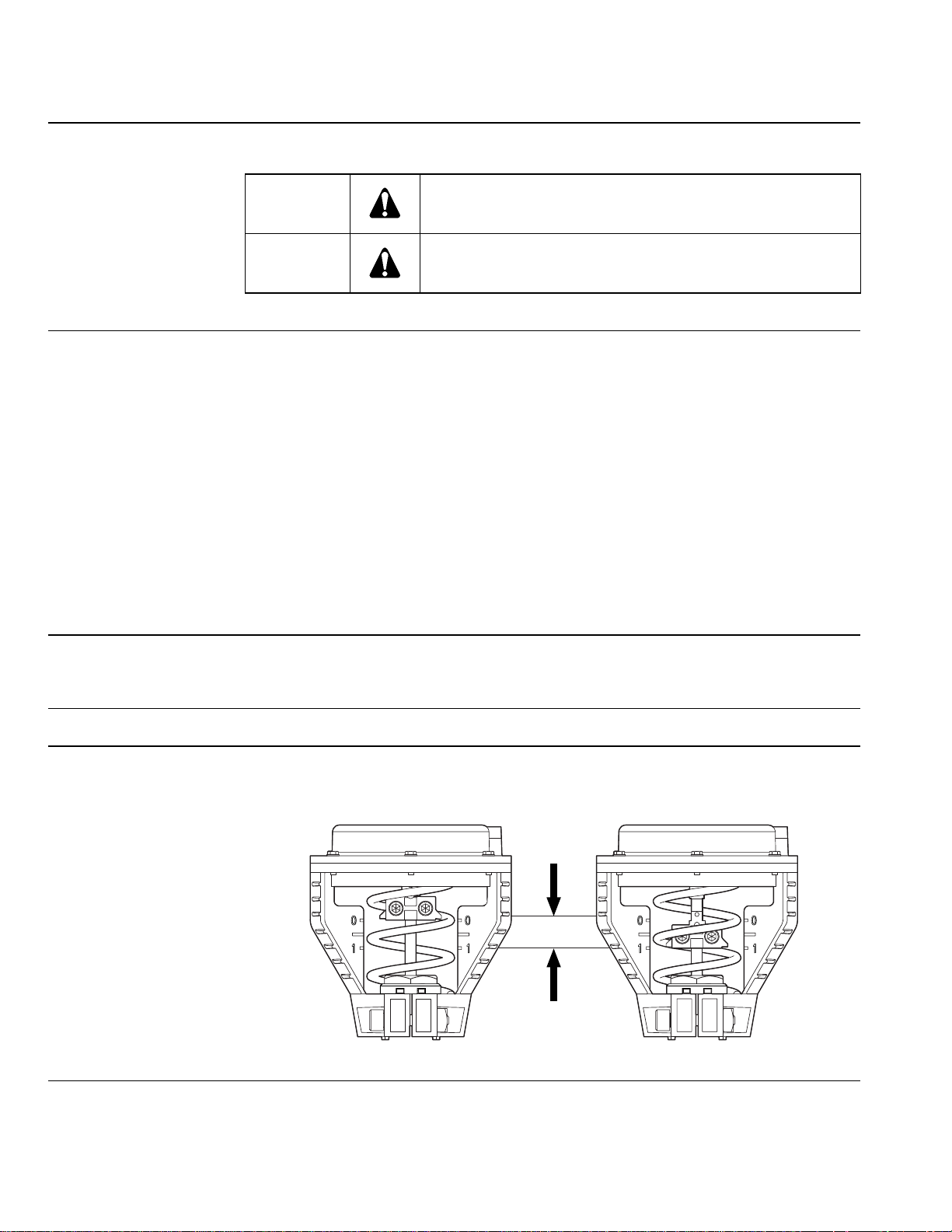

Figure 1. Actuator Operation.
Page 2 Siemens Building Technologies, Inc.
Page 3
Flowrite AP 599 Series 4-inch Pneumatic Valve Actuator Technical Instructions
Document No. 155-183P25
March 7, 2005
Service
Complete instructions are included in the diaphragm replacement kit.
Diaphragm Replacement
Mounting and
Installation
WARNING:
This product contains a spring under high compression. Make sure
the valve stem is held securely in the stem retainer before removing
the actuator top.
AP0216R1

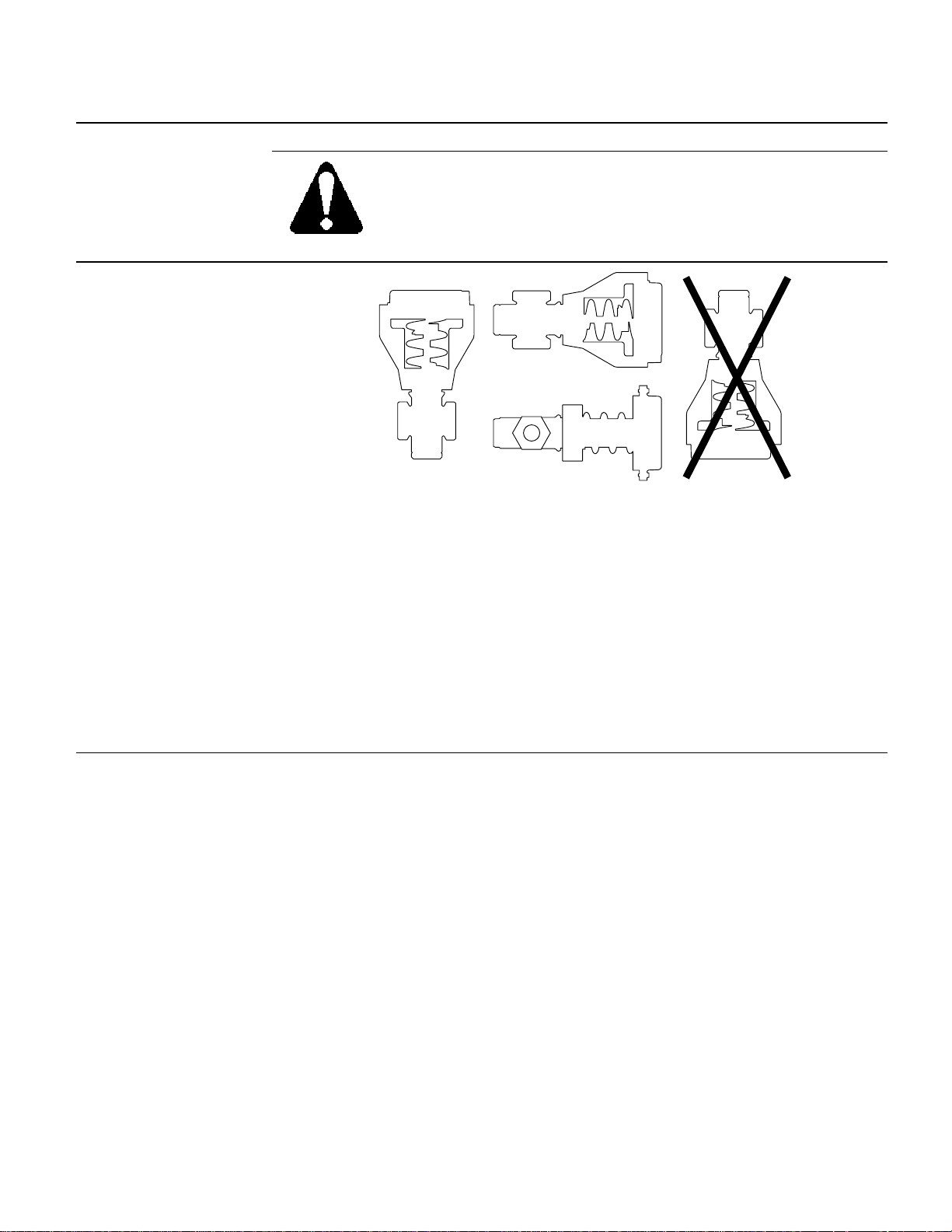

Figure 2. Acceptable Mounting Positions.
Allow eight inches (200 mm) headroom and six inches (150 mm) on either side of the
actuator.
For best performance, install the actuator vertically above the valve. The actuator can
be installed in any position between vertical and horizontal. Siemens Building
Technologies does not recommend installing the actuator below horizontal or up side
down. See Figure 2 for allowable mounting positions.
Complete instructions for field mounting the actuator are included with the actuator.
The “0” marking on the actuator yoke indicates stem up position. The “1” mark indicates
stem down position. See Figure 1.
Siemens Building Technologies, Inc. Page 3
Page 4
Technical Instructions Flowrite AP 599 Series 4-inch Pneumatic Valve Actuator
A
Document No. 155-183P25
March 7, 2005
Actuator Details
1
2
3
4
5
7
8
AP0208R1
6
9

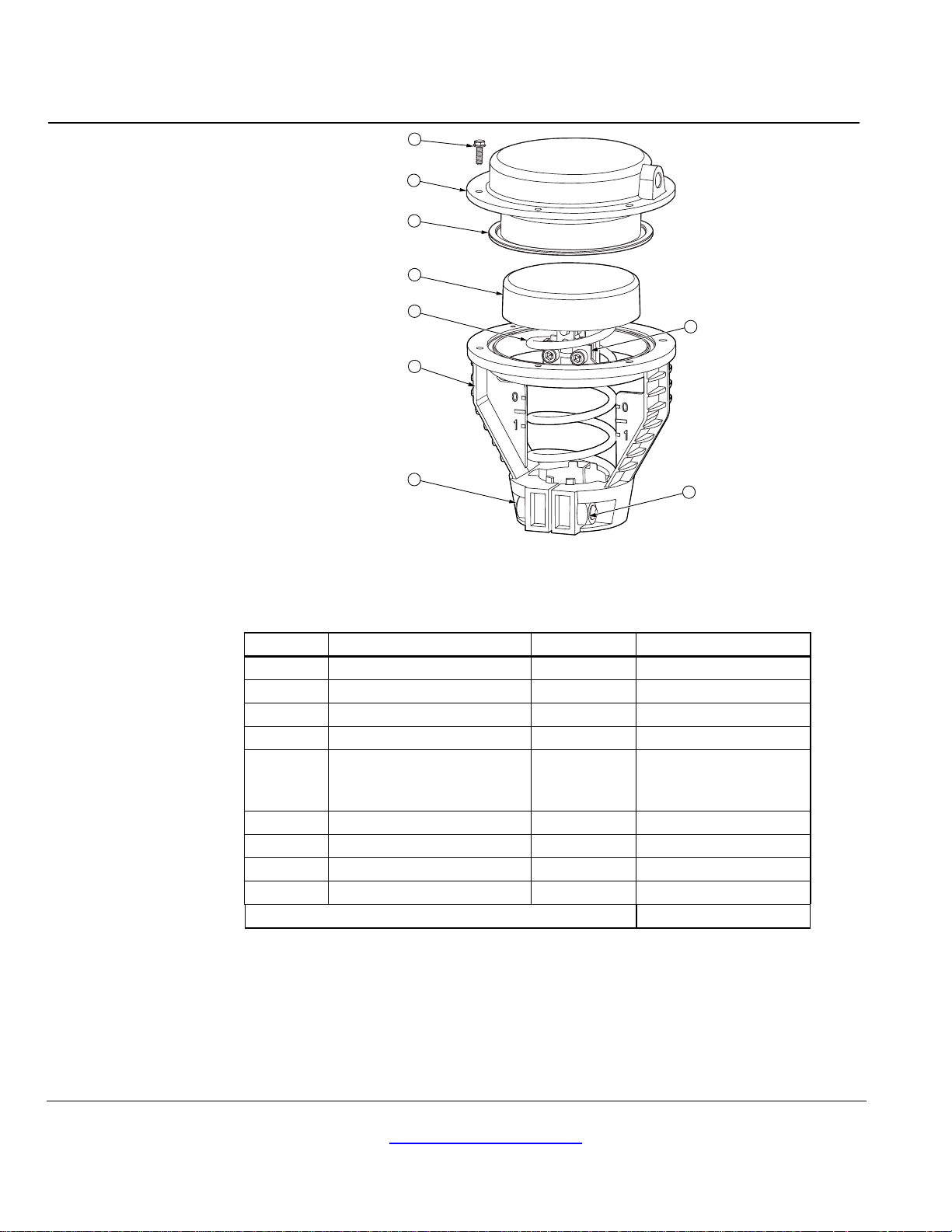

Figure 3. Flowrite AP 599 Series 4-Inch Pneumatic Valve Actuator.
Table 2. Parts List.
Item Description Quantity
1
ctuator top screw 6 Plated steel
Material
2 Actuator top 1 Aluminum
3 Diaphragm 1 Silicone
4 Piston cup 1 Aluminum
5
Spring
- 3 to 8 and 5 to 10 psi
- 10 to 15 psi
1
Music wire
Chrome silicone steel
6 Stem retainer 1 Plated steel
7 Actuator yoke 1 Aluminum
8 Actuator retainer screw 2 Plated steel
9 Actuator retainer nut 2 Plated steel
Diaphragm replacement kit Item 3 599-01093
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as
design improvements are introduced. Flowrite is a registered trademark of Siemens Building Technologies, Inc. Other product or company names
mentioned herein may be the trademarks of their respective owners. © 2005 Siemens Building Technologies, Inc.
Siemens Building Technologies, Inc.
1000 Deerfield Parkway
Buffalo Grove, IL 60089-4513
U.S.A.
Your feedback is important to us. If you have
comments about this document, please send
them to [email protected]
Document No. 155-183P25
Country of Origin: US
Page 4
