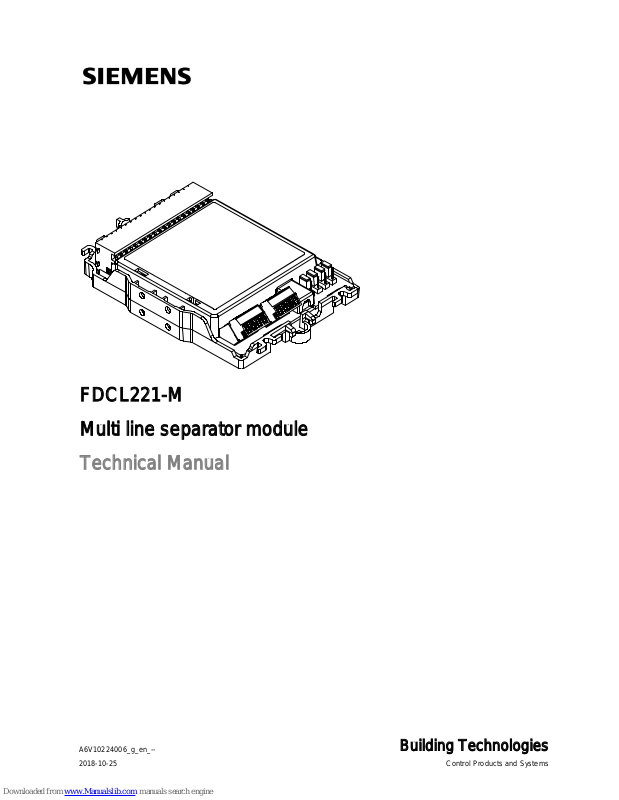

FDCL221-M
Multi line separator module
Technical Manual
A6V10224006_g_en_
--
Building Technologies
2018-10-25 Control Products and Systems
Page 2
Imprint
2 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
Draft
2018-10-25
Imprint
Technical specifications and availability subject to change without notice.
Transmittal, reproduction, dissemination and/or editing of this document as well as
utilization of its contents and communication thereof to others without express
authorization are prohibited. Offenders will be held liable for payment of damages.
All rights created by patent grant or registration of a utility model or design patent
are reserved.
Issued by:
Siemens Switzerland Ltd.
Building Technologies Division
International Headquarters
Theilerstrasse 1a
CH-6300 Zug
Tel. +41 58 724-2424
www.siemens.com/buildingtechnologies
Edition: 2018-10-25
Document ID: A6V10224006_g_en_--
© Siemens Switzerland Ltd, 2009
Page 3
3 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Table of contents
1 About this document ............................................................................. 5
1.1 Applicable documents ................................................................................. 7
1.2 Download center ......................................................................................... 8
1.3 Technical terms .......................................................................................... 8
1.4 Revision history .......................................................................................... 9
2 Safety ............................................................................................... 10
2.1 Safety instructions .....................................................................................10
2.2 Safety regulations for the method of operation ...........................................12
2.3 Standards and directives complied with......................................................14
2.4 Release Notes ...........................................................................................14
3 Setup and function .............................................................................. 15
3.1 Overview ...................................................................................................15
3.1.1 Details for ordering ......................................................................16
3.2 Setup .........................................................................................................17
3.2.1 Overview ....................................................................................17
3.2.2 Printed circuit board view ............................................................18
3.2.3 Indication elements .....................................................................18
3.2.4 Adjustment elements...................................................................19
3.3 Function ....................................................................................................19
3.4 Behaviour in degraded mode .....................................................................21
3.5 Accessories ...............................................................................................22
3.5.1 Mounting foot FDCM291 .............................................................22
3.5.2 U-rail TS35 .................................................................................22
3.5.3 Housing FDCH221 ......................................................................23
3.5.4 M20 x 1.5 metal cable gland........................................................23
3.5.5 M20 x 1.5 metal counter nut ........................................................23
3.5.6 Connection terminal DBZ1190-AB ...............................................24
4 Planning ............................................................................................ 25
4.1 Compatibility ..............................................................................................27
4.2 Fields of application ...................................................................................27
4.3 Positioning .................................................................................................27
4.4 Environmental influences ...........................................................................28
5 Mounting / Installation ......................................................................... 29
5.1 Mounting on U-rail or flat surface ...............................................................29
5.2 Removing from the U-rail ...........................................................................30
5.3 Mounting with housing FDCH221 ...............................................................31
5.4 Installation and connection diagram ...........................................................32
Page 4
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
4 | 42
6 Commissioning ...................................................................................34
7 Maintenance / Troubleshooting .............................................................35
8 Specifications .....................................................................................36
8.1 Technical data ........................................................................................... 36
8.2 Dimensions ............................................................................................... 39
8.3 Environmental compatibility and disposal ................................................... 39
Index .........................................................................................................40
Page 5
About this document
Applicable documents
1
5 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
1 About this document
● Specialist electrical engineering knowledge is required for installation.
● Only an expert is permitted to carry out installation work.
Incorrect installation can take safety devices out of operation unbeknown to a
layperson.
Goal and purpose
This document contains all information on the multi line separator module
FDCL221-M.
Consistent compliance with the instructions guarantees correct and safe use.
Intended use
The line separator FDCL221-M may only be used for short-circuit and open line
monitoring in one of the following fire detection systems:
● FS20
● FS720
● FC360
Page 6
About this document
Applicable documents
1
6 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Target groups
The information in this document is intended for the following target groups:
Target group Activity Qualification
Product Manager
● Is responsible for information
passing between the manufacturer
and regional company.
● Coordinates the flow of information
between the individual groups of
people involved in a project.
● Has obtained suitable specialist
training for the function and for the
products.
● Has attended the training courses
for Product Managers.
Project Manager
● Coordinates the deployment of all
persons and resources involved in
the project according to schedule.
● Provides the information required to
run the project.
● Has obtained suitable specialist
training for the function and for the
products.
● Has attended the training courses
for Project Managers.
Project engineer
● Sets parameters for product
depending on specific national
and/or customer requirements.
● Checks operability and approves
the product for commissioning at the
place of installation.
● Is responsible for troubleshooting.
● Has obtained suitable specialist
training for the function and for the
products.
● Has attended the training courses
for Product Engineer.
Installation personnel
● Assembles and installs the product
components at the place of
installation.
● Carries out a performance check
following installation.
● Has received specialist training in
the area of building installation
technology or electrical installations.
Maintenance personnel ● Carries out all maintenance work.
● Checks that the products are in
perfect working order.
● Searches for and corrects
malfunctions.
● Has obtained suitable specialist
training for the function and for the
products.
Source language and reference document
● The source/original language of this document is German (de).
● The reference version of this document is the international version in English.
The international version is not localized.
Document identification
The document ID is structured as follows:
ID code Examples
ID_ModificationIndex_Language_COUNTRY
-- = multilingual or international
A6V10215123_a_de_DE
A6V10215123_a_en_-A6V10315123_a_--_--
Page 7
About this document
Applicable documents
1
7 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Date format
The date format in the document corresponds to the recommendation of
international standard ISO 8601 (format YYYY-MM-DD).
Conventions for text marking
Markups
Special markups are shown in this document as follows:
⊳ Requirement for a behavior instruction
1.
2.
Behavior instruction with at least two operation sequences
– Version, option, or detailed information for a behavior instruction
⇨ Intermediate result of a behavior instruction
⇨ End result of a behavior instruction
●
Numbered lists and behavior instructions with an operation
sequence
[➙ X] Reference to a page number
'Text' Quotation, reproduced identically
<Key> Identification of keys
>
Relation sign and for identification between steps in a sequence,
e.g., 'Menu bar' > 'Help' > 'Help topics'
↑ Text Identification of a glossary entry
Supplementary information and tips
The 'i' symbol identifies supplementary information and tips for an easier way of
working.
1.1 Applicable documents
Document ID Title
008331 List of compatibility (for 'Sinteso™' product line)
008843 FS20 Fire detection system - Planning
A6V10210362 FS720 Fire detection system - Planning
A6V10224008
Installation Multi line separator module FDCL221-M,
Housing FDCH221
A6V10229261 List of compatibility (for 'Cerberus™ PRO' product line)
A6V10230308 Data sheet Multi line separator module FDCL221-M
A6V10393192 List of compatibility (for 'Cerberus™ FIT' product line)
A6V10421795 Technical Manual of Fire Control Panels FC361-xx
Please also observe the documentation for your fire detection system.
Page 8
About this document
Download center
1
8 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
1.2 Download center
You can download various types of documents, such as data sheets, installation
instructions, and license texts via the following Internet address:
https://siemens.com/bt/download
l Enter the document ID in the search field.
You will also find information about search variants and links to mobile
applications (apps) for various systems on the home page.
1.3 Technical terms
Term Explanation
ABS Acrylonitrile-butadiene-styrene (plastic)
FDnet/C-NET Addressable detector line
Jumper Jumper on printed circuit board for configuration
Collective detector line Non-addressed detector line
LED Light-emitting diode
Loop Detector line loop line
PC Polycarbonate (plastic)
Sub-stub Detector line on a FDnet/C-NET loop only connected on one side
SW Software
Page 9
Abou
t this document
Revision history
1
9 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
1.4 Revision history
The reference document's version applies to all languages into which the reference
document is translated.
The first edition of a language version or a country variant may, for example, be
version 'd' instead of 'a' if the reference document is already this version.
The table below shows this document's revision history:
Version Edition date Brief description
g 2018-10-25 Editorial changes
f 2018-01-10 DBZ1190-AB: Conductor cross section updated (0.5…2.5 mm2)
Changes to 'Technical data' chapter
e 2016-04-20 Data sheet updated in 'Applicable documents' chapter;
Document fully revised
d 04.2010 LPCB number added
c 09.2009 'Cerberus PRO' product line added,
G number and CPD number added
b 04.2009 Storage temperature changed
a 02.2009 First edition
Page 10
Safety
Safety instructions
2
10 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
2 Safety
2.1 Safety instructions
The safety notices must be observed in order to protect people and property.
The safety notices in this document contain the following elements:
● Symbol for danger
● Signal word
● Nature and origin of the danger
● Consequences if the danger occurs
● Measures or prohibitions for danger avoidance
Symbol for danger
This is the symbol for danger. It warns of risks of injury.
Follow all measures identified by this symbol to avoid injury or death.
Additional danger symbols
These symbols indicate general dangers, the type of danger or possible
consequences, measures and prohibitions, examples of which are shown in the
following table:
General danger Explosive atmosphere
Voltage/electric shock Laser light
Battery Heat
Signal word
The signal word classifies the danger as defined in the following table:
Signal word Danger level
DANGER
'DANGER' identifies a dangerous situation, which will result directly in death or
serious injury if you do not avoid this situation.
WARNING
'WARNING' identifies a dangerous situation, which may result in death or serious
injury if you do not avoid this situation.
CAUTION
'CAUTION' identifies a dangerous situation, which could result in slight to
moderately serious injury if you do not avoid this situation.
NOTICE
'
NOTICE
' identifies a possibly harmful situation or possible damage to property
that may result from non-observance.
'
NOTICE
' does not relate to possible bodily injury.
Page 11
Safety
Safety instructions
2
11 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
How risk of injury is presented
Information about the risk of injury is shown as follows:
WARNING
Nature and origin of the danger
Consequences if the danger occurs
●
Measures / prohibitions for danger avoidance
How possible damage to property is presented
Information about possible damage to property is shown as follows:
NOTICE
Nature and origin of the danger
Consequences if the danger occurs
●
Measures / prohibitions for danger avoidance
Page 12
Safety
Safety regulations for the method of operation
2
12 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
2.2 Safety regulations for the method of operation
National standards, regulations and legislation
Siemens products are developed and produced in compliance with the relevant
European and international safety standards. Should additional national or local
safety standards or legislation concerning the planning, mounting, installation,
operation or disposal of the product apply at the place of operation, then these
must also be taken into account together with the safety regulations in the product
documentation.
Electrical installations
WARNING
Electrical voltage
Electric shock
● Work on electrical installations may only be carried out by qualified
electricians or by instructed persons working under the guidance and
supervision of a qualified electrician, in accordance with the electrotechnical
regulations.
● Wherever possible disconnect products from the power supply when carrying
out commissioning, maintenance or repair work on them.
● Lock volt-free areas to prevent them being switched back on again by mistake.
● Label the connection terminals with external voltage using a
'DANGER External voltage' sign.
● Route mains connections to products separately and fuse them with their own,
clearly marked fuse.
● Fit an easily accessible disconnecting device in accordance with IEC 60950-1
outside the installation.
● Produce earthing as stated in local safety regulations.
CAUTION
Noncompliance with the following safety regulations
Risk of injury to persons and damage to property
●
Compliance with the
following regulations is required.
● Specialist electrical engineering knowledge is required for installation.
● Only an expert is permitted to carry out installation work.
Incorrect installation can take safety devices out of operation unbeknown to a
layperson.
Page 13
Safety
Safety regulations for the method of operation
2
13 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Mounting, installation, commissioning and maintenance
● If you require tools such as a ladder, these must be safe and must be intended
for the work in hand.
● When starting the fire control panel ensure that unstable conditions cannot
arise.
● Ensure that all points listed in the 'Testing the product operability' section below
are observed.
● You may only set controls to normal function when the product operability has
been completely tested and the system has been handed over to the customer.
Testing the product operability
● Prevent the remote transmission from triggering erroneously.
● If testing building installations or activating devices from third-party companies,
you must collaborate with the people appointed.
● The activation of fire control installations for test purposes must not cause
injury to anyone or damage to the building installations. The following
instructions must be observed:
– Use the correct potential for activation; this is generally the potential of the
building installation.
– Only check controls up to the interface (relay with blocking option).
– Make sure that only the controls to be tested are activated.
● Inform people before testing the alarm devices and allow for possible panic
responses.
● Inform people about any noise or mist which may be produced.
● Before testing the remote transmission, inform the corresponding alarm and
fault signal receiving stations.
Modifications to the system design and the products
Modifications to the system and to individual products may lead to faults,
malfunctioning and safety risks. Written confirmation must be obtained from
Siemens and the corresponding safety bodies for modifications or additions.
Modules and spare parts
● Components and spare parts must comply with the technical specifications
defined by Siemens. Only use products specified or recommended by
Siemens.
● Only use fuses with the specified fuse characteristics.
● Wrong battery types and improper battery changing lead to a risk of explosion.
Only use the same battery type or an equivalent battery type recommended by
Siemens.
● Batteries must be disposed of in an environmentally friendly manner. Observe
national guidelines and regulations.
Page 14
Safety
Standards and directives complied with
2
14 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Disregard of the safety regulations
Before they are delivered, Siemens products are tested to ensure they function
correctly when used properly. Siemens disclaims all liability for damage or injuries
caused by the incorrect application of the instructions or the disregard of danger
warnings contained in the documentation. This applies in particular to the following
damage:
● Personal injuries or damage to property caused by improper use and incorrect
application
● Personal injuries or damage to property caused by disregarding safety
instructions in the documentation or on the product
● Personal injury or damage to property caused by poor maintenance or lack of
maintenance
2.3 Standards and directives complied with
A list of the standards and directives complied with is available from your Siemens
contact.
2.4 Release Notes
Limitations to the configuration or use of devices in a fire detection installation with
a particular firmware version are possible.
WARNING
Limited or non
-
existent fire detection
Personal injury and damage to property in the event of a fire.
● Read the 'Release Notes' before you plan and/or configure a fire detection
installation.
● Read the 'Release Notes' before you carry out a firmware update to a fire
detection installation.
NOTICE
Incorrect planning and/or
configuration
Important standards and specifications are not satisfied.
Fire detection installation is not accepted for commissioning.
Additional expense resulting from necessary new planning and/or configuration.
● Read the 'Release Notes' before you plan and/or configure a fire detection
installation.
● Read the 'Release Notes' before you carry out a firmware update to a fire
detection installation.
Page 15
Setup and
function
Overview
3
15 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3 Setup and function
3.1 Overview
Figure 1: Multi line separator module FDCL221-M
The multi line separator module FDCL221M contains several separate line
separators.
Each line separator can detect short-circuits in the FDnet/C-NET and disconnect
the detector line.
The multi line separator module is intended to allow easier conversions from
collective detector lines to the Sinteso/Cerberus fire detection system with the
FDnet/C-NET bus system.
Properties
● Compatible with fire detection system FS20/FS720 and FC360
● Communication via the detector line
● Individual addressing of line separators for easy location identification
● Number of FDnet/C-NET loops can be configured using jumpers
● 9 line separators in one FDnet/C-NET loop or 2 x 4 line separators in two
FDnet/C-NET loops
● Safeguards the FDnet/C-NET against short-circuits when sub-stubs are
connected
● Status indicator (LED) for each line separator
● Easy way of connecting sub-stubs
● Different types of mounting
● Maintenance-free
Page 16
Setup and function
Overview
3
16 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Applications
● If multiple sub-stubs are to be connected to a single point on the FDnet/C-NET
detector line, either another FDnet/C-NET device or a line separator must be
mounted between the sub-stubs.
● Time-optimized modernization of collective detector lines on the addressed
FDnet/C-NET system.
You will find information on permissible topologies in fire detection systems
FS20/FS720 in the 008843 (for 'Sinteso') and A6V10210362 (for 'Cerberus PRO')
documents in the 'Line separation function' chapter.
You will find this information for the fire detection system FC360 in document
A6V10421795.
Mounting
● Installation in intermediate distributor or directly in a fire control panel
● Mounting directly on a U-rail TS35
● Mounting directly on a flat surface with two screws
See also
2 Positioning [➙ 27]
3.1.1 Details for ordering
Type Order number Designation
FDCL221-M S54312-F6-A1 Multi line separator module
Page 17
Setup and function
Setup
3
17 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3.2 Setup
3.2.1 Overview
Figure 2: Overview of multi line separator module
1
Connector (20-pin) for sub-stub
lines
5
Screw terminal for FDnet/C-NET
detector line LINE 2
2 Module carrier 6
Screw terminal for FDnet/C-NET
detector line LINE 1
3 Holes for mounting feet 7 Cable tie holder
4 Jumpers J1...J4 8 Mounting holes for screws
3
2
3
45677
1
7
7
8
8
3
3
Page 18
Setup and function
Setup
3
18 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3.2.2 Printed circuit board view
Figure 3: Printed circuit board view of multi line separator module
1 LED line separator 1 10 Jumpers J1...J4
2 LED line separator 2 11
Screw terminal for FDnet/C-NET
detector line LINE 2
3 LED line separator 3 12
Screw terminal for FDnet/C-NET
detector line LINE 1
4 LED line separator 4 13 Connector (20-pin) for sub-stub lines
5 LED line separator 5
6 LED line separator 6
7 LED line separator 7
8 LED line separator 8
9 LED line separator 9
3.2.3 Indication elements
Each line separator has a status indicator. The yellow LED flashes if the line
separator is open or in localization mode.
See also
2 Printed circuit board view [➙ 18]
1
2
3
4
5
678
91011
12
13
J1
J2
J3
J4
Page 19
Setup and function
Function
3
19 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3.2.4 Adjustment elements
The multi line separator module has four jumpers, J1...J4. These jumpers can be
used to configure whether the FDCL221-M is to be operated in one FDnet/C-NET
loop or two FDnet/C-NET loops.
Jumpers J1...J4 have the following two plug positions:
1-loop operation 2-loop operation
The jumpers are plugged on 1-loop operation when delivered.
See also
2 Function [➙ 19]
3.3 Function
The multi line separator module FDCL221-M has several electronic switches
(line separators). The following operation modes can be configured using jumpers:
● 1-loop operation
(9 line separators in one FDnet/C-NET loop)
● 2-loop operation
(4 line separators each in two FDnet/C-NET loops)
The function of the line separator in the FDnet/C-NET loop is to connect sub-stub
lines to the FDnet/C-NET and selectively disconnect them in the event of a shortcircuit. In the event of a short-circuit the line separator disconnects the affected bus
area in the FDnet/C-NET so that the area unaffected by the short-circuit continues
to function.
The multi line separator module has 2 x 4 screw terminals for the FDnet/C-NET
loops and a 20-pin connector with socket strip for the ten sub-stub lines. A
maximum of two different loops can be connected.
The status of each line separator is indicated by a yellow LED. The LED flashes if
the line separator is open or in localization mode.
The multi line separator module is installed in the intermediate distributor or directly
in the fire control panel.
NOTICE
Incorrect use
False alarm caused by potentials moving in the event of external supply on the
sub-stub via a FDnet/C-NET card.
●
Sub-stubs may only be fed via the line separator.
J1J2J3
J4
1 2 3
J1J2J3
J4
1 2 3
Page 20
Setup and function
Function
3
20 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
1-loop operation
The multi line separator module is connected to a FDnet/C-NET loop. This is the
default configuration of the multi line separator module when delivered.
Figure 4: FDCL221-M topology with one detector line loop
1/1
First sub-stub on FDnet/C-NET
loop
Ts FDnet/C-NET device on sub-stub
2/5
Tenth (last) sub-stub on
FDnet/C-NET loop
Tr
FDnet/C-NET device on
FDnet/C-NET loop
Page 21
Setup and function
Behaviour in degraded mode
3
21 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
2-loop operation
The multi line separator module can be connected to two separate FDnet/C-NET
loops.
Figure 5: FDCL221-M topology with two detector line loops
1/1
First sub-stub on FDnet/C-NET
loop 1
2/5
Fifth sub-stub on FDnet/C-NET
loop 2
1/n
Nth sub-stub on FDnet/C-NET
loop 1
Ts FDnet/C-NET device on sub-stub
2/n
Nth sub-stub on FDnet/C-NET
loop 2
Tr
FDnet/C-NET device on
FDnet/C-NET loop
See also
2 Printed circuit board view [➙ 18]
2 Indication elements [➙ 18]
2 Adjustment elements [➙ 19]
3.4 Behaviour in degraded mode
Applicable for the FDnet/C-NET:
When the main processor of the fire control panel fails, the control panel works in
degraded mode operation. Depending on the control panel type, the fire control
panel can continue to perform the most important alarming and signaling functions
in degraded mode operation.
Degraded mode operation on the FDnet/C-NET is not supported in the same way
by all control panels. The information in the 'List of compatibility' and in the
corresponding control panel documentation must be taken into account during
project planning.
Page 22
Setup and function
Accessories
3
22 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3.5 Accessories
3.5.1 Mounting foot FDCM291
● For device mounting on a DIN rail TS35
● Two mounting feet must always be used
● Compatible with:
– Input module FDCI22x(-CN)
– Input/output module FDCIO22x(-CN)
– Output module FCA1209-Z1
– Multi line separator module FDCL221-M
– Zone module, external powered FDCI223,
FDCI723
– Sounder module FCA2005-A1
● Order number: A5Q00003855
3.5.2 U-rail TS35
● Standard DIN rail for installing devices
● Width: 35 mm
● Length: 122 mm or 288 mm
● Compatible with:
– Various input/output modules
– Line separator FDCL221
– Mounting foot FDCM291
– Line adapter (Ex) FDCL221-Ex
– Sounder module FCA2005-A1
● Order number (length 122 mm):
BPZ:5644780001
● Order number (length 288 mm):
BPZ:5644230001
See also
2 Mounting on U-rail or flat surface [➙ 29]
Page 23
Setup and function
Accessories
3
23 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3.5.3 Housing FDCH221
● To protect against dust and wetness
● Compatible with:
– Multi line separator module FDCL221-M
– Input module FDCI22x(-CN)
– Input/output module FDCIO22x(-CN)
– Output module FCA1209-Z1
– Radio gateway FDCW241
– Zone module, external powered FDCI223,
FDCI723
– Sounder module FCA2005-A1
● Order number: S54312-F3-A1
See also
2 Mounting with housing FDCH221 [➙ 31]
3.5.4 M20 x 1.5 metal cable gland
● For introducing a cable into a housing
● For cable diameters of 3.5…5.5 mm
● Temperature range: -40…+100 °C
● Allows for increased IP protection
● Compatible with:
– M20 x 1.5 metal counter nut
– Housing FDMH231-S-R
– Housing FDMH292-x
– Housing FDMH293-x
– Housing FDMH297-R
– Housing FDCH221
– Manual call point FDM243H
– Air sampling smoke detection kit FDBZ290
– Base deep (wall mounting) FDB227-x
● Order number: A5Q00004478
3.5.5 M20 x 1.5 metal counter nut
● For use with metal cable gland M20 x 1.5
● Order number: A5Q00004479
Page 24
Setup and function
Accessories
3
24 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
3.5.6 Connection terminal DBZ1190-AB
● Auxiliary terminal for connecting cables
● For T-branches of additional cabling, e.g., for
cable shielding, detector heating units,
sounder base, external alarm indicators, etc.
● For conductor cross-sections of 0.5…2.5 mm²
● 3 poles
● Order number: BPZ:4942340001
Page 25
Planning
Accessories
4
25 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
4 Planning
Unique detector line topology recognition is ensured if at least one device with a
separating function is present between two sub-stub lines. In this case a line
separator.
Figure 6: Line separator between two sub-stubs
If several sub-stub lines are to be activated on one FDnet/C-NET loop, failure of
large numbers of devices must be prevented in the event of a line short-circuit. In
this regard the national regulations must be observed.
From a FDnet/C-NET communication point of view, the line separator is a normal
line participant which occupies one bus address and is visible in the line topology.
Rules for the branching of a sub-stub from a loop
● Only one sub-stub is permitted between two FDnet/C-NET devices.
● One sub-stub is permitted at the start and end of the loop respectively,
between the connection terminals of the fire control panel and the first line
device.
● If there is more than one sub-stub between two FDnet/C-NET devices, a line
separator must be fitted between the sub-stubs.
The following figure shows the common variants of a detector line which has been
modified from a collective detector line to a FDnet/C-NET detector line, on which
FDnet/C-NET devices (Tr/Ts) are installed with an integrated line separator
function. The outgoing sub-stub lines are directly connected to the multi line
separator modules FDCL221-M without a distributor terminal.
FDCL221
FDCL221-M
Station
Page 26
Planning
Accessories
4
26 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Placing the multi line separator module FDCL221-M in intermediate
distributors e.g., on different floors
Figure 7: FDCL221-M 1-loop operation or 2-loop operation assembled in an intermediate distributor
1 Intermediate distributor 1/1
First sub-stub on FDnet/C-NET
loop 1
2 FDnet/C-NET loop 2/5
Fifth sub-stub on FDnet/C-NET
loop 2
Ts FDnet/C-NET device on sub-stub 1/n
Nth sub-stub on FDnet/C-NET
loop 1
Tr
FDnet/C-NET device on
FDnet/C-NET loop
2/n
Nth sub-stub on FDnet/C-NET
loop 2
Page 27
Planning
Compatibility
4
27 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
4.1 Compatibility
Compatible with control panels that support the FDnet/C-NET detector line.
Detector line
FC20xx FC72x SIGMASYS AlgoRex FC360
FDnet X – X
1
X
1
–
C-NET – X – – X
1
With suitable line card
X = compatible
– = not compatible
You will find detailed information in the 'List of compatibility'.
Mixed operation with other devices on the same detector line is possible without
restrictions.
Depending on the type and software version of the control panel, the FDCL221-M
may be shown in the control panel with another type designation (e.g., FDCL221).
If using older control panels, the FDCL221-M can always be identified by its unique
device ID.
For reasons of compatibility with older fire detection installations and newer
software, the FDCL221-M identifies itself with the following combination:
Product version ES ≥ 2
Software version Software version ≥ 60
This combination is intended for the
FDCL221
-
M for compatibility reasons. It does
not indicate a device defect.
You will find more detailed information in the fire detection system documentation.
4.2 Fields of application
The line separator is required in a FDnet/C-NET, where several sub-stub lines
converge at one point. This situation mainly occurs when changing from the old
collective systems to the addressed FDnet/C-NET system.
4.3 Positioning
When renewing collective systems, the line separators are installed at points where
several stub lines converge.
The multi line separator module can in the majority of cases be accommodated on
different floors in the riser zone in an intermediate distributor.
If all the stub lines are routed individually to the collective control panel, the multi
line separator module is directly installed in the new fire control panel.
Page 28
Planning
Environmental influences
4
28 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
4.4 Environmental influences
If the devices are used in industrial applications, consultation with the project
manager is required, since plastics do not withstand certain environmental
conditions.
The following factors must be taken into consideration:
● Chemicals
● Temperature
● Moisture
The housing is made from plastic and the printed circuit board is sealed with wax
for increased corrosion protection.
Page 29
Mounting / Installation
Mounting on U
-
rail or flat surface
5
29 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
5 Mounting / Installation
The multi line separator module can be installed directly or in an additional
housing. The additional housing FDCH221 must be ordered separately.
See also
2 Housing FDCH221 [➙ 23]
5.1 Mounting on U-rail or flat surface
The multi line separator module can be installed directly without additional housing
in the following ways:
● Directly on a flat surface with two screws
● With two mounting feet vertically on a U-rail TS35
● With two mounting feet horizontally on a U-rail TS35
Proceed as follows to mount the multi line separator module:
1. Mount the multi line separator module on a flat surface with 2 screws or with
two mounting feet on a U-rail (see following figures). Pick a suitable position
during mounting to ensure that the LEDs are visible at all times.
2. Connect the cables to the terminals (see 'Installation and connection diagram
[➙ 32]').
3. If using shielded FDnet/C-NET cables, connect cable shielding to connection
terminal DBZ1190-AB. The shielding must not touch any external ground
potentials or metal parts.
4. Secure cables on module carrier with cable ties.
Figure 8: Direct mounting on a flat surface
118 mm
Ø
max. 4.5 mm
Page 30
Mounting / Installation
Removing from the U
-
rail
5
30 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Figure 9: Vertical or horizontal mounting on U-rail TS35
See also
2 Installation and connection diagram [➙ 32]
5.2 Removing from the U-rail
Proceed as follows to remove the multi line separator module from the U-rail:
1. Place a screwdriver at a right angle between the mounting foot and the
mounting surface of the U-rail.
2. Turn screwdriver to release mounting foot.
Figure 10: Removing the multi line separator module from a U-rail
1 Screwdriver size 4
1
Page 31
Mounting / Installation
Mounting with housing FDCH221
5
31 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
5.3 Mounting with housing FDCH221
The multi line separator module can be installed in a separate housing FDCH221.
The housing protects the multi line separator module from dirt and dust.
Proceed as follows to mount the multi line separator module in housing FDCH221:
1. Break open required cable entries on housing.
2. Install housing on a flat surface.
3. Insert cables. If necessary, fasten the cables using the M20 x 1.5 cable glands
or use a different cable entry.
4. Install multi line separator module in housing with enclosed fixing screws.
5. Connect cables to corresponding terminals (see 'Installation and connection
diagram [➙ 32]').
6. Close housing using supplied screws.
Figure 11: Installing the multi line separator module in housing FDCH221
See also
2 Installation and connection diagram [➙ 32]
Ø max. 4.8 mm
Page 32
Mounting / Installation
Installation and connection diagram
5
32 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
5.4 Installation and connection diagram
● Specialist electrical engineering knowledge is required for installation.
● Only an expert is permitted to carry out installation work.
Incorrect installation can take safety devices out of operation unbeknown to a
layperson.
Figure 12: FDCL221-M connection diagram
Page 33
Mounting / Installation
Installation and connection diagram
5
33 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
1 Bare length for 20-pin connector 6
2-loop operation:
FDnet/C-NET loop 2
2
Press screwdriver (width of blade
2.5 mm) as far as stop position to
open spring contact
7
1 loop operation:
FDnet/C-NET
3
Fit 20-pin connector on to
FDCL221-M
8
Configuration with jumpers:
- 1-loop operation (default)
- 2-loop operation
4
Bare length for 4-pin
FDnet/C-NET plug
9 Tear-off labels
5
2-loop operation:
FDnet/C-NET loop 1
Connect multi line separator module as shown in connection diagram and place
jumpers according to use.
Note the following when connecting the multi line separator module:
● Only connect one wire per terminal.
● If using shielded FDnet/C-NET cables, connect cable shielding to connection
terminal DBZ1190-AB. The shielding must not touch any external ground
potentials or metal parts.
● Secure cables on module carrier with cable ties.
● Only connect one sub-stub between two FDnet/C-NET devices. If you need to
connect more than one sub-stub always connect a line separator between the
sub-stubs.
● Press orange contact opening with screwdriver (width of blade 2.5 mm) when
inserting wire into socket strip.
● Press orange contact opening with screwdriver to loosen connection line from
socket strip.
Place nine line separators, each with an ID number, between sub-stub
connections. Self-adhesive tear-off labels are available on the FDCL221-M for your
system documentation (see following figure).
Figure 13: Tear-off labels
● Stick appropriate tear-off label to your system documentation.
● Remove all unused tear-off labels from FDCL221-M!
See also
2 Adjustment elements [➙ 19]
2 Function [➙ 19]
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
2
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
3
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
4
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
5
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
6
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
7
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
8
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
9
I
D
-
N
o
.
F
D
C
L
2
2
1
-
M
S
e
p
a
r
a
t
o
r
1
I
D
-
N
o
.
Page 34
Commissioning
6
34 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
6 Commissioning
From a FDnet/C-NET communication point of view, the multi line separator module
FDCL221-M is a line participant which, depending on the operation mode,
occupies up to nine bus addresses and is visible in the line topology. Each
individual line separator has its own bus address.
The device is commissioned via the control panel. The exact procedure is
described in the control panel documentation.
Conduct a performance check once commissioning is complete.
Page 35
Maintenance / Troubleshooting
7
35 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
7 Maintenance / Troubleshooting
The multi line separator module is maintenance-free. It features a self-monitoring
function and must be replaced if damaged.
Page 36
Specifications
Technical data
8
36 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
8 Specifications
8.1 Technical data
You will find information on approvals, CE marking, and the relevant EU directives
for this device (these devices) in the following document(s); see 'Applicable
documents' chapter:
● Document A6V10230308
Detector line Operating voltage DC 12…33 V
Quiescent current:
● 1-loop operation 2.25 mA (9 x 250 µA)
● 2-loop operation 2 x 1 mA (4 x 250 µA)
Quiescent current connection
factor:
● Per line separator 1
● 1-loop operation Max. 9 x 1
● 2-loop operation Max. 2 x 4
Address connection factor:
● 1-loop operation 9 x 1
● 2-loop operation 2 x 4
Separator connection factor:
● Per line separator 1
● 1-loop operation Max. 9 x 1
● 2-loop operation Max. 2 x 4
Protocol FDnet/C-NET
Compatibility See 'List of compatibility'
Page 37
Specifications
Technical data
8
37 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Line separator
(per separator)
Line voltage:
● Nominal DC 32 V (= V
nom
)
● Minimum DC 12 V (= V
min
)
● Maximum DC 33 V (= V
max
)
Voltage at which the separator
opens:
● Minimum DC 7.5 V (= V
SO min
)
● Maximum DC 10.5 V (= V
SO max
)
Permanent current when switches
are closed
Max. 1.5 A (= I
C max
)
Switching current (e.g., in the
event of a short-circuit)
Max. 2 A (= I
S max
)
Leakage current when switches
are open
Max. 1 mA (= I
L max
)
Serial impedance when switches
are closed
Max. 0.4 Ω (= Z
C max
)
When operated on the FDnet/C-NET, the line separator is closed via an
actuation signal from the control panel. Required line voltage: DC 12...33 V
(normal range)
External alarm indicators
Number of external alarm
indicators that can be connected
None
Connections Detector line:
● Design Screw terminals on plug
● Cable cross section 0.2…1.5 mm
2
● Bare length 6 mm
Sub-stubs:
● Design Socket strip
● Cable cross section 0.2…1.5 mm
2
● Bare length 10 mm
Ambient conditions Operating temperature -25…+70 °C
Storage temperature -30…+75 °C
Air humidity (non-condensing) ≤95 % rel.
Protection category (IEC 60529):
● Without housing IP30
● With housing FDCH221,
screwed
IP65
Electromagnetic compatibility:
● 1 MHz…2 GHz 10 V/m
Page 38
Specifications
Technical data
8
38 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Mechanical data Dimensions (L x W x H):
● Module FDCL221-M
(without housing)
132 x 90 x 24 mm
● Housing FDCH221 207 x 119 x 50 mm
Weight of module FDCL221-M 0.124 kg
Housing material ABS
Colors:
● Module carrier ∼RAL 9010 pure white
● Housing FDCH221 ∼RAL 9010 pure white
● Housing cover Transparent matt
Standards European standards EN 54-17
Page 39
Specifications
Dimensions
8
39 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
8.2 Dimensions
Figure 14: Dimensions for different types of mounting without housing
Figure 15: Dimensions for housing FDCH221
8.3 Environmental compatibility and disposal
This equipment is manufactured using materials and procedures
which comply with current environmental protection standards as
best as possible. More specifically, the following measures have
been undertaken:
● Use of reusable materials
● Use of halogen-free plastics
● Electronic parts and synthetic materials can be separated
Larger plastic parts are labeled according to ISO 11469 and
ISO 1043. The plastics can be separated and recycled on this basis.
The device is considered an electronic device for disposal in
accordance with the European Guidelines and may not be disposed
of as domestic garbage.
● Dispose of the device through channels provided for this
purpose.
● Comply with all local and currently applicable laws and
regulations.
132
90
24
102
132
36
119
207
50
Page 40
Index
40 | 42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Index
Numerics
1-loop operation
All 9 line separators in one detector line .......... 19
2-loop operation
4 line separators each in one detector line ...... 19
A
Application area
Ambient conditions ......................................... 28
Approvals ........................................................ 36
Attachment
Screws ........................................................... 16
U-rail .............................................................. 16
C
CE marking ..................................................... 36
Compatibility.................................................... 27
Compatibility with control panels ........................ 27
Configuration
Jumper ........................................................... 19
Control panel ................................................... 34
D
Degraded mode operation
Fire control panel failure.................................. 21
Detector line protocol
FDnet/C-NET .................................................. 15
Disposal .......................................................... 39
Documentation for fire detection system .............. 7
Download center
URL .................................................................. 8
E
Electronic switch
Line separator ................................................. 15
Environmental compatibility ............................... 39
Environmental influences .................................. 28
EU directives ................................................... 36
F
FDnet/C-NET
Detector line protocol ...................................... 15
Fire control panel failure
Degraded mode operation .............................. 21
I
Impact
Chemicals....................................................... 28
Moisture ......................................................... 28
Temperature ................................................... 28
Intended use .................................................... 5
J
Jumper
Configuration .................................................. 19
L
Labeling of system documentation
Tear-off label .................................................. 33
LED
Line separator status indicator ........................ 18
Line separator
Electronic switch ............................................. 15
Line separator status indicator
LED ................................................................ 18
List of compatibility .................................. 7, 21, 27
Loop
Loop line ......................................................... 15
Loop line
Loop ............................................................... 15
O
Original language .............................................. 6
R
Recycling ........................................................ 39
S
Shielded cable ................................................. 33
Source language ............................................... 6
Standards ....................................................... 38
Stub on an FDnet/C-NET loop
Sub-stub ......................................................... 15
Sub-stub
Stub on an FDnet/C-NET loop ........................ 15
T
Tear-off label
Labeling of system documentation .................. 33
U
U-rail .............................................................. 16
Page 41
Index
41 |
42
Building Technologies
A6V10224006_g_en_
--
Fire Safety
2018-10-25
Page 42
Issued by
Siemens Switzerland Ltd
Building Technologies Division
International Headquarters
Theilerstrasse 1a
CH-6300 Zug
+41 58 724 2424
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2009
Technical specifications and availability subject to change without notice.
Document ID: A6V10224006_g_en_-Edition: 2018-10-25
Loading...
