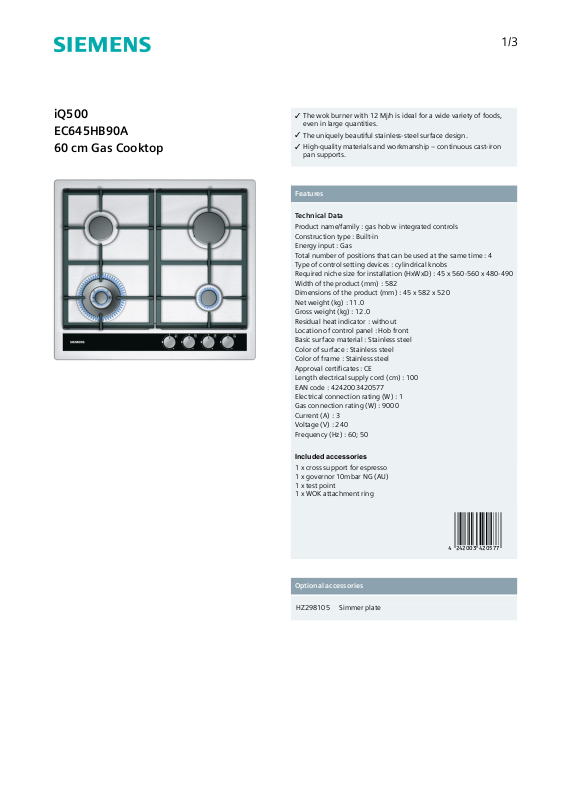

Siemens EC645HB90A Specifications Sheet

✓

The wok burner with 12 Mj/h is ideal for a wide variety of foods,
even in large quantities.

✓

The uniquely beautiful stainless-steel surface design.

✓

High-quality materials and workmanship – continuous cast-iron
pan supports.

Features

Technical Data

Product name/family : gas hob w integrated controls
Construction type : Built-in
Energy input : Gas
Total number of positions that can be used at the same time : 4
Type of control setting devices : cylindrical knobs
Required niche size for installation (HxWxD) : 45 x 560-560 x 480-490
Width of the product (mm) : 582
Dimensions of the product (mm) : 45 x 582 x 520
Net weight (kg) : 11.0
Gross weight (kg) : 12.0
Residual heat indicator : without
Location of control panel : Hob front
Basic surface material : Stainless steel
Color of surface : Stainless steel
Color of frame : Stainless steel
Approval certificates : CE
Length electrical supply cord (cm) : 100
EAN code : 4242003420577
Electrical connection rating (W) : 1
Gas connection rating (W) : 9000
Current (A) : 3
Voltage (V) : 240
Frequency (Hz) : 60; 50

Included accessories

1 x cross support for espresso
1 x governor 10mbar NG (AU)
1 x test point
1 x WOK attachment ring

'!2E20AD-ecafhh!

Optional accessories

HZ298105 Simmer plate

iQ500
EC645HB90A
60 cm Gas Cooktop

1/3

iQ500
EC645HB90A
60 cm Gas Cooktop

Features

Design

●

4 burner Stainless steel gas cooktop

●

Connecting cable 1 m with plug

●

Facette design with stainless steel side profiles and beveled
ceramic glass front

●

Enamelled cast-iron pan supports with non-scratch rubber feet

Convenience

●

One-hand ignition

●

1 Dual wok burner

Power and Mode of Operation

●

1 Triple flame wok burner
1 High-speed burner
1 Standard burner
1 Economy burner

●

Front left: WOK burner 12 Mj/h

●

Rear left: Standard burner 6.5 Mj/h

●

Rear right: High-speed burner 10.8 Mj/h

●

Front right: Economy burner 3.6 Mj/h

●

Suitable for natural gas (factory set-up) or LPG (via included
conversion kit)

Safety and Environment

●

Flame failure device fitted to each individual burner

2/3
