Product Data Sheet

SIMATIC Flat Panel Monitors

The following are included in the scope of supply of the built-in units:

• 24 V connection plug

• Power supply cable (Europe) for version with AC power pack (power supply cables for other countries can be ordered as an accessory)

• VGA connection cable 1.8 m (other cable lengths and DVI cable available separately as accessories)

• USB Touch connection cables for Touch devices (other cable lengths available separately as accessories)

• Latch fastener

• Operating instructions, 2 languages (German and English)

• CD-ROM with hardware drivers and documentation

The following are included in the scope of supply of the PRO de-

The Flat Panels are rugged industry-standard LCD monitors.

• Design of front panels:

- 12", 15", 17" and 19" TFT Touch

- 12" and 15" TFT Key

• Installation:

- They are equally suited to installation in the machine, in control cabinets, consoles and gantries or in 19" racks.

- As a device with all-round IP65 protection for mounting on a supporting arm/supporting foot

• Type of operator control:

- Simple display devices without operator functionality

- Optional devices with touch control

- Rear connection of I/O devices (optional)

Design

• Rugged aluminum front

• TFT display in following sizes:

- 12" / 800 x 600 pixels

- 15" / 1024 x 768 pixels

- 17" / 1280 x 1024 pixels

- 19" / 1280 x 1024 pixels

• 256K up to 16 million colors

• Anti-glare and hardened mineral glass screen

• Basic display or touch screen option

• 24 V DC power supply, also optional with 100-240 V AC (50/60 Hz)

• Can be located up to 5 m from the computing unit

vices:

• 24 V connection plug

• Power supply cable (Europe) (power supply cables for other countries can be ordered as an accessory)

• Operating instructions, 2 languages (German and English)

• CD-ROM with hardware drivers and documentation

Special functions of extended version

• Can be located up to 30 m from the computing unit

• Two rear USB interfaces

• Dimmable backlit display

• Combined AC and

• EX22 approval for 17" and 19" devices

• Marine approvals

DC power supply

1/5

Technical specifications SIMATIC Flat Panels

Type

Flat Panel 12" Flat Panel 15" Flat Panel 17"/19"

General features

Can be separate from the computer Optional up to 30 m Optional up to 30 m Optional up to 30 m

On-screen display (OSD) configuration Yes Yes Ye s

Anti-glare and hardened mineral glass screen Yes Yes Ye s

Line side switch No No No

DC power supply 24 V 24 V 24 V

AC power supply (optional) 110/230V AC 110/230V AC 110/230V AC

Frequency/power consumption 47 – 63 Hz/25 VA 47 – 63Hz/25 VA 47 – 63Hz/55 VA

Ambient conditions

Degree of protection according to EN 60 529 IP65 / NEMA4 IP65 / NEMA4 IP65 / NEMA4

Vibration load during operation 1 g (10 m/s2) 1 g (10 m/s2) /

Shock load during operation 5 g (50 m/s2) 5 g (50 m/s2) 5 g (50 m/s2)

1 g (10 m/s2) 1)

1 g (10 m/s2)

EMC CE CE CE

Ambient temperature during operation 5 to +50°C 5 to +50 °C/5 to +45 °C 5 to +45 °C

Certifications and standards

Certification cULus (UL 508), NEMA 4/

EMC CE EN 55011 class A CE EN 55011 class A CE EN 55011 class A

cULus, (UL508), Enclosure Typ e 4teste d

cULus (UL 508), NEMA 4/ cULus, (UL508), Enclosure Type 4tested

cULus (UL 508), NEMA 4/ cULus, (UL508), Enclosure Type 4 tested

Display

Screen diagonal in inches 12" TFT 15" TFT 17"/19" TFT

Optimum resolution (pixels) 800 x 600 1024 x 768 1280 x 1024

Brightness/contrast (typical) > 370 cd/m2 / 450:1 > 260 cd/m2 / 350:1 > 300 cd/m2 / 300:1

Viewing angle (H x V) 120° x 70° 100° x 90° 170° x 170°

Number of colors 262 K 16.7 million 16.7 million

MTBF of backlighting (at 25 °C) 50,000 h 50,000 h 50,000 h

Operator controls

Touch screen analog-resistive, optional analog-resistive, optional analog-resistive, optional

Numeric/alphabetic input Yes Yes No

2/5

Type

Flat Panel 12" Flat Panel 15" Flat Panel 17"/19"

Interfaces

Standard VGA interface (15-pin SUB-D) Yes Yes Yes

Digital DVI-D interface Yes Yes Yes

USB interface (V1.1) for touch screen Optional Optional Optional

Degree of protection

Front side according to EN 60529 IP 65 IP 65 IP 65

Rear side according to EN 60529 IP 20 IP 20 IP 20

Dimensions

External dimensions W x H x D (mm) 400 x 310 x 61.5 483 x 310 x 54 /

Panel cut-out/depth W x H x D (mm) 368 x 290 x 51 (Touch)

Weight (kg)

450 x 290 x 49 (Key)

5.0 6.4 / 6.7 (without adapter) 10.2 kg

483 x 310 x 91

450 x 290 x 55 (Touch) 450 x 321 x 49 (Key)

483 x 400 x 56

450 x 380 x 57

3/5

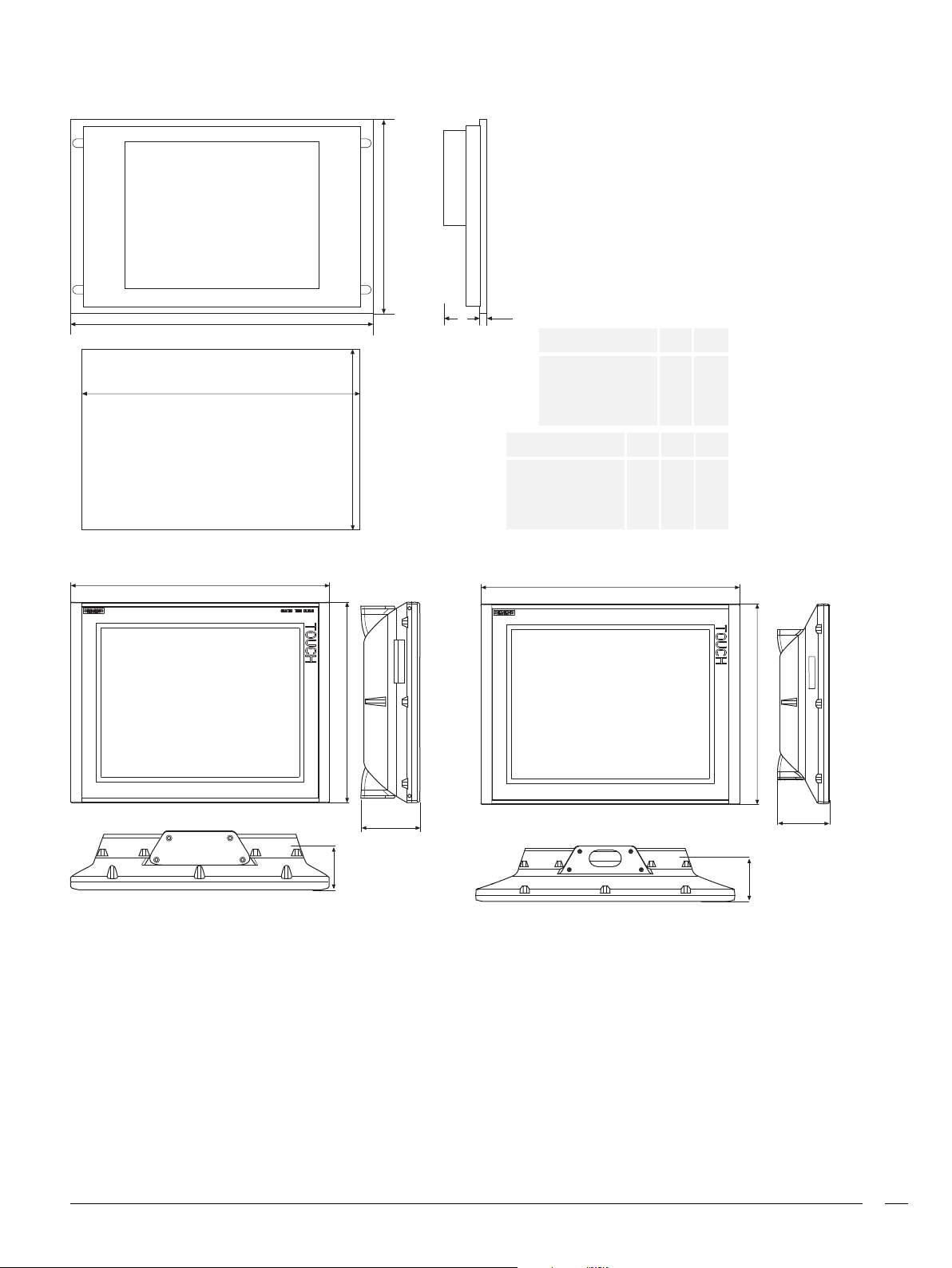

Dimensional drawings

82

105

483

400

SIMATIC FLAT PANEL

W

W+1 (cutout)

Installation cutout for Flat Panel

400

H+1 (cutout)

H

10,5

D

Front dimensions

Touch panels 12" 15" 17" 19"

Installation cutout

Touch panels 12" 15" 17" 19"

W

368 450 450 450

+1

WH

400

310

483

310

483

400

483

400

H+1D

290

51

290

55

380

57

380

57

G_ST80_XX_00238

310

90.85

67.85

Flat Panel PRO 15" Touch Flat Panel PRO 19" Touch

G_ST80_XX_00350

4/5

SIMATIC PC – the more Industrial PC

More information on SIMATIC PC is available at: www.siemens.com/simatic-pc

The optimum configuration for your application: www.siemens.com/ipc-configurator

In-depth information is available in the SIMATIC manuals: www.siemens.com/simatic-doku

Information material for download: www.siemens.com/simatic/printmaterial

Technical documentation is available in our Service& Support portal:

Your personal contact partner is listed at: www.siemens.com/automation/partner

Electronic ordering via the Internet with the A&D Mall: www.siemens.com/automation/mall

Online Service Tool PED – for fast information on the equipment of your SIMATIC PC and the management of your field inventory:

After-sales support for SIMATIC PCs: www.siemens.com/ipc-asis

www.siemens.com/automation/support

www.siemens.com/ped

5/5
