COMBIMASTER and MICROMASTER Integrated

Reference Manual 1999

Page 2

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

CONTENTS

1. Safety and CE Compliance 3

2. Overview 7

3. Mechanical Installation 9

3.1 Mechanical Installation I COMBIMASTER .............................................................................9

3.2 Mechanical Installation I MICROMASTER Integrated..........................................................10

4. Electrical Installation 11

4.1 General Wiring Guidelines....................................................................................................11

4.2 Electrical Installation I MICROMASTER Integrated..............................................................11

4.3 Electrical Installation I COMBIMASTER and MICROMASTER Integrated...........................12

4.4 Mains Cable Connections.....................................................................................................12

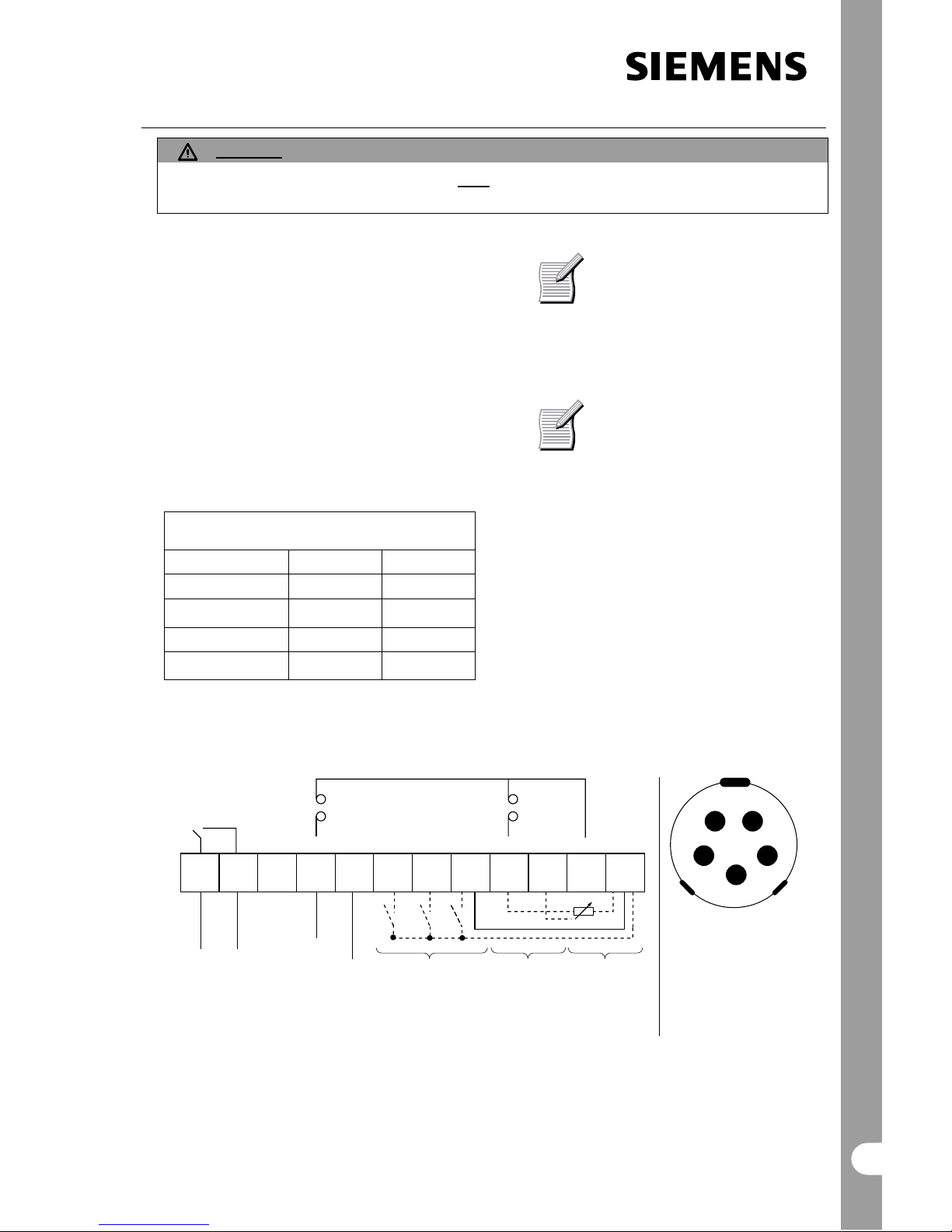

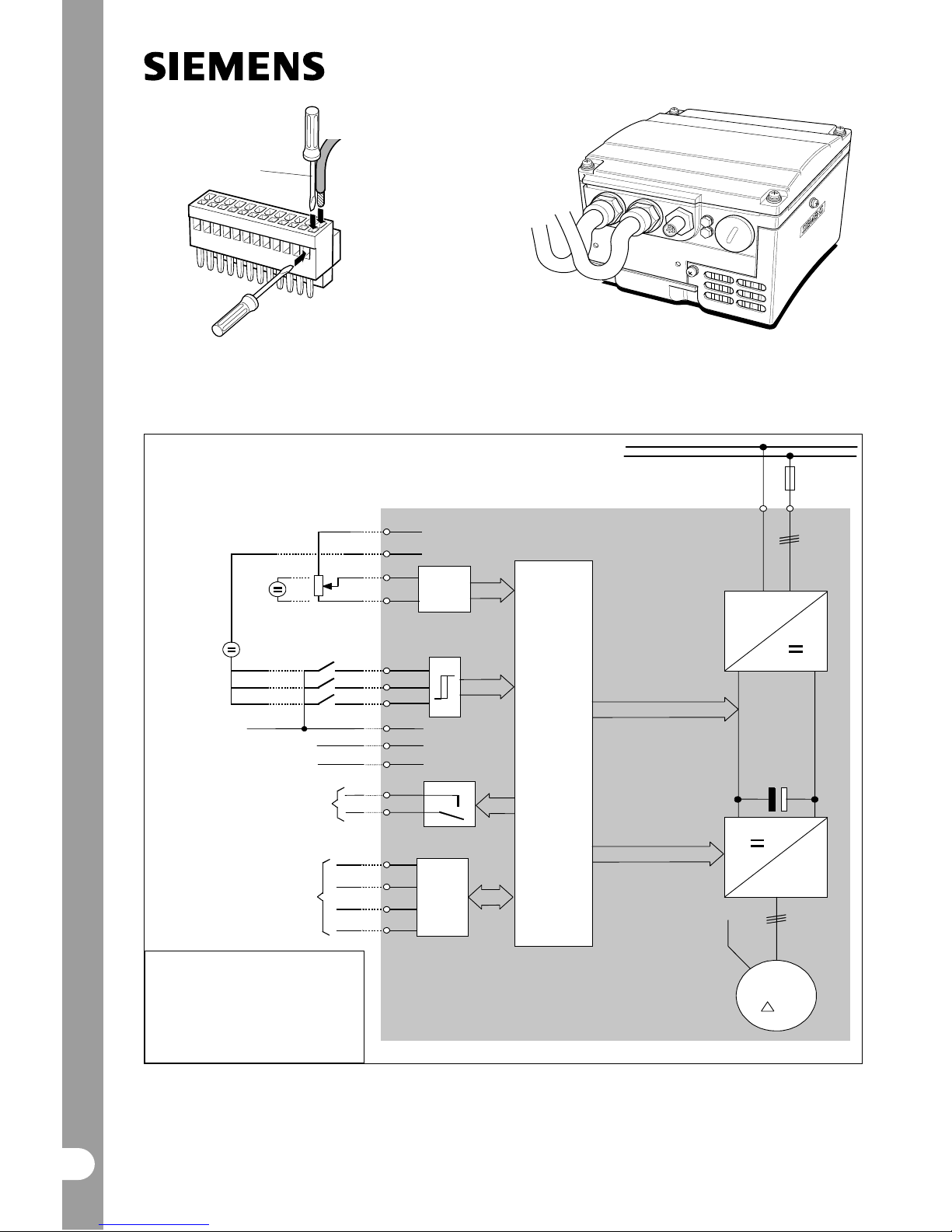

4.5 Control Cable Connections...................................................................................................15

5. Operating Information 17

5.1 General .................................................................................................................................17

5.2 Basic Operation ....................................................................................................................17

5.3 Operation – External Analogue Control................................................................................18

5.4 Operation – Digital Control...................................................................................................18

5.5 Stopping the Motor................................................................................................................19

5.6 If the Motor Does Not Start Up.............................................................................................19

5.7 Local and Remote Control....................................................................................................19

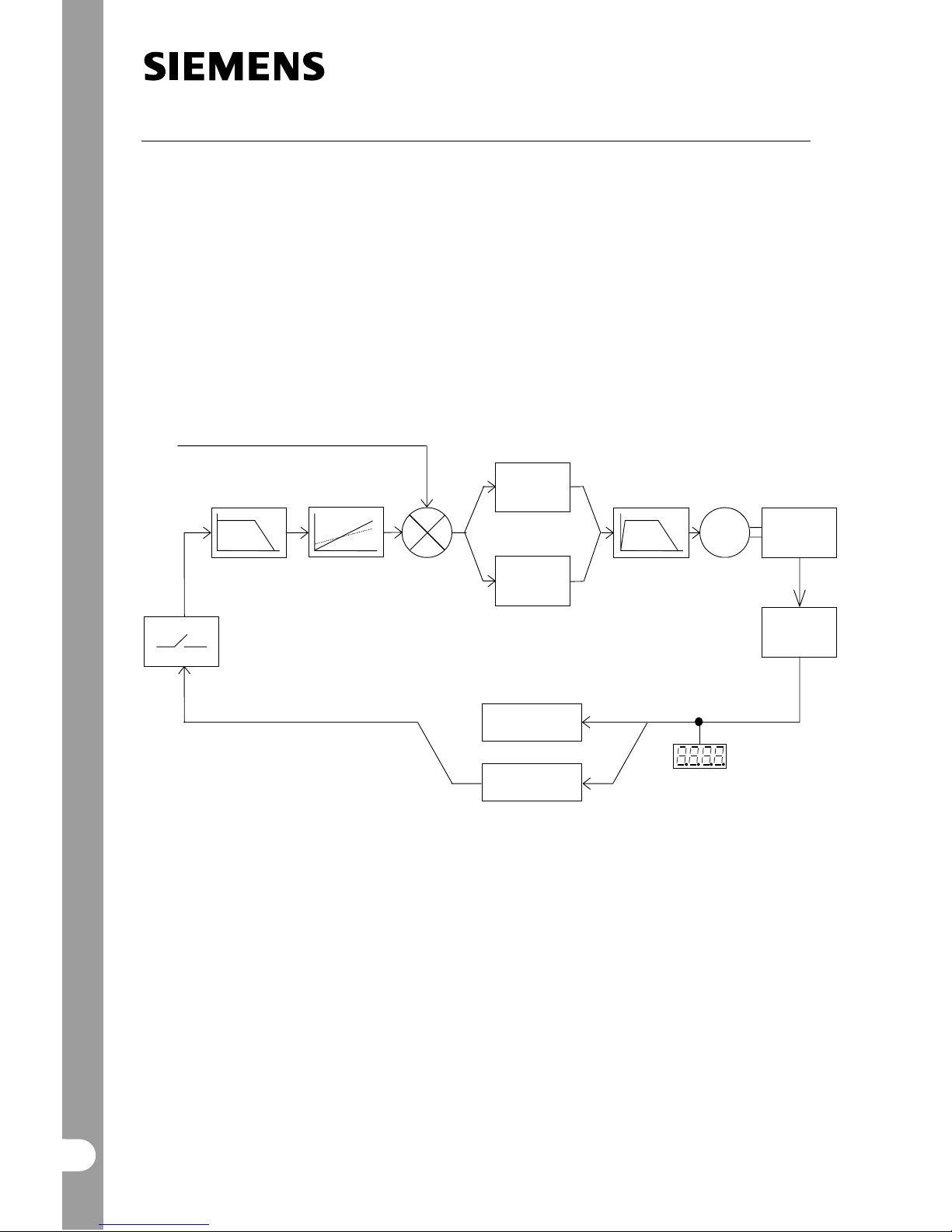

5.8 Closed Loop Control .............................................................................................................20

6. System Parameters 21

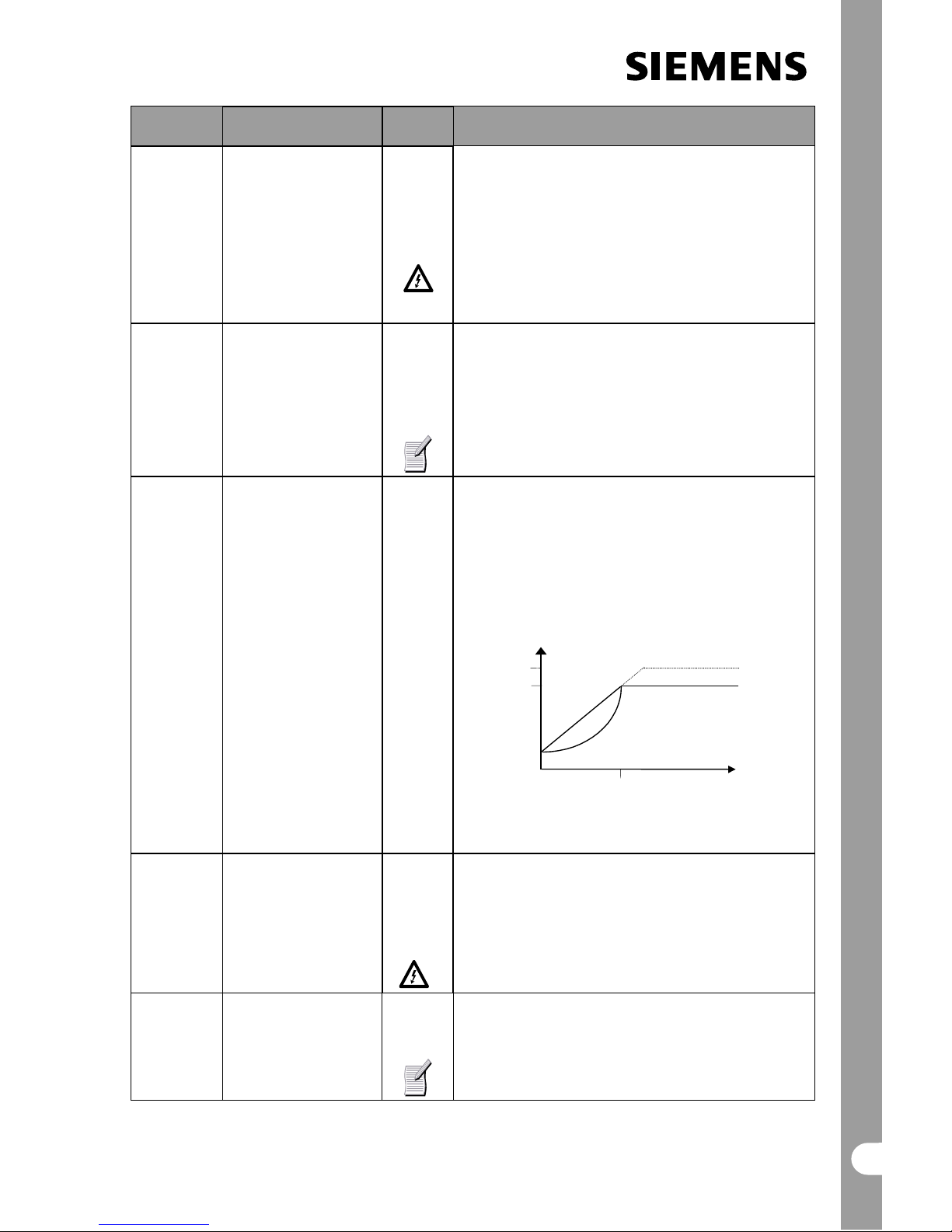

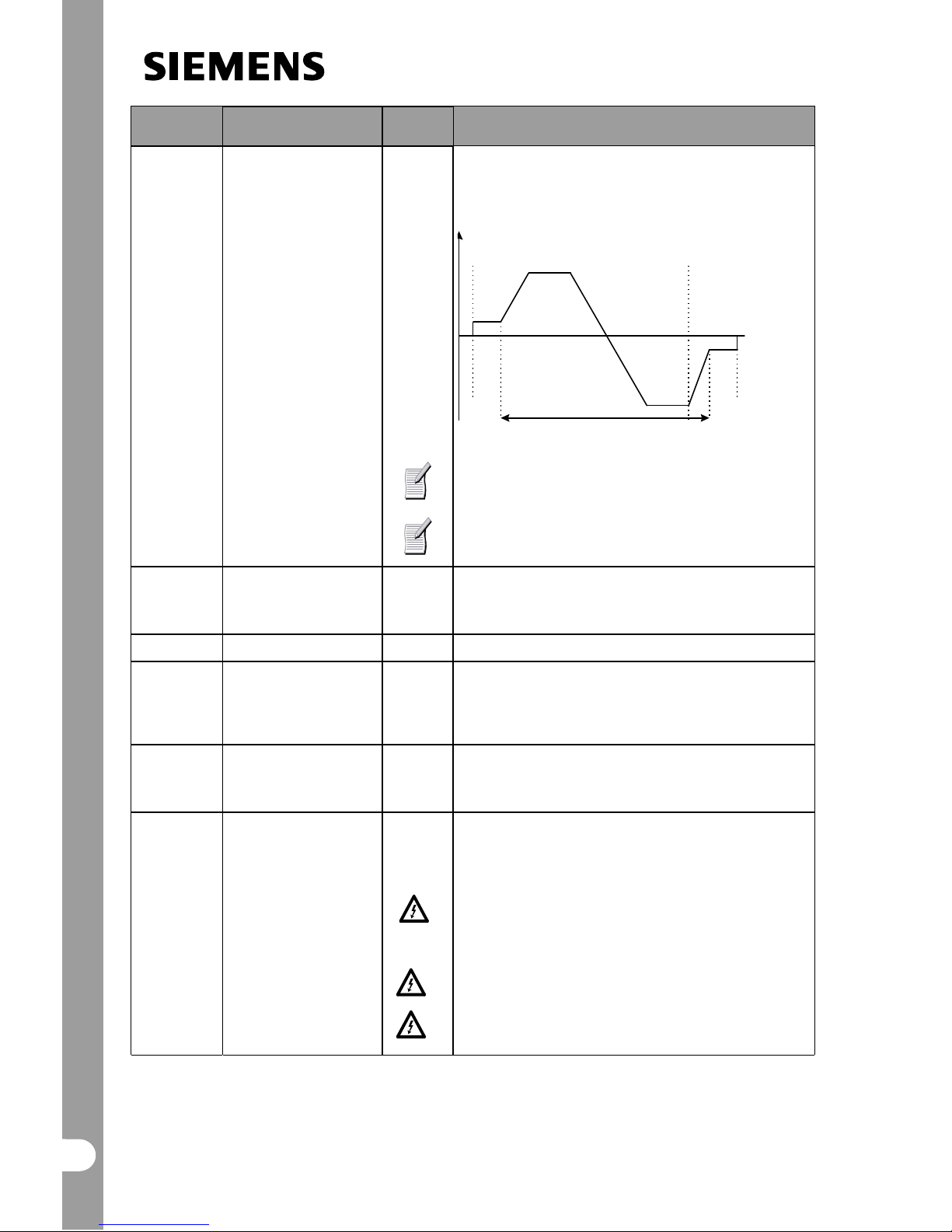

6.1 System Parameters Table....................................................................................................21

6.2 Fault Codes...........................................................................................................................39

7. Options and Accessories 41

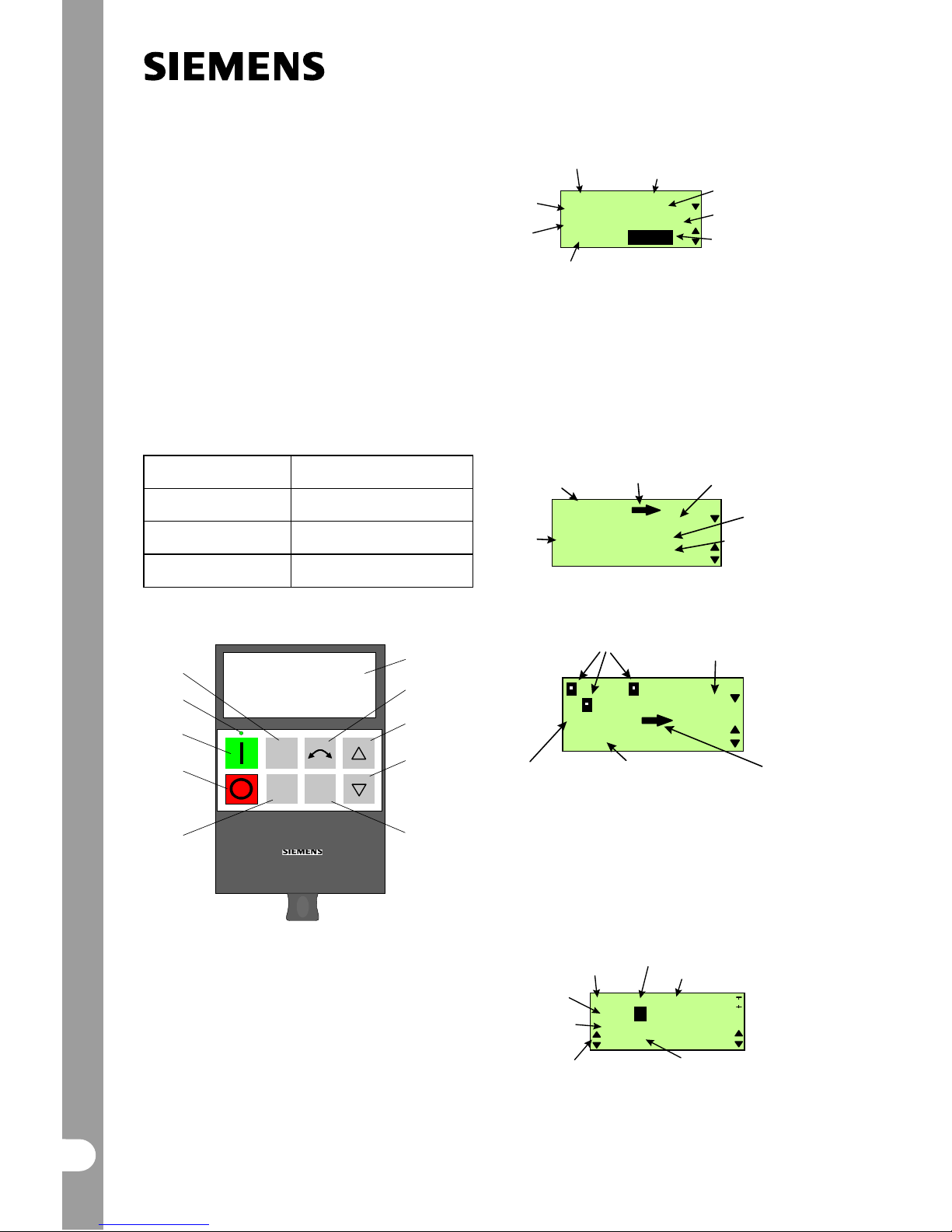

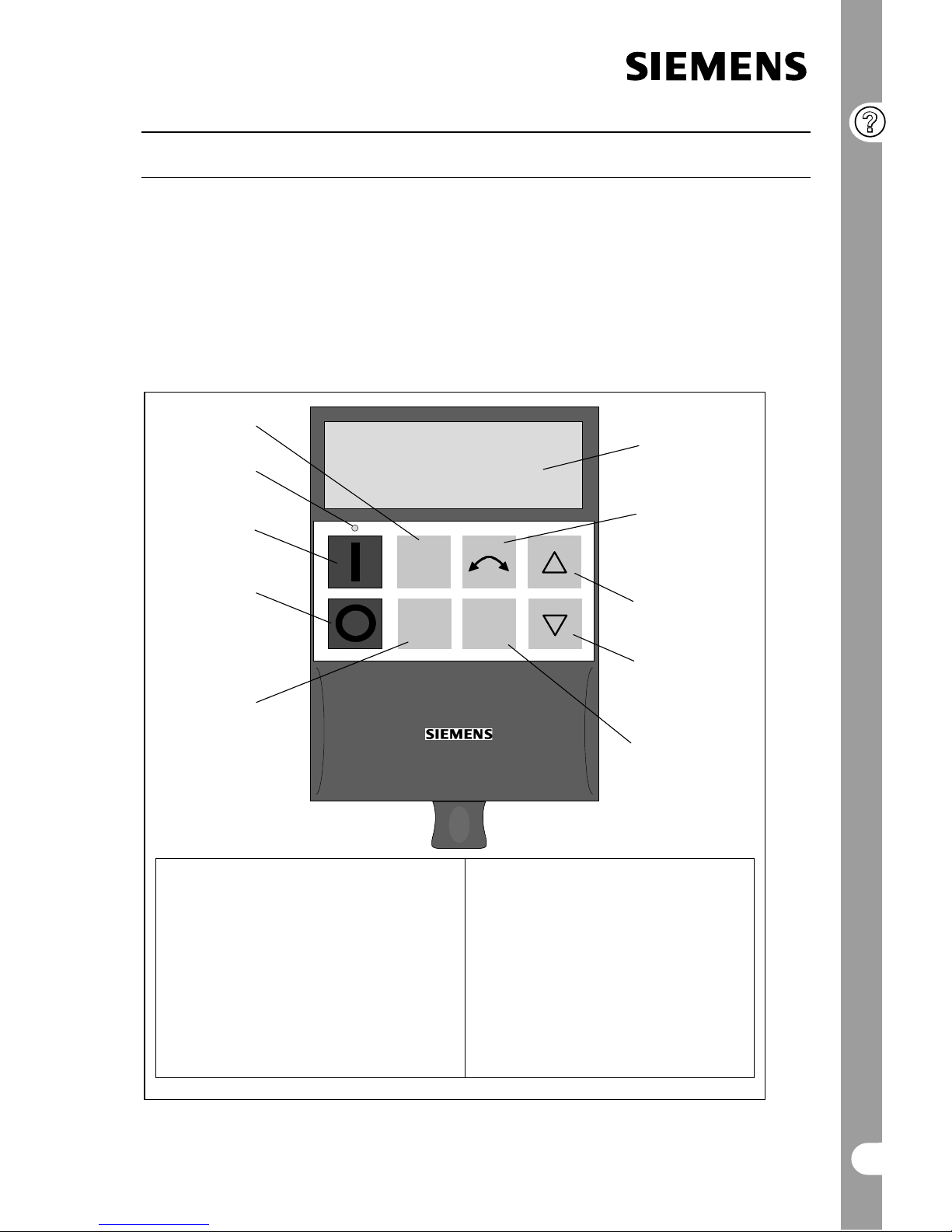

7.1 Clear Text Display Module (OPm2)......................................................................................41

7.2 Profibus CB155....................................................................................................................43

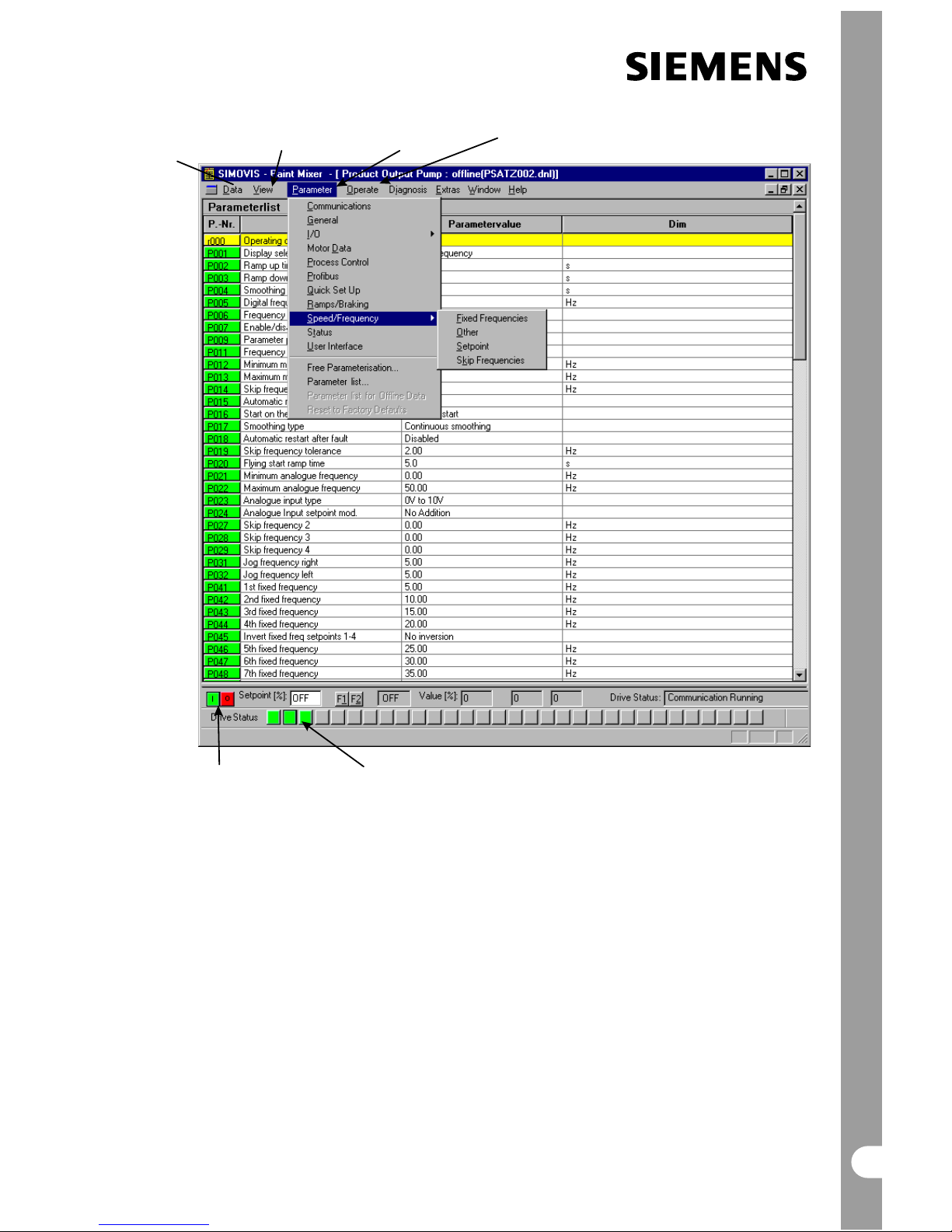

7.3 Control and Commissioning with SIMOVIS..........................................................................47

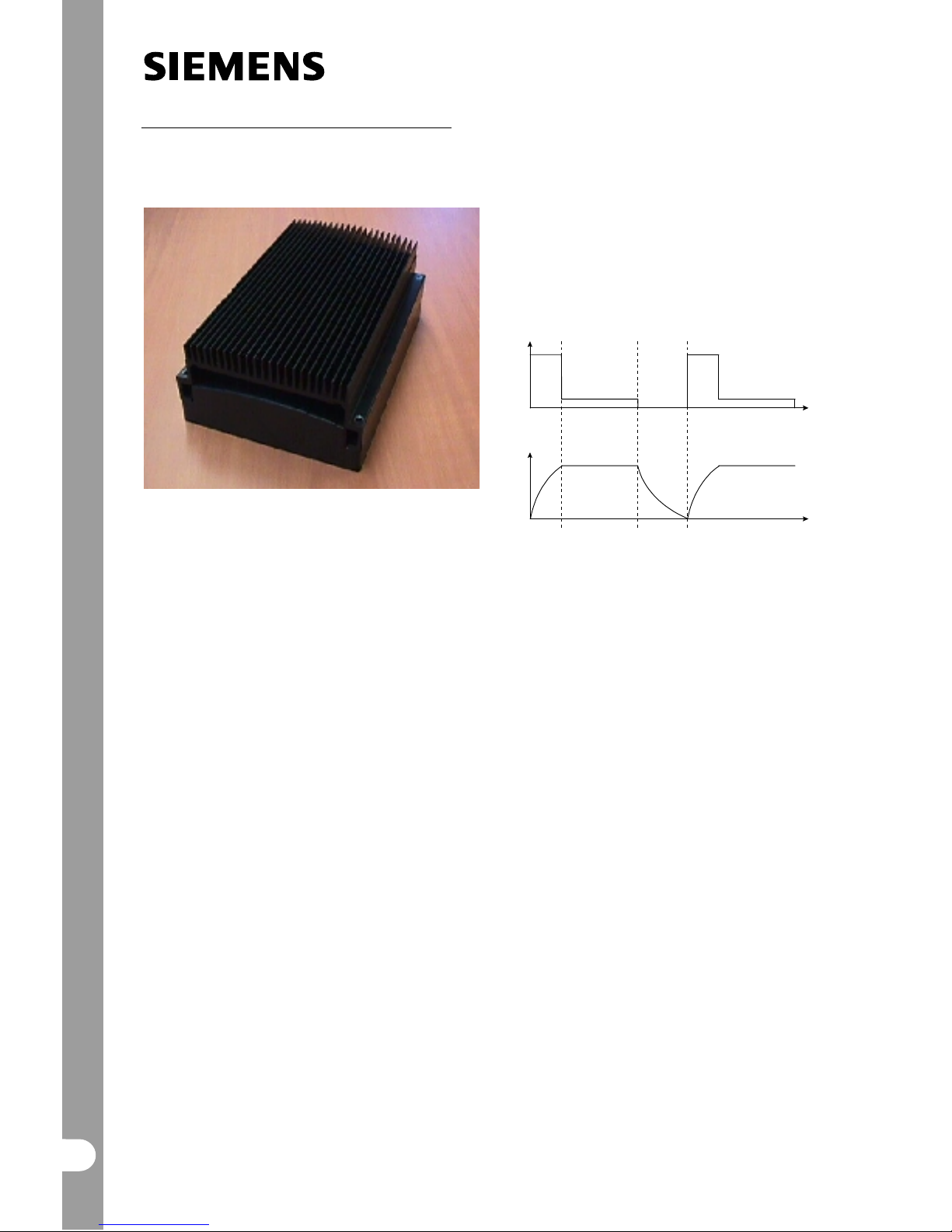

7.4 Brake Options.......................................................................................................................50

7.5 Fan Assembly Options..........................................................................................................51

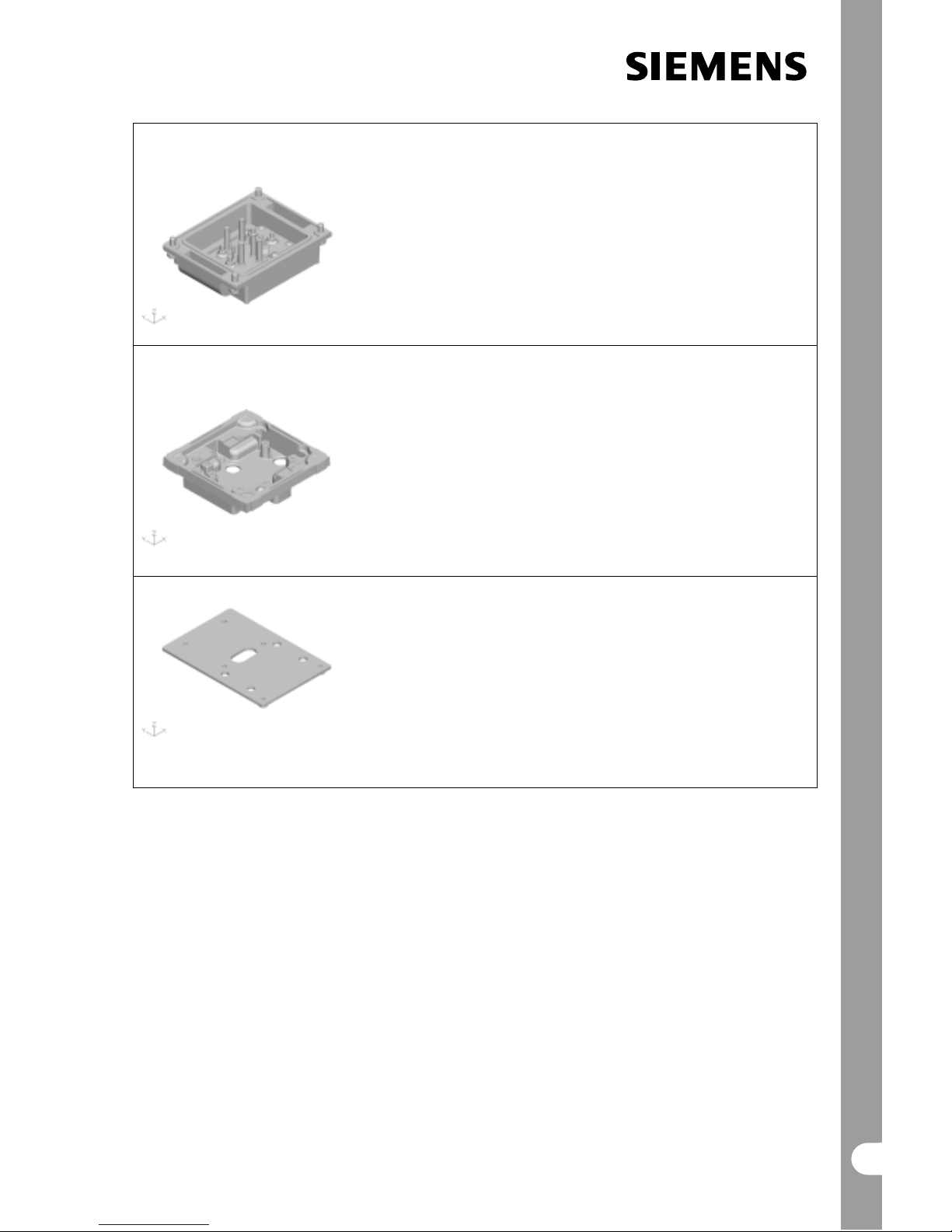

7.6 Motor Interface Plate Options...............................................................................................52

8. Specifications 53

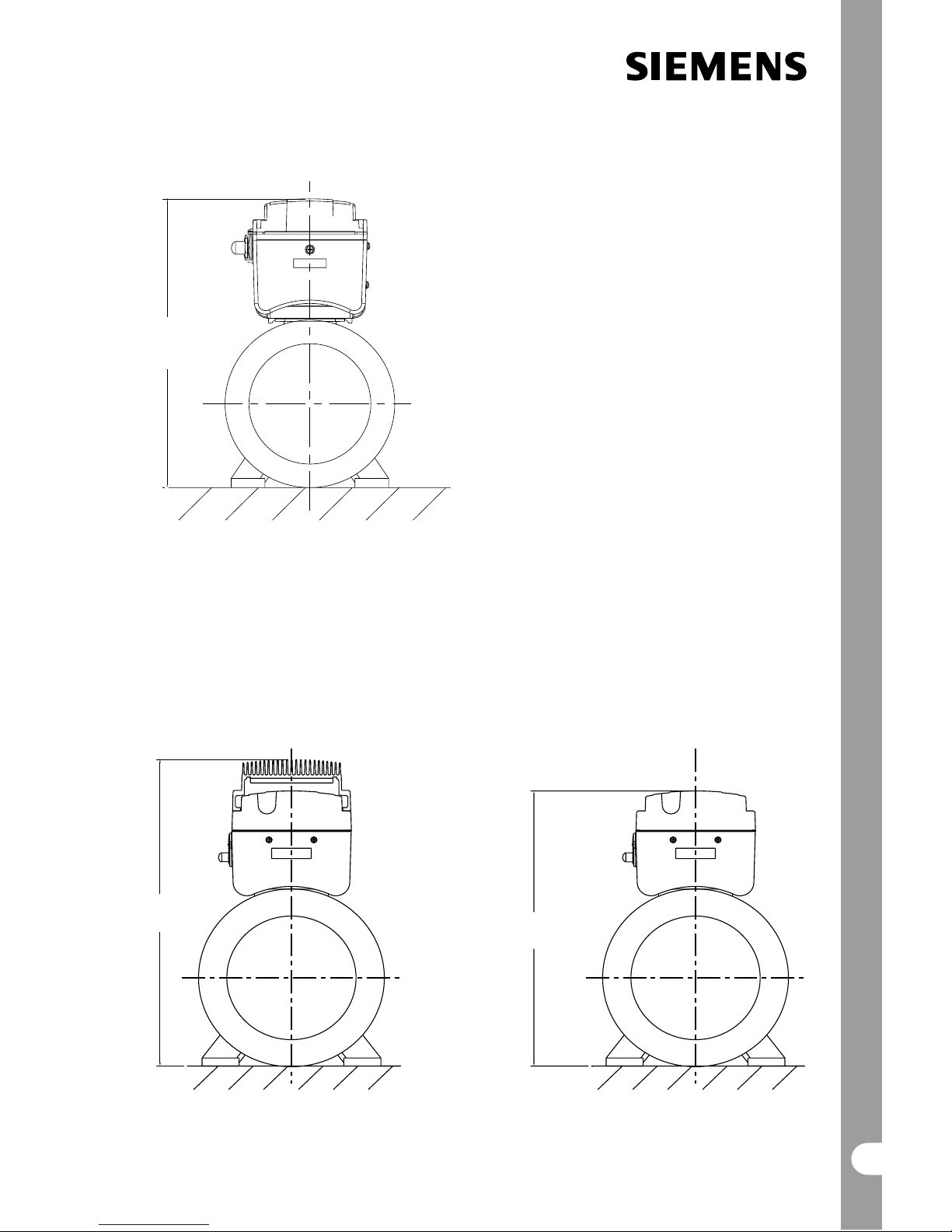

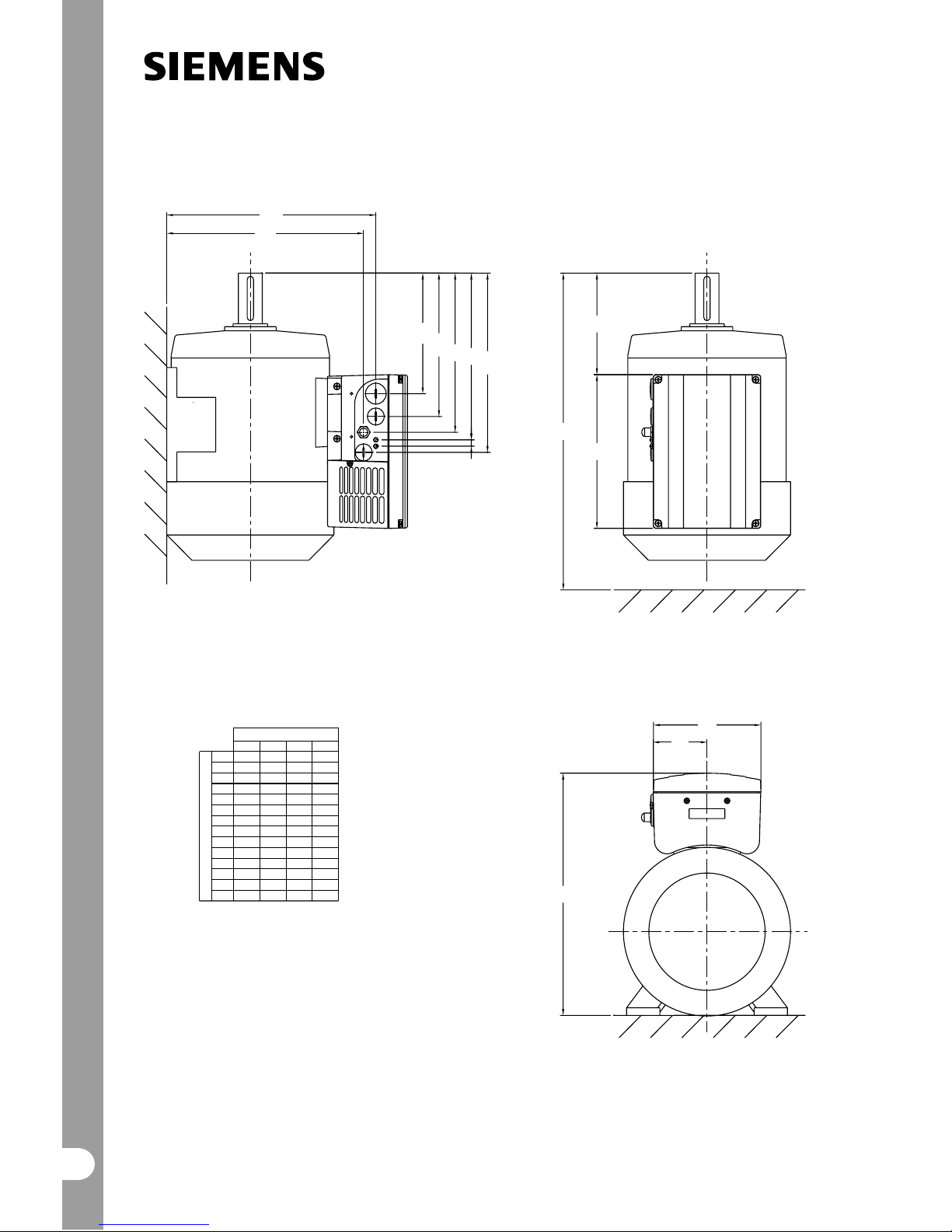

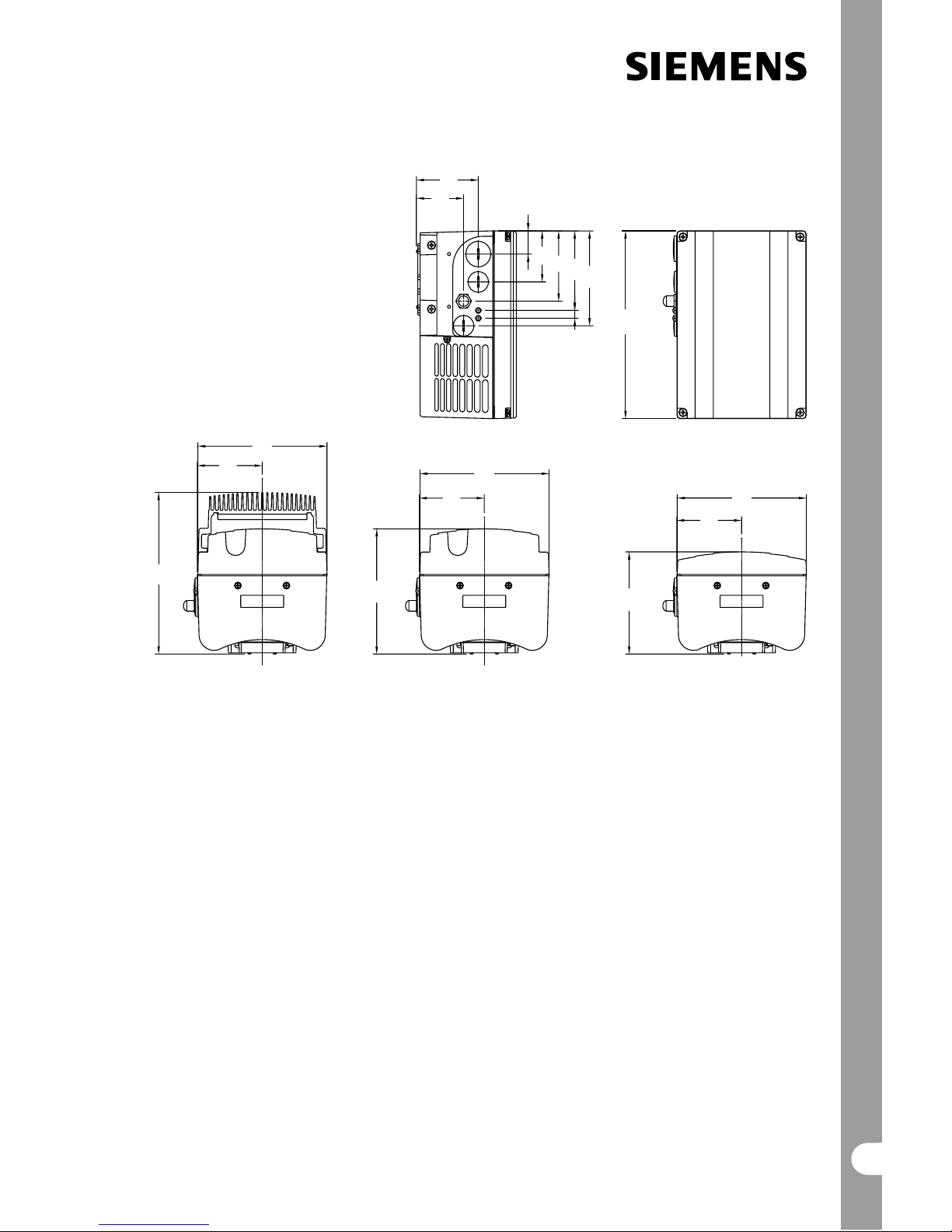

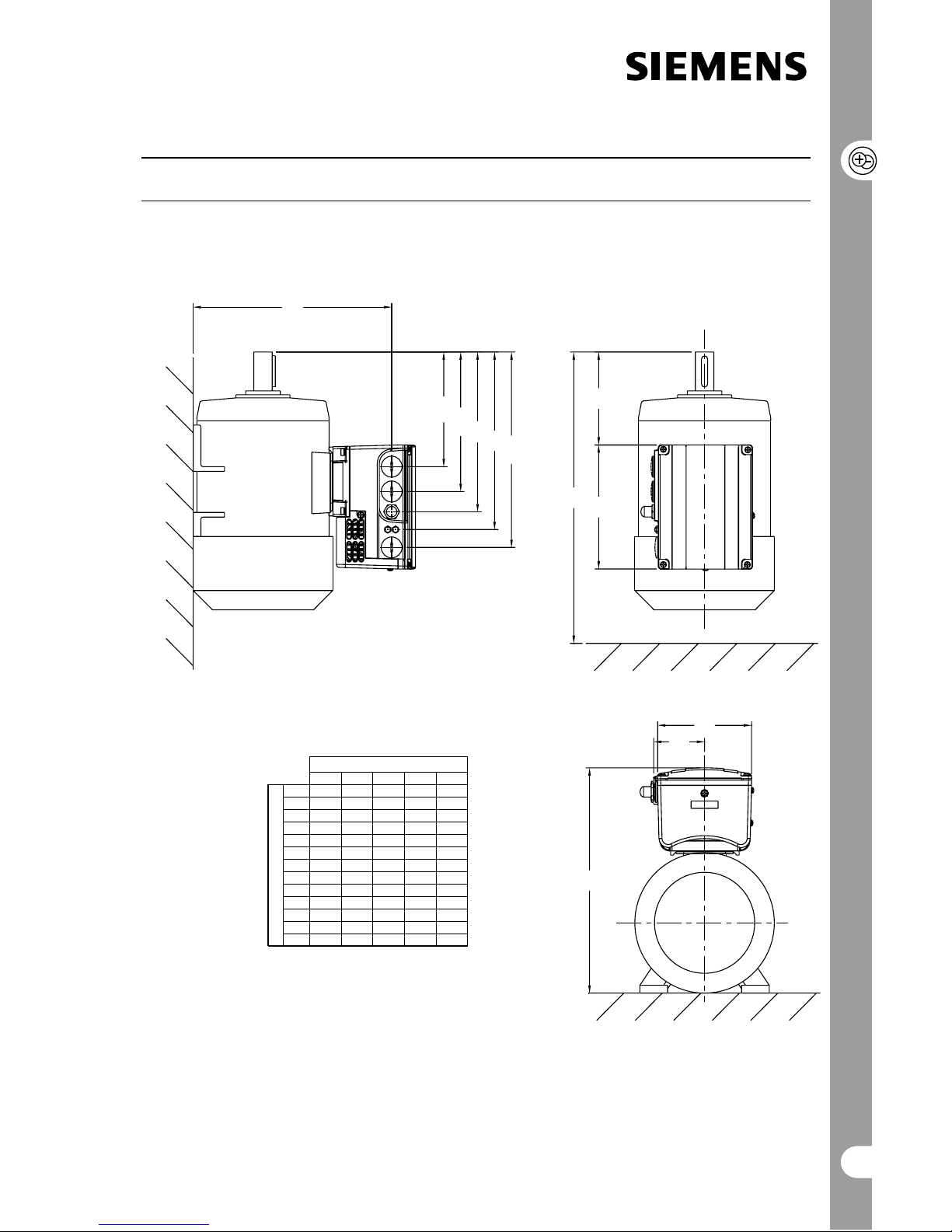

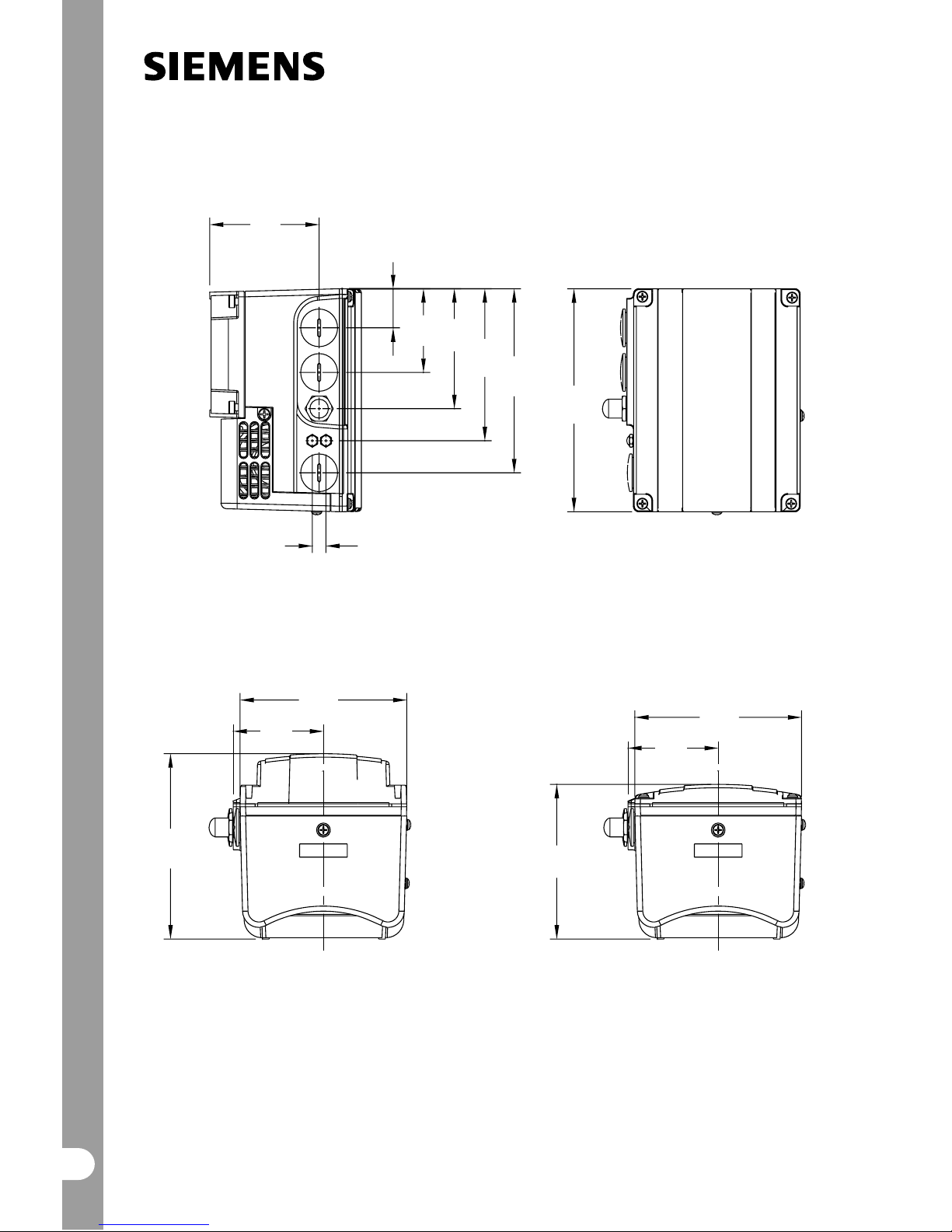

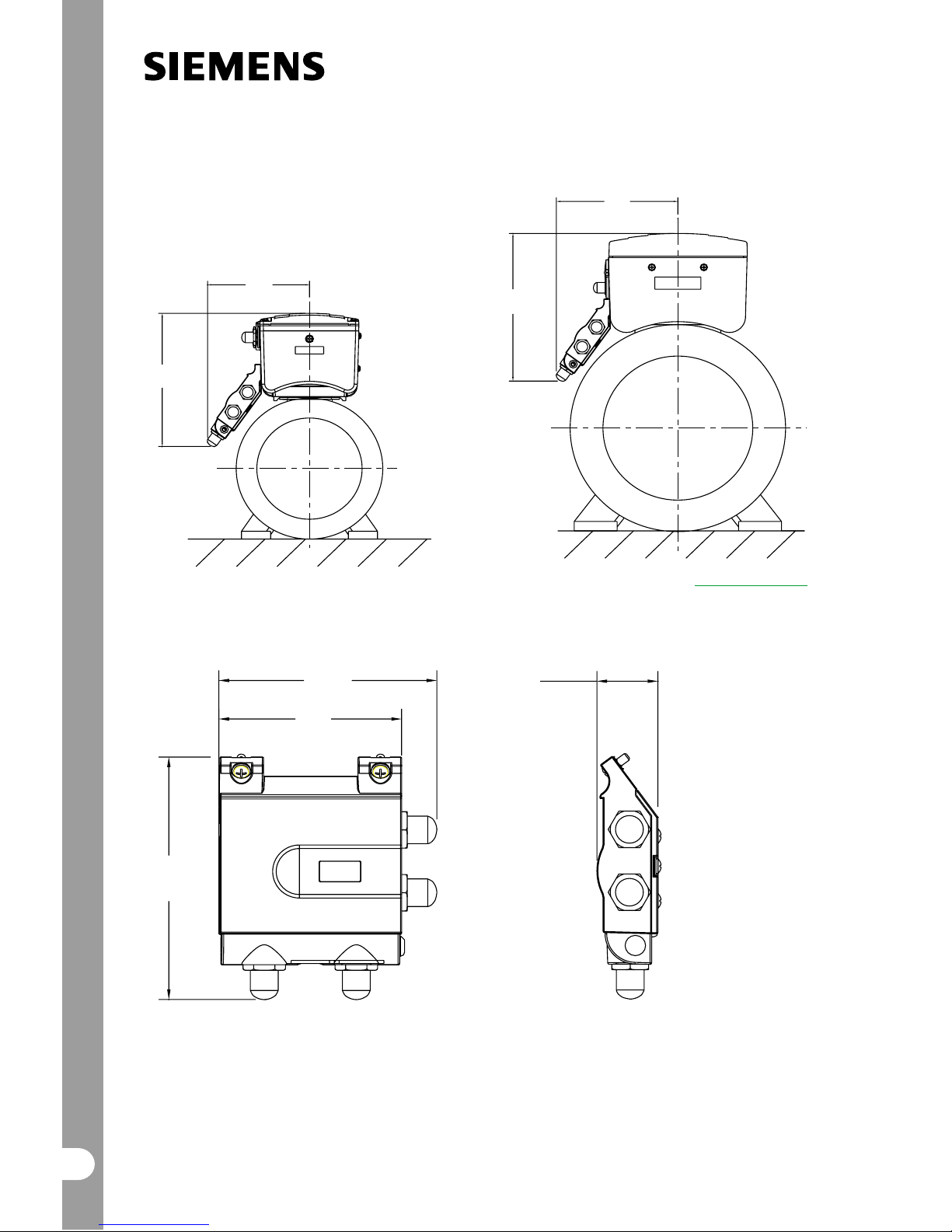

8.1 Mechanical Data – Dimensional Drawings...........................................................................53

8.2 Electrical Data.......................................................................................................................59

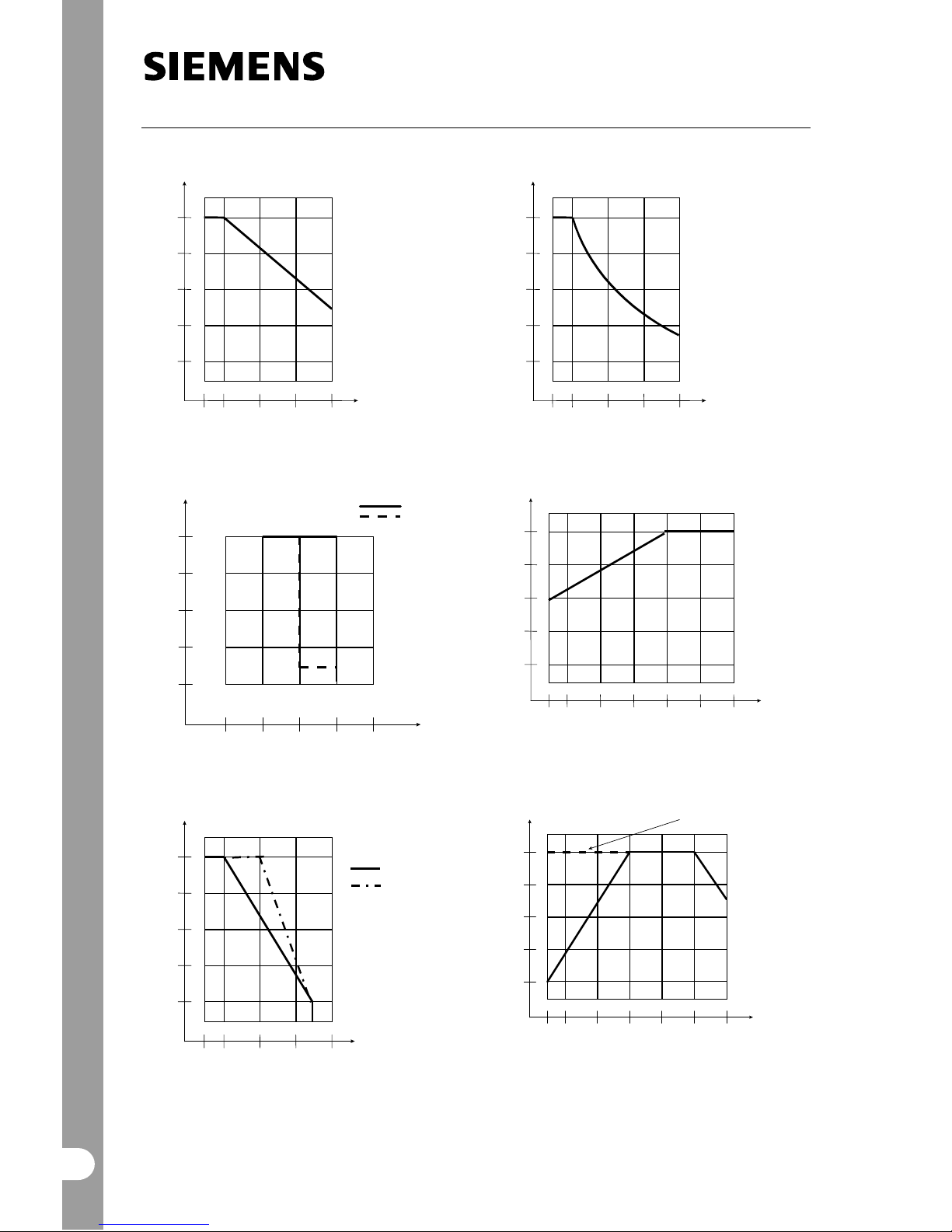

8.3 De-rating Information............................................................................................................60

8.4 Technical Data - COMBIMASTER.......................................................................................61

8.5 Technical Data - MICROMASTER Integrated .....................................................................63

8.6 Output Current Ratings - MICROMASTER Integrated........................................................65

Page 3

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

9. Supplementary Information 67

9.1 Application Example .............................................................................................................67

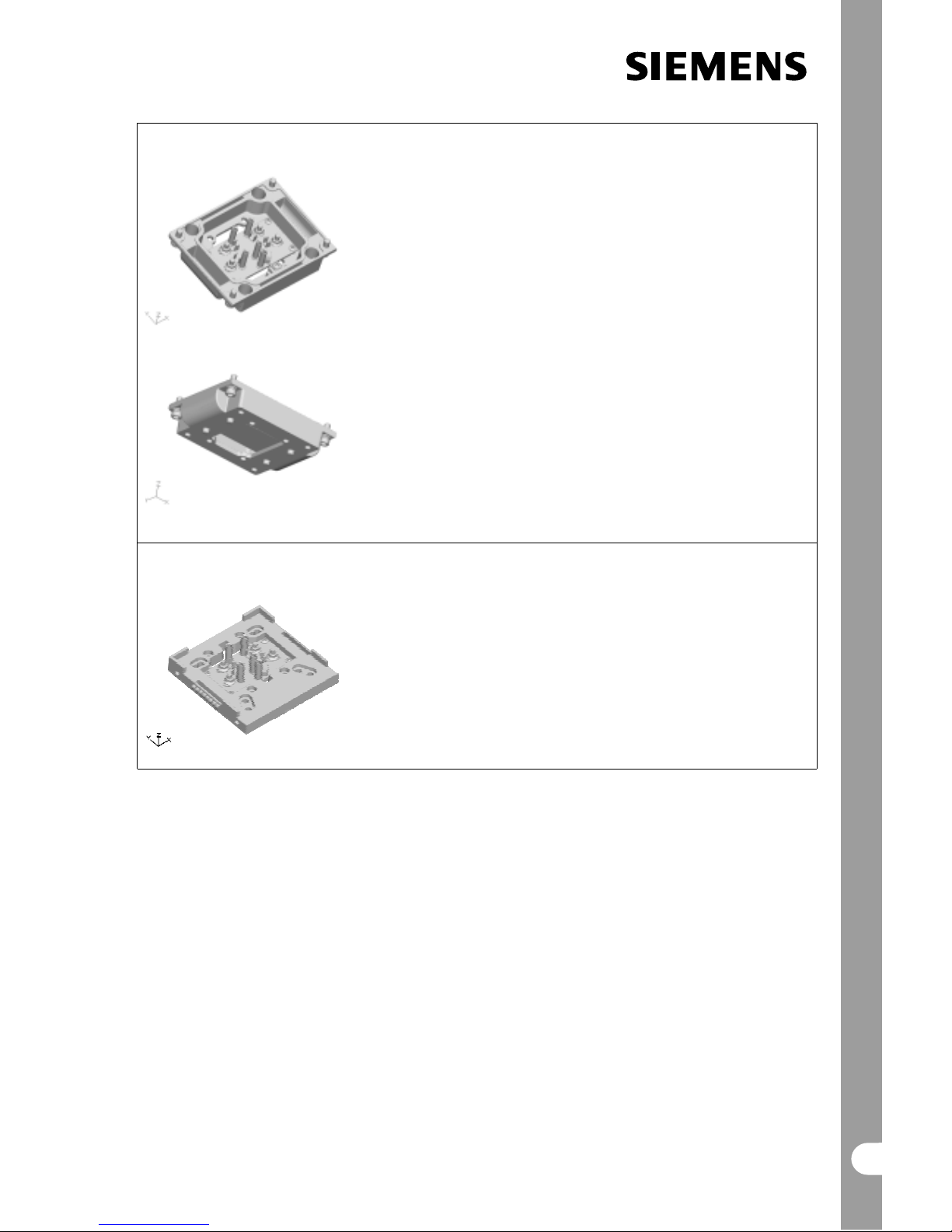

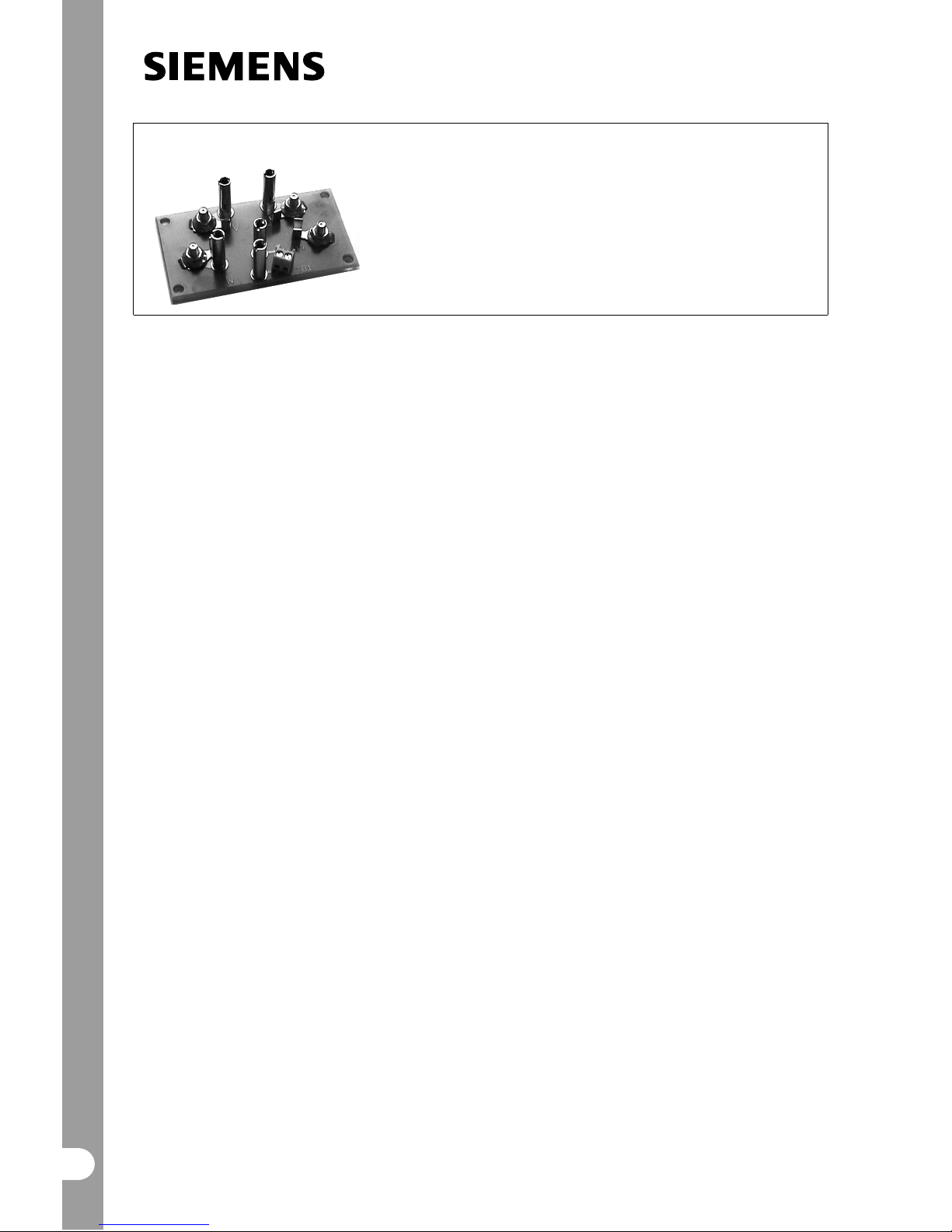

9.2 Motor Interface Plates...........................................................................................................68

9.3 Electro-Magnetic Compatibility (EMC)..................................................................................73

9.4 Environmental Aspects.........................................................................................................74

9.5 Users Parameter Settings.....................................................................................................75

Technical data, selection and ordering data (order numbers), accessories and availability are subject to change.

Page 4

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

1. SAFETY AND CE COMPLIANCE

Before installing and operating this equipment read these safety instructions

and

warnings carefully. Also read and obey all the warning signs attached to the equipment. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels.

WARNING

This equipment must be installed, operated and maintained by suitably qualified personnel only.

Use only permanently-wired input power connections. The equipment must be grounded (IEC 536 Class 1, NEC and other applicable standards).

Wait at least five minutes after the power has been turned off, before opening the equipment. The dc-link capacitor remains charged to dangerous voltages even when the power is removed. When working on open equipment, note that live parts are exposed and do not touch these parts.

Some parameter settings can start the motor automatically when power is restored after a mains failure.

Do not connect machines with a three-phase power supply, fitted with EMC filters, to a supply via an ELCB (Earth Leakage Circuit Breaker - see EN50178, section 6.5).

Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment.

Note that the following terminals can carry dangerous voltages even when the inverter is stopped:

Power supply terminals

L1, L2 and L3

Motor terminals

U, V and W.

When using the analogue input, the jumpers must be correctly set and the analogue input type selected (P023) before enabling the analogue input with P006. If this is not done the motor may start inadvertently.

This equipment is capable of providing internal motor overload protection in accordance with UL508C section 42.

This equipment is suitable for use in a circuit capable of delivering not more than 10,000 symmetrical amperes (rms), for a maximum voltage of 240V/480V/500V when protected by a time delay fuse (see Electrical Data for details).

Do not operate the equipment in direct sunlight. This equipment must not be used as an ‘emergency stop’ mechanism

(see EN 60204,

9.2.5.4).

Page 5

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

WARNING

Take note of the general and regional installation and safety regulations regarding work on high voltage installations (e.g. VDE). Adhere to relevant regulations regarding correct use of tools and protective gear.

Use the lifting eyes provided if a motor is to be lifted. Do not lift machine sets by suspending the individual machines! Always check the capacity of the hoist before lifting any equipment.

Do not paint over the black case finish of the inverter as this will affect the units thermal performance.

CAUTION

Do not allow children or the general public to access or approach this equipment. Do not install the inverter where ambient conditions exceed the specified protection

rating. IP ratings: COMBIMASTER – IP55; MICROMASTER Integrated – IP65. Keep operating instructions within easy reach and give them to all users. Use this equipment only for the purpose specified by the manufacturer. Do not carry out

any modifications, or fit any spare parts which are not sold or recommended by the manufacturer; this could cause fires, electric shock or other injuries.

EUROPEAN LOW VOLTAGE & EMC DIRECTIVES

The COMBIMASTER product complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC.

The units are certified for compliance with the following standards:

EN 60204-1 Safety of machinery Electrical equipment of machines

EN 60146-1-1 Semiconductor converters General requirements and line commutated converters

BS EN50081-2 1995 General Emission Standard - Industrial Environment

BS EN50082-2 1995 General Immunity Standard - Industrial Environment.

The MICROMASTER Integrated product complies with the requirements of the Low Voltage Directive 73/23/EEC.

The units are certified for compliance with the following standards:

EN 60204-1 Safety of machinery Electrical equipment of machines

EN 60146-1-1 Semiconductor converters General requirements and line commutated converters.

EUROPEAN MACHINERY DIRECTIVE

The MICROMASTER Integrated / COMBIMASTER products are suitable for incorporation into machinery.

The MICROMASTER Integrated / COMBIMASTER must not be put into service until the machinery into which it is incorporated has been certified to be in compliance with the provisions of the European Directive 89/392/EEC.

Only valid for machinery to be operated in the European Community.

Page 6

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

COMBIMASTER – UL CERTIFICATION

UL cUL listed power conversion equipment type 5B33 in accordance with UL508C.

For use in pollution degree 2 environment. (Applies to the Inverter only)

MICROMASTER Integrated – UR CERTIFICATION

UR cUR recognised power conversion equipment in accordance with UL508 C.

For use in pollution degree 2 environment. This equipment must be externally cooled by

a fan, the rating of which dep ends on th e unit Case Size. For Ca se Sizes A and B, the fan

must provide 0.42m

/min and 1.25m3/min

respectively.

BSI

ISO 9001

Siemens plc operates a quality management system which complies with the requirements of ISO 9001.

Page 7

COMBIMASTER & MICROMASTER integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Intentionally Left Blank

Page 8

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

2. OVERVIEW

The COMBIMASTER and MICROMASTER Integrated (MMI) are integrated motor/inverters for variable speed applications.

The inverter is microprocessor controlled and uses state of the art IGBT(Insulated Gate Bipolar Transistor) technology for reliability and flexibility. A special pulsewidth modulation method with ultrasonic pulse frequency permits extremely quiet motor operation. Inverter and motor protection is provided by com pr ehens ive protective functions.

Key design features include:

••••

Easy to install and commission.

••••

Closed loop control using a proportional, Integral (PI) control loop function.

••••

High starting torque with programmable starting boost.

••••

Remote control capability via RS485 serial link using the USS protocol.

••••

Ability to control up to 31 COMBIMASTERS via the USS protocol.

••••

Optional remote control capability via RS485 serial link using PROFIBUS-DP.

••••

Factory default parameter settings preprogrammed for European and North American requirements.

••••

Output frequency (and hence motor speed) can be controlled by one of four methods:

Built in potentiometer.

High resolution analogue setpoint (voltage or current input).

Fixed frequencies via binary inputs.

Serial interface.

••••

Built-in dc injection braking.

••••

Acceleration/deceleration times with programmable smoothing.

••••

Single signal relay output incorporated.

••••

External connection for optional Clear Text Display (OPm2) or for use as external RS485 interface.

••••

Fast Current Limit (FCL) for reliable tripfree operation.

••••

Optional factory-fitted resistive braking unit –Case Size B only (also available as a separate post-sale option).

••••

Optional motor brake and interface.

••••

Integral class A or class B filter options.

Reference Literature:

•

Variable frequency inverters for AC motors

up to 90kW. – Catalogue DA64 98/99. – E20002-K4064-A101-A2-7600.

•

LV three phase motors.

– Squirrel Cage Motors catalogue M11-

1999. – E20002-K1711-A101-A3-7600.

•

MMI Motor Adaptation Guidelines (Eng lis h)

– (Available August 99). – G85139-H1731-U500-A.

•

COMBIMASTER & MICROMASTER

Integrated Operating Instructions (English). – 6SE9996-0XA36

•

COMBIMASTER & MICROMASTER

Integrated Brake Options Operating Instructions (English). – G85139-H1731-U450-D1

(Available August 99)

Page 9

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Intentionally Left Blank

Page 10

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

3. MECHANICAL INSTALLATION

WARNING

Use the lifting eyes provided if a motor is to be lifted. Do not lift machine sets by suspending the individual machines! Always check the capacity of the hoist before lifting any equipment.

Do not paint over the black case finish of the inverter as this will affect the units thermal performance.

Take suitable precautions to prevent transmission elements from being touched. If the COMBIMASTER is started up without a transmission element attached, the featherkey must be secured in position to prevent it from flying off while the shaft is rotating.

3.1 Mechanical Installation I COMBIMASTER

Tighten down screw-in lifting eyes prior to using the COMBIMASTER.

Stable foundations or mounting conditions and a well balanced transmiss ion element are essential for quiet, vibration-free running. It may be necessary to balance the whole rotor and transmission element.

The rotors are dynamically balanced with a full featherkey inserted as standard. Since 1991 the type of balance has been marked on the drive end of the shaft (shaft end face). F denotes balanced with

full

featherkey; H denotes balanced with

half

featherkey. Bear in mind the type of balance when fitting the transmission element.

Poor running characteristics can arise in cases where the transmission elements have a length ratio of hub length to shaft end length < 0.8 and they run at speeds greater than 1500 rpm. In such cases rebalancing may be necessary, e.g. by reducing the distance by which the featherkey protrudes from the transmission element and the shaft surface.

Please check the following prior to commissioning :

•

The rotor turns freely without rubbing.

•

The motor is assembled and aligned

properly.

•

The transmission elements are adjusted

correctly (e.g. belt tension) and the transmission element is suitable for the given operating conditio ns .

•

All electrical connections, mounting screws

and connecting elements are tightened and fitted correctly.

•

All protective conductors are installed

properly.

•

Any auxiliary equipment that might be

fitted (e.g. mechanical brake) is in working order.

•

Protection guards are installed around all

moving and live parts.

•

The maximum speed is not exceeded.

The maximum speed is the highest operating speed permitted. Remember that motor noise and vibration are worse at this speed and bearing life is reduce d.

•

The above list is not meant to be

exhaustive - additional checks may also be required.

Page 11

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

3.2 Mechanical Installation I MICROMASTER Integrated

The motor / MICROMASTER Integrated combination should be installed according to guidelines similar to those given for the COMBIMASTER.

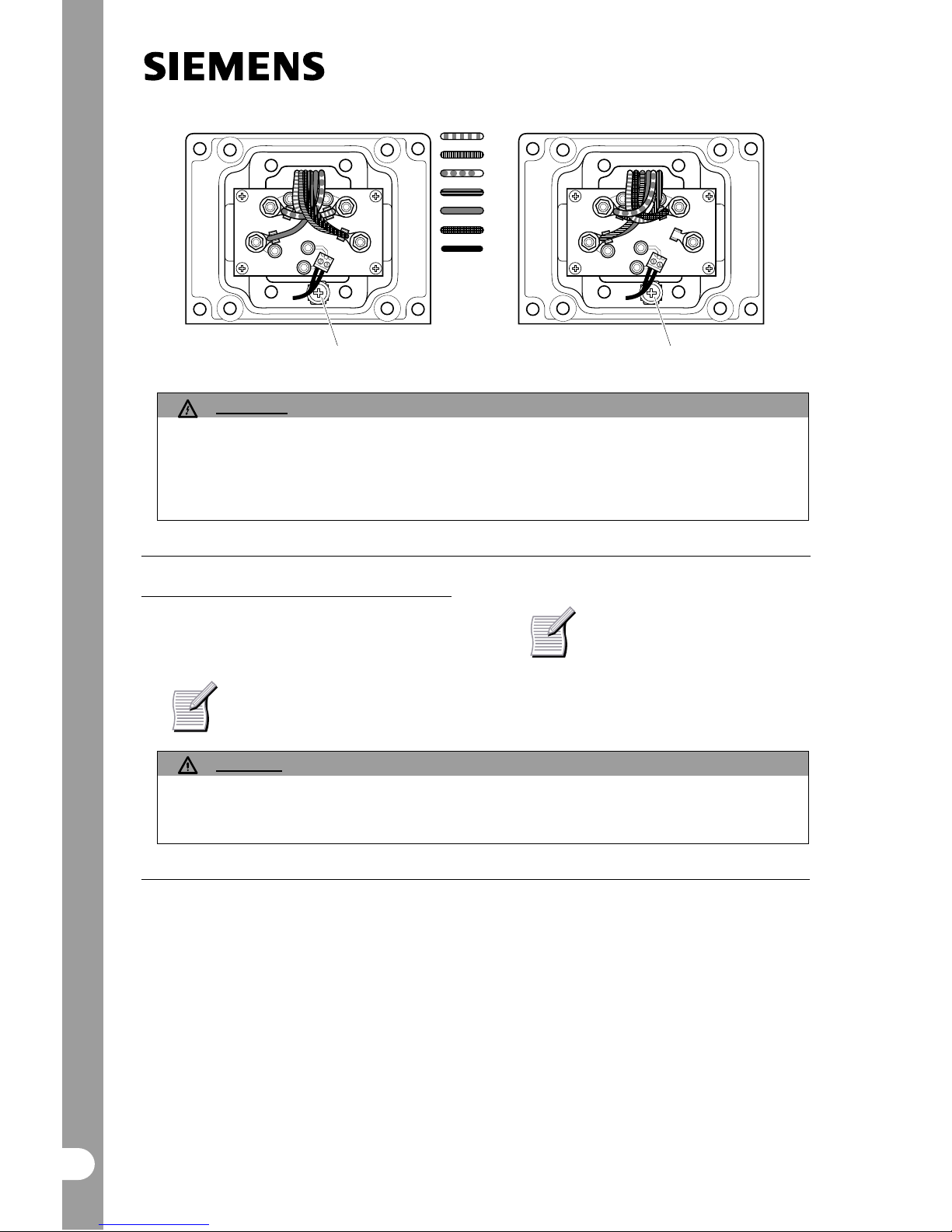

First fit the Motor Interface Plate (MIP) to the motor. In most cases the MIP makes use of the existing motor gasket.

Refer to MMI Motor Adaptation Guidelines (Ref. G85139-H1731-U500)

Available August 1999

WARNING

Cooling of the inverter must be provided, either via a cut-out in the motor Fan Cowl or by using the inverter fan option M41

CS A: 6SE9996-0XA01 CS B: 6SE9996-0XA02

Page 12

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

4. ELECTRICAL INSTALLATION

WARNING

4.1 General Wiring Guidelines

The Case size A (CS A) and Case Size B (CS B) COMBIMASTER is designed to operate in an industrial environment where a high level of Electro-Magnetic Interference (EMI) can be expected. Usually, good installation practices will ensure safe and trouble-free operation. However, if problems are encountered, the following guidelines may prove useful. In particular, grounding of the system 0V at the inverter, as described below, may prove effective.

All equipment must be well earthed using short, thick earthing cable connected to a common star point or busbar. It is particularly important that any control equipment connected to the inverter (such as a PLC) is connected to the same earth or star point as the inverter via a short, thick link. Flat conductors (e.g. metal brackets) are preferred as they have lower impedance at high frequencies.

Use screened leads for connections to the control circuitry. Terminate the ends of the cable neatly, ensuring that long strands of unscreened wire are not left visible.

Separate the control cables from the power connections as much as possible, using separate trunking, etc. If control and power cables cross, arrange the cables so that they cross at 90°.

Ensure that contactors are suppressed, either with R-C suppressers for AC contactors or ‘flywheel’ diodes for DC contactors, fitted to the coils. Varistor suppressers are also effective.

Safety regulations must not be compromised when installing the COMBIMASTER or MICROMASTER Integrated !

4.2 Electrical Installation I MICROMASTER Integrated

The motor wires should be connected in either star or delta configuration on the MIP (check motor rating plate).

Star Connection

Wire Terminal

U2/V2/W2 N U1 U V1 V W1 W

Delta Connection

Wire Terminal

U1/W2 U U2/V1 V V2/W1 W

Page 13

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

TB1

U1 U2 V1 V2 W1 W2 PTC

wires

Earth connection

Star connection Delta connection

Earth connection

Figure 1 Motor Wire Connection.

WARNING

It is essential that the MIP is correctly earthed to the motor. This is usually achieved using a short earth cable connected between the MIP and a suitable connection point on the motor. Death or severe injury can result if the motor is not correctly earthed. Incorrect earthing can also prevent any MICROMASTER Integrated built-in EMC filter from operating correctly.

4.3 Electrical Installation I COMBIMASTER and MICROMASTER Integrated

Procedure

Remove the four cross-head screws on the inverter's cover to access the electrical terminals.

For details of cable sizes, refer to the Electrical Data (section

8.4) of this document.

A ‘drip loop’ is recommended when connecting the mains and control cables (

see Fig. 6

CAUTION

The printed circuit boards contain CMOS components that are particularly sensitive to static electricity. For this reason avoid touching the boards or components with your bare hands or metal objects.

4.4 Mains Cable Connections

Ensure that the power source supplies the correct voltage and is designed for the rated current. Use the appropriate circuitbreakers with the specified current rating between the power supply and inverter.

Use Class 1 60/75

C copper wire only. Use a 4-core screened cable. If crimp terminals are used they must be insulated. If crimps are not used, the strip length must not exceed 5mm.

Feed the power cable into the inverter via the gland hole nearest to the motor shaft. Connect the power leads to terminals L1, L2, L3 (L1, L2 for single phase units) and the separate earth.

Use a 4 - 5 mm cross-tip screwdriver to tighten the terminal screws

Page 14

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

JP 305 connects PI- to 0V

Earth

connection

JP 303

Jumpers for

PI input type

Default = V

JP 302

Note: Jumper in 'V' position = voltage input (default)

Jumper in 'I' position = current input

JP 304 connects

AIN- to 0V

JP 301

Jumpers for

Analogue input type

Default = V

JP 300

Mains

connection

Control cable

connector

(PL800)

OPm2

connector

(SK200)

LED

(green)

LED

(yellow)

Control

Potentiometer

(R314)

IMPORTANT

Ensure that the following tightening torques are used: Access cover retaining screws 4.0 Nm Gland hole covers 1.0 NM Main connector screws 1.0 Nm Earth connection 1.5 Nm.

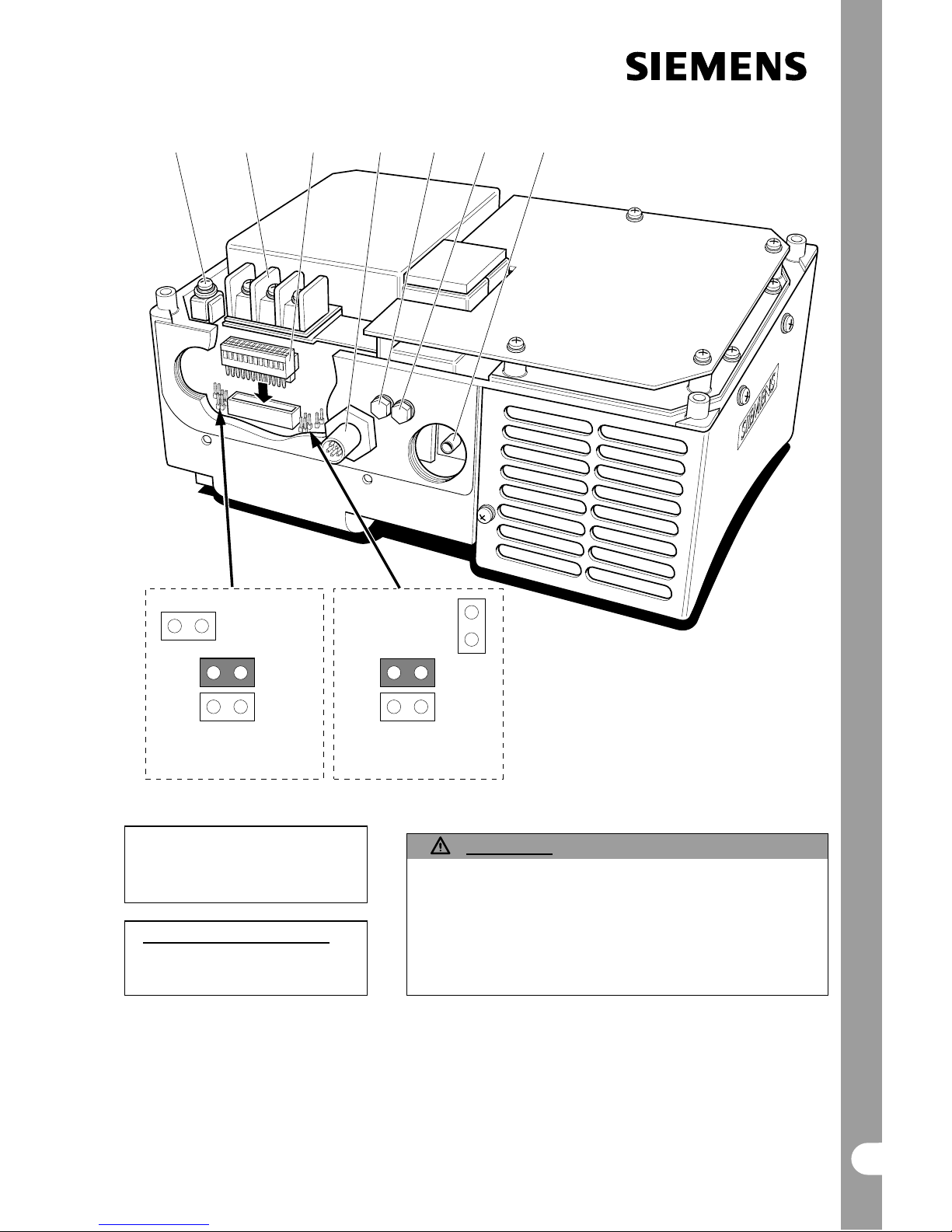

Figure 2 Electrical Connection (CS B)

Check that the supply voltage is correct for the inverter used by referring to the rating label.

Cable Glands: (Case Size B) PG21 – Mains

PG16 - Signal

Page 15

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Earth

connection

JP 300

Jumpers for

Analogue input type

Default = V

JP 301

JP 304 connects AIN- to 0V

JP 305 connects PI- to 0V

JP 303

Jumpers for

PI input type

Default = V

JP 302

Mains

connection

Note: Jumper in 'V' position = voltage input (default)

Jumper in 'I' position = current input

Control cable connector

(PL700)

OPm2 connector

(SK200)

LED

(green)

LED

(yellow)

Control Potentiometer

(R314)

IMPORTANT

Ensure that the following tightening torques are used: Access cover retaining screws 4.0 Nm Gland hole covers 1.0 NM Main connector screws 1.0 Nm PL700 screws 0.5 Nm Earth connection 1.5 Nm.

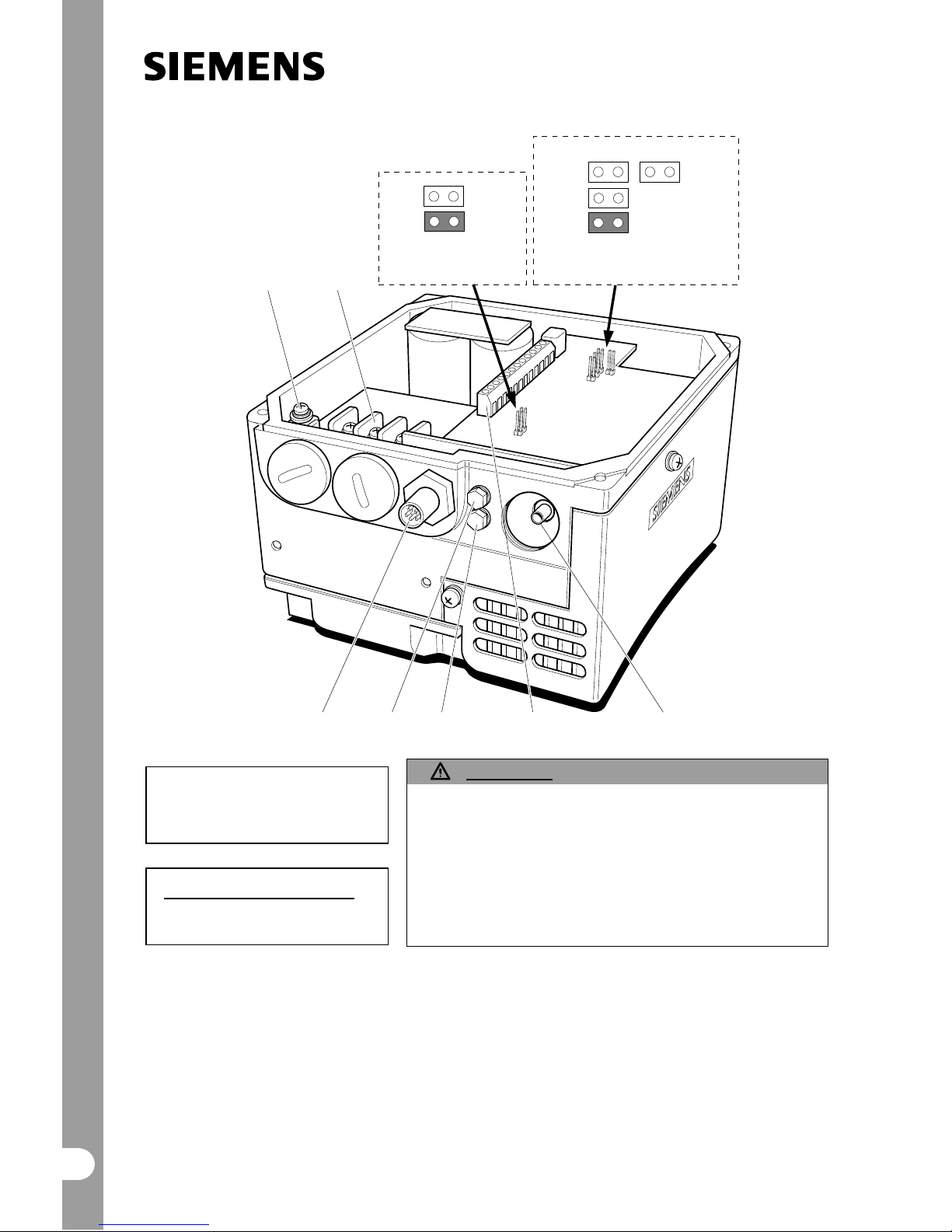

Figure 3 Electrical Connection (CS A)

Check that the supply voltage is correct for the inverter used by referring to the rating label.

Cable Glands : (Case Size A) PG16 – Mains & Signal

Page 16

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

4.5 Control Cable Connections

CAUTION

The control and power supply cables must be laid separately. They must not be fed through the same cable conduit / trunking.

Use screened cable for the control lead. Feed the control cable into the inverter via

the appropriate gland hole

Connect the control wires in accordance with the information in Figures 4, 5 and 6, having first unplugged connector block PL800 from the PCB (CS B only).

IMPORTANT:

A wire link

must

be fitted between control terminals 5 (DIN1) and 1 (P10+) if it is required to start the inverter from the control potentiometer R314, or the analogue input.. The wire link m us t be removed when operation via a run/sto p switch is required.

COMBIMASTER C ontrol Terminal Cabling Information

CS A (PL700): CS B (PL800)

Cable AWG 22 – 18 28 – 20 = approx. mm

2 0.35 – 0.82 0. 08 – 0.50

Strip Length (mm) 5 – 6 5 – 6 Strip Length (inch) 0.22 0.22

Note that the optional potentiometer fitted as an analogue set point shown in Figure 4 & 5 assumes that jumper JP304 is connecting 0V (pin 2) to AIN- (pin 4).

+15V can be used as an alternative to P10+ for the digital inputs.

Plug the connector block back into the PCB (CS B only), refit the cover and tighten the four securing screws.

12 11 10 9 8 7 6 55443

221

PI+ PI- +15V

JP305 JP304

1 - +5V (250mA max.) 2 - N (-) 3 - 0V 4 - P (+) 5 - no connection

PI Power Supply

(+15V,

max. 50mA)

PI +ve Input

(0 - 10V

or 0 - 20mA)

RLB

(NO)

RLC

(COM)

Relay (RL1)

(30V dc. 1.0 A max.)

Digital Inputs

(7.5 - 33V, max. 5mA)

PL800 (CS B) / PL700 (CS A) SK200 Socket

DIN3 DIN2 DIN1 AIN- AIN+ 0V P10+

Analogue Input

(0/2 - 10V,

or 0/4 - 20mA)

Power Supply for Digital and

Analogue

Inputs

(+10V, max. 10mA)

PI -ve Input

Figure 4 Control Terminal Connections

Page 17

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

1.8mm max. screwdriver

Figure 6 Cable Connections with Drip Loop

3 ~

CPU

A/D

A/D Analogue to Digital Converter CPU Microprocessor GR Rectifier M Motor RS485 Serial Inte rfa ce SI Mains Fu se WR In ve rte r ZK DC Link Capacitor

2 3 4

5 6

1 2

PE Nominal:

1/3 AC 208-240V 3 AC 380 - 500 V

L1, L2, L3

U, V, W

P10+ (10 mA) max.)

24 V

V:0-10 V

2-10 V

: 0-20m A

4-20m A

AIN+

AIN-

DIN1 DIN2

+5V N

(-)

PL700 CS A PL800 CS B

SK200

0V P

(+)

11 12

8 9

Power supply for PI feedback transducer or other load

3 ~

RLB RLC

RS485

Relay Connections

Connections for Serial Link or OPm 2

DIN3

+15V

PIPI+

Figure 7 Block Diagram

Figure 5 Connecting Control Wires to PL800

Page 18

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

5. OPERATING INFORMATION

WARNING

The equipment must not be switched on until after its cover has been fitted and the cover screws have been tightened to the correct torque.

After the power has been turned off, you must always wait five minutes so that the dc link capacitors can discharge. Do not remove the cover until this time has elapsed.

All settings must only be entered by qualified personnel, paying particular attention to the safety precautions and warnings.

5.1 General

For basic operation of COMBIMASTER & MICROMASTER Integrated, no additional equipment is required. However, for more complex operation, Opm2 – Clear Text Display is required (Opm2 is available as an option, but must be ordered separately).

The inverter does not have a mains power switch and is therefore live when the mains supply is connected.

When delivered, the inverte r has a frequen cy setpoint range of between 0 Hz and 50 Hz. Regardless of its initial position, internal potentiometer R314 must be turned fully counter-clockwise before it can be used to start the COMBIMASTER.

R314 can be accessed by removing the right-hand gland hole cover

(see Fig. 2 &

Connecting a serial link or the OPm2 to the serial interface is made using the circular connector SK200 (see fig. 2 & 3)

Parameter settings can only be changed by using either the serial interface (SK200) or an optional Clear Text Display (OPm2). Refer to the parameter list section in this document for a full description of each available parameter.

Analogue input type is selected by jumpers JP300 and JP301. JP300 closed selects current input, JP301 closed (default) selects voltage input. These jumpers can only be accessed when the cover is removed

(see

Fig. 2 & 3)

If the motor is run unloaded (e.g. for test purposes) and vibration or trip conditions occur, change P077 from 0 to 3 (requires OPm2).

5.2 Basic Operation

There are two basic modes of operation for the inverter.

Using the internal potentiometer only:

For forward rotation, ensure that a link is fitted between DIN1 (pin 5) and P10+ (pin 1) on PL800/PL700

(see Fig. 4)

. For reverse rotation, connect the link to DIN2 (pin 6) instead of DIN1.

Apply mains power. The green and yellow LEDs will illuminate to show that power is applied. Turn potentiometer R314 fully counter-

clockwise. Turn the potentiometer clockwise until the yellow LED extinguishes. This indicates that power is now applied to the motor. Continue turning clockwise to increase the speed of the motor.

Turn the potentiometer counterclockwise to reduce the speed of the motor. Turning the potentiometer fully counterclockwise causes the motor to slow to a complete stop. Check that both LEDs are illuminated (STANDBY mode).

Page 19

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Using a combination of the internal potentiometer and a run/stop switch:

Connect a run/stop switch between DIN1 (pin 5) and P10+ (pin 1) on PL700 (see Fig. 4) if forward rotation is required. If reverse rotation is required instead, conn ec t the switch to DIN2 (pin 6) instead of DIN1 (pin 5).

IMPORTANT:

Remove the link, if fitted, between pins 5 and 1 before the run/stop switch is fitted.

Apply mains power. The green and yellow LEDs will illuminate to show that power is applied.

Set the external run/stop switch to ON.

Turn potentiometer R314 clockwise to set the required motor speed.

Stop the motor by setting the external on/off switch to OFF. When the switch is set to ON again, it will run at the speed previously set using the potentiometer.

5.3 Operation – External Analogue Control

Connect a 4.7 kΩ potentiometer to the control terminals as shown in Fig.4 or apply a 0 - 10 V signal between pin 2 (0V) and pin 3 (AIN+). In both cases, position jumper JP304 to connect 0V to AIN-.

Ensure that a link is fitted between pin 5 (DIN1) and pin 1 (P10+).

Check that voltage input is selected by ensuring that the jumper is fitted to JP301.

Refit the cover, tighten the cover screws to the correct torque and then apply mains power to the inverter.

Turn the external potentiometer (or adjust the analogue control voltage) until the desired frequency is achieved. The unit will not switch on until a minimum of 2 V has been applied.

The frequency set by the external voltage is added to the frequency set by the internal potentiometer. Refer to Parameter P331 , Section 6.

As with Basic Operation, a run/stop switch can be used to start and stop the motor, or the direction of rotation can be changed by connecting the link to DIN2 instead of DIN1.

5.4 Operation – Digital Control

This method of operation requires either a Clear Text Display (OPm2) or a serial link connection. The use of the Clear Text Display module is described in the Options section of this document. For a basic startup configuration using digital control, proceed as follows:

Remove the link that connects control terminal 5 to terminal 1 (if one has been fitted).

Connect control terminal 5 to terminal 1 via a simple on/off switch. This sets up the inverter for clockwise rotation (default). If counter-clockwise operation is required, connect a switch between control terminals 6 and 1.

Connect the OPm2 or serial link to SK200. Refit the cover, tighten the cover screws to the correct torque and then apply mains power to the inverter.

Set parameter P006 to 0 to specify digital setpoint(see Section 6).

Set parameter P005 to the desired frequency setpoint.

Set the external on/off switch to ON or press the ON button on the OPm2 (set P007 = 001 to use the OPm2). The inverter will now run at the frequency set by P005.

Page 20

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

5.5 Stopping the Motor

Via the external on/off switch:

Setting the switch to OFF overrides the setting on the potentiometer and causes the motor to come to a controlled stop.

Via the potentiometer:

Turning the potentiometer counterclockwise until the input voltage drops below 2 V causes the motor to slow to a stop. If an external potentiometer is applied, the input voltage must also be below 2V to stop.

5.6 If the Motor Does Not Start Up

Check the LEDs on the side of the inverter:

LED State COMBIMASTER / MICROMASTER Integrated

Status

Green Yellow

ON ON Mains power on, inverter not running (STANDBY) ON OFF Inverter running, as per control commands (ON) Flashing Flashing Current limit warning Flashing ON Inverter overtemperature ON Flashing Motor overtemperature OFF ON Other fault (e.g. tripped) OFF Flashing Mains undervoltage OFF OFF Mains supply fault (e.g. faulty external switch)

If a fault occurs:

Switch off, disconnect and then reconnect the power, and then switch on again. Switch off if the fault condition persists. Trips can be reset by using DIN3.

If a warning occurs:

Switch off, disconnect and reconnect the power and then switch on again.

If the fault/warning persists, further investigation requires an OPm2 or a serial link connection.

5.7 Local and Remote Control

The inverter can be controlled either locally (default), or remotely via a USS data line connected to the RS485 connector (SK200).

When local control is used (P910 = 0), the motor can only be controlled via the internal potentiometer or the control terminals. Control commands, setpoints or parameter changes received via the RS485 interface have no effect.

For remote control, the serial interface is designed as a 2-wire connection for bidirectional data transmission. Refer to parameter P910 in System Parameters for the available remote control options.

When operating via remote control the inverter will not accept control commands from the terminals.

Exception: OFF2 or OFF3 can be activated via parameter P051 to P053 (refer to parameters P051 to P053 in System Parameters).

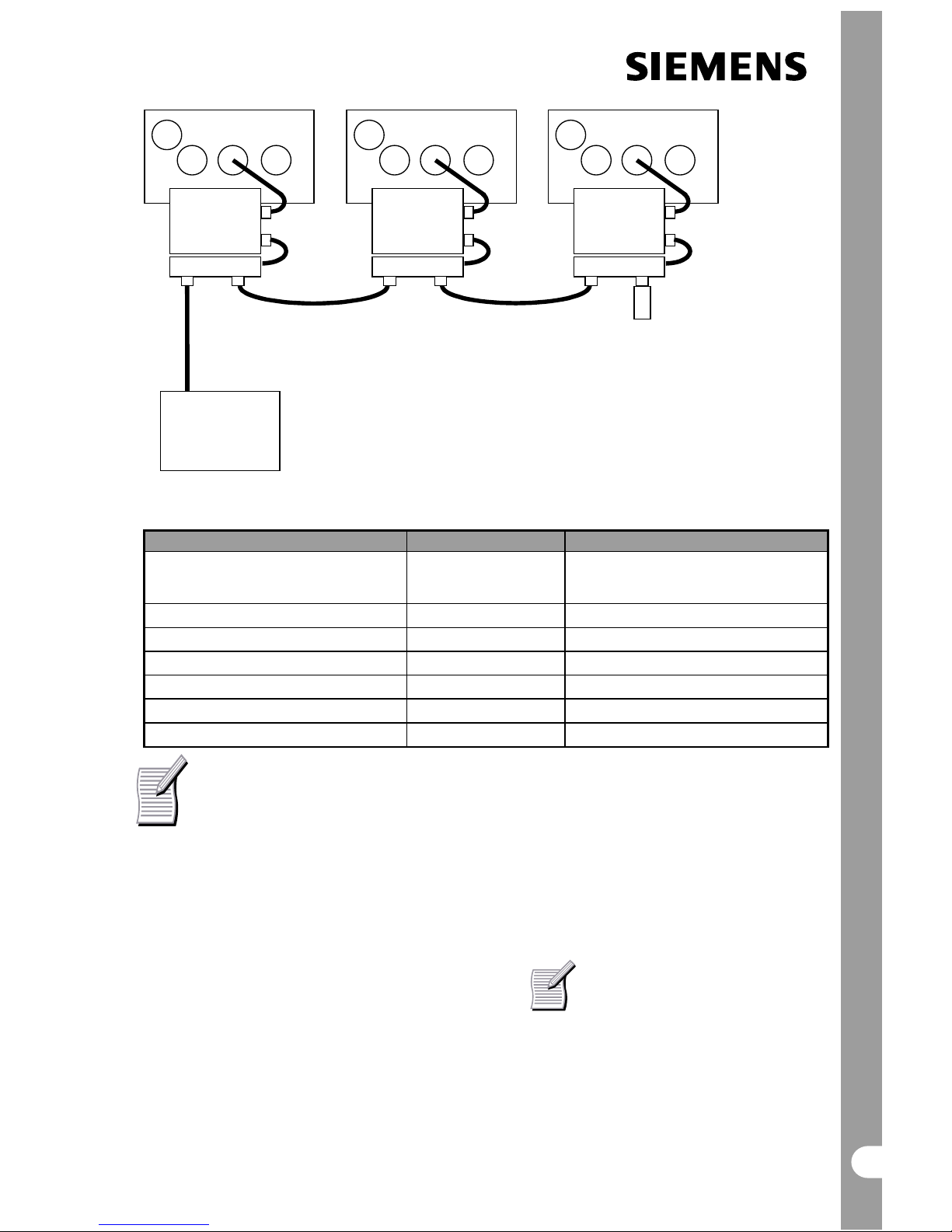

31 COMBIMASTERS can be connected to an external control unit at the same time and can be addressed individually.

Page 21

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

5.8 Closed Loop Control

Closed loop control is only possible when an OPm2 or a serial link is connected to the COMBIMASTER.

5.8.1 General Description

The COMBIMASTER provides a Proportional/Integral (PI) control function for closed loop control

(see Figure 8)

. PI control is ideal for temperature or pressure control, or other applications where the controlled variable changes slowly or where transient errors are not critical. This control lo op is

not

suitable for use in systems where f ast response t imes are required.

Note:

The closed loop function is not designed for speed c ontrol, but can be used for this provided that fast response times are not required.

When closed loop PI control is enabled ( P201 = 002), all setpoints are calibrated between zero and 100%, i.e. a setpoint of 50. 0 = 50%. This allows general purpose control of any process variable that is actuated by motor speed and for which a suitable transducer is available.

Setpoint

S caling

P211, P212

Feedbac

Sample

P205

Low

Pass

P206

P202

P203, P207

Acceleration

Deceleration

P002, P003

Motor

Process

e.g. fan

Transduce

P20

P201 =

Feedback

(e.g. d u c t

P201 =

Closed Loop Mode

P21

Feedbac

Figure 8: Closed Loop Control

5.8.2 Hardware Setup

Connect the signal wire from the external feedback transducer to contr ol term inal 10. Set jumper JP303 if volta ge input type is required (default) or set JP302 if current input type is required.

15 V dc power for the feedback transducer can be supplied from control terminal 8.

5.8.2 Parameter Settings

Closed loop control cannot be used unless P201 is first set to 002. Most of the parameters associated with closed loop control are shown in Figure 8. Other parameters which are also associated with closed loop control are as follows:

P001

(value = 007)

P061

(value = 012 or 013)

P210 P220.

Page 22

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

6. SYSTEM PARAMETERS

6.1 Systems Parameters Table

The parameters listed here can only be accessed via the OPm2 or a serial link to the COMBIMASTER. (see Section 7.1 for details)

If the COMBIMASTER is to be operated only using analogue control within the 0 - 50 Hz frequency range then access to these parameters is not required.

The control buttons on the OPm2 (RUN, REVERSE and JOG) are disabled by default and cannot be used until P007 has been set to ‘1’.

Access to parameters is determined by the value set in P009. Check that the key parameters necessary for your application have been programmed.

P009 options are:

•

0 = Only the parameters from P001 to

P009 can be read and set.

•

1 = Parameters P001 to P009 can be set

and all other parameters can only be read.

•

2 = All parameters can be set, but P009

resets to 0 the next time power is removed from the inverter.

•

3 = All programmed parameters can

always be set.

In the following parameter table: Software Versions : Where indicated, some parameter descriptions are dependent on

the software version installed, which can be checked using Parameter P922.

- V 3.00 is planned for release 2

Quarter 1999.

- Includes references to CANbus– not available at time of writing (05.99) ‘•' Indicates parameters that can be changed during operation. ‘**’

fmax

This value is software version dependent. V2.37: COMBIMASTER – fmax = 120Hz; MMI – fmax = 120Hz V 3.00: COMBIMASTER – Motor dependent; MMI – fmax = 400Hz [

!!!

]

Indicates that the value of this factory setting depends on the rating of the motor.

Parameter

Function Range

[Default]

Description / Notes

P000

Operating display -

This displays the output selected in P001 on the second line of the LCD screen.

If output frequency has been selected (P001 = 0) and the inverter is OFF, the display alternates between the current frequency (F) and the frequency that the inverter will run at when the RUN button is pressed (S). If P001 is set to any other value then only the actual value is displayed on this line of the display.

In the event of a fault, the relevant fault code (Fxxx) is displayed (see section 6.3). In the event of a warning the display flashes.

P001

••••

Display mode

0 - 8

[0]

Display selection:

= Output frequency (Hz)

= Frequency setpoint (i.e. speed at which

inverter is set to run) (Hz)

= Motor current (A)

= DC-link voltage (V)

= Motor torque (% nominal)

= Motor speed (RPM)

= Not used

= Closed loop control setpoint (% of full scale)

= Output voltage

Page 23

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

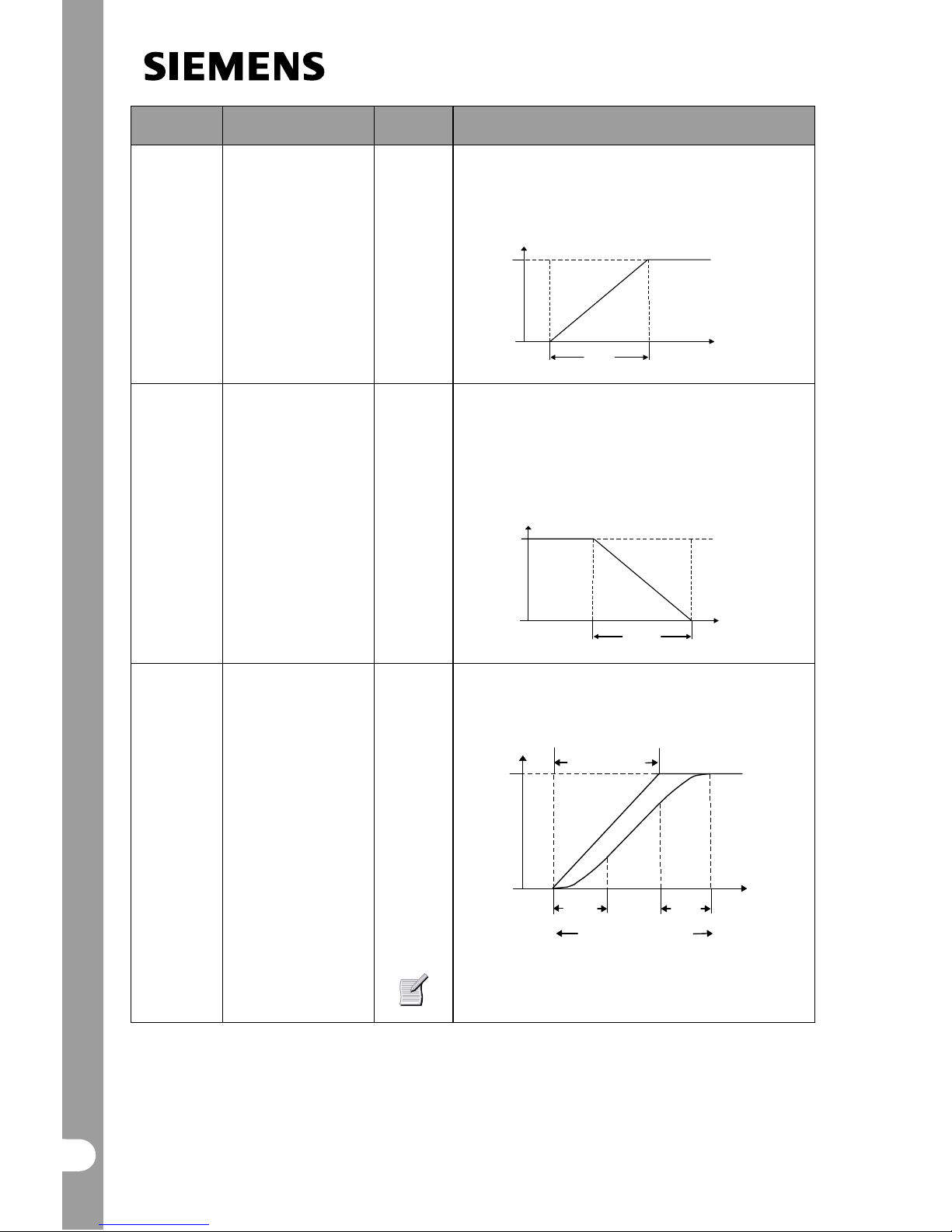

P002

••••

Ramp up time (seconds)

0.50-

650.00 [10.00]

-- -- -- -- --

(SW

Version :

3.00

onwards)

0.10 -

650.00 [10.00]

This is the time taken for the motor to accelerate from standstill to the maximum frequency as set in P013.

Setting the ramp down time too short can cause the inverter to trip (fault code F001 – overvoltage, or F002 overcurrent).

Frequency

max

0 Hz

Time

Ramp up

tim e

(0 - 650 s)

P003

••••

Ramp down time (seconds)

0.00–

650.00 [25.00]

This is the time taken for the motor to decelerate from maximum frequency (P013) to standstill.

Setting the ramp down time too short can cause the inverter to trip (fault code F001 – overvoltage, or F002 overcurrent).

This is also the period for which DC injection braking is applied (see P073).

Frequency

max

0 Hz

Time

Ramp dow n

time

(0 - 650 s)

P004

••••

Smoothing (seconds) 0 - 40.0

[0.0]

Used to smooth the acceleration/deceleration of the motor (useful in applications where it is important to avoid ‘jerking’, e.g. conveyor systems, textiles, etc.). Smoothing is only effective if the ramp up/down time exceeds 0.3 s.

Frequency

max

(P013)

0 Hz

Time

Total acceleration time

= 15 s

P002 = 10 s

P004 = 5 s

The smoothing curve for deceleration is based on the ramp up gradient (P002) and is added to the ramp down time set by P003. Therefore, the ramp down time is affected by changes to P002.

Page 24

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P005

••••

Digital frequency setpoint (Hz)

0 – fmax**

[50.00]

Sets the frequency that the inverter will run at when operated in digital mode. Only effective if P006 set to ‘0’.

Actual limit: CM: 120 Hz. MMI: 120Hz

-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

SW Version : 3.00 onwards:

OPM display will be 650.00. Actual limit: CM: 90 – 140 Hz (power rating dependent). MMI: 400Hz.

P006

Frequency setpoint source selection

0 - 2

[1]

Sets the control mode of the inverter.

= Digital. The inverter runs at the frequency set in

P005.

If P007 is set to zero, the frequency may be adjusted by setting any two of digital inputs P051 - P053 to values of 11 and 12.

= Analogue. The frequency is set via an analogue

input signal or the internal potentiometer.

= Fixed frequency or motor potentiometer.

one binary input (P051 - P053) = 6, 17 or 18.

If P006 = 1 and the inverter is set up for remote control operation, the analogue inputs remain active (added to the serial setpoint).

Motor potentiometer setpoints via digital inputs are stored when P011 = 1.

P007

Keypad control 0 – 1

[0]

= The RUN, REVERSE and JOG buttons are

disabled. Control is via digital inputs (see parameters P051 - P053). ∆ and ∇ may still be used to control frequency provided that P124 = 1 and a digital input has not been selected to perform this function.

= OPm2 buttons are enabled (can be individually

disabled depending on the setting of parameters P121 - P124). The digital inputs for RUN, JOG and

∆

/ ∇ are disabled. If P121 – P123 are disabled, digital inputs for RUN, JOG and REVERSE are enabled.

P009

••••

Parameter protection setting

0 - 3

[0]

Determines which parameters can be adjusted:

= Only parameters from P001 to P009 can be

read/set.

= Parameters from P001 to P009 can be set and all

other parameters can only be read.

= All parameters can be read/set but P009

automatically resets to 0 when power is removed.

= All parameters can be read/set.

P011

Frequency setpoint memory

0 - 1

[0]

= Disabled.

= Enabled. The setpoint alterations made with the

∆

/ ∇ buttons or digital inputs are stored even when power has been removed from the inverter.

P012

••••

Minimum mot or frequency (Hz)

0 - 400.00

[0.00]

Sets the minimum motor frequency (must be less than the value of P013).

P013

••••

Maximum mot or frequency (Hz)

0 – fmax**

[50.00]

Sets the maximum motor frequency.

Page 25

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P014

••••

Skip frequency 1 (Hz) 0 – fmax**

[0.00]

A skip frequency can be set with this parameter to avoid the effects of mechanical resonance. Frequencies within +/(value of P019) of this setting are suppressed. Stationary operation is not possible within the suppressed freque ncy range - the range is just passed through.

P015

••••

Automatic restart after mains failure

0 - 1

[0]

Setting this parameter to ‘1’ enables the inverter to restart automatically after a mains break or ‘brownout’, provided the run/stop switch is still closed or the link is fitted, P007 = 0 and P910 = 0, 2 or 4.

= Disabled.

= Automatic restart.

P016

••••

Start on the fly 0 - 2

[0]

Allows the inverter to start onto a spinning motor. Under normal circumstances the inverter runs the motor up

from 0 Hz. However, if the motor is still spinning or is being driven by the load, it will undergo braking before running back up to the setpoint - this can cause an overvoltage trip. By using a flying restart, the inverter ramps up the output voltage at the setpoint for the period defined by P020.

= Normal restart.

= Flying restart after power up, fault or OFF2

(if P018 = 1).

= Flying restart every time (useful in circumstances where the motor can be driven by the load).

-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

(SW Version : 3.00 onwards) -

Current Limit is defined by

P845

P017

••••

Smoothing type 1 - 2

[1]

= Continuous smoothing (as defined by P004).

= Discontinuous smoothing. This provides a fast

unsmoothed response to STOP commands and requests to reduce frequency.

P004 must be set to a value > 0.0 for this parameter to have any effect.

P018

••••

Automatic restart after fault

0 - 1

[0]

Automatic restart after fault:

= Disabled.

= The inverter will attempt to restart up to 5 times after

a fault. If the fault is not cleared after the 5th attempt, the inverter will remain in the fault state until reset.

There is an increasing time delay between each restart attempt.

P019

••••

Skip frequency bandwidth (Hz)

0 - 10.00

[2.00]

+/- the value of P019 centred on frequencies set by P014, P027, P028 or P029 are suppressed.

P020

Flying start ramp time (seconds)

0.50-

650.00 [25.00]

-- -- -- -- --

(SW

Version :

3.00

onwards)

0.1-650.00 [25.00]

Used in conjunction with P016 (set longer times if persistent F002 trips occur).

Page 26

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

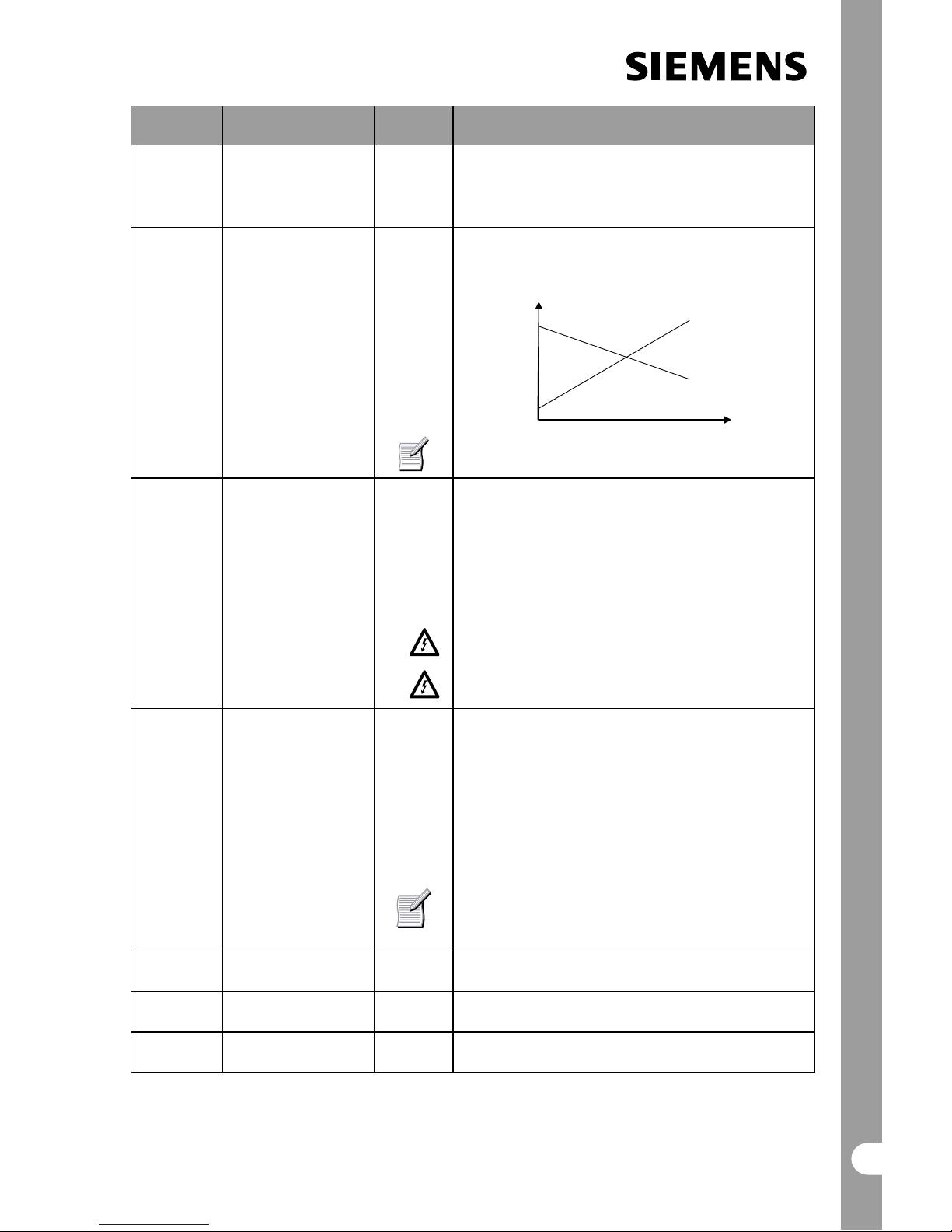

P021

••••

Minimum analogue frequency (Hz)

0-fmax**

[0.00]

Frequency corresponding to the lowest analogue input value, i.e. 0 V / 0 mA or 2 V / 4 mA. This can be set to a higher value than P022 to give an inverse relationship between analogue input and frequency output (see diagram in P022).

P022

••••

Maximum analogue frequency (Hz)

0-fmax**

[50.00]

Frequency corresponding to the highest analogue input value, i.e. 10 V / 20 mA, determined by P023. This can be set to a lower value than P021 to give an inverse relationship between analogue input and frequency output.

i.e.

The output frequency is limited by values entered for P012/P013.

P023

••••

Analogue input type 0 - 2

[2]

Selects analogue input type according to the setting of

jumpers JP300/JP301:

JP301 closed

JP300 closed

= 0 V to 10 V 0 mA to 20 mA

= 2 V to 10 V 4 mA to 20 mA

= [2 V* to 10 V] 4 mA* to 20 mA

* The inverter will come to a controlled stop if

V < 1 V or I < 2 mA.

The motor can automatically run without a potentiometer or voltage source connected between pins 3 and 4.

With P023=2, the motor will automatically start when V exceeds 2 V. This equally applies to analogue and digital control (i.e. P006 = 0 or 1).

P024

••••

Analogue setpoint addition

0 – 2

[0]

If the inverter is not in analogue mode (P006 = 0 or 2), setting this parameter to ‘1’ causes the analogue input value to be added.

= No addition.

= Addition of the analogue setpoint (defined by P023)

to the fixed frequency or the motor potentiometer frequency.

= Scaling of digital/fixed setpoint by analogue input

(P023) in the range 0 - 100%.

By selecting a combination of reversed negative fixed frequency settings and analogue setpoint addition, it is possible to configure the inverter for ‘centre zero’ operation with a 0 - 10 V potentiometer so that the output frequency can be 0 Hz at any position, including the centre position.

P027

••••

Skip frequency 2 (Hz)

0 – fmax**

[0.00]

See P014.

P028

••••

Skip frequency 3 (Hz) 0 - fmax**

[0.00]

See P014.

P029

••••

Skip frequency 4 (Hz) 0- fmax**

[0.00]

See P014

V /

P021

P022

Page 27

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P031

••••

Jog frequency right (Hz)

0 - fmax**

[5.00]

Jogging is used to advance the motor by small amounts. It is controlled via the JOG button or with a non-latching switch on one of the digital inputs (P051 to P053).

If jog right is enabled (DINn=7), this parameter controls the frequency at which the inverter will run when the switch is closed. Unlike other setpoints , it can be set lower than the minimum frequency.

P032

••••

Jog frequency left (Hz)

0 - fmax**

[5.00]

If jog left is enabled (DINn=8), this parameter controls the frequency at which the inverter will run when the switch is closed. Unlike other setpoints , it can be set lower than the minimum frequency.

P033

Jog ramp up time (seconds)

(SW Version : 3.00 onwards)

0.00 –

650.00 [10]

This is the time taken to accelerate from 0Hz to maximum frequency (P013) for jog functions. It is

not

the time taken to

accelerate from 0Hz to the jog frequency. If DINn =16

(see

P051 to P053)

then this parameter can be used to override th

normal Ramp-up time set by P002.

P034

Jog ramp down time (seconds)

(SW Version : 3.00 onwards)

0.00 –

650.00 [10]

This is the time taken to decelerate from maximum frequency 0Hz to (P013) for jog functions. It is

not

the time taken to

decelerate from the jog frequency to 0Hz. If DINn =16

(see

P051 to P053)

then this parameter can be used to override th

normal Ramp-down time set by P003.

P035

Reverse motor direction

0 – 1

[0]

= Normal direction control.

= Direction control is reversed.

P041

••••

Fixed frequency 1 (Hz)

0 - fmax**

[5.00]

Valid if P006 = 2 and P053 = 6 or 18

or P051 = P052 = P053 = 17.

P042

••••

Fixed frequency 2 (Hz)

0 - fmax**

[10.00]

Valid if P006 = 2 and P052 = 6 or 18

or P051 = P052 = P053 = 17.

P043

••••

Fixed frequency 3 (Hz)

0 - fmax**

[15.00]

Valid if P006 = 2 and P051 = 6 or 18

or P051 = P052 = P053 = 17.

P044

••••

Fixed frequency 4 (Hz)

0 - fmax**

[20.00]

Valid if P006 = 2 and P051 = P052 = P053 = 17.

P045

Inversion fixed setpoints for fixed frequencies 1 - 4

0 - 7

[0]

Sets the direction of rotation for the fixed frequency.

FF1 FF2 FF3 FF4

P045 = 0

⇒⇒⇒⇒

P045 = 1

⇐⇒⇒⇒

P045 = 2

⇒⇐⇒⇒

P045 = 3

⇒⇒⇐⇒

P045 = 4

⇒⇒⇒⇐

P045 = 5

⇐⇐⇒⇒

P045 = 6

⇐⇐⇐⇒

P045 = 7

⇐⇐⇐⇐

⇒ Fixed setpoints not i nver ted. ⇐ Fixed setpoints inver ted.

P046

••••

Fixed frequency 5 (Hz)

0 - fmax**

[25.00]

Valid if P006 = 2 and P051 = P052 = P053 = 17.

P047

••••

Fixed frequency 6 (Hz)

0 - fmax**

[30.00]

Valid if P006 = 2 and P051 = P052 = P053 = 17.

Page 28

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P048

••••

Fixed frequency 7 (Hz)

0 - fmax**

[35.00]

Valid if P006 = 2 and P051 = P052 = P053 = 17.

P050

Inversion fixed setpoints for fixed frequencies 5 – 7

0 - 7

[0]

Sets the direction of rotation for the fixed frequency:

FF5 FF6 FF7

P050 = 0

⇒⇒⇒

P050 = 1

⇐⇒⇒

P050 = 2

⇒⇐⇒

P050 = 3

⇒⇒⇐

P050 = 4

⇒⇒⇒

P050 = 5

⇐⇐⇒

P050 = 6 or 7

⇐⇐⇐

⇒

Fixed setpoints not inverted.

⇐ Fixed setpoints inverted

Page 29

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

Value

Function of P051 to P053

Function low state

Function high state

0 Input disabled - 1 ON right Off On Right

P051

Selection control function, DIN 1 (terminal 5), fixed frequency 3 or binary fixed frequency bit 0

0-19

[1]

2 On Left Off On Left 3 Reverse Normal Reverse

4 OFF 2 OFF 2 On 5 OFF 3 Off 3 On 6

Fixed Frequencies 1 – 3

Off On

7 Jog Right Off Jog right

P052

Selection control function, DIN 2 (terminal 6), fixed frequency 2 or binary fixed frequency bit 1

0-19

[2]

8 Jog left Off Jog left 9 Remote operation Local Remote

10 Fault code reset Off

Reset on

rising edge 11 Increase freq uen cy * Off Increase 12 Decrease frequency* Off Decrease 13

Disable analogue input (setpoint is 0.0 Hz)

AnalogueonAnalogue

disabled 14 Disable the ability to

change parameters

‘P’ Enabled ‘P’ disabled

15 Enable dc brake Off Brake on 16 Use jog ramp times

instead of normal ramp times

(SW Version : 3.00

onwards)

Normal Jog Ramp

Times

17 Binary fixed frequency

control (fixed frequencies1-7)

Off On

P053

Selection control function, DIN 3 (terminal 7), fixed frequency 1 or binary fixed frequency bit 2

0-19

[10]

18 As 6, but input high will

also request RUN

Off On

19 External trip / PTC Trip (F012) No Trip * Only effective when P007 = 0.

Binary Coded Fixed Fre quency Mapping

(P051, P052, P053 = 17)

DIN3 (P053)

DIN2 (P052)

DIN1 (P051)

STOP 0 0 0 Run to FF1 (P041) 0 0 1 Run to FF2 (P042) 0 1 0 Run to FF3 (P043) 0 1 1 Run to FF4 (P044) 1 0 0 Run to FF5 (P046) 1 0 1 Run to FF6 (P047) 1 1 0 Run to FF7 (P048) 1 1 1

Page 30

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P056

Digital input debounce time

0 – 2

[0]

Use a fast response time only when a ‘clean’ input signal is used, e.g. from a PLC. Use a slow response time to allow filtering of the signal if a noisy input (e.g. a switch) is used.

= 12.5 ms

= 7.5 ms

= 2.5 ms

P058 •

RUN command delay (seconds)

0.0 -

650.0 [0.0]

Sets a time delay before the RUN command takes effect. This parameter affects run commands from all sources except the RUN button on the OPm2 (this starts the drive immediately).

Value Relay Function Active

P061

Selection relay output RL1

0 - 13

[6]

0 No function assigned (relay not

active)

Low

1 Inverter is running High 2 Inverter Frequency 0.0 Hz Low 3 Motor run right has been selected High 4 External brake on (see parameters

P063/064)

Low

5 Inverter Frequency less than or

equal to minimum frequency

Low

6 Fault indication² Low 7 Inverter frequency greater than or

equal to setpoint

High

8 Warni ng active³ Low 9 Output current greater than or equal

toP065

High

10 Motor current limit (warning)³ Low 11 Motor over temperature (warning)³ Low 12 Closed loop, motor LOW speed limit High 13 Closed loop, motor HIGH speed limit High

1 External brake requires 24 V (max.) dc slave relay. 2 Inverter switches off (see parameter P930) 3 Inverter does not switch off (see parameter P931). 4 ‘Active low’ = relay OPEN. ‘Active high’ = relay CLOSED.

P062

Electro-mechanical brake option control

0 - 4

[0]

This enables or disables the electro-mechanical brake option.

Operation is the same as for P061 = 4, except that the brake control voltage is supplied directly.

= Disabled

1 - 3

Do not use

= Enabled

P063

External brake release delay (seconds)

0 - 20.0

[1.0]

Only effective if the relay output is set to control an external brake (P061 = 4) or the electro-mechanical brake option is used (P062 = 4). In this case when the inverter is switched on, it will run at the minimum frequency for the time set by this parameter before releasing the brake control relay and ramping up

(see illustration in P064)

Page 31

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P064

External brake stopping time (seconds)

0 - 20.0

[1.0]

As P063, only effective if the relay output is set to control an external brake (P061 = 4) or the electro-mechanical brake option is used (P062 = 4). This defines the period for which the inverter continues to run at the minimum frequency after ramping down and while the external brake is applied.

ON OFF

t P063 A

t P064 A

A = Brake applied B = Brake removed

Settings for P063 and P064 should be slightly longer than the actual time taken for the external brake to apply and release respectively.

Setting P063 or P064 to too high a value, especially with P012 set to a high value, can cause an overcurrent warning or trip as the inverter attempts to move a locked motor shaft.

P065

Current threshold for relay (A)

0 - 99.9

[1.0]

This parameter is used when P061 = 9. The relay switches on when the motor current is greater than the value of P065 and switches off when the current falls to 90% of the value of P065 (hysteresis).

P066

Do not use!

P071

••••

Slip compensation (%) 0 - 200

[0]

The inverter can estimate the amount of slip in an asynchronous motor at varying loads and increase its output frequency to compensate. This parameter `fine tunes' the compensation for different motors in the range 0 - 200% of the inverter's nominal estimate.

P072

••••

Slip limit (%)

0 - 500

[500]

This limits the slip of the motor to prevent `pull-out' (stalling), which can occur if slip is allowed to increase indefinitely. When the slip limit is reached, the inverter reduces the frequency until the level of slip is acceptable.

P073

••••

DC injection braking (%)

0 - 150

[0]

This stops the motor by applying a DC current. This causes heat to be generated in the motor rather than the inverter and holds the shaft stationary until the end of the braking period. Braking is effective for the period of time set by P003.

CAUTION: If a start signal is given during this time, the motor will restart at the end of the braking period.

The DC brake can be activated using DIN1 - DIN3

(braking

is active for as long as the DIN is high - see P051 - P053)

Frequent use of long periods of dc injection braking can cause the motor to overheat.

If DC injection braking is enabled via a digital input then DC current is applied for as long as the digital input is high. This causes heat in the motor.

Page 32

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P074

••••

I2t motor de-rating

0 - 1

[0]

0 = Disabled 1 = Enabled. Causes an F074 trip if the motor I

t calculation reaches its limit. The time taken to trip is dependent on the difference between the overload current and the nominal motor current rating stored in P083 - typically a 150% overload will result in a switch-off in 1-2 minutes.

For safety-critical applications, it is recommended that a motor PTC is used to protect the motor from overheating.

P076

••••

Pulse frequency 0 – 3

[0 or 2]

[2]

Sets the pulse frequency (from 8 to 16kHz). If silent operation is not absolutely necessary, the losses in the inverter can be reduced by selecting lower pulse frequencies.

0 & 1

= 16 kHz (- Default for 230 V inverters)

2 & 3

= 8 kHz (- Default for 400V inverters).

Derating required and EMC performance is affected on selection of non-default frequency

P077

Control mode

0- 3

[0]

Controls the relationship between the speed of the motor and the voltage supplied by the inverter.

= Linear voltage/frequency.

= Flux current control(FCC)

= Quadratic voltage/frequency relationship.

This is suitable for centrifugal pumps and fans.

= Linear voltage/frequency with energy saving. Output voltage is reduced at low load (not recommended for dynamic loads).

P078

••••

Continuous boost (%)

0 - 250

[50]

Operates continuously over the whole frequency range. For many applications it is necessary to increase low

frequency torque. This parameter sets the start-up voltage at 0 Hz to adjust the available torque for low frequency operation. 100% setting will produce rated motor current at low frequencies.

If P078 is set too high, overheating of the motor and/or an overcurrent trip (F002) can occur.

P079

••••

Starting boost (%) 0 - 250

[0]

For drives which require a high initial starting torque, it is possible to set an additional current (added to the setting in P078) during ramping. This is only effective during initial start up and until the frequency setpoint is reached.

This increase is in addition to P078, but the total is limited to 250%.

fN (P081)

0/1/3

Page 33

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P081

Nominal frequency for motor (Hz)

0 -

fmax**

[

!!!

]

P082

Nominal speed for motor (RPM)

0 - 9999

[

!!!

]

P083

Nominal current for motor (A)

0.1 - 99.9 [

!!!

]

COMBIMASTER: These parameters are set in the factory and should not be changed under normal circumstances.

MMI : Motor data should be entered here

P084

Nominal voltage for motor (V)

0 – 1000

[

!!!

]

P085

Nominal power for motor (kW/hp)

0-100.0

[

!!!

]

P086

••••

Motor current limit (%) 0 - 250

[150]

The motor current can be limited with this parameter. If the set value is exceeded, the output frequency is reduced until the current falls to this limit. During this process, both LEDs will flash

(see Operating Information, Section 5)

P087

Motor PTC enable

0 - 1

[0]

Change this parameter only when the PTC option is fitted.

= Disabled

= Motor PTC enabled

If P087 = 1 and the Motor PTC input goes high then the inverter will trip (fault code F004). Note that if the internal PTC gets too hot, the inverter will trip (fault code F005).

PTC Thresholds : Not tripped :<1k5

Ω

Typical Trip : >9k

Ω

Guaranteed trip : >25k

Ω

P089

••••

Stator resistance (Ω)

0.01-

100.00

[

!!!

]

COMBIMASTER :Set in the factory.

Do not adjust!

MMI : Set for value for Siemens motor. Adjust if required for other motors

P091

••••

Serial link slave address

0 - 30

[0]

Up to 31 COMBIMASTERS can be connected via the serial link and controlled by a computer or PLC using the USS protocol. This parameter sets a unique address for the inverter.

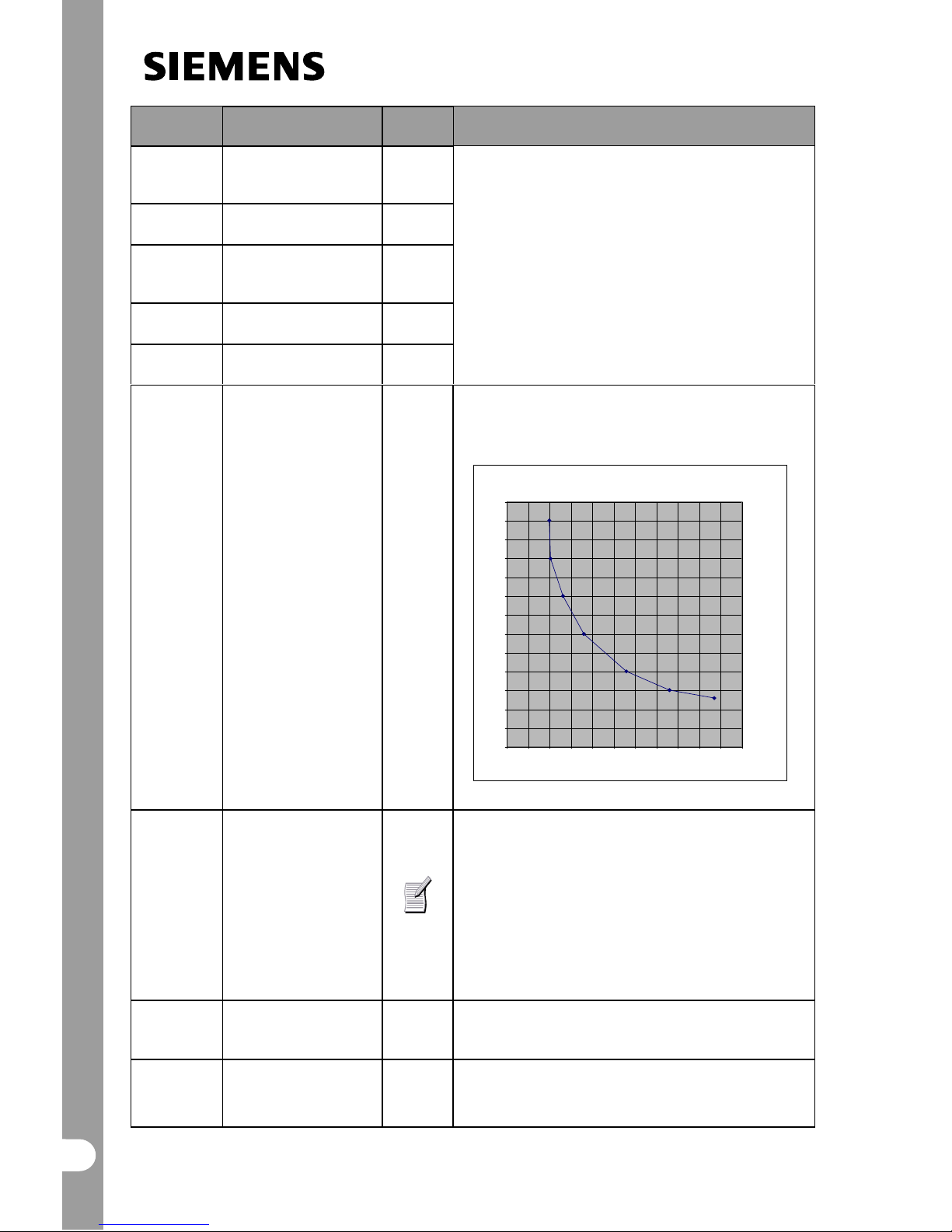

Motor Cur re nt Lim i t - Ove rloa d T ime to trip

160

150

140

130

120

115

113

100

105

110

115

120

125

130

135

140

145

150

155

160

165

0 30 60 90 120 150 180 210 240 270 300 330

Time/Seconds

Overload/%

110% and below will run forever

150% and above will trip in one minute

At 111% the drive will trip after 28 minutes

Page 34

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P092

••••

Serial link baud rate 3 – 7

[6]

Sets the baud rate of the RS485 serial interface (USS protocol):

= 1200 baud

= 2400 baud

= 4800 baud

= 9600 baud

= 19200 baud

Some RS232 to RS485 converters are not capable of baud rates higher than 4800.

P093

••••

Serial link timeout (seconds)

0 - 240

[0]

This is the maximum permissible period between two incoming data telegrams. This feature is used to turn off the inverter in the event of a communications failure.

Timing starts after a valid data telegram has been received and if a further data telegram is not received within the specified time period, the inverter will trip and display fault code F008.

Setting the value to zero switches off the control.

P094

••••

Serial link nominal system setpoint (Hz)

0 -

fmax**

[50.00]

Setpoints are transmitted to the inverter via the serial link as percentages. The value entered in this parameter represents 100% (HSW = 4000H). – refer to USS reference document (see Section 5.7)

P095

••••

USS compatibility 0 - 2

[0]

= Compatible with 0.1 Hz resolution

= Enable 0.01 Hz resolution

= HSW is not scaled but represents the actual

frequency value to a resolution of 0.01 Hz (e.g. 5000 = 50 Hz).

Note : Unit will only output 0.05Hz resolution

P099

••••

Communication adapter type

0 - 2

[0]

0 = Option module not present 1 = PROFIBUS module (enables parameters relating to PROFIBUS) 2 = CANBUS

(SW Version : 3.00 onwards)

P101

••••

Operation for Europe or USA

0 - 1

[0]

This changes the power display between kW and HP:

= Europe (kW)

= USA (HP)

P111

Inverter power rating (kW/hp)

0.0-10.00 [

!!!

]

Read-only parameter that indicates the power rating of the inverter in kW. e.g. 0.55 = 550 W

If P101 = 1 then the rating is displayed in hp.

P112

Inverter type 1 - 8

[8]

Read-only parameter.

= MICR OMASTER series 2 (MM2)

= COMBIMASTER

= MIDIMASTER

= MICR OMASTER Junior (MMJ)

= MICR OMASTER series 3 (MM3)

= MICROMASTER Vector (MMV)

= MIDIMASTER Vector (MDV)

= COMBIMASTER/MMI series 2

Read only parameter

P113

COMBIMASTER / MMI model

10-29

[-]

= CM12(/2)

= CM25(/2)

= CM37(/2)

= CM55(/2)

= CM75(/2)

= CM37/3

= CM55/3

= CM75/3

= CM110/3

= CM150/3

= CM220/3

= CM300/3

= CM400/3

= CM550/3

= CM750/3

P121

Enable/disable RUN button

0 - 1

[1]

= RUN button disabled.

= RUN button enabled (only possible if

P007=1).

Page 35

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P122

Enable/disable FORWARD/REVERSE button

0 - 1

[1]

= FORWARD/REVERSE button disabled.

= FOR WARD/REVERSE button enabled (only

possible if P007 = 1).

P123

Enable/disable JOG button

0 - 1

[1]

= JOG button disabled.

= JOG button enabled (only possible if P007=1).

P124

Enable/disable ∆ and

∇

buttons

0 - 1

[1]

= ∆ and ∇ buttons disabled.

= ∆ and ∇ buttons enabled (only possible if P007

= 1).

This applies for frequency adjustment only. The buttons can still be used to change parameter values.

P125

Reverse direction inhibit

0 - 1

[1]

= Reverse direction disabled. Inhibits reverse

commands from ALL sources (reverse RUN commands result in forward rotation)

= Normal operation (FORWARD/REVERSE

operation allowed)

P131

Frequency setpoint (Hz)

0.0-fmax [-]

P132

Motor current (A) 0.0 - 99.9

[-]

P133

Motor torque(% nominal torque)

0-250

[-]

P134

DC link voltage (V) 0 - 1000

[-]

P135

Motor RPM 0 - 40000

[-]

P137

Output voltage (V)

0 - 1000

[-]

P140

Most recent fault code 0 - 9999

[-]

The last recorded fault code

(see section 5)

is stored in this parameter. It is cleared when the inverter is reset (P944 =1). This is a copy of the code stored in P930.

P141

Most recent fault code-10 - 9999

[-]

This parameter stores the last recorded fault code prior to that stored in P140/P930.

P142

Most recent fault code-20 - 9999

[-]

This parameter stores the last recorded fault code prior to that stored in P141.

P143

Most recent fault code-30 - 9999

[-]

This parameter stores the last recorded fault code prior to that stored in P142.

P151

••••

Green LED function 0 - 5

[4]

= Off

= On

= Fault mode: On = Tripped

Flashing = Warning

= Running mode: On = Motor running

Flashing = Inverter on but motor stationary

= Default mode (see table in Operating Information,

Section 5).

Not used

Read-only parameters. These are copies of the values selected by P001 but can be accessed directly via the serial link.

Page 36

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P152

••••

Yellow LED function 0 - 5

[5]

= Off

= On

= Fault mode: On = Tripped

Flashing = Warning

= Running mode: On = Motor running

Flashing = Inverter on but motor stationary

Not used

= Default mode (see table in Operating

Information Section 5

P201

PI closed loop mode 0 - 2

[0]

= Normal operation (closed loop control

disabled).

= Not used

= Closed loop control using PI input for

transducer feedback.

P202

••••

P gain 0.0-999.9

[1.0]

Proportional gain.

P203

••••

I gain

0.00 -

99.99 [0.00]

Integral gain.

0.01 corresponds to the longest integral response time.

P205

••••

Sample interval (x 25 ms)

1 - 2400

[1]

Sampling interval of feedback sensor.

P206

••••

Transducer filtering 0 - 255

[0]

= Filter off.

1-255

= Low pass filtering applied to transducer.

P207

••••

Integral capture range (%)

0 - 100

[100]

Percentage error above which integral term is reset to zero.

P208

Transducer type

0 - 1

[0]

= An increase in motor speed causes an increase in

sensor voltage/current output.

= An increase in motor speed causes a decrease in

sensor voltage/current output.

P210

Transducer reading (%)

0.0 -

100.0 [-]

Read only. Value is a percentage of full scale of the PI input. (eg.: 100 = 10V / 20mA)

P211

••••

0% setpoint 0.00-

100.00 [0.00]

Value of P210 to be maintained for 0% setpoint.

P212

••••

100% setpoint 0.00-

100.00

[100.00]

Value of P210 to be maintained for 100% setpoint.

P220

••••

PI frequency cut-off 0 - 1

[0]

= Normal operation

= Switch off inverter at or below minimum

frequency.

P331

Analogue mode

0 - 4

[2]

= Internal potentiometer only

= External analogue input only

= Internal potentiometer + external analogue input

= Internal potentiometer fine, external input coarse

= Internal potentiometer coarse, external input fine

P332

Fine adjustment (%) 0 - 100

[10]

Percentage of fine tuning adjustment for P331 = 3 or 4.

P700 P701

••••

P702

Specific to PROFIBUS-DP. See PROFIBUS Handbook for further details. (Access only possible with P099 = 1.)

Page 37

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P723

State of digital inputs 0 - 7

[-]

DIN3 DIN2 DIN1

= 0 0 0

= 0 0 1

= 0 1 0

= 0 1 1

= 1 0 0

= 1 0 1

= 1 1 0

= 1 1 1

P845

Motor current limit for Flying Start (%)

0 - 250

[50]

(SW

Version :

3.00

onwards)

The motor current can be limited with this parameter. If the set value is exceeded during flying start, the output frequency is reduced until the current falls below this limit. During this process, both LEDs will flash

(see Operating

Information section)

. If trip occurs during flying start, this

value should be reduced.

P880

Specific to PROFIBUS-DP. See PROFIBUS Handbook for further details. (Access only possible with P099 = 1.)

P910

••••

Local/Remote mode 0 - 4

[0]

Sets the inverter for local control or remote control over the serial link:

= Local control

= Remote control (and setting of parameter values)

= Local control (but remote control of frequency)

= Remote control (but local control of frequency)

= Local control (but remote read and write access to

parameters and facility to reset trips)

When operating the inverter via remote control (P910 = 1 or

3), the analogue input remains active when P006 = 1 and is added to the setpoint.

P918

••••

Drive Address 0 - 255

[0]

Specific to PROFIBUS-DP/CAN. See PROFIBUS / CAN Handbooks for further details. (Access only possible with P099 = 1 or 2).

Each communications object is def ined as a combina tion of base address and offset whereby the offset is referred to the value in P918.

P922

Software version 0.00 –

99.99

[-]

Contains the software version number and cannot be changed.

P923

••••

Equipment system number

0 – 255

[0]

You can use this parameter to allocate a unique reference number to the inverter. It has no operational effect.

P927

••••

Local or Remote Access for Parameters

0 – 1

[0]

Specific to PROFIBUS-DP/CAN. See PROFIBUS / CAN Handbooks for further details. (Access only possible with P099 = 1 or 2).

Determines which parameter access interface can write to parameters. Note that read access is always allowed.

= Parameter write access via keypad.

= Parameter write access via Comms module.

Page 38

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P928

••••

Local or Remote control of drive

0 – 3

[0]

Specific to PROFIBUS-DP/CAN. See PROFIBUS / CAN Handbooks for further details. (Access only possible with P099 = 1 or 2).

Determines which interface has control of the drive. Note that the drive status can always be monitored.

= Drive control and setpoint source is local.

= Drive control and setpoint source is via Comms Module.

= Drive control is local and setpoint source is via Comms Module.

Drive control is via Comms Module and setpoint source is local.

P930

Most recent fault code

0 – 9999

[-]

The last recorded fault code

(see Section 6.3)

is stored in this parameter. It is cleared when the inverter is reset(P944=1).

P931

Most recent warning type

0 – 9999

[-]

The last recorded warning is stored in this parameter until power is removed from the inverter:

002

= Current limit active

004

= Slip limit exceeded

005

= Inverter over temperature (internal PTC)

006

= Motor overtemperature(I²T)

007

= Undervoltage

010

..=..P10+/P15V/SK200 +5V Power Supply Fault

018

= Auto restart after fault(P018) is pending. The

inverter may start at any time.

P944

Reset to factory default settings

0 – 1

[0]

Set to ‘1’ and then press P to reset all parameters except P101 to the factory default settings.

P947

Specific to PROFIBUS-DP. See PROFIBUS Handbook for further details. (Access only possible with P099 = 1).

P958

Specific to PROFIBUS-DP. See PROFIBUS Handbook for further details. (Access only possible with P099 = 1).

P960

Protocol Type 0 – 3

[0]

(SW

Version :

3.00

onwards)

Specific to PROFIBUS-DP/CAN. See PROFIBUS / CAN Handbooks for further details. (Access only possible with P099 = 1 or 2).

Selects the CANbus protocol.

= CAN communication disabled.

1 =

CANopen communication enabled.

=CAN masterdrive commmunication enabled (future).

= DeviceNet communication enabled (future).

P962

(SW

Version :

3.00

onwards)

Specific to CAN. (Access only possible with P099 = 2).

P963

(SW

Version :

3.00

onwards)

Specific to CAN (Access only possible with P099 = 2).

P964

(SW

Version :

3.00

onwards)

Specific to CAN (Access only possible with P099 = 2).

Page 39

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter

Function

Range

[Default]

Description / Notes

P965

Special Baud Rate 2 0 – 255

(SW

Version :

3.00

onwards)

Specific to CAN (Access only possible with P099 = 2).

P966

PZD Send Interval Time

0 –

65535

[0]

(SW

Version :

3.00

onwards)

Specific to CAN (Access only possible with P099 = 2).

The rate in ms at which PZD is sent is set.

= Values sent only after a remote request

1…65534 =

Values sent after a preset time (in ms)

or after a remote request

65535

= Values sent whenever the PZD changes

or after a remote request.

P967

Last Received Control Word

0 – FFFF

Hex

Specific to PROFIBUS-DP/CAN. See PROFIBUS / CAN Handbooks for further details. (Access only possible with P099 = 1 or 2).

This is the control word which was most recently received and is currently active within the drive.

P968

Last Sent Status Word 0 – FFFF

Hex

Specific to PROFIBUS-DP/CAN. See PROFIBUS / CAN Handbooks for further details. (Access only possible with P099 = 1 or 2).

This is the status word which currently represents the operating state of the drive and which is returned on demand to the requestor.

P969

(SW

Version :

3.00

onwards)

Specific to CAN (Access only possible with P099 = 2).

P971

••••

EEPROM storage control

0 – 1

[1]

= Changes to parameter settings (including P971

are lost when power is removed.

= Changes to parameter settings are retained during

periods when power is removed.

IMPORTANT

Take care not to exceed the EEPROM write cycle limit of 50,000/parameter (approx.) when using the serial link to update parameters, otherwise data loss or corruption may occur. Read cycles are unlimited.

P986

Relay Output 0 – 3

[0]

(SW

Version :

3.00

onwards)

Relay 1 = Fault Relay (RL1) Relay 2 = Brake Relay 0

= Relay 1 & 2 - open.

= Relay 1 – closed

= Relay 2 – closed

= Relay 1 & 2 - closed

Page 40

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

6.2 Fault Codes

Fault codes are only available when an OPm2 is connected to the COMBIMASTER. In the event of a failure, the COMBIMASTER switches off and a fault code appears on the LCD

screen. The last fault that occurred is stored in parameter P930. e.g. ‘0003' indicates that the last error was F003.

Fault Code

Cause Corrective Action

F001

Overvoltage

Check whether supply voltage is within the limits indicated on the rating plate. Increase the ramp down time (P003). Check whether the required braking power is within the specified limits.

F002

Overcurrent

Check motor lead and motor for short-circuits and earth faults. Increase the ramp-up time (P002).

Increase the ramp down time (P003) Reduce the boost set in P078 and P079. Check whether the motor is obstructed or overloaded.

F003

Overload Check whether the motor is overloaded.

F004

Overheating of motor (monitoring with PTC)

Check if motor is overloaded. Check the connections to the PTC. Has P087 been set to 1 without a PTC being connected?

F005

Inverter overtemperature (Heatsink PTC)

Check that the ambient temperature is not too high. The motor speed may be too low for a given load.

F008

USS protocol timeout Check the serial interface.

Check the settings of the bus master and P091 - P093. Check whether the timeout interval is too short (P093).

F009

Undervoltage

Check that the power supply is supplying enough voltage to the inverter.

F010

Initialisation fault / Parameter loss *

Check the entire parameter set. Set P009 to `0000' before power down.

F011

Internal interface fault * Switch off power and switch on again.

F012

External trip

Source of trip is digital input (configured as an external trip input) going low - check the external source.

F013

Programme fault * Switch off power and switch on again.

F030

PROFIBUS link failure Check the integrity of the link.

F031

Option module link failure Check the integrity of the link.

F033

PROFIBUS configuration error Check the PROFIBUS configuration.

F036

PROFIBUS module watchdog trip Replace PROFIBUS module

F074

Motor overtemperature by I2t calculation

Check that the motor current does not exceed the value set in P083.

F105

COMBIMASTER internal overtemperature (electronics PTC)

Check that the ambient temperature is not too high. The motor speed may be too low for a given load.

F106

Parameter fault P006 Programme one or more Digital Inputs to be fixed

frequencies. Change P006 to 0 or 1.

F112

Parameter fault P012/P013 Set parameter P012 < P013.

F212

Parameter fault P211/P212 Set parameter P211 < P212.

* Ensure that the wiring guidelines described in Electrical Installation have been complied with.

When the fault has been corrected, restart the inverter and the motor will run if the fault has been cleared.

Page 41

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Intentionally Left Blank

Page 42

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

7. OPTIONS AND ACCESSORIES

7.1 Clear Text Display Module (OPm2)

This section only applies to users who intend using the optional Clear Text Displa y modul e (OPm2) to control the operation of the inverter

The OPm2 module provides a multi-language user-friendly interface to the inverter.

The display is menu-driven and provides information in simple text form. It also includes built-in context-sensitive Help screens. As well as enabling direct control of the motor, the OPm2 extends the functionality of the COMBIMASTER by providing access to a comprehensive range of adjustable parameters. Setting these parameters will allow you to customise the operation of the COMBIMASTER to meet almost any application requirement.

LCD

Screen

FORWARD / REVERSE

Button

RUN

Button

STOP

Button

RUN / STOP

Inducator

JOG

Button

UP / INCREASE

Frequency

DOWN / DECREASE

Frequency

Parameterisation

Button

Pressing this button while the motor is stopped causes it to start and run at the preset jog frequency. The motor stops as soon as the button is released. Pressing this button while the motor is running has no effect. Disabled if P007 or 123 = 0.

Green

indicates that the motor is running.

Flashing green

indicates that th e m oto r is ram p ing up o r dow n .

Red

indicates that the motor is stationary.

Flashing red

indicates a fault condition.

Press to start the inverter. Disabled if P007 or P121 = 0.

Press to stop the inverter.

Changes the display to show the menu options. Pressing and holding this button down and then pressing the ∇ button causes the Help screen to be displayed.

Press to change the direction of rotation of the motor. REVERSE is indicated by a minus sign (values <100) or a flashing decimal point (values > 100). Disabled if P007 or P122 = 0.

Press to INCREASE frequency. Used to change parameter numbers or values to higher settings during the parameterisation procedure. Disabled if P124 = 0.

Press to DECREASE frequency. Used to change parameter numbers or values to lower settings during the parameterisation procedure. Disabled if P124 = 0.

Press to access parameters. Disabled if P051 - P053 = 14 when using di gita l input s.

Jog

RUN STOP

Button

STOPPED

→

P000 F=0.00Hz

=0.0A RPM=0

V=0.0V

▼

▲ ▼

Figure 9 Clear Text Display Module (OPm2)

Page 43

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

The user is offered a text-driven format for commissioning, parameterising, configuring and operating the inverter. The following features are included:

•

Illuminated high resolution LCD screen

with adjustable contrast.

•

7 languages.

•

Central device for up to 31 inverters which

are networked together via USS.

•

Up to 10 parameter sets can be stored in

non-volatile memory for uploading and downloading between the clear text operator panel and the drive.

•

Help texts for diagnosing faults.

•

Isolated RS232 interface for connecting to

a PC.

Dimensions H x W x D 130 mm x 73 mm x 40 mm

Current drain at 5 V 250 mA

Degree of protection IP 54

Maximum cable length 5m

Table 1: Technical Data

LCD

Display

FORWARD / REVERSE

Button

RUN

Button

STOP

Button

RUN / STOP Inducator

JOG

Button

UP / INCREASE

Frequenc

DOWN / DECREASE

Frequency

Parameterisation

Button

Jog

RUN STOP

Button

P000 RUNNING

→

RPM=1250 F=50.00Hz I=1.5A M=125% P

↕

Indications as to which keys to use are shown in the right hand column of the screen.

All the main functions are accessible from the main menu screen:

OPERATE UPREAD

DIAG. DOWNLOAD PARAMS LANGUAGE

MODE CONFIG.

Operating display

Diagnosis of drive faults

Parameterise drive

Mode selection for module: Local, Master, Internal, RS232-RS485 convert

Upread parameter sets from drive to module

Download parameter sets from module to drive

Language selection Configure module featu res :

Backlight, Contrast, Large Numbers, Cursor, Help, Reset

Main Men u Sc r een

Pressing the Menu and " keys simultaneously causes a help screen, displaying the key features of the Clear Text display module, to appear.

On power-up, unless configured otherwise, the panel will show the Operating Display.

STOPPED

P000 S=50.00Hz I=0.0A RPM=0

V=0.0V

Drive status: Stopped, Running, Fault, Warning

Direction of motor rotation

Output frequency (alternatin g with setpoint when drive stopped)

Actual motor speed

Motor voltage

Motor current

Operating Display when in Local mode.

B RUNNING

F=50.00Hz

Drive status: Stopped, Running, Fault, Warning

Output frequency (alternating with setpoint when dri v e s t opped)

Direction of motor rotation

Drives present on the USS Bus in this case 0, 7 and 16, selectable with arrow keys

Enable broadcast function to start and stop all drives on bus

Operating Display when in Master mode.

The status LED indicates whether the drive is running. When the LED is green, the drive is running and when it is red the drive is stopped. When accessing drive parameters, help texts are associated with the parameter and the parameter values.

Shows that internally stored parameter set is being a ccessed

Text describing selected parameter

PARAMS All

P051=1

SELECT DIG I/P 1

run r i ght h

Parameter number

Indicates that higher and lower parameter values are available

Text describing selected value

Parameter access

Parameter group: All, Gen eral, Motor Plate, Ramping, PI D , Setpoint, Freq. I/O, Comm s. User Interface, Setup, Changed from default

Page 44

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

RS232 Interface

The Clear text Display is fitted with an RS232 interface to allow the drive to be connected to a PC.

1 2 3 4 5

+6V

Figure 10: Pin Layout of the RS232 Edge

Connector

Terminal Function, information

1 NC (not connected)

2 External TxD

3 External RxD

4 External RTS

5 Isolated 0V

Table 2: Terminal functions of the RS232

connector

Table 3 gives the ordering information for the OPM2 Clear Text Display Module.

The RS232 interface requires an external power supply to operate. The specification of the power supply interface is as follows:

•

Voltage tolerance 6V ! 0.5V

•

Max Supply Current when connected to

drive 50mA, when not connected to drive 250mA

•

Connecting Plug

•

- Outside diameter 3.5mm

•

- Inside diameter 1.35mm

Designation Order No.

OPM2 Clear Text Display Module

6SE 3290-0XX87-8BF0

Connecting cable OPM3m6SE 9996-0XA31

Table 3: Ordering Information

7.2 PROFIBUS CB155

This option allows the COMBIMASTER to be controlled via a PROFIBUS-DP serial bus (SINEC L2-DP).

PROFIBUS-DP is a cost-effective high spee d serial communication system optimised for the actuator/sensor area where very short system reaction times are critical. It operates as a decentralised I/O system whereby the traditional wiring to the sensors and actuators is replaced by an RS485 serial bus system linking the stations together.

The suitability of the system for such applications has been recently enhanced by the extension of the bus speed up to 12MBd. The protocol is defined as DIN19245 and also as EN50170 guaranteeing open, multi-vendor communications between PROFI BU S-D P stations.

Up to 125 stations can be networked together using this single bus system and a very flexible data structure allows the system to be optimised to exactly match the requirements of each device.

PROFIBUS-DP lies at the heart of the new generation of SIMATIC S7 automation systems offered by Siemens. Using this single bus system, all engineering, visualisation and PLC control operations can be integrated. To configure a SIMATIC based automation system, all that is required is the associated STEP7 configuration tool running on a PC. Bus configuration is performed by using a drag and drop technique in a graphically displayed PROFIBUS-DP network.

Page 45

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Below are listed some of the advantages of automating a system with PROFIBUS-DP:

•

Only one single network for operator

panels, drives, sensors, actuators, PLCs.

•

Cost savings in installation time and

cabling.

•

Ease of commissioning with the

SIMATIC S7 PLC system and STEP7 software.

Flexibility to expand or modify the automation system at a later date. Simple integration into higher level process visualisation systems such as PCS7. Remote diagnostics reduce the down-time in the event of a problem.

Features of CB 155 PROFIBUS Option:

•

Permits fast cyclic communications via

a PROFIBUS connection.

•

Supports all PROFIBUS baud rates up

to 12MBd.

•

Control of up to 125 inverters using

PROFIBUS-DP protocol (with repeaters).

•

Conforms with the relevant parts of DIN

19245 and EN50170 guaranteeing open communications on a serial bus system. It can be used with other PROFIBUSDP/SINEC L2-DP peripheral devices on the serial bus. Data format conforms to the VDI/VDE directive 3689 “PROFIBUS Profile for Variable Speed Drives”.

•

Can be easily configured using

Siemens COM ET 200, COM ET Windows or S7 Manager software.

•

Simple integration into a SIMATIC S5

or S7 PLC system using specially designed functional blocks (S5) and software modules (S7).

•

Simply fits to the side of the

COMBIMASTER inverter using two screws.

•

No separate power supply necessary.

•

Digital and analogue inputs can be read

and the digital output controlled via the serial bus.

•

Approx. 5 ms response time to process

data.

•

Output frequency (and therefore motor

speed) can be controlled locally on the drive or over the serial bus.

•

Multi-mode operation possible, whereby

control data can be input via the terminal block (digital inputs) and set point over the serial bus. Alternatively, the set point can be from a local source (analogue input) with the drive control over the serial bus.

•

All drive parameters are accessible

over the serial link.

The PROFIBUS module fits to the side of the COMBIMASTER using two screws.

COMBIMASTER PROFIBUS Accessories

•

The following PROFIBUS accessories

are available for COMBIMASTER. All are rated IP65 minimum.

•

CM PROFIBUS T Connector - This fits

to the PROFIBUS module, and allows in/out PROFIBUS cables to be connected. It also contains the necessary terminating network for 12 Mbaud operation. It is fitted with two female circular connectors, and the cable to the CB155

•

CM PROFIBUS Terminator - This

houses the resistive terminating devices required at each end of a PROFIBUS link. It can be fitted to the last COMBIMASTER T piece in the link.

•

CM PROFIBUS Cable 1m - 1 metre

PROFIBUS cable fitted with two male circular connectors.

•

CM PROFIBUS Cable 5m - 5 metre

PROFIBUS cable fitted with two male circular connectors.

•

CM PROFIBUS Cable 10m - 10 metre

PROFIBUS cable fitted with two male circular connectors.

•

CM PROFIBUS cable link (10cm) -

10cm of PROFIBUS cable fitted with 2 female circular connectors, for connecting two lengths of cable.

Page 46

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

COMBIMASTER

CB155

T CONNECTOR

COMBIMASTER

CB155

T CONNECTOR

COMBIMASTER

CB155

T CONNECTOR

TERMINATOR

BUS MASTER

INTERCONNECTING CABLES - One or more cables joined by cable links.

Cable A

Cable B

Cable C

SK200

SK200 SK200

Figure 11 Typical PROFIBUS Installation, Showing Use Of Accessories

PROFIBUS Component Order Number Drawing Reference

CM PROFIBUS module CB155

Note: For CS B Issue A units :-

6SE9996-0XA18

6SE9996-0XA20

Includes Cable A

CM PROFIBUS T connector 6SE9996-0XA21 Includes Cable B CM PROFIBUS terminator 6SE9996-0XA22 CM PROFIBUS cable 1m 6SE9996-0XA23 Cable C CM PROFIBUS cable 5m 6SE9996-0XA24 Cable C CM PROFIBUS cable 10m 6SE9996-0XA25 Cable C CM PROFIBUS cable link 6SE9996-0XA26 Used for joining lengths of cable C

1. A clear text operator panel (OPM2) is required to set the COMBIMASTER parameters prior to connecting the PROFIBUS module.

2. The PROFIBUS Module may only be connected or disconnected from the drive when the drive is powered off.

3. The PROFIBUS module must only be connected to the drive with the cable supplied for the purpose.

4. The PROFIBUS module cannot be used simultaneously with the Clear Text Display module.

The data structure for communication over PROFIBUS-DP can be either PPO type 1 or PPO type 3 as specified in VDI/VDE 3689. This means in practice that process data (control words, set-point in the transmitted telegram and status words, actual values in the received telegram) is always sent.

Parameter data exchange may, however, be blocked if bus or PLC memory space is at a premium. The data structure and thus the PPO type is normally specified by the bus master. If no PPO type is specified (e.g. if a combined DP/FMS bus master is used), then the default PPO type is type 1 (parameter data enabled). Parameter write access over the serial link can be enabled or blocked as required.

For more detailed Information , refer to Profibus Manual

Page 47

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter read access is permanently enabled, allowing continuous read out of drive data, diagnostics, fault messages etc. A visualisation system can thus be realised with minimal effort.

The PROFIBUS cable is connected to the 5way miniature circular socket on the side of the PROFIBUS Module, via a special ‘T’ connector which fits to the edge of the module. This T connector allows the PROFIBUS module to be disconnected from the bus in the event of a fault, without breaking the PROFIBUS link. The pin designation of the circular connectors is given below.

Socket (Pins) Plug (Holes)

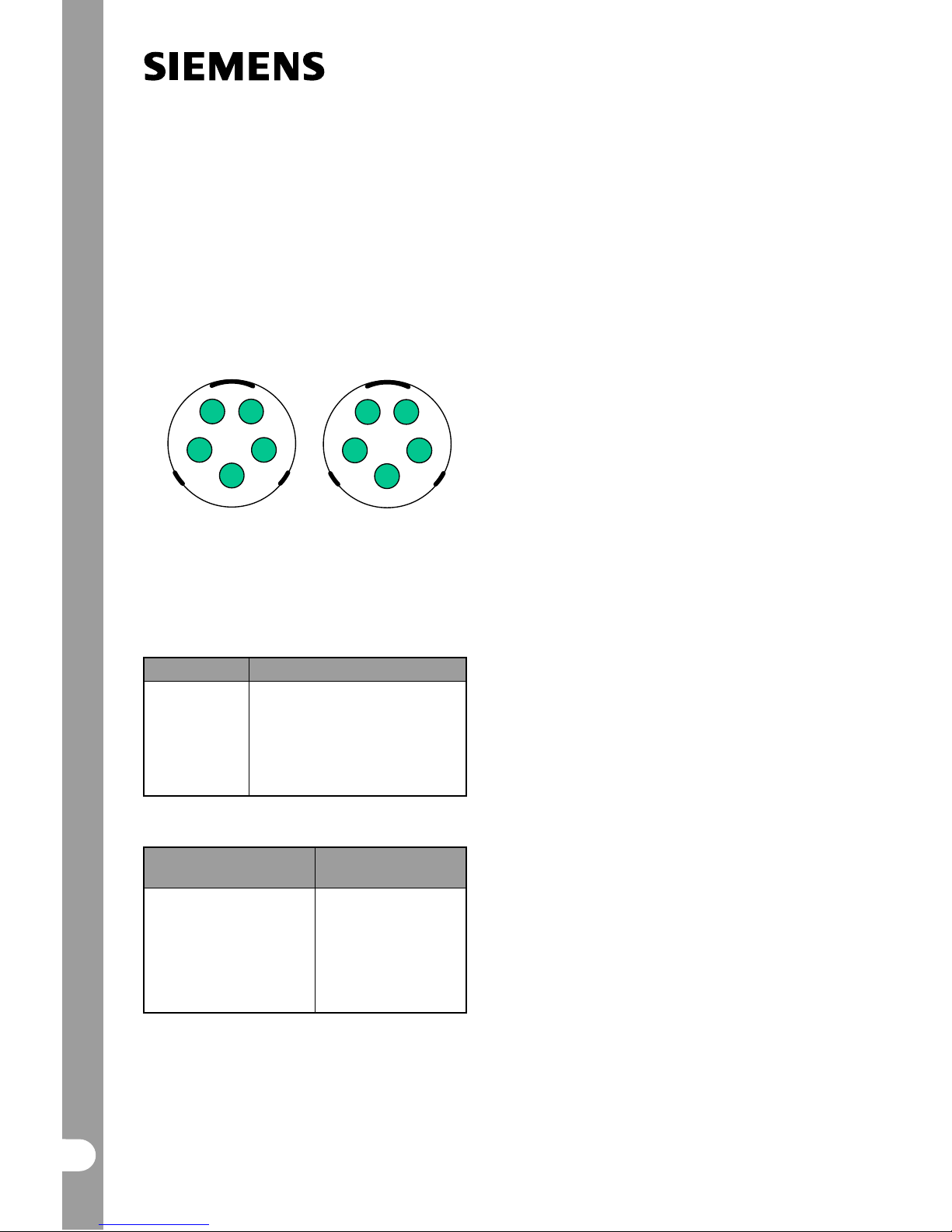

Figure 12 Pin Arrangement For The 5-Way

Circular PROFIBUS Connector

Note that the socket is used on the PROFIBUS module, and the cable links. The plug is used on the interconnecting cables.

Terminal Function, information

1+5V 2 N (-) 30V 4P (+) 5 No connection

Table 4: Pin Assignment for the 5-way

Circular PROFIBUS Connector

Data transfer rate (Kbit/s)

Max. cable length of a segment (m)

9.6

19.2

93.75

187.5 500

1500

12000

1200 1200 1200 1000 400 200 100

Table 5: Cable Lengths

A segment can be extended by using RS 485 repeaters.

Recommendation: RS 485 repeater (Order No.: 6ES7 972-0AA00-0XA0).

For reliable operation of the serial bus system, the cable must be terminated at both ends using terminating resistors. For operation at 12MBd, cables must be terminated in connectors with a built-in damping net work (built into T Connector). Additionally, for 12MBd operation, no stub length from the main bus cable is allowed. Suitable SINEC-L2 DP connectors and cable for reliable operation up to 12MBd are detailed above. A floppy disk is supplied with the PROFIBUS module containing the handbook and two data files for configuring the relevant PLC system.

Quick Guide to Setting Up PROFIBUS Communications

•

The bus cable between the master device

and the drive must be connected correctly. This includes the necessary termination resistors and (for 12MBd) the terminating network.

•

The bus cable must be screened and the

screen must be connected to the housing of the cable connector.

•

The PROFIBUS master must be configured

correctly so that communications can be realized with a DP slave using PPO type 1 or PPO type 3 (only PPO type 1, if the PPO type cannot be configured via remote operator control).

•

When using COM ET software with a

SIMATIC S5, the correct type description file must be used, so that an IM 308B/C can be configured as bus master. When using the Simatic Manager for an S7, the Object Manager must be loaded.

•

The bus must be operational (for a

SIMATIC module, the operator control panel switch must be set to RUN).

•

The bus baud rate must not exceed 12

MBd.

•

The PROFIBUS Module must be correctly

fitted to the inverter and the inverter must be powered up.

•

The slave address for the drive (parameter

P918) must be set so that it corresponds to the slave address configured at the PROFIBUS master, and must be uniquely defined on the bus.

Page 48

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Installation should be in conformance with EMC directives and regulations (

this is described in section 4 and in the operati ng manuals for the PLC

Dimensions H x W x D

115 mm x 90 mm x

30 mm Degree of protection IP 65 Maximum bus

speed

12MBd

Table 6: Technical Data

7.3 Control and Commissioning with SIMOVIS

The SIMOVIS drive commissioning software operates under Windows 95 or NT and can be used to configure the COMBIMASTER, MICROMASTER, MICROMASTER Vector and MIDIMASTER Vector drives.

SIMOVIS offers the following benefits:

•

Access from the same PC to one or

several drives connected to the same serial bus.

•

Storage of parameter sets on the PC.

•

Control and monitoring of the drives.

•

Simplified, text driven, access to all

parameters within the drive.

•

Upread and download of entire

parameter sets.

•

Off-line configuration for altering

parameter sets stored on the PC hard disk drive without a connection to the drive.

•

Interface to the S7 Manager to allow

configuring of drives on a PROFIBUS DP* link within an automation system.

* Requires a communication board to operate via PROFIBUS –Ref No. 6GK1541-1AA00 PROFIBUS CP 541 1.

The minimum recommended PC specification for operation of SIMOVIS is a 90MHz Pentium with 32MB of RAM, 200MB hard drive and WINDOWS95 or NT4.0

Designation Order No. SIMOVIS Standalone

Version

6SE3290-0XX87-8SA2

Block package for SIMATIC S7 including DVA_S7 and Object Manager

6SX7005-0CB00

Table 7: SIMOVIS Ordering Information

Standalone Operation of SIMOVIS

For direct configuration of one or more drives, SIMOVIS communicates over the PC serial port, COM1 or COM2. An RS232/485 converter must be connected between the PC and the drive. The Clear Text Display module is suitable for this purpose – refer to section

7.1. Following installation, the Bus kon program

must be called to define whether one or more drives is connected to the PC. For each connected drive, the drive type must be selected from the hardware directory and the bus address must match the value programmed into P091 in the drive.

Page 49

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Open, save and close Project

On-line access to selected drive

Edit menu

Figure 13 Example Screen From Buskon Program Showing a Project Where 3 Drives are

Connected to the PC

SIMOVIS is then started by selecting the drive from the list and selecting drive parameterisation from the edit menu. The drive parameter list (or part thereof) can be accessed from the Parameter menu.

Page 50

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

On/Off Control for Drive

Drives fo und on Bus

Drive data (parameter sets) save, open, upload, download

Parameter set in RAM, EEPROM or PC drive

Parameter screen view, full list or specific parameter groups

Direct Access to drive process data

Figure 14 Example Screen From SIMOVIS Where Access to the Whole Parameter List Has Been

Selected

Operation of SIMOVIS within an Automation System

SIMOVIS can access the drives on a PROFIBUS DP system when run on a PC or PG with Step 7 V3.2 or higher. In this case the Buskon program is not used and SIMOVIS can be called directly by selecting the required drive from the Step7 HWConfig program once the PROFIBUS network has been configured.

Access to the drive parameters is identical to the standalone case. Details on how to configure the automation system are to be found in the relevant Step7 documentation. The hardware requirement for SIMOVIS is identical to that for Step 7.

Page 51

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

7.4 Brake Options

Pulse Resistor Braking Unit

(Only available for CS B Inverters)

The pulse resistor braking unit gives the COMBIMASTER increased immunity to over voltage trips, and can also be used to provide up to 7kW (peak) of braking power for stopping the system more quickly than would otherwise be possible.

The braking unit fits in place of the standard cover for the inverter unit. It houses the braking control electronics, and a 7kW (peak) braking resistor with heat sink. Full IP65 environmental protection is maintained.

Technical Overview

The electronics operates completely independently of the inverter electronics, monitoring the DC link voltage. During braking, the motor will regenerate, causing the DC link voltage to rise. When a set threshold is reached, the unit switches the resistor onto the DC link, causing the regenerated energy to be dissipated as heat in the resistor, and preventing an over voltage trip.

While the resistor is switched on, its temperature will rise. When a threshold temperature (Tmax) is reached, the unit will limit the power in the resistor to approximately 5% of the peak power. (350W). If the temperature continues to rise, the resistor will be disabled completely, until the temperature has reduced. The following diagrams show the relationship between braking power, and resistor temperature with time.

T2T1

Tmax

Figures given below are for a 7kW (peak) braking unit. T1 and T2 are variable, depending on ambient temperatur e. However typical figures are given.

P1 - 7kW P2 - 350W T1 - 5 Seconds typical T2 - 100 Seconds typical

Protection

In the event of a braking unit fault, it is possible for the resistor to become permanently connected, and to overheat. The resistor temperature is monitored by an internal circuit, and if it becomes too hot , this is indicated by a fault relay. This relay should be used to control an external contactor, to remove power from the COMBIMASTER. See the braking unit installation instructions for more information.

Page 52

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

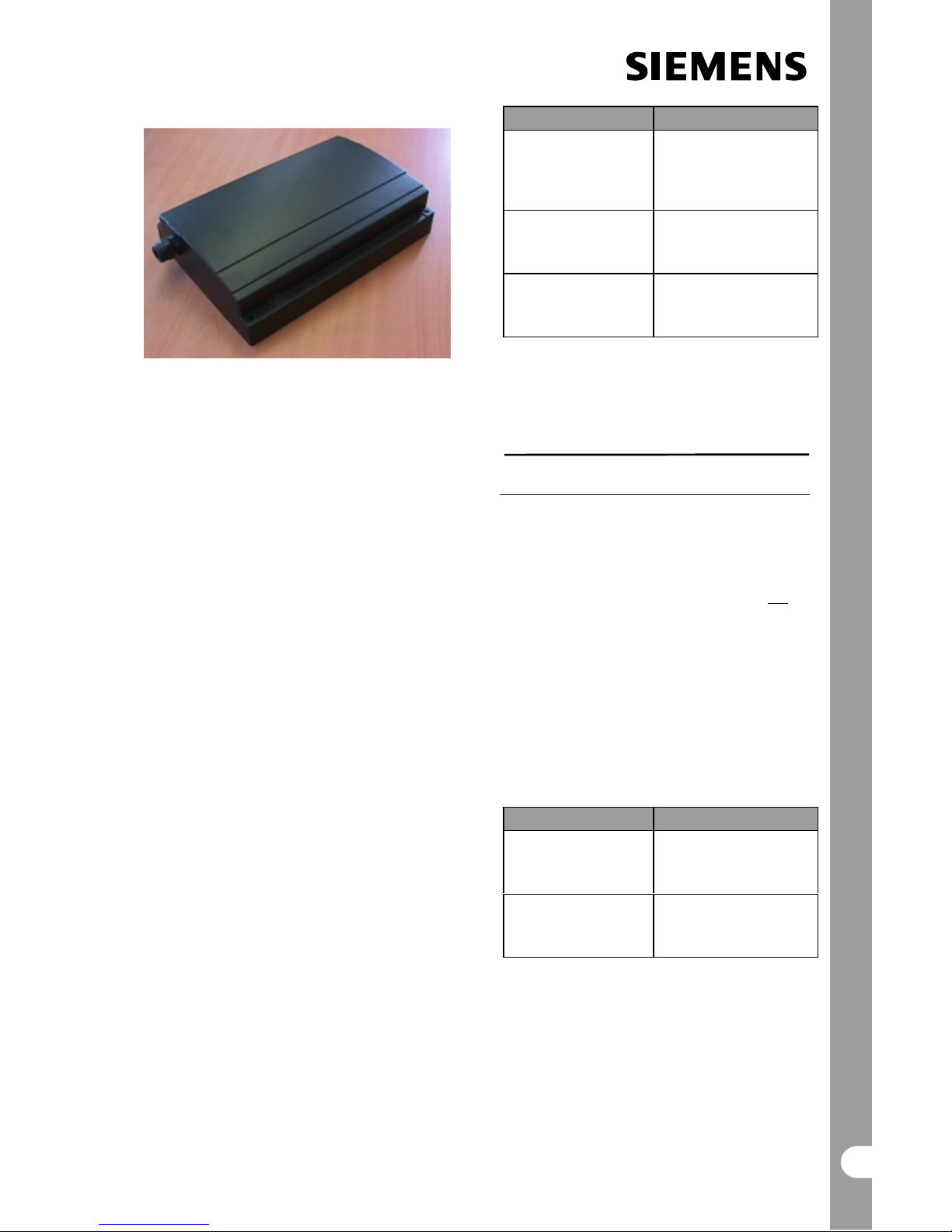

Electromechanical Brake Control

The electromechanical brake control, allows the COMBIMASTER to directly control an electromechanical brake. The brake control fits in place of the standard cover for the inverter unit. Full IP65 environmental protection is maintained. The unit provides an output to drive the coil of a DC electromechanical brake. It can be configured for both fast, and slow operation of the coil. The unit is set up using the parameters P062, P063 and P064, which allows full control of the brake release time, and brake stopping time.

Brake coil voltage output will be 180VDC for 400V mains input, and 205VDC for 230V mains input.

Note that the coil voltage for 400V units of 180VDC is not suitable for the standard Siemens electromechanical brake option G26. (refer to Siemens Catalogue M11)

For other mains voltages, the coil voltage will be:

0.9*Vmains for Vmains = 208V to 240V

0.45*Vmains for Vmains = 380V to 500V.

Designation Order No. Pulse Resistor Braking

Unit (including E-M brake control)

-CS B only

6SE9996 –0XA11

Electromechanical Brake Control Unit

-CS B

6SE9996 –0XA10

Electromechanical Brake Control Unit

-CS A*

6SE9996 –0XA07

Table 8: Brake Options Ordering Information

* Product release date expected August 1999, please contact your local Siemens sales office for further information.

7.5 Fan Assembly Options

Fan Assemblies are only required for the MICROMASTER Integrated Inverters.

A fan assembly unit is only required when the motor associated with the MMI unit does not include a special cutout in the Motor Fan Cowl (with the inverter heatsink positioned just above this cutout).

The following fan options can be ordered using either the Order Reference Number or added to the MICROMASTER Integrated Order Number using the option short code.

The fan assemblies can be customer fitted if required.

Designation Order No. Fan assembly

-for CS B

6SE9996 –0XA02 (Short Code - for

ordering: M41)

Fan assembly

-for CS A

6SE9996 –0XA01 (Short Code - for

ordering: M41)

Page 53

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

7.6 Motor Interface Plate Options

The Motor Interface Plate (MIP) arrangements differ between motor types and inverter case sizes. For a full description of the MIP options, please refer to section 9.2 of this document.

Ordering Information - Motor Interface Plates

Inverter Case Size Motor type MIP Type Motor Order Number

Frame Size

CS A 1LA7(Siemens) Specific 56 to 71 6SE9996-0XA51 CS A 1LA7 Specific 80 to 90 6SE9996-0XA52 CS B 1LA5 Specific 90 to 132 6SE9996-0XA40 CS B 1LA7 Specific 90 * CS B 1LA7 Specific 100 to 112 6SE9996-0XA41 CS B 1LA7 Specific 132 6SE9996-0XA42

CS A Any ‘Universal’ ** 6SE9996-0XA44 CS B Any ‘Universal’ ** *

* Not available at time of writing. **The above Universal MIPs will usually need additional simple ‘base plates’ to customise for a

specific motor - refer to the Section 9.2 for description.

Page 54

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

8. SPECIFICATIONS

8.1 Mechanical Data – Dimensional Drawings

COMBIMASTER - Case Size A

SG3

SG2

SG1

DIMENSION

min

10 10 10 10 10

180 187 178 239 268

157 164 155 216 245

134 141 132 193 222

108 115 106 167 196

76 83 74 135 164

199 206 224 247 265

160 160 160 160 160

48 55 46 107 136

205 244 269 303 361

122 122 122 122 122

66 66 66 66 66

230 237 255 278 296

SG3

SG2

SG1

56 63 71 80 90

MOTOR FRAME SIZE

Dimensions in mm For detailed Motor Dimension drawings, please refer to Siemens Catalogue M11 (ref.: E20002-

K1711-A101-A3-7600) , Section 8 Dimension Drawings.

Page 55

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

COMBIMASTER - Case Size B

MG2

SG3

SG2

SG1

MG2

MG1

213 262 262 298 10 10 10 10

MOTOR FRAME SIZE

361 424 445 506

TH CG

min

SG1

MG1

DIMENSION

SG3

SG2

90 100 112 132

317 333 357 396

171 171 171 171

243 243 243 243 249 265 289 323

120 169 169 205 156 205 205 241 181 230 230 266 193 242 242 278

90 139 139 175

86 86 86 86

269 285 309 348

Dimensions in mm. For detailed Motor Dimension drawings, please refer to Siemens Catalogue M11 (ref.: E20002-K1711-

A101-A3-7600), Section 8 Dimension Drawings.

Page 56

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

COMBIMASTER - Case Size A - Deep Cover

Deep Cover – used for Electromechanical Brake Control Unit & Class B Filter (400V only ) (for Dimension TH for Case Size A , please refer to table on Page 53)

TH+22

COMBIMASTER - Case Size B – Deep Covers

Deeper Covers: i) Resistor Brake (incl. Heatsink) ii) Mechanical Brake

(for Dimension TH for Case Size B , please refer to table on Page 54) For detailed Motor Dimension drawings, please refer to Siemens Catalogue M11 (ref.: E20002-K1711-

A101-A3-7600), Section 8 Dimension Drawings.

TH+30

TH+77

Dimensions in mm. For detailed Motor Dimension drawings, please refer to Siemens Catalogue M11 (ref.: E20002-K1711A101-A3-7600), Section 8 Dimension Drawings.

Page 57

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

MICROMASTER Integrated - Case Size A

122

133

111

122

160

132

109

Note : Deep Cover (used for Electromechanical With Normal Cover Brake Control unit

& Class B Filter – 400V only)

Dimensions in mm.

Page 58

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

MICROMASTER Integrated - Case Size B

171

211

171

164

123

10.0

103

134

171

243

With Pulse Resistor With Electromechanical With Normal Cover Brake Unit Cover Brake Unit Cover

(also used for : 4kw,5.5kW & 7.5kW class B filter units)

Dimensions in mm.

Page 59

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

COMBIMASTER Option – Profibus Module CB155

171

126

190

150

120

107

Dimensions in mm

Page 60

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

8.2 Electrical Data

General

Feature Specification

COMBIMASTER MICROMASTER Integrated

208-240V ± 10% 1/3 Phase 380-500V ± 10% 3 Phase *

208-240V±10% 1/3 Ph. 380-500V±10% 3 Ph. *

Mains voltage Torque derating required for < 380V

rms

* In case of unearthed mains please contact Siemens

Power Ranges 1AC 208-240V

3AC 208-240V 3AC 380-500V

0.12kW – 0.75kW

0.37kW – 7.5kW

Control Method V/f Input frequency: 47 Hz to 63 Hz Output frequency : CM : 0 Hz to 140 Hz (motor

dependent)

MMI: 0 Hz to 400 Hz

Setpoint resolution: 0.05 Hz Overload capability: 150% for 60 s, related to nominal current Protection against: Inverter overtemperature, Motor overtemperature

Overvoltage , Undervoltage

Locked Rotor, Motor pull-out

Standard Functions

DC Injection braking, also when motor stationary

4 quadrant operation

Programmable auto-restart following mai ns brea k or fault

Flying start for already spinning motor

2 programmable ramp generators (0-650s) each with S-curve

capability Local Setpoint Built – in potentiometer Digital Inputs 3 Analogue Input: 0/2 - 10 V

0 - 20 mA/4 - 20 mA

PI Input: 0 - 10 V

0 - 20 mA Analogue setpoint resolution: 10-bit Setpoint stability: Analogue < 1%

Digital < 0.02%

Motor temperature monitoring: l2t control

PTC input Ramp times: 0 - 650 s

1 relay 30 V DC / 1 AControl outputs:

WARNING

External inductive loads must be suppressed in an appropriate manner

(see Section 4.1 Electrical Installation – General

Wiring Guidelines – Paragraph. 4)

. Serial Interface: RS485 Inverter efficiency: 97% typical Operating temperature: -10oC to +40oC-10

C to +50oC Storage/transport temperature: -40oC to +70oC Humidity: 99% non-condensing Installation height above sea level: < 1000 m Degree of protection: IP55 IP65 Protective separation of circuits: Double insulation or protective screening Electro-magnetic compatibility (EMC): Optional EMC Filters to EN55011 Class A or B

See section 9.3 - EMC

Weights CS A: ca 3.5 Kg (depending on options selected)

CS B: ca 5.6 Kg (depending on options selected)

Page 61

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

8.3 De-rating Information

De-rating with altitude

500 1000 2000 3000 4000

100

Maximum rated input voltage %

Installation Altitude in m above sea level

500 1000 2000 3000 4000

100

Maximum rated continuous torque. (M/Mn) %.

Installation Altitude in m above sea level

De-rating with switching frequency De-rating with mains input voltage

100

Pulse Frequency kHz

4 8 16

230V Input units 400V Input units

Maximum rated continuous torque. (M/Mn) %.

345 350 360 370 380 390 400 400V Units 195 200 210 220 230 240 230V Units

100

Mains input voltage

Maximum rated continuous torque. (M/Mn) %

De-rating with temperature De-rating with inverter frequency

35 40 50 60 70

100

Ambient Temperature

Maximum rated continuous torque. (M/Mn) %

CM MMI

5 10 20 30 40 50 60

100

Inverter Frequency Hz

Maximum rated continuous torque. (M/Mn) %

Temperature Class F

Force Cooled Motors

Page 62

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

8.4 Technical Data - COMBIMASTER

CS A Low Voltage Single Phase Units

Model: CM12 CM25 CM37 CM55 CM75

Order Number: * 2 pole 4 pole

1UA7053-2B[z]0.

1UA7060-4B[z]0.

1UA7063-2B[z]0. 1UA7070-4B[z]0.

1UA7070-2B[z]0. 1UA7073-4B[z]0.

1UA7073-2B[z]0. 1UA7080-4B[z]0.

1UA7080-2B[z]0.

1UA7083-4B[z]0. Frame size: 2 pole 4 pole

56 63

63 71

71 71

71 80

80 80

Motor Output Rating:

0.12kW

0.16hp

0.25kW

0.33hp

0.37kW

0.49hp

0.55kW

0.73hp

0.75kw

1.0hp

Operating Input Voltage:

1∅ AC 208 – 240 V

rms

± 10%

Operating Input Frequency: 47 – 63 Hz

Output Frequency: 0 – 50Hz

Output Frequency with Opm2 or serial link:

2 pole 4 pole

0 – 100Hz 0 – 140Hz

Input Current: 1.8 A

rms

3.2 A

rms

4.6 A

rms

6.2 A

rms

8.2 A

rms

Mains fuse: 10 A 16 A Mains Lead cross-

section

1mm

1.5mm

* [z] = filter option: U = Unfiltered, A = Class A filter, B = Class B filter. Position 12 (shown as “.”) is for the construction type from the Siemens catalogue, M11 (Ref. No.E2002-K1711-A201-A 2-7600).

CS A Low Voltage Three Phase Units Model: CM12/2 CM25/2 CM37/2 CM55/2 CM75/2

Order Number: * 2 pole 4 pole

1UA7053-2BU1. 1UA7060-4BU1.

1UA7063-2BU1. 1UA7070-4BU1.

1UA7070-2BU1. 1UA7073-4BU1.

1UA7073-2BU1. 1UA7080-4BU1.

1UA7080-2BU1.

1UA7083-4BU1. Frame size: 2 pole 4 pole

56 63

63 71

71 71

71 80

80 80

Motor Output Rating:

0.12kW

0.16hp

0.25kW

0.33hp

0.37kW

0.49hp

0.55kW

0.73hp

0.75kw

1.0hp

Operating Input Voltage:

3∅ AC 208 – 240 V

rms

± 10%

Operating Input Frequency: 47 – 63 Hz

Output Frequency: 0 – 50Hz Output Frequency

with Opm2 or serial link:

2 pole 4 pole

0 – 100Hz 0 – 140Hz

Input Current: 1.1 A

rms

1.9 A

rms

2.7 A

rms

3.6 A

rms

4.7 A

rms

Mains fuse: 10 A Mains Lead cross-

section

1mm

* Note that these units are available Unfiltered only. Position 12 (shown as “.”) is for the construction type from the Siemens catalogue, M11 (Ref. No.E2002-K1711-A201-A 2-7600).

Page 63

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

CS A High Voltage Three Phase Units Model: CM37/3 CM55/3 CM75/3 CM110/3 CM150/3

Order Number: * 2 pole 4 pole

1UA7070-2B[zz]. 1UA7073-4B[zz].

1UA7073-2B[zz]. 1UA7080-4B[zz].

1UA7080-2B[zz]. 1UA7083-4B[zz].

1UA7083-2B[zz]. 1UA7090-4B[zz].

1UA7090-2C[zz].

1UA7096-4C[zz]. Frame size: 2 pole 4 pole

71 71

73 80

80 80

90S

90S 90L

Motor Output Rating:

0.37kW

0.49hp

0.55kW

0.73hp

0.75kW

1.0hp

1.1kW

1.5hp

1.5kW

2.0hp

Operating Input Voltage:

3∅ AC 380 – 500 V

rms

± 10% 3∅ AC 380 – 480 V

rms

± 10% (filtered units only)

Torque derating required for < 380Vrms

Operating Input Frequency: 47 – 63 Hz

Output Frequency: 0 – 50Hz Output Frequency

with Opm2 or serial link:

2 pole 4 pole

100 Hz 140Hz

100Hz 140Hz

Input Current: 2.2 A

rms

2.8 A

rms

3.7 A

rms

4.9 A

rms

5.9 A

rms

Mains fuse: 10 A Mains Lead cross-

section

1mm

* [zz] = filter option: U = Unfiltered, A = Class A filter, B = Class B filter and mains voltage code: 2 = 380 – 500V, 3 = 460 – 500V/60Hz .

Allowed combinations: A2, B2, U2 and U3. Position 12 (shown as “.”) is for the construction type from the Siemens catalogue, M11 (Ref. No. E2002-K1711-A201-A2-7600).

CS B High Voltage Three Phase Units

Model: CM150/3 CM220/3 CM300/3 CM400/3 CM550/3 CM750/3

Order Number: * 2 pole

4 pole

1UA7090-

2B[zz].

1UA7096-

4B[zz].

1UA7096-

2B[zz].

1UA7106-

4B[zz].

1UA7106-

2B[zz].

1UA7107-

4B[zz].

1UA7113-

2B[zz].

1UA7113-

4B[zz].

1UA7130-

2B[zz].

1UA7130-

4B[zz].

1UA7131-

2B[zz].

1UA7133-

2B[zz]. Frame size: 2 pole 4 pole

90S 90L

90L

100L

100L 100L

112M 112M

132S 132S

132S 132M

Motor Output Rating:

1.5kW

2.0hp

2.2kW

2.9hp

3.0kW

4.0hp

4.0kW

5.3hp

5.5kW

7.3hp

7.5kW

10.0hp

Operating Input Voltage:

3∅ AC 380 – 500 V

rms

± 10% (all units) 3∅ AC 380 – 480 V

rms

± 10% (filtered units only)

Torque derating required for < 380Vrms

Operating Input Frequency: 47 – 63 Hz

Output Frequency:

0 – 50Hz

Output Frequency with Opm2 or serial link:

2 pole 4 pole

100Hz 140Hz

90Hz

140Hz

90Hz

140Hz

Input Current: 3.5 A

rms

4.7 A

rms

6.4 A

rms

10.0 A

rms

12.2 A

rms

16.0 A

rms

Mains fuse: 10 A 16 A 20 A Mains Lead cross-

section

1mm

1.5mm

2.5mm

* [zz] = filter option: U = Unfiltered, A = Class A filter, B = Class B filter and mains voltage code: 2 = 380 – 500V, 3 = 460 – 500V/60Hz .

Allowed combinations: A2, B2, U2 and U3. Position 12 (shown as “.”) is for the construction type from the Siemens catalogue, M11 (Ref. No. E2002-K1711-A201-A2-7600.

Page 64

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

8.5 Technical Data - MICROMASTER Integrated

CS A Low Voltage Single Phase Units

Model: MI12 MI25 MI37 MI55 MI75

Order Number: * 6SE9610-

7BF[y]0-Z=C87

6SE9611-

5BF[y]0-Z=C87

6SE9612-

0BF[y]0-Z=C87

6SE9612-

6BF[y]0-Z=C87

6SE9613-4BF[y]0-

Z=C87

Motor Output Rating:

0.12kW

0.16hp

0.25kW

0.33hp

0.37kW

0.49hp

0.55kW

0.73hp

0.75kw

1.0hp

Operating Input Voltage:

1∅ AC 208 – 240 V

rms

± 10%

Operating Input Frequency: 47 – 63 Hz

Output Frequency: 0 – 50Hz Output Frequency

with Opm2 or serial link:

2 pole & 4 pole

0 – 400Hz

Input Current: 1. 8 A

rms

3.2 A

rms

4.6 A

rms

6.2 A

rms

8.2 A

rms

Mains Fuse: 10 A 16 A Mains Lead cross-

section

1mm

1.5mm

* [y] = filter option: 1 = Unfiltered, 5 = Class A filter, 6 = Class B filter.

CS A Low Voltage Three Phase Units

Model: MI12/2 MI25/2 MI37/2 MI55/2 MI75/2

Order Number: *

6SE9610-7CF10-

Z=C87

6SE9611-5CF10-

Z=C87

6SE9612-0CF10-

Z=C87

6SE9612-6CF10-

Z=C87

6SE9613-4CF10-

Z=C87

Motor Output Rating:

0.12kW

0.16hp

0.25kW

0.33hp

0.37kW

0.49hp

0.55kW

0.73hp

0.75kw

1.0hp

Operating Input Voltage:

3∅ AC 208 – 240 V

rms

± 10%

Operating Input Frequency: 47 – 63 Hz

Output Frequency: 0 – 50Hz

Output Frequency with Opm2 or serial link:

2 pole & 4 pole

0 – 400Hz

Input Current: 1.1 A

rms

1.9 A

rms

2.7 A

rms

3.6 A

rms

4.7 A

rms

Mains Fuse: 10 A Mains Lead cross-

section

1mm

* Note that these units are available Unfiltered only.

Page 65

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

CS A High Voltage Three Phase Units

Model: MI37/3 MI55/3 MI75/3 MI110/3 MI150/3

Order Number: *

6SE9611-

1DF[y]0-Z=C87

6SE9611-

4DF[y]0-Z=C87

6SE9611-

8DF[y]0-Z=C87

6SE9612-

7DF[y]0-Z=C87

6SE9613-

7DF[y]0-Z=C87

Motor Output Rating:

0.37kW

0.49hp

0.55kW

0.73hp

0.75kW

1.0hp

1.1kW

1.5hp

1.5kW

2.0hp

Operating Input Voltage:

3∅ AC 380 – 500 V

rms

± 10% (all units) 3∅ AC 380 – 480 V

rms

± 10% (filtered units only)

Operating Input Frequency: 47 – 63 Hz

Output Frequency: 0 – 50Hz

Output Frequency with Opm2 or serial link:

2 pole & 4 pole

0-400Hz

Input Current: 2.2 A

rms

2.8 A

rms

3.7 A

rms

4.9 A

rms

5.9 A

rms

Mains Fuse: 10 A Mains Lead cross-

section

1mm

* [y] = filter option: 1 = Unfiltered, 5 = Class A filter, 6 = Class B filter

CS B High Voltage Three Phase Units

Model: MI150/3 MI220/3 MI300/3 MI400/3 MI550/3 MI750/3

Order Number:*6SE9613-

7DD[y]0-

Z=C87

6SE9615-

8DD[y]0-

Z=C87

6SE9617-

3DD[y]0-

Z=C87

6SE9621-

1DD[y]0-

Z=C87

6SE9621-

3DD[y]0-

Z=C87

6SE9621-

7DD[y]0-

Z=C87

Motor Output Rating:

1.5kW

2.0hp

2.2kW

2.9hp

3.0kW

4.0hp

4.0kW

5.3hp

5.5kW

7.3hp

7.5kW

10.0hp

Operating Input Voltage:

3∅ AC 380 – 500 V

rms

± 10% (all units) 3∅ AC 380 – 480 V

rms

± 10% (filtered units only)

Operating Input Frequency:

47 – 63 Hz

Output Frequency: 0 – 50Hz

Output Frequency with Opm2 or serial link:

2 pole & 4 pole

0-400Hz

Input Current: 3.5 A

rms

4.7 A

rms

6.4 A

rms

10.0 A

rms

12.2 A

rms

16.0 A

rms

Mains Fuse: 10 A 16 A 20 A Mains Lead

cross-section

1mm

1.5mm

2.5mm

*[y] = filter option: 1 = Unfiltered, 5 = Class A filter, 6 = Class B filter.

Page 66

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

8.6 Output Current Ratings - MICROMASTER Integrated

The MICROMASTER Integrated is designed to be fitted to a motor, and in most cases, to use air from the motor fan for cooling of the inverter. For this reason it is not possible to specify continuous current ratings which will be achieved under all circumstances. This section provides information about the designed current ratings, and explains the factors which effect the continuous ratings achievable when the inverter is installed on a motor.

Introduction

There are two factors in the design of an inverter which define what curr ent can be delivered the motor : The first factor is the selection of electronic components. For example, the current rating of the transistors in the output stage of the inverter. This factor normally limits the peak (short time) current that the inverter can provide.

The second factor is the method of cooling of the inverter. Whenever current flows through a conductor, or an electronic component, heat is generated. The cooling method chosen for the inverter must be able to remove enough heat so that when the inverter is run at its maximum current rating

continuously

then

none of the components in the inverter exceed their rated operating temperatures. With a standard inverter, the cooling method is part of the design of the inverter, therefore it is possible to specify the continuous current ratings of the inverter when it is correctl y installed.

The cooling efficiency for MICROMASTER Integrated is dependant upon the motor to which it is fitted, and therefore the continuous current rating must be determined by thermal tests, when the inverter is fitted to the target motor.

Designed Current Ratings.

The following table gives the

designed

current ratings for the MICROMASTER Integrated. All the inverters are capable of short-term overload up to 150% of the values shown.

Power Ratings

Voltage Class 208 - 240V 380 - 500V

Type P(kW) P(Hp) I (A) KVA P(kW) P(Hp) I (A) KVA

MI12

0.12 0.16 0.8 0.32

MI25

0.25 0.33 1.7 0.67

MI37

0.37 0.50 2.3 0.91 0.37 0.50 1.1 0.76

MI55

0.55 0.75 3.0 1.2 0.55 0.75 1.4 0.97

MI75

0.75 1.00 3.9 1.5 0.75 1.00 1.9 1.3

MI110

1.10 1.50 2.7 1.9

MI150 CS A Inverter

1.50 2.00 3.75 2.6

MI150 CS B Inverter

1.50 2.00 4.0 2.8

MI220

2.20 3.00 5.9 4.0

MI300

3.00 4.00 7.7 5.2

MI400

4.00 5.30 10.2 7.0

MI550

5.50 7.30 13.2 9.0

MI750

7.50 10.0 17.0 12.0

Page 67

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Continuous Current Ratings.

As explained above, the continuous rating depends on the amount of cooling available for the inverter from the motor fan. This can be affected by one or more of the following:

Size of Motor Fan Cover Cutout

There must be a hole cut in the motor fan cover to allow air from the motor fan to be directed onto the inverter heatsink. The size and shape of this hole affects the airflow to the inverter.

Position of the Inverter

Ideally, the inverter should be positioned so that the hole in the motor fan cover is centered directly beneath the inverter heatsink. In addition, the vertical distance from the fan cover to the inverter heatsink should be as small as possible.

Motor Speed

When the motor fan is driven by the motor shaft, then a slower motor will have less air flow to the inverter.

Mains Voltage

When the 380 to 500V inverters are operated on a high mains voltage, there is normally more heat generated in the inverter. This will result in a lower continuous current rating. This is not normally a problem, because a motor operated at the higher voltage will require less current to deliver the same shaft power.

Page 68

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

9. SUPPLEMENTARY INFORMATION

9.1 Application Example

Set-up Procedure for a Simple Application

Application requirements: Normal operating frequency set within range 15 - 50 Hz via an

external potentiometer. Counter-clockwise rotation required. COMBIMASTER used: Any model. Procedure:

Remove the link (if fitted) between control terminals 5 and 8.

Connect a simple on/off switch to control terminals 6 and 8 for

reverse rotation.

Connect a 4.7 kΩ potentiometer to the control terminals

(see

Figure 4)

Set jumper JP301 (‘V’ - voltage) -

see Fig.3(CS A), Fig.2 (CS B)

Set the internal and external potentiometers fully counterclockwise and then apply mains power and switch on.

Turn the internal potentiometer clockwise until the motor rotates at

a speed that approximates to 15 Hz.

The external potentiometer now has a range of between 15 Hz at

its lowest setting and 50 Hz at its highest setting.

Page 69

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

9.2 Motor Interface Plates

Since approximately 01/99 all 1LA5 motors used with COMBIMASTER & MICROMASTER Integrated have been replaced with the 1LA7 equivalents. This has resulted in changes to the motor interface plates (MIP) used with Siemens Motors.

For each inverter case size there are now 3 basic types of motor interface plate: 1LA5

1LA7 ‘Universal’

The 1LA5 and 1LA7 interface plates are for use with the Siemens motors. The ‘Universal’ plate has been designed to simplify adapting the COMBIMASTER for other motors. In

most cases, the ‘Universal’ motor interface plate can be used with a simple flat metal ‘Base Plate’ and no tooling is required.

The following pages describe the MIPs.

Page 70

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Siemens 1LA5 Motor Case Size A Inverter

Topside

Underside

Description

Availability

Variants

Standard MIP for 1LA5 Motors and CS A inverters.

Discontinued

1 for all motor frame sizes – 6SE9996-0XA43

Siemens 1LA5 Motor Case Size B Inverter

Topside

Description

Variants

Standard MIP for 1LA5 motors and CS B Inverters

1 For all motor frame sizes – 6SE9996-0XA40

Page 71

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

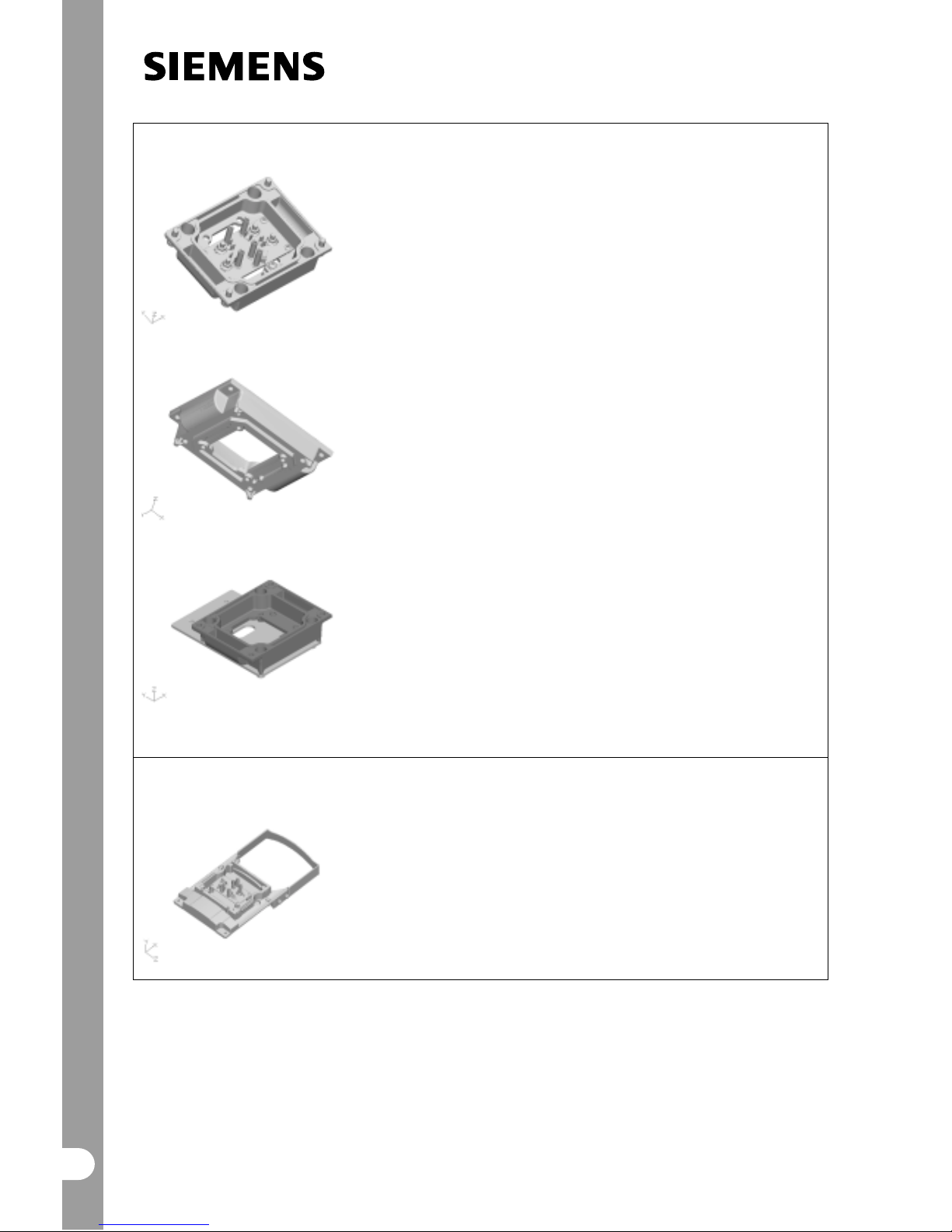

Siemens 1LA7 Motor Case Size A Inverter

Topside

Underside

Variant with base plate (Motor Frame Size 80,90)

Description

Variants

Standard MIP for 1LA7 Motors and CS A inverters. The variant for Motor frames 80 and 90 uses a base

plate (shown)

Motor Frame 56 to 71 – 6SE9996-0XA51 Motor Frame 80 to 90 – 6SE9996-0XA52

Siemens 1LA7 Motor Case Size B Inverter

Topside

Description

Variants

Standard MIP for 1LA7 Motors and CS B inverters.

Motor frame 90 -not available at time of

writing Motor Frame 100 & 112 – 6SE9996-0XA41 Motor Frame 132 – 6SE9996-0XA42

Page 72

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

‘Universal’ MIP Case Size A Inverter

Topside

Description

Variants

‘Universal’ MIP for non-Siemens motors, and CS A Inverters. It will normally be used with a simple flat metal base plate to adapt the MIP to the specific motor.

MIP Assembly – 6SE9996-0XA 44

‘Universal’ MIP Case Size B Inverter

Topside

Description

Availability

Variants

‘Universal’ MIP for non-Siemens motors, and CS B Inverters. It will normally be used with a simple flat metal base plate to adapt the MIP to the specific motor.

From August 1999

MIP Assembly : 6SE9996-0XA53.

Example base plate

Additional description avai lab le – ple as e look at page 7

Page 73

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

MIP PCB Assembly

Description

Variants

The motor interface plate PCB’s have been made available for customers who have designed their own MIP. They are supplied in order quantities of 50.

PCB for CS A inverters – 6SE9996-0XA47 PCB for CS B inverters – 6SE9996-0XA48

Order numbers are for 50 pieces.

Page 74

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

9.3 Electro-Magnetic Compatibility (EMC)

All manufacturers / assemblers of electrical apparatus which performs a complete intrinsic function which is placed on the market as a single unit intended for the end user must comply with the EMC directive EEC/89/336 after January 1996. There are three routes by which the manufacturer/assembler can demonstrate compliance:

1. Self-Certification

This is a manufacturer's declaration that the European standards applicable to the electrical environment for which the apparatus is intended have been met. Only

standards which have been officially published in the Official Journal of the European Community can be cited in the manufacturer's declaration.

Technical Construction File

A technical construction file can be prepared for the apparatus describing its EMC characteristics. This file must be approved by a ‘Competent Body’ appointed by the appropriate European government organisation. This approach allows the use of standards which are still in preparation.

EC Type-Examination Certificate

This approach is only applicable to radio communication transmitting apparatus.

The MICROMASTER Integrated units do not have an intrinsic function until connected with other components (e.g. a motor). Therefore, the basic units are not allowed to be CE marked for compliance with the EMC directive. However, full details are provided below of the EMC performance characteristics of the products when they are installed in accordance with the wiring recommendations in section 4.1 of this document.

Class 2: Filtered Industrial (Class A)

This level of performance will allow the manufacturer/assembler to self-certify their apparatus for compliance with the EMC directive for the industrial environment as regards the EMC performance characteristics of the power drive system. Performance limits are as specified in the Generic Industrial Emissions and Immunity standards EN 50081-2 and EN 50082-2.

EMC Phenomenon Standard Level

Emissions: (CM)

Radiated Emissions EN 55011 Level A1 Conducted Emissions EN 55011 Level A1

Immunity: (CM & MMI)

Supply Voltage Distortion IEC 1000-2-4 (1993) Voltage Fluctuations, Dips, Unbalance,

Frequency Variations

IEC 1000-2-1

Magnetic Fields EN 61000-4-8 50 Hz, 30 A/m Electrostatic Discharge EN 61000-4-2 8 kV air discharge Burst Interference EN 61000-4-4

2 kV power cables, 2 kV control

Radio Frequency Electromagnetic Field, amplitude modulated

ENV 50 140

27-1000 MHz, 10 V/m, 80% AM, power and signal lines

Page 75

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Class 3: Filtered - for residential, commercial and light industry (Class B)

This level of performance will allow the manufacturer / assembler to self-certify compliance of their apparatus with the EMC directive for the residential, commercial and light industrial environment as regards the EMC performance characteristics of the power drive system. Performance limits are as specified in the generic emission and immunity standards EN 50081-1 and EN 50082-1.

EMC Phenomenon Standard Level

Emissions: (CM)

Radiated Emissions EN 55022 Level B1 Conducted Emissions EN 55022 Level B1

Immunity: (CM & MMI)

Electrostatic Discharge EN 61000-4-2 8 kV air discharge Burst Interference EN 61000-4-4

1 kV power cables, 0.5 kV control

The COMBIMASTER is intended

exclusively for professional applications

. Therefore, it does not fall within the scope of the harmonics emissions specification EN 61000-3-2.

9.4 Environmental Aspects

Transport and Storage

Protect the COMBIMASTER/MMI against physical shocks and vibration during transport and storage. The unit must also be protected against water (rainfall) and excessive temperatures

(see section 6).

The packaging is re-usable. Retain the packaging or return it to the manufacturer for future use.

Dismantling and Disposal

The component parts can be recycled, disposed of in accordance with local requirements or returned to the manufacturer.

Documentation

This handbook is printed on chlorine-free paper which has been produced from managed sustainable forests. No solvents have been used in the printing or binding process.

Page 76

COMBIMASTER & MICROMASTER Integrated REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

9.5 Users Parameter Settings

Parameter Default Your setting

P000 P001

P002

10.00

P003

25.00

P004 0.0 P005

50.00

P006 1 P007

P009 0 P011

P012 0.00 P013

50.00

P014 0.00 P015

P016 0 P017

P018 0 P019

2.00

P020 25.00 P021

0.00

P022 50.00 P023

P024 0 P027

0.00

P028 0.00 P029

0.00

P031 5.00 P032

5.00

P033 10.00 P034

10.00

P035 0 P041

5.00

P042 10.00 P043

15.00

P044 20.00 P045

P046 25.00 P047

30.00

P048 35.00 P050

P051 1 P052

P053 10 P056

P058 0.0 P061

P062 0 P063

1.0

P064 1.0 P065

1.0

P071 0 P072

500

P073 0 P074

P076 0 or 2

Parameter Default Your setting

P077

P078 50 P079

P081

###

P082

###

P083

###

P084

###

P085

###

P086

150

P087 0 P089

###

P091 0 P092

P093

P094

50.00

P095 0 P099

P101 0 P111

###

P112 8 P113

P121 1 P122

P123 1 P124

P125 1 P131

P132 P133

P134 P135

P137 P140

P141 P142

P143 P151

P152 5 P201

P202 1.0 P203

0.00

P205 1 P206

P207 100 P208

P210 P211

0.00

P212 100.00 P220

P331 2 P332

P700 See PROFIBUS

handbook

P701

See PROFIBUS handbook

Page 77

COMBIMASTER & MICROMASTER Integrated

REFERENCE MANUAL

Siemens plc. 1999

| G85139-H1731-U300-D2

Parameter Default Your

setting

P702

See PROFIBUS handbook

P723

P845

P880

See PROFIBUS handbook

P910

P918

See PROFIBUS /CAN handbook [0]

P922

P923

P927

See PROFIBUS /CAN handbook [0]

P928

See PROFIBUS /CAN handbook [0]

P930

P931

P944 0 P947

See PROFIBUS handbook

P958 See PROFIBUS

handbook

Parameter Default Your

setting

P960 See PROFIBUS /CAN

handbook [0]

P962

See CAN handbook

P963 See CAN handbook P964

See CAN handbook

P965 See CAN handbook P966

See CAN handbook [0]

P967 See PROFIBUS

handbook

P968

See PROFIBUS handbook

P969

See CAN handbook

P971

P986

###

- Value depends on rating of the inverter

Page 78

For Technical Support Information, and to submit your suggestions for improvements,

see our Web Site:

http://www.con.siemens.co.uk

Herausgegeben vom Bereich Automatisierungsund Antriebstechnik (A&D) Geschäftsgebiet Standard Drives Postfach 3269, D-91050 Erlangen

Issued by Siemens plc Drives and Standard Products Group Siemens House Varey Road Congleton Cheshire CW12 1PH England

G85139-H1731-U300-D2 August 1999 English

Änderungen vorbehalten

Order Number: 6SE 9996- 0XA35

Specification subject to change without prior notice

Excellence in

Automation

& Drives:

Siemens
