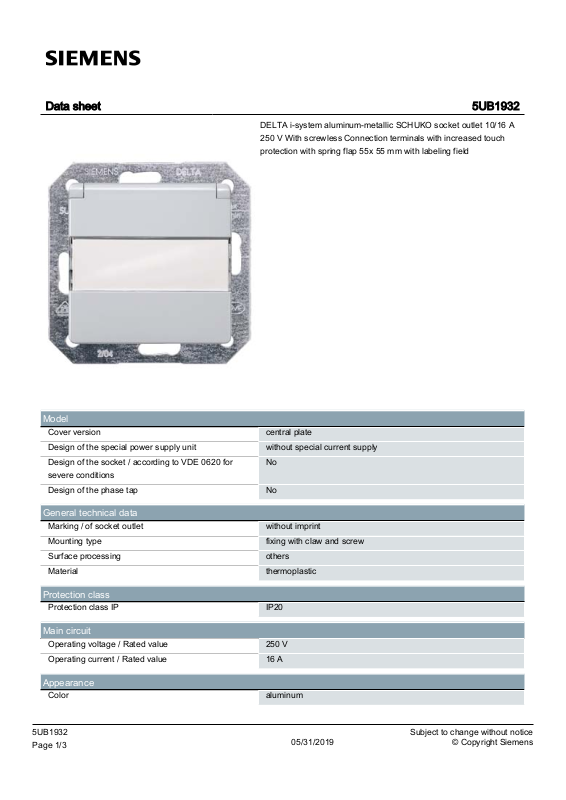

Siemens 5UB1932 data sheet
Data sheet |
5UB1932 |
DELTA i-system aluminum-metallic SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with increased touch protection with spring flap 55x 55 mm with labeling field
Model
Cover version
Design of the special power supply unit
Design of the socket / according to VDE 0620 for severe conditions
Design of the phase tap
central plate
without special current supply
No
No
General technical data
Marking / of socket outlet
Mounting type
Surface processing
Material
without imprint
fixing with claw and screw
others
thermoplastic
Protection class
Protection class IP |
IP20 |
|
|
Main circuit
Operating voltage / Rated value |
250 V |
|
|
Operating current / Rated value |
16 A |
|
|
Appearance
|
Color |
aluminum |
|
|
|
|
|
||
5UB1932 |
05/31/2019 |
Subject to change without notice |
||
Page 1/3 |
© Copyright Siemens |
|||
|
|
|
||
Product details
Product component |
|
● Ejection equipment |
No |
|
|
● Labeling field |
Yes |
● Increased touch protection |
Yes |
● Fault current protection |
No |
● miniature fuse |
No |
● Integrated / functional lighting |
No |
|
|
● Integrated / Light source |
No |
● Integrated / orientation lighting |
No |
● Hinged lid |
Yes |
|
|
Product feature |
|
● lockable |
No |
● halogen-free |
Yes |
|
|
● transparent |
No |
|
|
Product function
Product function
● Socket selectable |
No |
● Overvoltage protection |
|
No |
Number
Number of units |
1 |
|
|
Number of sockets / switchable |
0 |
|
|
Connections
Arrangement of contacts / diagonal |
No |
|
plug terminal |
Type of electrical connection |
|
|
|
Mechanical Design
Height
Width
Depth
Mounting type
Material / of the enclosure
70 mm
70 mm
45 mm
flush mounted
plastic
Certificates
General Product Approval |
Test Certificates |
Type Test |
|
Miscellaneous |
Certificates/Test Report
Further information
5UB1932 |
05/31/2019 |
Subject to change without notice |
Page 2/3 |
© Copyright Siemens |
|
|
|
