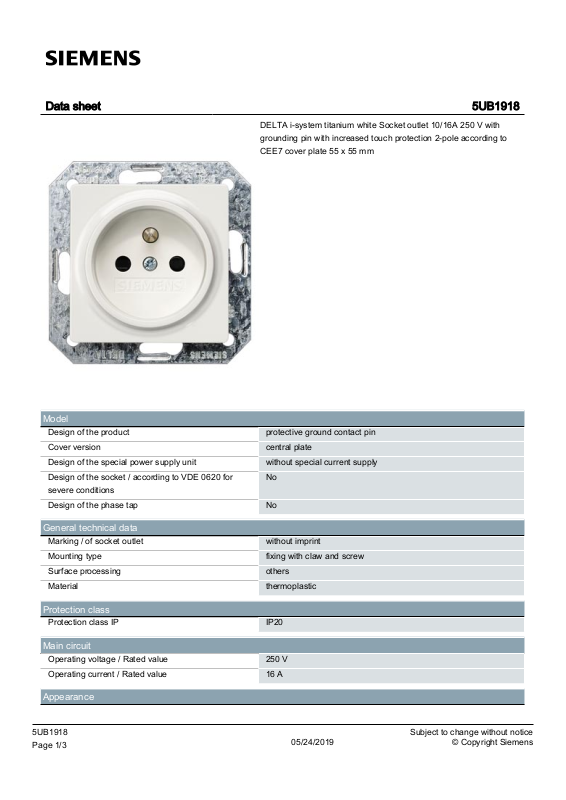

Siemens 5UB1918 Data sheet
Data sheet |
5UB1918 |
DELTA i-system titanium white Socket outlet 10/16A 250 V with grounding pin with increased touch protection 2-pole according to CEE7 cover plate 55 x 55 mm
Model
Design of the product
Cover version
Design of the special power supply unit
Design of the socket / according to VDE 0620 for severe conditions
Design of the phase tap
protective ground contact pin
central plate
without special current supply
No
No
General technical data
Marking / of socket outlet
Mounting type
Surface processing
Material
without imprint
fixing with claw and screw
others
thermoplastic
Protection class
Protection class IP |
IP20 |
|
|
Main circuit
|
Operating voltage / Rated value |
250 V |
|
|
|
|
16 A |
|
|
|
Operating current / Rated value |
|
|
|
|
|
|
|
|
|
Appearance |
|
|
|
|
|
|
||
5UB1918 |
05/24/2019 |
Subject to change without notice |
||
Page 1/3 |
© Copyright Siemens |
|||
|
|
|
||
Color |
white |
|
|
Product details
Product component |
|
|
|
● Ejection equipment |
No |
● Labeling field |
No |
● Increased touch protection |
Yes |
● Fault current protection |
No |
● miniature fuse |
No |
|
|
● Integrated / functional lighting |
No |
● Integrated / Light source |
No |
● Integrated / orientation lighting |
No |
● Hinged lid |
No |
|
|
Product feature |
|
● lockable |
No |
|
|
● halogen-free |
Yes |
● transparent |
No |
|
|
Product function
Product function
● Socket selectable |
No |
● Overvoltage protection |
|
No |
Number
Number of units |
1 |
|
0 |
Number of sockets / switchable |
|
|
|
Connections
Arrangement of contacts / diagonal |
No |
|
plug terminal |
Type of electrical connection |
|
|
|
Mechanical Design
Height
Width
Depth
Mounting type
Material / of the enclosure
70 mm
70 mm
45 mm
flush mounted
plastic
Certificates
General Product Approval |
Test Certificates |
Type Test |
|
Miscellaneous |
Certificates/Test Report
5UB1918 |
05/24/2019 |
Subject to change without notice |
Page 2/3 |
© Copyright Siemens |
|
|
|
