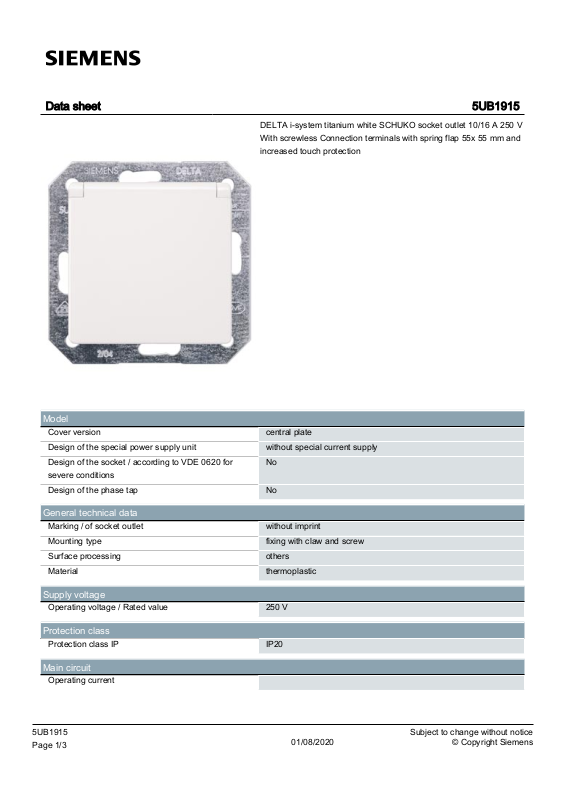

Data sheet 5UB1915
3
DELTA i-system titanium white SCHUKO socket outlet 10/16 A 250 V
With screwless Connection terminals with spring flap 55x 55 mm and
increased touch protection
Model
Cover version central plate
Design of the special power supply unit without special current supply
Design of the socket / according to VDE 0620 for
severe conditions
Design of the phase tap No
No
General technical data
Marking / of socket outlet without imprint
Mounting type fixing with claw and screw
Surface processing others
Material thermoplastic
Supply voltage
Operating voltage / Rated value 250V
Protection class
Protection class IP IP20
Main circuit
Operating current
5UB1915 Subject to change without notice
Page 1/
01/08/2020 © Copyright Siemens
● Rated value
3
16A
Appearance
Color white
Product details
Product component
● Ejection equipment
● Labeling field
● Increased touch protection
● Fault current protection
● miniature fuse
● Integrated / functional lighting
● Integrated / Light source
● Integrated / orientation lighting
● Hinged lid
Product feature
● lockable
● halogen-free
● transparent
No
No
Yes
No
No
No
No
No
Yes
No
Yes
No
Product function
Product function
● Socket selectable
● Overvoltage protection
No
No
Number
Number of units 1
Number of sockets / switchable 0
Connections
Arrangement of contacts / diagonal No
Type of electrical connection plug terminal
Mechanical Design
Height 70mm
Width 70mm
Depth 45mm
Mounting type flush mounted
Material / of the enclosure plastic
Certificates
5UB1915 Subject to change without notice
Page 2/
01/08/2020 © Copyright Siemens
