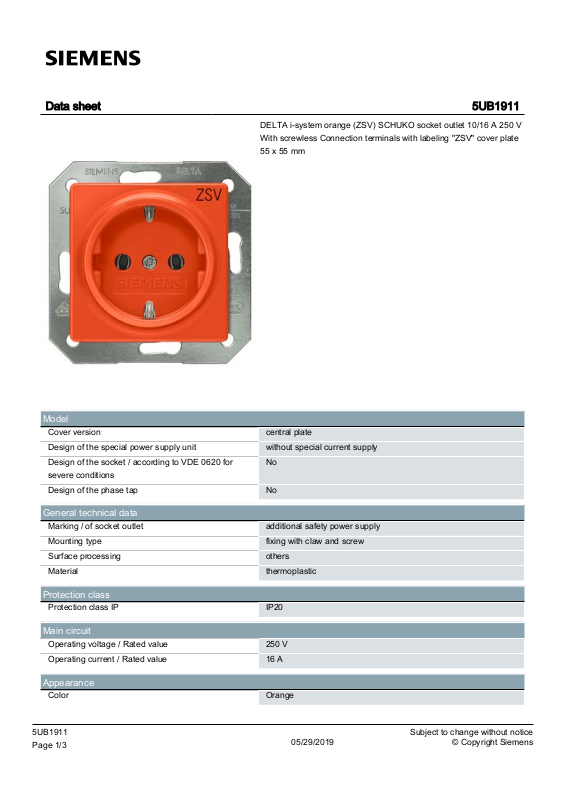

Data sheet 5UB1911
3
DELTA i-system orange (ZSV) SCHUKO socket outlet 10/16 A 250 V
With screwless Connection terminals with labeling "ZSV" cover plate
55 x 55 mm
Model
Cover version central plate
Design of the special power supply unit without special current supply
Design of the socket / according to VDE 0620 for
severe conditions
Design of the phase tap No
No
General technical data
Marking / of socket outlet additional safety power supply
Mounting type fixing with claw and screw
Surface processing others
Material thermoplastic
Protection class
Protection class IP IP20
Main circuit
Operating voltage / Rated value 250V
Operating current / Rated value 16A
Appearance
Color Orange
5UB1911 Subject to change without notice
Page 1/
05/29/2019 © Copyright Siemens
Product details
3
Product component
● Ejection equipment
● Labeling field
● Increased touch protection
● Fault current protection
● miniature fuse
● Integrated / functional lighting
● Integrated / Light source
● Integrated / orientation lighting
● Hinged lid
Product feature
● lockable
● halogen-free
● transparent
Product function
Product function
● Socket selectable
● Overvoltage protection
No
No
No
No
No
No
No
No
No
No
Yes
No
No
No
Number
Number of units 1
Number of sockets / switchable 0
Connections
Arrangement of contacts / diagonal No
Type of electrical connection plug terminal
Mechanical Design
Height 70mm
Width 70mm
Depth 45mm
Mounting type flush mounted
Material / of the enclosure plastic
Certificates
General Product Approval Test Certificates
Type Test
Certificates/Test Report
Miscellaneous
Further information
5UB1911 Subject to change without notice
Page 2/
05/29/2019 © Copyright Siemens
Information- and Downloadcenter (Catalogs, Brochures,…)
3
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system)
https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5UB1911
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
https://support.industry.siemens.com/cs/ww/en/ps/5UB1911
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5UB1911
CAx-Online-Generator
http://www.siemens.com/cax
Tender specifications
http://www.siemens.com/specifications
