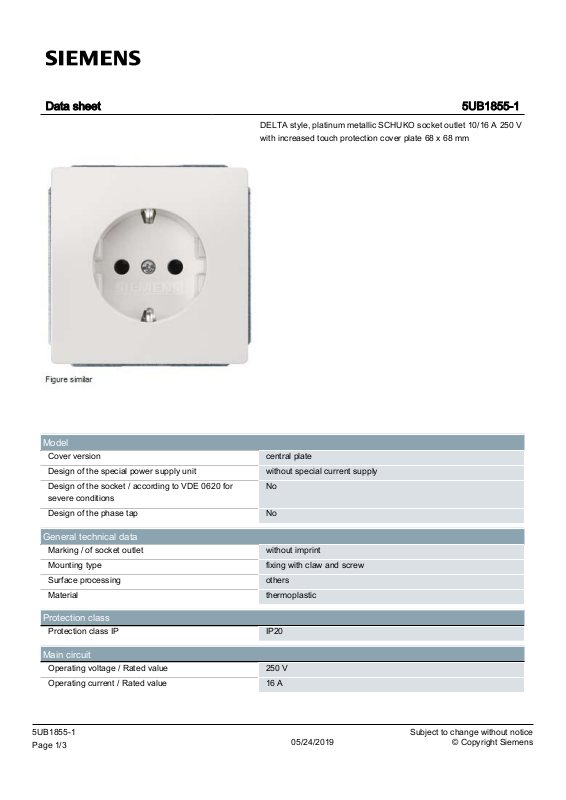

Siemens 5UB1855-1 data sheet
Data sheet 5UB1855-1
3
DELTA style, platinum metallic SCHUKO socket outlet 10/16 A 250 V
with increased touch protection cover plate 68 x 68 mm
Model
Cover version central plate
Design of the special power supply unit without special current supply
Design of the socket / according to VDE 0620 for
severe conditions
Design of the phase tap No
No
General technical data
Marking / of socket outlet without imprint
Mounting type fixing with claw and screw
Surface processing others
Material thermoplastic
Protection class
Protection class IP IP20
Main circuit
Operating voltage / Rated value 250V
Operating current / Rated value 16A
5UB1855-1 Subject to change without notice
Page 1/
05/24/2019 © Copyright Siemens
Appearance
3
Color platinum metallic
Product details
Product component
● Ejection equipment
● Labeling field
● Increased touch protection
● Fault current protection
● miniature fuse
● Integrated / functional lighting
● Integrated / Light source
● Integrated / orientation lighting
● Hinged lid
Product feature
● lockable
● halogen-free
● transparent
No
No
Yes
No
No
No
No
No
No
No
Yes
No
Product function
Product function
● Socket selectable
● Overvoltage protection
No
No
Number
Number of units 1
Number of sockets / switchable 0
Connections
Arrangement of contacts / diagonal No
Type of electrical connection plug terminal
Mechanical Design
Height 70mm
Width 70mm
Depth 45mm
Mounting type flush mounted
Material / of the enclosure plastic
Certificates
5UB1855-1 Subject to change without notice
Page 2/
05/24/2019 © Copyright Siemens
