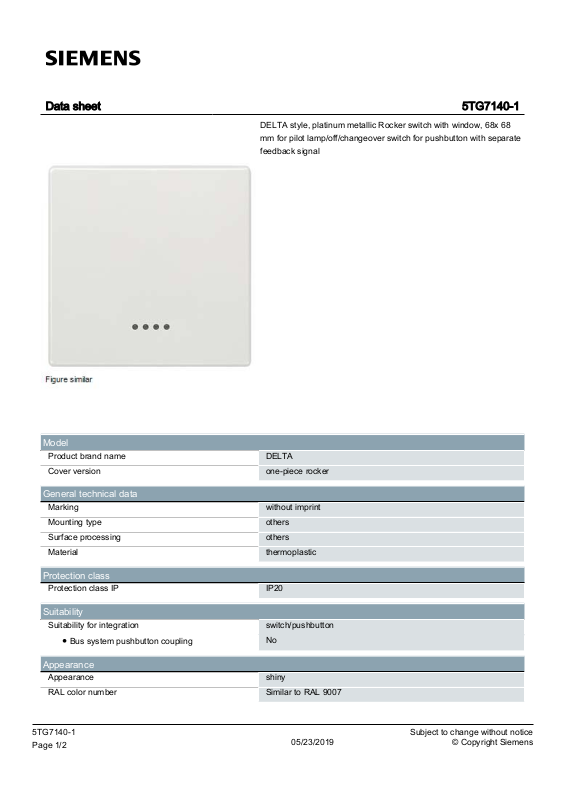

Data sheet |
5TG7140-1 |
DELTA style, platinum metallic Rocker switch with window, 68x 68 mm for pilot lamp/off/changeover switch for pushbutton with separate feedback signal
Model
Product brand name
Cover version
DELTA
one-piece rocker
General technical data
Marking
Mounting type
Surface processing
Material
without imprint
others
others
thermoplastic
Protection class
Protection class IP |
IP20 |
|
|
Suitability
Suitability for integration |
switch/pushbutton |
● Bus system pushbutton coupling |
No |
|
|
Appearance
Appearance
RAL color number
shiny
Similar to RAL 9007
5TG7140-1 |
05/23/2019 |
Subject to change without notice |
Page 1/2 |
© Copyright Siemens |
|
|
|
Color |
platinum |
|
|
Product details
Product feature / Control window |
Yes |
|
|
Product component |
|
● Replaceable lens |
No |
● Labeling field |
No |
|
Yes |
Product feature / halogen-free |
|
|
|
Mechanical Design
Material / of cover for switch pushbutton dimmer |
plastic |
|
|
Further information
Informationand Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system) https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG7140-1
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) https://support.industry.siemens.com/cs/ww/en/ps/5TG7140-1
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...) http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG7140-1
CAx-Online-Generator
http://www.siemens.com/cax
Tender specifications
http://www.siemens.com/specifications
