Siemens 5TG6225 data sheet

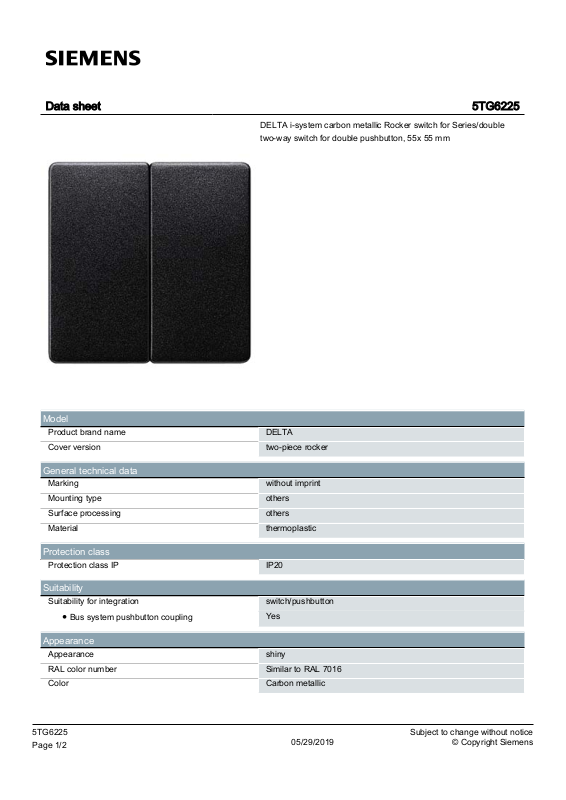

Data sheet 5TG6225

DELTA i-system carbon metallic Rocker switch for Series/double

two-way switch for double pushbutton, 55x 55 mm

Model

Product brand name DELTA

Cover version two-piece rocker

General technical data

Marking without imprint

Mounting type others

Surface processing others

Material thermoplastic

Protection class

Protection class IP IP20

Suitability

Suitability for integration switch/pushbutton

● Bus system pushbutton coupling

Yes

Appearance

Appearance shiny

RAL color number Similar to RAL 7016

Color Carbon metallic

5TG6225 Subject to change without notice

Page 1/

05/29/2019 © Copyright Siemens

Product details

Product feature / Control window No

Product component

● Replaceable lens

● Labeling field

Product feature / halogen-free Yes

Mechanical Design

Material / of cover for switch pushbutton dimmer plastic

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system)

https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG6225

Service&Support (Manuals, Certificates, Characteristics, FAQs,...)

https://support.industry.siemens.com/cs/ww/en/ps/5TG6225

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)

http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG6225

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://www.siemens.com/specifications
