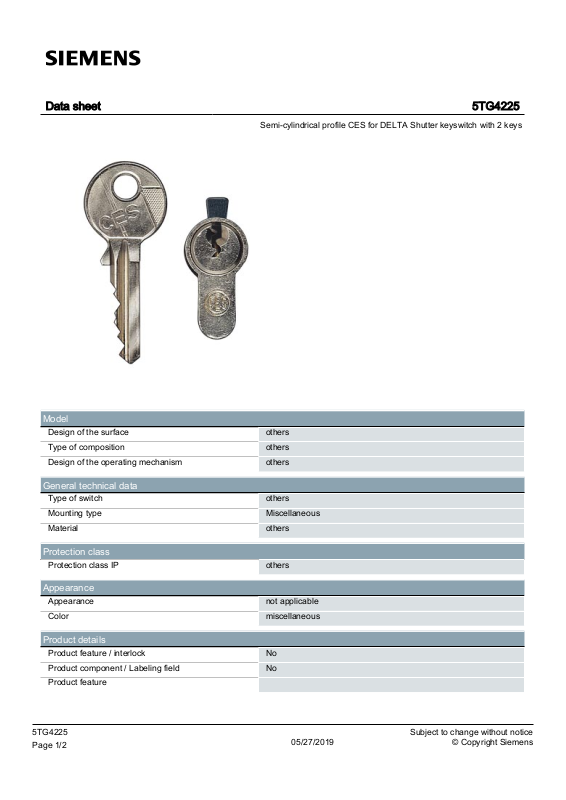

Siemens 5TG4225 data sheet

Data sheet 5TG4225

2

Semi-cylindrical profile CES for DELTA Shutter keyswitch with 2 keys

Model

Design of the surface others

Type of composition others

Design of the operating mechanism others

General technical data

Type of switch others

Mounting type Miscellaneous

Material others

Protection class

Protection class IP others

Appearance

Appearance not applicable

Color miscellaneous

Product details

Product feature / interlock No

Product component / Labeling field No

Product feature

5TG4225 Subject to change without notice

Page 1/

05/27/2019 © Copyright Siemens

● halogen-free

2

Yes

Product function

Product function

● electronic operation

● Mechanical operation

No

Yes

Mechanical Design

Mounting type others

Material / of the enclosure metal

Certificates

Reference code

● acc. to DIN EN 61346-2

Q

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system)

https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG4225

Service&Support (Manuals, Certificates, Characteristics, FAQs,...)

https://support.industry.siemens.com/cs/ww/en/ps/5TG4225

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)

http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG4225

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://www.siemens.com/specifications
