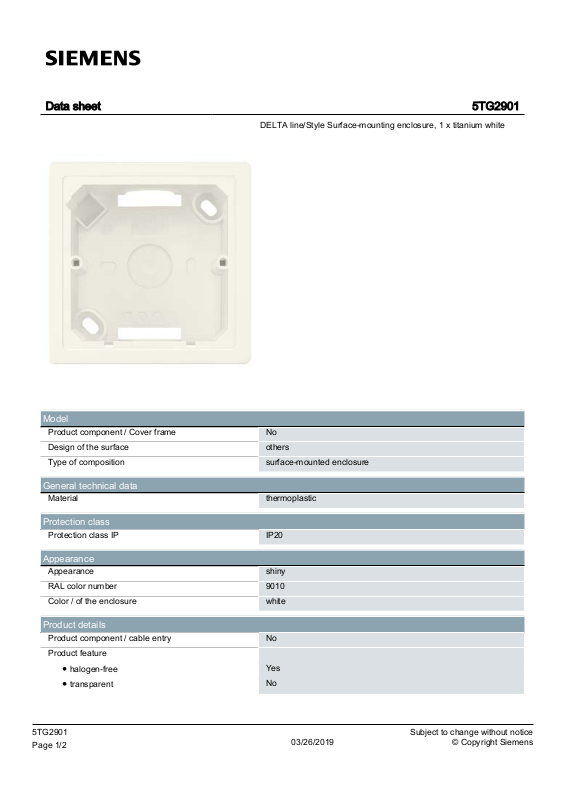

Siemens 5TG2901 data sheet

Data sheet 5TG2901

2

DELTA line/Style Surface-mounting enclosure, 1 x titanium white

Model

Product component / Cover frame No

Design of the surface others

Type of composition surface-mounted enclosure

General technical data

Material thermoplastic

Protection class

Protection class IP IP20

Appearance

Appearance shiny

RAL color number 9010

Color / of the enclosure white

Product details

Product component / cable entry No

Product feature

● halogen-free

● transparent

Yes

No

5TG2901 Subject to change without notice

Page 1/

03/26/2019 © Copyright Siemens

Number

2

Number of units 1

Mechanical Design

Height 84mm

Depth 42.5mm

Mounting position horizontal and vertical

Material / of the enclosure plastic

Certificates

Reference code

● acc. to DIN EN 61346-2

U

General Product Approval

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system)

https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG2901

Service&Support (Manuals, Certificates, Characteristics, FAQs,...)

https://support.industry.siemens.com/cs/ww/en/ps/5TG2901

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)

http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG2901

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://www.siemens.com/specifications
