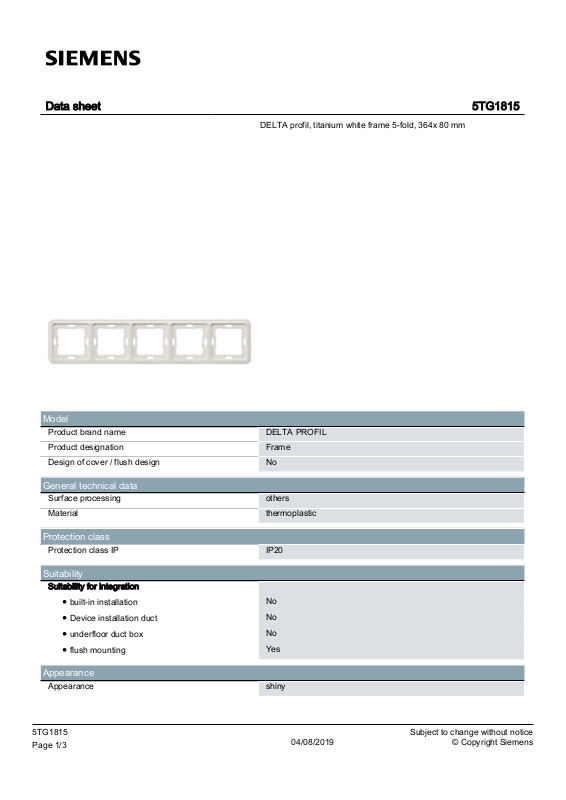

Data sheet |
5TG1815 |
DELTA profil, titanium white frame 5-fold, 364x 80 mm
Model
Product brand name
Product designation
Design of cover / flush design
DELTA PROFIL
Frame
No
General technical data
Surface processing |
others |
|
thermoplastic |
Material |
|
|
|
Protection class
Protection class IP |
IP20 |
|
|
Suitability
Suitability for integration |
|
● built-in installation |
No |
● Device installation duct |
No |
● underfloor duct box |
No |
|
|
● flush mounting |
Yes |
|
|
Appearance
Appearance |
shiny |
|
|
5TG1815 |
04/08/2019 |
Subject to change without notice |
Page 1/3 |
© Copyright Siemens |
|
|
|
RAL color number |
9010 |
|
anthracite |
Color |
|
|
|
Product details
Product component |
|
● Labeling field |
No |
● Hinged lid |
No |
|
|
Product feature |
|
● halogen-free |
Yes |
|
|
● transparent |
No |
|
|
Number
Number of units |
5 |
|
|
Mechanical Design
Height
Width
Mounting position
(mounting type)
Material / of cover frame
364 mm
80 mm
horizontal and vertical
terminal mounting
plastic
Certificates
General Product Approval |
Test Certificates |
Miscellaneous
Further information
Informationand Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system) https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG1815
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) https://support.industry.siemens.com/cs/ww/en/ps/5TG1815
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...) http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG1815
CAx-Online-Generator
http://www.siemens.com/cax
Tender specifications
http://www.siemens.com/specifications
