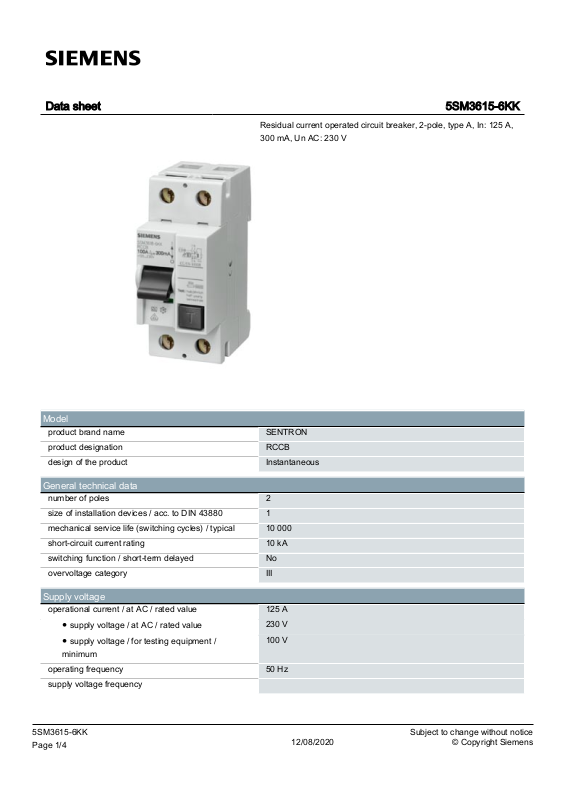

Siemens 5SM3615-6KK data sheet [de]
Data sheet 5SM3615-6KK
4
Residual current operated circuit breaker, 2-pole, type A, In: 125 A,
300 mA, Un AC: 230 V
Model
product brand name SENTRON
product designation RCCB
design of the product Instantaneous
General technical data
number of poles 2
size of installation devices / acc. to DIN 43880 1
mechanical service life (switching cycles) / typical 10000
short-circuit current rating 10kA
switching function / short-term delayed No
overvoltage category III
Supply voltage
operational current / at AC / rated value 125A
● supply voltage / at AC / rated value
● supply voltage / for testing equipment /
minimum
operating frequency 50Hz
supply voltage frequency
230 V
100V
5SM3615-6KK Subject to change without notice
Page 1/
12/08/2020 © Copyright Siemens
● rated value
4
50 Hz
Protection class
protection class IP IP20, if the distribution board is installed, with connected
conductors
Switching capacity
switching capacity current
● acc. to EN 60898 / rated value
● according to IEC 61008-1 / rated value
1.25kA
1.25kA
Current
tripping fault current / rated value 300mA
residual current type A
surge current resistance / rated value 1kA
Product details
product feature / silicon-free Yes
product extension / installable / supplementary
devices
Yes
Connections
connectable conductor cross-section / solid
● minimum
● maximum
connectable conductor cross-section / stranded
● minimum
● maximum
tightening torque / with screw-type terminals
● minimum
● maximum
position / of power supply cord top or bottom
1.5mm²
50mm²
1.5mm²
50mm²
3N·m
3.5N·m
Mechanical Design
height 90mm
width 36mm
depth 70mm
installation depth 70mm
number of modular width units 2
fastening method DIN rail (REG)
mounting position any
net weight 245g
Environmental conditions
ambient temperature / during operation
● minimum
● maximum
5SM3615-6KK Subject to change without notice
Page 2/
-25°C
45°C
12/08/2020 © Copyright Siemens
