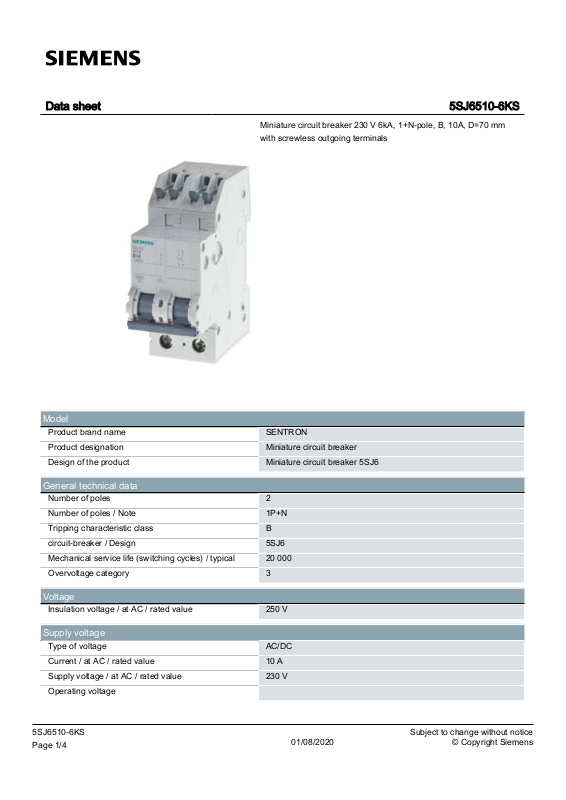

Data sheet 5SJ6510-6KS
4
Miniature circuit breaker 230 V 6kA, 1+N-pole, B, 10A, D=70 mm
with screwless outgoing terminals
Model
Product brand name SENTRON
Product designation Miniature circuit breaker
Design of the product Miniature circuit breaker 5SJ6
General technical data
Number of poles 2
Number of poles / Note 1P+N
Tripping characteristic class B
circuit-breaker / Design 5SJ6
Mechanical service life (switching cycles) / typical 20000
Overvoltage category 3
Voltage
Insulation voltage / at AC / rated value 250V
Supply voltage
Type of voltage AC/DC
Current / at AC / rated value 10A
Supply voltage / at AC / rated value 230V
Operating voltage
5SJ6510-6KS Subject to change without notice
Page 1/
01/08/2020 © Copyright Siemens
● at DC / rated value / maximum
4
Supply voltage frequency
● rated value
60V
50Hz
Protection class
Protection class IP IP20, with connected conductors
Switching capacity
Switching capacity current
● acc. to EN 60898 / rated value
● acc. to IEC 60947-2 / rated value
Energy limiting class 3
6kA
6kA
Dissipation
Power loss [W] / for rated value of the current / at AC
/ in hot operating state / per pole
Suitability for operation Residential buildings/infrastructure
1.5W
Product details
Product function / neutral conductor switching Yes
Product feature / Touch protection Yes
Product feature
● halogen-free
● sealable
● silicon-free
Yes
Yes
Yes
Connections
Connectable conductor cross-section / on plug-type
connection / using the upper clamping point / without
core end processing
● minimum
● maximum
Connectable conductor cross-section / stranded
● minimum
● maximum
Connectable conductor cross-section / finely
stranded / with core end processing
● minimum
● maximum
Type of electrical connection / Plug-in terminals /
Note
1.5mm²
4mm²
0.75mm²
25mm²
1.5mm²
2.5mm²
Screwless terminals on the outgoing side for 1.5 to 4mm²
Mechanical Design
Height 90mm
Width 36mm
Depth 76mm
Installation depth 70mm
5SJ6510-6KS Subject to change without notice
Page 2/
01/08/2020 © Copyright Siemens
Number of width units 2
4
Mounting position any
Environmental conditions
Influence of the surrounding temperature Periodically +55°C, max. 95% humidity
Ambient temperature
● minimum
● maximum
-25°C
45°C
Ambient temperature / during storage
● minimum
● maximum
-40°C
75°C
Certificates
Reference code
● acc. to DIN EN 61346-2
● acc. to DIN EN 81346-2
F
F
General Product Approv-alDeclaration of Conform-
Test Certificates
ity
Miscellaneous
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system)
https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5SJ6510-6KS
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
https://support.industry.siemens.com/cs/ww/en/ps/5SJ6510-6KS
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5SJ6510-6KS
CAx-Online-Generator
http://www.siemens.com/cax
Tender specifications
http://www.siemens.com/specifications
