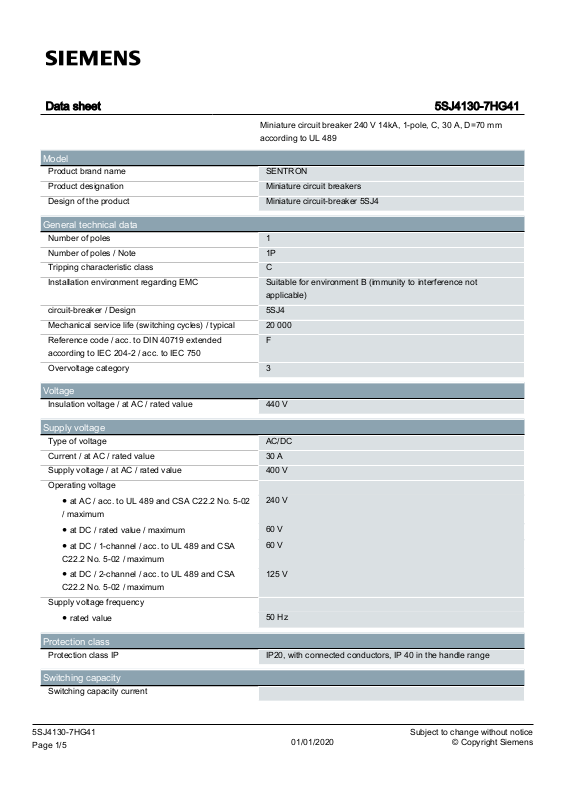

Siemens 5SJ4130-7HG41 data sheet
Data sheet |
5SJ4130-7HG41 |
Miniature circuit breaker 240 V 14kA, 1-pole, C, 30 A, D=70 mm according to UL 489
Model
Product brand name
Product designation
Design of the product
SENTRON
Miniature circuit breakers
Miniature circuit-breaker 5SJ4
General technical data
Number of poles |
1 |
|
|
Number of poles / Note |
1P |
|
C |
Tripping characteristic class |
|
|
Suitable for environment B (immunity to interference not |
Installation environment regarding EMC |
|
|
applicable) |
|
5SJ4 |
circuit-breaker / Design |
|
|
20 000 |
Mechanical service life (switching cycles) / typical |
|
|
|
Reference code / acc. to DIN 40719 extended |
F |
according to IEC 204-2 / acc. to IEC 750 |
|
|
3 |
Overvoltage category |
|
|
|
Voltage
Insulation voltage / at AC / rated value |
440 V |
|
|
Supply voltage
Type of voltage
Current / at AC / rated value
Supply voltage / at AC / rated value
Operating voltage
●at AC / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum
●at DC / rated value / maximum
●at DC / 1-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum
●at DC / 2-channel / acc. to UL 489 and CSA C22.2 No. 5-02 / maximum
Supply voltage frequency
● rated value
AC/DC
30 A
400 V
240 V
60 V
60 V
125 V
50 Hz
Protection class
Protection class IP |
IP20, with connected conductors, IP 40 in the handle range |
|
|
Switching capacity
Switching capacity current
5SJ4130-7HG41 |
01/01/2020 |
Subject to change without notice |
Page 1/5 |
© Copyright Siemens |
|
|
|
● acc. to EN 60898 / rated value |
10 kA |
● acc. to IEC 60947-2 / rated value |
15 kA |
|
|
Dissipation
Power loss [W] / for rated value of the current / at AC |
3.2 W |
/ in hot operating state / per pole |
|
|
|
Current
Tripping residual / rated value / derated current / at |
30 A |
40 Cel |
|
|
|
Main circuit
Type of voltage supply / at AC / acc. to UL 489 and |
240 |
CSA C22.2 No. 5-02 |
|
|
Mechanical engineering / industry |
Suitability for operation |
|
|
|
Product details
Product function / neutral conductor switching |
No |
|
Yes |
Product feature / Touch protection |
|
|
|
Product component |
|
● Tunnel terminals top |
No |
● Tunnel terminals bottom |
No |
● combined terminal top |
Yes |
● combined terminal bottom |
Yes |
|
|
Product feature |
|
● halogen-free |
Yes |
● sealable |
Yes |
● silicon-free |
Yes |
|
|
Product function
Product function / Note |
Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
|
|
Short circuit
Breaking capacity short-circuit current (Icn) / at AC / |
14 kA |
acc. to UL 1077 and CSA C22.2 No.235
Connections
Connectable conductor cross-section / finely stranded / with core end processing
●minimum
●maximum
Position / of power supply cord
1.5 mm²
25 mm²
Any
Mechanical Design
Height
Width
Depth
Installation depth
110 mm
18 mm
70 mm
70 mm
5SJ4130-7HG41 |
01/01/2020 |
Subject to change without notice |
Page 2/5 |
© Copyright Siemens |
|
|
|
