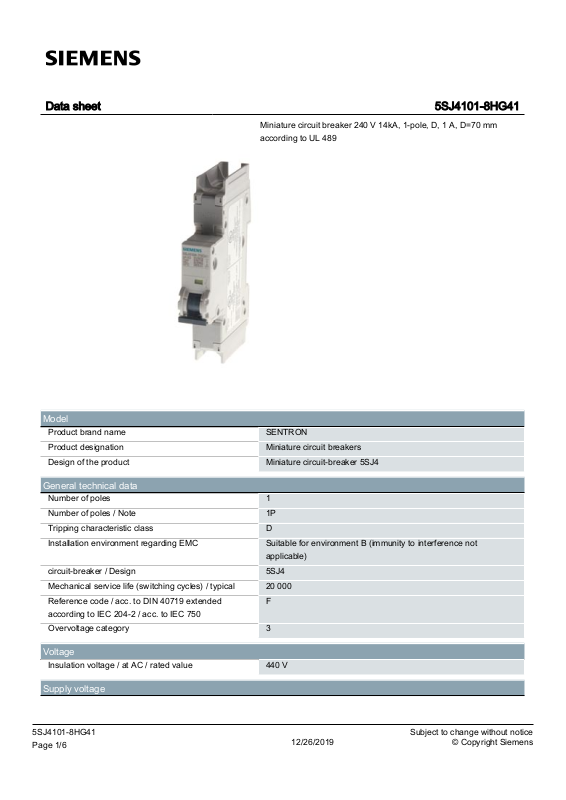

Siemens 5SJ4101-8HG41 data sheet
Data sheet 5SJ4101-8HG41
6
Miniature circuit breaker 240 V 14kA, 1-pole, D, 1 A, D=70 mm
according to UL 489
Model
Product brand name SENTRON
Product designation Miniature circuit breakers
Design of the product Miniature circuit-breaker 5SJ4
General technical data
Number of poles 1
Number of poles / Note 1P
Tripping characteristic class D
Installation environment regarding EMC Suitable for environment B (immunity to interference not
applicable)
circuit-breaker / Design 5SJ4
Mechanical service life (switching cycles) / typical 20000
Reference code / acc. to DIN 40719 extended
according to IEC 204-2 / acc. to IEC 750
Overvoltage category 3
F
Voltage
Insulation voltage / at AC / rated value 440V
Supply voltage
5SJ4101-8HG41 Subject to change without notice
Page 1/
12/26/2019 © Copyright Siemens
Type of voltage AC/DC
6
Current / at AC / rated value 1A
Supply voltage / at AC / rated value 400V
Operating voltage
● at AC / acc. to UL 489 and CSA C22.2 No. 5-02
/ maximum
● at DC / rated value / maximum
● at DC / 1-channel / acc. to UL 489 and CSA
C22.2 No. 5-02 / maximum
● at DC / 2-channel / acc. to UL 489 and CSA
C22.2 No. 5-02 / maximum
Supply voltage frequency
● rated value
240V
60V
60V
125V
50Hz
Protection class
Protection class IP IP20, with connected conductors, IP 40 in the handle range
Switching capacity
Switching capacity current
● acc. to EN 60898 / rated value
● acc. to IEC 60947-2 / rated value
10kA
15kA
Dissipation
Power loss [W] / for rated value of the current / at AC
/ in hot operating state / per pole
1.5W
Current
Tripping residual / rated value / derated current / at
40 Cel
1A
Main circuit
Type of voltage supply / at AC / acc. to UL 489 and
CSA C22.2 No. 5-02
Suitability for operation Mechanical engineering / industry
240
Product details
Product function / neutral conductor switching No
Product feature / Touch protection Yes
Product component
● Tunnel terminals top
● Tunnel terminals bottom
● combined terminal top
● combined terminal bottom
Product feature
● halogen-free
● sealable
● silicon-free
No
No
Yes
Yes
Yes
Yes
Yes
5SJ4101-8HG41 Subject to change without notice
Page 2/
12/26/2019 © Copyright Siemens
