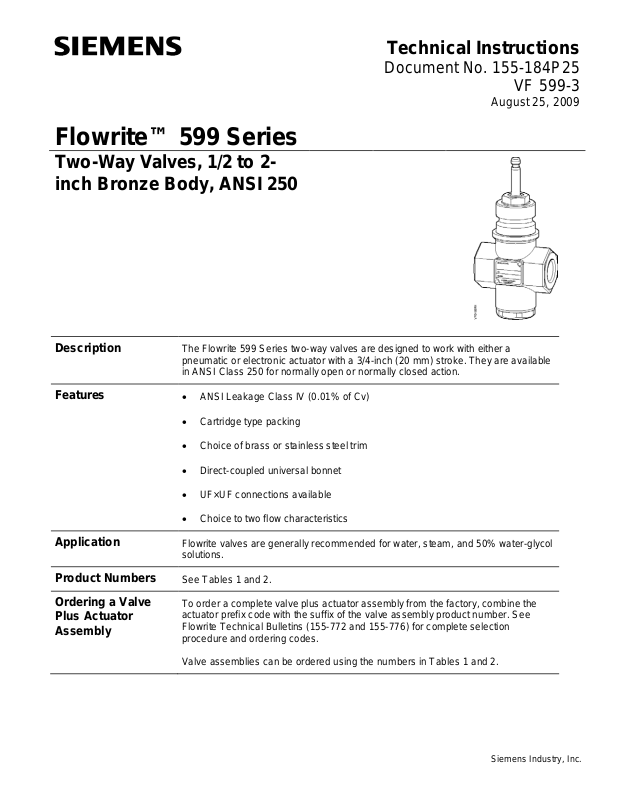

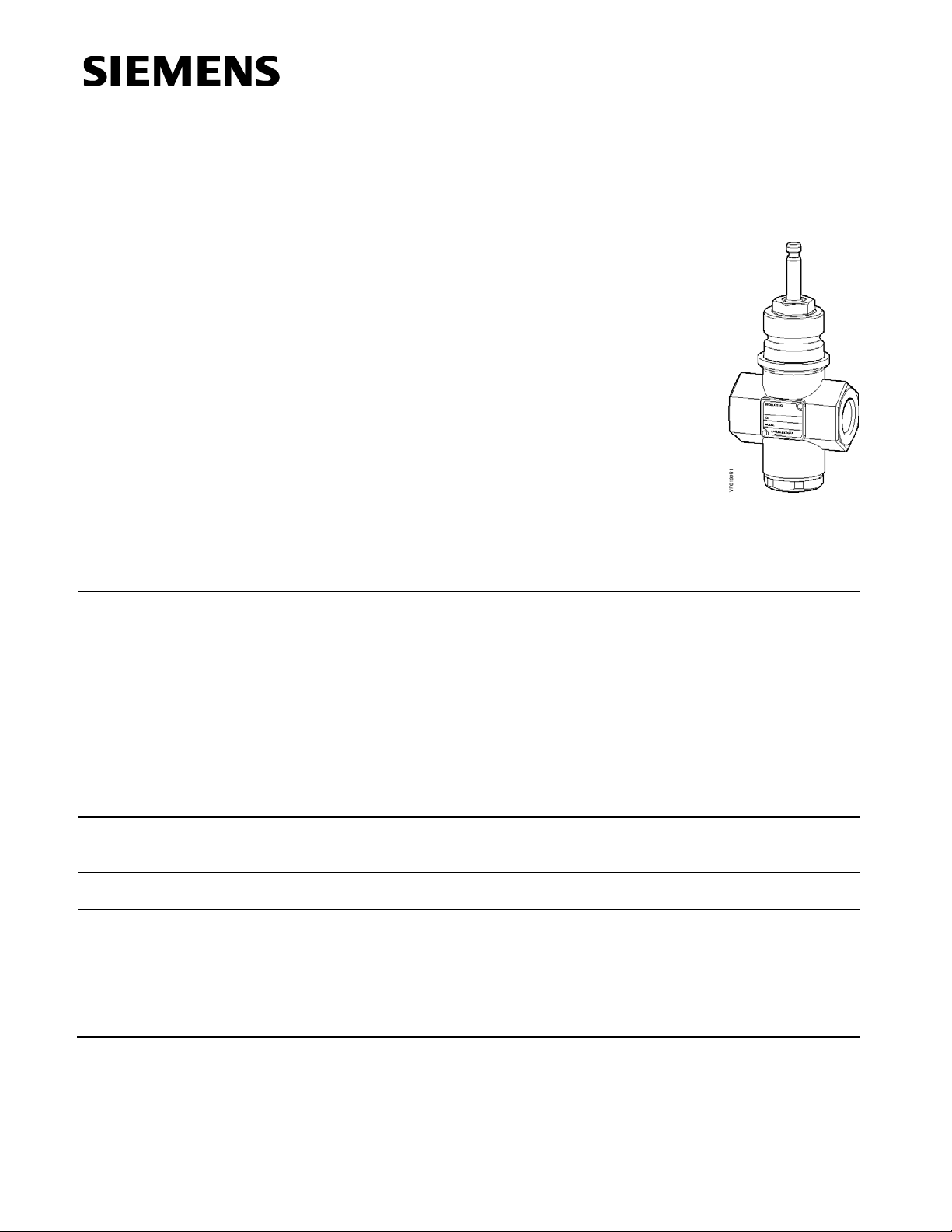

Page 1
Flowrite™ 599 Seri es
Technical Instructions
Two-Way Valves, 1/2 to 2-
inch Bronze Body, ANSI 250
Document No. 155-184P25
VF 599-3
August 25, 2009
Description
Features
Application
Product Numbers
Ordering a Valve
Plus Actuator
Assembly
The Flowrite 599 Series two-way valves are designed to work with either a
pneumatic or electronic actuator with a 3/4-inch (20 mm) stroke. They are available
in ANSI Class 250 for normally open or normally closed action.
• ANSI Leakage Class IV (0.01% of Cv)
• Cartridge type packing
• Choice of brass or stainless steel trim
• Direct-coupled universal bonnet
• UF×UF connections available
• Choice to two flow characteristics
Flowrite valves are generally recommended for water, steam, and 50% water-glycol
solutions.
See Tables 1 and 2.
To order a complete valve plus actuator assembly from the factory, combine the
actuator prefix code with the suffix of the valve assembly product number. See
Flowrite Technical Bulletins (155-772 and 155-776) for complete selection
procedure and ordering codes.
Valve assemblies can be ordered using the numbers in Tables 1 and 2.
Siemens Industry, Inc.
Page 2
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Line size 1/2 to 2-inches (15 to 50 mm)
Controlled medium Saturated steam, water,
Brass trim
Stainless steel trim
Liquid
25 psi (173 kPa)
50 psi (345 kPa)
Steam
15 psi (103 kPa)
50 psi (345 kPa)
Canadian Registration Numbers 0H7645.5
Document Number 155-184P25
August 25, 2009
Specifications
Material
Operating

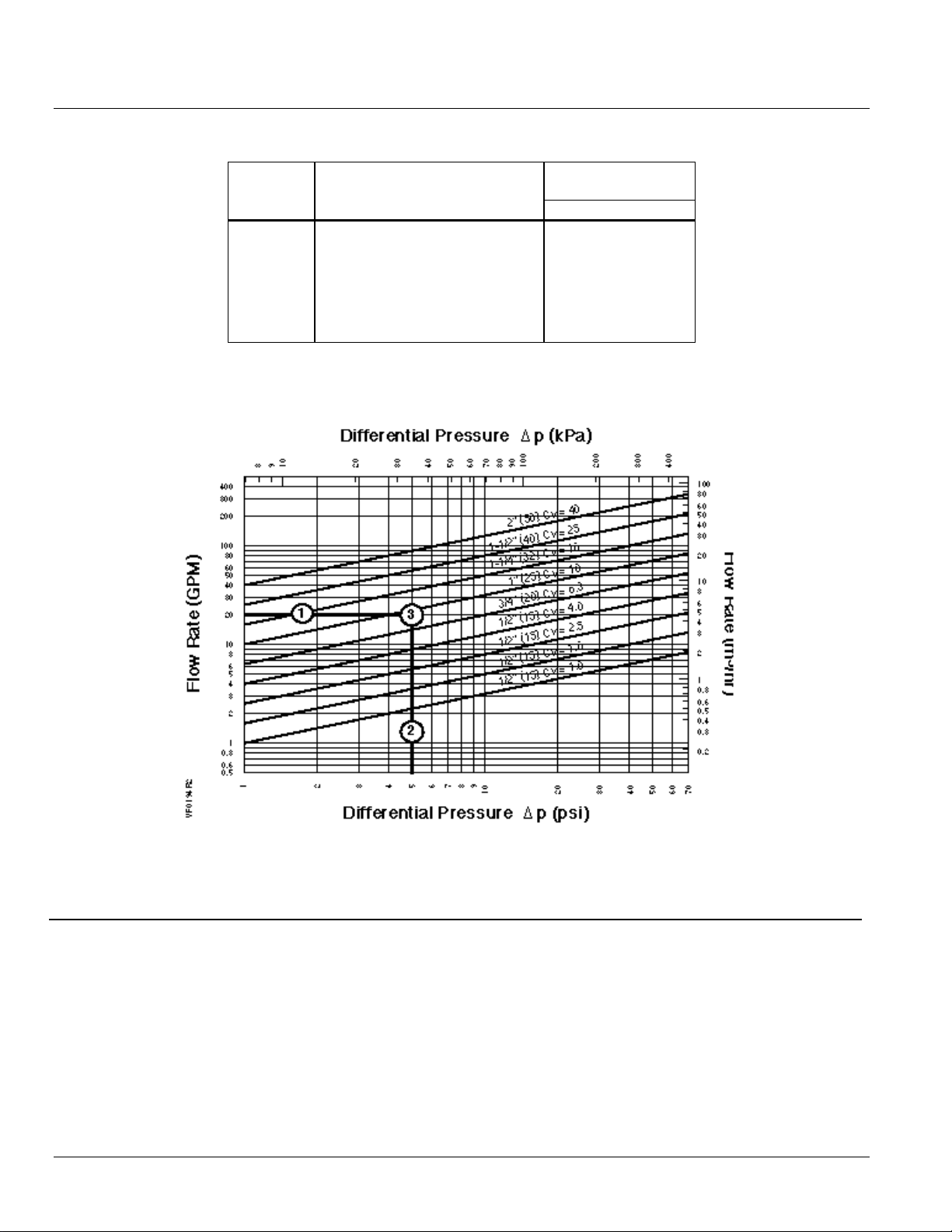

Capacity See Tables 3 through 6 and Figure 3
Body style Globe style control valve with four
connection options
See Tables 1 and 2
Seat style Single seat, metal-to-metal
Action Normally Open (NO)
Normally Closed (NC)
Stem travel (stroke) 3/4-inch (20 mm)
Valve body rating ANSI Class 250; see Table 7
Body UNS CA 844 bronze
Body trim See Tables 1 and 2
Stem Stainless steel ASTM A582
Type 303
Packing
Normal duty packing EPDM O-ring
Steam packing Teflon® V-ring
50% water-glycol solutions
Medium temperature range
Normal duty packing 20°F to 250°F (–7°C to 120°C)
Steam packing 337°F (170°C) maximum
Maximum inlet pressure
Water See Table 7
Steam 100 psig (690 kPa)
Maximum recommended differential pressure for modulating service
Rangeability >100:1

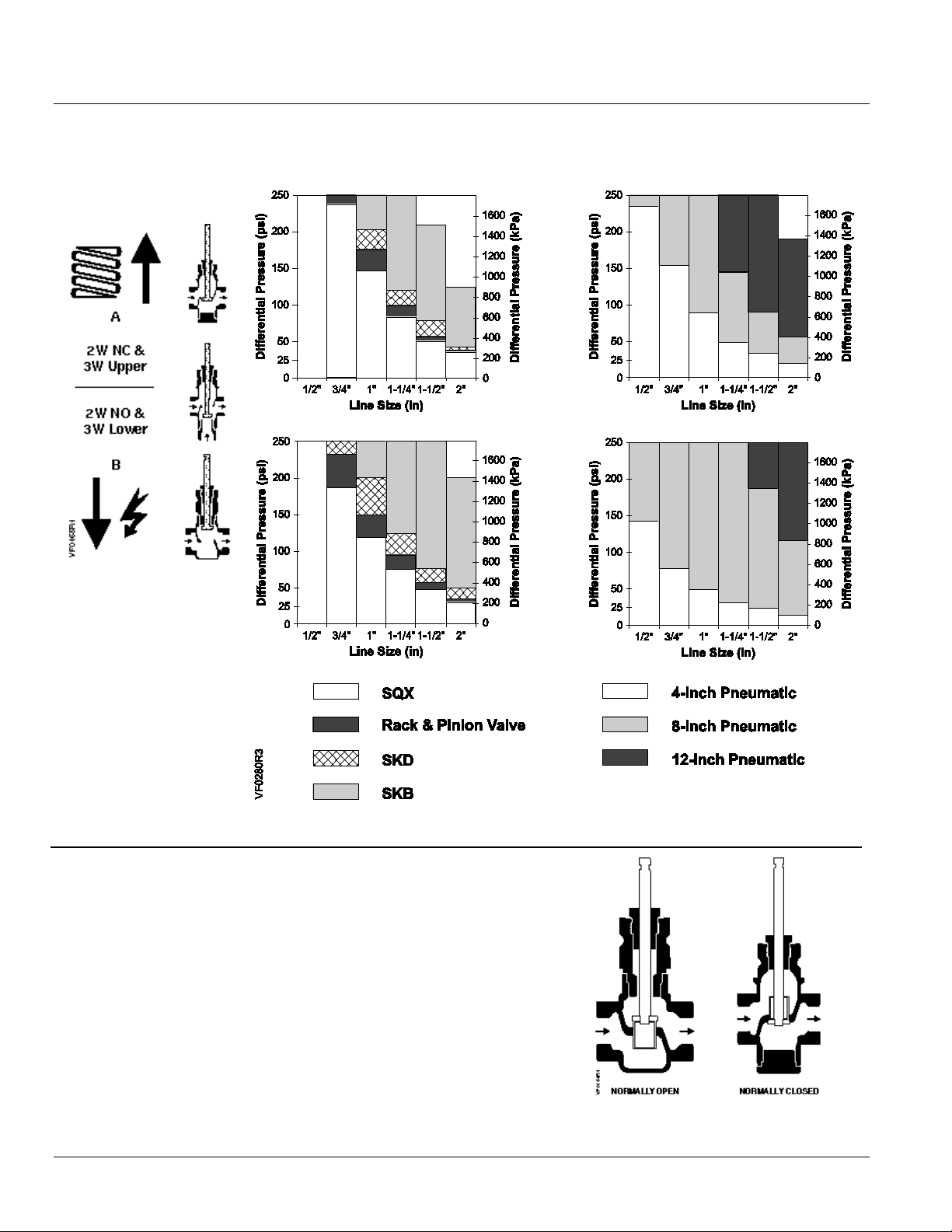

Close-off pressures See Tables 8, 9 and 10 and Figure 4
Close-off ratings According to ANSI/FCI 70-2
Leakage rate Class IV (0.01% of Cv)
Flow characteristics See Tables 1 and 2
Mounting location NEMA 1 (interior only)
Miscellaneous

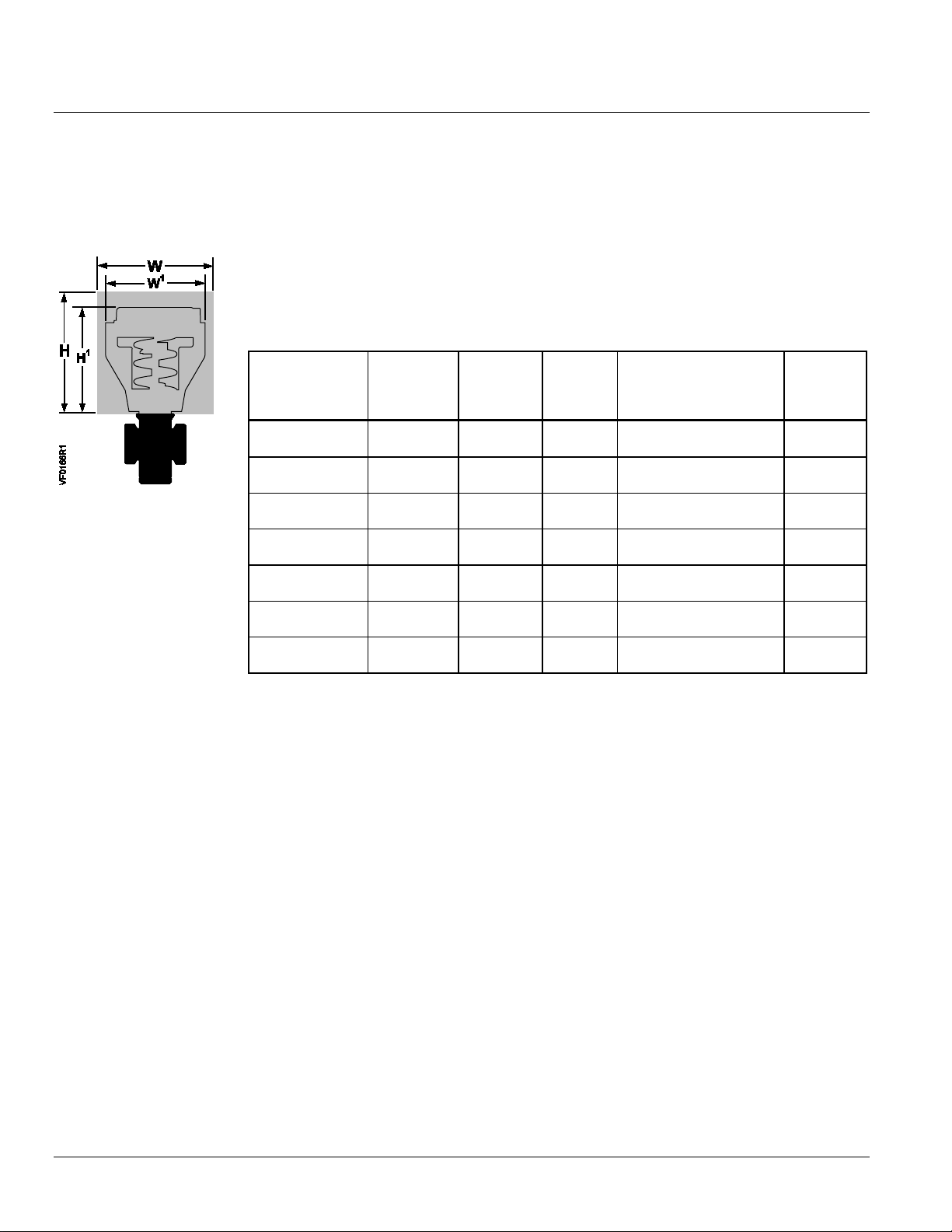

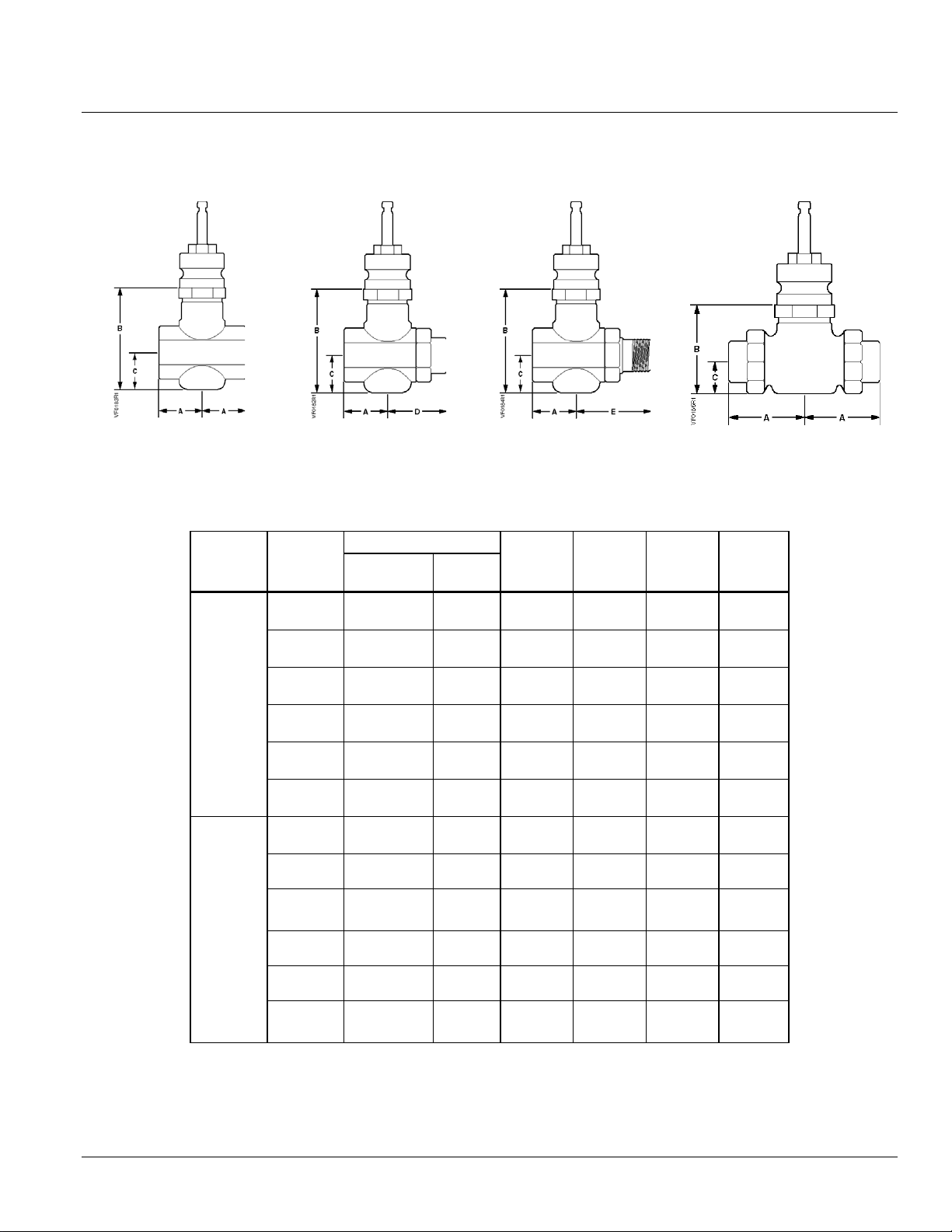

Dimensions See Tables 11 and 12 and Figure 6
Valve Weight See Table 14
Page 2 Siemens Industry, Inc.
0C0838.9
Page 3
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Valve packing kit
Document Number 155-184P25
August 25, 2009
Accessories

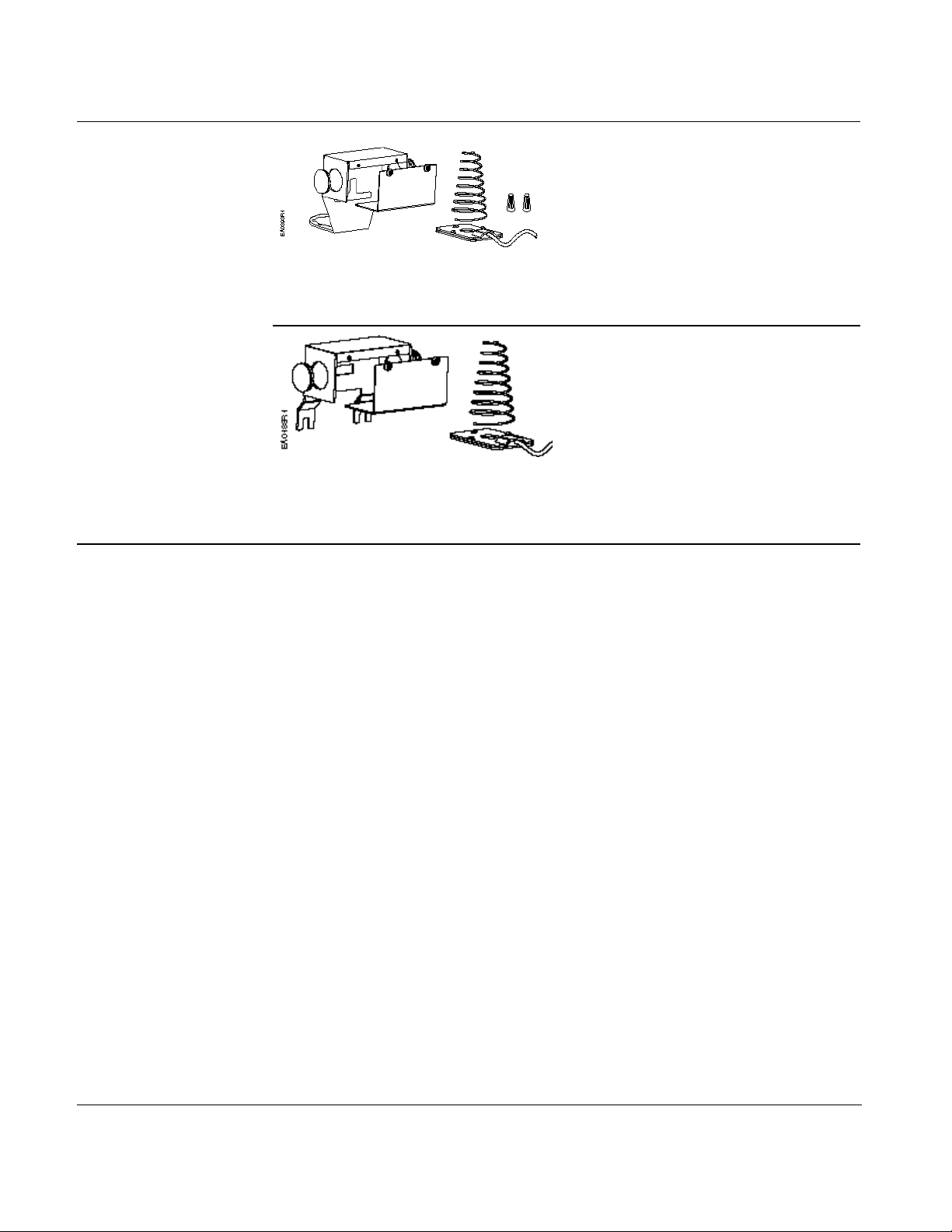

Figure 1. Packing Heating Element
For Use with SKD and SQX
Actuators.
599-00417 Packing heating element.
The heater allows the stem to move freely
in valves that control fluids at temperatures
below 32°F (0°C). It reduces ice crystal
formation on the stem, which can damage
the packing.
Operating Voltage 24 Vac
Heating Output 20W
Service Kits
599-00418: Packing heating element.
The element allows the stem to move
freely in valves that control fluids at
temperatures below 32°F (0°C). It prevents
ice crystal formation on the stem, which
can damage the packing.
Figure 2. Packing Heating Element
For Use with SKB/C and 8-inch
Actuators.
Normal duty packing 599-03390
Steam packing 599-03391
Rebuild/repack kits See Tables 15 and 16
Sealing rings for union valves (package of 25)
1/2-inch (15 mm) 599-03394
3/4-inch (20 mm) 599-03395
1 inch (25 mm) 599-03396
1-1/4 inch (32 mm) 599-03397
1-1/2 inch (40 mm) 599-03398
2 inch (50 mm) 599-03399
Union Tailpiece kit (one tailpiece, one union nut, one gasket.)
1/2-inch (15 mm) male 599-09181
3/4-inch (20 mm) male 599-09182
1 inch (25 mm) male 599-09183
1-1/4 inch (32 mm) male 599-09184
1/2-inch (40 mm) female 599-09185
3/4-inch (20 mm) female 599-09186
1 inch (25 mm) female 599-09187
1-1/4 inch (32 mm) female 599-09188
1-1/2 inch (40 mm) female 599-09189
2 inch (50 mm) female 599-09190
Operating Voltage 24 Vac
Heating Output 20W
Siemens Industry, Inc. Page 3
Page 4
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Equal Percentage
Linear
Steel Trim
Normal Duty
Packing
Steam
Packing
FxUF
599-03117
599-03171
599-03009
599-03063
FxUM
599-03252
599-03270
599-03216
599-03234
FxF
599-03109
599-03163
599-03001
599-03055
FxUF
599-03118
599-03172
599-03010
599-03064
FxUM
599-03253
599-03271
599-03217
599-03235
FxF
599-03110
599-03164
599-03002
599-03056
FxUF
599-03119
599-03173
599-03001
599-03065
FxUM
599-03254
599-03272
599-03218
599-03236
FxF
599-03111
599-03165
599-03003
599-03057
FxUF
599-03120
599-03174
599-03012
599-03066
FxUM
599-03255
599-03273
599-03219
599-03237
FxF
599-03112
599-03166
599-03004
599-03058
FxUF
599-03121
599-03175
599-03013
599-03067
FxUM
599-03256
599-03274
599-03220
599-03238
FxF
599-03113
599-03167
599-03005
599-03059
FxUF
599-03122
599-03176
599-03014
599-03068
FxUM
599-03257
599-03275
599-03221
599-03239
FxF
599-03114
599-03168
599-03006
599-03060
UFxUF
599-03123
599-03177
599-03015
599-03069
FxUM
—
599-03276
—
—
FxF
599-03115
599-03169
599-03007
599-03061
UFxUF
599-03124
599-03178
599-03016
599-03070
FxF
599-03116
599-03170
599-03008
599-03062
UFxUF
599-03125
599-03179
599-03017
599-03071
Document Number 155-184P25
August 25, 2009
Female NPT x Female
NPT FxF
Flow Rate
Cv (Kvs) inch (mm) Normal Duty Packing
1 (0.85) 1/2 (15)
1.6 (1.37) 1/2 (15)
2.5 (2.15) 1/2 (15)
4 (3.44) 1/2 (15)
Female NPT x Union
Female FxUF

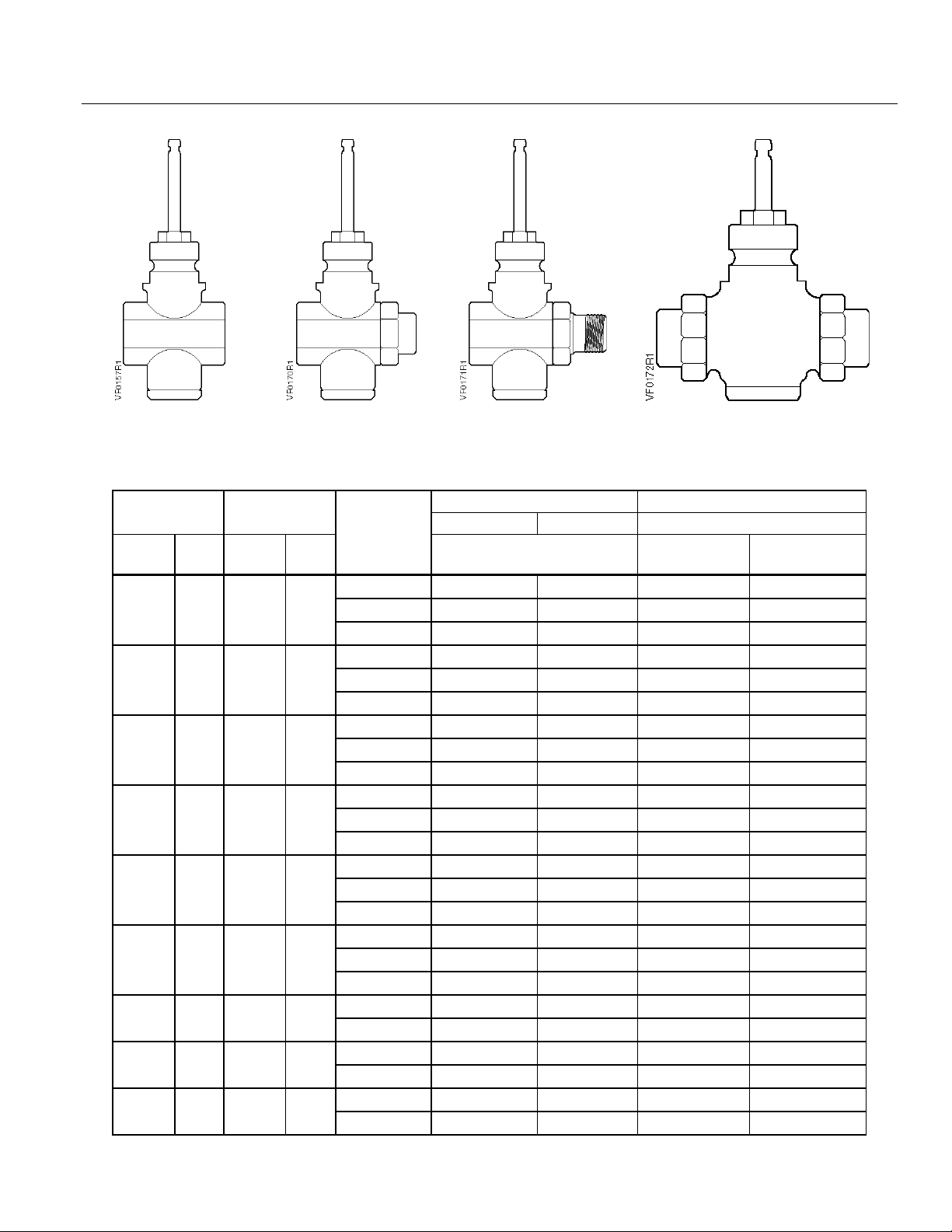

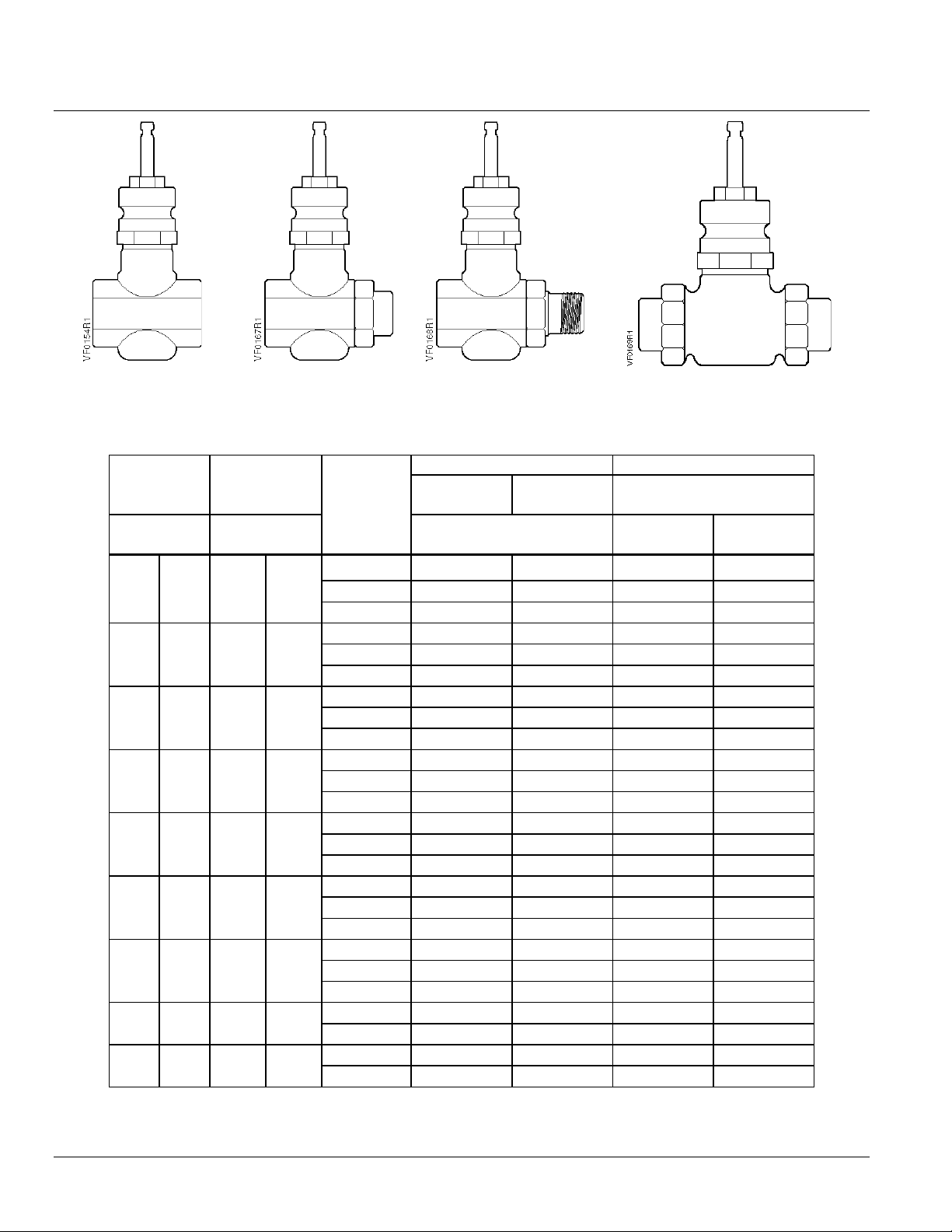

Table 1. Normally Open Valves.
Nominal
Line Size
Connection
FxF 599-03108 599-03162 599-03000 599-03054
Female NPT x Union
Male FxUM
Stainless
Brass Trim Stainless Steel Trim
Union Female x Union Female
UFxUF
Page 4 Siemens Industry, Inc.
6.3 (5.43) 3/4 (20)
10 (8.6) 1 (25)
16 (13.8) 1-1/4 (32)
25 (21.5) 1-1/2 (40)
40 (34.4) 2 (50)
Page 5
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Stl. Steel Trim
Brass Trim
Stainless Steel Trim
Packing
Document Number 155-184P25
August 25, 2009
Female NPT x Female
NPT FxF
Female NPT x Union
Female FxUF
Female NPT x Union
Male FxUM
Table 2. Normally Closed Valves.
Flow Rate
Nominal
Line Size
Connection
Equal Percentage Linear
Cv (Kvs) Inch (mm) Normal Duty Packing
FxF 599-03126 599-03180 599-03018 599-03072
1 (0.85) 1/2 (15)
1.6 (1.37) 1/2 (15)
2.5 (2.15) 1/2 (15)
4 (3.44) 1/2 (15)
6.3 (5.43) 3/4 (20)
10 (8.6) 1 (25)
16 (13.8) 1-1/4 (32)
25 (21.5) 1-1/2 (40)
40 (34.4) 2 (50)
FxUF 599-03135 599-03189 599-03027 599-03081
FxUM 599-03261 599-03279 599-03225 599-03243
FxF 599-03127 599-03181 599-03019 599-03073
FxUF 599-03136 599-03190 599-03028 599-03082
FxUM 599-03262 599-03280 599-03226 599-03244
FxF 599-03128 599-03182 599-03020 599-03074
FxUF 599-03137 599-03191 599-03029 599-03083
FxUM 599-03263 599-03281 599-03227 599-03245
FxF 599-03129 599-03183 599-03021 599-03075
FxUF 599-03138 599-03192 599-03030 599-03084
FxUM 599-03264 599-03282 599-03228 599-03246
FxF 599-03130 599-03184 599-03022 599-03076
FxUF 599-03139 599-03193 599-03031 599-03085
FxUM 599-03265 599-03283 599-03229 599-03247
FxF 599-03131 599-03185 599-03023 599-03077
FxUF 599-03140 599-03194 599-03032 599-03086
FxUM 599-03266 599-03284 599-03230 599-03248
FxF 599-03132 599-03186 599-03024 599-03078
UFxUF 599-03141 599-03195 599-03033 599-03087
FxF 599-03133 599-03187 599-03025 599-03079
UFxUF 599-03142 599-03196 599-03034 599-03088
FxF 599-03134 599-03188 599-03026 599-03080
UFxUF 599-03143 599-03197 599-03035 599-03089
Union Female x Union Female
UFxUF
Normal Duty
Steam Packing
Siemens Industry, Inc. Page 5
Page 6
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Valve
inches
Kvs/
100
Document Number 155-184P25
August 25, 2009
Table 3. Maximum Water Capacity - U.S. Gallons per Minute.
Pressure Differential - psi
Size
in
Cv\1 2 3 4 5 6 8 10 15 20 25 30 40 50 60 75
1.0 1.4 1.7 2.0 2.2 2.5 2.8 3.2 3.9 4.5 5.0 5.5 6.3 7.1 7.8 8.7
1.6 2.3 2.8 3.2 3.6 3.9 4.5 5.1 6.2 7.2 8.0 8.8 10.1 11.3 12.4 13.9
1/2
2.5 3.5 4.3 5.0 5.6 6.1 7.1 7.9 97 11.2 12.5 13.7 15.8 17.7 19.4 22
4 5.7 7 8.0 8.9 10 11.3 12.6 15.5 17.9 20.0 21.9 25 28 31 35
3/4 6 8.9 10.9 12.6 14.1 15.4 17.8 20 24 28 32 35 40 45 49 55
1 10 14.1 17.3 20 22 24 28 32 39 45 50 55 63 71 77 87
1-1/4 16 23 28 32 36 39 45 51 62 72 80 88 101 113 124 139
1-1/2 25 35 43 50 56 61 71 79 97 112 125 137 158 177 194 217
2 40 57 69 80 89 98 113 126 155 179 200 219 253 283 310 346
3
/hr).
Valve Size
inches
mm
Table 4. Maximum Water Capacity - Cubic Meters per Hour (m
Pressure Differential - kPa
1 10 20 30 40 50 60 80
150 200 300 400 500
0.09 0.3 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5 1.7 1.9
0.14 0.4 0.6 0.8 0.9 1.0 1.1 1.2 1.4 1.7 1.9 2.4 2.7 3.1
15
0.2 0.7 1.0 1.2 1.4 1.5 1.7 1.9 2.2 2.6 3.0 3.7 4.3 4.8
0.3 1.1 1.5 1.9 2.2 2.4 2.7 3.1 3.4 4.2 4.9 6.0 6.9 7.7
20 0.5 1.7 2.4 3.0 3.4 3.8 4.2 4.9 5.4 6.7 7.7 9.4 10.9 12.1
25 0.9 2.7 3.8 4.7 5.4 6.1 6.7 7.7 8.6 10.5 12.2 14.9 17.2 19.2
32 1.4 4.4 6.2 7.6 8.7 9.8 10.7 12.3 13.8 16.9 19.5 23.9 27.6 30.9
40 2.2 6.8 9.6 11.8 13.6 15.2 16.7 19.2 22 26 30 37 43 48
50 3.4 10.9 15.4 18.8 22 24 27 31 34 42 49 60 69 77
Page 6 Siemens Industry, Inc.
Page 7
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Inlet Pressure - psig
Pressure Differential - psi
1 2 3 4 5 6 8
10 9 12
15 5 15
20
15
30
32.5
20
30
40
45
30
40
50
57.5
Inlet Pressure - kPa
Pressure Differential - kPa
10
20
50
15
30
75
20
40
100
50
100
250
6.04
8.54
13.50
9.07
12.8
20.2
12.11
17.13
27.08
30.3
42.9
67.8
Document Number 155-184P25
August 25, 2009
Table 5. Steam Capacity - Pounds per Hour.
Line
2 5 10 5 25
50 75
100
Size
inches
12.0 16.6 22 25 28 34 38 42 45 50 54 41 65 72 87 115 118 119 141 157 163 162 183 199 209
19.1 27 35 40 44 54 61 67 72 80 86 65 104 116 139 183 188 109 225 251 261 260 292 318 334
1/2
30 42 55 62 69 85 96 104 112 125 135 101 163 181 217 287 294 296 351 392 408 406 457 497 522
48 67 88 100 110 136 153 167 179 200 216 162 261 289 348 459 471 474 562 627 653 650 731 796 835
3/4 75 105 138 157 174 213 241 263 282 316 341 255 411 455 548 722 742 747 886 988 1029 1023 1152 1253 1315
1 120 166 219 250 275 339 382 417 447 501 541 405 653 723 870 1147 1178 1186 1406 1568 1633 1624 1828 1989 2088
1-1/4 191 266 351 400 441 542 611 667 716 801 865 648 1044 1156 1392 1835 1884 1897 2249 2509 2612 2599 2925 3182 3340
1-1/2 299 416 549 625 689 847 955 1042 1118 1252 1351 1013 1632 1806 2175 2867 2944 2964 3515 3920 4081 4061 4570 4972 5219
2 478 666 878 1000 1102 1356 1529 1667 1789 2003 2162 1620 2611 2890 3480 4587 4710 4743 5624 6272 6530 6497 7311 7956 8350
Table 6. Steam Capacity - Kilograms per Hour.
Line
100 150 200 500
Size
mm
15
9.66 13.6
15 21 34 23 32 51 30 43 68 76 107 169
21.61 14.5
20.5
32.4
19.37 27.40 43.32 48.51 68.60 108.47
24 34 54 36 51 81 48 69 108 121 172 271
20 38 54 85 57 81 128 76 108 171 191 270 427
25 60 85 135 91 128 203 121 171 271 303 429 678
32 97 137 216 145 205 325 194 274 433 485 686 1085
40 151 214 338 227 321 507 303 428 677 758 1072 1695
50 242 342 540 363 513 812 484 685 1083 1213 1715 2712
Siemens Industry, Inc. Page 7
Page 8
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
psig (kPa)
ANSI Class 250
3. Select a 1-inch (25 mm) valve, Cv 10.
Document Number 155-184P25
August 25, 2009
Table 7. Body Temperature-Pressure Rating.
Valve
Body
Temperature
°F °C
Pressure
400 (2758)
385 (2655)
365 (2586)
335 (2300)
300 (2068)
Bronze
–20 to +150 (–30 to 66)
+200 (93)
+250 (121)
+300 (149)
+350 (177)
Selection Example
Select a valve given:
1. Required flow = 20 gpm.
2. Desired pressure drop = 5 psi.
Page 8 Siemens Industry, Inc.
Figure 3. Water Capacity Graph.
Page 9
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Spring Range
3 to 8 psi ( 21 to 55 kPa)
10 to 15 psi (69 to 103 kPa)
Actuator
Actuator
Actuator
Actuator
Valve
(mm)
Rack &
Pinion
Document Number 155-184P25
August 25, 2009
Table 8. Maximum Available Close-off Pressures for Pneumatic Actuators, with Normally Open Valves.
Valve
Action
Normally Open
Normally Closed
Size
Inch
(mm)
1/2 (15)
3/4 (20)
1 (25)
1-1/4 (32)
1-1/2 (40 )
2 (50)
1/2 (15)
3/4 (20)
1 (25)
1-1/4 (32)
1-1/2 (40 )
2 (50)
4-Inch
15 psi
(103 kpa)
142 (979) 250 (1724) 250 (1724) — — — — —
80 (552) 231 (1593)
52 (359 150 (1034)
32 (221) 93 (641)
20 (138) 60 (414) 198 (1365)
12 (83) 37 (255) 123 (848) 130 (896) 250 (1724) — — —
— — — — — 236 (1627)
— — — — —
— — — — —
— — — — —
— — — — —
— — — — —
8-Inch Actuator 12-Inch Actuator
15 psi
(103 kpa)
30 psi
(207 kPa)
250 (1724)
250 (1724) 250 (1724) 250 (1724)
250 (1724) 250 (1724) 250 (1724)
15 psi
(103 kpa)
— — — — —
205(1413)
250 (1724)
30 psi
(207 kPa)
4-Inch
0 psi
(0 kPa)
— — —
— — —
— — —
155 (1069) 250 (1724)
91 (627) 250 (1724)
52 (359) 148 (1020) 250 (1724)
32 (331) 92 (634) 250 (1724)
20 (138) 55 (379) 185 (1776)
8-Inch
0 psi
(0 kPa)
250 (1724)
12-Inch
0 psi
(0 kPa)
—
—
250 (1724)
Table 9. Close-off Pressures for Electro n ic Actuators.
Action
Size
Inches
SQX
psi (kPa)
psi (kPa)
SKD
psi (kPa)
SKB
psi (kPa)
1/2 (15) 250 (1724) 250 (1724) 250 (1724) 250 (1724)
3/4 (20) 173 (1193) 231 (1593) 250 (1724) 250 (1724)
1 (25) 112 (772) 149 (1028) 201 (1386) 250 (1724)
1-1/4 (32) 69 (476) 92 (634) 124 (855) 250 (1724)
1-1/2(40) 44 (303) 59 (407) 80 (552) 250 (1724)
Normally Open
2 (50) 27 (186) 36 (248) 49 (338) 201 (1386)
1/2 (15) 250 (1724) 250 (1724) 250 (1724) 250 (1724)
3/4 (20) 221 (1524) 250 (1724) 250 (1724) 250 (1724)
1 (25) 130 (896) 173 (1193) 203 (1400) 250 (1724)
1-1/4 (32) 75 (517) 100 (690) 117 (807) 250 (1724)
1-1/2(40) 46 (317) 61 (421) 73 (503) 208 (1334)
Normally Closed
2 (50) 28 (193) 37 (255) 44 (303) 126 (869)
Siemens Industry, Inc. Page 9
Page 10
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Document Number 155-184P25
August 25, 2009
ELECTRONIC PNEUMATIC
Figure 4. Close-off Pressures.
Operation
Figure 5 shows the normally open valve in
the open or full flow position and the
normally closed valve in the closed or zero
flow position. The actuator spring provides
the necessary force to hold the stem in the
raised or normal position.
In the event of power failure, a spring
return actuator returns the valve to its
normal position. Non-spring return
actuators will hold the last commanded
position. See the Technical Instructions of
the various actuators for additional
information.
Figure 5.
Page 10 Siemens Industry, Inc.
Page 11
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Document Number 155-184P25
August 25, 2009
Sizing
Mounting and
Installation
The sizing of a valve is important for correct system operation. An undersized valve will
not have sufficient capacity at maximum load. An oversized valve can initiate cycling
and the seat and throttling plug can be damaged because of the restricted opening.
Correct sizing of the control valve for actual expected conditions is considered essential
for good control.
The following variables must be determined:
• The medium to be controlled, such as steam, water, etc.
• The maximum inlet temperature and pressure of the medium at the valve.
• The pressure differential that will exist across the valve under maximum load
demand.
• The maximum capacity the valve must deliver.
• The maximum line pressure differential the valve actuator must close against.
• See the Control Valve Selection and Sizing (AB-1) section of HVAC
Systems/Controls Reference Data (125-1853) for further recommendations.
• See Tables 3 through 6 for valve capacities.
• Install the valve so that the flow follows the direction of the arrow indicated on the
valve body.
• For best performance, install the valve assembly with the actuator above the valve
body. The valve and actuator can be installed in any position between vertical and
horizontal. Siemens Building Technologies does not recommend installing the valve
assembly so that the actuator is below horizontal or upside down.
• Allow sufficient space for servicing the valve and actuator. See Table 12 for valve
body dimensions. See Figure 6 and Table 11 for dimensions of the service envelope
recommended around the actuator.
NOTE: Instructions for field mounting an actuator, wiring diagrams, and start-up are
covered in the Technical Instructions and Installation Instructions for each
actuator.
Siemens Industry, Inc. Page 11
Page 12
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Actual
H1
Service
H
Actual Width or
W1
Service
W
Pneumatic
270
(146)
(350)
diameter
(450)
Pneumatic
283, 284
(359)
(660)
diameter
(533)
Pneumatic
(454)
(762)
diameter
(686)
273
(226)
4-3/8 (111) Depth
(340)
(368)
(622)
5-1/8 (131) Depth
(331)
276
(300)
(500)
6-5/8 (169) Depth
(360)
290
(375)
(578)
(226) Depth
(635)
Document Number 155-184P25
August 25, 2009
Dimensions, continued
The letters in Figure 6 refer to actuator and service envelope dimensions in Table 11. See Table
12 for valve body dimensions.
Table 10. Dimensions of the Actuator and Recommended Service Envelope. Dimensions
in Inches (Millimeters).
Actuator
Actuator
4-inch
8-inch
Figure 6.
12-inch
SQX
Rack and Pinion 298, 299
SKD
SKB
Prefix
Code
268, 269
277, 278
279, 285 17-7/8
271, 272
274, 275
289, 291,
Height of
Actuator
5-3/4
14-1/8
8-7/8
14-1/2
11-13/16
14-3/4
Height
14
26
30
17 (430)
24-1/2
19-3/4
22-3/4
Diameter of Actuator
5-1/2 (137)
8-3/4 (222)
15-1/8 (384)
5-17/32 (140) Width
5 (127) Width*
5 (127) Width
7 (178) Width × 8-15/16
Width
18
21
27
13-1/2
13
14-1/2
25
Page 12 Siemens Industry, Inc.
Page 13
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Female NPT x Union Female
Valve
A
FxF, FxUF,
and FxUM
UFxUF
1-1/4
(32)
2-1/2*
(62)*
3-3/4
(95)
3-13/16
(97)
2-3/16
(55)
Document Number 155-184P25
August 25, 2009
Dimensions,
Continued
Female NPT by
Female NPT FxF
Action
Normally
Open
Normally
Closed
FxUF
Female NPT x Union
Male FxUM
Union Female x Union Female
Table 11. 2-Way Valve Dimensions in Inches (Millimeters).
Valve
Size
1/2
(15)
3/4
(20)
1
(25)
1-1/4
(32)
1-1/2
(40)
2
(50)
1/2
(15)
3/4
(20)
1
(25)
1-7/16
(36)
1-11/16
(43)
2
(50)
2-1/2*
(62)*
2-9/16*
(65)*
3-1/8*
(79)*
1-7/16
(36)
1-11/16
(43)
2
(50)
—
—
—
3-3/4
(95)
3-15/16
(99)
4-9/16
(115)
—
—
—
B C
2-15/16
(74)
3-15/16
(99)
3-3/4
(96)
4-1/4**
(108) **
4-1/4**
(108)**
4-9/16**
(116)**
3-13/16
(97)
3-13/16
(97)
3-13/16
(97)
1-1/4
(31)
1-7/16
(36)
1-1/4
(32)
2**
(51) **
2**
(51)**
2-1/4**
(57)**
2-3/16
(55)
2-3/16
(55)
2-3/16
(55)
D
FxUF E FxUM
2-5/16
(59)
2-5/8
(67)
3
(76)
—
— —
— —
2-5/16
(59)
2-5/8
(67)
3
(76)
— —
UFxUF
2-7/8
(73)
3-3/16
(81)
3-1/2
(89)
4-3/8
(111)
2-7/8
(73)
3-3/16
(81)
3-1/2
(89)
* FxUF is not available as standard in 1-1/4, 1-1/2, and 2-inch valves.
FxUM is not available as standard in 1-1/2, and 2-inch-valves.
** This dimension is determined by the union nut.
Siemens Industry, Inc. Page 13
1-1/2
(40)
2
(50)
2-9/16*
(65)*
3-1/8*
(79)*
3-15/16
(99)
4-9/16
(115)
3-7/8
(99)
4-1/2
(114)
2-1/4
(58)
2-9/16
(65)
— —
— —
Page 14
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Document Number 155-184P25
August 25, 2009

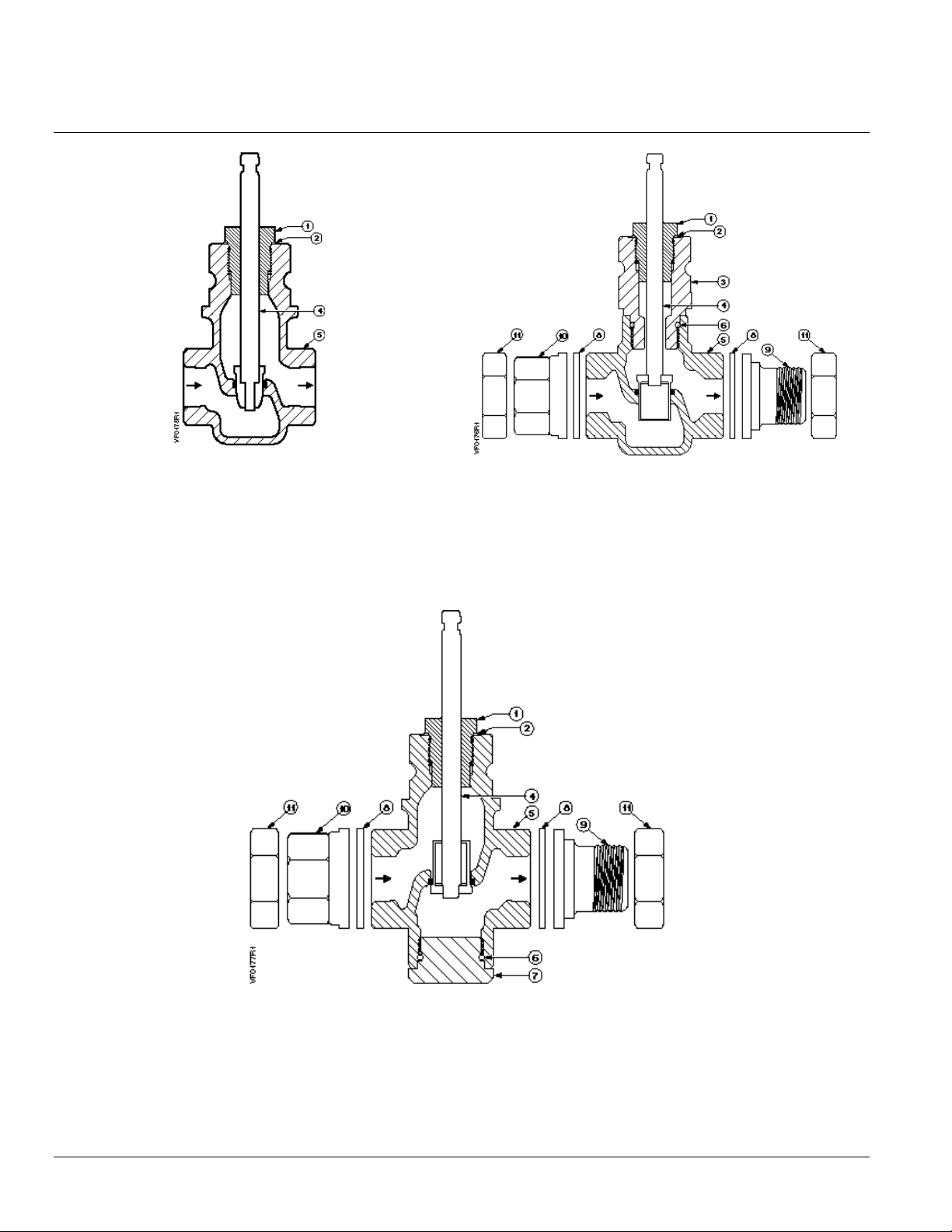

1/2-inch (15 mm) Valve Size.
3/4-inch to 2-inch (20 to 50 mm) Valve Size.
Figure 7. Normally Open.
Figure 8. Normally Closed
1/2-inch to 2-inch (15 to 50 mm) Valve Size.
Page 14 Siemens Industry, Inc.
Page 15
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
Quantity
FxF
FxUF
FxUM
UFxUF
— — —
— — —
Document Number 155-184P25
August 25, 2009
Parts List
Table 12. Parts List for 2-Way Bronze Valves. See Figures 7 and 8.
Item Part Name Part Number
1 Packing Cartridge
Assembly
2 Gasket — 1 1 1 Copper
3 Normally Open
3/4-inch to 2-inch Bonnet
4 Stem and Plug Assembly — 1 1 1 1 Bronze or
5 Valve Body — 1 1 1 1 Bronze
6 O-ring 1 1 1 1 EPDM
7 Normally closed Cap — 1 1 1 1 Brass
8 Gasket — — 1 1 2 Fiber
9 NPT Male union tail piece — — — 1 — Brass
10 Female tail piece — — 1 — 2 Brass
11 Union Nut — — 1 1 2 Brass
Packing Kit
—
—
—
Normal Duty Service
Steam Service
Rebuild/Repack Kit
Normally Closed
Rebuild/Repack Kit
Normally Open
— 1 1 1 1 —
— 1 1 1 1 Brass
599-03390
599-03391
See Tables15
and 16
See Tables 15
and 16
— —
—
— Items 1 and 2
—
–
Material
Stainless Steel
Items 1, 2, 4, and 6
Items 1, 2, 4, and 6
Siemens Industry, Inc. Page 15
Page 16
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
.50 3 4 4 — 3 3 3 —
.75 4 4 5 — 4 4 5 —
1.0 5 5 5 — 5 6 6 —
1.25 7 — — 9 7 — 8 9
1.50 8 — — 11 9 — — 11
(40)
(3.6) — —
(5)
(4.1) — —
(5)
2.0
16 — —
16
13 — —
16
(50)
(7.3) — —
(7.3)
(5.9) — —
(7.3)
Document Number 155-184P25
August 25, 2009
Valve Assembly
Weight
Valve
Size
(15) (1.4) (1.8) (1.8) — (1.4) (1.4) (1.4) —
(20) (1.8) (1.8) (2.3) — (1.8) (1.8) (2.3) —
(25) (2.3) (2.3) (2.3) — (2.3) (2.7) (2.7) —
(32) (3.2) — — (4.1) (3.2) — (3.6) (4.1)
FxF FxUF FxUM UFxUF FxF FxUF FxUM UFxUF
Table 13. Weight in Pounds (Kilograms).
Normally Closed Normally Open
Page 16 Siemens Industry, Inc.
Page 17
Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250 Technical Instructions
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Document Number 155-184P25
August 25, 2009
Service Kit
NOTE: To select the service kit, know your valve body assembly number, model number and the
Table 14. Rebuild/Repack Service Kits Part Numbers. See Table 13 for Items in Kit.
Valve
Flow
Action Size
1/2 Inch
3/4-Inch 599-03004 599-03013 — 599-03220 Stainless steel O-ring 599-03304
1-1/4 Inch 599-03006 — 599-03015
Normally Open
1-1/2-Inch 599-03007 — 599-03016
1/2-Inch
3/4-Inch 599-03022 599-03031 — 599-03229 Stainless steel O-ring 599-03313
1-1/4 Inch 599-03024 — 599-03033
Normally Closed
1-1/2-Inch 599-03025 — 599-03034
Linear
1/2-Inch
3/4-Inch 599-03058 599-03067 — 599-03238 Stainless steel Steam 599-03322
1-1/4 Inch 599-03060 — 599-03069
Normally Open
1-1/2-Inch 599-03061 — 599-03070
1/2-Inch
3/4-Inch 599-03076 599-03085 — 599-03247 Stainless steel Steam 599-03331
1-1/4 Inch 599-03078 — 599-03087
Normally Closed
1-1/2-Inch 599-03079 — 599-03088
type of connection. Read down the Connection column until you find the valve body
assembly number and then read to the far right to identify the correct kit. The valve body
assembly number and model number are stamped on the tag on the valve body.
Connection Valve Model 1 Model 2
FxF FxUF UFxUF FxUM Description Kit No. Kit No.
599-03000 599-03009 — 599-03216 Stainl ess steel 1.0 Cv O-ring 599-03300
599-03001 599-03010 — 599-03217 Stainl ess steel 1.6 Cv O-ring 599-03301
599-03002 599-03011 — 599-03218 Stainless steel 2.5 Cv O-ring 599-03302
599-03003 599-03012 — 599-03219 Stainl ess steel 4.0 Cv O-ring 599-03303
1-Inch 599-03005 599-03014 — 599-03221 Stainless steel O-ring 599-03305
— Stainless steel O-ring 599-03306 599-09201
— Stainless steel O-ring 599-03307 599-09202
2-Inch 599-03008 — 599-03017
599-03018 599-03027 — 599-03225 Stainl ess steel 1.0 Cv O-ring 599-03309
599-03019 599-03028 — 599-03226 Stainl ess steel 1.6 Cv O-ring 599-03310
599-03020 599-03029 — 599-03227 Stainl ess steel 2.5 Cv O-ring 599-03311
599-03021 599-03030 — 599-03228 Stainl ess steel 4.0 Cv O-ring 599-03312
1-Inch 599-03023 599-03032 — 599-03230 Stainless steel O-ring 599-03314
2-Inch 599-03026 — 599-03035
599-03054 599-03063 — 599-03234 Stainless steel 1.0 Cv Steam 599-03318 —
599-03055 599-03064 — 599-03235 Stainl ess steel 1.6 Cv Steam 599-03319
599-03056 599-03065 — 599-03236 Stainl ess steel 2.5 Cv Steam 599-03320
599-03057 599-03066 — 599-03237 Stainless steel 4.0 Cv Steam 599-03321
1-Inch 599-03059 599-03068 — 599-03239 Stainless steel Steam 599-03323
2-Inch 599-03062 — 599-03071
599-03072 599-03081 — 599-03243 Stainl ess steel 1.0 Cv Steam 599-03327
599-03073 599-03082 — 599-03244 Stainl ess steel 1.6 Cv Steam 599-03328
599-03074 599-03083 — 599-03245 Stainl ess steel 2.5 Cv Steam 599-03329
599-03075 599-03084 — 599-03246 Stainl ess steel 4.0 Cv Steam 599-03330
1-Inch 599-03077 599-03086 — 599-03248 Stainless steel Steam 599-03332
2-Inch 599-03080 — 599-03089
— Stainless steel O-ring 599-03308 599-09203
— Stainless steel O-ring 599-03315 599-09213
— Stainless steel O-ring 599-03316 599-09214
— Stainless steel O-ring 599-03317 599-09215
— Stainless steel Steam 599-03324 599-09204
— Stainless steel Steam 599-03325 599-09205
— Stainless steel Steam 599-03326 599-09206
— Stainless steel Steam 599-03333 599-09216
— Stainless steel Steam 599-03334 599-09217
— Stainless steel Steam 599-03335 599-09218
—
—
—
—
Siemens Industry, Inc. Page 17
Page 18
Technical Instructions Flowrite 599 Series Two-Way Valves, 1/2 to 2-Inch, Bronze Body, ANSI 250
Your feedback is im port ant to us. If you have
Document No. 155-184P25
Valve
Connection
Valve
Model 1
Model 2
Flow
Action
Size
FxF
FxUF
UFxUF
FxUM
Description
Kit No.
Kit No.
Document Number 155-184P25
August 25, 2009
Service Kits, Continued
Table 15. Rebuild/Repack Service Kits Part Numbers Continued. See Table 13 for Items in Kit.
599-03108 599-03117 — 599-03252 S tainless steel 1. 0 Cv O-ring 599-03336 —
1/2 Inch
3/4-Inch 599-03112 599-03121 — 599-03256 Stainless steel O-ring 599-03340 —
1-Inch 599-03113 599-03122 — 599-03257 Stainless s teel O-ring 599-03341 —
Normally Open
1-1/4-Inch 599-03114 — 599-03123 — Stainless steel O-ring 599-03342 599-09207
1-1/2-Inch 599-03115 — 599-03124 — Stainless steel O-ring 599-03343 599-09208
2-Inch 599-03116 — 599-03125 — Stainless steel O-ring 599-03344 599-09209
1/2-Inch
3/4-Inch 599-03130 599-03139 — 599-03265 Stainless steel O-ring 599-03349 —
1-inch 599-03131 599-03140 — 599-03266 Stainless st eel O-ring 599-03350 —
1-1/4 Inch 599-03132 — 599-03141 — Stainless steel O-ring 599-03351 599-09219
Normally Closed
1-1/2-Inch 599-03133 — 599-03142 — Stainless steel O-ring 599-03352 599-09220
2-Inch 599-03134 — 599-03143 — Stainless steel O-ring 599-03353 599-09221
Equal Percentage
1/2-Inch
3/4-Inch 599-03166 599-03175 — 599-03274 Bronze O-ring 599-03358 —
1-Inch 599-03167 599-03176 — 599-03275 Bronze O-ring 599-03359 —
1-1/4-Inch 599-03168 — 599-03177 599-03276 Bronze O-ring 599-03360 599-09210
Normally Open
1-1/2-Inch 599-03169 — 599-03178 — Bronze O-ring 599-03361 599-09211
2-Inch 599-03170 — 599-03179 — Bronze O-ring 599-03362 599-09212
1/2-Inch
3/4-Inch 599-03184 599-03193 — 599-03283 Bronze O-ring 599-03367 —
1-Inch 599-03185 599-03194 — 599-03284 Bronze O-ring 599-03368 —
1-1/4-Inch 599-03186 — 599-03195 — Bronze O-ring 599-03369 599-09222
Normally Closed
1-1/2-Inch 599-03187 — 599-03196 — Bronze O-ring 599-03370 599-09223
2-Inch 599-03188 — 599-03197 — Bronze O-ring 599-03371 599-09224
599-03109 599-03118 — 599-03253 S tainless steel 1. 6 Cv O-ring 599-03337 —
599-03110 599-03119 — 599-03254 S tainless steel 2. 5 Cv O-ring 599-03338 —
599-03111 599-03120 — 599-03255 S tainless steel 4. 0 Cv O-ring 599-03339 —
599-03126 599-03135 — 599-03261 S tainless steel 1. 0 Cv O-ring 599-03345 —
599-03127 599-03136 — 599-03262 S tainless steel 1. 6 Cv O-ring 599-03346 —
599-03128 599-03137 — 599-03263 S tainless steel 2. 5 Cv O-ring 599-03347 —
599-03129 599-03138 — 599-03264 S tainless steel 4. 0 Cv O-ring 599-03348 —
599-03162 599-03171 — 599-03270 Bronze 1.0 Cv O-ring 599-03354 —
599-03163 599-03172 — 599-03271 Bronze 1.6 Cv O-ring 599-03355 —
599-03164 599-03173 — 599-03272 Bronze 2.5 Cv O-ring 599-03356 —
599-03165 599-03174 — 599-03273 Bronze 4.0 Cv O-ring 599-03357 —
599-03180 599-03189 — 599-03279 Bronze 1.0 Cv O-ring 599-03363 —
599-03181 599-03190 — 599-03280 Bronze 1.6 Cv O-ring 599-03364 —
599-03182 599-03191 — 599-03281 Bronze 2.5 Cv O-ring 599-03365 —
599-03183 599-03192 — 599-03282 Bronze 4.0 Cv O-ring 599-03366 —
Information in this publication is based on current specifications. T he company reserves the right to make changes in specif i cations and models as
design improvements are introduced. Teflon is a regist ered trademark of DuPont. Fl owrite is a registered trademark of Siemens Industry, I nc.
Product or company names mentioned herein may be the trademarks of their respect i ve owners. © 2009 Siemens Industry, I nc.
Siemens Industry, Inc.
Building Technologies Divis i on
1000 Deerfield Parkway
Buffalo Grove, IL 60089
+ 1 847-215-1000
comments about this document, please send
them to
Printed in the U.S.A.
Page 18
Loading...
