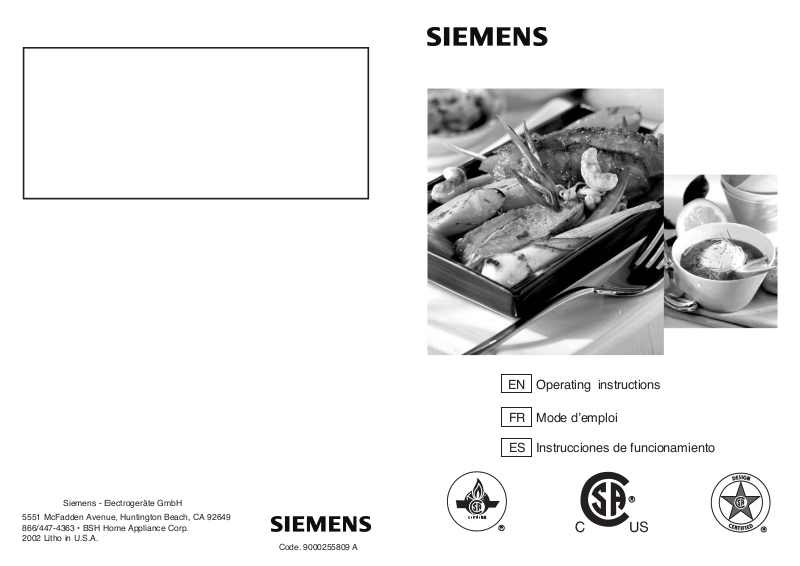

Page 1
Siemens - Electrogeräte GmbH
5551 McFadden Avenue, Huntington Beach, CA 92649
866/447-4363 • BSH Home Appliance Corp.
2002 Litho in U.S.A.
Code. 900025
5809 A
EN Operating instructions
FR
Mode d’emploi
Instrucciones de funcionamiento
ES
Page 2
Page 3
Dear Customer,
We thank and congratulate you on your choice.
This practical, modern and functional appliance has been built with
top quality materials. These materials have been subjected to
thorough quality control in the manufacturing process, and
meticulously tested in order for this appliance to meet your every
need, achieving perfect cooking.
Therefore, we ask you to read and follow these simple instructions
in order to guarantee unbeatable results from the first use. This
manual contains important information, not only for use of the
appliance, but safety and maintenance as well.
During transport, our products are protected by efficient packaging
materials. However, we have reduced our packaging to the bare
essentials. The materials are all completely recyclable. Just like us,
you can help protect the environment. To do so, we recommend
you dispose of these materials in the recycling facility nearest you.
Waste oil should not be poured down the sink drain, as this has a
negative impact on the environment. Place it in a closed container
and dispose of it at a collection point. If this is not possible, dispose
of it with standard domestic waste (as it will be taken to a controlled
landfill, and though this is not the best solution, at least water
pollution will be avoided). Present and future generations will
appreciate it.
Before you get rid of an old appliance, make sure you render it
inoperable. Next, deliver it to a recyclable material collection facility.
Your local government can provide you with the necessary information
on the nearest collection facility.
1
Page 4
FOR YOUR SAFETY 3
Important information for installation and usage
Important instructions
For your safety
Before set-up
For appliance usage
This is what your new cooktop looks like
Gas burners
Cooking tips
Appropriate cooking utensils
Cooktop usage warnings
Advice on using the appliance
Home troubleshooting
Installation instructions
Installing the cooktop on the kitchen unit:
Fitting measurements
Electrical connection
Change of gas type: from natural gas to propane
Convert the pressure regulator: from 6” W.C. to 10” W.C.
Warranty conditions
4
6
6
9
9
10
11
12
12
13
14
16
17
17
19
20
23
24
2
Page 5
For your safety
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical
switch.
Do not use any phone in your
building.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
PLEASE READ THE INSTRUCTIONS BEFORE CONTINUING
IMPORTANT: Keep these instructions for the local electrical inspector to use.
INSTALLER: Leave these instructions next to the unit for the owner.
OWNER: Keep these instructions for future use.
3
Page 6
Important information for
installation
1 - For safety reasons, do not allow the flames
to extend beyond the edge of the cooking
appliance.
2 - Remember that the appliance heats up
when in use. Remember to use common
sense. The absence of a flame does not
mean that the appliance parts are no longer
hot.
3 - For safety reasons, this appliance should
not be used for room heating purposes.
4 - Make sure the power supply is
disconnected before dismantling the
appliance.
5 - Do not store
such as gasoline,
inflammable liquids near the appliance.
6 - Do not block the combustion or ventilation
air flow.
•
If a burner goes out and gas escapes, open
windows and doors. Wait until gas dissipates
before using the appliance.
•
If you smell gas, your installer has not done
a proper job of checking for leaks. If the
connections are not perfectly light, you can
have a small leak and, therefore, a faint smell.
Finding a gas leak is not a "do-it-yourself"
procedure. Some leaks can only be found with
the burner control in the ON position and this
must be done by a qualified service technician.
See Warning, page. 3.
7 - Maintain a minimum distance of 762 mm
(30") between the gas cooktop and cabinets
installed in the upper part.
combustible materials,
other vapors and
and usage
8 - The gas pressure regulator supplied with
the appliance must be installed in the gas
piping line.
9 -
The appliance and its individual shutoff val-
ve must be disconnected from the gas supply
piping system during any pressure testing
of the system at test pressures in excess of
3.5 kPa (1/2 psig). The appliance must be
isolated from the gas supply piping system
by closing its individual manual shutoff valve
during any pressure testing of the gas supply
piping system at test pressures equal to or
less than 3.5 kPa (1/2 psig).
10 - Important: When using an especially
large pan, leave a minimum space of 50 mm
(2") to prevent damage to countertops of
wooden, plastic or other non-heat resistant
materials. Never leave hot oil or grease
unattended.
11 - Make the caution about leaving oil or
grease unattended.
•
Always turn hood ON when cooking at high
heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef
Flambe').
•
Use high heat settings on the cooktop only
when necessary. To avoid bubbling and
splattering, heat oil slowly on no more than
a low-medium setting. Hot oil is capable of
causing extreme burns and injury.
•
Never move a pan of hot oil, especially a
deep fat fryer. Wait until it is cool.
4
Page 7
12 -
Do not clean the appliance while it is still
hot. Some cleaners produce noxious fumes
when applied to a hot surface. Wet clothes or
sponges can cause burns from steam.
After a spill or boilover, turn off the burner and
allow the cooktop to cool. Clean around the burner and burner ports. After cleaning, check for
proper operation.
Use Proper Pan Size. The use of undersized
cookware will expose a portion of the heating
element or burner to direct contact and may result
in ignition of clothing. Select cookware having
flat bottoms large enough to cover the surface
unit. This appliance is equipped with one or
more surface units of different size. Proper relationship or cookware to heating element or
burner will also improve efficiency.
13-To avoid compromising the electrical
safety of the appliance, use of high-pressure
steam jet cleaning apparatus is forbidden.
The name plate is affixed to the
underside of the appliance.
WARNING: NEVER use this appliance
as a space heater to heat or warm the
room. Doing so may result in carbon
monoxide poisoning and overheating of
the oven.
This appliance has been tested in
accordance with ANSI/CSA Z21.1 Standard
for household Cooking Appliances (USA)
and CAN 1.1-M81 (Canada)
For US installations only:
This installation must comply with local
codes, or if none exists, the National Fuel
Gas Code, ANSI Z 223.1/NFPA 54, current
edition.
If an external electrical source is used, the
appliance must be electrically grounded in
compliance with local codes, or if none
exists, the National Electrical Code
ANSI/NFPA 70, current edition.
For Massachusetts installations:
1. Installation must be performed by a
qualified or licensed by the state, province
or region where this appliance is being
installed.
2. Shut-off valve must be a "T" handle gas
cock.
3. Flexible gas connector must not be
longer than 36 inches.
For Canada installations only:
The installation must comply with CAN 1B149.1 and .2- Installation Codes for Gas
Burning Appliances and or local codes.
When installed, the appliance must be
electrically grounded in compliance with local
legislation, or if none exists, in compliance
with CSA Standard C22.1-Canadian Electrical
Code, Part I (current).
5
Page 8
Important instructions
For your safety
Carefully read this Operation and Maintenance
Manual before using your new cooktop.
As its user, you are responsible for the proper
maintenance and use of this appliance in your
home.
WARNING: These precautions will reduce the risk
of burns, electrocution,
fire and personal injury.
Proceed with maximum
care when using this
cooktop, as this
appliance generates
intense heat and can
increase the risk of
accidents.
When using cooking appliances, the following
basic safety precautions must be observed:
• Ensure proper installation and service.
Follow the installation instructions provided with
this product. Only a qualified technician can perform
the installation and grounding of the cooktop.
Do not use the appliance if damaged.
• Have the installer show you where the gas
shut-off valve is located, to know how and where
to shut off the gas mains to the cooktop.
• To prevent carbon monoxide build-up, do not
block appliance air vents.
• Do not repair or replace any part of the
appliance unless it is specifically recommended
in this manual. All remaining service must be
performed by a qualified technician.
• It is prohibited to leave children alone or
without adult supervision in an area where
appliances are in use. It is prohibited for anyone
to sit or stand on any part of the appliance.
When children become old enough to operate
the appliance, it is the legal responsibility of the
parents or legal guardians to ensure that they
are instructed in safe practices by qualified
persons.
• Do not allow children to use this appliance
unless closely supervised by an adult. Children
and pets should not be left alone or unattended
in the area where the appliance is in use. They
should never be allowed to
whether or not the appliance is in use.
• Do not place objects that may attract
children's interest on or behind the cooktop.
If children climb up the appliance to retrieve
such objects, they could be seriously injured.
• Do not use aluminium foil or protective liners
to line any part of an appliance, especially sur-
face unit drip bowls or oven bottom. Installation
of these liners may result in a risk of electric
shock or fire.
• Do not allow aluminum foil, plastic, paper or
cloth to come in contact with a hot burner or
grate. Do not allow pans to boil dry.
• Do not use any part of the cooktop to
store objects. Inflammable materials can ignite
and plastic objects can melt or catch fire.
• Extinguish flames with a properly fitted lid,
baking sheet or other metal tray. Next, attempt to
shut off the gas burner. Use caution and avoid
burns. If flames are not extinguished immediately,
evacuate the premises and notify the fire
department.
• When connecting electrical appliances near
the cooktop, make sure that the cables do
not touch any cooking surface that remains hot.
• If the cooktop is near a window, ensure
that the curtains can not be blown or moved over
or near the burners of the cooktop, as this
could trigger a fire.
play in its vicinity,
6
Page 9
WARNING-TO REDUCE THE RIS OF A
GREASE FIRE:
a) Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
b) Alway turn hood ON when cooking at high
heat or when flambeing food (i.e. Crepes Suzette,
Cherries Jubilee, Peppercorn Beef Flame).
c) Clean ventilating fans frequently. Grease
should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware
appropriate for the size of the surface element.
Smother flames from food fires other than grease fires with baking soda. Never use water on
cooking fires.
Have an appropriate fire extinguisher ava -
lable, nearby, highly visible and easily acce-
ssible near oven.
WARNING-TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A GREASE
FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid,
cookie sheet, or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. If the flames
do not go out immediately.
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN- You may
be burned.
c) DO NOT USE WATER, including wet dishcloths
or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher,
and you already know how to operate it.
2) The fire is small and contained in the area
where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
that personal clothing catches fire, drop and roll
• Never allow clothing, baking mitts or other
inflammable materials to come into contact
with a burner or the grate of this appliance,
or to remain close to these objects,
until they have cooled. The fabric can ignite and
cause personal injury.
• Use only dry oven mitts. Wet or damp oven
mitts can cause steam burns when applied to hot
surfaces. Do not use towels or other voluminous
linen products as oven mitts. Do not allow oven
mitts to touch the hot grates of the burners.
K
i
• For your personal safety, wear the proper
clothing. Do not wear loose garments, or any
with drooping sleeves while using this appliance.
Some synthetic fabrics may easily catch fire and
should not be worn while cooking.
that personal clothing catches fire, drop and roll
immediately to smother the flames.
• This appliance has been designed for the
cooking of food. For safety reasons, never
use the cooktop to heat a room.
• This appliance is intended for normal family
household use only. It is not approved for outdoor
use. See the Warranty. If you have any
questions, contact the manufacturer.
• When using the cooktop: DO NOT TOUCH
THE BURNER GRATES OR THE IMMEDIATE
SURROUNDING AREA. They heat up enough
to cause burns.
• WARNING: To prevent flare-ups all grates
must be properly positioned on the cooktop
whenever the cooktop is in use. Each of the
feet must be placed into the corresponding dimples in the cooktop. Do not use a grate if
damaged.
• Never leave the cooktop unattended.
Spillovers will cause smoke and grease spills that
can ignite.
• Do not heat food containers without
opening them. An accumulation of pressure can
trigger the explosion of the container.
• Do not heat or warm unopened food contai-
ners. Build-up of pressure may cause the containers to burst and cause injury.
• While cooking, adjust the burner control so
that the hot flame only touches the bottom
of the pot or pan. Do not allow the flame to
extend beyond it.
• Use caution so that the currents triggered by
the forced ventilation openings or fans do not blow
the inflammable material toward the flames, or
push them so that they extend beyond the edges
of the pot or pan.
In the event
7
Page 10
• Always use cooking utensils with flat
bottoms big enough to cover the burner. If
smaller utensils are used, part of the flame can
remain exposed and set clothing on fire.
• To reduce the risk of burns, ignition of
inflammable materials and unintentional spills,
point the handles of the utensils inward, so
that they do not hang over adjacent working areas,
cooking areas or the edge of the cooktop.
• To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage
space located above the surface units should be
avoided. If cabinet storage is to be provided, the
risk can be reduced by installing a hood that projects horizontally a minimum of 5 inches beyond
the bottom of the cabinet.
• When stirring or turning food, hold the
handle of the pot or pan firmly, to prevent it from
moving.
• GREASE IS INFLAMMABLE. Let hot grease
cool before handling it. Prevent the formation of
grease build-up. Clean the cooktop following
every use.
• In order for the burners to ignite and operate
properly, keep the burner ports clean.
The burner ports must be cleaned follow ing a
a spill or when the burner does not ignite, even
if the electrical lighters click.
Consult the care and maintenance section.
• Never pick up a burning pot, as this could
cause burns.
• Clean the cooktop with care. Avoid steam
burn risks: do not use a sponge or damp cloth
to clean the cooktop while hot. Some cleaning
products produce harmful vapors if applied to a
hot surface. Follow the instructions provided by
the cleaning product manufacturer
• Ensure that all the cooktop control
knobs are set to off and that the cooktop is
cool before using any aerosol cleaning product
on or around the cooktop. In the presence of
heat, the chemical products that produce the
spraying action can ignite or trigger corrosion of
the metal pieces.
• Hidden surfaces may have sharp edges.
Use caution when reaching behind or under
appliance.
.
•
Only authorized technicians can carry out
the necessary service. Technicians must
disconnect the electrical power supply before
carrying out maintenance operations on this unit.
• Never modify or alter the construction of
the appliance. For example, do not remove leveling legs, panels, wire covers or anti-tip
brackets/screws.
• Install a smoke detector in or around the
kitchen.
• Install a gas shutoff valve near the appliance.
It must be easily accessible in an emergency.
• The warranty for this appliance does not
cover damages caused by non-adherence to
these instructions or by any non-authorized
modifications.
• California, Proposition 65, Danger: The burning
of gas cooking fuel generates some by-products,
which are on the list of substances which are
known by the State of California to cause cancer or
reproductive harm. California law requires businesses to warn customers of potential exposure
to such substances.
se substances, always operate this unit according to the instructions contained in this booklet
and provide good ventilation to the room when
cooking with gas.
• During maintenance procedures, remove
power and the plug from the outlet and shut
off the gas supply.
In order to guarantee the electrical safety of the
appliance, only authorized technicians can perform
the necessary repairs.
The right to make technical modifications is
reserved.
To minimize exposure to the-
8
Page 11
Before the first
start-up
Remove the packaging from the appliance
and dispose of it as per local laws. Remember
that there are other accessories in addition to
packaging materials. Keep packaging materials
and plastic bags out of the reach of children.
Check the condition of the appliance before
installing it, to ensure that it has suffered no
damage during transport.
Only authorized technical personnel must
install and connect the appliance before
its first start-up in compliance with the
regulations of the gas supplier companies and
local.
Turn the control dials to before connecting
the appliance to the current supply.
The appliance's serial number is indicated on
the control slip annexed to this manual. For
warranty purposes, keep this note together
with the usage and assembly instructions.
Carefully read the assembly and usage
instructions before starting up the appliance.
Thoroughly clean the appliance and
accessories when using them for the first time.
This will eliminate any "new" scents and any
remaining dirtiness (see cleaning and care
chapter).
For appliance usage
The use of this gas burning appliance produces
a formation of heat and humidity in the area
of use. Make sure that the area has proper
ventilation conditions.
Keep the ventilation channels open.
Prolonged use of the appliance with several
or all cooking units may require additional
ventilation, such as opening a window or a
door or more intensive extraction of air with
an extraction hood.
To guarantee good combustion, the
room in which the appliance is installed
must have a minimum volume of
3
(35 m ) and must possess a door that
opens outdoors or a window that can
opened.
The use of spit-roasters, pans or grilling
stones simultaneously by more than one
burner is prohibited, as the accumulation of
heat could damage the appliance.
If large pots are used, a minimum separation
of approximately 50 mm (2") should be kept
between the pot and peripheral inflammable
materials. A minimum separation of some
50 mm (2") should be kept between the
control dial or control panel and the pot or
pan. The cooking pot must not touch
the control panel.
If pots or pans are removed temporarily,
set the stovetop to the minimum setting.
This will reduce the risk of suffering burns
while working near open flames; in addition
to saving gas, thus favoring the environment.
If there is a fault in the current supply, do
not use the appliance.
If the appliance does not work properly,
contact the technical service.
1240 cft
BURNER
Large double-flame burner
Rapid burner
Semi-rapid
Ø MINIMUM PAN SIZE Ø MAXIMUM PAN SIZE
9”
9” 10”
6” 8”
Auxiliary 5” 6”
9
Page 12
This is what your new Cooktop
looks like
Grates
Burner up to
3.900 Btu/hr
Burner up to
9.800 Btu/hr
Control knobs
Burner
up to
6.500 Btu/hr
Large double flame
burner up to 20.000 Btu/hr
10
Burner up to
6.500 Btu/hr
Page 13
The gas burners
Figure1
Off
:
: Hi
: Low
There are indications to show which burner each control knob
operates. Fig. 1.
To light a burner, press the chosen control knob and turn it
toward the left, holding it in the maximum setting for a few
seconds until the burner is lit, then release it, and adjust to the
desired setting. If it does not light, repeat the procedure.
Figure 2
CAUTION - All igniters spark w hen any single burner is
turned ON. Do not touch any of the burners w hen the
cooktop is in use.
If the ignitor are dirty, this makes the burner harder
to light. Therefore, keep them as clean as possible. This
Thermocouple
Ignitor
cleaning should be performed with a small brush, considering
that the ignitor can not withstand any sharp blows.
If your cooktop is not fitted with this automatic lighting
Figure 3
feature, use a lighter or a match to light the burner.
Your cooktop may be equipped with safety thermocouples
to prevent gas flow if the burners are accidentally extinguished.
Figure 2.
To turn on and activate this innovative system, proceed in
the same way, but keeping the control knob pressed down
until ignition takes place, the flame appears and does not
_знЬ кбеЦл EбееЙк ~еЗ змнЙкF
Дмке ~н Смд д йзпЙкK
extinguish.
If ignition does not take place, repeat the procedure, keeping
the control knob pressed down 1-5 seconds.
To turn it off, turn the control knob to the right to the correct
position . When carrying out this procedure, the ignition
system may activate again. This is completely normal.
Your modern, functional cooktop has progressive gas valves
qЬЙ змнЙк кбеЦ Дмкел ~н гбебгмг
йзпЙкI нЬЙ бееЙк кбеЦ Дмкел
~н Смдд йзпЙкK
that make it possible to adjust to the necessary setting
between the maximum and minimum flames.
The large double flame burner is very practical and
convenient for cooking with "paella" pans, Chinese woks
(all sorts of Asian dishes), etc.
If your cooktop is equipped with a large double flame burner,
it will have a valve facilitating independent control of the
interior and exterior flame. This revolutionary system makes it
qЬЙ бееЙк кбеЦ Дмкел ~н Смдд йзпЙкI
нЬЙ змнЙк кбеЦ бл нмкеЙЗ зССK
possible to select from a wide array of power settings.
Working description Fig. 3.
The use of the appliance produces heat and humidity in the
site where it is installed. Ensure that the kitchen has good
ventilation. Keep ventilation channels open or install a
mechanical ventilation system (extraction hood).
Prolonged use of the appliance with several or all cooking units
may require additional ventilation, such as opening a window
qЬЙ бееЙк кбеЦ Дмкел ~н гбебгмг
йзпЙкI нЬЙ змнЙк кбеЦ бл нмкеЙЗ зССK
(without causing air currents) or increasing the power of
mechanical ventilation if it exists.
11
Page 14
Cooking
recommendations
Very high High Medium Low
Large
double-flame
burner
Rapid
Semi-rapid
Auxiliary
Boiling, cooking, roasting,
browning, "paellas" and
Asian dishes (wok). Defrosting.
Steaks,
omelettes and fried dishes.
Steamed potatoes, fresh
vegetables and pasta.
Cooking: casseroles, rice
pudding and caramel.
Reheating and keeping food warm:
ready and pre-cooked meals.
Rice,
“bechamel”
(sauce)
and stew.
Reheating and keeping food warm:
pre-cooked meals, preparing delicate
casseroles.
Defrosting and
slow cooking:
legumes, fruits
and frozen
products.
Appropriate cooking utensils
Match Pan Diameter to Flame Size
- The flame should be the same size the
bottom of the pan or smaller. Do not use
small pans with high flame settings as the
flames can lick up the sides of the pan.
Steaming: fish
and vegetables.
Melting: butter,
chocolate and
gelatin.
Use Balanced Pans
- Pans must sit level on the cooktop grate
without rocking.
- Center pan over burner.
Use a lid That Fits Properly
- A well-fitting lid shorten the cooking time.
12
Page 15
Cooking warnings
NO YES
Do not use small pots on
large burners. The flame
should not touch the sides of
the pot.
Always use appropriate
pots for each burner.
This will prevent excessive
consumption of gas and
staining of the pots.
Do not cook without a lid, or
if the lid moves, as this causes
a partial energy loss.
Do not use pots with
irregular bottoms as they
lengthen cooking time and
increase energy consumption.
Do not place the pot
off-center over the burner, as
tipping could result.
Do not use large-diameter
pots on the burners near
the control knobs, which, once
centered over the burner,
could touch the knobs or be
close enough to them that the
temperature of that area increases, possibly causing
damage.
Never place pots
directly on top of the burners.
Do not use excessive weights
or strike the cooktop with
heavy objects.
Always use the lid.
Use only pots, pans and
casseroles with flat, thick
bottoms.
Center the pot over
the burner.
Place the pot over
the grate.
Make sure that the grates
and burner covers
are in the correct
positions before using the
appliance.
Never use two burners or
heat sources to heat a single
pot.
Avoid using roasting grilles,
earthen pots, etc. for
extended periods at
maximum power.
Handle pots carefully when
they are on the cooktop.
13
Page 16
Advice on using the appliance
DO NOT DO
Do not use washing powder,
oven-cleaning sprays or
scourers that might scratch
the glass.
Never use sharp objects
such as metal scourers or
knives to remove the
hardened remains of food
from the surface.
Never use a knife, scraper
or similar device to clean the
area where the glass meets
the trim of the burners or the
decorative metal frame.
Do not slide pans over the
glass because they could
scratch it. In addition, try not
to drop heavy or sharp
objects on the glass. Never
strike any part of the cooking
hob.
After each use, clean the surface
of the respective burner parts
once they are cold. If any bits
are left (overcooked food,
drops of grease etc.),
however few they will become
stuck to the surface and more
difficult to remove later.
To keep the burners and
pan supports clean, you
must clean them
periodically by placing them
in soapy weather and
brushing and with a nonmetallic brush to ensure that
the holes and grooves are
perfectly clean, and can
provide a perfect flame.
Always dry the burner
covers and the pan
supports if they have
become wet.
Use a glass scraper, and
always lay it flat to the glass,
taking special care not to
get it too near to the trim on
the gas burners.
After finishing cleaning, dry all
the burner parts together w ith
their casing. T he ring and the
burner cap must be inserted
w hen placing them on the
Grains of sand that may
come from cleaning fruits
and vegetables will scratch
the glass surface.
burner casing.
oisture and the incorrectM
positioning of the respective
burner parts w ill affect the
uniformity of the flame
generated.
Melted sugar and spilt foods that have a high sugar content should immediately be removed from
the hotplate using the glass scraper. After washing the pan supports, dry them well before using
them to cook again - if there are still any drops of water or damp patches left when you start
cooking, they could damage the enamel.
When cleaning the pan supports, be careful with the pegs, as they could come loose and scratch
the glass or the frame the next time you use the pan support.
14
Page 17
15
Page 18
Home troubleshooting
You do not always need to call the technical assistance
service. In many cases, you can solve problems on your own.
The following table contains useful advice.
Important:
Only authorized personnel from our Technical Service can perform
the necessary tasks relative to the gas and electrical systems.
What's wrong? Cause Probable Solution
The general electrical
system is malfunctioning
The electric ignitor does
not work
-Defective fuse.
-The automatic circuit breaker has
tripped or a fuse has blown.
-There is food or cleaning
product residue between the
ignitor and the burner.
-The burners are wet.
- Check the fuse in the
general fuse box, and replace
it if faulty.
- Check the general incoming
cabinet for a tripped automatic
circuit breaker or blown fuse.
- The space between the
ignitor and the burner must be
cleaned carefully.
-Dry the burner covers carefully.
The flames on the
burners are not uniform
The gas flow does not
appear to be normal or
no gas comes out
There is a smell of gas
in the kitchen area
The safeties of the
various burners do not
work
-The burner caps are not set
correctly.
-The different parts of the burner
have been set incorrectly.
- The grooves on the burners'
gas outlets are dirty.
-The burners may not be totally
dry.
-The gas mains are turned off
through a mid-pipe valve.
- If the gas comes from a gas
bottle, it may be empty.
-A gas valve has been left on.
-There may be a leak from the
coupling to the gas bottle.
- The control knob has not been
held down long enough.
-The grooves on the burners' gas
outlets are dirty.
- Ensure that the covers have
been correctly set.
- Correctly set the various parts.
- Clean the grooves on the
burners' gas outlets.
- Proceed with thorough drying
(take special care with
monoblock burners).
- Open possible mid-pipe
valves.
-Replace the gas bottle with a
full one.
-Check to see if any gas valve
is on.
- Ensure that the coupling has
been made correctly.
- Once the burner is lit, keep
the control knob pressed for a
few more seconds.
- Clean the grooves on the
burners' gas outlets.
16
Page 19
Installation instructions
IMPORTANT INFORMATION
Read these instructions before installing or using
the appliance.
Thoroughly follow the general safety instructions
as well as the important information.
Before using the appliance, an authorized
technician must install and connect it. Additionally
this technician must ensure that the power supply
and gas connections work properly.
The technician performing the installation is
responsible for the perfect operation of the
appliance in its place of installation.
The technician must show the user how to
disconnect the electricity and gas when necessary
PRECAUTION: Before
connecting the appliance,
ensure that the local
connection conditions as
well as the gas type and
pressure and the current
supply voltage match
the appliance's settings.
It is necessary for all tasks related with installation,
adjustment and adaptation to LP gas to
be performed by authorized personnel, and that
the codes in force, as well as the requisites of
the gas companies, be respected.
Before you begin, turn off the gas and
electricity supply to the appliance.
Before installing, turn power OFF at the service
panel. Lock service panel to prevent power from
being turned ON accidentally.
Before connecting up the appliance to the
installation, first check that it has been adjusted
for the type of gas that is to be supplied. Our
cooktops are delivered from factory fit to work
with the gas type indicated on the name plate.
It is obligatory for the place where the appliance
is to be installed to have standard ventilation.
Thus, it is necessary for the combustion gases to
be vented outside.
Check the dimensions of the cooktop as well
as the dimensions of the hole to be cut in the
kitchen unit.
The panels located above the work surface, next
to the cooktop, must be made of noninflammable material. The stratified coatings and
,
the adhesive that fixes them must be heat-resistant
to prevent possible deterioration.
Electrical cables must not come into contact with
heat zones.
The power cable must be fastened to the kitchen
unit to keep it from touching the hot parts of the
oven or cooktop.
.
It is mandatory for appliances with any electrical
component to be grounded.
Installer-show the owner the location of the circuit
breaker or fuse. Mark it for easy reference.
The installation of this appliance must be performed
in accordance with the codes in force and only in
a well-ventilated site.
If required by the National Electrical Code (or Canada Electrical Code), this appliance must be ins-
talled on a separate branch circuit.
Handle the appliance with care during the entire
installation process. Avoid any blows to the
appliance.
In the event that these recommendations are not
observed, the installation technician will be
responsible for any damage caused, and the
manufacturer will be exempt from all responsability.
Installing the cooktop
on the kitchen unit:
Fitting measurements
1 - Minimum distances (mm). Cut a gap of the
required size in the work surface. Fig. 1 a-b
Follow the installation instructions for hoods.
2 - The wood fibres that have been used to make
the cabinets tend to swell quickly
when they come into contact with moisture.
Therefore, we recommend to coat the cut
surfaces, to protect them from steam or
condensed water that could be deposited
under the kitchen unit work surface.
17
Page 20
IMPORTANT INFORMATION
Requirements for the cabinet
Fig. 1a
E
D
A
A- Minimum 6” (152 mm)
B- Minimum 6” (152 mm)
C- Minimum 30” (762 mm)
C
D- Minimum 2” (51 mm)
E- Minimum 36” (915 mm)
F- Minimum 18” (458 mm)
F
B
Maximum depth of cabinets installed above
cooktop: 13" (330 mm.)
Appliance installation
Depending on the model, the clips and the
3 -
watertight seal (lower edge of the cooktop)
may already be fitted; if this is the case, do not
remove them under any circumstance.
The seal ensures that the entire work
will be watertight, and prevents water
If this item has not been fitted in the factory,
remove the pan supports and the gas burner
surface
seepage.
covers and diffusers from your cooking hob,
and turn it upside down.Now fit the
supplied with the
of the cooking
the attached
into the lower
Fig. 2 b.
Place the cooktop in the middle of the
appliance
hob,
Fig. 2a,remove the clips from
onto the lower edge
accessories bag and screw them
points designed for this purpose,
adhesive
seal
opening where it is to be inserted into the
kitchen unit.
Once the hob is fitted you should turn the clip
and tighten the screw as shown in Fig. 2b. For
disassembly, unscrew the clip and proceed in
the reverse manner.
Note: do not stick the hob onto the worktop
with silicone.
If the oven is not installed under the cooktop,
place a separator of non-flammable material to
prevent access to the lower part of the cooktop.
To install the cooktop over an oven, check the
dimensions given in the installation manual.
Figure. 2a
min. 2
Fig. 1b
18
1
min. 7
”
/
4
13
”
/
16
1
19
”
/
4
1
33
”
/
2
min. 6”
Figure. 2b
1
33
”
/
2
3
1
”
/
4
1
1
”
/
16
1
1
/
”
16
1
19
”
/
4
Figure. 2c
Page 21
All operations relative to installation, adjustment
and adaptation to another gas type must be carried
out by authorized personnel from our Technical
Service, and the codes in force, as well as the
requisites of the gas companies must be complied
with.
4 - Before connecting the appliance, ensure that
the local connection conditions, as well as the gas
type and pressure match the settings of the
appliance.
Ensure that the gas supply is cut off through the
manual shut-off valve before connecting the
appliance.
The gas connection must be in a place that permits
access to the manual shut-off valve and that, if
necessary, is visible upon opening the kitchen
cabinet door.
Connect the regulator Figure 3 (2) to the manifold
Figure 3 (1) as shown by the arrow on the regulator
applying teflon to the threads.
Connect the pressure regulator to the gas grid
using a flexible gas line fitting between the shutoff valve and the pressure regulator. Figure 3.
Figure 3
IMPORTANT INFORMATION
Electrical connection
Before connecting the power cable to the wall
outlet, make sure the gas shut-off valve and all
the control knobs of the burners are set to "of
The voltage and total power must be checked on
the specifications plate. This appliance must be
grounded.
Always ensure that all connections have been
made in accordance with code requirements.
Thoroughly follow the requisites of the local
electric power company.
The electrical connection (CA 110-127 V) is
established by a connection cable with a grounding
contact plug connected to a grounded outlet to
,
which there must be access after installation of
the gas cooktop.
All gas connections must be tested for leaks using
an appropriate liquid solution. Never use a flame
to test for gas leaks.
f".
1
2
Ensure that a bag containing component 2 is
supplied with the appliance. If this component
is missing, call our Technical Service. Use the
parts we supply to complete the gas
connection.
Tighten the appliance regulador to 15 to 22 ft-lbs of
torque. Never tighten to more than 26 ft-lbs of torque. Always use an approved pipe joint compound
resistant to the action of LP gas.
Connection using a metal pipe. In this case, contact
between this tube and the moving parts of the
kitchen unit (for example, a drawer) and its passage
through areas that could be blocked, must be
avoided.
The manufacturer accepts no responsibility for
leaks or connections carried out by the installation
technician.
Leak testing of the appliance shall be conducted
according to manufacturer s instructions.
,
WARNING: this
appliance is equipped with
a three prong grounding
plug for your protection
against shock hazard
and should be plugged
directly into a properly
grounded receptacle.
Do not cut or remove the
grounding prong from
this plug.
The current supply connection cable must be at
least of the JT 3x18 AWG/UL/CSA variety, or
should be heat-resistant (at least 105
The mains connecting cable must only be
purchased through and connected by an
authorised specialist.
Do not tamper with the inside of the appliance.
If this is necessary, call our technical assistance
service.
ºC / 221 ºF).
19
Page 22
IMPORTANT INFORMATION
Gas type changing:
From natural gas to propane
It is necessary that all operations related with
installation, adjustment or adaptation LP
gas be performed by authorized personnel
of our Technical Service, and that the regulations
in force, as well as the requisites of the gas
companies, be followed.
IMPORTANT: Before you begin, turn off the gas
and electricity supply to the appliance.
Before connecting up the appliance to the
installation, first check that it has been adjusted
for the type of gas that is to be supplied. Our
cooktops are delivered from factory prepared
to operate with the gas type indicated on the
specifications plate.
The propane gas tank must be equipped with its
own high pressure regulator in addition to the
pressure regulator supplied with this unit.
Supply Pressure
Natural Gas - 7
Propane Gas - 11" wc (27.4 mbar) minimum.
The maximum supply pressure to this applianc
shall not exceed 14" water column (34.9 mbar).
This cooktop can be adapted to work
with LP gas. To do so, the following
procedures must be completed:
A)
Change of rapid, semi-rapid and auxiliary
cooktop burner tips.
The burner must be used with the
gases indicated on the
specifications plate.
Gas pressure for use
Burner tip marker
Burner
rapid
Consumption
(Hs)
Burner tip marker
Burner
semi-
Consumption
rapid
(Hs)
Burner tip marker
Burner
auxiliar
Consumption
(Hs)
Burner tip marker
Consumption
Large
(Hs)
Burner
double
flame
Distance "Y" inner
bushing
Distance "Z" outer
bushing
1 - Remove the grates, covers and the main
body of the burner.
2 - Change the burner tips using
provided by our technical services department
(code 424699)
and make sure that they are
tightened all
they are correctly
The adjustment of primary air must not be performed
on these burners.
(17.5 mbar) minimum.
"
wc
S
ee table(
T ABLE 1
Burner data
GAS
TYPE
BTU/hr
Rated
BTU/hr
Rated
BTU/hr
Rated
Rated
BTU/hr
)
1
.
NATURAL
6” 10”
138 91
9.800 9.800
110
6.500 6.500
85 60
3.900 3.900
184/X 129/
20.000 20.000
PROPANE
the spanner
the way in order to ensure that
sealed. Figure 4.
e
76
Fig. 4
20
Page 23
B) Changing the tips on the upper large
double flame burner.
The glass panel and the frame are fixed to the
rest of the cooking hob by means of clips. The
following steps must be taken to remove both the
glass panel and frames:
1 - Remove all the burners, caps, diffusers,
etc. Fig. 5a.
2 - Loosen the two screws on the rapid, semi-
rapid and auxiliary burners. Fig. 5b.
3 - Loosen the three screws on the large double
flame burner. Fig. 5c.
Fig. 5
IMPORTANT INFORMATION
4 - Use the disassembly lever 483196 available
from our technical assistance service. To release
the front clips, apply the lever in the area shown in
figures X1, X2, depending on the hob model.
Never use the lever on glass edges which have
no trim or frame!
Before putting the glass back, check that the
watertight seals are properly adjusted.
5 - To release the rear clips, carefully raise the
entire glass unit along with the frame, as in
Fig. X3.
X1
5a
5c
5b
X2
X3
6 - Changing the outer flame burner tip.
Take out the main burner tip turning it to the left
with a 10 mm spanner. At the same time, hold the
burner tip casing in the opposite direction with a
13 mm spanner. Fig. K.
Fig. L.
21
Page 24
IMPORTANT INFORMATION
Screw in the new main burner tip, pushing the
burner tip casing in the opposite direction with a
13 mm spanner.
Loosen the holding screw Fig. L1 and set the
regulating bushing of the air flow to the value
indicated in the burner tip table.-Z-
Tighten the locking screw.
7 - Changing the inner flame burner tip.
Fig. M.
Using an 8 mm spanner, unscrew the connector
Fig. M3 from the threaded component Fig. M2. To
do this, hold the threaded component firmly in the
opposite direction using a 12 mm spanner. See
Fig. N.
Then, using a 12 mm spanner, unscrew the
threaded component Fig. M2 from the component
Fig. M1, holding the latter firmly in the opposite
direction with a 12 mm spanner. See Fig. O.
L1
L2
Z
L
Y
M1 M3
M4M5
M5
M2
K
Fig O
Unscrew the burner tip Fig. M4 from component
Fig. M2 and replace it with the appropriate burner
tip as indicated in the burner tip table, and adjust
the regulating bushing of the air flow M5 in line with
the value indicated in the burner tip table. -Y-
* If the appliance is not firmly fixed or the clipping
system is too rigid, it may cause the entire appliance
to lift up. In this case follow this procedure:
1) Loosen the fixing clips of the appliance to
the kitchen unit.
2) Loosen the main gas connection and take
the appliance out of its seating.
3) Apply the disassembly lever 483196 as
shown in Fig. W.
Fig W
M
C) Reduced consumption adjustment of the
cooktop burner taps.
1 - Set the taps to the minimum setting.
2 - Remove the control knobs from the taps. Fig. 6.
22
Fig N
Page 25
Fig. 6
IMPORTANT INFORMATION
Conversion of the 6” W.C. pressure regulator to 10” W.C.
Remove the hexagonal lid from the upper part of
the regulator with an adjustable wrench.
Remove the plastic button on the lid and turn it,
pressing it firmly into place so that the letters "LP",
instead of "NAT" can be clearly read on the button.
Replace the lid and button set on the upper part
of the regulator, properly sealing it. Make sure that
the spring is in place. Do not over-tighten.
NOTE: The arrow on the rear part of the regulator
should point in the direction of the gas flow on the
cooktop. Fig. 9.
3 - It has a flexible rubber seal. Simply apply
pressure with the tip of the screwdriver to
release the thread toward the tap's adjusting
screw. Fig. 7.
Do not remove the disc seal.
Fig. 7
4 - Adjust the by-pass screw.
Fully tighten the by-pass screw. Fig. 8.
Fig. 8
NAT
Pin
DIAGRAM
Pin position
for propane
NAT
Hex
Cap
Hex Lid
Pin
LP
Spring
Fig. 9
Setting
of the pin
for natural
gas
Lid
Hex
NAT
PRESSURE REGULATOR
After performing the gas transformation, always
ensure that the flame of the burners is correct, so
that when changing from the maximum to the
minimum setting it does not go out, or cause
backflashing.
5 - It is important to ensure the proper placement
of all seals in order to prevent any short circuits
in case of spillage on the cooktop.
6 - Replace the control knobs on the taps.
Never remove the tap shaft. In case of fault, change
the whole tap.
C) Place the tag indicating the gas type to which
the appliance has been transformed over the
existing natural gas tag.
23
Page 26
IMPORTANT INFORMATION
If you call the Technical Service Department,
please be sure to indicate:
E - NR FD
This information appears on the appliance
name plate, situated on the lower part of
the cooktop.
WARRANTY
COOkTOP WARRANTY
WHAT IS COVERED
Full One Year Warranty
For one year from the date of installation or date of
occupancy for a new, previously unoccupied
dwelling, any part which fails in normal home
use will be repaired or replaced free of charge.
Save your dated receipt or other evidence of
the installation/occupancy date. Siemens will pay
for all repair labor and replacement parts found
to be defective due to materials and workman-
ship. Service must be provided by a Factory
Authorized Service Agency during normal
working hours. For Service Agency
nearest you, please phone 866-447-4363.
WHAT IS NOT COVERED
1 - Service by an unauthorized agency. Damage
or repairs due to service by an unauthorized
agency or the use of unauthorized parts.
2 - Service visits to:
• Teach you how to use the appliance.
• Correct the installation. You are responsible
for providing electrical wiring and/or gas
installation and other connecting facilities.
• Reset circuit breakers or replace home fuses.
3 - Damages caused from accident, alteration,
misuse, abuse, improper installation or installation
not in accordance that with local electrical codes
or plumbing codes, or improper storage of the
appliance.
4 - Repairs due to other than normal home use.
5 - Any service visits and labor costs during the
limited warranty.
6 - Travel fees and associated charges incurred
when the product is installed in a location with
limited or restricted access (i.e., airplane flights,
ferry charges, isolated geographic regions).
WARRANTY APPLICATIONS
This warranty applies to appliances used in
residential application; It does not cover their
use in commercial situations.
This warranty is for products purchased and
retained in the 50 states of the U.S.A., the District
of Columbia and Canada. The warranty applies
even if you should move during the warranty period.
Should the appliance be sold by the original purchaser during the warranty period, the new owner
continues to be protected until the expiration date
of the original purchasers warranty period.
SIEMENS DOES NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
Some states do not allow exclusion or limitation
of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
This warranty gives you with specific legal rights
and you may also have other rights which may
vary from state to state or province to province.
SERVICE DATA
For handy reference, the serial tag information has
been affixed to the back cover. For location of the
serial tag on the product. Keep your invoice for
warranty validation.
FOR REPAIRS OR AUTHORIZED SERVICE.
We want you to be satisfied. If you are not satisfied
with the service received, please call 866-4474363 or write us at:
BSH Home Appliances Corp.
Customer Support
5551 McFadden Ave.,
Huntington Beach, CA 92649
Any communication must include the model number, serial number and date of original purchase/installation. (See back cover).
24
Page 27
Cher/chère Client/e :
Nous vous remercions et félicitons de votre choix.
Cet appareil pratique, moderne et fonctionnel a été fabriqué avec
des matériaux de toute première qualité. Ces matériaux ont été
soumis à un contrôle de qualité très strict tout au long du processus
de fabrication et ils ont été méticuleusement testés afin que ce
produit respecte toutes vos exigences dans l'objectif d'obtenir une
cuisson parfaite.
Nous vous prions donc de lire et de respecter ces instructions
très simples pour pouvoir garantir des résultats sans égal dès sa
première utilisation. Ce manuel contient des informations
importantes, non seulement sur l'utilisation de l'appareil mais aussi
sur sa sécurité et maintenance.
Pendant leur transport, nos produits sont conditionnés dans un
emballage protecteur efficace. En ce qui concerne cet emballage,
nous nous limitons à ce qui est absolument indispensable, tout
l'emballage étant recyclable. Vous pouvez contribuer à la conservation
de l'environnement, comme nous le faisons nous-mêmes. Nous
vous recommandons donc de le déposer dans le conteneur le plus
proche de votre domicile disposé à cet effet.
L'huile utilisée ne doit pas être jetée dans l'évier vu que cela pourrait
avoir de graves répercussions sur l'environnement. Déposez-la
dans un récipient fermé et apportez-la à un point de collecte ou, à
défaut, déposez-la dans la poubelle (elle finira dans une décharge
contrôlée, ce qui n’est pas la meilleure solution mais évite la pollution
de l’eau). C’est pour le bénéfice de vos enfants et de vous-même.
Avant de vous défaire d'un appareil usagé, mettez-le hors d'état.
Remettez-le ensuite à un centre de collecte de matières recyclables.
Votre administration locale vous fournira les informations nécessaires
sur le centre de collecte le plus proche de chez vous.
25
Page 28
POUR VOTRE SECURITE
27
Informations importantes pour l'installation et utilisation
Indications importantes
Pour la sécurité
Avant la première mise en service
Pour son utilisation
Présentation de votre nouvelle table de cuisson
Brûleurs à gaz
Conseils pour cuisiner
Ustensiles de cuisine appropriés
Avertissements d'utilisation quant à la préparation
Avertissements d'utilisation en ce qui concerne :
préparation
Situations anormales
Instructions d'installation
Installation de la table de cuisson dans le meuble :
Mesures de l'encastrement
Connexion électrique
Changement du type de gaz : de gaz de ville à propane
Transformer le régulateur de pression : de 6” W.C à 10” W.C.
28
30
30
33
33
34
35
36
36
37
38
40
41
41
43
44
47
26
Conditions de Garantie
48
Page 29
Pour votre sécurité
AVERTISSEMENT : un incendie ou une explosion
provoquant des dégâts matériels, des blessures sur
les personnes, voire un décès, peuvent découler du
non respect strict des informations contenues dans
le présent manuel.
Ne pas stocker ni utilisez d'essence ni d'autres vapeurs
ou liquides inflammables à proximité de cet appareil
ou de tout autre appareil électrique.
QUE FAIRE SI VOUS DÉTECTEZ UNE ODEUR DE GAZ?
Ne cherchez pas à allumer quelque appareil
électrique que ce soit.
Ne touchez aucune commande électrique,
n utilisez aucun télephone dans le bâtiment.
'
Appelez immédiatement votre fournisseur de
gaz depuis le téléphone de votre voisin.
Suivez les consignes que vous donnera votre
fournisseur de gaz.
Si vous ne pouvez joindre votre fournisseur
de gaz, appelez les service des pompiers.
'
L installation et la mise en service doivent être
réalisées par un installateur qualifié, une agence
spécialisée dans le SAV ou bien par votre
fournisseur de gaz.
VEUILLEZ LIRE LES INSTRUCTIONS AVANT DE CONTINUER
IMPORTANT : Conservez ces instructions pour les fournir à l'inspecteur électricien local.
INSTALLATEUR : Joignez ces instructions à l'unité pour remettre l'ensemble au propriétaire.
PROPRIÉTAIRE : Conservez ces instructions pour de futures consultations.
27
Page 30
Informations importantes pour
l'installation et l'utilisation
1 - Ne permettez pas que des flammes
dépassent le bord de l'ustensile de cuisine.
Cette instruction est fondée sur des
considérations de sécurité.
2 - N'oubliez pas que l'appareil chauffe lorsqu'il
est en fonctionnement. Le sens commun est
important. L'extinction des flammes ne signifie
par que les pièces ne sont plus chaudes.
3 - Pour des raisons de sécurité, cet appareil
ne doit pas être destiné à chauffer une piéce.
4 - Assurez-vous de déconnecter l'alimentation
électrique avant de démonter l'appareil.
5 - Maintenez la zone de l'appareil propre et
libre de matières combustibles, par exemple
essence, autres vapeurs et liquides
inflammables.
6 - N'obstruez pas le flux d'air de combustion
et de ventilation.
Si un brûleur s éteint et que du gaz s échappe,
•
ouvrir les portes et les fenêtres. Attendre que
le gaz dissipe avant d utiliser la cuisinière.
S il y a une odeur de gaz, l installateur n a
'
•
pas bien vérifié les fuites a gaz. Si les joints ne
sont pas parfaitement étanches, il peut y avo-
ir une petite fuite de gaz, et de là, une légère
odeur. Trouver une fuite de gaz n est pas une
procédure à faire soi-même. Certaines fuites
ne peuvent être trouvées qu en plaçant le con-
trôle du brûleur en position ON et ceci doit
être accompli par un technicien en entretien
et réparation qualifié. Voir Avertissement,
page 24.
7 - Il faut conserver une distance minimum de
762 mm (30”) entre la table de cuisson à gaz
et les armoires placées sur la partie supérieure.
8 - Le régulateur de pression de gaz fourni avec
l'appareil doit être installé sur la ligne des tuyaux
de gaz.
'
'
'
'
'
'
9 - L'appareil et sa soupape d'arrêt individuelle
doivent être déconnectés du circuit
d'alimentation en gaz pendant la réalisation
d un test de mise en pression du système à
'
des pressions d 'essai excédant
3,5 kPa (1/2 psig).
L'appareil doit être isolé du circuit
d'alimentation en gaz par fermeture de son
robinet d'arrêt manuel individuel pendant la
réalisation d'un test de pression du circuit
d alimentation de gaz à des pressions d essai
'
èquivalentes ou inférieures à 3,5 kPa(1/2 psig)
10 - Important : quand un récipient très grand
est utilisé, laissez un espace minimum de 50
mm (2”) pour éviter d'endommager la surface
du plan de travail de la table de cuisson en
bois, plastique ou dans d'autres matériaux ne
résistant pas à la chaleur. Surveillez en
permanence l'huile ou la graisse chaude.
11 - Veiller à ne pas laisser de l huile ou de la
graisse sans surveillance.
Toujours allumer la hotte lorsque vous cuisi-
•
nez à température élevée ou que vous faites
flamber de la nourriture (p.ex. des crêpes
Suzette, des cerises jubilées, du boeuf au
poivre flambé).
Utiliser une température élevée sur la plaque
•
de cuisson seulement lorsque nécessaire.
'
Afin d éviter les débordements et les
éclaboussures, chauffer l huile lentement à
feu pas plus élevé que moyen. L huile chaude
peut causer des brûlures et des blessures
graves.
Ne jamais déplacer une casserole d huile
•
chaude, surtout une friteuse. Attendre qu elle
soit refroidie.
'
'
'
'
'
'
28
Page 31
12 - Ne pas nettoyer la cuisinière alors
qu elle est encore chaude. Certains produits
'
nettoyants produisent des vapeurs nocives
lorsqu ils sont appliqués sur une surface
'
chaude. Les linges ou éponges mouillés
peuvent causer des brûlures par la vapeur.
Aprés un renversement ou un débordement,
éteindre le brûleur et laisser refroidir la
plaque de cuisson. Nettoyer autour du brûleur et des orifices de combustion. Après
le nettoyage, vérifier le bon fonctionnement.
Utiliser une dimension appropriée de
casserole. L utilisation d un ustensile de
'
'
cuisson trop petit expose une partie de
l élément chauffant ou du brûleur au contact
'
direct et l ignition des vêtements peut en
'
résulter. Choisir un ustensile de cuisson
au fond plat et assez grand pour couvir la
surface de l elément chauffant. Cette cuisi
nière est munie d éléments chauffants de
'
'
-
différentes dimensions. Adapter la dimension de l ustensile de cuisson à la dimension
de l élément chauffant ou du brûleur aug
mentera auss l efficacité.
'
'
-
'
13- Pour éviter de mettre en danger la
sécurité électrique de l'appareil, il est interdit
d'utiliser des appareils de nettoyage à jet vapeur
de haute pression.
La plaque signalétique se trouve sur la partie
inférieure de l'appareil.
Cet appareil ne peut être utilisé dans des
armoires mobiles, des véhicules de loisirs
ou des mobil-home.
Cet appareil a été testé conformément aux
normes ANSI/CSA Z 21.1 concernant les
appareils de cuisson électroménager (USA)
et CAN1.1-M81 (Canada)
Uniquement si l'installation est effectuée
aux USA :
Cette installation doit respecter les lois locales
ou, à défaut, le National Fuel Gas Code (Loi
nationale sur le gaz combustible), ANSI Z
223.1/NFPA 54, édition actuelle.
Si vous utilisez une source électrique externe,
l'appareil doit être mis à la terre conformément
aux lois locales ou, à défaut, au National
Electrical Code (Loi électrique nationale)
ANSI/NFPA 70, édition actuelle.
Installations pour Massachusetts
'
1. L installation doit être effectuée par un technicien ou un entrepreneur un plombier qualifié ou avec licence par l état ou la province
ou la région où l appareil est installé.
2. La soupape d arrêt doit être un robinet de
'
'
'
gaz à poignée en T.
3. Un connecteur de gaz flexible ne doit pas
dépasser 36 po.
Uniquement si l'installation est effectuée au
Canada :
L'installation doit respecter le CAN 1-B149.1 et
.2- Lois sur l'installation d'appareils à combustion
à gaz et/ou les Lois locales.
Cet appareil, quand il est installé, doit être mis
à la terre conformément aux lois locales ou, à
défaut, au CSA Standard C22.1-Loi Electrique
du Canada, Partie I actuelle.
ATTENTION: NE JAMAIS utiliser cet
appareil comme chauffage d appoint:
risque d intoxication au monoxyde de
'
carbone et de surchauffe de l appareil.
'
'
29
Page 32
Indications importantes de sécurité
Pour la sécurité
Lisez attentivement toutes les instructions de ce
Manuel de fonctionnement et de maintenance
avant d'utiliser votre nouvelle table de cuisson.
En tant qu'utilisateur, vous êtes responsable de la
maintenance ainsi que de l'utilisation correcte de cet
appareil chez vous.
AVERTISSEMENT : Ces
précautions réduiront les
risques de brûlures,
d'électrocution, d'incendie
et de blessures
personnelles. Faites très
attention quand vous
utilisez cette table de
cuisson vu que cet
appareil libère une chaleur
intense et peut augmenter
le risque d'accidents.
Quand des appareils de cuisine sont utilisés, il
faut suivre les précautions de base suivantes sur
la sécurité :
• Assurez-vous que l'installation et la mise en
service sont correctes. Suivez les instructions
d'installation fournies avec ce produit. Seul un
technicien qualifié peut réaliser l'installation et la mise
à la terre de la table de cuisson. N'utilisez pas l'appareil
s'il est endommagé.
• Demandez à l'installateur de vous montrer
l'endroit où se trouve le robinet d'arrêt du gaz,
pour savoir comment et où il faut couper l'arrivée de
gaz à la table de cuisson.
• Pour prévenir une accumulation de monoxyde
de carbone, ne pas bloquer pas les évents d aération de l appareil.
'
• Ne réparez ni remplacez aucune partie de
l'appareil à moins que ce manuel le recommande
spécifiquement. Tous les autres services doivent être
réalisés par un technicien qualifié.
'
• Il est interdit de laisser des enfants seuls ou
sans surveillance dans une zone où des appareils
sont utilisés. Ne permettez à personne de s'asseoir
ou de rester debout sur une partie de l'appareil.
• Dès que des enfants sont en âge d utiliser
l' appareil
, il est de la responsabilité des parents ou
des représentants légaux d assurer qu ils sont
instruits des pratiques de sécurité par des
personnes qualifiées.
• Ne pas laisser les enfants se servir de la cuisiniére à moins d être ètre étroitement surveillés par un
adulte. Le enfants et les animaux domestiques ne
devraient pas être laissés seuls ou sans surveillance près d une cuisinière en marche. On ne devrait
jamais les laisser jouer autour de la cuisinière,
qu elle soit utilis ou non.
'
• Ne placez pas d'objets éveillant l'intérêt des
enfants sur la table de cuisson ou derrière celleci. Si les enfants montent sur l'appareil pour prendre
ces objets, ils peuvent souffrir de graves blessures.
• Ne pas utiliser de papier aluminium ou de dou-
blure de protection dans quelque partie que ce soit
'
de l appareil, surtout les cuvettes de propreté des éléments de surface ou le fond du four. L installation
de ces doublures peut causer un risque de choc électrique ou d incendie.
• Ne pas laisser du papier aluminium, du plasti-
que, du papier ou du tissus venir en contact avec
un brûleur chaud ou une grille chaude. Ne pas laisser
s evaporer complètement l eau des chaudrons.
'
• N'utilisez aucune partie de la table de cuisson
pour ranger des objets. Les matières inflammables
peuvent prendre feu et les objets en plastique peuvent
fondre ou prendre feu également.
• Eteignez les flammes à l'aide d'un couvercle aux
dimensions correctes, d'un lèchefrites ou d'un autre
plateau en métal puis essayez d'éteindre le brûleur
à gaz. Faites très attention et évitez de vous brûler.
Si les flammes ne sont pas éteintes immédiatement,
évacuez le lieu et appelez les pompiers.
• En connectant les appareils électriques près
de la table de cuisson, assurez-vous que les câbles
ne touchent aucune surface de cuisson chaude.
• Si la table de cuisson se trouve près d'une
fenêtre, assurez-vous que les rideaux ne peuvent
pas voler sur ou près des brûleurs de la table de
cuisson et provoquer un incendie.
'
'
'
' '
'
'
'
30
Page 33
AVERTISSEMENT-POUR RÉDUIRE LES
RISQUES D INCENDIE DE GRAISSE:
a) Ne jamais laisser les éléments de surface allumés
à haute intensité sans surveillance. Les débordements par bouillonnement provoquent de la fumée
et des débordements graisseux qui peuvent prendre feu. Chauffer l huile lentement à feu bas ou moyen.
b) Toujours allumer la hotte lorsque vous cuisinez à
température élevée ou que vous faites flamber de
la nourriture (p.ex. des crêpes Suzette, des cerises
jubilées du boeuf au poivre flambé).
c) Nettoyer fréquemment le ventilateur d aérotion. Ne
pas laisser la graisse s accumuler sur le ventilateur
ou sur le filtre.
d) Utiliser la bonne dimension de casserole. Toujours
utiliser un ustensile de cuisson d une dimension
appropriée à l élément de surface.
Étouffer les flammes des feux de cuisson autres
que les feux de graisse, avec du bicarbonate de
soude. Ne jamais utiliser d eau sur les incendies
de cuisson.
Avoir un extincteur approprié à portée de la main,
à proximité, très visible et facilement accessible
près de la cuisinière.
AVERTISSEMENT-POUR RÉDUIRE LES
RISQUES DE BLESSURES PERSONNELLES
DANS LE CAS D UN INCENDIE DE GRAISSE,
OBSERVER LES CONSIGNES SUIVANTES:
a) ÉTOUFFER LES FLAMMES avec une couvercle
bien ajusté, une tôle à biscuits ou un plateau en
métal, et ensuite fermer le brûleur. TRE PRU-
DENT POUR ÉVITER DE SE BR LER. Si les
flammes ne s éteignent pas immédiatement, ÉVA-
CUER LES LIEU ET APPELER LE SERVICE
D INCENDIE.
'
b) NE JAMAIS RAMASSER UNE CASSEROLE EN
FEU-Vous pourriez vous brûler.
c) NE PAS UTILISER D EAU, y compris un linge à
vaisselle ou une serviette mouillée-il s ensuivrait
une violente explosion de vapeur.
d) Utiliser un extincteur SEULEMENT si:
1) Vous savez que votre extincteur est de classe A
BC et vous savez déjà comment le faire fonctionner.
2) L incendie est petit et confiné à l espace où il s est
allumé.
3) Quelqu un appelle le service d incendie.
4) Vous pouvez combattre l incendie en ayant le dos
vers une sortie.
• Faites attention à ce que les vêtements, les
gants e cuisine ou d'autres matières inflammables
entrent en contact avec un brûleur ou une grille
de cet appareil ou qu'ils soient à proximité de
ceux-ci, tant qu'ils n'ont pas refroidi. Le tissu peut
prendre feu et provoquer des blessures personnelles.
'
'
'
'
'
'
'
'
X
'
' '
'
'
'
Ê
Û
'
'
'
• N'utilisez que des gants de cuisine secs.
gants de cuisine mouillés ou humides sur les surfaces
chaudes peuvent provoquer des brûlures de vapeur
N'utilisez pas de serviettes ni d'autres produits textiles
volumineux comme des gants de cuisine. Faites
attention à ce que les gants de cuisine ne touchent
pas les grilles chaudes des brûleurs.
• Par sécurité personnelle, portez des vêtements
appropriés. Vous ne devez pas porter de vêtements
flottants ni de manches qui dépassent quand vous
utilisez cet appareil. Certains textiles synthétiques
peuvent prendre feu facilement et ne doivent donc
pas être portés pour cuisiner.
Au cas oúú vos vêtements prendaient feu, mettez-
vous à terre et roulez-vous au sol immédiatment
pour étouffer les flammes.
• Cet appareil a été conçu pour la cuisson
d'aliments. Pour des raisons de sécurité, n'utilisez
jamais la table de cuisson pour chauffer une pièce
vu que l'appareil pourrait s'endommager.
• Cette cuisinière est destinée à un usage normal
par un ménage familial seulement. Elle n est pas
approuvée pour un usage à l extérieur. Voir la ga-
rantie. Pour toute question, communiquer avec le
fabricant.
• Quand vous utilisez la table de cuisson : NE
TOUCHEZ PAS LES GRILLES DES BRULEURS OU
LES ZONES ENVIRONNANTES. Elles sont
suffisamment chaudes pour provoquer des brûlures.
• AVERTISSEMENT: Pour prévenir une recru
cence soudaine du feu, toutes les grilles doivent ê
positionnées correctement sur la plaque de cuis
chaque fois que celle-ci est utilisée. Chaque pat
doit être positionnée dans l encoche correspon
sur la plaque de cuisson. Ne pas utiliser une gril
endommagée.
• Ne laissez jamais la table de cuisson sans
surveillance. Les débordements produiront de la
fumée et des déversements de graisse qui peuvent
prendre feu.
• Ne chauffez pas de conteneurs d'aliments
sans les ouvrir. Une accumulation de pression peut
provoquer l'explosion du conteneur.
• Ne pas faire chauffer ou réchauffer la nourri
dans un contenant qui n a pas été ouvert. L augm
tation de la pression pourrait faire exploser le co
nant et provoquer des blessures.
• Quand vous cuisinez, réglez le contrôle du
brûleur de sorte que la flamme chaude ne touche
que la partie inférieure du récipient et faites
attention à ce qu'elle ne dépasse pas les bords.
'
'
'
'
des-
tre
son,
te
dante
le
ture
en-
'
nte-
.
31
Page 34
• Faites attention à ce que les courants d'air
provoqués par les ouvertures de ventilation forcée
ou de ventilateurs ne soufflent pas la matière
inflammable vers les flammes ou poussent les
flammes de sorte à ce qu'elles dépassent des bords
du récipient.
• Utilisez toujours des ustensiles ayant la partie
inférieure plate et dont le fond est suffisamment
grand pour couvrir le brûleur. Si vous utilisez des
ustensiles ayant des dimensions inférieures, une
partie de la flamme peut être à découvert et incendier
les vêtements.
• Pour minimiser le risque de brûlures, d'ignition
des matières inflammables et de déversements non
voulus, placez les manches des ustensiles vers
l'intérieur, de sorte qu'ils ne dépassent pas des
zones de travail adjacentes, des zones de cuisson
ou du bord de la table de cuisson.
• Pour éliminer le risque de brûlure ou d incendie
en tendant le bras au-dessus d éléments de surfa-
ce chauffés, éviter de placer des armoires de ran-
gement au-dessus des éléments de suface.
Si l on doit placer une armoire de rangement, on
'
peut réduire le risque en installant une hotte qui
ressort horizontalement d au moins 12,7 cm (5 po)
du bas de l armoire.au-delà
• Prenez le manche du récipient pour éviter que
l'ustensile se déplace en remuant ou en retournant
les aliments.
• LA GRAISSE EST INFLAMMABLE. Laissez
refroidir la graisse chaude avant d'essayer de la
manipuler. Evitez d'accumuler des dépôts de graisse.
Nettoyez la table de cuisson après chaque utilisation.
• Pour que les brûleurs s'allument et fonctionnent
correctement, maintenez propres les sorties. Il faut
nettoyer ces sorties quand il s'est produit un
déversement ou quand le brûleur ne s'allume pas,
même si les allumeurs électroniques font click.
Consultez la section sur l'entretien et la maintenance.
• Ne soulevez jamais une casserole en feu car
vous pourriez vous brûler.
• Nettoyez la table de cuisson avec précaution.
Evitez les risques de brûlures provoqués par la
vapeur ; n'utilisez pas d'éponge ni de chiffon mouillé
pour nettoyer la table de cuisson tant qu'elle est
chaude. Certains produits de nettoyage produisent
des vapeurs nocives s'ils sont appliqués sur une
surface chaude. Suivez les instructions fournies par
le fabricant du produit de nettoyage.
• Assurez-vous d'avoir éteint tous les contrôles
de la table de cuisson et qu'elle est froide avant
d'utiliser un produit de nettoyage en aérosol sur la
plaque de cuisson ou autour de celle-ci. Les produits
chimiques produisant l'action de pulvérisation, en
présence de chaleur, peuvent prendre feu ou
provoquer une corrosion des pièces métalliques.
'
'
'
'
32
•
Les surfaces cachées peuvent avoir des bords
tranchants. tre prudent lors du contact avec les
parties arrière et en dessous de l appareil.
•
Seuls des techniciens agréés peuvent effectuer
les services nécessaires. Les techniciens doivent
déconnecter l'alimentation électrique avant de réaliser
les services de maintenance de cette unité.
•
'
l appareil. Par exemple, ne pas enlever les pieds
de nivellement, les panneaux, les couvre-fils ou les
supports/vis antibasculement.
• Installez un détecteur de fumées dans la cuisine
ou à proximité.
•
Installer un robinet d arrêt du gaz près de
'
l
appareil. ll doit être facilement accessible en cas
'
d urgence.
• La garantie de cet appareil ne couvre pas les
dommages survenus suite au non respect de ces
instructions. Modifications techniques réservées.
• Avertissement concernant la California
Proposition 65: la combustion de gaz de cuisson
génère certains sous-produits qui figurent sur la
liste des substances considérées par l'Etat de
Californie comme susceptibles de provoquer des
cancers ou des lésions des organes reproducteurs.
La loi californienne impose aux entreprises d avertir
les clients du risque potentiel lié à l exposition à ces
substances. Pour minimiser cette exposition,
utilisez toujours l appareil conformément aux
instructions figurant dans ce manuel et assurez une
bonne ventilation de la pièce lorsque vous faites la
cuisine au gaz.
• Pendant la réalisation de processus de
maintenance, l'appareil doit être éloigné du réseau
de courant électrique. Retirez à cet effet la fiche du
réseau ou actionnez la protection correspondante.
Fermez l'alimentation de gaz.
Pour pouvoir garantir la sécurité électrique de
l'appareil, seuls des techniciens agréés pourront
réaliser les réparations correspondantes.
Droit de réaliser des modifications techniques réservé.
Ê
'
' Ne jamais modifier ou altérer l assemblage de
'
'
'
'
'
Page 35
Avant la première
mise en service
Retirez l'emballage de l'appareil et éliminez-le
conformément aux réglementations locales.
N'oubliez pas qu'il existe d'autres accessoires
en plus de l'emballage. Maintenez les éléments
de l'emballage et les revêtements en plastique
hors de portée des enfants.
Vérifiez l'état de l'appareil avant de l'installer
pour vous assurer qu'il ne s'est produit aucun
dommage pendant son transport.
Seul un personnel agréé pourra installer l'appareil
et le connecter avant la première mise en service
conformément aux réglementations en vigueur
des entreprises fournissant le gaz et à la
réglementation locale sur les travaux civils.
Tournez les manettes de commande sur avant
de connecter l'appareil au réseau électrique.
Le numéro de série de l'appareil se trouve sur
la note de contrôle jointe au présent manuel.
Pour des raisons de garantie, conservez cette
note avec les instructions d'utilisation et de
montage.
Lisez attentivement les instructions de montage
et d'utilisation avant de mettre en marche votre
appareil.
Nettoyez consciencieusement l'appareil et les
accessoires quand vous les utilisez pour la
première fois. Vous éliminerez ainsi les possibles
odeurs à neuf et les restes de poussière
(consultez le chapitre sur le nettoyage et
l'entretien)
pièce où il est placé. Assurez-vous que la pièce
incorpore les conditions de ventilation appropriées.
Maintenez ouverts les canaux de ventilation.
L'utilisation prolongée de l'appareil avec
plusieurs groupes ou avec tous les groupes de
cuisson peut demander une ventilation
supplémentaire, comme l'ouverture d'une
fenêtre ou d'une porte ou une extraction d'air
plus intense à l'aide d'une hotte aspirante.
Pour garantir une bonne combustion, la
pièce où se trouve l'appareil doit avoir un
volume minimal de 1240 cft (35 m3) et
posséder une porte donnant sur
ou une fenêtre pouvant s ouvrir.
Il est interdit d'utiliser simultanément des
rôtissoires, des poêles ou des pierres pour gril
chaudes sur plusieurs brûleurs vu que
l'accumulation de chaleur pourrait endommager
l'appareil.
Si des casseroles ayant de grandes dimensions
sont utilisées, il faudra maintenir une séparation
minimum d'environ 50 mm (2”) entre la
casserole et les matériaux inflammables
périphériques. Entre la manette de commande
ou le bandeau de commande et la casserole
ou la poêle, il faudra maintenir une séparation
minimum d'environ 50 mm (2”). Le récipient de
cuisson ne devra pas toucher le bandeau de
commande.
Si les casseroles ou les poêles sont retirées
momentanément, placez la table de cuisson
sur la graduation minimum. Ainsi sera réduit le
risque de brûlures en travaillant à côté de
flammes ouvertes ; de plus, la consommation
de gaz sera économisée ce qui favorisera
l'environnement.
'
l'extérieur
Pour son utilisation
L'utilisation d'un appareil de cuisson à gaz produit
la formation de chaleur et d'humidité dans la
S'il se produit un défaut d'alimentation, l'appareil
ne devra pas être utilisé.
Si l'appareil ne fonctionne pas correctement,
contactez le service technique.
BRULEUR Ø MINIMUM RECIPIENT Ø MAXIMUM RECIPIENT
Grand brûleur à double flamme
9”
Rapide 9” 10”
Semi-rapide 6” 8”
Auxiliaire 5” 6”
33
Loading...
