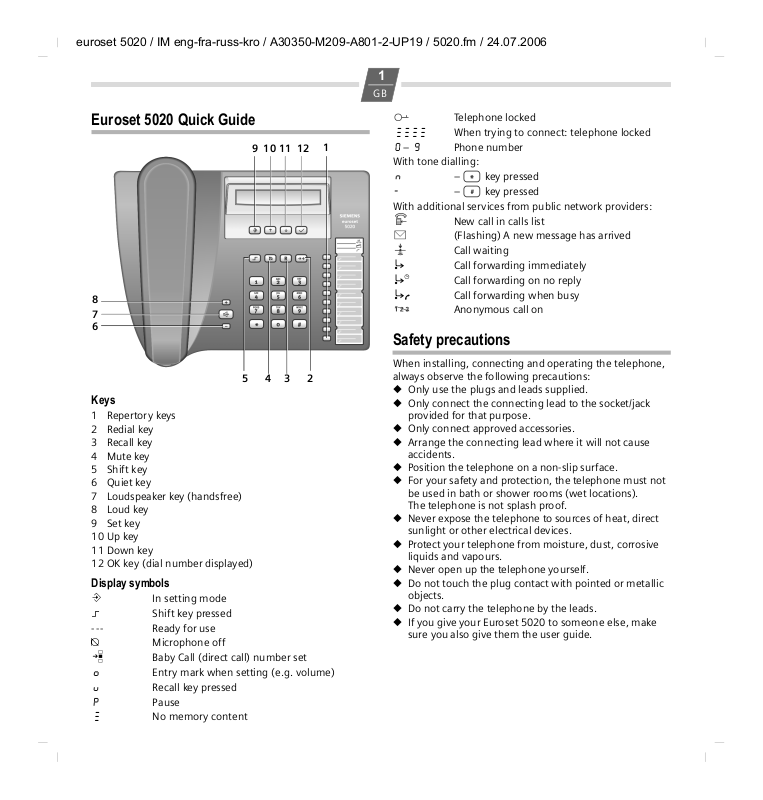

Euroset 5020 Quick Guide
1
1211109
8
7
6
45
23
Keys
1 Repertory keys
2 Redial key
3 Recall key
4Mute key
5Shift key
6Quiet key
7 Loudspeaker key (handsfree)
8Loud key
9Set key
10 Up key
11 Down key
12 OK key (dial number displayed)
Display symbols
P In setting mode
‡ Shift key pressed
--- Ready for use
y Microphone off
è Baby Call (direct call) number set
o Entry mark when setting (e.g. volume)
u
P
z
Recall key pressed
Pause
No memory content
{ Telephone locked
zzzz
0
–
9
With tone dialling:
n
-
With additional services from public network providers:
When trying to connect: telephone locked
Phone number
– * key pressed
– # key pressed
| New call in calls list
† (Flashing) A new message has arrived
ë Call waiting
™ Call forwarding immediately
˜ Call forwarding on no reply
— Call forwarding when busy
š Anonymous call on
Safety precautions
When installing, connecting and operating the telephone,
always observe the following precautions:
◆ Only use the plugs and leads supplied.
◆ Only connect the connecting lead to the socket/jack
provided for that purpose.
◆ Only connect approved accessories.
◆ Arrange the connecting lead where it will not cause
accidents.
◆ Position the telephone on a non-slip surface.
◆ For your safety and protection, the telephone must not
be used in bath or shower rooms (wet locations).
The telephone is not splash proof.
◆ Never expose the telephone to sources of heat, direct
sunlight or other electrical devices.
◆ Protect your telephone from moisture, dust, corrosive
liquids and vapours.
◆ Never open up the telephone yourself.
◆ Do not touch the plug contact with pointed or metallic
objects.
◆ Do not carry the telephone by the leads.
◆ If you give your Euroset 5020 to someone else, make
sure you also give them the user guide.
All electrical and electronic products should be disposed of separately from the municipal waste stream
via designated collection facilities appointed by the
government or the local authorities.
This crossed-out wheeled bin symbol on the product means
the product is covered by the European Directive 2002/96/
EC.
The correct disposal and separate collection of your old
appliance will help prevent potential negative consequences for the environment and human health. It is a precondition for reuse and recycling of used electrical and electronic equipment.
For more detailed information about disposal of your old
appliance, please contact your city office, waste disposal
service or the shop where you purchased the product.
Preparing the telephone for use
Recommended installation of telephone
◆ Do not expose the telephone to direct sunlight or other
sources of heat.
◆ Operate at temperatures between +5°C and +40°C.
◆ Maintain a distance of at least one metre between the
telephone and radio equipment, e.g. wireless
telephones, wireless pagers or TV sets. Otherwise,
telephone communication could be impaired.
◆ Do not install the telephone in dusty areas as this can
shorten the service life of the telephone.
◆ To clean, wipe with a moist or antistatic cloth only, never
with a dry cloth (risk of electrostatic charging and
discharge) or harsh cleaning agent.
◆ Furniture lacquer and polish can be damaged by contact
with parts of the unit (e.g. device feet).
Connecting
Insert the short end of the coiled handset cord in the socket
provided in the handset and the long end in the socket
marked with an
phone cord into the outlet on the wall and the other end
into the socket marked with a
device. Then your telephone is ready to use.
a on the underside of the device. Plug the
Y on the underside of the
2
GB
Setting the internal clock
?3 Initiate function.
The current set time is displayed in 24-hour
mode (default setting: 00:00).
o Enter the correct time in hours <hh> and
minutes <mm> (24-hour mode).
? Press the Set key.
Making calls
Dialling a number
co Lift handset, dial number.
or ...
o Bc Dial number (you can delete wrongly entered
Any digits after the 20th digit are moved from right to left in
the display. The Last number redial key
insert pauses when dialling, starting from the 2nd digit.
Select phone number from the calls list (if available):
see 6.
digits with
digit) and press the OK key.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
A and then enter the correct
; can be used to
GB
3
Activating/deactivating handsfree talking
With this telephone you can also make calls (handsfree
mode) or settings without lifting the handset. The best
distance from the microhone for speaking is about 50 cm.
◆ Activating during a call via the handset
L + a With the Loudspeaker key pressed replace the
handset.
◆ Activating before dialling the number
L Before dialling: hold down the Loudspeaker
key until you can hear the dialling tone.
Deactivating handsfree talking
c Lift the handset during the call.
Last number redial
The last 5 numbers dialled (up to 32 digits) are saved
automatically. You can retrieve these numbers from the last
number redial list and dial them again:
Redialling the last number dialled
c; Lift the handset and press the last number
redial key. The last number dialled is redialled
immediately.
Dialling from the last number redial list
; Without lifting the handset: Press the last
number redial key.
The last number dialled is displayed. (You can
leave the last number redial list at any time by
pressing
>.)
A...C Using the Down/Up key, scroll through the list
to the desired number.
B Press OK or L key.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
Dialling using the repertory keys
c Lift handset. (If necessary, press = for a 2nd
level repertory key).
: Press repertory key.
or ...
: Press repertory key. (If necessary, press = for
a 2nd level repertory key).
Bc Press OK or L key.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
Saving numbers
Different telephone settings must be completed with the
Set key
? so that they are available permanently.
In order to cancel without saving, e. g. after an incorrect
entry, replace the handset instead of pressing
end. The original setting is then retained.
Saving with notebook function
You can also save phone numbers during a conversation
with the notebook function.
Saving repertory numbers
You can save up to 20 phone numbers (or even functions,
see page 7) on both levels of the repertory keys.
? Press the Set key. (For 2nd memory level, also
press
=.)
: Press the repertory key under which you want
to save the repertory number.
A number that has already been saved is
shown in the display. If the memory for this
repertory key is empty,
z
appears in the display
o Enter the number to be saved (up to 32 digits).
or ...
Saving from the calls list (if service is available)
A...C Press the Down/Up key until the desired
number appears in the display.
or ...
Saving from the redial list:
; Press the last number redial key.
A...C If necessary, press the Down/Up key until the
desired number appears in the display.
To terminate the process:
? Press the Set key.
Saving during a call
You can also save phone numbers in the same way during a
call (notebook function).
Note:
After the 20th digit, any following digits are moved from right to left
in the display.
Delete all repertory numbers
?1251
Initiate function.
? Press the Set key.
? at the
GB
4
Adjusting the telephone
Adjusting the ringer volume
The volume of the ringer can be set to one of 4 levels and
can also be deactivated completely (default setting: level 4).
◆ To adjust when the telephone is idle:
?5 Initiate function.
H...I Adjust the volume with the Loud/Quiet key.
? Press the Set key.
◆ To adjust while the telephone is ringing:
Press
H...I before lifting the handset.
The last value set is saved.
Setting the ringer frequency
The frequency (speed) of the ringer can be set to one of
three levels (default setting: level 3).
?6 Initiate function.
1...3 Press one of the keys 1...3:
? Press the Set key.
Setting the ringtone
Ten different ringtones can be set for the ringer (default
setting: ringtone 9).
◆ To set with the telephone is idle:
?7 Initiate function.
0...9 Press one of the keys 0 ... 9
? Press the Set key.
◆ To set while the telephone is ringing:
0...9 Press one of the keys 0 to 9.
Setting the handset volume
The volume on the handset can be set to one of 3 levels and
saved (default setting: level 1).
?9 Initiate function.
H...I Adjust the volume with the Loud/Quiet key.
? Press the Set key.
Mute
You can deactivate the telephone's handset and
microphone. Then the other party can no longer hear you.
J During a call: Press the Mute key
1: highest frequency; 3: lowest frequency.
Activate: Press the key again.
Adjusting the loudspeaker
While in handsfree mode, you can set the volume to one of
7 levels and save it (default setting: 1).
H...I Adjust the volume with the Loud/Quiet key.
Activating/deactivating the mute melody
You can activate and deactivate the mute melody for the
mute (default setting: on).
?19 #
Initiate function.
0/1 0: deactivate; 1: activate.
? Press the Set key.
Baby call (direct call) number setting
If a phone number is set for the Baby Call function, it is
dialled automatically when the telephone is locked
(s. "Activating/deactivating the telephone lock") after you
lift the handset (or press the Loudspeaker key) and press
any key (except
does not allow other phone numbers to be dialled, but
incoming calls can be received.
?, L,H and I). The telephone
?82
Initiate function.
o Enter direct call number (max. 32 digits).
? Press the Set key.
When the baby call function is activated, you will see
and
{ in the display.
Deactivating
è
?80
Initiate function.
? Press the Set key.
Deleting a baby call phone number
?1253
Initiate function.
? Press the Set key.
Activating/deactivating the telephone lock
The telephone can be locked completely (with the exception
of a baby call phone number if set) so that it cannot dial any
phone numbers, including the baby call phone number. You
can continue to receive incoming calls.
?8 Initiate function..
0/ 1 0: unlock; 1: lock
? Press the Set key.
GB
5
When the telephone is locked, you will see { in the
display.
Activate/deactivate call duration display
The telephone can display the approximate call duration in
the d isplay ( up to 99 min . 59 se c., de fault se tting: o n). If the
call duration display is activated, the time display begins
8 seconds after the last digit is dialled.
?18#
Initiate function.
0/ 1 0: deactivate; 1: activate.
? Press the Set key.
Setting the pause time
If necessary, the pause time of the Pause key ; (pause
function from second input position) can be changed to 1,
3 or 6 seconds (default setting: 3 seconds).
?102
Initiate function.
0...2 0: 1 sec.; 1: 3 sec.; 2: 6 sec..
? Press the Set key.
Changing the dialling mode
?# Initiate function.
1/ 2 1: Tone dialling.
2: Pulse dialling without flash function.
? Press the Set key.
Changing dialling modes during a call
If your telephone is set to pulse dialling and you want to use
functions that require tone dialling (e.g. remote access to
an answering machine), you can change the dialling mode
during a call.
* With an open connection: press the star key.
o Enter digits for remote control/data transfer.
The telephone is reset to the original dialling mode by hanging up the handset.
Operation on a PABX
Enter/delete an external line prefixe
If you are using your telephone on a PABX, you may have to
save one or more external line prefixes. A dialling pause is
set automatically with the external line prefixe. You can save
up to three external line prefixes.
?0 Initiate function.
If no external line prefixe has been set in a
location,
If several external line prefixes are saved, these
are displayed next to one another; the current
external line prefixe to be edited flashes.
If necessary, use the
between the external line prefixes displayed,
to edit them as follows:
To d e l ete an external line prefix:
? Press the Set key.
To e n ter an external line prefixe:
o Enter a one- to three-digit code.
Enter additional external line prefixes:
; o Press the Redial key, enter next external line
prefixe.
? Press the Set key.
Recall key (on a PABX)
During an external call, you can make a recall or divert the
call. To do this, press the Recall key
procedure depends on your PABX. By default, the Recall key
is preset to a flash time (interruption time) of 90 ms for use
of new features on public telephone systems. With a
connection to a PABX, it may be necessary to change the
flash time (e.g. 600 ms). To do this, please refer to the
operating instructions for your PABX.
z
appears in the display.
; key to toggle
>. The subsequent
GB
6
Setting the flash time for the Recall key
?195
Initiate function.
0...4 Enter desired flash code:
0: 90 ms (default setting); 1: 120 ms;
2: 270 ms; 3: 375 ms; 4: 600 ms.
? Press the Set key.
Using functions for additional services of
public telephone systems
If you want to use services that are to be triggered with the
Recall key, make sure beforehand that the correct flash time
is set for the key.
Recall key (in public telephone systems)
In public telephone systems, this key is required to use
certain additional services.
The appropriate flashtime for the specific country must be
set before using the Recall key can be used:
◆ Belgium, Netherlands, Switzerland: 120 ms
(access code 1)
◆ France, Luxemburg, Portugal, Germany, Greece: 270 ms
(access code 2)
◆ other European countries: 90 ms (access code 0).
Using Calling Line Identification
Under the following conditions, the phone numbers of
incoming calls are
(a) shown on the display (up to the first 20 digits) and
(b) automatically saved in a calls list:
◆ Both your network provider and the caller's network
provider must offer Calling Line Identification.
◆ Both you and the caller must have requested this service
(if necessary) from your respective network providers.
If these conditions are met, but a caller has suppressed
Calling Line Identification before making the call, you will
see
---P--- on the display instead of the phone number. If it
has not been possible to identify the number for other (technical) reasons, you will see
Up to 20 digits can be shown on the display. Longer phone
numbers are shown with the end of the number shortened.
---0--- or ---E--- on the display.
Calls list
The calls list includes up to 50 entries. If the same subscriber
calls more than once, a new entry is not created. Up to 99
repeated calls are displayed in the additional information.
Sequence of list entries: The most recent call is displayed
in the first position (position number "01"). Older entries are
moved downwards with each new incoming phone number
until they are deleted from the list.
In the calls list
◆ you can scroll through the phone numbers displayed,
◆ query additional information:
(a) date and time, if this is transferred from the
telephone system, otherwise only the time according to
the telephone's internal clock,
(b) frequency of an incoming phone number,
◆ delete entries,
◆ save phone numbers from the calls list to a repertory key
(see page 3),
◆ dial a displayed phone number directly.
Viewing caller histories and dialling phone numbers
If there are entries in the calls list that have you have not yet
seen,
| flashes in the display.
You can retrieve the calls list, scroll through its entries, view
additional information about a call and call back directly:
A Press the Down key.
The phone number of the most recent call
appears in the display. Its position number "01"
is displayed to the left of the number.
If the phone number contains more than
17 digits, the first 17 digits will be displayed
first, then the rest after one second. (You can
leave the calls list at any time by pressing
To scroll through the calls list:
>.)
A...C Press the Down/Up key.
To view additional information:
= Press the Shift key.
The date and time of the displayed entry is displayed with the number of calls (on the right).
Back to the calls list (calling line display):
= Press the Shift key again.
Dial the phone number:
B Press OK or L key.
After 2 seconds the number is dialled.
Lift the handset if you want to talk via the
handset.
GB
7
Deleting entries in the calls list
Delete all entries at the same time
A/C Press the Down/Up key.
?*?Press the Set key, star key and Set key one after
another.
The calls list is deleted and closed.
Delete individual entries
A...C Scroll to the desired entry.
?? Press the Set key twice.
The entry is deleted.
Activating/deactivating display of the area code
You can set the telephone so that the area code is not displayed for incoming calls. This can be useful, for example, if
you cannot see the last digits of a long phone number on
the display.
You can deactivate the display for 2 area codes (up to
5digits each).
?4 Initiate function.
If no number has been set in a storage location
z
appears in the display.
If both storage locations are in use, these are
displayed side by side; the current storage
location to be edited flashes. If necessary, use
the
; key to toggle between the storage
locations displayed to edit them as follows:
Delete a number:
? Press the Set key.
Enter a number:
o Enter a one to five digit number.
Enter another prefix:
; o Press the last number redial key, enter next
prefix.
? Press the Set key.
"You have a message" display
Different network providers offer services for saving
messages (e.g. voice mail services).
If one or more newly received messages have been stored
with the network provider, it may inform you via your telephone. In the display, this notification from the network
provider is displayed with the flashing
phone number.
You can now dial the corresponding phone number in order
to check the stored messages. If there are no more new
messages for you, the
† symbol disappears.
† symbol and the
Using the repertory keys as "function keys"
Different public telephone services/functions – possibly by
order/request – can be selected via predetermined key combinations which you can obtain from your network provider.
You can save the necessary key combinations like normal
phone numbers on repertory keys and similarly "select" and
also deactivate the service again.
Note:
If you activate the symbol display and save the function calls
on the 2nd level of the repertory keys, you can link the
activation and deactivation of different services for each
"function key" with the display or hiding of certain symbols
on the display.
Therefore, when setting the repertory keys on the 2nd
level, bear in mind that activating and deactivating the display symbols
keys in the 2nd level – regardless of the phone numbers or
function calls stored on it!
™, ˜, —,ë and š is linked to very specific
Deactivating/activating the symbol display for additional
services
Displaying the symbols can be activated or deactivated as
needed. In the default setting, the display is activated.
?145
Initiate function.
0/1 0: deactivate; 1: activate.
? Press the Set key.
Recommended assignment of symbols to keys
When the symbol display
press one of the following repertory keys, the display symbol assigned to each is activated or deactivated respectively
(key numbering from top to bottom):
= is activated and you then
=+Assignment Display
icon
: 1
:
: 3
:
: 5
:
: 7
:
Call forwarding immediately
2off
Call forwarding on no reply
4off
Call forwarding when busy
6off
Call waiting
8off
: 9 Anonymous call (only the next call)
on
on
on
on
™
˜
—
ë
š
GB
8
Assigning/changing function keys
?= Initiate function.
: Press the function key (=repertory key) that is
to be assigned.
If the function key is already assigned, the key
assignment appears in the display. If the memory for this function key is empty,
the display.
z
appears in
o Enter the key combination/code for the desired
service.
Important!
If a part of the key combination to be saved
includes numbers/characters that must be
changeable (e.g. a phone number for a
forwarded call destination, or a time for the
appointment reminder), the shift key
must be used in this place.
During a later activation of the service, this key
makes the cursor for entering the changeable
part flash.
=
? Press the Set key.
Example: Call forwarding
In the following, you will see an example of repertory keys
used as "function keys". If the symbol display is activated, in
the "call forwarding" example when the service is activated,
the symbol provided for it is displayed, or hidden when the
service is deactivated.
The key sequence for activating the function "call forwarding immediately" from your network provider consists of
e.g. three parts:
Select function Forwarded call destination End of
*21*
You now have the following options:
◆ You can dial the entire key sequence each time on the
keypad.
◆ You can save the key sequence on Repertory keys as an
entire function together with the phone number of a
set forwarded call destination
or
only the select function and the function end. With
this, you still have the option to set a forwarded call
destination that may change on a case-by-case basis.
Phone number of the
forwarded call destination
function
#
Saving call forwarding on a function key
?= Initiate function.
: Press the repertory key that is designated for
the symbol display "
activating the symbol display for additional
services" on page 7.
A number already saved is shown in the
display. If the memory for this repertory key is
empty,
z
appears in the display.
™
on", see "Deactivating/
*21*
Enter the select function for "Immediate call
forwarding".
(a) Set the phone number for the
call forwarding
o Enter the phone number of the forwarded call
destination.
# Press the hash key to mark the function end.
? Press the Set key.
or ...
(b) Reserve changeable call forwarding
= Press the Shift key.
When "Call forwarding immediately" is activated later, this key makes the cursor for entering the phone number of the forwarded call
destination flash.
# Press the hash key to mark the function end.
? Press the Set key.
Activating call forwarding with a function key
c = Lift handset, press Shift key.
: Press the repertory key for the symbol display
"
™
on".
™
appears in the display.
(a) Phone number for call forwarding set
You may hear an announcement that the
service is activated.
a Replace the handset.
From now on, incoming calls will be forwarded
to the forwarded call destination. Your telephone will not ring.
GB
9
(b) Changeable call forwarding
o ; Enter the phone number of the forwarded call
destination, press the last number redial key to
mark the end of the phone number entered.
You may hear an announcement that the
service is activated.
a Replace the handset.
Incoming calls will be forwarded from now on
to the forwarded call destination. Your telephone will not ring.
Saving "Deactivate call forwarding" on a function key
The call forwarding, as described in the previous example,
can be deactivated again with your network provider e.g.
with key sequence
You can save this key sequence on a dedicated repertory key
as well. If the symbol display is activated and the service is
activated as described, the
pears after the service is deactivated.
#21#.
™ symbol in the display disap-
?= Initiate function.
: Press the repertory key that is designated for
symbol display "
vating the symbol display for additional services" on page 7.
™ off", see "Deactivating/acti-
#21#
Enter the select function for "Immediate call
forwarding".
? Press the Set key.
Deactivating call forwarding with a function key
c= Lift handset, press the Shift key.
:a Press the repertory key for symbol display
"
™ off". Replace handset.
The
™ symbol disappears. You may hear an announcement
that the service is deactivated.
Appendix
Care
To clean, wipe with a moist or antistatic cloth only, never
with a dry cloth (risk of electrostatic charging and
discharge) or harsh cleaning agent.
If your telephone is not working perfectly
No signal tone: The tone volume might be set to 0.
Lift handset, no dialling tone: Is the connecting lead
correctly plugged into the telephone and the telephone
socket?
Dialling tone audible but telephone will not dial:
The connection is OK. Is the dialling mode set correctly
(see page 5)?
PABX only: No connection or incorrect connection when
dialling from memory (e. g. redial, speed dial):
Program external line prefixe.
The other party cannot hear you: Have you pressed the
Mute key? Press the key again. Is the plug from the handset
cord inserted correctly?
Recall key does not work: Set appropriate flash time.
The caller's phone number and the calls list are not
displayed:
Is the adapter connected (see page 2)?
Can Calling Line Identification be used (see page 6)?
Insert strips
Blank insert strips for the repertory keys can be found on the
Internet at http://www.siemens.com/euroset.
Contacts
If you should encounter any problems when operating the
telephone connected to a communication system with
analogue network access, please contact the network
operator responsible or your dealer.
Authorisation
This device is intended for analogue phone lines in your network.
Country-specific requirements have been taken into consideration.
We, Siemens Home and Office Communication Devices
GmbH & Co. KG, declare that this device meets the essential
requirements and other relevant regulations laid down in
Directive 1999/5/EC.
A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address:
http://www.siemens.com/gigasetdocs
.
1
F
Présentation Euroset 5020
1
1211109
8
7
6
45
23
Touches
1 Touches d'accès rapide
2Touche bis
3 Touche de double appel
4 Touche de mode secret (Mute)
5Touche Shift
6 Touche de réduction du volume
7 Touche haut-parleur (mode mains libres)
8 Touche d'augmentation du volume
9 Touche Enregistrer
10 Touche de retour
11 Touche d'avance
12 Touche OK (composer le numéro affiché)
Icônes d'affichage
P Mode mémoire activé
‡ Touche Shift enfoncée
--- Opérationnel
y Micro éteint
} Haut-parleur activé
è Numéro d'appel baby call (appel direct) enre-
gistré
o Curseur de saisie des paramètres
(par ex. volume)
u
P
z
Touche de double appel enfoncée
Pause
Aucun contenu mémorisé
{ Téléphone verrouillé
zzzz
0
–
9
En mode fréquence vocale :
n
-
Pour les services supplémentaires proposés par des opérateurs publics :
Pendant une tentative de connexion :
téléphone verrouillé
Numéro d'appel
– Touche * enfoncée
– Touche # enfoncée
| Nouvel appel dans le journal d'appels
† (clignotant) nouveau message
ë Signal d'appel activé
™ Renvoi d'appel immédiat
˜ Renvoi d'appel si non réponse
— Renvoi d'appel si occupé
š Appel anonyme activé
Consignes de sécurité
Au cours de l'installation, du raccordement et pendant l'utilisation du téléphone, respecter absolument les consignes
suivantes :
◆ Utiliser uniquement les fiches et cordons livrés avec
l'appareil.
◆ Enficher le cordon de raccordement uniquement dans la
prise/douille prévue à cet effet.
◆ Ne jamais raccorder d'accessoire non autorisé.
◆ Disposer le cordon de raccordement de façon à éviter
tout risque d'accident.
◆ Placer le téléphone à un endroit où il ne risque pas de
glisser.
◆ Pour des raisons de sécurité, le téléphone ne doit pas
être utilisé dans un lieu humide (par ex. salle de bain,
etc.). Il n'est pas étanche aux projections d'eau.
◆ Ne jamais exposer le téléphone à des sources de chaleur
telles que les rayons directs du soleil ou le rayonnement
d'appareils électriques.
◆ Protéger le téléphone contre l'humidité, la poussière et
les vapeurs et liquides corrosifs.
◆ Ne jamais ouvrir le téléphone sans les conseils d'un
spécialiste.
2
F
◆ Ne jamais toucher les contacts à fiches avec des objets
métalliques et pointus.
◆ Ne jamais porter le téléphone par les cordons.
◆ Lorsque vous confiez votre téléphone Euroset 5020 à un
tiers, joignez-y toujours le mode d'emploi.
La procédure d'élimination des produits électriques et
électroniques diffère de celle des déchets municipaux
et nécessite l'intervention de services désignés par le
gouvernement ou les collectivités locales.
Le symbole de la poubelle barrée signifie que la directive
européenne 2002/96/EC s'applique à ce produit.
Le tri et la collecte séparée de vos appareils usagés aide à
prévenir toute conséquence négative pour l'environnement
ou pour la santé publique. Il s'agit d'une condition primordiale pour le traitement et le recyclage des équipements
électriques et électroniques usagés.
Pour plus d'informations sur le traitement des appareils usagés, contacter votre mairie, la déchetterie la plus proche ou
le revendeur du produit.
Mise en service du téléphone
Conseils pour l'installation du téléphone
◆ Ne pas exposer le téléphone aux rayons du soleil ou à
d'autres sources de chaleur.
◆ Utiliser le téléphone à une température comprise entre
+5°C et +40°C.
◆ Prévoir une distance minimale d'un mètre entre le
téléphone et les appareils radio, par ex. téléphones ou
dispositifs d'appel de personnes, ou les postes de
télévision, car des interférences risqueraient de
perturber les communications téléphoniques.
◆ Ne pas installer le téléphone dans un endroit
poussiéreux, au risque de réduire sa durée de vie.
◆ Pour nettoyer l'appareil, utiliser uniquement un chiffon
humide ou antistatique ; ne jamais utiliser de chiffon sec
(risque de charge et de décharge électrostatiques) ou de
détergent agressif.
◆ Les peintures et vernis des meubles en contact avec des
composants du téléphone (par ex. pieds) risquent de
subir des détériorations.
Raccordement
Brancher l'extrémité courte du cordon en spirale sur la prise
prévue à cet effet sur le combiné, et l'extrémité longue sur
la prise signalée par l'icône
cordon du téléphone sur la prise de téléphone murale, et insérer l'autre extrémité dans la prise signalée par l'icône
sous l'appareil. Votre téléphone est prêt à fonctionner.
a sous l'appareil. Brancher le
Y
Régler l'horloge
?3 Introduire la fonction.
L'heure configurée est affichée en mode
24 heures (par défaut à la livraison : 00:00).
o Saisir l'heure exacte en heures <hh> et minutes
<mm> (mode 24 heures).
? Appuyer sur la touche Enregistrer.
3
F
Téléphoner
Composer un numéro d'appel
co Décrocher le combiné, composer un numéro.
ou ...
o Bc Composer un numéro (vous pouvez effacer les
Si le numéro excède 20 caractères, les chiffres se décalent sur
l'écran de la droite vers la gauche. La touche
d'insérer des pauses dans la numérotation à partir du
deuxième caractère.
Composer un numéro à partir du journal d'appels (si ce
service est disponible) : p. 7.
Activer/Désactiver le mode mains libres
Cet appareil vous permet, même lorsque le combiné est raccroché, de téléphoner (mode mains libres) ou de modifier
des paramètres. La distance optimale par rapport au microphone est d'environ 50 cm.
◆ Activation au cours d'une communication :
L + a La touche haut-parleur étant enfoncée, raccro-
◆ Activation avant la composition du numéro :
L Avant de composer le numéro : appuyer sur la
Désactiver le mode mains libres
c Décrocher le combiné pendant la communi-
Rappel (Bis)
Les 5 derniers numéros composés (32 caractères maxi) sont
automatiquement sauvegardés. Vous pouvez consulter ces
numéros dans la liste de numéros bis, et les composer à
nouveau à partir de cette liste.
Rappel du dernier numéro appelé
c; Décrocher le combiné et appuyer sur la touche
chiffres erronés en appuyant sur
retaper le numéro correct), confirmer avec la
touche OK.
Après 2 s, le numéro est composé.
Décrocher le combiné si vous souhaitez
l'utiliser pour la communication.
A puis
; permet
cher le combiné.
touche haut-parleur jusqu'à ce que la tonalité
soit audible.
cation.
bis.
Le dernier appel composé est composé automatiquement.
Composer un numéro à partir de la liste de numéros bis
; Avec le combiné raccroché : appuyer sur la
touche bis. Le dernier numéro composé s'affiche. (La touche
tout moment la liste des numéros bis.)
> vous permet de quitter à
A...C Avec les touches d'avance et de retour, faire
défiler la liste jusqu'au numéro à appeler.
B Appuyer la touche OK ou L.
Après 2 s, le numéro est composé.
Décrocher le combiné si vous souhaitez l'utiliser pour la communication.
Composer un numéro avec les touches d'accès
rapide
c Décrocher le combiné (au besoin, appuyer sur
la touche
d'accès rapide de second niveau).
= pour accéder à une touche
: Appuyer sur la touche d'accès rapide appro-
priée.
ou ...
: Appuyer sur la touche d'accès rapide appro-
priée (au besoin, appuyer sur la touche
pour accéder à une touche d'accès rapide de
second niveau).
=
Bc Appuyer la touche OK ou L.
Après 2 s, le numéro est composé.
Décrocher le combiné si vous souhaitez l'utiliser pour la communication.
Enregistrer un numéro d'appel
Pour être disponibles en permanence, certains paramétrages du téléphone doivent être confirmés avec la touche
Enregistrer
Pour interrompre le paramétrage (par ex. après une saisie
incorrecte) sans sauvegarder, raccrocher au lieu d'appuyer
sur la touche
mémoire.
Enregistrer à l'aide de la fonction bloc-notes
Vous pouvez enregistrer des numéros pendant une communication au moyen de la fonction bloc-notes.
?.
?. Le réglage précédent reste ainsi en
4
F
Enregistrer un numéro d'accès rapide
Grâce aux deux niveaux de touches d'accès rapide, vous
pouvez enregistrer jusqu'à 20 numéros (ou fonctions, voir
p. 8).
? Appuyer sur la touche Enregistrer (pour accé-
der au second niveau de mémoire, appuyer en
plus sur la touche
=).
: Appuyer sur la touche d'accès rapide sous
laquelle le numéro d'accès rapide doit être
mémorisé.
Si un numéro est déjà enregistré sur cette
touche, il s'affiche à l'écran. Si aucun numéro
n'est enregistré sur cette touche, l'icône
s'affiche à l'écran.
z
o Saisir le numéro d'appel à enregistrer
(32 caractères maxi).
ou ...
Enregistrer un numéro à partir du journal d'appels (si ce
service est disponible) :
A...C Appuyer sur les touches d'avance et de retour
jusqu'à ce que le numéro à enregistrer s'affiche
à l'écran.
ou ...
Enregistrer un numéro à partir de la liste des numéros
bis :
; Appuyer sur la touche bis.
A...C Appuyer si nécessaire sur les touches d'avance
et de retour jusqu'à ce que le numéro d'appel à
enregistrer s'affiche à l'écran.
Pour terminer l'opération :
? Appuyer sur la touche Enregistrer.
Enregistrer en cours de communication
De la même manière, vous pouvez enregistrer des numéros
en cours de communication (fonction bloc-notes).
Remarque :
Lorsque le numéro excède 20 chiffres, les caractères suivants se
décalent sur l'écran de la droite vers la gauche.
Effacer tous les numéros d'accès rapide
?1251
Introduire la fonction.
? Appuyer sur la touche Enregistrer.
Réglages téléphone
Régler le volume de la sonnerie
Il existe 4 niveaux de réglage de la sonnerie, qui peut également être désactivée (par défaut à la livraison : niveau 4).
◆ Réglage lorsque le téléphone est au repos :
?5 Introduire la fonction.
H...I Régler le volume avec les touches d'augmen-
? Appuyer sur la touche Enregistrer.
◆ Réglage lorsque le téléphone sonne :
Appuyer sur
Le dernier volume réglé est mémorisé.
Régler la fréquence de sonnerie
Il existe 3 niveaux de réglage de la fréquence (rapidité) de la
sonnerie (par défaut à la livraison : niveau 4).
?6 Introduire la fonction.
1...3 Appuyer sur une des touches de 1 à 3 :
? Appuyer sur la touche Enregistrer.
Régler la mélodie de la sonnerie
10 mélodies différentes sont disponibles pour la sonnerie
(par défaut à la livraison : mélodie 9).
◆ Réglage lorsque le téléphone est au repos :
?7 Introduire la fonction.
0...9 Appuyer sur une des touches de 0 à 9.
? Appuyer sur la touche Enregistrer.
◆ Réglage lorsque le téléphone sonne :
0...9 Appuyer sur une des touches de 0 à 9.
Régler le volume de l’écouteur du combiné
Il existe 3 niveaux de réglage et de mémorisation du volume
de l'écouteur du combiné (par défaut à la livraison :
niveau 1).
?9 Introduire la fonction.
H...I Régler le volume au moyen des touches
? Appuyer sur la touche Enregistrer.
tation et de diminution du volume.
H...I avant de décrocher.
1 : fréquence la plus élevée ;
3 : fréquence la plus faible.
d'augmentation et de diminution du volume.
Loading...
