SICK WLG16 Bluetooth,WLG16P Operating Instructions Manual

O P E R A T I N G I N S T R U C T I O N S

WLG16 Bluetooth®

O P E R A T I N G I N S T R U C T I O N S

WLG16 Bluetooth®

de

en

Described product

WLG16 - Bluetooth®

Manufacturer

SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is only
permissible within the limits of the legal determination of Copyright Law. Any modifica‐
tion, abridgment or translation of this document is prohibited without the express writ‐
ten permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

© SICK AG. All rights reserved.

Original document

This document is an original document of SICK AG.

2

8022197 | SICK

Subject to change without notice

Contents

1 Safety information............................................................................ 4

1.1 General safety notes................................................................................ 4

1.2 Notes on UL approval............................................................................... 4

2 Intended use...................................................................................... 4

3 Operating and status indicators...................................................... 4

4 Mounting............................................................................................. 5

5 Electrical installation........................................................................ 5

6 Commissioning.................................................................................. 8

7 Troubleshooting................................................................................. 12

8 Disassembly and disposal............................................................... 12

9 Maintenance...................................................................................... 12

10 Approvals............................................................................................ 13

10.1 Bluetooth® approvals............................................................................... 13

11 Technical data.................................................................................... 13

11.1 General technical data............................................................................. 13

11.2 Bluetooth technical data®....................................................................... 14

CONTENTS

8022197 | SICK
Subject to change without notice

3

1 Safety information

1.1 General safety notes

■

Read the operating instructions before commissioning.

■

Connection, mounting, and setting may only be performed by trained spe‐

cialists.

■

Not a safety component in accordance with the EU Machinery Directive.

■

When commissioning, protect the device from moisture and contamination.

■

These operating instructions contain information required during the life cycle of
the sensor.

1.2 Notes on UL approval

The device must be supplied by a limited voltage / limited current circuit or is intended
to be connected to a Class 2 source of supply. In case of a limited voltage / limited cur‐
rent circuit the device shall be supplied from an isolating transformer having a sec‐
ondary overcurrent protective device that complies with UL 248 to be installed in the
field rated either:

a) max 5 amps for voltages 0~20 V (0~28.3 V peak), or
b) 100/Vp for voltages of 20~30 V (28.3~42.4 V peak).

UL Environmental Rating: Enclosure type 1

2 Intended use

The WLG16 is an opto-electronic photoelectric retro-reflective sensor (referred to as
“sensor” in the following) for the optical, non-contact detection of objects, animals, and
persons. A reflector is required for this product to function. If the product is used for any
other purpose or modified in any way, any warranty claim against SICK AG shall become
void.

Photoelectric retro-reflective sensor with optional add-on for detecting transparent
objects (WLG-xx).

3 Operating and status indicators

1 SAFETY INFORMATION

4

8022197 | SICK

Subject to change without notice

20

Ø 12,9

Ø 4,1

39,9

55,4

45,5

5

42

29,9

6

3

6,5

15

27,8

7,7

7,8

7,2

35,5

4,1

8,3

55,7

3

2

34,5

1

4

65

Figure 1: Dimensional drawing 1, cable

1

Center of optical axis

2

Fixing hole, Ø 4.1 mm

3

Connection

4

LED indicator green: Supply voltage
active

5

LED indicator yellow: Status of
received light beam

6

BluePilot blue: Alignment aid

20

M12

18

Ø 4,1

39,9

55,4

55,7

45,5 5

7

42

29,9
52,9

6

17,5

3

6,5

15

28

7,5

35,5

4,1

3

2

34,5

1

4

65

Figure 2: Dimensional drawing 2, male con‐
nector

4 Mounting

Mount the sensor and the reflector using suitable mounting brackets (see the SICK
range of accessories). Align the sensor and reflector with each other.

Note the sensor's maximum permissible tightening torque of < 1,3 Nm.

5 Electrical installation

The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐
tion must be observed, depending on the connection type:

– Male connector connection: Note pin assignment
– Cable: wire color

Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐
tions have been established.

Explanations of the connection diagram (Tables 1 and 2):

Alarm = alarm output (see Table 4)

Health = alarm output (see Table 4)

MF (pin 2 configuration) = external input, teach-in, switching signal

QL1 / C = switching output, IO-Link communication

OPERATING AND STATUS INDICATORS 3

8022197 | SICK
Subject to change without notice

5

DC: 10 ... 30 V DC

Table 1: DC

WLG16 -24162xxxA00

-34162xxxA00

-1x162xxxA00-24161xxxA0
0

-34161xxxA0
0

-1x161xxxA00-2416xxxxA01­A99

-3416xxxxA01­A99

1 + (L+)

2 MF

3 - (M)

4 QL1/C

Default: MF

Q Q

Q Q www.sick.com

8020349

Default:

QL1/C

Q Q

Q Q

www.sick.com

8020349

1

2

4 3

1 = brn
2 = wht
3 = blu
4 = blk

0.14 mm

2

AWG26

1

2

4 3

1 = brn
2 = wht
3 = blu
4 = blk

0.14 mm

2

AWG26

1

2

4 3

Table 2: DC

WLG16 -24165

xxxA00

-34165
xxxA00

-1x165
xxxA00

-24163
xxxA00

-34163
xxxA00

-1x163x
xxA00

-24166x
xxA00

-34166x
xxA00

-1x166x
xxA00

-24164x
xxA00

-34164x
xxA00

-1x164x
xxA00

1 + (L+)

2 MF

3 - (M)

4 QL1/C

Default: MF Alarm Alarm Alarm Alarm Health Health Health Health

Default:

QL1/C

Q Q

Q Q

Q Q

Q Q

1

2

4 3

1 = brn

2 = wht

3 = blu
4 = blk

0.14 m
m

2

AWG26

1

2

4 3

1 = brn
2 = wht
3 = blu
4 = blk

0.14 m
m

2

AWG26

1

2

4 3

1 = brn
2 = wht
3 = blu
4 = blk

0.14 m
m

2

AWG26

1

2

4 3

1 = brn
2 = wht
3 = blu
4 = blk

0.14 m
m

2

AWG26

5 ELECTRICAL INSTALLATION

6

8022197 | SICK

Subject to change without notice

Table 3: Push / pull

Q

Push-pull

(≤ 100 mA)

+ (L+)

Q

‒ (M)

+ (L+)

Q

‒ (M)

Q

Push-pull

(≤ 100 mA)

+ (L+)

Q

‒ (M)

+ (L+)

Q

‒ (M)

Alarm

Alarm output: The sensor (WLG16) features a pre-failure notification output (“Alarm” in
connection diagram [Table 4]), which issues a notification if the sensor is only ready for
operation to a limited extent. The LED indicator flashes in this case. Possible causes:
Sensor or reflector is contaminated, sensor is out of alignment. In the good state: LOW
(0), if excessively contaminated HIGH (1).

Health

Health output: The sensor (WLG16) features a pre-failure notification output (“Health”
in connection diagram [Table 4]), which issues a notification if the sensor is only ready
for operation to a limited extent or the cable has been interrupted. Possible causes:
Sensor or reflector is contaminated, sensor is out of alignment, cable is damaged. In
the good state: HIGH (1), if excessively contaminated or in the event of cable interrup‐
tion LOW (0). The yellow LED indicator flashes in this case.

Table 4: Alarm / Health

Alarm (≤ 100 mA) Health (≤100 mA)

+ (L+)

Alarm

‒ (M)

+ (L+)

Health

‒ (M)

+ (L+)

Alarm

‒ (M)

+ (L+)

Health

‒ (M)

ELECTRICAL INSTALLATION 5

8022197 | SICK
Subject to change without notice

7

6 Commissioning

Bluetooth® is switched on for initial commissioning. You can get SOPASair in the Google
PlayStore (Android) and in the App Store (iOS).
Operating system requirements: Android version 6.0, most current version of iOS.

1 Alignment

Align the sensor with a suitable reflector. Select the position so that the red emitted light
beam hits the center of the reflector. The sensor must have a clear view of the reflector,
with no object in the path of the beam [see figure 3]. You must ensure that the optical
openings of the sensor and reflector are completely clear.

Figure 3: Alignment

2 Sensing range

Adjust the distance between the sensor and the reflector according to the corresponding
diagram [see figure 4].

Abstand in m

Schaltabstand

1
2
3
4
5
6

0 1 2 3 4 5 6

4

2,8

0

2,5

0

3,5

0

5

0

1,20

0

Figure 4: Maximum distance between the sensor and the respective reflector type

1

Reflector PL10F CHEM

2

Reflective tape REF-AC1000 (50 x 50 mm)

3

Reflector PL10FH-1

4

Reflector PL10F

5

Reflector PL20F

6

Reflector P250F

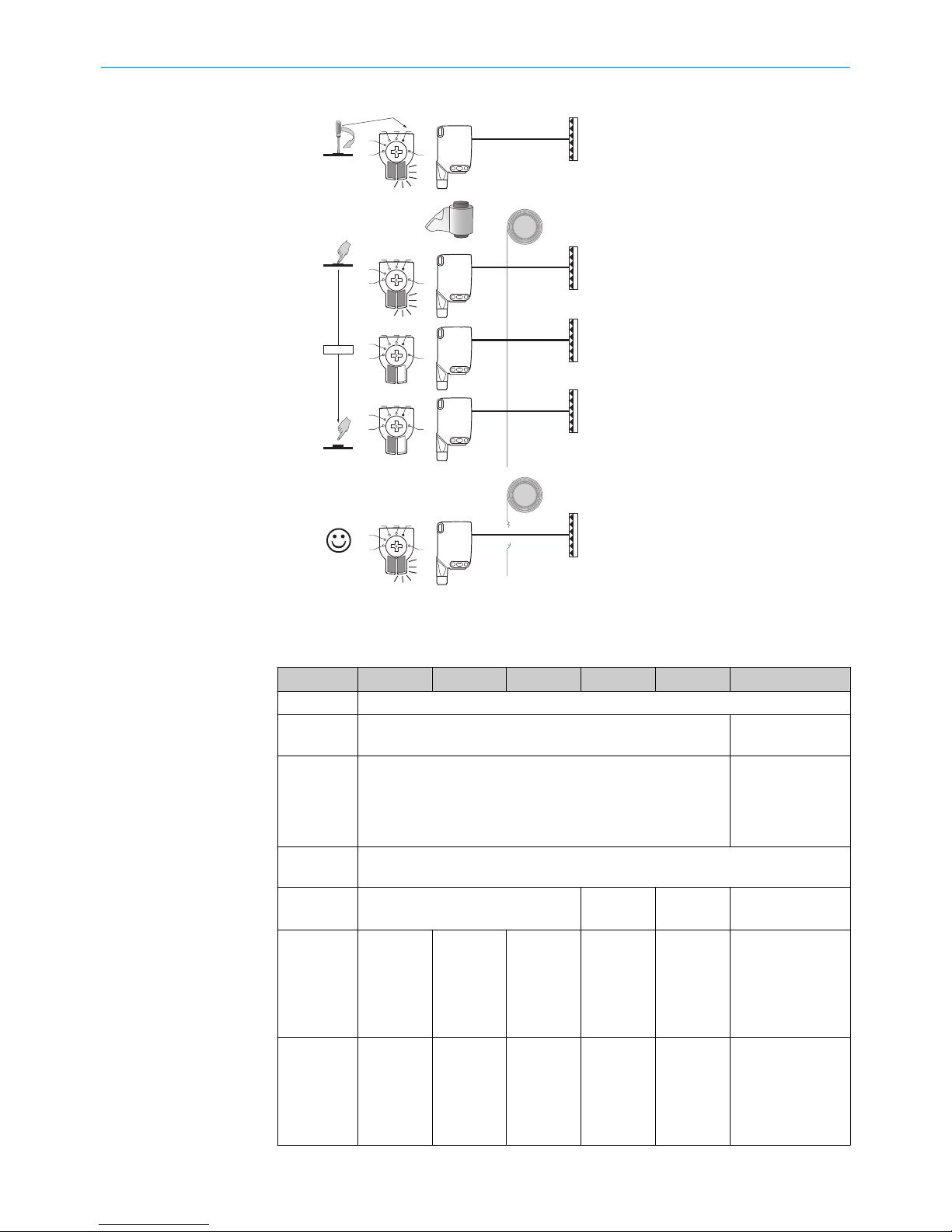

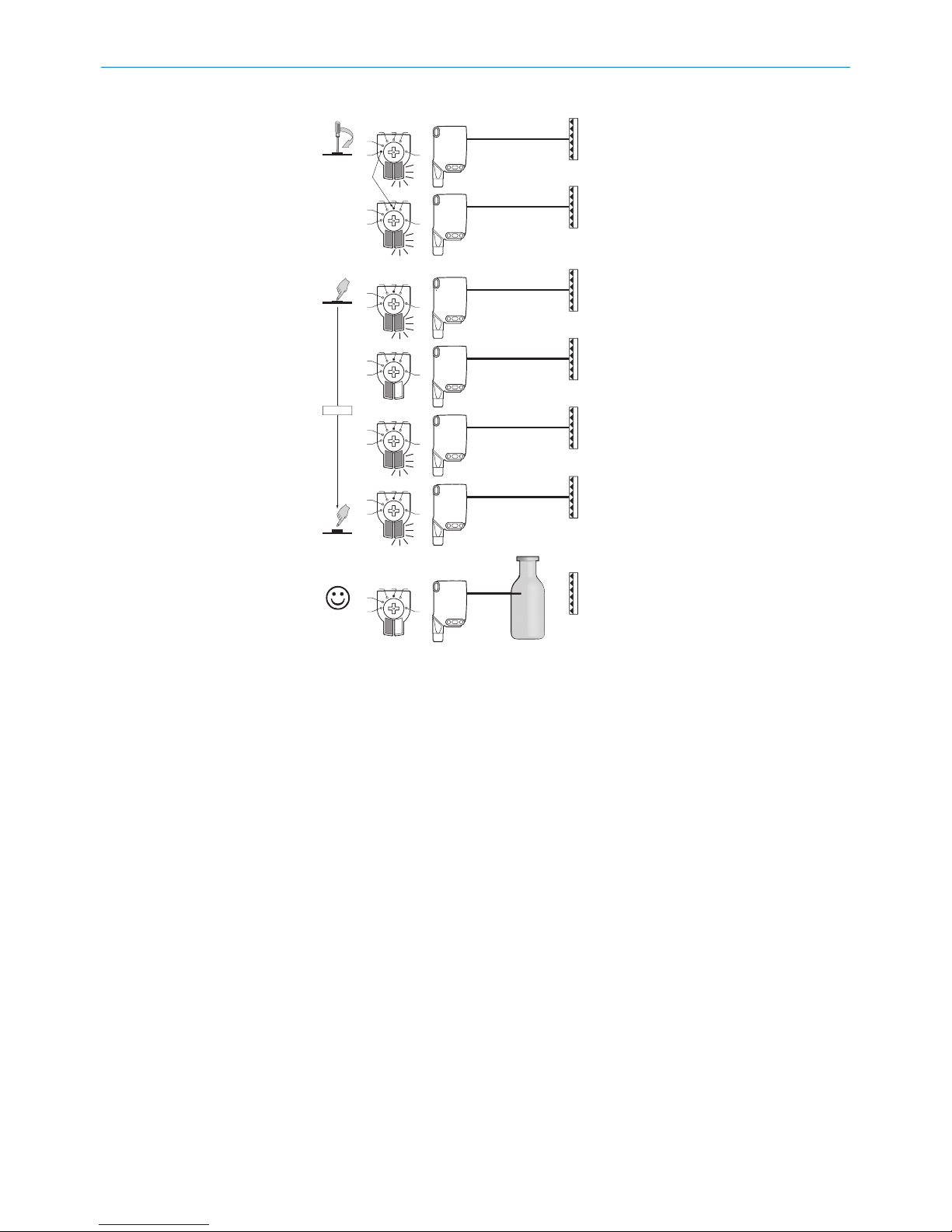

Sensing range setting

6

COMMISSIONING

8

8022197 | SICK

Subject to change without notice
