SICK VICOTEC320 Series, VICOTEC322, VICOTEC321, VICOTEC325, VICOTEC323 Operating Instructions Manual
I

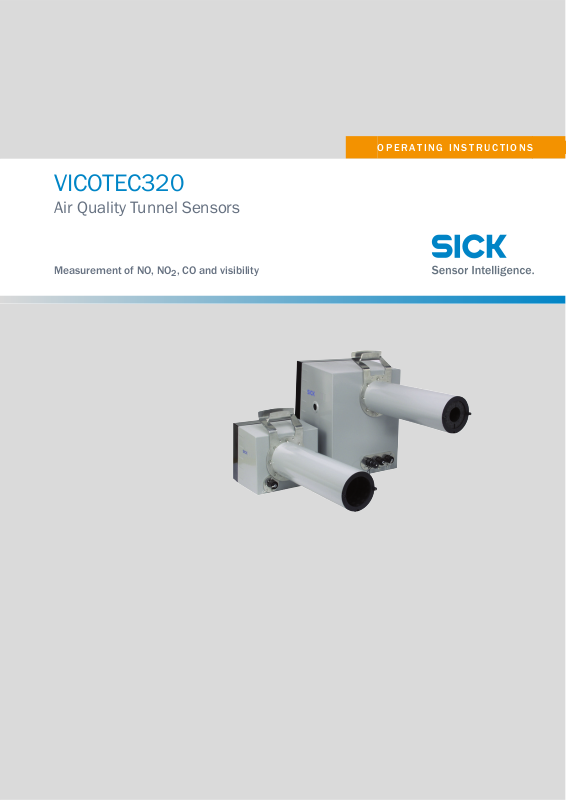

Title Page
VICOTEC320
Air Quality Tunnel Sensors
Measurement of NO, NO2, CO and visibility
MMMOPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
MMM
Described Product
Product name: VICOTEC320
Variants: VICOTEC321
VICOTEC322
VICOTEC323
VICOTEC325
Document ID
Title: Operating Instructions VICOTEC320
Part No.: 8011703/XF49
Version: V3-1
Release: 2019-09
Manufacturer
SICK AG
Erwin-Sick-Str. 1 · D-79183 Waldkirch · Germany
Phone: +49 7641 469-0
Fax: +49 7641 469-1149
E-mail: info.pa@sick.de
Trademarks
IBM is a trademark of the International Business Machine Corporation.
MS-DOS is a Microsoft Corporation trademark.
Windows is a Microsoft Corporation trademark.
Other product names used in this document may also be trademarks and are only used
for identification purposes.
Original document
This document is an original document of SICK AG.
SICK AG assumes no liability for the correctness of an unauthorized translation.
If in doubt, contact SICK AG or your local representative.
Legal Information
Subject to change without notice.
© SICK AG. All rights reserved.
2
8011703/XF49/V3-1/2019-09 | SICKOPERATING INSTRUCTIONS | VICOTEC320
Subject to change without notice
Contents
Contents
CONTENTS
1 About this document................................................................................. 7
1.1 Function of this document..............................................................................7
1.2 Scope of application ....................................................................................... 7
1.3 Target groups .................................................................................................. 7
1.4 Further information ......................................................................................... 7
1.5 Symbols and document conventions .............................................................7
1.5.1 Warning symbols ............................................................................ 7
1.5.2 Information symbols ....................................................................... 8
1.5.3 Warning levels and signal words....................................................8
1.6 Data integrity ................................................................................................... 8
2 For your safety............................................................................................ 9
2.1 Basic safety information ................................................................................. 9
2.2 Intended use .................................................................................................10
2.3 Responsibility of user....................................................................................10
3 Product description .................................................................................11
3.1 Product identification ...................................................................................11
3.1.1 Type plate......................................................................................11
3.2 Product features ...........................................................................................12
3.3 Device variants..............................................................................................12
3.4 Special features ............................................................................................12
3.5 Layout and function ......................................................................................13
3.5.1 Functional principle ......................................................................13
4 Project planning....................................................................................... 14
4.1 Assembly project planning............................................................................14
4.1.1 Arrangement along the tunnel section ........................................14
4.1.2 Arrangement in cross-section profile ...........................................14
4.1.3 Arrangement with special prerequisites ......................................16
4.2 Electrical installation project planning.........................................................17
5 Installation ................................................................................................ 19
5.1 Tools required ...............................................................................................19
5.2 Material required ..........................................................................................19
5.3 Preparing the installation location ...............................................................19
5.4 Transport .......................................................................................................19
5.5 Scope of delivery ...........................................................................................19
5.6 Assembly .......................................................................................................20
5.6.1 Fitting the assembly consoles ......................................................20
5.6.2 Fitting the VICOTEC320 sensors ..................................................21
5.6.3 Fitting the connection unit ...........................................................23
8011703/XF49/V3-1/2019-09 | SICK O P E R A T I N G I N S T R U C T I O N S | VICOTEC320
Subject to change without notice
3
CONTENTS
5.7 Electrical installation .................................................................................... 24
5.7.1 Electrical protection ..................................................................... 24
5.7.2 Connecting the sensors to the connection unit .......................... 25
5.7.3 Connection unit cabling ............................................................... 26
6 Commissioning ........................................................................................ 32
6.1 Necessary technical knowledge for commissioning ................................... 32
6.2 Commissioning checklist.............................................................................. 32
6.2.1 Device data................................................................................... 32
6.2.2 Tunnel data................................................................................... 32
6.3 Alignment ...................................................................................................... 33
6.4 Spectral analysis........................................................................................... 35
6.5 Visibility and smoke detection ..................................................................... 35
6.6 Signal outputs............................................................................................... 36
6.7 Saving data ................................................................................................... 36
7 Operation .................................................................................................. 37
7.1 Operating the VICOTEC320 .......................................................................... 37
8 Using the VICOTEC320............................................................................ 38
8.1 Software SOPAS ET....................................................................................... 38
8.1.1 Functions (overview) .................................................................... 38
8.1.2 Installing the SOPAS ET software ................................................ 38
8.2 Using SOPAS ET ............................................................................................ 38
8.2.1 Creating a connection .................................................................. 38
8.2.2 Reading out the VICOTEC320 and operating manually .............. 44
8.2.2.1 Exporting messages ................................................. 47
8.2.3 Saving the current parameter set................................................ 48
9 Maintenance............................................................................................. 49
9.1 Cleaning ........................................................................................................ 49
9.1.1 Cleaning sensors .......................................................................... 49
9.1.2 Tunnel cleaning ............................................................................ 49
9.2 Maintenance work ........................................................................................ 50
9.2.1 Persons authorized to carry out maintenance............................ 50
9.2.2 Replacing the activated charcoal ................................................ 50
9.2.3 Replacing the drying agent cartridge .......................................... 51
9.2.4 Replacing the sender lamp and LED ........................................... 52
9.2.5 Replacing the CO sensor.............................................................. 56
9.2.6 Span Test...................................................................................... 57
9.2.6.1 Determination and setting of the span factors .......59
10 Troubleshooting .......................................................................................60
10.1 Error messages ............................................................................................. 60
4
8011703/XF49/V3-1/2019-09 | SICKO P E R A T I N G I N S T R U C T I O N S | VICOTEC320
Subject to change without notice
CONTENTS
11 Technical data ..........................................................................................61
11.1 Dimension drawings......................................................................................61
11.1.1 Sender/receiver unit ....................................................................61
11.1.2 Reflector........................................................................................62
11.1.3 Connection unit.............................................................................63
11.2 Technical data ...............................................................................................64
11.3 Part Nos. ........................................................................................................66
11.3.1 Device components ......................................................................66
11.3.2 Type code ......................................................................................67
11.3.3 Accessories ...................................................................................68
11.3.4 Expendable and wearing parts.....................................................68
12 Annex .........................................................................................................69
12.1 Conformities and approvals..........................................................................69
12.2 Mapping table SCU .......................................................................................69
12.2.1 Measured values on SCU .............................................................69
12.2.2 Operating State Table...................................................................69
12.2.3 Status ............................................................................................70
12.2.4 Status of measured values ..........................................................70
12.3 Modbus Mapping Table ................................................................................71
12.3.1 Overview........................................................................................71
12.3.2 Status ............................................................................................73
12.3.3 Failure ...........................................................................................73
12.3.4 Maintenance request ...................................................................74
12.4 Password .......................................................................................................75
8011703/XF49/V3-1/2019-09 | SICK O P E R A T I N G I N S T R U C T I O N S | VICOTEC320
Subject to change without notice
5
CONTENTS
6
8011703/XF49/V3-1/2019-09 | SICKO P E R A T I N G I N S T R U C T I O N S | VICOTEC320
Subject to change without notice
1About this document
1.1 Function of this document
These Operating Instructions describe:
● Device components
● Installation
● Operation
● Maintenance work required for reliable operation
1.2 Scope of application
These Operating Instructions are only applicable for the measuring device described in the
product identification.
They are not applicable for other SICK measuring devices.
The standards referred to in these Operating Instructions are to be observed in the respective valid version.
1.3 Target groups
ABOUT THIS DOCUMENT 1
This Manual is intended for persons installing, operating and maintaining the device.
1.4 Further information
▸ Observe the supplied documents.
Additional instructions
The following documents are applicable in addition to these Operating Instructions:
● SOPAS ET Software Manual
1.5 Symbols and document conventions
1.5.1 Warning symbols
Symbol Significance
Hazard (general)
Hazard by voltage
Hazard in potentially explosive atmospheres
Hazard through explosive substances/substance mixtures
Hazard by ultraviolet radiation (UV light)
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
7
1 ABOUT THIS DOCUMENT
1.5.2 Information symbols
Symbol Significance
Important technical information for this product
Important information on electric or electronic functions
1.5.3 Warning levels and signal words
DANGER:
Risk or hazardous situation which will result in severe personal injury or death.
WARNING :
Risk or hazardous situation which could result in severe personal injury or death.
CAUTION:
Risk or hazardous situation which could result in less severe or minor injuries.
NOTICE:
Hazard which could result in property damage.
Note:
Hints
1.6 Data integrity
SICK AG uses standardized data interfaces such as standard IP technology, in its products.
The focus here is on the availability of the products and their properties.
SICK AG always assumes that the customer is responsible for the integrity and confidentiality of data and rights involved in connection with using the products.
In all cases, the customer is responsible for the implementation of safety measures suitable for the respective situation, e.g., network separation, firewalls, virus protection and
patch management.
8
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
2For your safety
2.1 Basic safety information
Read and always observe the safety and warning information in these Operating Instructions.
WARNING: Hazards thro ugh defe ctive devic e
The VICOTEC320 is likely to be unsafe when it:
● Shows visible damage on the outside.
● Has been penetrated by moisture.
● Has been stored or operated under irregular conditions.
When safe operation is no longer possible:
▸ Put the VICOTEC320 out of operation, separate all connectors from the
power supply and secure against unauthorized commissioning.
WARNING: Risk of explosions through explosive sample gas
▸ Do not use the VICOTEC320 to measure explosive, combustible or
flammable gases.
FOR YOUR SAFETY 2
WARNING: Explosion hazard in potentially explosive atmospheres
▸ Do not use the VICOTEC320 in potentially explosive atmospheres.
CAUTION: Eye injuries caused by improper handling of UV or blue light beams
The UV beam of the deuterium lamp or the blue light beam of the LED can
cause serious injuries through direct eye and skin contact. This results in the
following safety measures when working on the switched on device with access
to the light beam exit:
▸ Always wear UV protective goggles (in accordance with standard EN 170)
▸ The UV goggles do not provide protection against injuries caused by blue
light beams, therefore switch the LED off when working.
▸ Use the lamps only when they are perfectly safe. Operation is not allowed
when the lamp, supply lines or operating parts are visibly damaged.
Fig. 1: Sender/receiver unit
1 Light beam exit
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
9
2 FOR YOUR SAFETY
2.2 Intended use
Devices of the VICOTEC320 series only serve continuous measurement of concentrations
of certain gases, visibility and the temperature in the atmosphere in road tunnels.
2.3 Responsibility of user
▸ Only put the VICOTEC320 into operation after reading the Operating Instructions.
▸ Observe all safety instructions.
▸ If there is something you do not understand: Contact SICK Customer Service.
Designated users
All operators of the VICOTEC320 should be specifically trained on this device, knowledgable
of relevant regulatio ns, and able to assess potential hazards related to its operation.
The VICOTEC320 may only be maintained by persons properly instructed on the tasks
assigned, possible risks and protective measures.
Operation
The device may only be operated by authorized persons who, based on their training on,
and knowledge of the specific device, as well as knowledge of the relevant regulations can
assess the tasks given and recognize the hazards involved.
Installing and maintaining
Skilled persons are required for installation and maintenance.
Please observe the information at the beginning of the respective Sections.
Correct use
▸ Only operate the VICOTEC320 according to the intended use (see “Intended use”,
page 10).
▸ Follow all specifications in these Operating Instructions and only operate the
VICOTEC320 as described in these Operating Instructions.
Contact your local SICK representative before performing any work described where the
information in these Operating Instructions is inadequate or capable of being misunderstood.
▸ Keep passwords in a separate, safe place and secure against unauthorized use.
▸ Pay attention to the prescribed maintenance work.
▸ Do not change any settings on or in the device and do not modify any components when
such changes are not described in these Operating Instructions or in documents referred
to in these Operating Instructions.
Special local requirements
▸ Observe the local laws, regulations and company internal operating instructions
applicable at the installation location.
Retention of documents
10
These Operating Instructions:
▸ Must be available for reference.
▸ Must be passed on to new owners.
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
3 Product description
3.1 Product identification
Product name: VICOTEC320
Manufacturer:
3.1.1 Type plate
The type plate is located at the following positions:
Device Type plate location
Sender/receiver unit
Reflector
Connection unit
PRODUCT DESCRIPTION 3
SICK AG
Erwin-Sick-Str. 1 · D-79183 Waldkirch · Germany
Outside: Next to the connections
Inside: At the bottom of the left enclosure side
Outside: Next to the connections
Inside: At the middle of the right enclosure side
Outside: At the top of the right enclosure side
Inside: Next to the connections
Fig. 2: Type plate
1 Device name
2Type code
3Voltage supply
4 Max. power input according to IEC61010-1
5Bar code
6 CE label
7 China RoHS
8 Degree of protection (IP code)
9 Ambient temperature
10 Serial number
11 Material number
12 Company logo
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
11
3 PRODUCT DESCRIPTION
3.2 Product features
● Fast, representative local measurement
● Very low detection limits for NO and NO
●
Automatic function monitoring and zero adjust
● Independent maintenance prompt when contaminated
● Very sturdy design: IP 69K, stainless steel 1.4571
● Compatible to assembly consoles and measuring path lengths of the VICOTEC 410 from
SICK
3.3 Device variants
The following device variants are available depending on the measuring task and the
application:
Variant Measured components
VICOTEC 321 Measurement of visibility and NO
VICOTEC 322 Measurement of visibility and NO
VICOTEC 323 Measurement of visibility, NO and NO
VICOTEC 325 Measurement of visibility, NO, NO2 and NOx (option: CO)
2
2
2
The device variants differ with respect to the following:
● Measurable components
● Connection unit interfaces
The sender/receiver unit and the reflector are available for the following measuring
distances:
● 10 m
The connection unit is available with the following interfaces:
● Analog/digital
● Ethernet
● The connection unit can contain an optional CO sensor (electrochemical cell)
3.4 Special features
● Operating hour meter for sender lamp and logbook function
● High-precision adjustment through automatic mirror tracking
● Integrated ambient temperature measurement
● Reflector, heated
● Communication via CAN System bus or Ethernet (optional)
12
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
3.5 Layout and function
PRODUCT DESCRIPTION 3
Fig. 3: Layout of measuring device components
1Reflector
2 LED matrix to signal automatic beam tracking
3 Sender/receiver unit
4 Dust protection tube
5 Connection unit
6 Plug connections
3.5.1 Functional principle
The VICOTEC320 is a sensor system for continuous measurement of NO, NO
(option) concentrations as well as visibility and temperature in road tunnels.
The following functional principles are used:
● NO, NO
● CO: Electrochemical cell
● Visibility: Transmission measurement with blue LED
: DOAS (Differential Optical Absorption Spectroscopy)
2
and CO
2
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
13
4 PROJECT PLANNING
4 Project planning
4.1 Assembly project planning
4.1.1 Arrangement along the tunnel section
The number and distribution of measuring points depends on the ventilation system used.
Single factors are:
● Type of tunnel profile
● Section route
● Ventilation system design
● Number and arrangement of fans
● Regional regulations
Measuring point selection depends primarily on the following criteria:
● A combination of VICOTEC320 with VICOTEC 410 or VISIC100SF is recommended for
optimum measuring results.
● The recommended distance between visibility measurements depends on whether
these are also to be used for smoke detection:
– Without smoke detection: ≤ 400 m
– With smoke detection: ≤ 150 m
● We recommend VISIC50SF for smoke detection.
● An even spread along the tunnel length is recommended for semi and transverse
ventilation, with at least 2 measuring points per ventilation section.
● NO/NO
preferably at the tunnel exit in tunnels with one-way traffic.
● Two-way traffic can still arise in tunnels with one-way traffic. It is therefore recommended
to install at least 3 measuring points for visibility in tunnels with lengthwise ventilation:
one each about 150 m from the entrance and at least one in the middle of the tunnel.
● It is recommended to install additional fog sensors (e.g. VISIC620) near the tunnel
portals when there is a risk that fog can be sucked into the tunnel. Dust particles acting
as additional condensation crystals can strengthen the fog effect in the tunnel sections.
Fog moisture overlays visibility due to dust particles. Fog sensors serve to prevent fog
drifts being sucked into the tunnel. Alternately, visibility can be measured at the tunnel
portals using measuring devices (e.g. VISIC100SF or VICOTEC450) that heat the air
sucked in and therefore evaporate fog moisture.
● When the tunnel roadway curves, ensure that the measuring beam between single
sensors is not interrupted by the tunnel wall, fixtures or vehicles passing each other (see
see “Arrangement with special prerequisites”, page 16).
can be measured every 400 – 1000 m. Position the measuring points
2
4.1.2 Arrangement in cross-section profile
Particle concentration distribution in a tunnel is generally very even across the profile
cross-section during traffic movement. Traffic flows and lengthwise flows through natural
ventilation and the piston effect of vehicle movement in separate tunnel sections for each
direction effect rapid swirling of the air in the tunnel. The turbulence behind vehicles
strengthens this effect.
The height is not critical due to excellent swirling. A fitting height between 2.8 and
4.5 meters is aimed at. The sensors contaminate faster when fitted lower and the
maintenance effort increases when the sensors are fitted higher.
14
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
PROJECT PLANNING 4
VICOTEC
320 sensor
2.8 … 4.5 m
400
Fig. 4: VICOTEC320 fitting height
Fitting location selection of the respective sensor pairs depends primarily on the following
criteria:
● Mount the sensors at a safe distance from traffic movement (see for example Section 2
of the German “Richtlinie für die Ausstattung und den Betrieb von Straßentunneln
RABT”, version 2006 (Regulations governing equipping and operating road tunnels)).
● Good access for maintenance and checking work must be ensured. Locate the sensors
in a protected recess when possible.
● Do not locate sensors in close vicinity to ventilators or in the fresh air flow from blowout
units so that the measured value records the effective concentration ratios.
● The measuring beam must run lengthwise between sensors and must not be hindered
by fixtures or vehicles passing each other. Fixtures that shine (e.g. emergency exit signs)
should be at least 1 m from the optical axis.
● No reflecting paint should be on the wall between sensors.
● Maintain a distance of 10
● Plan sufficient clearance to be able to flap or remove the enclosure cover.
Measured values of gases are kept constant at first when the light beams are
interrupted. A malfunction message is sent to the evaluation unit when interruptions
last lo nger than two minutes.
±
0.1
m between both sensors.
Fitting options:
● Both sensors on a wall in a recess (recommended).
● Both sensors on a wall above the side strip; requires safety measures for maintenance
work in cramped conditions.
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
15
4 PROJECT PLANNING
A
R
1
A
R
2
4.1.3 Arrangement with special prerequisites
Tunnel curvature
The sensors can be used with tunnel curvatures up to the following curve radiuses:
Measuring section (A) 10 m
Inner radius (R
Outer radius (R
) Min. 58 m
1
) Min. 147 m
2
Fig. 5: Fitting sensors on the inner curve wall
Fig. 6: Fitting sensors on the outer curve wall
Tunnel with sound insulation wall
Provide appropriate assembly bases onsite when fitting sensors on a tunnel wall with
sound insulation.
The assembly bases must provide a firm base suitable for reliable sensor fitting.
16
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
PROJECT PLANNING 4
Fig. 7: Fitting sensors with sound insulation
1 Sound insulation
4.2 Electrical installation project planning
Observe the relevant safety regulations during all installation work. Take suitable
protective measures against all possible local risks or those arising in connection with
the system (see “For your safety”, page 9).
● Sender/receiver unit (2) must always be fitted on the left (see Fig. “Sensor arrange-
ment”, page 18), so that visor (4) is accessible.
● Position connection unit (1) so that it can be connected to the sender/receiver unit with
a 1 m long cable.
● It must be possible to separate every device singly from the power supply system, e.g.
using a switch or circuit breaker.
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
17
4 PROJECT PLANNING
Fig. 8: Sensor arrangement
1 Connection unit
2 Sender/receiver unit
3Reflector
4Visor
A Measuring path (10
B Max. 0.7 m (cable leng th max. 1 m)
B A
±0.1
m)
18
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
5 Installation
5.1 Tools required
Apart from standard tools (such as drill, water level, tape measure), you also need the
following tools for the installation:
–8 mm drill bit
–15 mm drill bit
–Blowout pump for dowel holes
–18 mm Allen key
–19 mm Allen key
–Jaw wrench, 22 mm
–Torque wrench
–Rubber or plastic hammer
– Two laser adjustment units (see “Accessories”, page 68)
5.2 Material required
– 2 stainless steel assembly consoles incl. fixing accessories
– Connection lines (see “Connection lines”, page 26)
INSTALLATION 5
5.3 Preparing the installation location
CAUTION: Accident risk through inadequate fastening of the device
▸ Consider the weight of the device when selecting fastenings.
▸ Check the load capability/state of the wall/rack on which the device is to be fitted.
Preparatory actions
▸ Secure the place of work
▸ Provide adequate lighting and power
▸ Provide a jack lift or stable ladder with clearance to wall
5.4 Transport
Only use the packing provided by SICK to transport sensors. Warranty claims are void
when this is not observed.
The packing can be obtained from SICK free of charge when required.
5.5 Scope of delivery
Included in scope of delivery:
● Sender/receiver unit (incl. screws for fastening on assembly console)
● Reflector (incl. screws for fastening on assembly console)
● Connection unit (incl. dowels and screws for wall fitting)
● Connection lines from the connection unit to the sender/receiver unit and to the
reflector
● Protective covers
Keep protective covers. Use protective covers when the equipment is put out of
operation for a short time (e.g. during tunnel cleaning).
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
19
5 INSTALLATION
Not included in scope of delivery:
● Stainless steel assembly consoles for the sensors
5.6 Assembly
Assembly work must only be carried out by skilled persons familiar with the assembly work.
5.6.1 Fitting the assembly consoles
The assembly consoles comprise 3 parts:
Fig. 9: Assembly console
1 Wall holder for wall fitting
2 Angle bracket to fasten the sensor
3Angle bracket screws
Two angle bracket screws fasten the wall holder and the assembly console together. The
angle bracket can be swiveled up to ±7.5° to compensate any assembly unevenness.
Observe the following points during assembly:
▸ Observe local valid safety measures.
▸ Only use high-strength and absolutely non-corrosive fastening material made of
stainless steel because the tunnel atmosphere is highly corrosive.
▸ Ensure there is enough space to remove the tube and device cover.
▸ Keep the length of the measuring section as exact as possible. Record small
deviations in the Assembly protocol.
▸ Mount both assembly consoles at the same height. Height differences in the optical
axis can be compensated later by swiveling the angle bracket.
▸ Align both assembly consoles at the same tilt angle to the tunnel wall. Different tilt
positions to the tunnel profile make the following sensor alignment difficult. Insert
washers under the wall holder when necessary.
Procedure
1 Determine the installation location for the assembly consoles according to the project
planning.
2 Drill the wall holder openings according to the Drilling plan, see see Fig. “Wall holder
assembly drilling plan”, page 21.
3 Insert dowels or wall ties according to the manufacturer's assembly specifications (walls
must be made of at least C20/25 to C25/30 concrete).
20
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
INSTALLATION 5
105105
210210
A
182
182
15
0
15
0
15
0
15
0
15
0
15 x 50
+2
0
15
0
4 Screw the wall holder on and tighten the screws with 70 Nm according to the
manufacturer's assembly specifications, use a torque wrench as necessary.
5 Screw the consoles on provisionally at first.
Fig. 10: Wall holder assembly drilling plan
Tolerances for measuring path A
±0.1
m
10
5.6.2 Fitting the VICOTEC320 sensors
1 Position the sender/receiver unit on the left assembly console and screw it on lightly
with both the retaining screws included in the delivery.
2 Position the reflector on the right assembly console and screw it on lightly with both the
retaining screws included in the delivery.
3 Screw a laser adjustment unit on each sensor above the tube using both knurled-head
screws.
Fig. 11: Laser adjustment unit
1 Crosshair
2Knurled-head screws
3 Adjustment laser
WARNING: Laser class 2
▸ Laser radiation – do not look in the beam.
4 Switch on the laser adjustment unit on the reflector.
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
21
5 INSTALLATION
5 Align the sensor horizontally so that the laser beam strikes the vertical line of the cross-
hair of the other laser adjustment unit see Fig. “Laser adjustment unit”, page 21). To do
this, tap very lightly against the front lower edge of the sensor enclosure with a rubber
hammer (see Fig. “Horizontal sensor alignment”, page 22).
Fig. 12: Horizontal sensor alignment
1 Retaining screws
2Angle bracket screws
6 Tighten both retaining screws of the sensor with 45 Nm, use a torque wrench as
necessary.
7 Slightly loosen the angle bracket screws.
8 Align the sensor vertically so that the laser beam strikes the horizontal line of the cross
hair of the other laser adjustment unit (see Fig. “Laser adjustment unit”, page 21). To do
this, tap very lightly against the front lower edge of the angle bracket with a rubber
hammer (see Fig. “Vertical sensor alignment”, page 22).
22
Fig. 13: Vertical sensor alignment
9 Tighten the angle bracket, use a torque wrench as necessary.
10 Check again whether the laser beam strikes the crosshair and correct as necessary.
11 Switch the laser adjustment unit off.
8011703/XF49/2019-09| SICKO PE RA T IN G I NS TR U CT IO N S | VICOTEC320
Subject to change without notice
12 Repeat steps 5 to 11 on the opposite sensor and laser adjustment unit.
105105
210210
A
182
182
15
0
15
0
15
0
15
0
15
0
15 x 50
+2
0
15
0
13 Unscrew and remove the laser adjustment unit.
5.6.3 Fitting the connection unit
Position the connection unit so that it can be connected to the sender/receiver unit with
the 1 m long cables.
1 Determine the installation location for the connection unit according to the project
planning.
2 Drill the openings according to the Drilling plan, see Fig. “Connection unit assembly drill-
ing plan”, page 23.
3 Insert dowels or wall ties according to the manufacturer's assembly specifications (walls
must be made of at least C20/25 to C25/30 concrete).
4 Screw the connection unit on.
INSTALLATION 5
Fig. 14: Connection unit assembly drilling plan
8011703/XF49/V3-1/2019-09| SICK O PE RA T IN G I NS TR U C TI ON S | VICOTEC320
Subject to change without notice
23
