Sick KUP-0606-F Data Sheet

Product data sheet

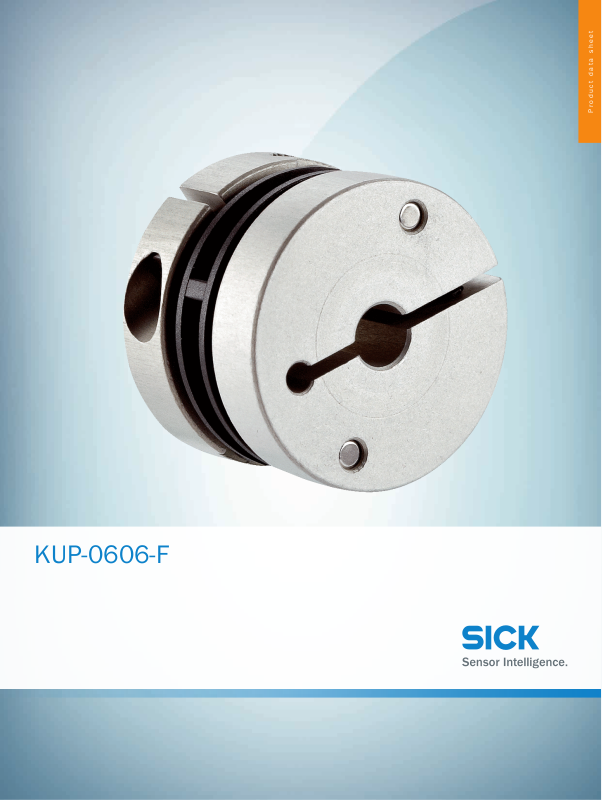

KUP-0606-F

A

B

C

D

E

F

H

I

J

K

L

M

N

O

P

Q

R

S

T

Ø d2

H8

Ø d1

H8

22 (0.87)

Ø 30 (1.18)

KUP-0606-F

Ordering information

Type Part no.

KUP-0606-F 5313773

Other models and accessories www.sick.com/

Detailed technical data

Technical specifications

Accessory group

Accessory family

Description

Specialty

Classifications

ECl@ss 5.0

ECl@ss 5.1.4

ECl@ss 6.0

ECl@ss 6.2

ECl@ss 7.0

ECl@ss 8.0

ECl@ss 8.1

ECl@ss 9.0

ECl@ss 10.0

ECl@ss 11.0

UNSPSC 16.0901

Shaft adaptation

Shaft couplings

Spring washer coupling, shaft diameter 6mm / 6mm

Max. shaft offset: radially +/- 0,3mm, axially +/-0,4mm, angle +/- 2,5 degrees;max. speed

12.000rpm, –10 to +80 degrees Celsius, torsional spring stiffness of 30Nm/rad

23031090

23031090

23031090

23031090

23031090

23031090

23031090

23031090

23031090

23031090

31163014

Dimensional drawing (Dimensions in mm (inch))

2 | SICK Product data sheet | 2020-08-16 02:29:48

Subject to change without notice
