Sick DOL-0J08-G0M5AA3 Data Sheet

Product data sheet

DOL-0J08-G0M5AA3

A

B

C

D

E

F

H

I

J

K

L

M

N

O

P

Q

R

S

T

DOL-0J08-G0M5AA3

Ordering information

Type Part no.

DOL-0J08-G0M5AA3 2046873

Other models and accessories www.sick.com/

Detailed technical data

Technical specifications

Accessory group

Accessory family

Connection type head A

Connection type head B

Cable

Jacket material

Jacket color

Cable diameter

Conductor cross-section

Shielding

Bending radius

Drag chain operation > 7.5x cable diameter

Signal type

Items supplied

Description

Classifications

ECl@ss 5.0

ECl@ss 5.1.4

ECl@ss 6.0

ECl@ss 6.2

ECl@ss 7.0

ECl@ss 8.0

ECl@ss 8.1

ECl@ss 9.0

ECl@ss 10.0

ECl@ss 11.0

ETIM 5.0

ETIM 6.0

ETIM 7.0

UNSPSC 16.0901

Plug connectors and cables

Connecting cables

Female connector, JST, 8-pin, straight

Flying leads

0.5m, 8-wire, PUR, halogen-free

PUR, halogen-free

Black

7.8mm

4x 2x 0.15mm²

Shielded

Stationary position > 5x cable diameter

Incremental, SSI

JST including sealing

Head A: female connector, JST, 8-pin, straight Head B: cable Cable: incremental, suitable for
drag chain, PUR, halogen-free, shielded, 4x 2x 0.15mm², Ø 5.6mm

19030312

19030312

27060304

27060304

27060304

27060304

27060304

27060304

27060304

27060304

EC000830

EC000830

EC003249

26121604

2 | SICK Product data sheet | 2020-08-15 09:31:33

Subject to change without notice

Dimensional drawing (Dimensions in mm (inch))

x

PIN

Color of the wires Signal SSI Signal TTL, HTL SIN/COS 1,0 V

SS

1 Brown Data- Ā COS–

2 White Data+ A COS+

3 Black V/R ¯ SIN–

4 Pink SET B SIN+

5 Yellow Clock+ ¯ ¯

6 Violet Clock- Z Z

7 Blue GND GND GND

8 Red +U +U

S

+U

S

B

Z Z

S

PIN assignment

DOL-0J08-G0M5AA3

2020-08-15 09:31:33 | Product data sheet

Subject to change without notice

| SICK 3

Online data sheet

SICK AG | Waldkirch | Germany | www.sick.com

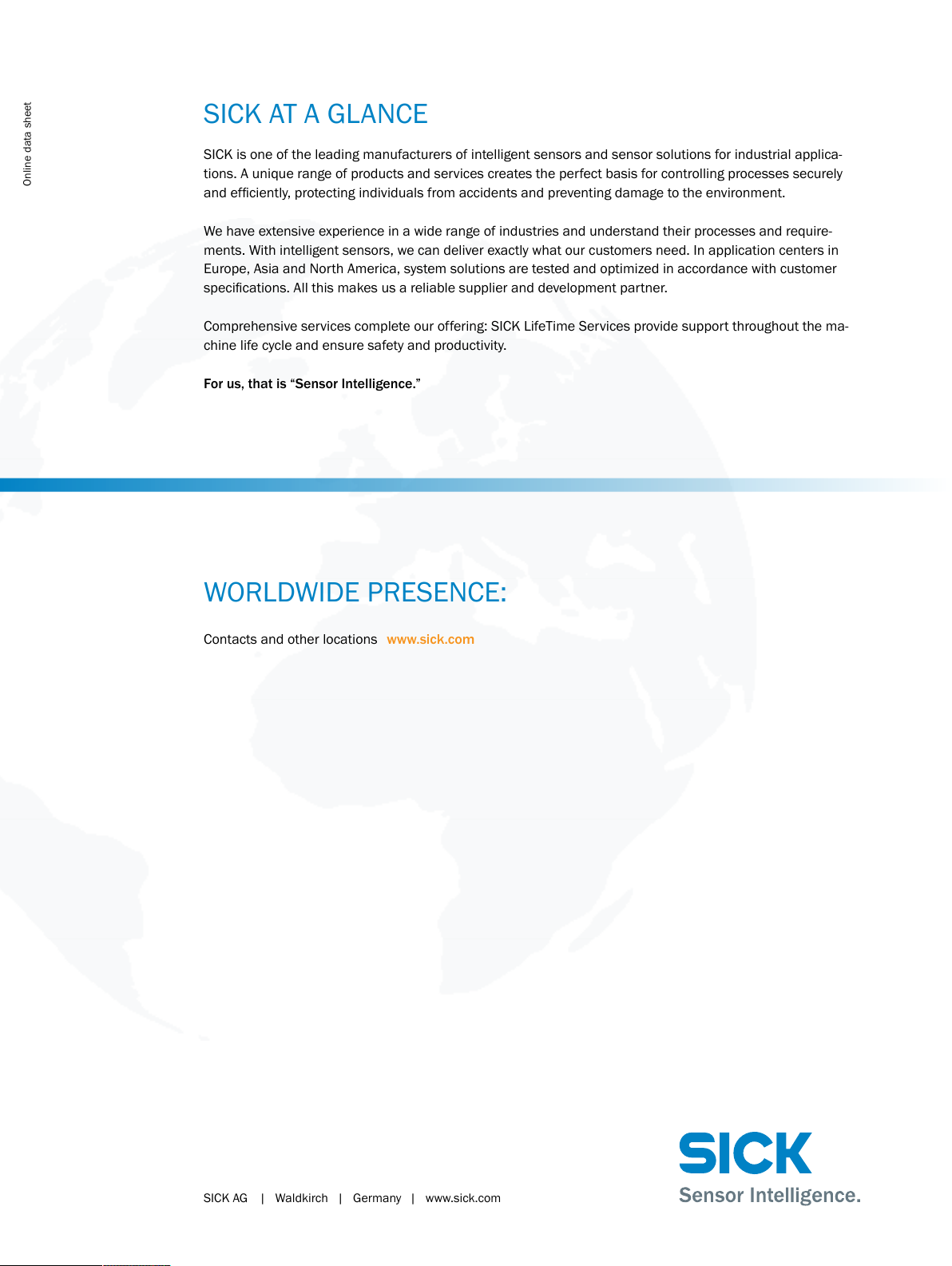

SICK AT A GLANCE
