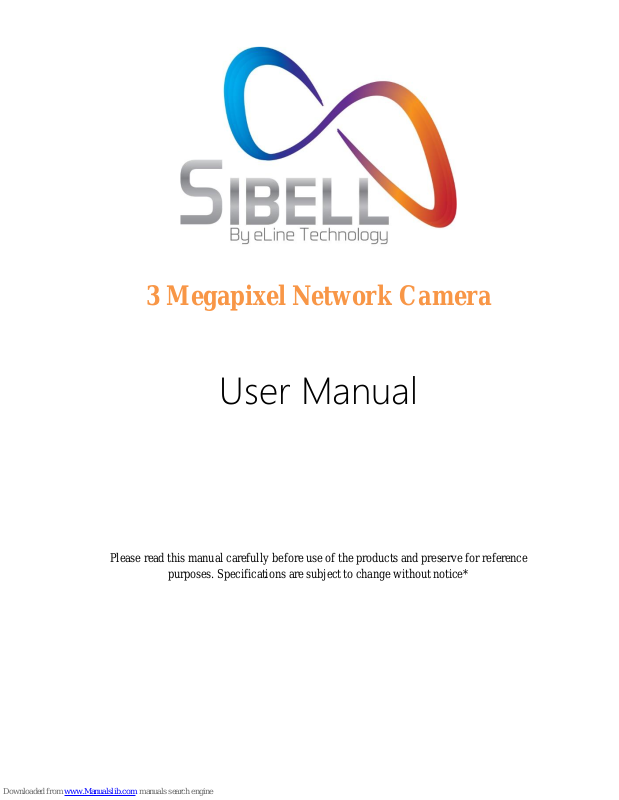

SIBELL SB3IREV User Manual

3 Megapixel Network Camera

User Manual

Please read this manual carefully before use of the products and preserve for reference

purposes. Specifications are subject to change without notice*

Notes on Safety

■ Please use the specified power supply to connect.

■ Do not attempt to disassemble the camera; in order to prevent electric shock, do not

remove screws or covers.

■ There are no user-serviceable parts inside. Please contact the nearest service center as

soon as possible if there is any failure.

■ Avoid shock, vibration, and heavy pressure which can cause damage to the product.

■ Do not use corrosive detergent to clean the main body of the camera. If necessary, use a

soft dry cloth to wipe dirt; for hard contamination, use neutral detergent. Any cleanser for
high-grade furniture is applicable.

■ Avoid aiming the camera directly towards extremely bright objects, such as the sun, as

this may damage the image sensor.

■ Please follow the instructions to install the camera. Do not reverse the camera or the

reversing image will be received.

■ Do not operate if temperature, humidity and power supply are beyond the limited

stipulations.

■ Keep away from heat sources such as radiators, heat registers, stove, etc.

■ Do not expose the product to the direct airflow from an air conditioner.

■ This is a product manual NOT a warranty. We may reserve the rights of amending the

typographical errors, inconsistencies with the latest version, software upgrades and
product improvements, interpretation, and modification. These changes will be published
in the latest version without special notification.

■ When this product is in use, the relevant contents of Microsoft, Apple and Google will be

involved in. The pictures and screenshots in this manual are only used to explain the
usage of our product. The ownerships of trademarks, logos and other intellectual
properties related to Microsoft, Apple and Google belong to the above-mentioned
companies.

■ This manual is suitable for IR waterproof network camera. All pictures and examples

used in the manual are for reference only.

Table of Contents

1 Introduction ................................................................................................................... 1

2 IE Remote Access ........................................................................................................... 2

2.1 LAN ................................................................................................................... 2

2.1.1 Access through IP-Tool ............................................................................ 2

2.1.2 Directly Access through IE ....................................................................... 3

2.2 WAN .................................................................................................................. 5

3 Remote Preview ............................................................................................................. 8

3.1 The Remote Preview Interface ........................................................................... 8

4 Remote Live Surveillance .............................................................................................. 9

4.1 System Configuration ........................................................................................ 9

4.1.1 Basic Information ..................................................................................... 9

4.1.2 Date & Time ............................................................................................. 9

4.1.3 Local Configuration ................................................................................ 10

4.2 Image Configuration ........................................................................................ 10

4.2.1 Display Configuration ............................................................................ 10

4.2.2 Video Stream .......................................................................................... 11

4.2.3 OSD Configuration ................................................................................. 12

4.2.4 Video Mask ............................................................................................ 12

4.2.5 ROI Configuration .................................................................................. 13

4.3 Alarm Configuration ........................................................................................ 14

4.3.1 Motion Detection .................................................................................... 14

4.3.2 Alarm Server .......................................................................................... 16

4.4 Network Configuration ................................ ................................ .................... 17

4.4.1 TCP/IPv4 ................................................................................................ 17

4.4.2 Port ......................................................................................................... 18

4.4.3 Central Server ......................................................................................... 18

4.4.4 DDNS Configuration .............................................................................. 18

4.4.5 SNMP ................................................................ ................................ ..... 20

4.4.6 RTSP ....................................................................................................... 21

4.4.7 UPNP ...................................................................................................... 21

4.4.8 Mail configuration .................................................................................. 21

4.4.9 FTP Setting ................................ ................................ ............................. 22

4.5 Security Configuration ..................................................................................... 23

4.5.1 User Configuration ................................................................................. 23

4.5.2 Online Video User .................................................................................. 25

4.5.3 Block and Allow List .............................................................................. 25

4.6 Maintenance ..................................................................................................... 25

4.6.1 Backup & Restore ................................................................................... 25

4.6.2 Reboot Device ........................................................................................ 26

4.6.3 Upgrade .................................................................................................. 26

4.6.4 Log ......................................................................................................... 27

Network Camera User Manual

5 Search ........................................................................................................................... 28

Appendix ................................................................................................................................ 29

Appendix 1 Q & A .............................................................................................................. 29

Appendix 2 Specifications ................................................................ ................................ .. 30

1

Network Camera User Manual

1 Introduction

This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state of the art video processing chips. It utilizes most advanced technologies, such as
video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to
ensure this system more stable and reliable.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks.

Main Features

 ICR auto switch, true day/night
 3D DNR, digital WDR
 ROI coding
 Support smart phone, iPad, remote monitoring

Surveillance Application

2

Network Camera User Manual

2 IE Remote Access

You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example. The
details are as follows:

2.1 LAN

In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access
through IE browser.

2.1.1 Access through IP-Tool

Network connection:

① Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the
PC from the CD.

② Double click the IP-Tool icon on the desktop to run this software as shown below:

③ Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the

information of the camera listed in the above table to show the network information on the
right hand. Modify the IP address and gateway of the camera and make sure its network

address is in the same local network segment as the computer’s. Please modify the IP address

3

Network Camera User Manual

of your device according to the practical situation.

For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera
shall be changed to 192.168.1.X. After modification, please input the password of the
administrator and click “Modify” button to modify the setting.



④ Double click the IP address and then the system will pop up the IE browser to connect
IP-CAM. IE browser will auto download the Active X control. After downloading, a login

window will pop up as shown below.

Input the username and password to log in. If you input the wrong password for the first time,
you shall wait for 10 seconds and then input the right password.



2.1.2 Directly Access through IE

The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0

The default password of the administrator is “123456”.

The default username is “admin”; the default password is “123456”.

4

Network Camera User Manual

Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
You may use the above default settings when you log in the camera for the first time. You may
directly connect the camera to the computer through network cable.

① Manually set the IP address of the PC and the network segment should be as the same as

the default settings of the IP camera. Open the network and share center. Click “Local Area

Connection” to pop up the following window.

Select “Properties” and then select internet protocol according to the actual situation (for
example: IPv4). Next, click “Properties” button to set the network of the PC.

5

Network Camera User Manual

② Open the IE browser and input the default address of IP-CAM and confirm. The IE

browser will download Active X control automatically.

③ After downloading Active X control, the login dialog box will pop up.
④ Input the default username and password and then enter to view.

2.2 WAN

 Access through the router or virtual server

① Make sure the camera is well connected via LAN and then log in the camera via LAN. Go
to ConfigNetwork Port menu to set the port number.

② Go to Config Network  TCP/IPv4 menu to modify the IP address.

6

Network Camera User Manual

③ Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.

Router Setup

④ Open the IE browser and input its WAN IP and http port to access.

 Access through PPPoE dial-up

Network connection

You may access the camera through PPPoE auto dial-up. The setting steps are as follow:

7

Network Camera User Manual

① Go to ConfigNetwork Port menu to set the port number.
② Go to Config Network TCP/IPv4PPPoE Config menu. Check “Enable ” and then

input the user name and password which you can get from your internet service provider.

③ Go to Config Network DDNS menu. Before you configure the DDNS, please apply for
a domain name first. Please refer to DDNS Configuration for detail information.

④ Open the IE browser and input the domain name and http port to access.

 Access through static IP

Network connection

The setting steps are as follow:

① Go to ConfigNetwork ConfigPort menu to set the port number.
② Go to Config Network ConfigIP Address menu to set the IP address. Check “Use the

following IP address” and then input the static IP address and other parameters.

③ Open the IE browser and input its WAN IP and http port to access.

8

Network Camera User Manual

3 Remote Preview

3.1 The Remote Preview Interface

After you log in, you will see the following window.

The following table is the instructions of the icons on the remote preview interface.

Icon

Description

Icon

Description

Motion alarm indicator
icon

Start/stop live view

Original size

Snap

Appropriate size

Start/stop record

Auto

Zoom in

Full screen

Zoom out

 When motion detection alarm is triggered, the people icon will turn red.
 In full screen mode, right click to exit.
